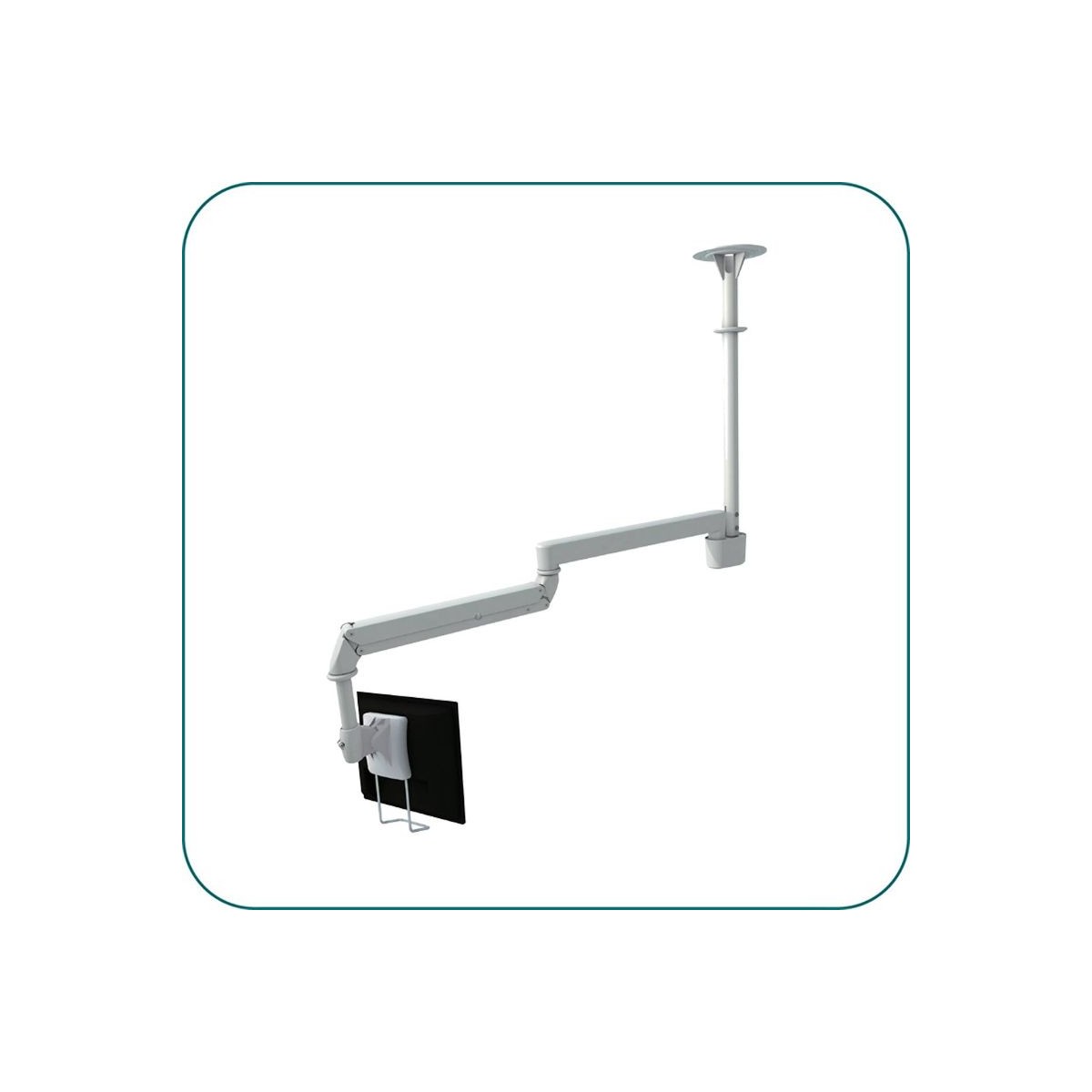

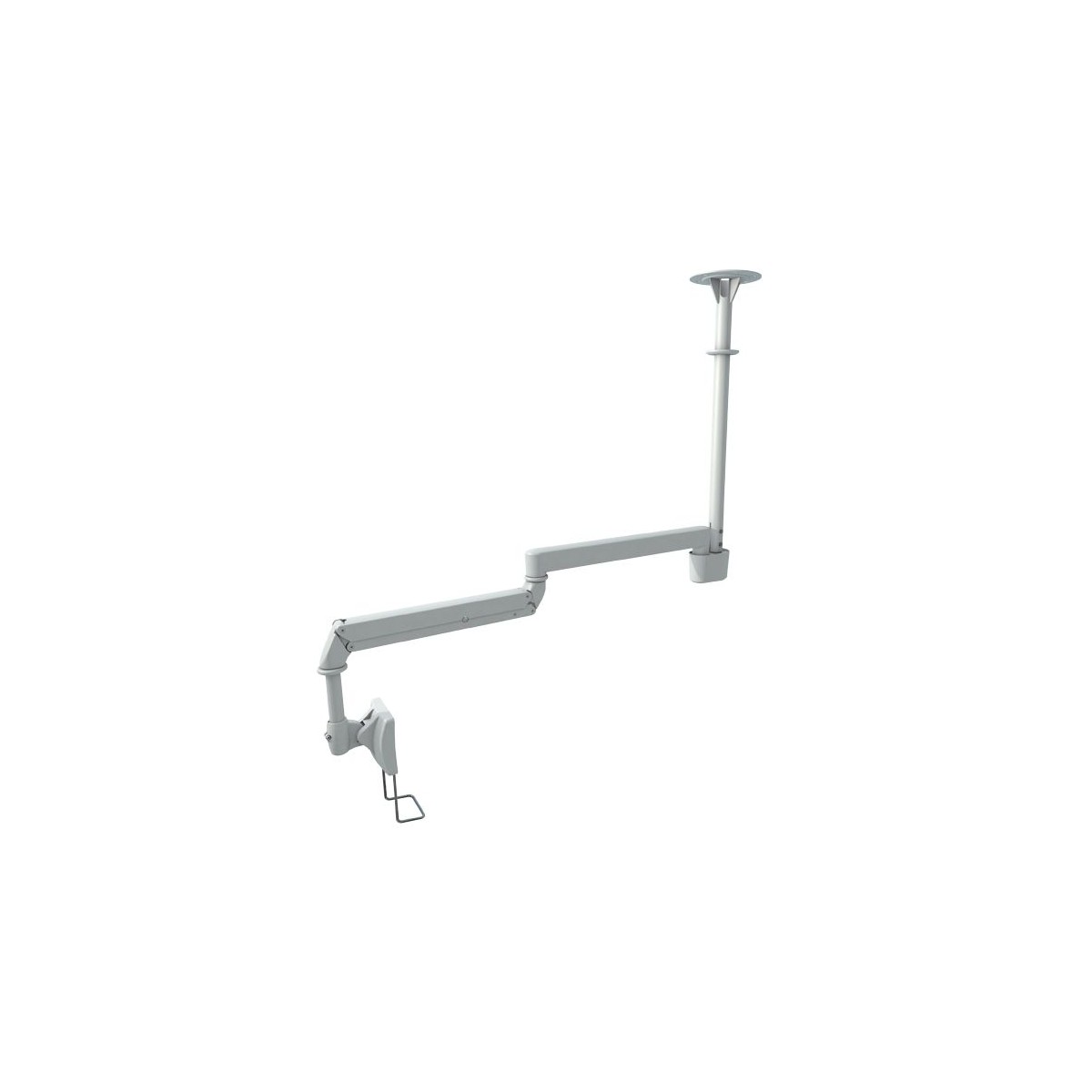

Aavara AMR20 Cantilever Medical ARM (Capacity 2.5-6.5kg) - Ceiling Type

Product code: AMR20

Aavara is pround to present the Ceiling Cantilever Medical ARM. It's a professional design with Ergonomic Expertorque™ Technology for the well-being of Healthcare Industry. It equipped two swivel and tilt display mount up to 24 inch with VESA Mounting 100x100mm.

Optimized for ergonomic cantilever medical arm and features height adjustment range up to 671mm/ 26.42 inch. Market application in Healthcare, Medical Center, Institute as well as wherever needs a long adjustable arms for best viewing angle.

SEND AN ENQUIRY

Description

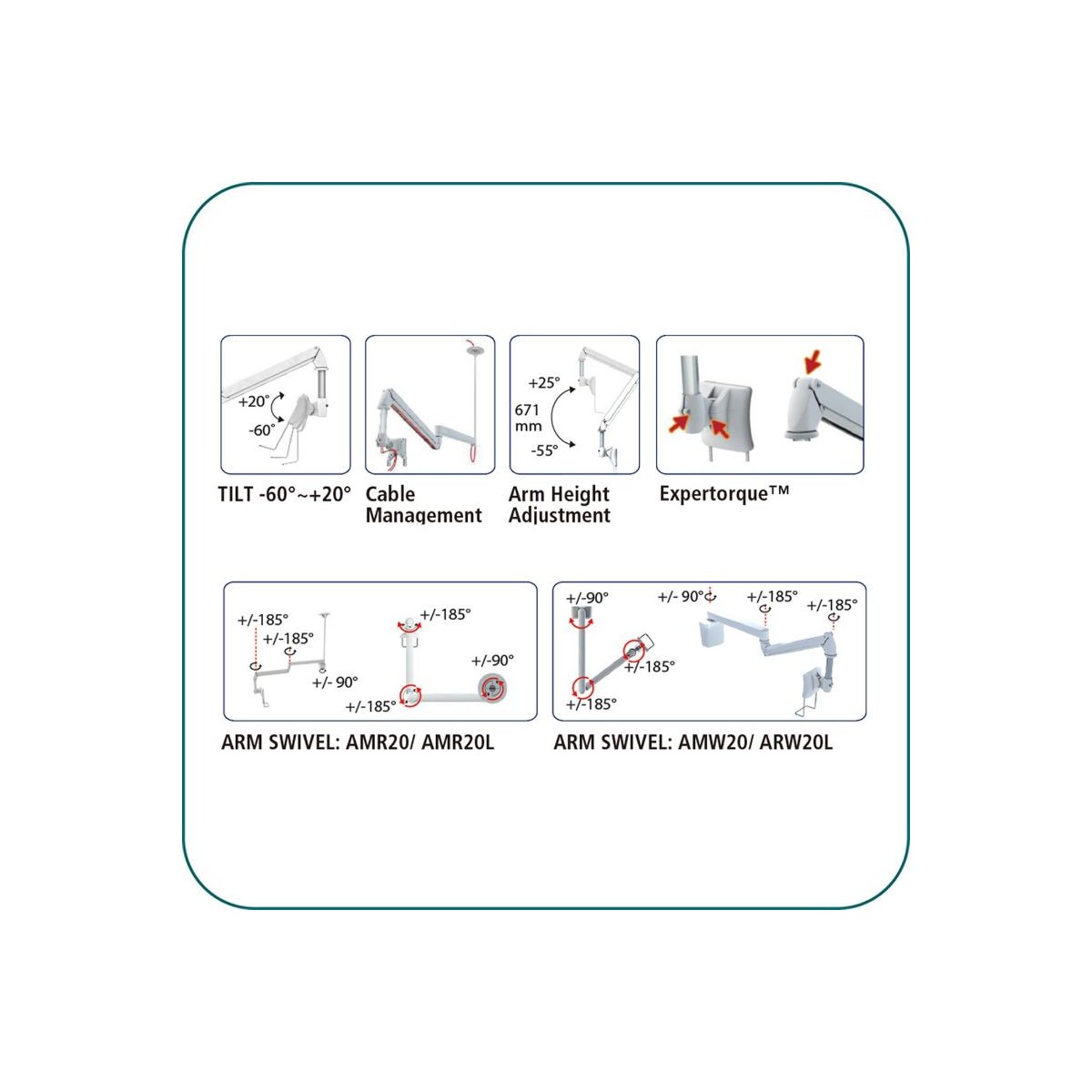

FEATURES

• Professional design with Ergonomic Expertorque™ Technology for the well-being of Healthcare Industry
• Adjustable Cantilever Medical ARM
• Display features Tilt -60° ~ +20° and Swivel +/-185°
• Arm Tilt range -55°(down) ~ +25°(up) for best viewing angle
• Arm full extension up to 1,504 mm/ 59.21”
• ExperTorque™ design for easy adjustment hinged by display weight
• Smart Cable Management System to align messy cables in order

Additional information

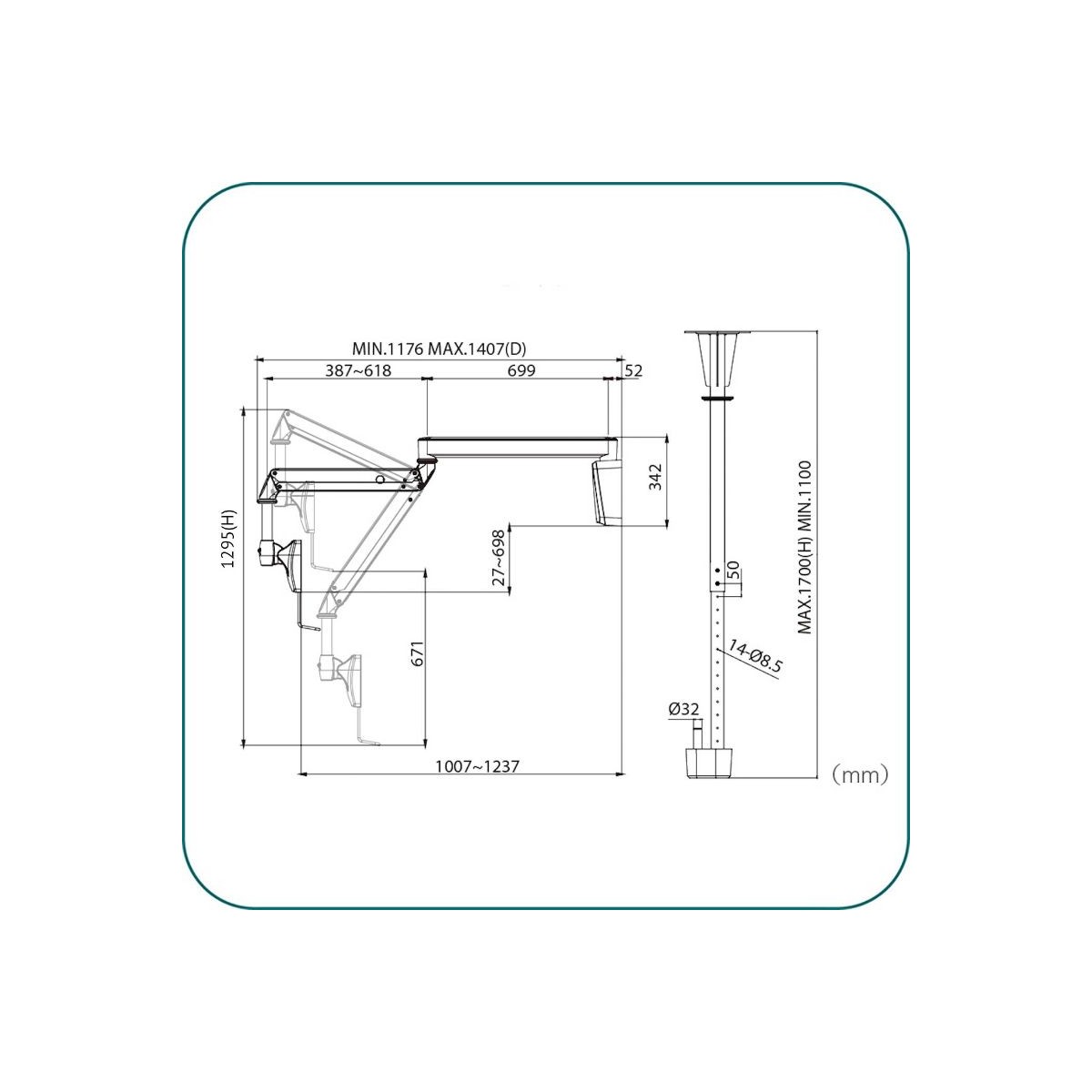

SPECS.

Flat Panel Size: 15"-24"/ 38-61cm
Loading Capacity: 2.5~6.5kg
VESA: 100x100/75x75mm
Display TILT: -60° ~ +20°
Swivel: +/-185°
Pivot: 360°
Extended Arm: 2
Arm full extension: 1,504 mm/ 59.21”
Arm Height Adjustment Range: 671mm/ 26.42"
Arm TILT: -55°(down) ~ +25°(up)
ExperTorque™ Technology: Yes
Smart Cable Management: Yes
Material: Steel/ Aluminum Alloy/ Plastic
