Multibrackets 7350105210464 M Pro Series - Push in Pop out Arms 600 mm
Product code:M Pro Series - M Push in Pop out, 600 mm - Push in Pop out Arms, Part for Pro Series, steel, length: 600 mm 30kg max weight capacity, +0°/-3° tilt angle, 2 pcs - black
SEND AN ENQUIRYDescription
The M Pro Series – M Push in Pop out Pro, 600 mm Videowall mount might just be one of the markets most innovative and easy to install video wall mounts available.
With numerous post installation possibilities and a tailored pantograph alignment system this might be the most easy to use, yet one of the most powerful video wall mount system you have seen.
With the market for Menu boards and Video Wall installations growing at a fantastic pace, the need for a high quality, affordable and installer friendly mounting equipment has become in the need by many. Our Pro Series M Push in Pop out Pro, 600 mm is a video a wall solution quick to install, and easy to configure. Made especially for menu board, video wall applications in mind. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. Making it an installers dream.
Easy-access to your after-service

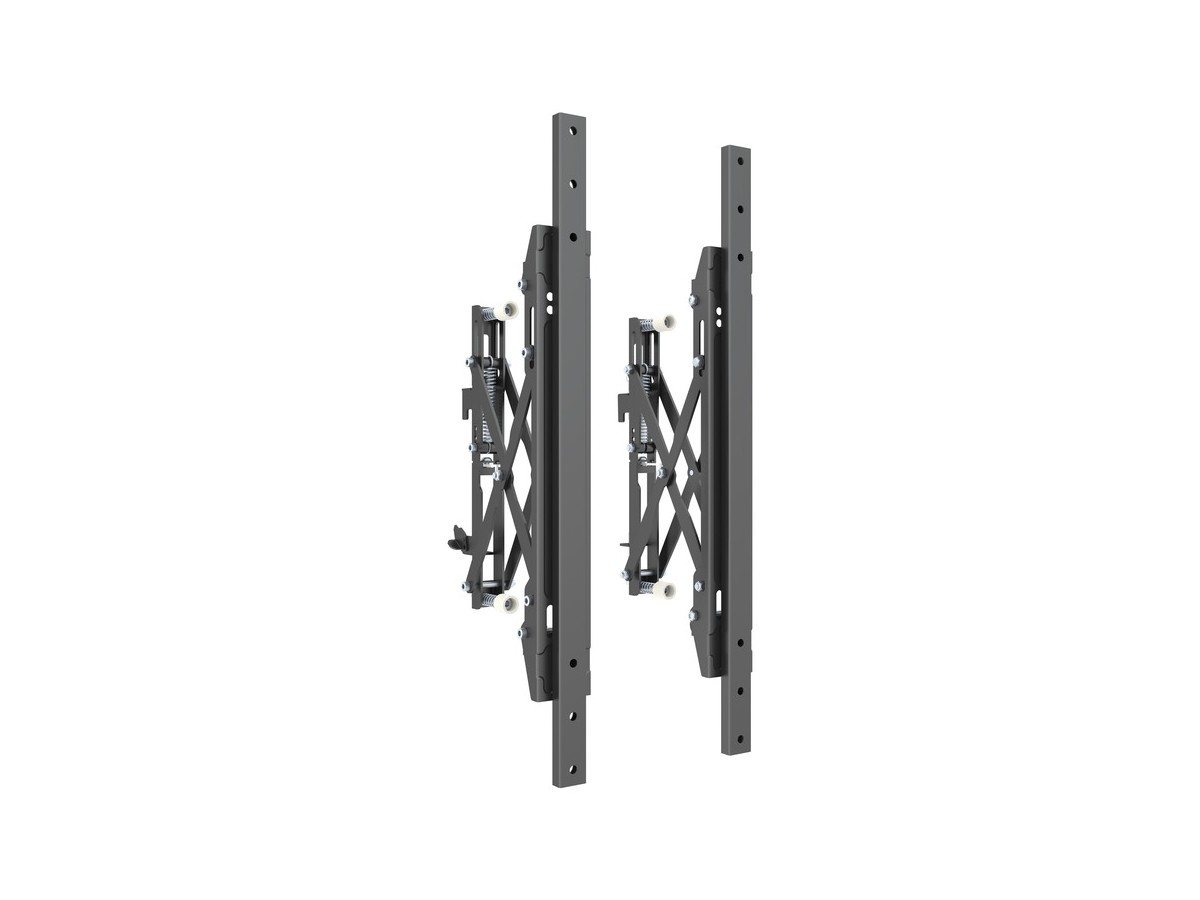

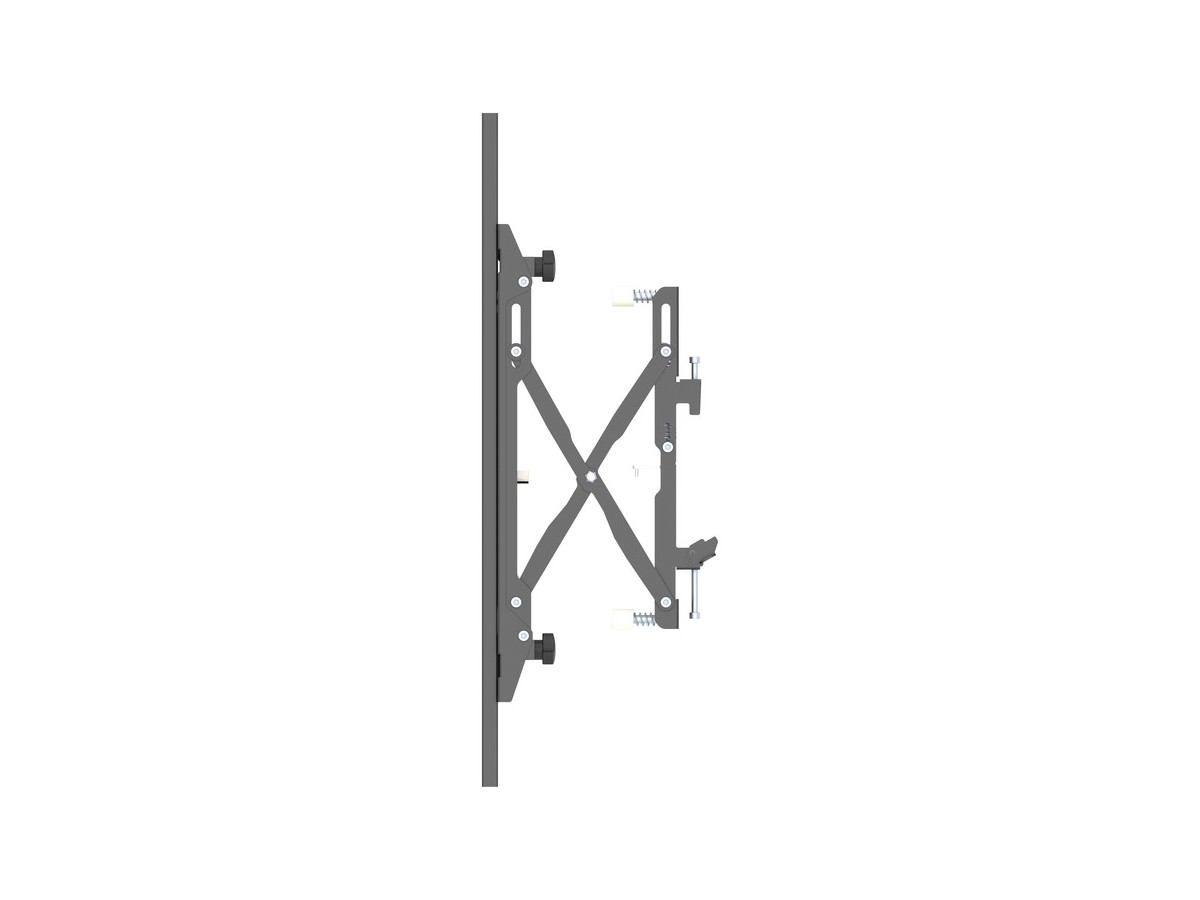

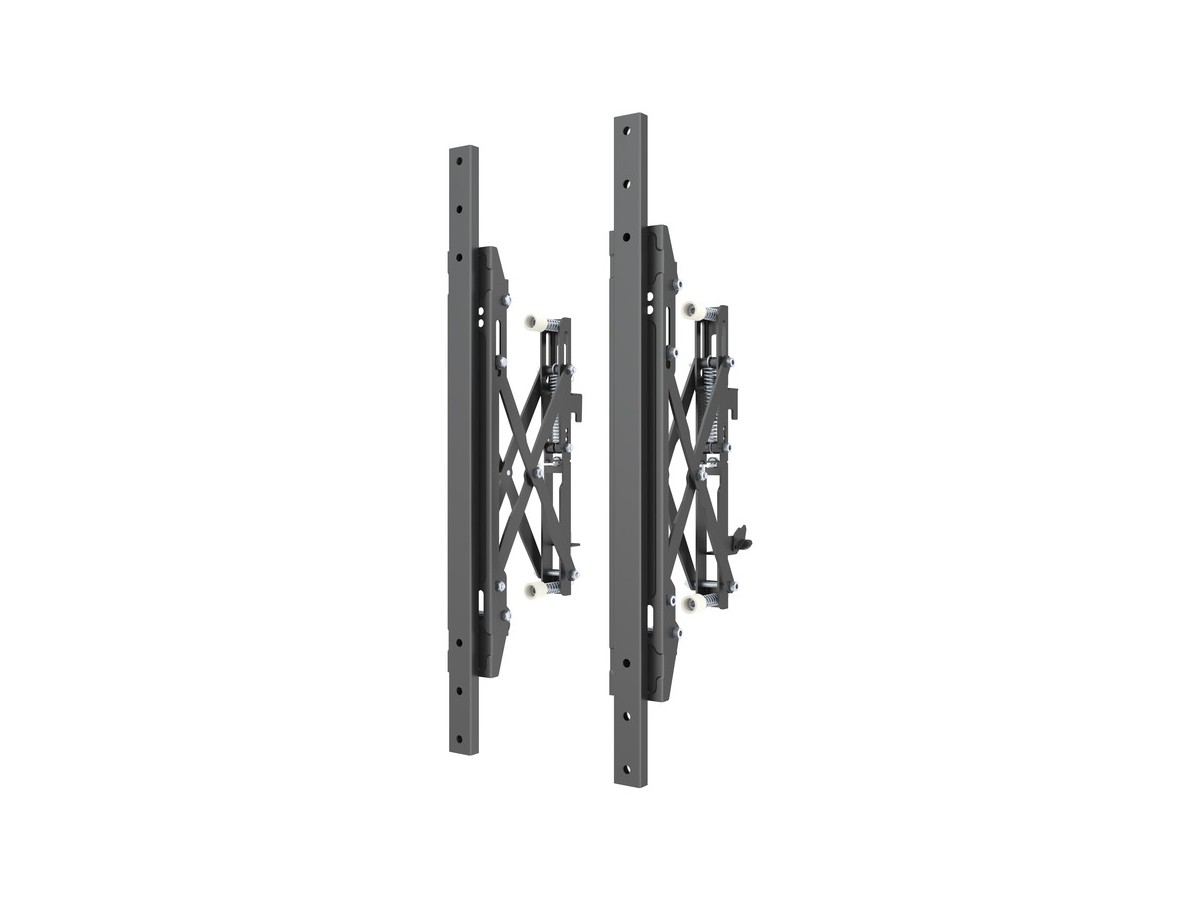

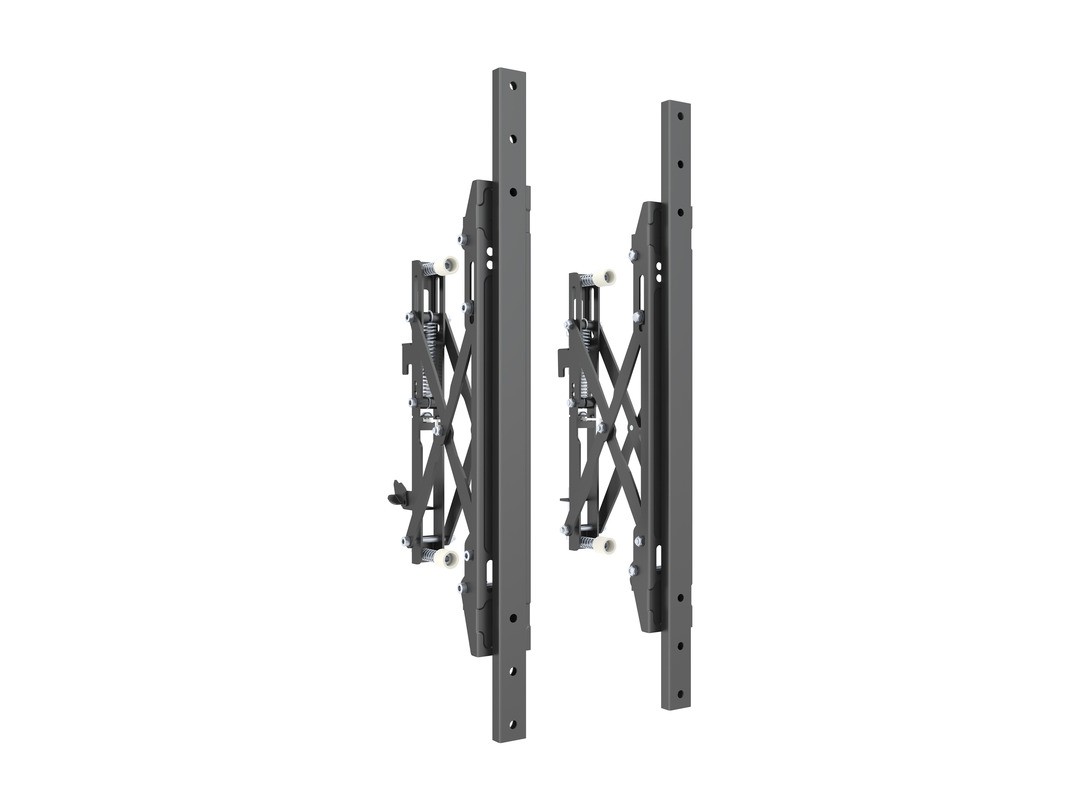

The "Pop out" feature gives easy-access to any display for quick serviceability. This is often one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Simply push against the screen to release the lock, then the screen will pop out, you do not need to remove any other screens to access a center screen for maintenance or when placed in recessed areas. The pop out feature is handled by its scissor arm construction expanding out. Of course the screen is as easily pushed back into place after maintenance is finished.
Knobs making detailed adjustments an ease
With the built in fine tune adjustments each of the M Push in Pop out Pro, 600 mm can be adjusted individually to match "its neighboring screens". By 8 knobs the screens can be adjusted in depth, side and height. What before could take hours for an installer to measure and re install, is now fixed in a matter of minutes.
Truly an installers dream come true.
 |
Additional information
| Article No: | 7 350 105 210 464 |

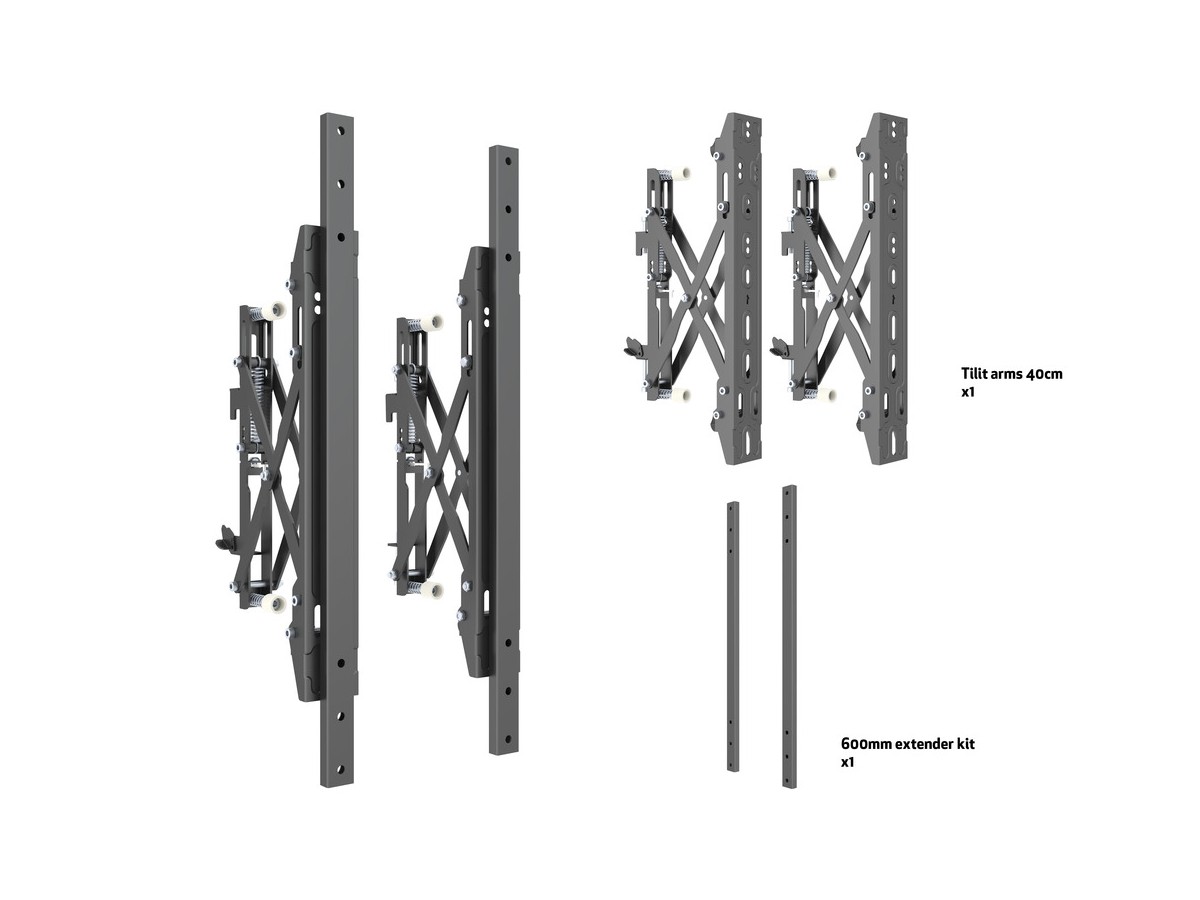

| Article Combination of: | 4726+4733 |
| For screen size: | 40”-65" |
| Type: | Part for M Pro Series |
| Universal & VESA standard: | Adjustable from 100x100 to 400x400 max |
| Material: | Steel |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 4.5 kg (2 pcs) |
| Measurements | 950x110x88 mm |
| Max Load: | 30 kg per screen |
| Height adjustment: | Yes, 0-10mm |
| Depth adjustment: | Yes, 74-225mm |
| Tilt adjustment: | Yes, ±3° |
| Warranty: | 5 years |

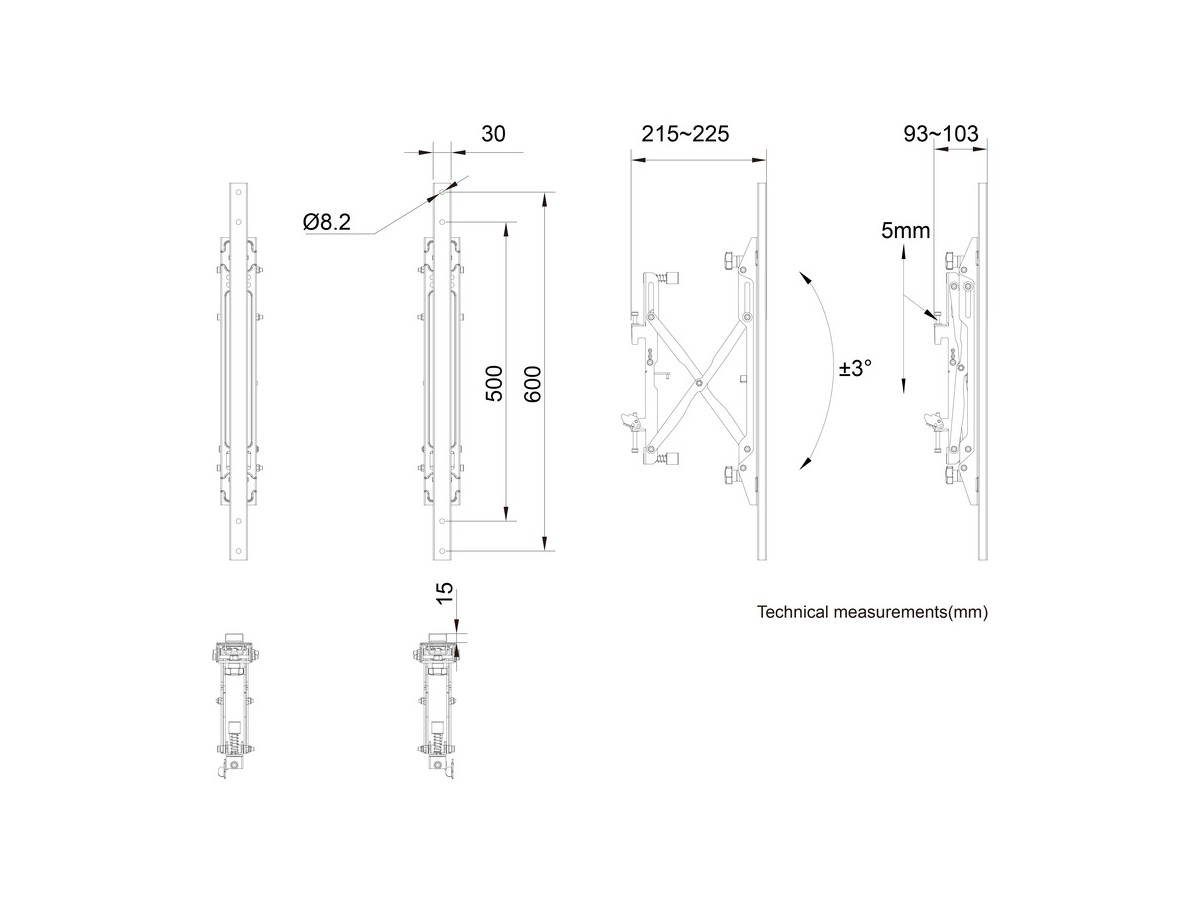

0464-drawing
