Aavara CMH01 Powered Mobile Medical Cart with Manual LIFT - Single Monitor with height adjustment Type

Product code: CMH01

Aavara is pround to present the Powered Mobile Medical cart series. CMH01 is equipped with battery, UPS Charger and Manual LIFT for max. efficiency in Healthcare environment.

Suitable for Healthcare, Workstation, Medical Care and wherever needs mobility of powered equipment in your working space.



Complete Spec

Overall Load Capacity: 15 kg /33 lbs
Net Weight: 69.5 kg /152.9 lbs
Combinated Accessories Expansion: YES
Packaged Dimension: 80x64x145cm

Power System

Input Voltage:
AC-in 100~240V 50/60 Hz
Batteries: by request
AC-in Power Outlet: IEC Compliant
Cables: Pre-routed

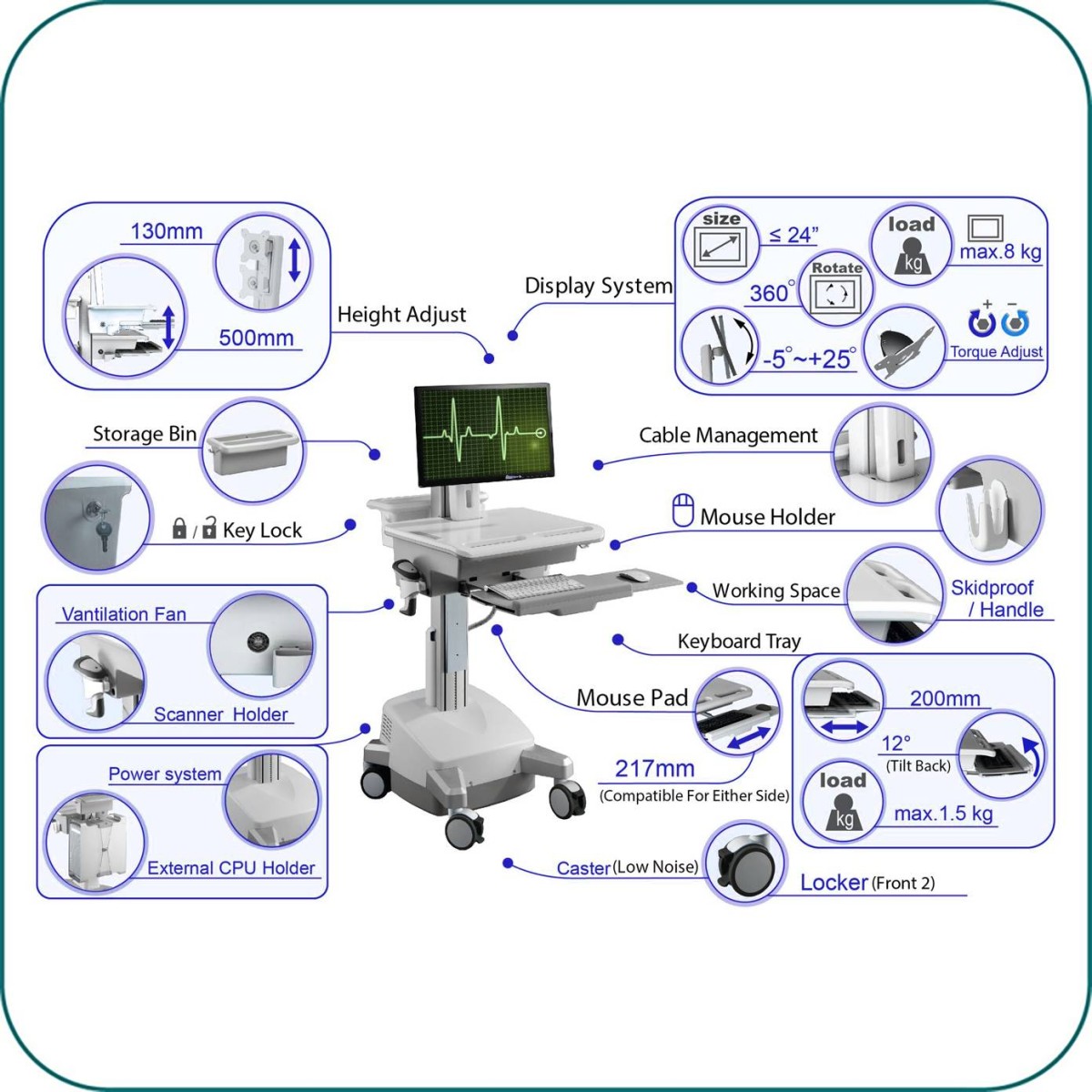

User Interface

Control Panel:
LED Display - including Power/Status Indicators
Keyboard Light: 4 LEDs under the Desk Handle
Battery Control Software: Yes


Swivel: N/A
Tilt: -5° ~ +25°
Pivot: 360°
ExperTorque™ Technology: YES
(Torque easy adjustment hinged by monitor weight)

Display Support

VESA: 100x100mm / 75x75mm
Display Type: Single Monitor w/ height adjust
Panel Size Support: 15"-24"/ 38-61cm
Max. Weight Load: 8 kg /17.6 lbs

Height Adjustment

Height Adjust Range: 130 mm /5.12"
Tension Torque Adjustment: Yes
Cable Management: Yes

Additional information

Workspace & Storage

Open Workspace

Dimension: 482 x 261 mm /18.98" x10.28"
Max. Loading Capacity: 7.5 kg / 16.5 lbs
Skidproof at edge: YES
Rear Handle: YES
Surface Coating: YES


Dimension: W425 x D325 x H90 mm/16.73" x12.8" x3.54"
Key Lock: YES
Ventilation Fan: YES
Scanner Holder: YES
Storage BIn: YES
External CPU Holder: YES

Keyboard & Mouse

Keyboard Tray Dim.: 449 x 207 mm /17.68" X8.15"
Wrist Comfort: YES
Tilt: Max. 12° (backward)
Mouse Pad Dim.:217 x 213 mm /8.54" x 8.39"


Lift Handle: Yes
Height Adjust Range: 500 mm /19.7"
Tension Torque Adjust: NA
