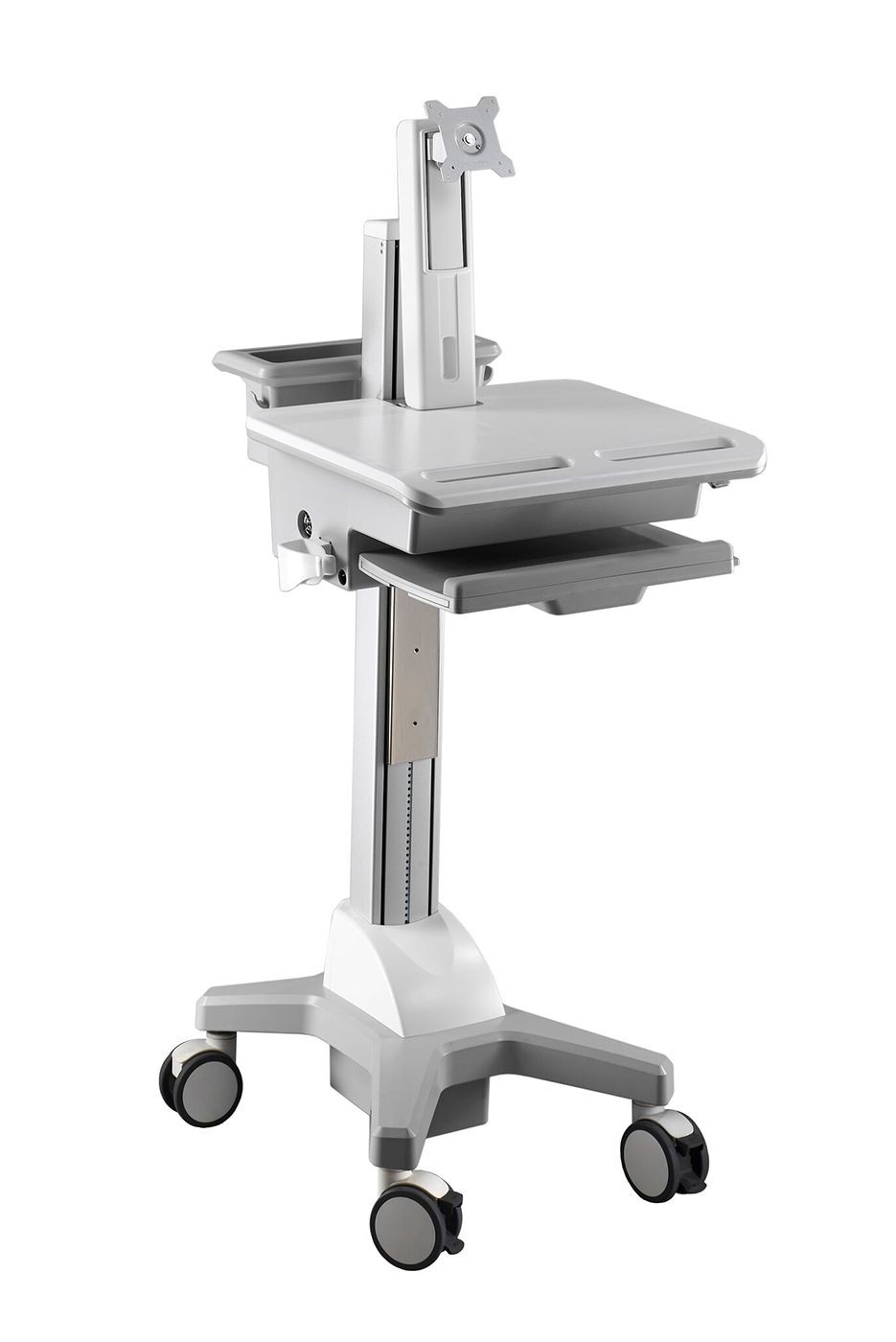

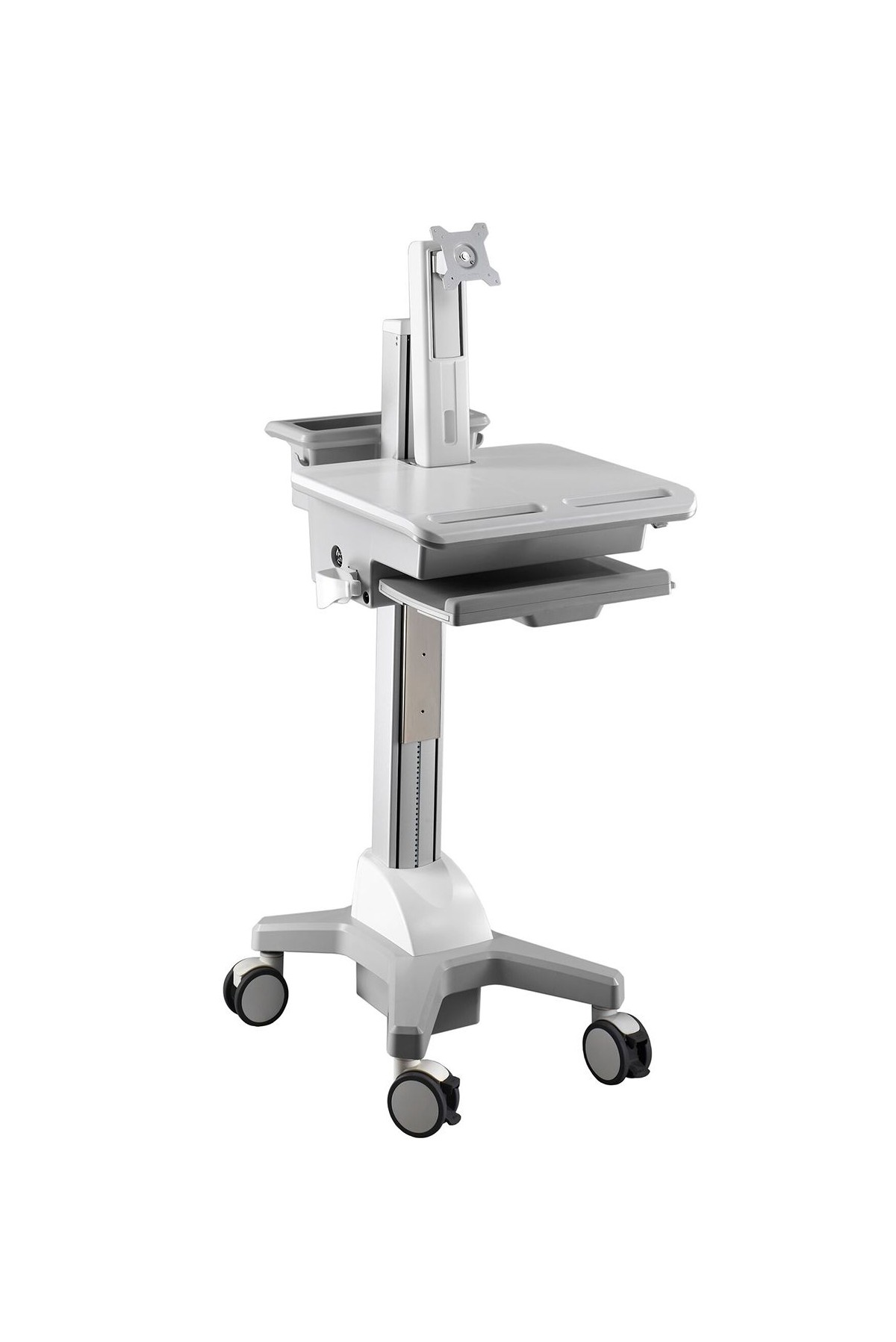

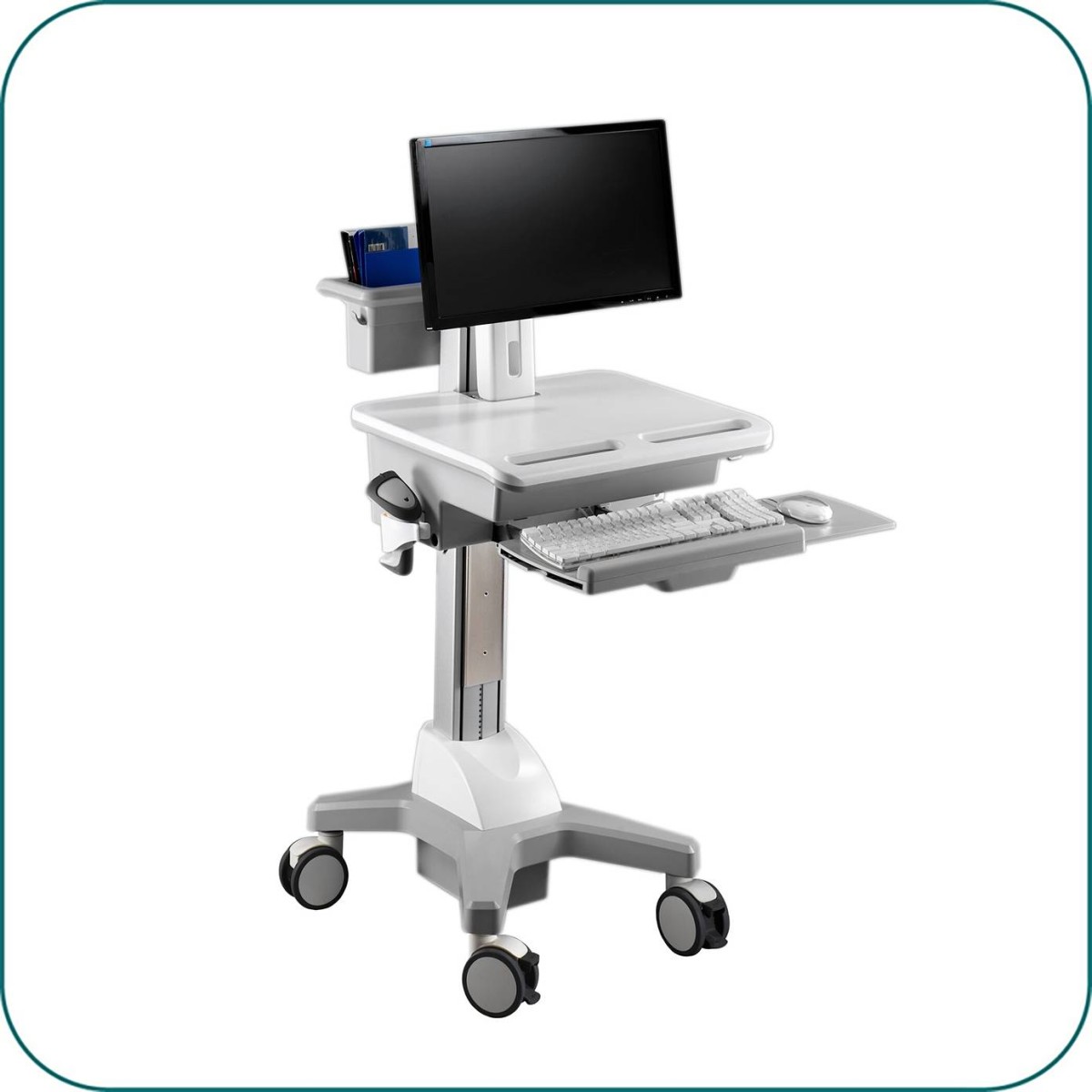

Aavara CNH01 Mobile Medical Cart - Single Monitor with height adjustment Type

Product code: CNH01

Aavara CNH01 is the Mobile Medical cart, equipped with Dual display mounts 15"-24" and modularized CPU Holder/ Storage space/ Work station kit. It designed with manually lift to adjust the heights and working surface embedded with Storage compartment, key lock and ventilation.

Suitable for Healthcare, Workstation, Medical Care and wherever needs mobility of equipment in your working space.

SEND AN ENQUIRY

Description

Complete Spec

Overall Load Capacity: 15 kg /33 lbs
Net Weight: 69.5 kg /152.9 lbs

Combinated Accessories Expansion: Yes

Packaged Dimension

DIM: 80x64x145cm

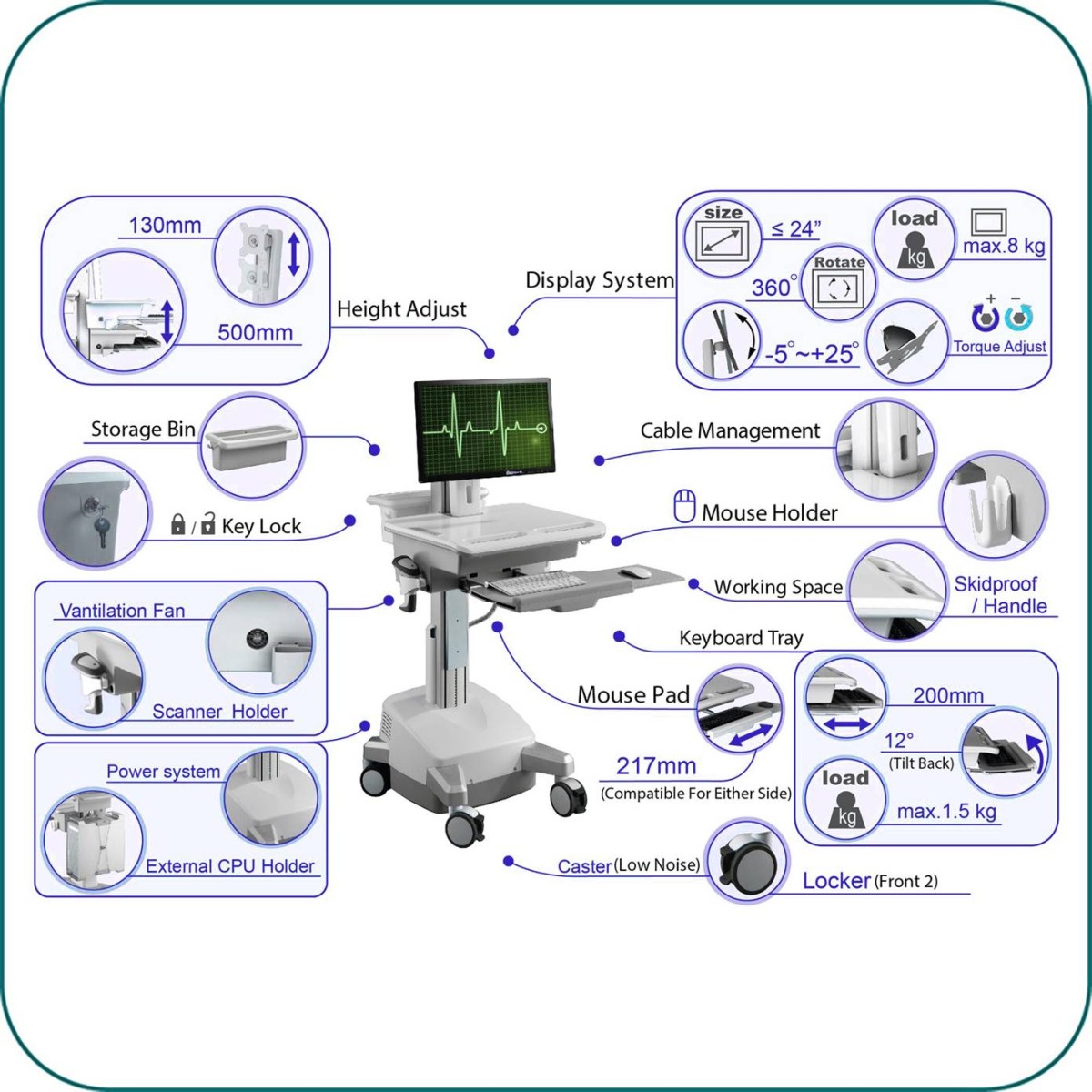

Features

Swivel: N/A
Tilt: -5° ~ +25°
Pivot: 360°
ExperTorque™ Technology: YES
(Torque easy adjustment hinged by monitor weight)

Display Support

VESA: 100x100mm / 75x75mm
Display Type: Single Monitor w/ height adjust
Panel Size Support: 15"-24"/ 38-61cm
Max. Weight Load: 8 kg /17.6 lbs

Height Adjustment

Height Adjust Range: 130 mm /5.12"
Tension Torque Adjustment: Yes
Cable Management: Yes

Additional information

Workspace & Storage

Open Workspace

Dimension: 517 x 261 mm /20.35" x10.28"
Max. Loading Capacity: 7.5 kg / 16.5 lbs
Skidproof at edge: YES
Rear Handle: YES
Surface Coating: YES

Compartment

Dimension: W425 x D325 x H90 mm/16.73" x12.8" x3.54"
Key Lock: YES
Ventilation Fan: YES
Scanner Holder: YES
Storage BIn: YES

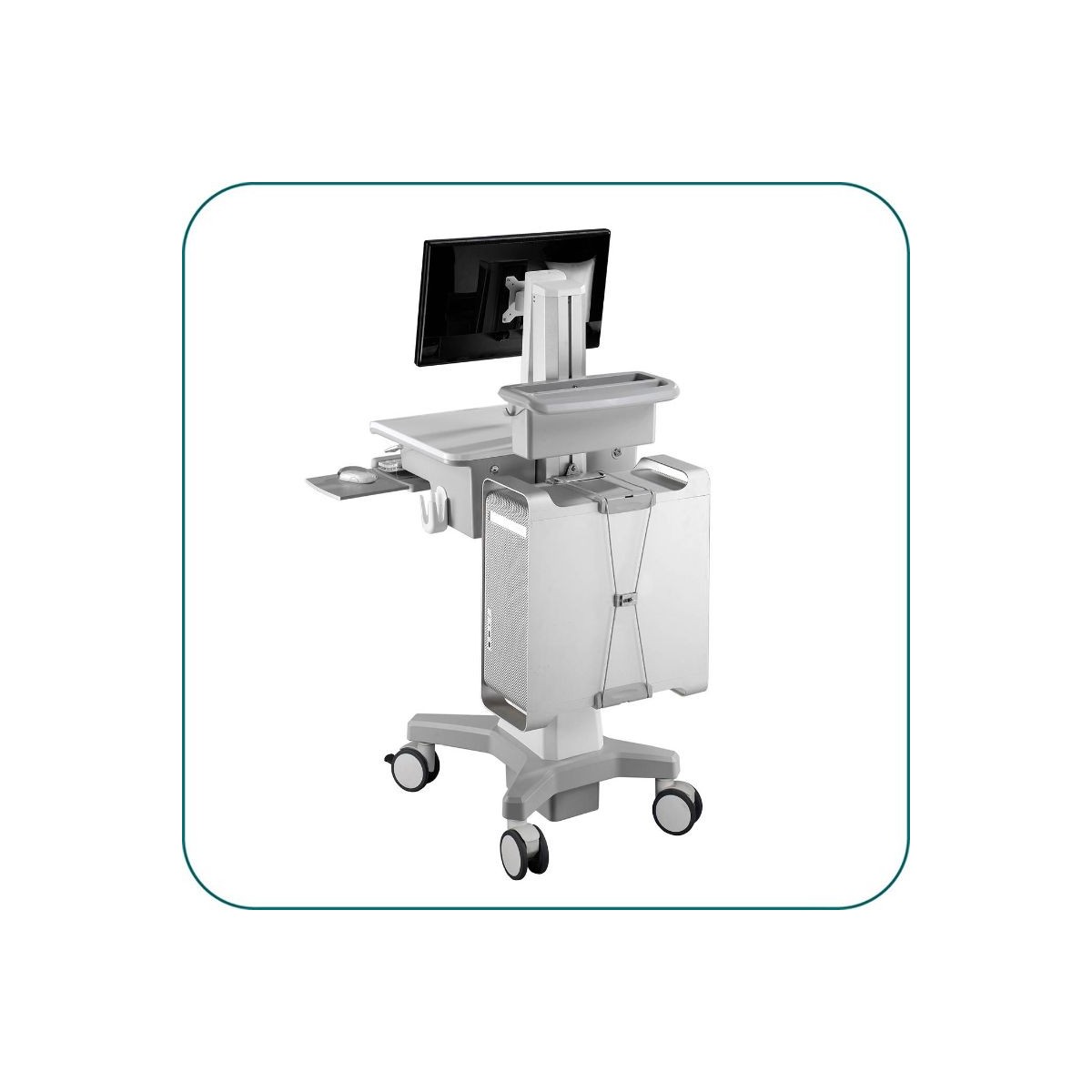

External CPU Holder: YES

Keyboard & Mouse

Keyboard Tray Dim.: 449 x 207 mm /17.68" X8.15"
Wrist Comfort: YES
Tilt: Max. 12° (backward)
Mouse Pad Dim.:217 x 213 mm /8.54" x 8.39"

LIFT

Lift Handle: Yes
Height Adjust Range: 500 mm /19.7"
Tension Torque Adjust: NA
