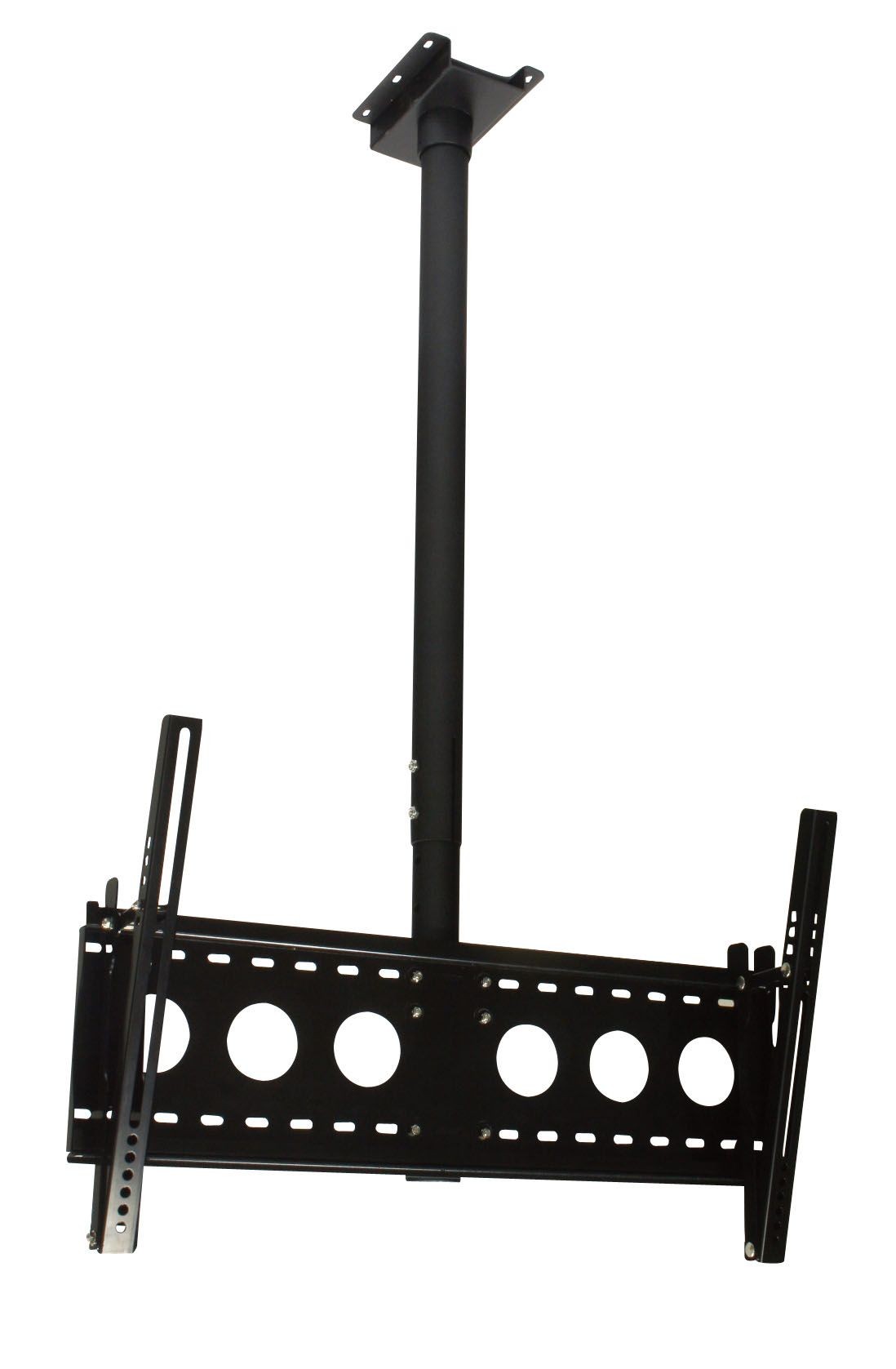

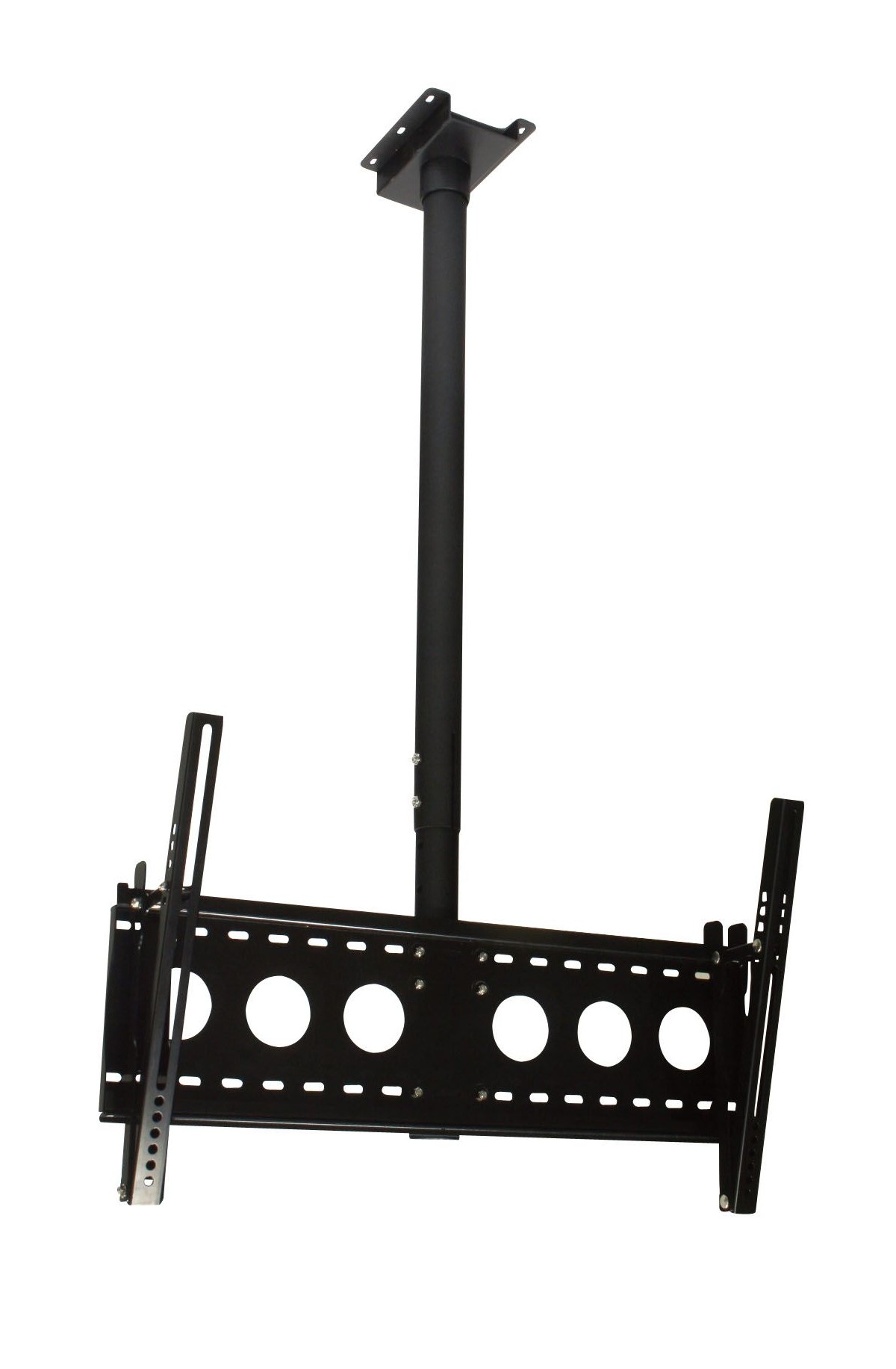

Aavara D9250+EF6540 Single-Side Ceiling Support 32"-60"

Product code: D9250+EF6540

Aavara D9250+EF6540 is designed to support single displays Ceiling requirement for a DOOH (Digital Out Of Home) solution.

It supports 32 ~60inch displays with Max. mounting 725x450mm. Tilt 0°, 5°, 10°, 13°, 15° degree and features security for displays at outdoors with a safety lock function & Anti-Theft Lock.

With larger size of LCD/LED Ceiling Mount, it fully meets the demand of wider viewing angle at like airport, government institute, retail shops, gym and arena where required larger a ceiling display at designated locations.

SEND AN ENQUIRY

Description

FEATURES

• LCD/LED Ceiling Mount

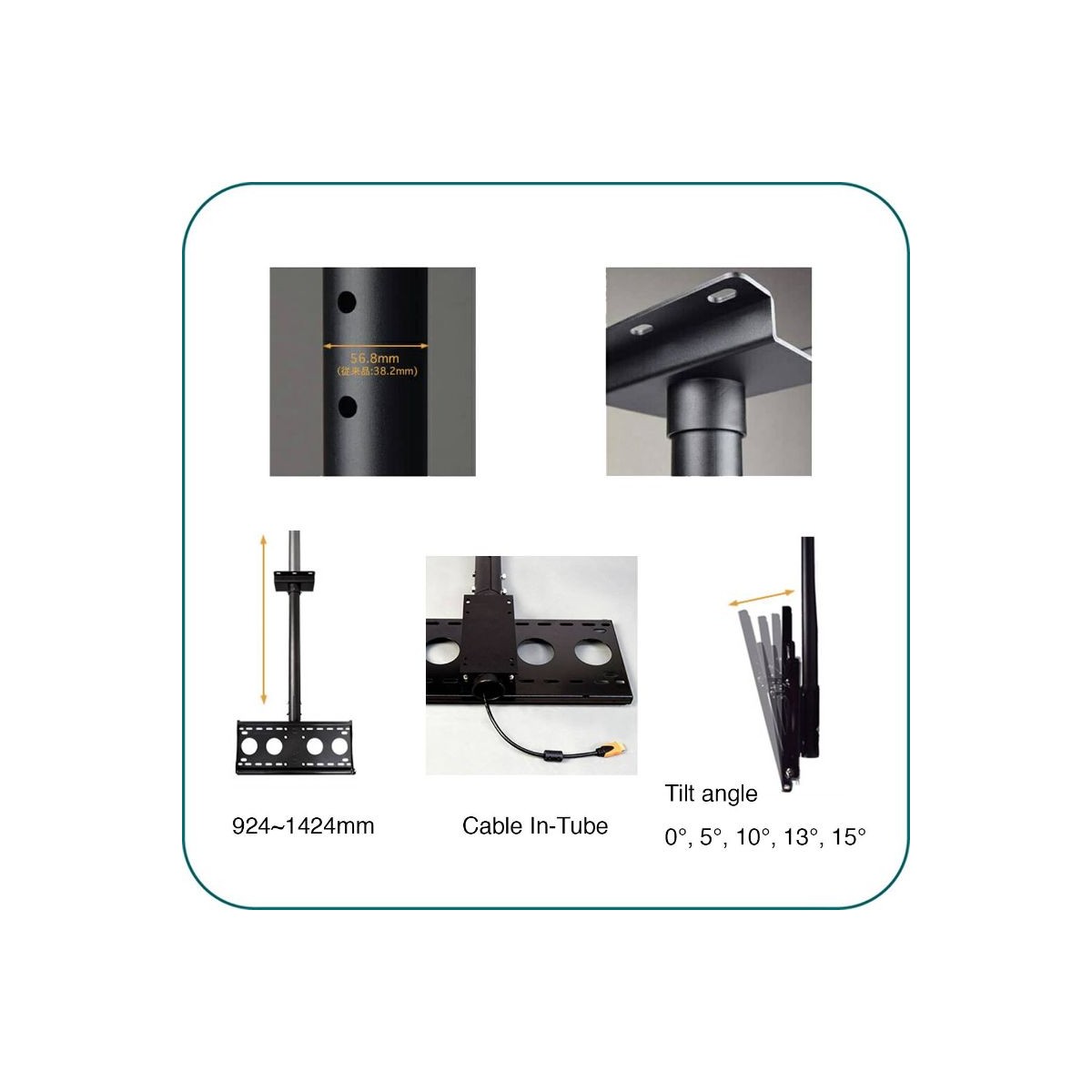

• TILT ANGLE 0°, 5°, 10°, 13°, 15°
• Supports 32-60 inch with MAX. MOUNTING 725x450mm

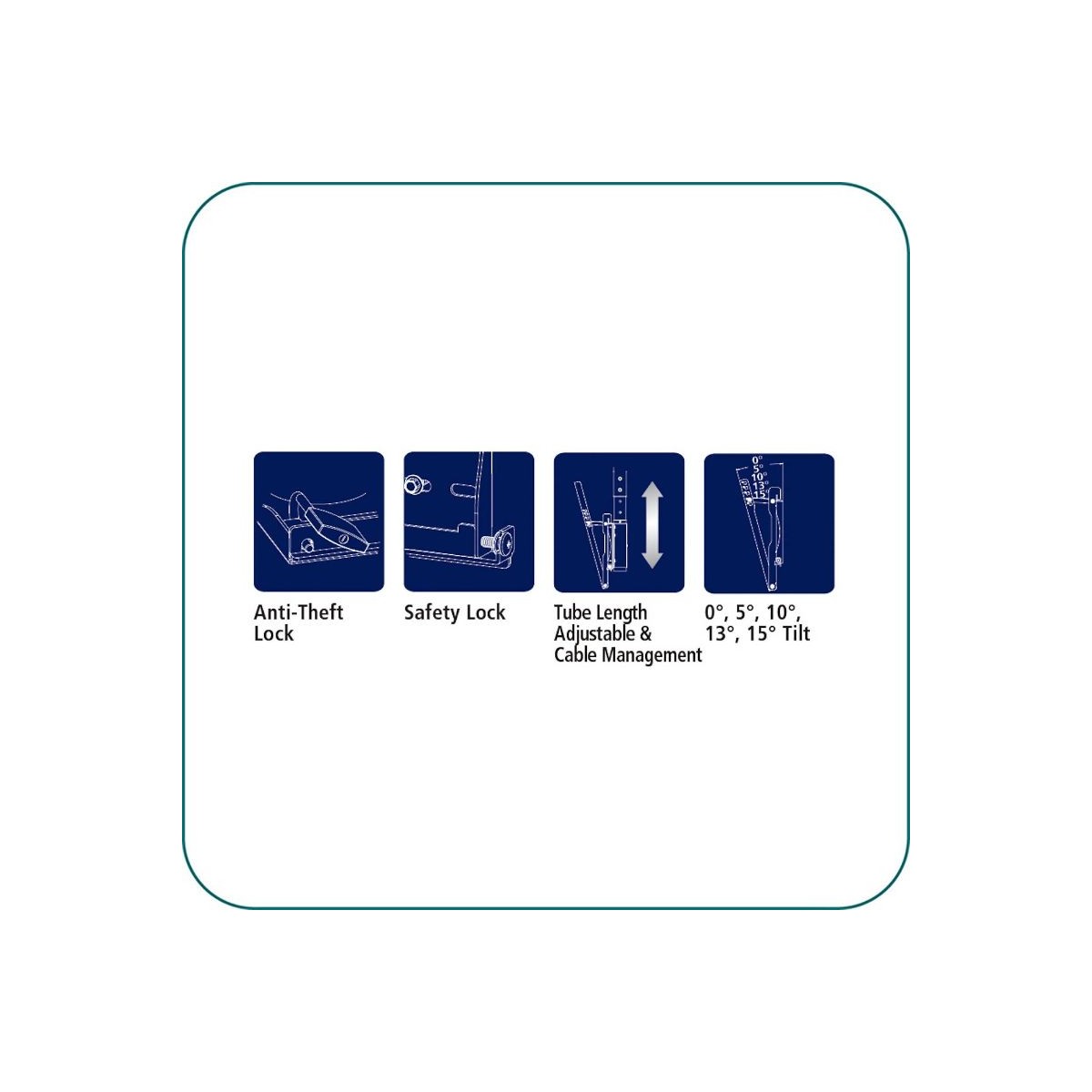

• Safety Lock to secure displays at outdoors
• Optimized solution for DIgital Out of Home (DOOH)
• Optional extended tube from 924-1424mm to 1500.5-2000.5mm.

Additional information

SPECS.

Flat Panel Size: 32"-60"/ 81-152cm
Loading Capacity: 60kg/ 132lbs
Tilt Angle: 0°, 5°, 10°, 13°, 15°
Safety Lock: Yes
Anti-Theft Lock: Yes

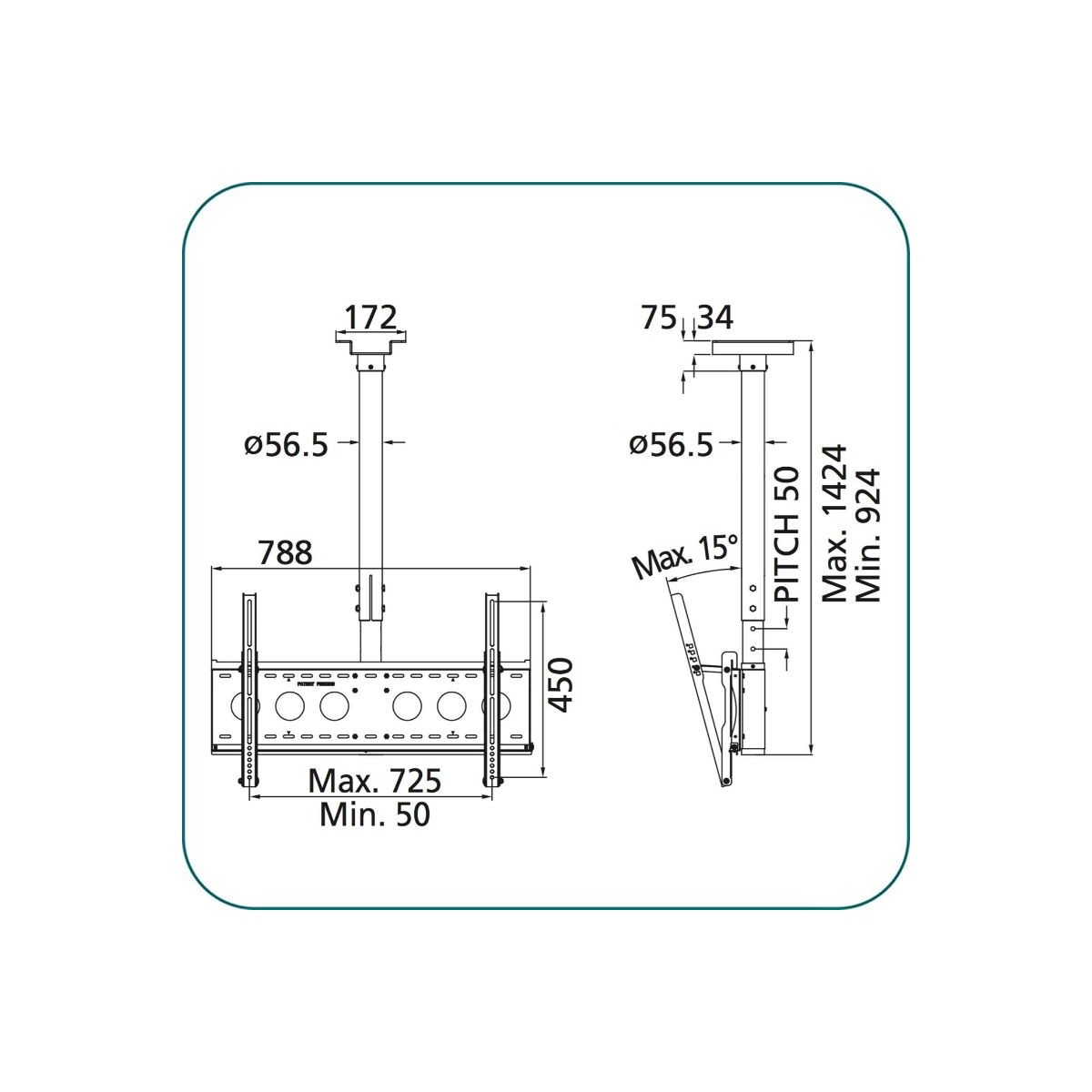

Max. Mounting: 725x450mm

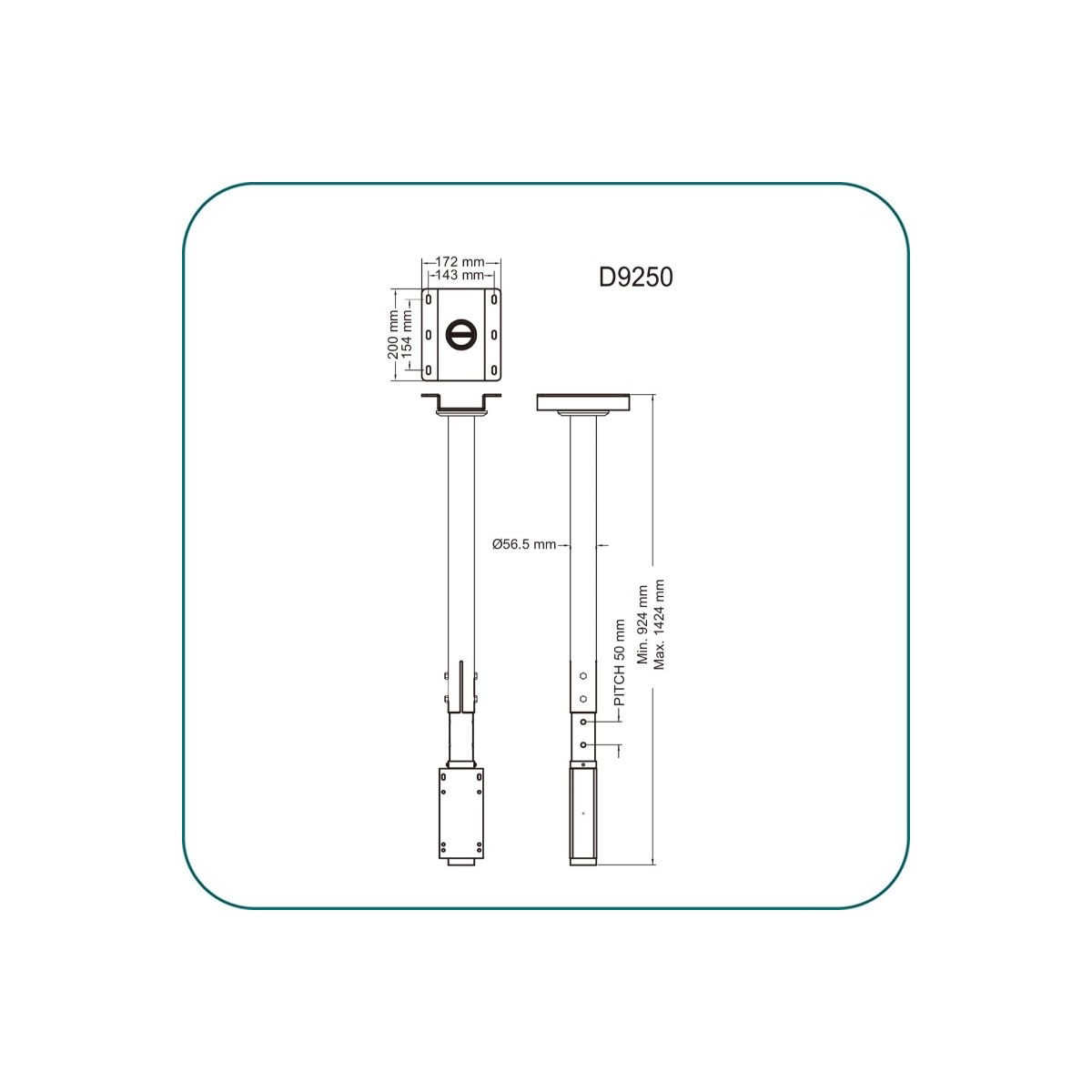

Height Adjustment: 924mm~1,424mm in 50mm increments
Screw Type: M8, M6, M5, M4
Tube Rotation: 360 degree
Material: Steel
