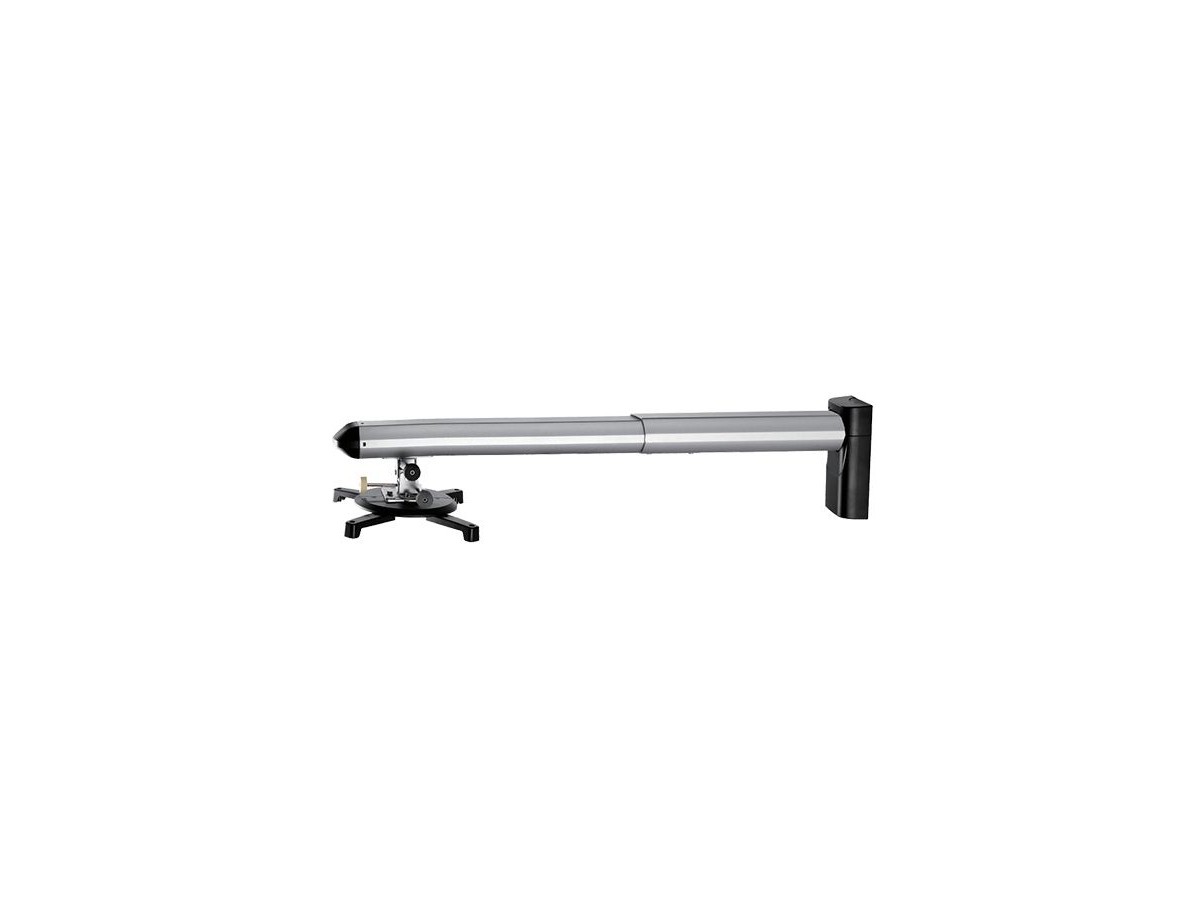

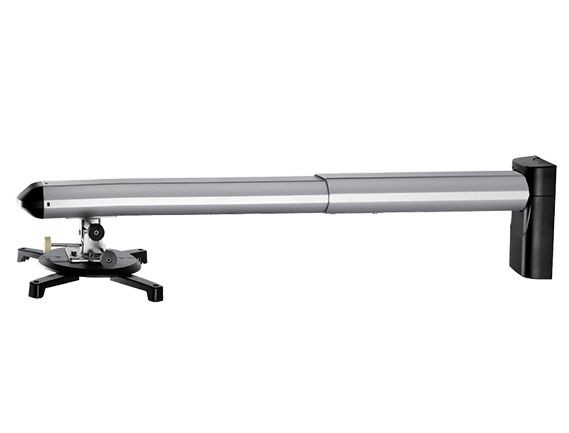

Aavara PB120 Short Throw Projector Mount - Wall Boom Type
Product code:Aavara new released PB120 is a Short Throw Projector Mount, featuring focusing for 0.6 Short ratio with distance from the wall max. to 1265 mm and fine tune solution. Micro adjustment for Tilt, Swivel, Horizontal movement for best alignment of required distance.
In-Tube Management available, Aluminium Structure and universal mounting diameter to meet most short throw projects brands in the market.
SEND AN ENQUIRYDescription
FEATURES
• Designed for Wall Boom Short Throw Projector

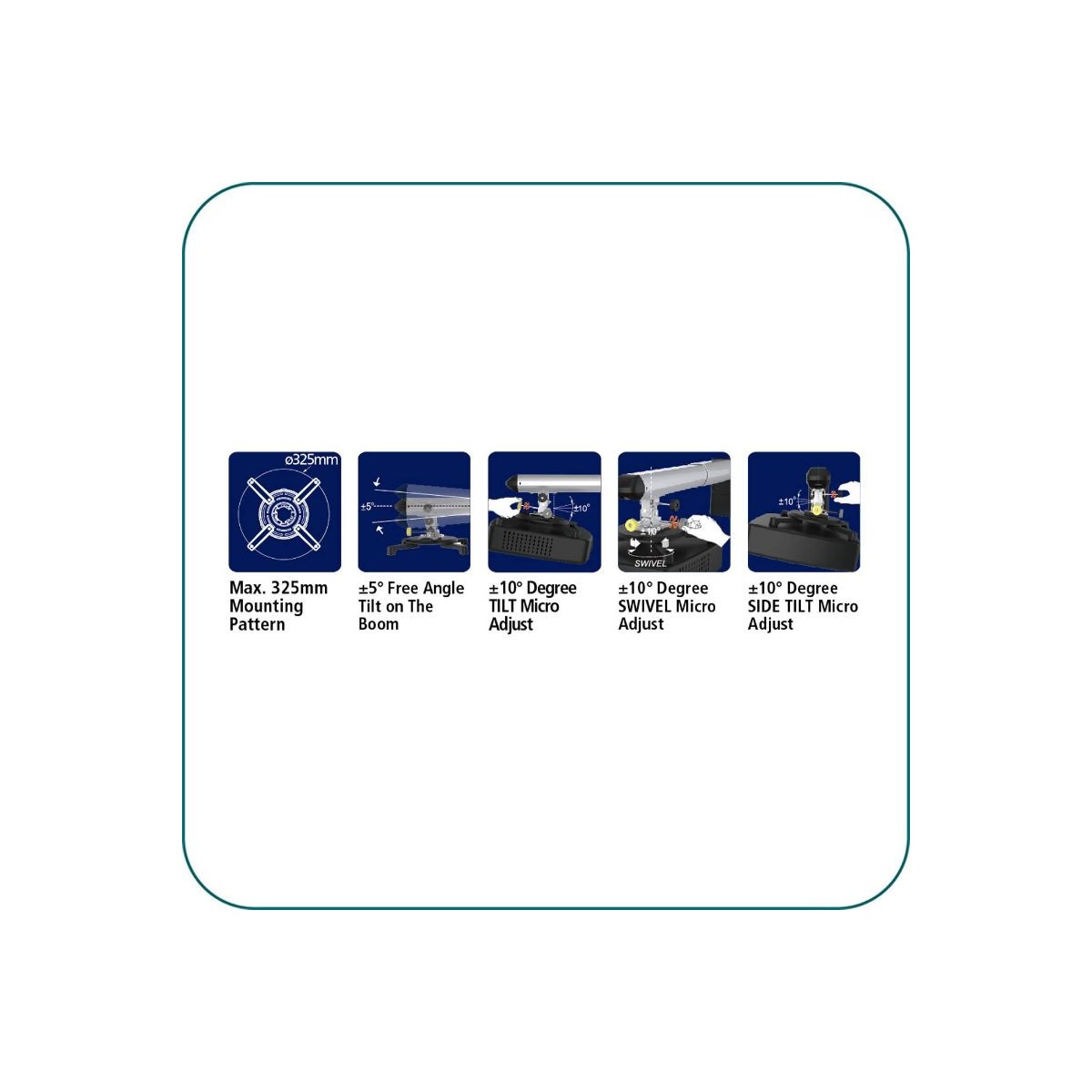

• Horizontal Lateral Movement +/-20 mm /0.79"

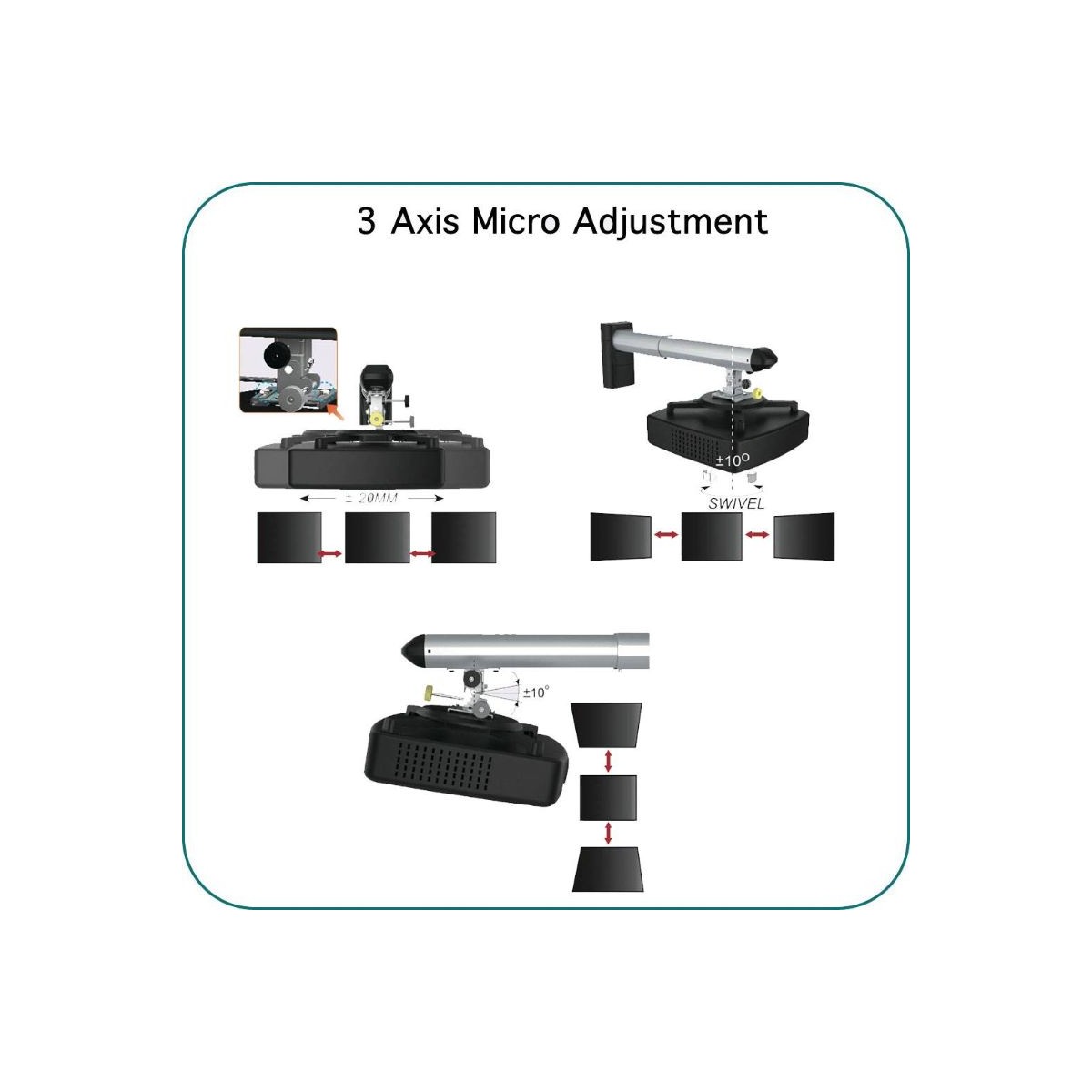

• Projector Vertical & Horizontal Tilt & Swivel +/-10°
• Wall Mount Tilt +/-5°
• Compatible with Diameter Ø325 mm
• Easy to Install
• Max. Distance to Wall 1270 mm /50''
• Smart Cable Management
Additional information
SPECS.
• Load Capacity: 12 kg /26.5 lbs
• Mounting Pattern: Diameter Ø325 mm

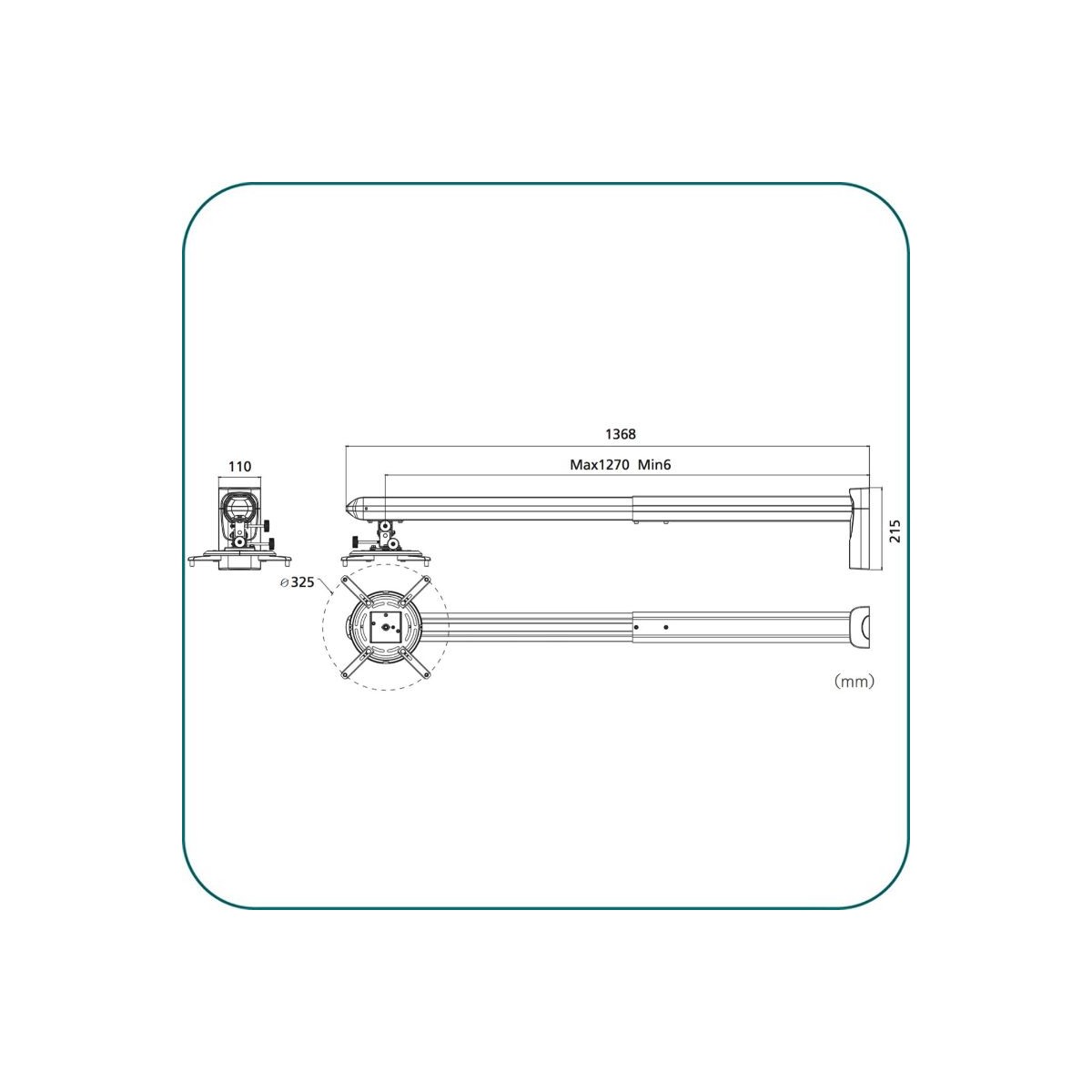

• Dimension: 352.5*215*1446 mm/ 13.88" x 8.47" x 56.93"
• Material: Steel/Aluminum Alloy/Plastic
• Gross Weight: 4.03 kg / 8.89 lbs
• Screw Type: M3,M4,M5,M6
• Projector Tilt & Swivel: +/-10°
• Wall Mount Tilt: +/-5°
• Max. Distance to Wall: 1270 mm /50"
• Min. Distance to Wall: 670mm/26.38"
• Smart Cable Management: Yes
