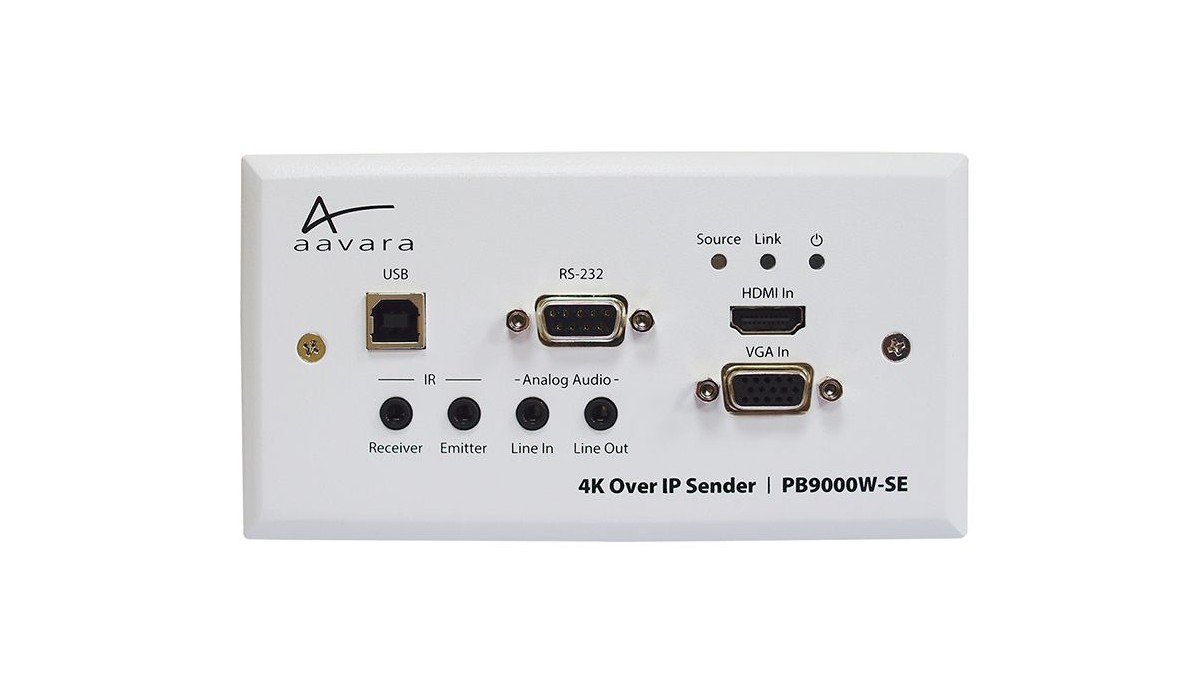

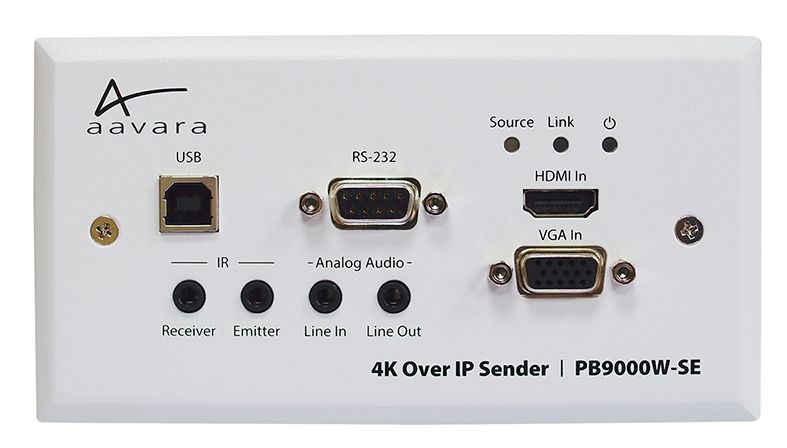

Aavara PB9000W-SE Sender Wall Plate

Product code: PB9000W-SE

PB9000W-SE is a great 4K video distribution wall plate sender solution for commercial AV deploy which required in-wall transmitter, integrating Web-based Aavara AV Master Control Software and 3rd Party Control integration for working with PB9000 standard senders and receivers.

- EU Wall Plate Form Factor
- Power from PoE switch or injector
- Aavara AV Master Control Web interface
- Major Controller Integration: Extron, AMX, Crestron, RTI, SAVANT, Control4, Elan g!, Neets and more.
- Independent Matrix Routing for Video, Audio, IR, RS232, USB
- Seamless Cross Display KVM Switching
- IR Remote Signal Pass-Thru & IP Command
- CEC Pass-Thru & IP Command Control
- USB 2.0 Pass-Thru
- VideoWall Easy Setup & Flexibile Operate by Easy Web Interface configuration
- Asymmtric VideoWall Support
- Keyboard Hotkeys Control
- Message On Screen
- Video Snapshot

PB9000W-SE Wall Plate Sender is ideal for Commercial Installation which demand In Wall installation and Higher Video Quality, Analog Audio Line in to support Active Speaker for public area, IR, CEC and RS-232 to control the Displays. In addition, 4K Ultra HD & KVM w/ HighSpeed USB connection available.

SEND AN ENQUIRY

Description

FEATURES

• 4K Over IP Sender in EU Wall Plate Form Factor
• Power by PoE
• Featuring 4K resolution Broadcasting, Multicasting & VideoWall solution
• Built-in Aavara AV Master Web Interface for easy central AV Switching Control
• Integrate 3rd Party Control System: SAVANT, Control4, AMX, RTI, Crestron and Elan g!
• Excellent Solution for HDMI USB KVM & Residential/Commercial over Ethernet Network
• Unicast, Broadcast & Multicast HDMI, USB, RS-232 & IR Over Gigabit Ethernet
• Video Resolutions Up to 4K Ultra HD, 1080p 3D and 1920 x 1200 (WUXGA)
• Lossless LPCM, DTS® & Dolby® Atmos 7.1ch Audio Lossless Pass-Thru
• Analog Audio In/Out for Extenal Active Speaker & Microphone
• Flexible VideoWall & Asymmtric VideoWall by Easy Web Interface configuration
• Power Over Ethernet 802.3af
• Message On Screen & Video Snapshot function

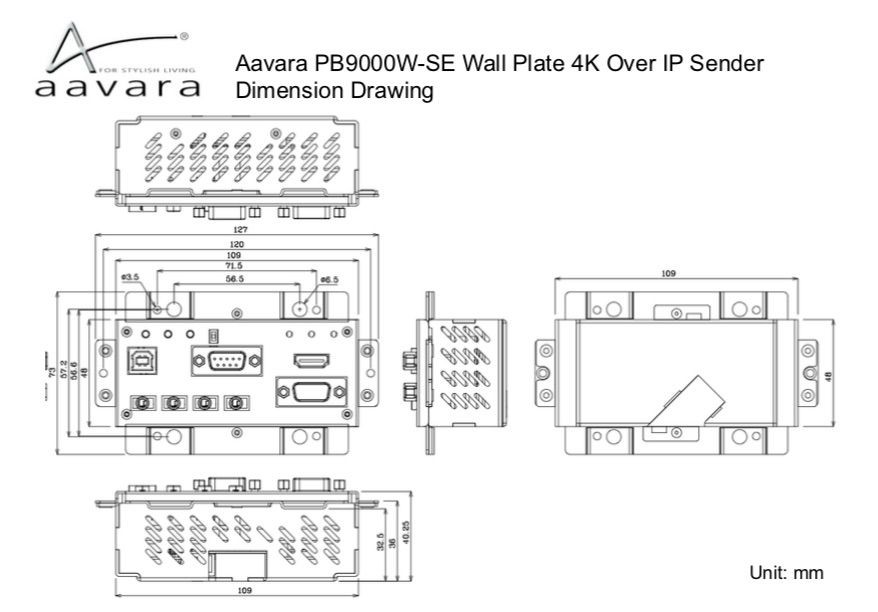

PB9000W-SE got 2-gangs EU wall plate dimension design. Please refer following file download for detail dimension measurements

Physical Dimension


4K/ HDMI Distribution Solution features:

Aavara® 4K/ HDMI Distribution Solution features CEC Over IP, Independent Matrix Routing, KVM Keyboard/Mouse Roaming, Centralization of 3rd Party Controller integration, Asymmetic Video Wall and more... ideal for best AV Matrix switching for commercial and residential application.


Independent Matrix Routing for Each Service

PB9000 provide Video/Audio/RS232/IR and USB pass-thru stream services, each service can be an independent matrix routing and control by Aavara AV Master web interface or 3rd party controller.


CEC/IR/RS232 Over IP

Total control of every device and TV/Display with CEC/IR/RS232 Over IP. It can by Pass-Thru w/ independent matrix rounting, or issue IP commands from Aavara AV Master Web interface or 3 party controller to ask target box output CEC, IR or RS232 control signal to external device/TV.



KVM Keyboard / Mouse Roaming

KVM Keyboard/Mouse Roaming across different PC/Server(channel) without switching video channel, which made KVM user operate multiple PC/Servers like on same Server/PC.



3rd Party Controller Integration

Major Controller Integration: Control4, AMX, RTI, Crestron, Elan g!, Neets and more. Aavara provide controller driver and API allow SI easy integrate Aavara 4K Over IP solution into entire residential / commercial system.


Aavara AV Master Web Control

Full function Aavara AV Master Web Control interface built-in in every box without extra cost. Just log on One Web page, it can setup & control entire 4K Over IP network.


Video Wall

PB9000 provides very scalable and flexible videowall setup and control. If any videowall layout change required, just add more sender or receiver without replacing entire system.


Symmetric / Asymmetric Video Wall

PB9000 supports artistic and eye balls catching asymmetric videowall setup and control. It supports display 90, 180 and 270 degree rotation to meet the design high demand.


4K/ HDMI AV Matrix

PB9000 fully meets the high demand of Residential application as Home AV matrix w/ 4K HDR, Dolby Atmos/DTS X and 3D support. 60 fps video is running very smoothly in Sports program video.


USB/ IP/ KVM

Great KVM solution provides USB 2.0 Pass-Thru, Keyboard Hotkeys Control & Latest KVM Keyboard/Mouse Roaming across different PC/Server/channel.


Additional information

SPECS

• HDMI Spec.:v1.4 Compatible
• DVI Spec.:v1.0 Compliant
• HDCP Spec.:v2.2 Compliant
• 4K Video Resolution: Up to 4K @ 60Hz 4:2:0 / 4K@30Hz 4:4:4 input
• PC DVI Input Resolution:Up to1920x1200@60Hz
• PC VGA Input Resolution:Up to1920x1080@60Hz
• HDMI Audio In/ Out:Up to 7.1ch LPCM, DTS® X, Dolby Digital ,Dolby® Atmos
• Distance:Point to Point 120M by Cat6 cable
• USB Extension:USB 2.0 Type B ports x 1 Sender
• RS-232 Baudrate:300~230, 400bps, Default 115,200bps
• IR Control Pass Thru:20~60KHz, Two-way IR Pass- Thru
• Operating Temperature:0-40ºC
• Storage Temperature:-20~50ºC
• Humidity Range:5%~90%RH
• Power Consumption:5W
• Power Adapter: N/A, Power from PoE only
• Optional Accessory: IR Emitter/Receiver
• Physical dimension
