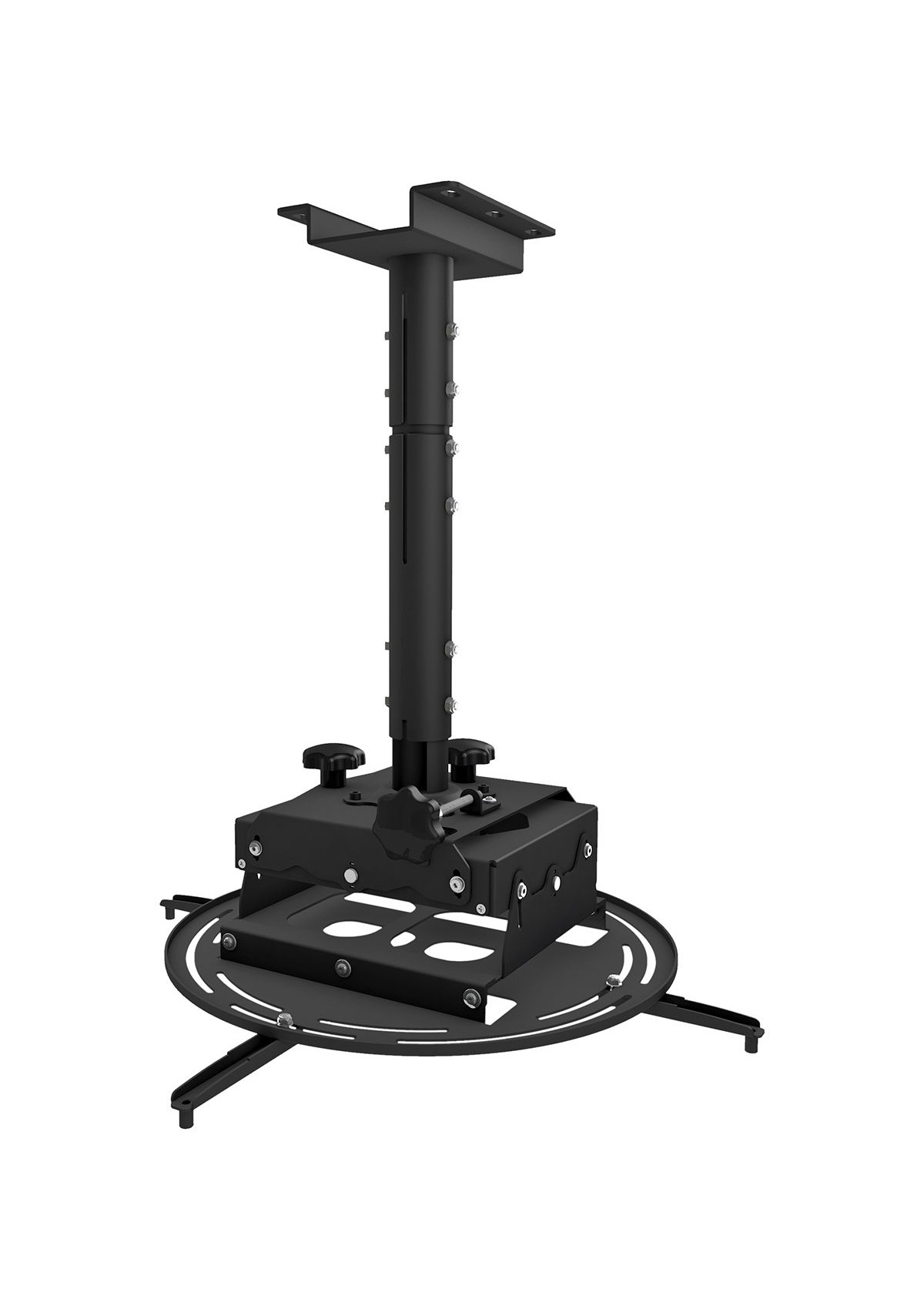

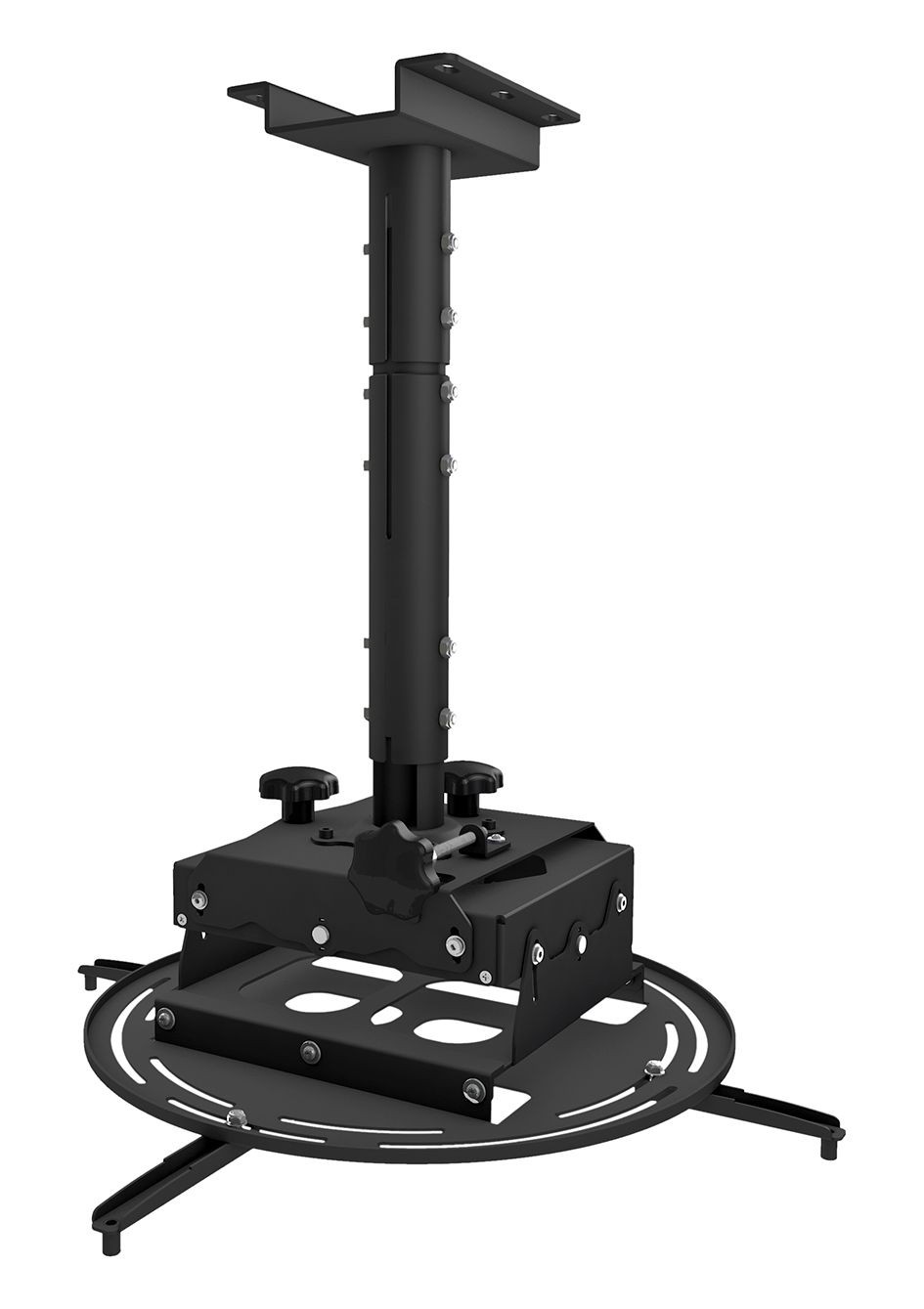

Aavara PH640 Heavy Duty Universal Projector Mount

Product code: PH640

PH640 is a heavy duty projector mount specially designed for professinal projectors in the application of cinema, corporate, simulation and visualization.
It features a heavy load capacity up to 40kgs/ 88lbs and comes with smart In-Tube Cable management system which fulfills the commercial installation demand, tiny and professional.

It supports vertical tilt angle +5°/-25° and horizontal tilt angle +/-5°. Fully compatible with mounting pattern 350x300mm, featuring the length 641mm with flexibility for incremente in every 150mm from 491~641mm.

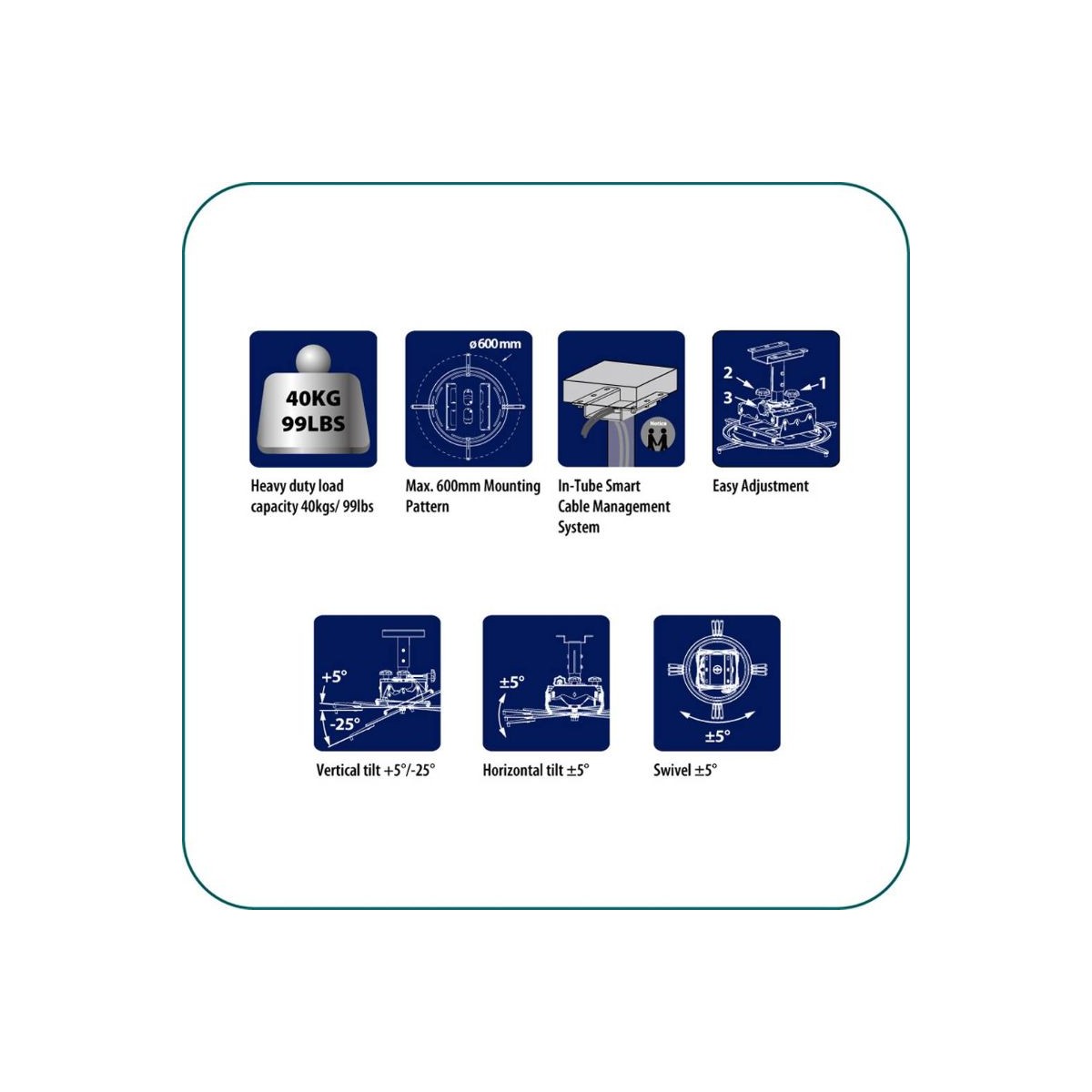

• Designed for Profesional Heavy Duty Projectors
• Heavy duty load capacity 40kgs/ 99lbs

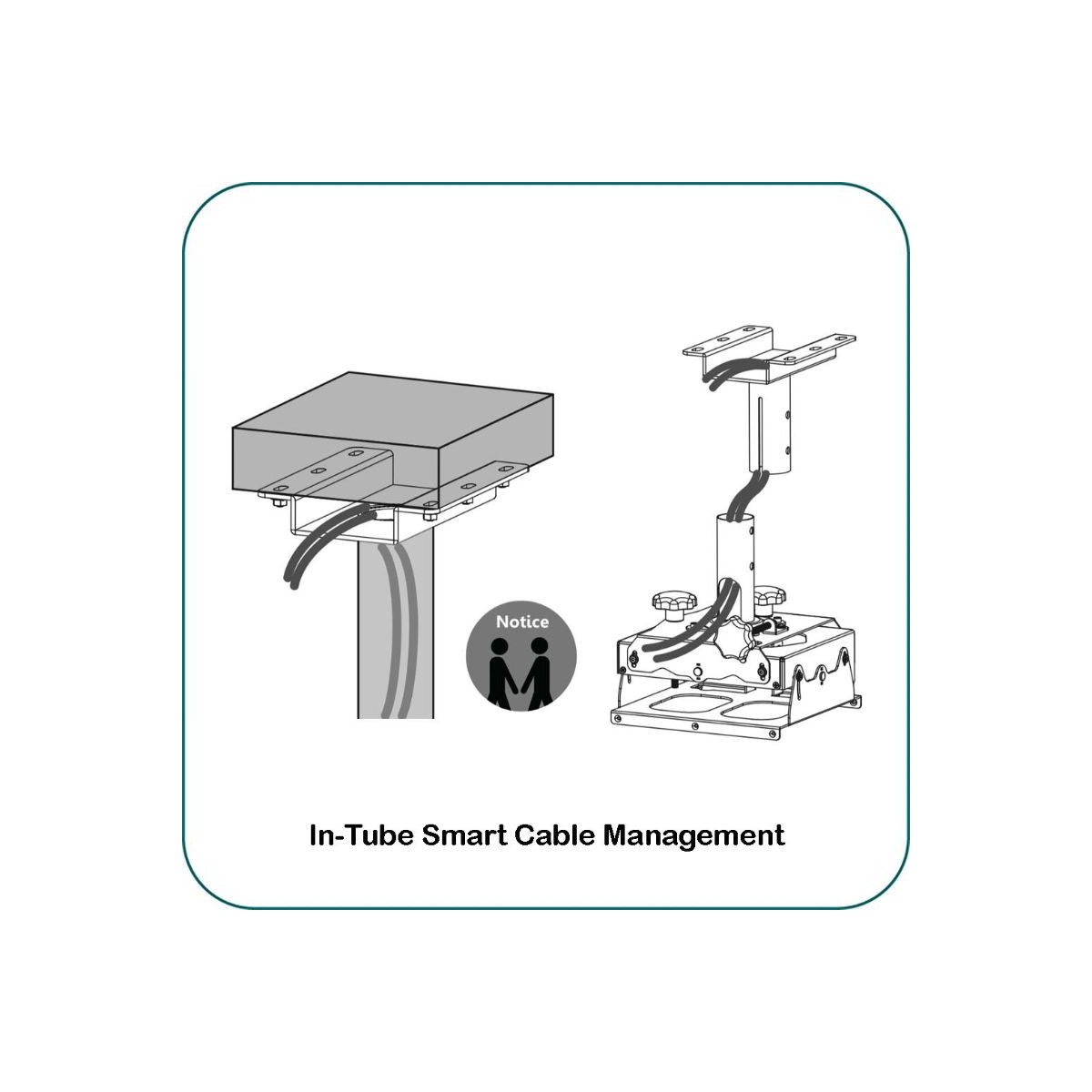

• In-Tube Smart Cable Management System

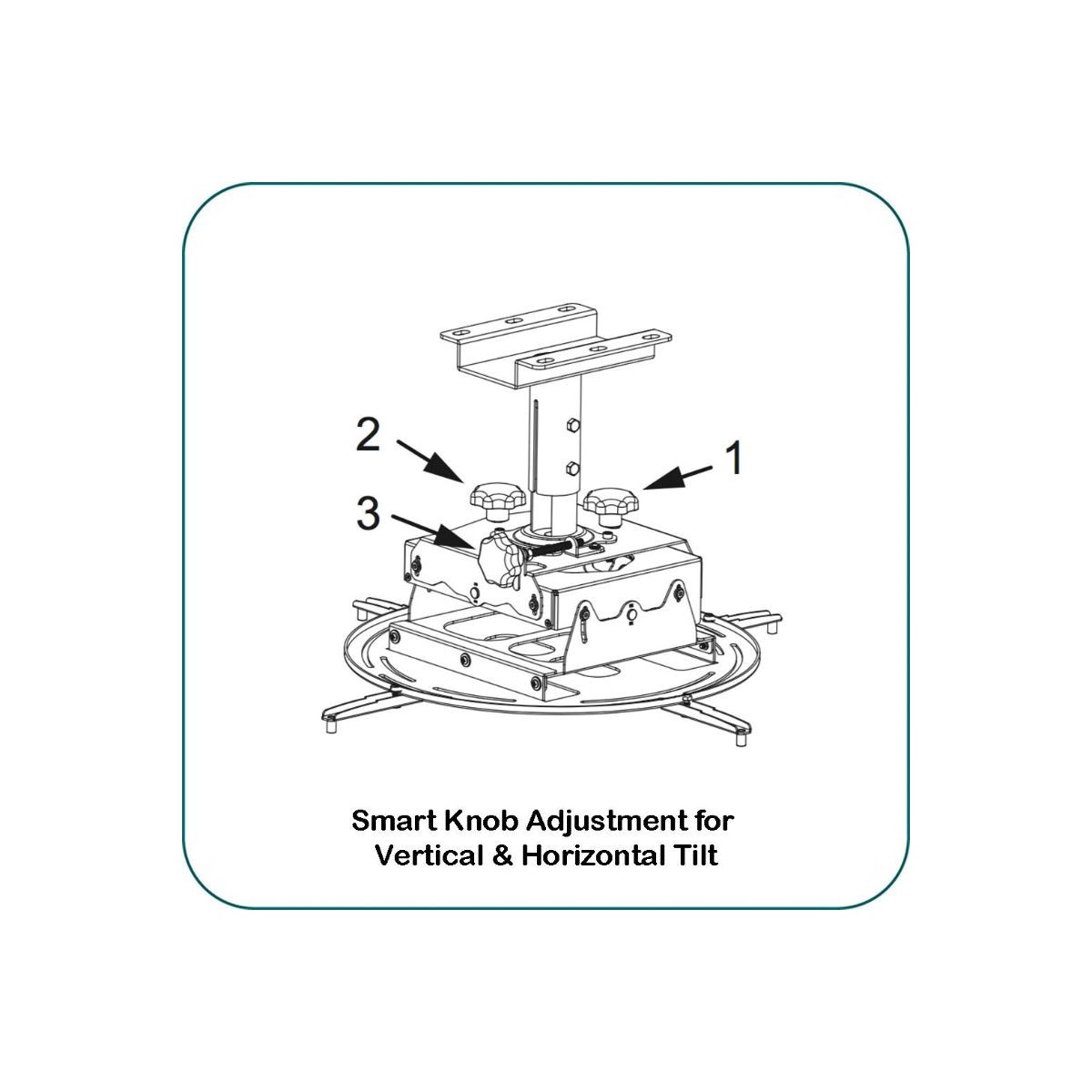

• Smart Knob Adjustment
• Horizontal tilt +/-5°
• Vertical tilt +5°/-25°
• Swivel +/-5°
• Compatible with mounting pattern 350x300mm
• Max. Distance to Ceiling 641mm /25.24"
• Increment in 150mm from 491 to 641mm
• Safety Lock
• Easy to Install

Additional information


Load Capacity: 40kg /99lbs
Mounting Pattern: 350x300mm
Dimension: 410 x 641 x 360 mm
Safety lock: Yes
Material: Steel
Gross Weight: 10.5 kg /23.1 lbs
Screw Type: M4,M5,M6,M8
Vertical Tilt: +5°/-25°
Horizontal Tilt: +/-5°
Swivel: +/-5°
Max. Distance To Ceiling: 641mm /25.24"
Increment: 150mm from 491 to 641mm
In-Tube Smart Cable Management System: Yes
