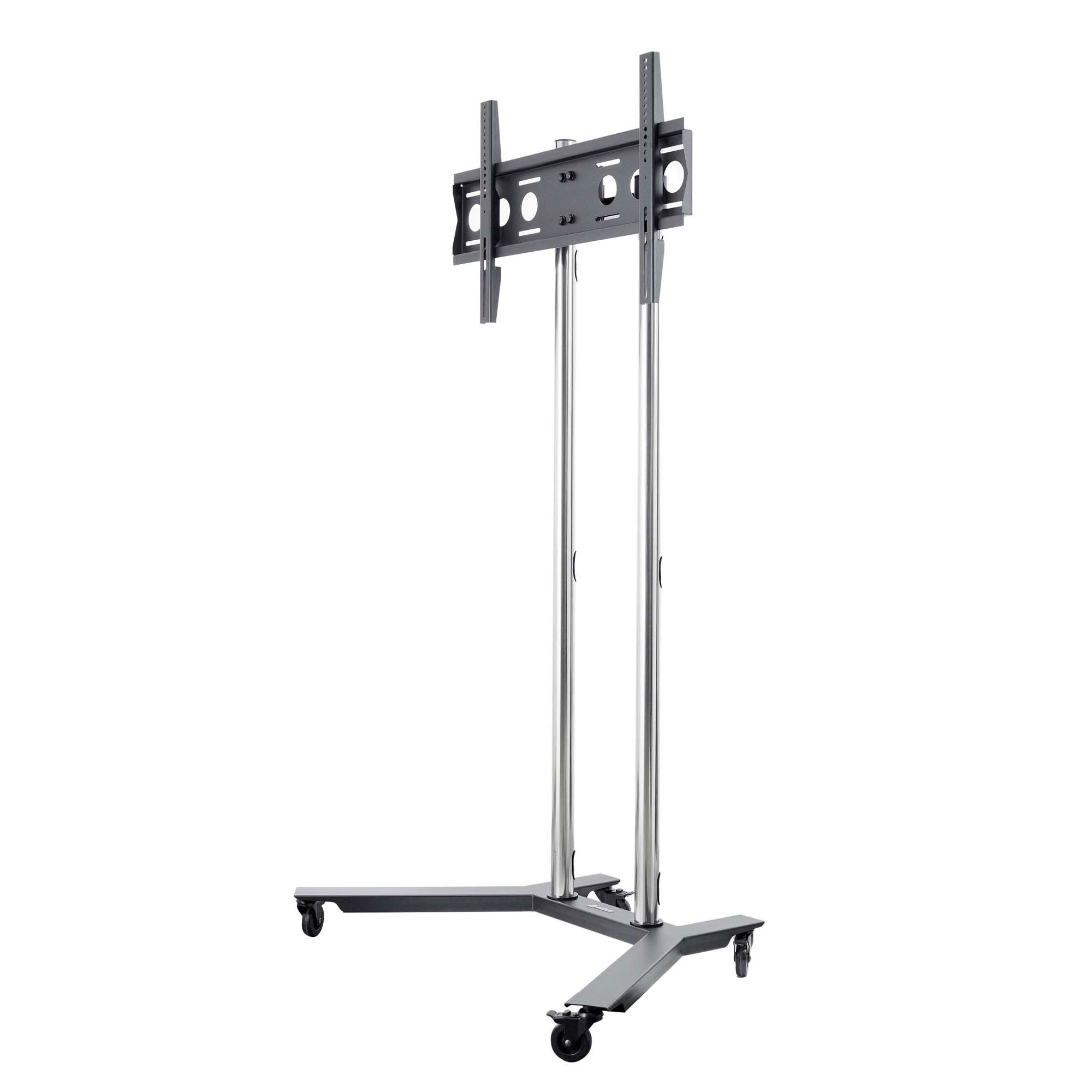

Edbak TR1 Flat Screen Trolley for One 40-75″ Screen

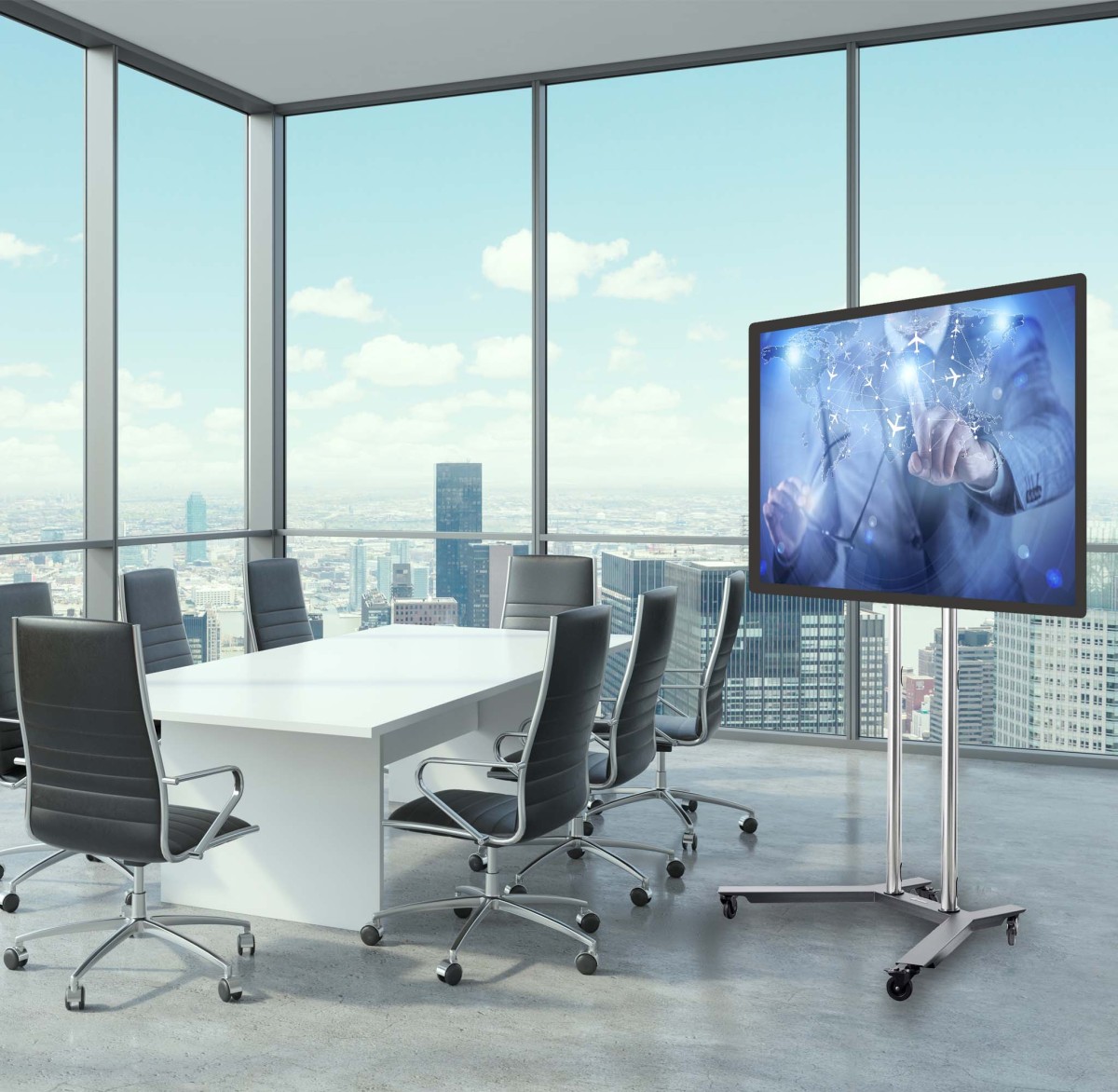

Product code:TR1 is a universal video conference trolley for screens up to 75″. The lightweight and minimalist design of powder-coated steel and polished tubing makes it perfect for any interior such as offices, conference rooms and waiting rooms. Adjustable height and the possibility of tilting the screen make TR1 extremely functional. TR1 features a cable management system to hide cables and keep the aesthetic, smart appearance of the entire installation. Castors with a braking mechanism ensure mobility.
SEND AN ENQUIRYDescription
- Simple and fast installation
- Aesthetic design of powder-coated steel and polished tubing
- Adjustable height

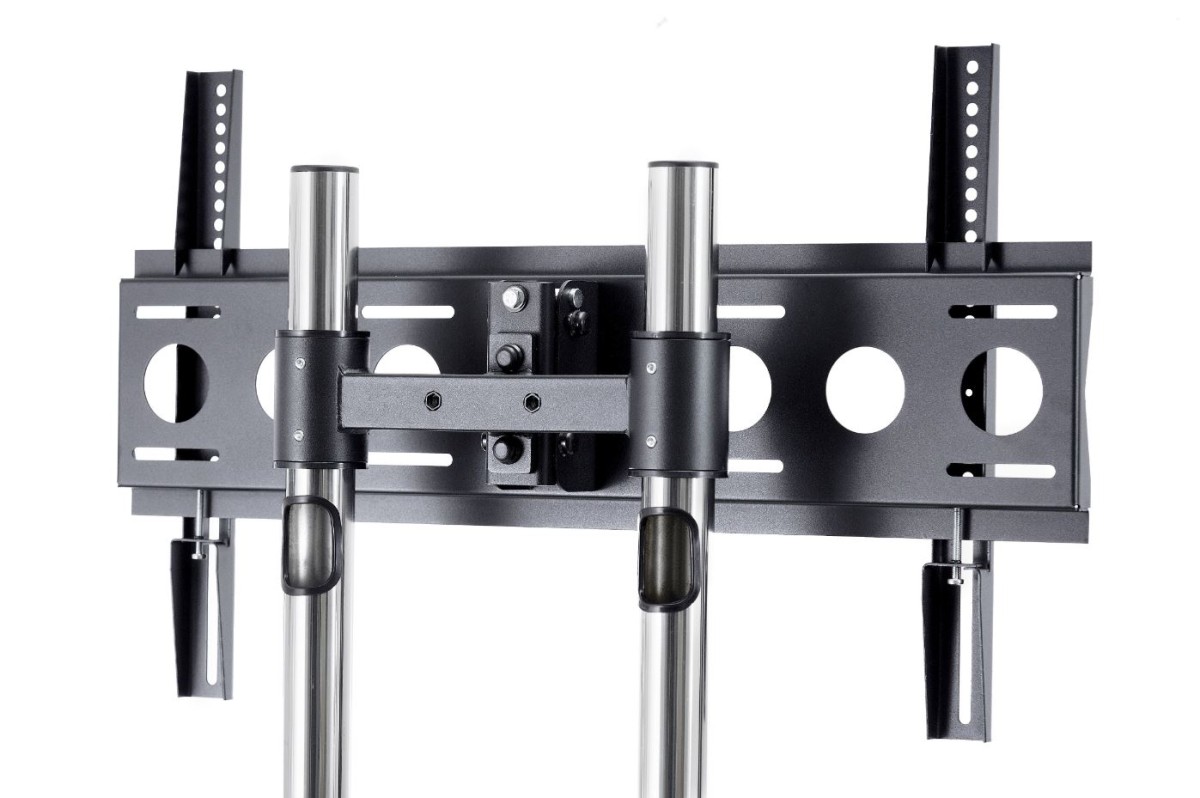

- Possible tilting
- Cable management for smart installation
- Includes 4 braked casters
Additional information
Product Specifications
| Index: | TR1 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 40″ |
| Maximum screen size: | 75″ |
| Maximum load: | 80 kg |
| Forward tilting: | -6°/+9° |
| Height adjustment: | YES |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 1125 mm D: 688 mm H: 1779 mm
(W: 44,29″ D: 27,09″ H: 70,04″) |
| Product weight: | 25 kg (55 lb) |
| Max. distance from floor to screen centre: | 1740 mm (68,50″) |
| Min. distance from floor to screen centre: | 360 mm (14,17″) |
| Max. mounting pattern: | 600 mm x 460 mm |
| Min. mounting pattern: | 50 mm x 95 mm |
Logistics Data
| Index: | WWTR-TR1c-B |
| EAN Code: | 5902841133518 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
