Edbak SV03 Desktop Double Arm Mount for 10″-29″ Screens

Product code: SV03

The SV03 desk mount with a double arm for 19″-27″ screens is a solution for those who value ergonomics when working with a computer. Full height adjustment combined with 360° arm rotation allows you to position the screen to suit the user’s individual needs and ensures excellent comfort during office work. Two types of desk fastenings are suitable for any installation, increasing the functionality of the mount. SV03 is a perfect choice for those performing any work with full-day use of screens, including in the industry, transport and monitoring centres. This mount is perfect for users who appreciate both functionality and aesthetics of design.

Brand: Edbak SEND AN ENQUIRY DOWNLOAD FILES pdf file

Description

  • Full height adjustment

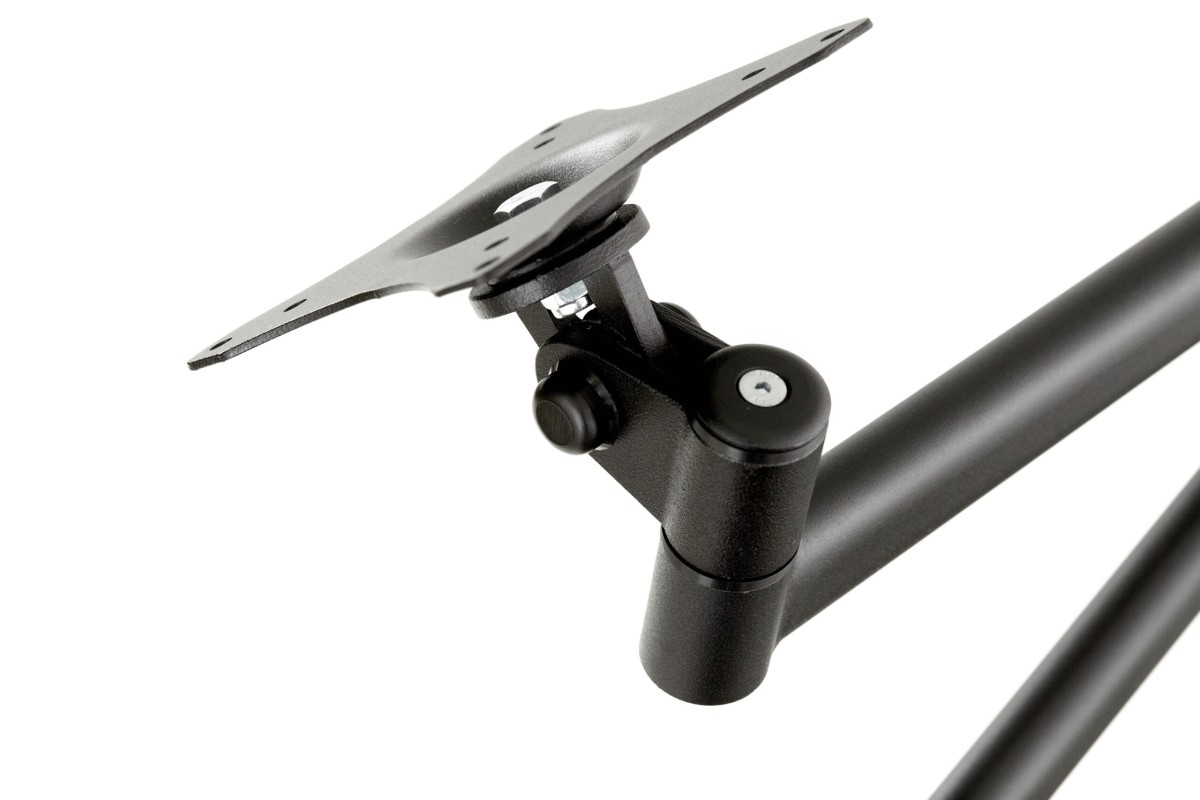

  • Option of screen tilting by -50° to +50°
  • 360° arm rotation

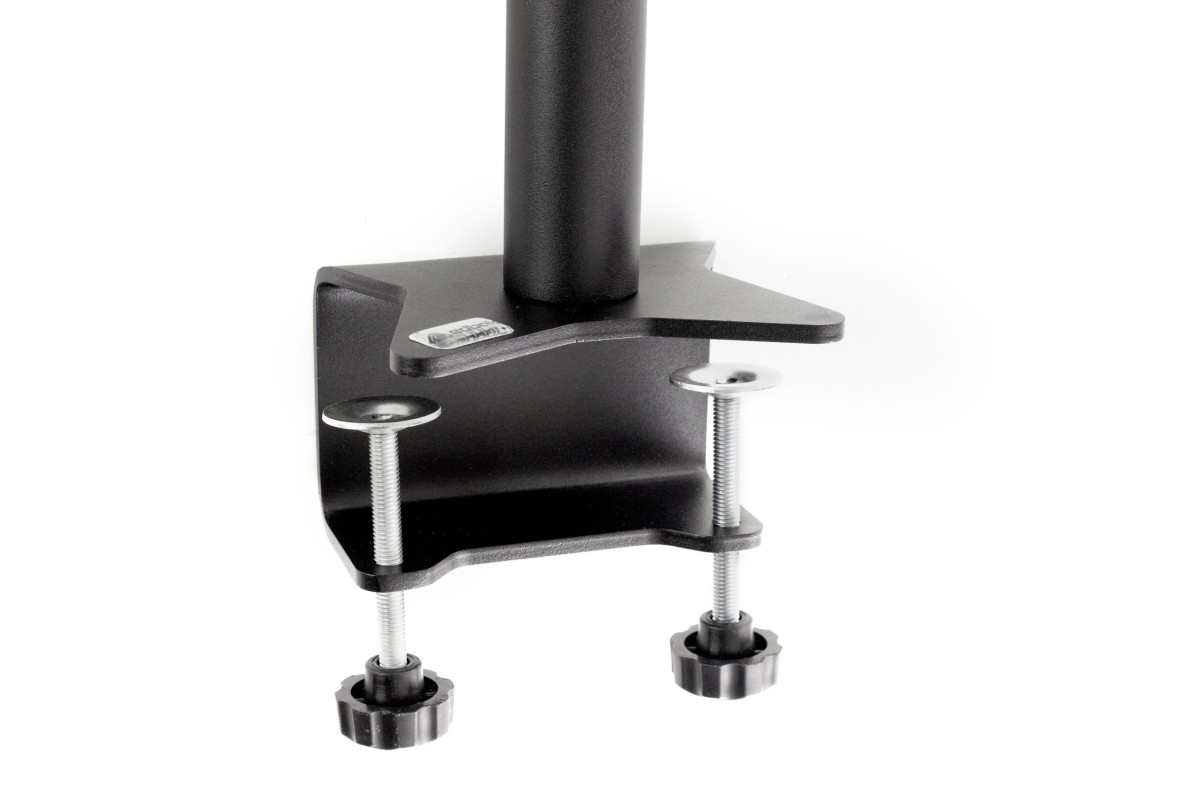

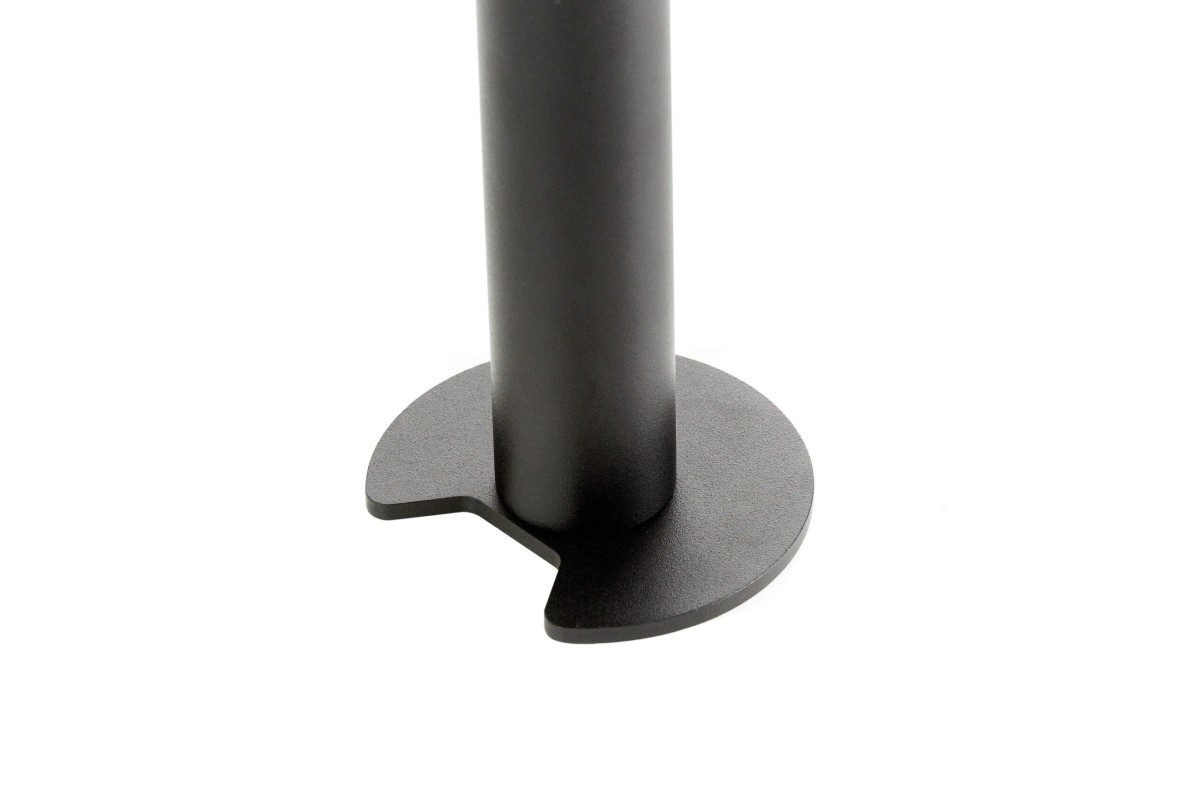

  • 2 types of desk fastenings included
  • Cable management system
  • Modern design
  • Simple and quick installation

Additional information

Product dimensionsW: 120 mm D: 760 mm H: 500 mm

(W: 4,72″ D: 29,92″ H: 19,69″)

Product weight4,5 kg (10 lb)
Max. distance from mounting surface530 mm (20,87″)
Min. distance from mounting surface240 mm (9,45″)
Max. mounting pattern100 mm x 100 mm
Min. mounting pattern75 mm x 75 mm
