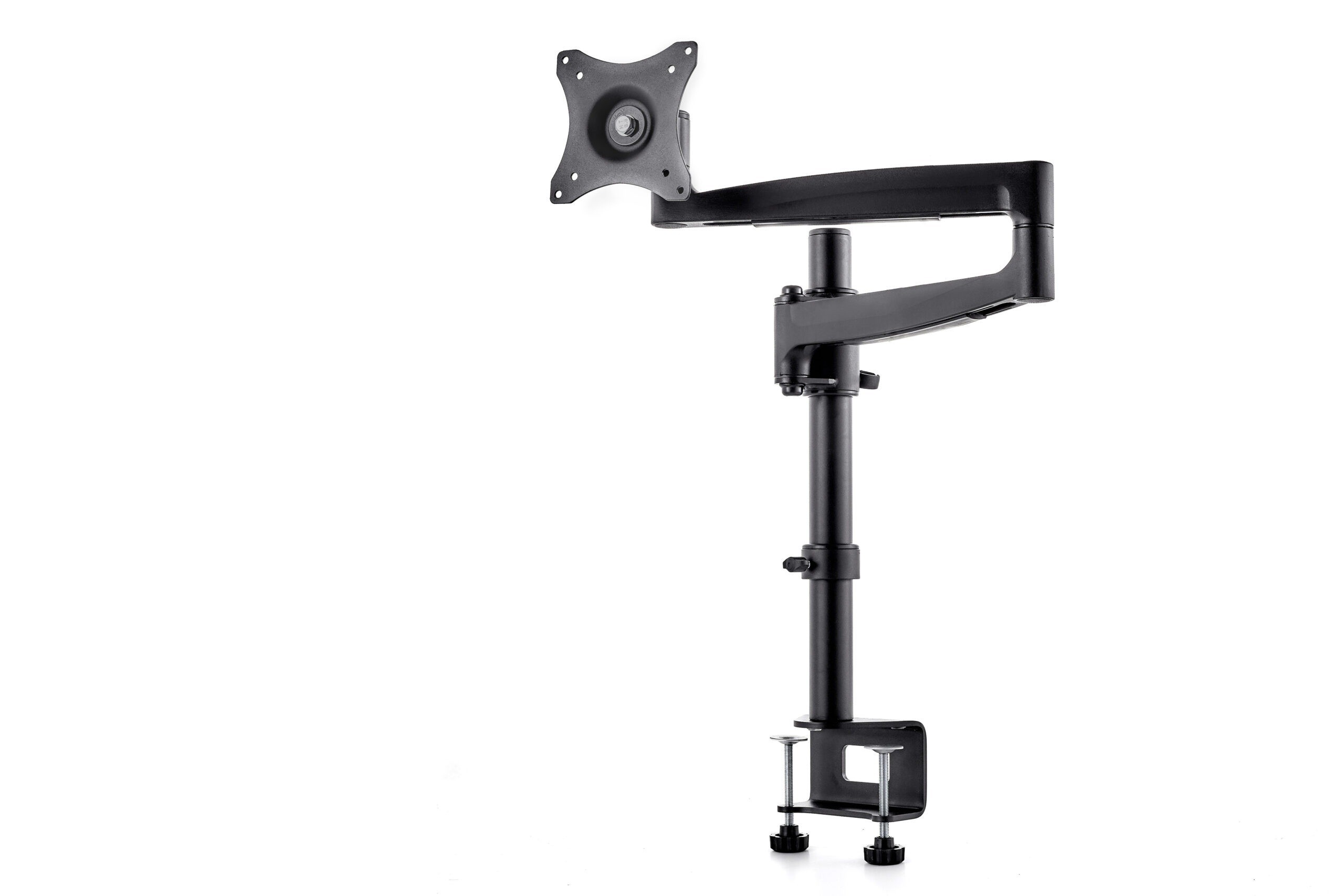

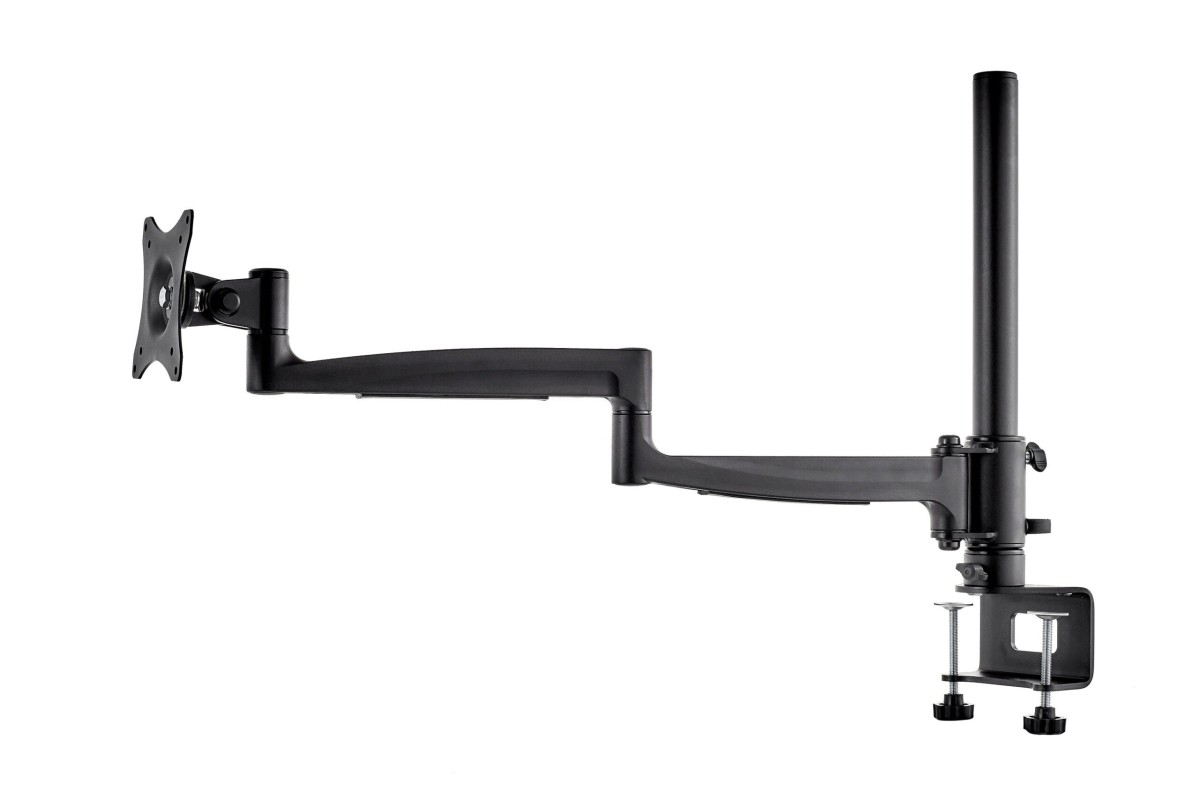

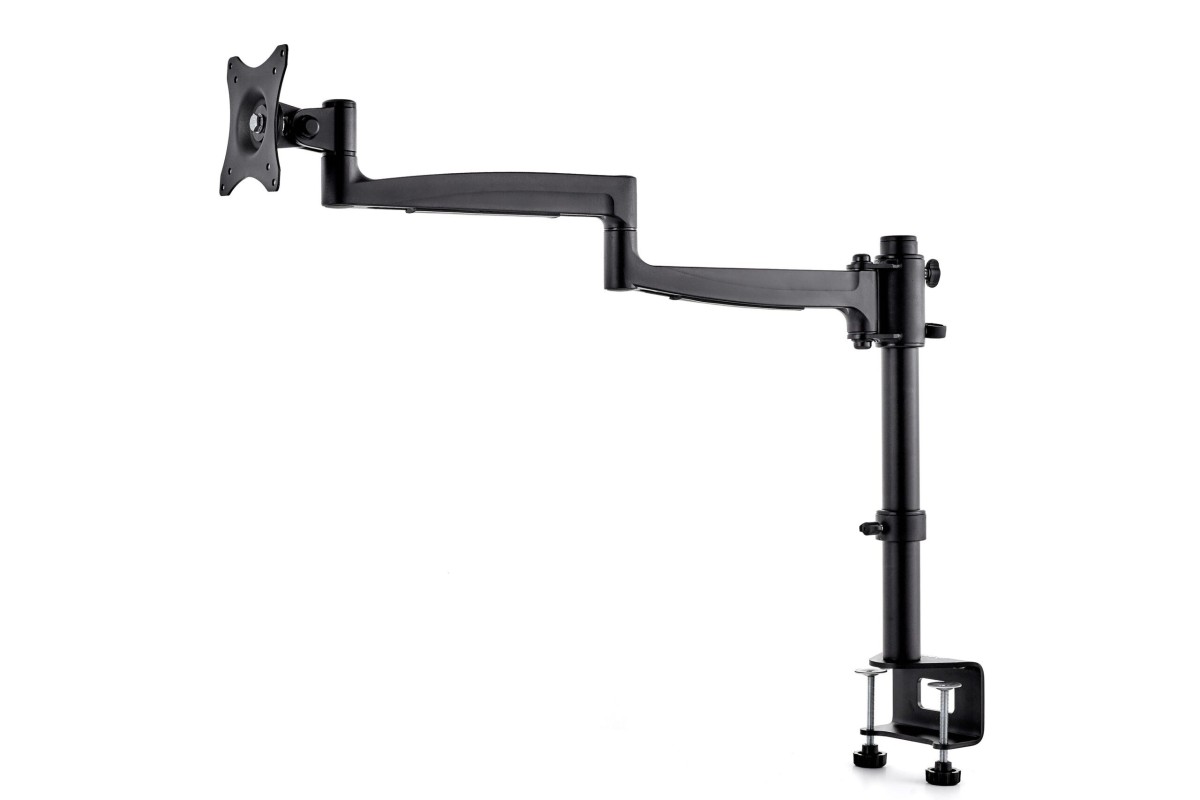

Edbak DM101 Desktop Double Arm Mount for Four 19″-27″ Screens
Product code:The DM101 desk mount with a double arm for 19″-27″ screens is a solution for those who value ergonomics when working with a computer. Full height adjustment combined with 360° arm rotation allows you to position the screen to suit the user’s individual needs and ensures excellent comfort during office work. Two types of desk fastenings are suitable for any installation, increasing the functionality of the mount. DM101 is a perfect choice for those performing any work with full-day use of screens, including in the industry, transport and monitoring centres. This mount is perfect for users who appreciate both functionality and aesthetics of design.
SEND AN ENQUIRYDescription
- Full height adjustment
- Vertical and horizontal screen adjustment
- Right-left screen adjustment
- 360° arm rotation
- 2 types of desk fastenings included

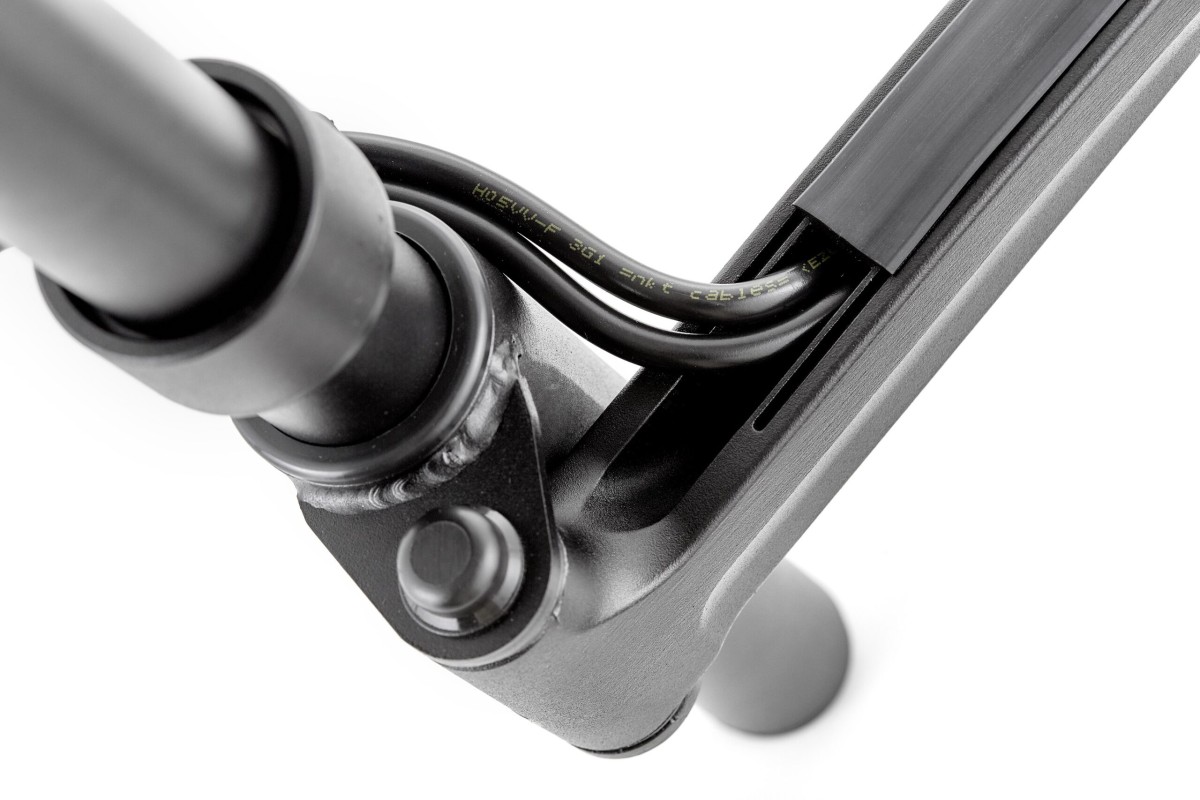

- Cable management system
- Modern design
- Simple and quick installation
Additional information
Product Specifications
| Index: | DM101 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 2 |
| Minimum screen size: | 19″ |
| Maximum screen size: | 27″ |
| Forward tilting: | -90° |
| Forward tilting: | +45° |
| Arm rotation: | 360° |
| Left-right rotation: | 360° |
| Maximum load: | 10 kg |
| VESA Mounting Compatibility: | 75×75 up to 100×100 |
Technical Specifications
| Product dimensions: | W: 650 mm D: 135 mm H: 560 mm
(W: 25,59″ D: 5,31″ H: 22,05″) |
| Product weight: | 4,6 kg (10 lb) |
| Max. distance from mounting surface: | 500 mm (19,69″) |
| Min. distance from mounting surface: | 210 mm (8,27″) |
| Max. mounting pattern: | 100 mm x 100 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| SAP Index: | WUBI-DM101 |
| EAN Code: | 5902841131552 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
