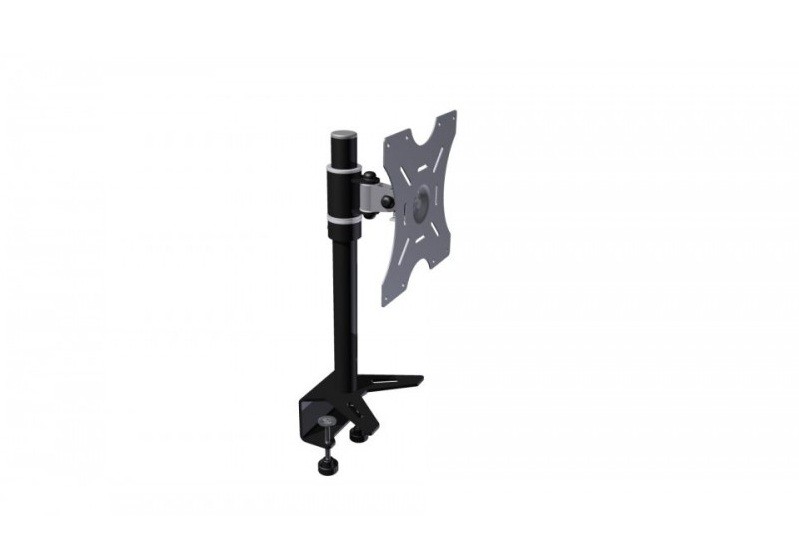

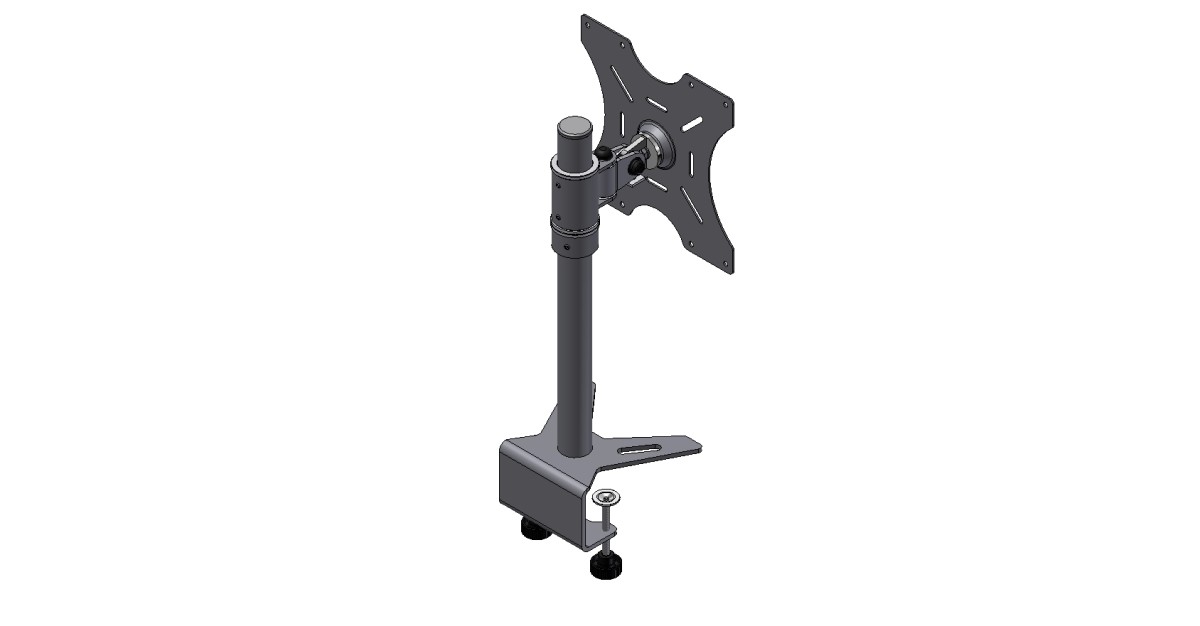

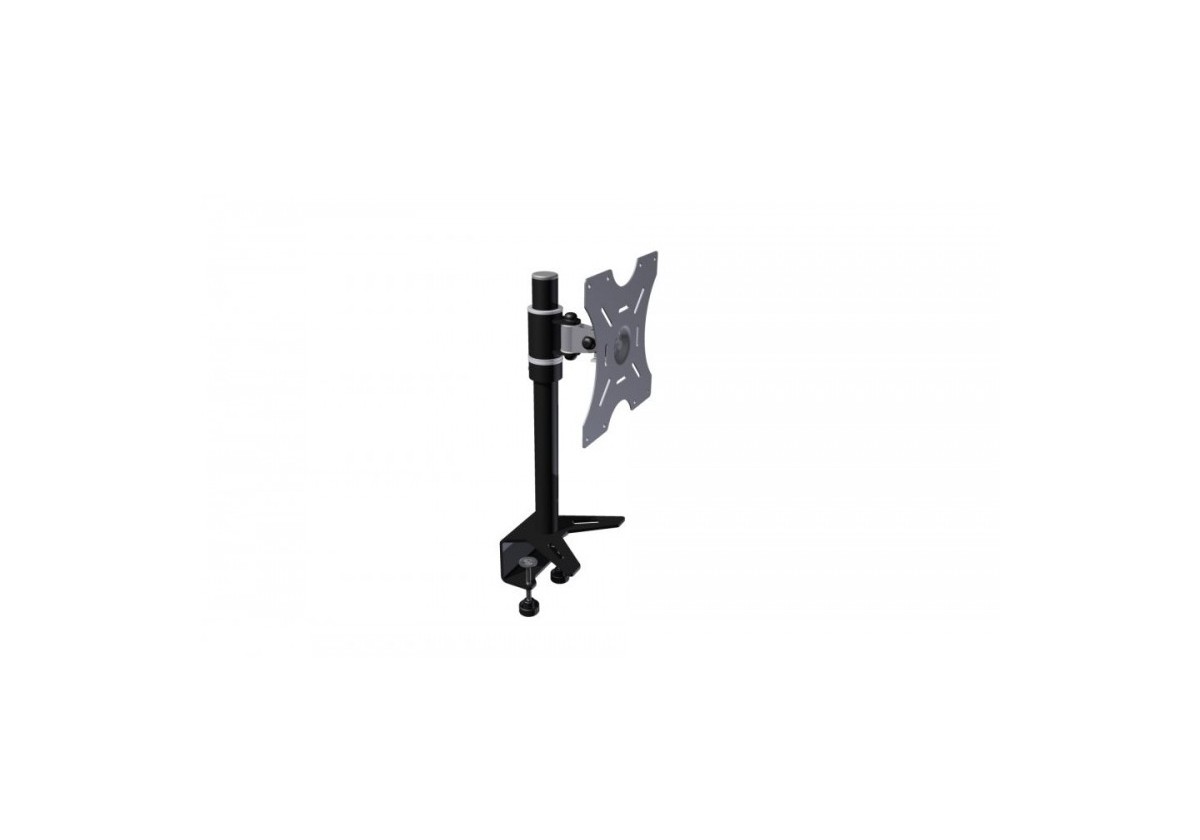

Edbak MSV1 Desktop Mount for 32″-46″ Screens
Product code:MSV1 is designed for work ergonomics in office spaces. This universal desk mount with adjustable tilt angle is invaluable for the proper planning of desk space. Adjustable screen height and 360° arms rotation allow you to position the screen to suit the user’s individual needs and ensure comfort and convenience during work with a computer. MSV1 is perfect for users who appreciate functionality above all.
SEND AN ENQUIRYDescription
- Universal VESA system
- Screen height adjustment
- 360° arm rotation
- Screen tilting adjustment by -40° to +40°
- 2 types of desk fastenings
- All screws included
- Simple and quick installation
Additional information
Product Specifications
| Index: | MSV1 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 32″ |
| Maximum screen size: | 46″ |
| Forward tilting: | -40° |
| Forward tilting: | +40° |
| Arm rotation: | 360° |
| Left-right rotation: | 360° |
| Maximum load: | 15 kg |
| VESA Mounting Compatibility: | 75×75 up to 200×200 |
Technical Specifications
| Product dimensions: | W: 170 mm D: 220 mm H: 485 mm
(W: 6,69″ D: 8,66″ H: 19,09″) |
| Product weight: | 3,2 kg (7 lb) |
| Max. distance from mounting surface: | 377 mm (14,84″) |
| Min. distance from mounting surface: | 110 mm (4,33″) |
| Max. mounting pattern: | 200 mm x 200 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| SAP Index: | WUBI-MSV1 |
| EAN Code: | 5908252968688 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
