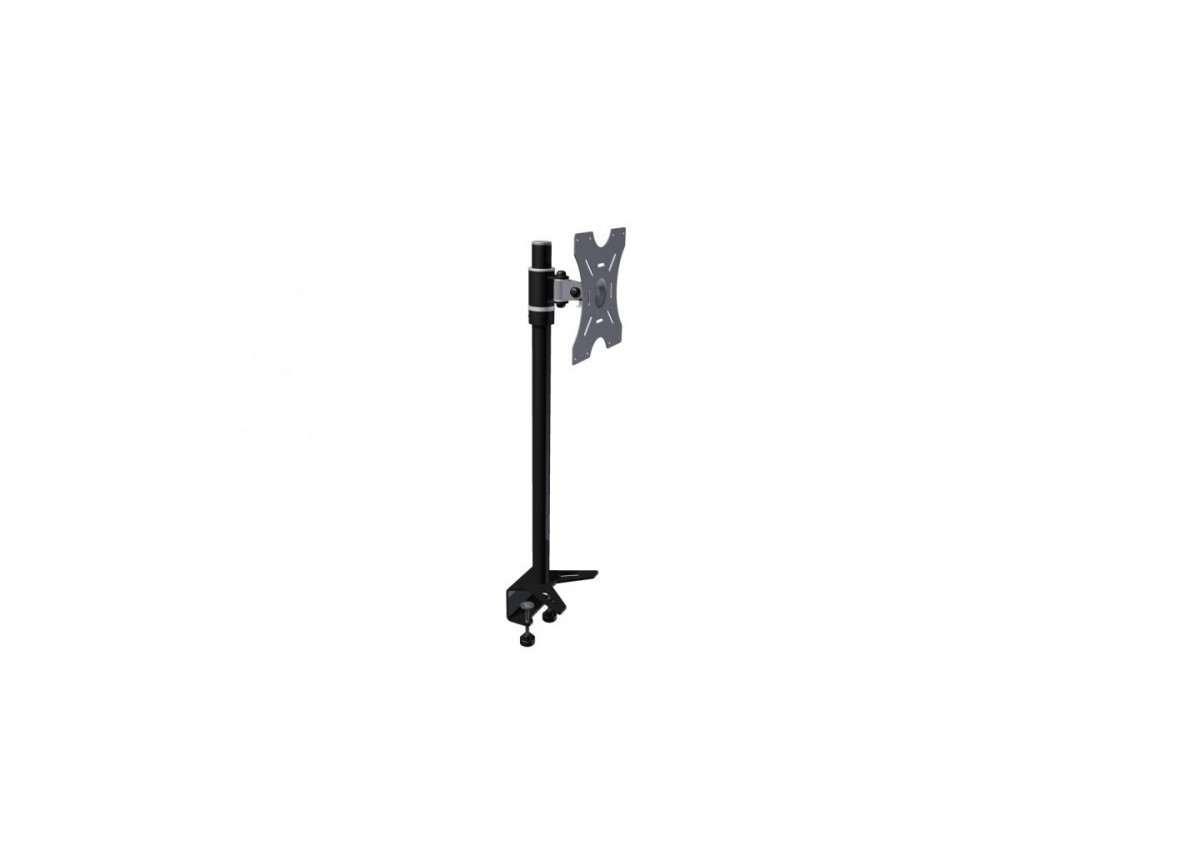

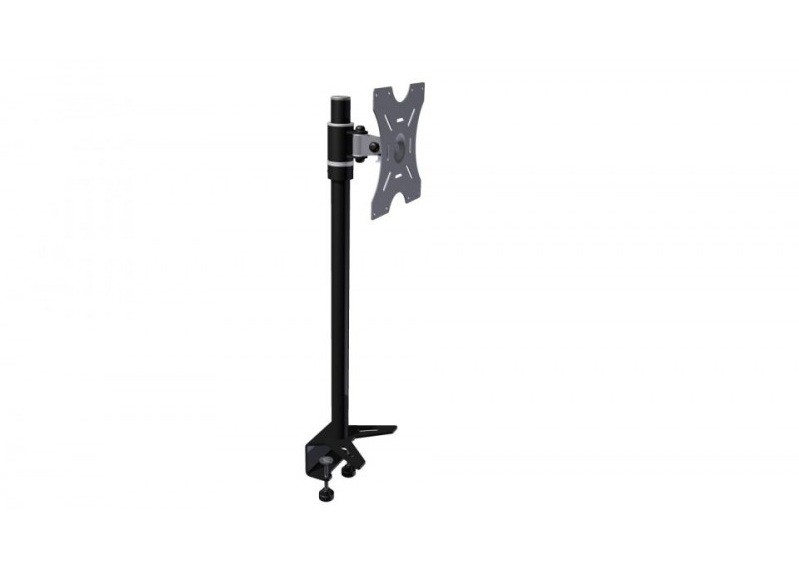

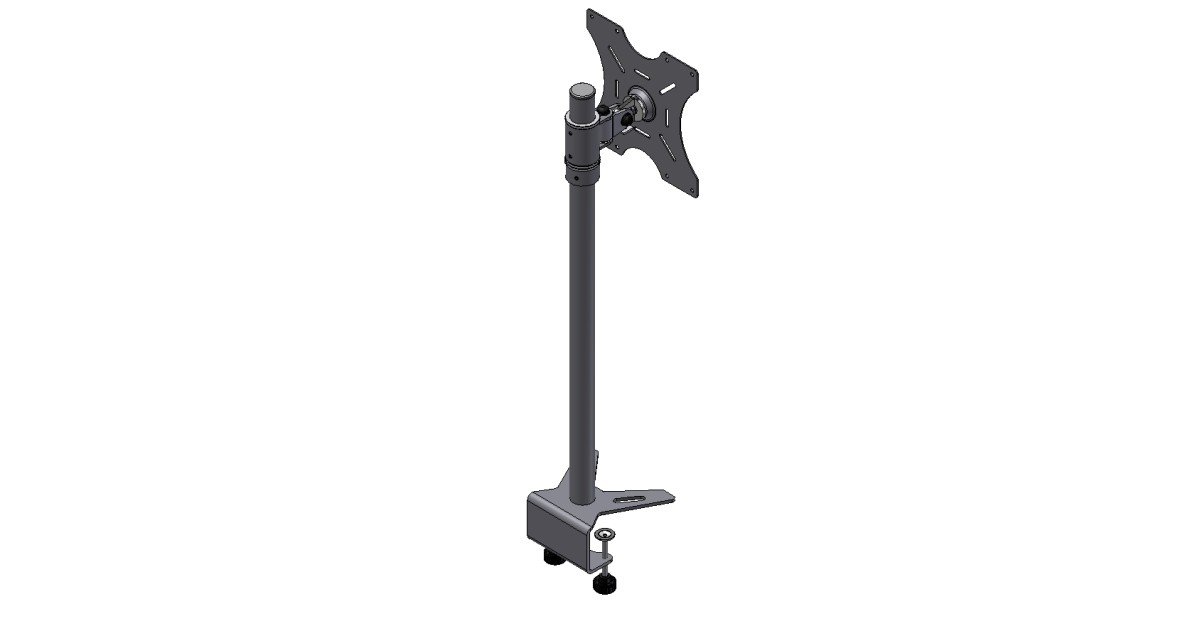

Edbak MSV2 Desktop Mount for 32″-46″ Screens

Product code: MSV2

MSV2 is designed for work ergonomics in office spaces. This universal desk mount with adjustable tilt angle is invaluable for the proper planning of desk space. Adjustable screen height and 360° arms rotation allow you to position the screen to suit the user’s individual needs and ensure comfort and convenience during work with a computer. MSV2 is perfect for users who appreciate functionality above all.

SEND AN ENQUIRY

Description

  • Universal VESA system
  • Screen height adjustment
  • 360° arm rotation
  • Screen tilting adjustment by -40° to +40°
  • 2 types of desk fastenings
  • All screws included
  • Simple and quick installation

Additional information

Product Specifications

Index:MSV2
Color:Black
Warranty:Limited 5-year’s
Number of screens:1
Minimum screen size:32″
Maximum screen size:46″
Forward tilting:-40°
Forward tilting:+40°
Arm rotation:360°
Left-right rotation:360°
Maximum load:15 kg
VESA Mounting Compatibility:75×75 up to 200×200


Technical Specifications

Product dimensions:W: 170 mm D: 220 mm H: 785 mm

(W: 6,69″ D: 8,66″ H: 30,91″)

Product weight:3,8 kg (8 lb)
Max. distance from mounting surface:677 mm (26,65″)
Min. distance from mounting surface:110 mm (4,33″)
Max. mounting pattern:200 mm x 200 mm
Min. mounting pattern:75 mm x 75 mm


Logistics Data

SAP Index:WUBI-MSV2
EAN Code:5908252968367
HS Code (Harmonized System):732690
HTS Code (Harmonized Tariff Schedule):7326909890
Country of origin:Poland
