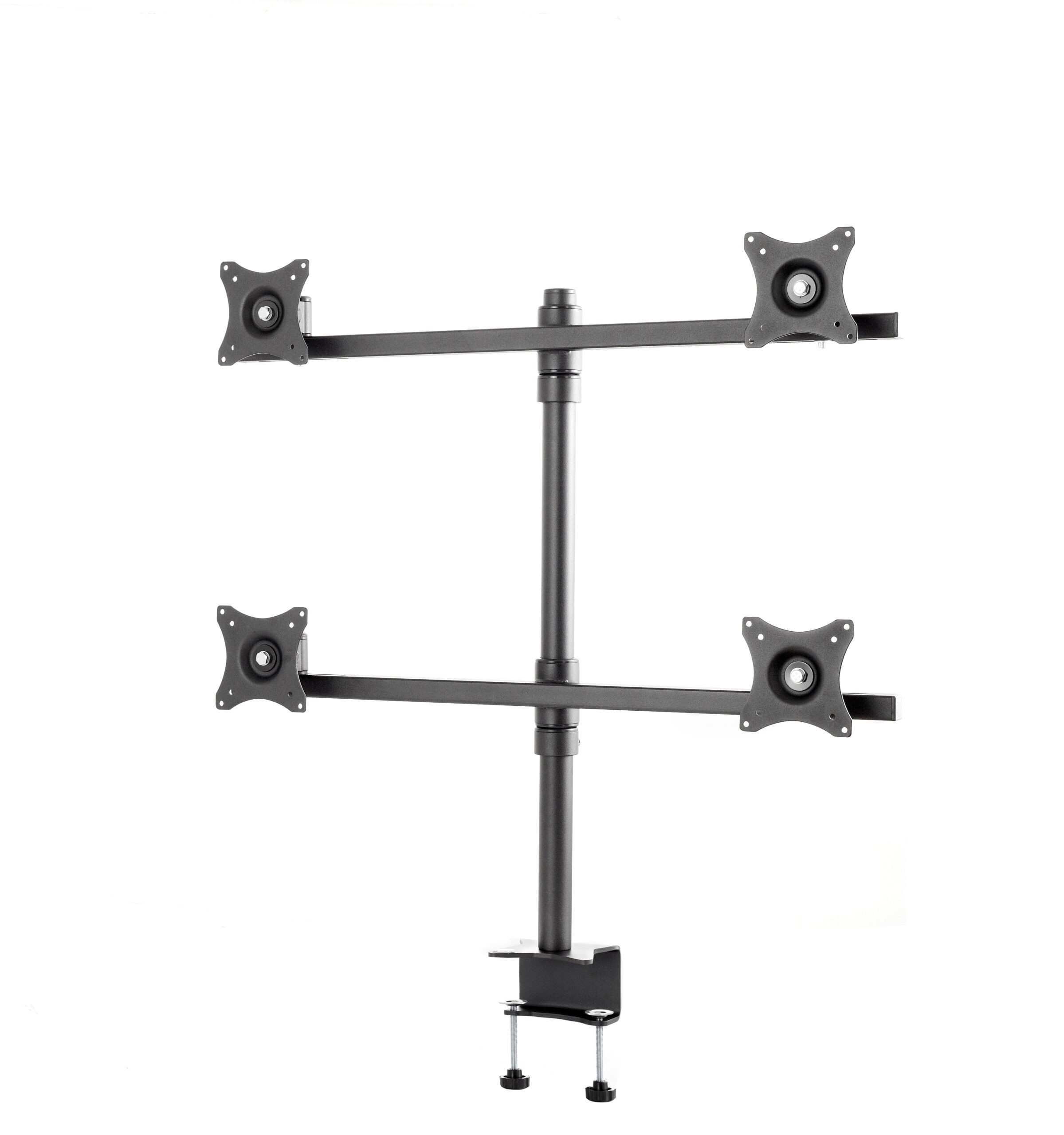

Edbak SV07 Desktop Mount for Four 19″-27″ Screens
Product code:The SV07 desk mount for four 19″-27″ screens is designed for users who perform work related to all-day screen operation. Screen tilting adjustment by -50°/+50° and 360° right-left screen rotation allow you to position the screens to suit the user’s individual needs and ensure excellent comfort during office work. Two types of desk fastenings of the mount are suitable for any installation, increasing its functionality. SV07 is a perfect choice for those who value ergonomics when working with a computer and spending many hours at the desk, including the industry, transport and monitoring centres.
SEND AN ENQUIRYDescription

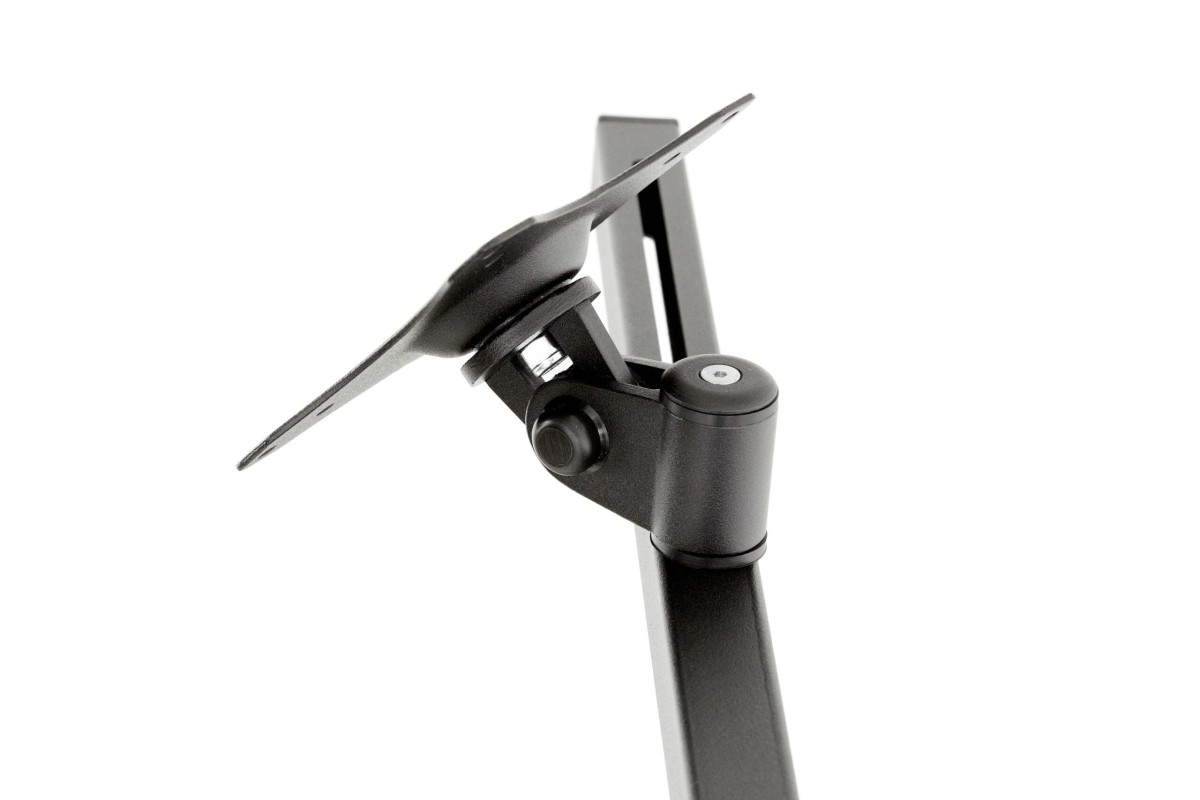

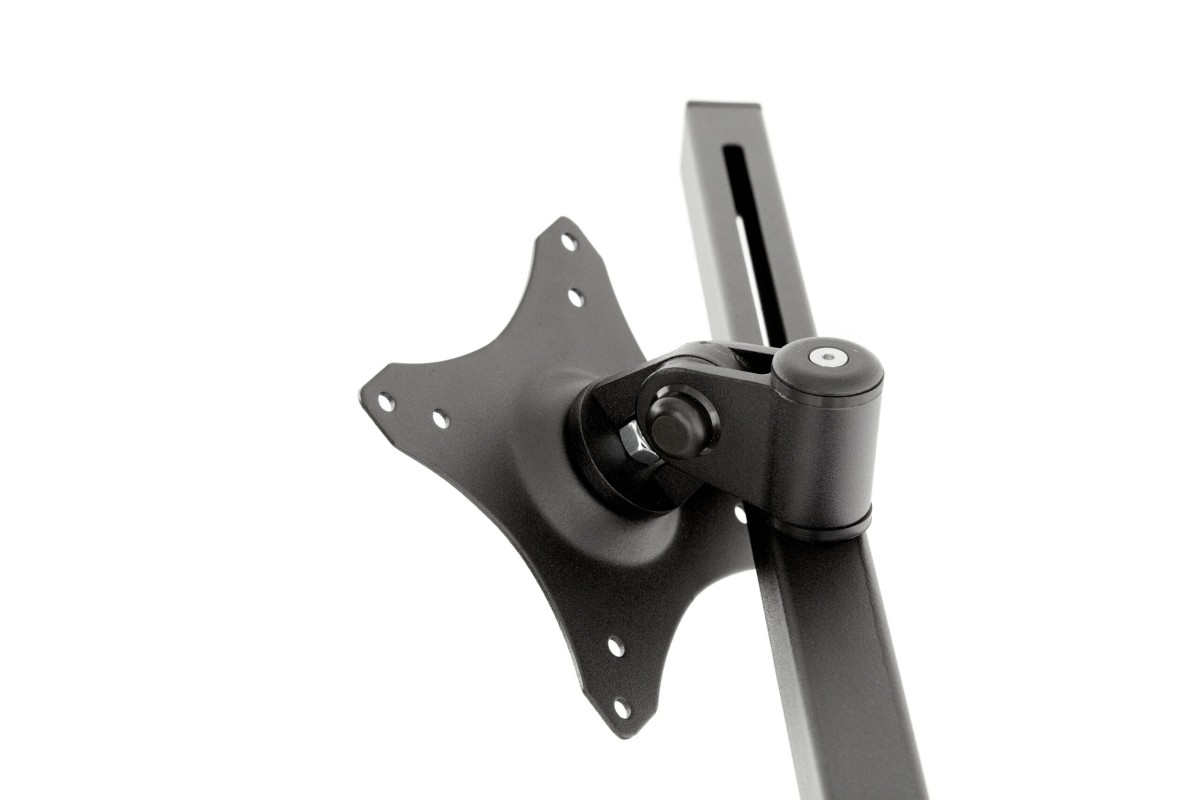

- Screen tilting adjustment by -50° to +50°
- 360° right-left screen position adjustment

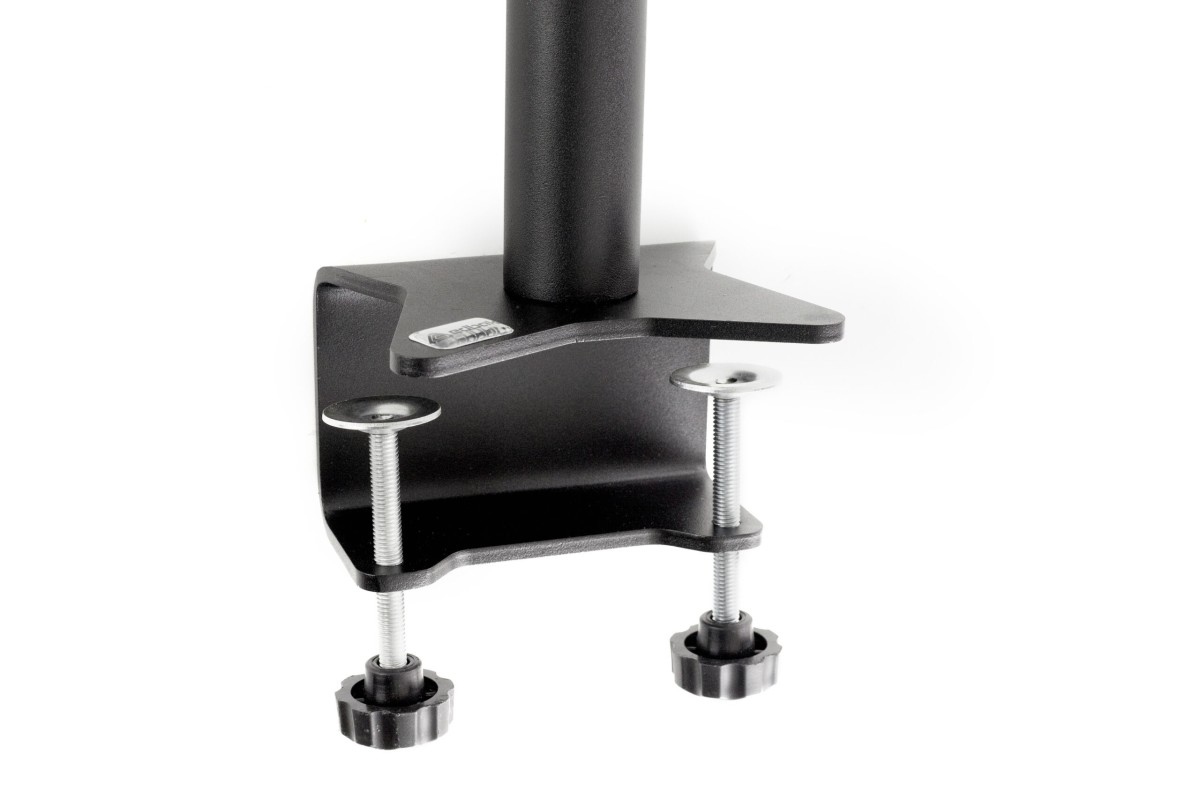

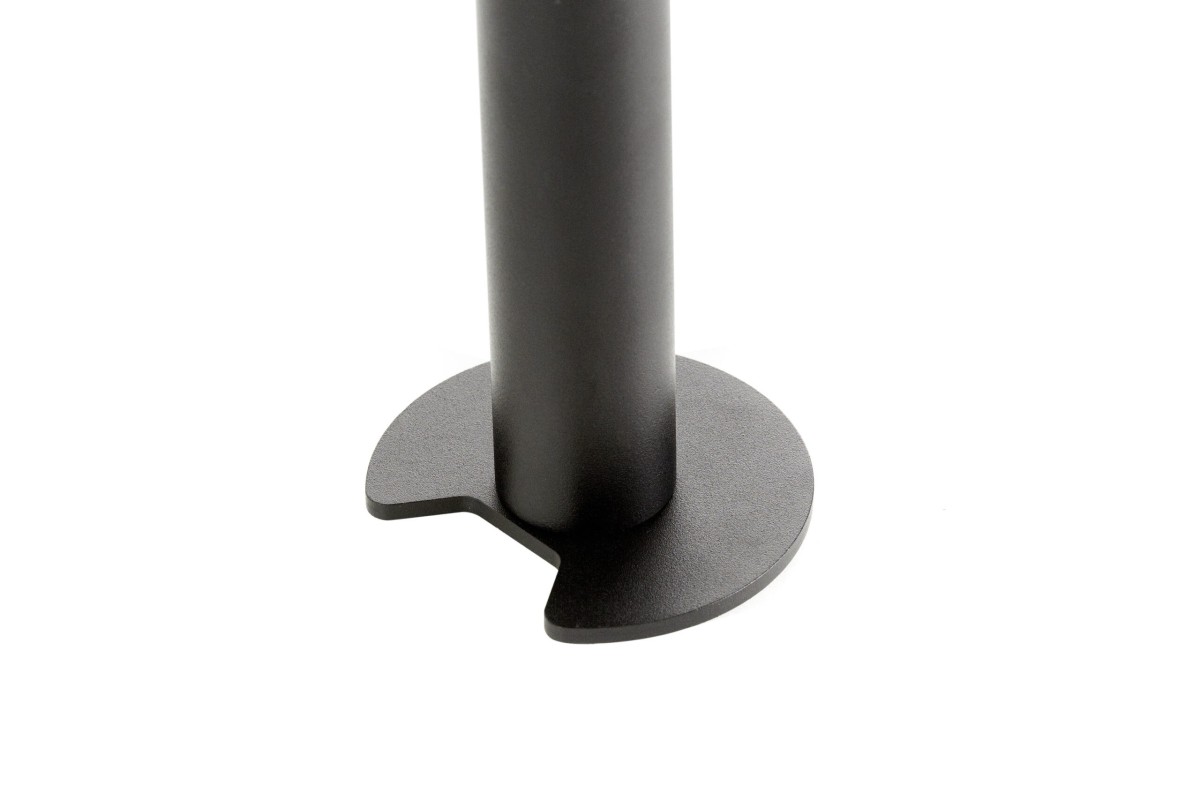

- 2 types of desk fastenings included

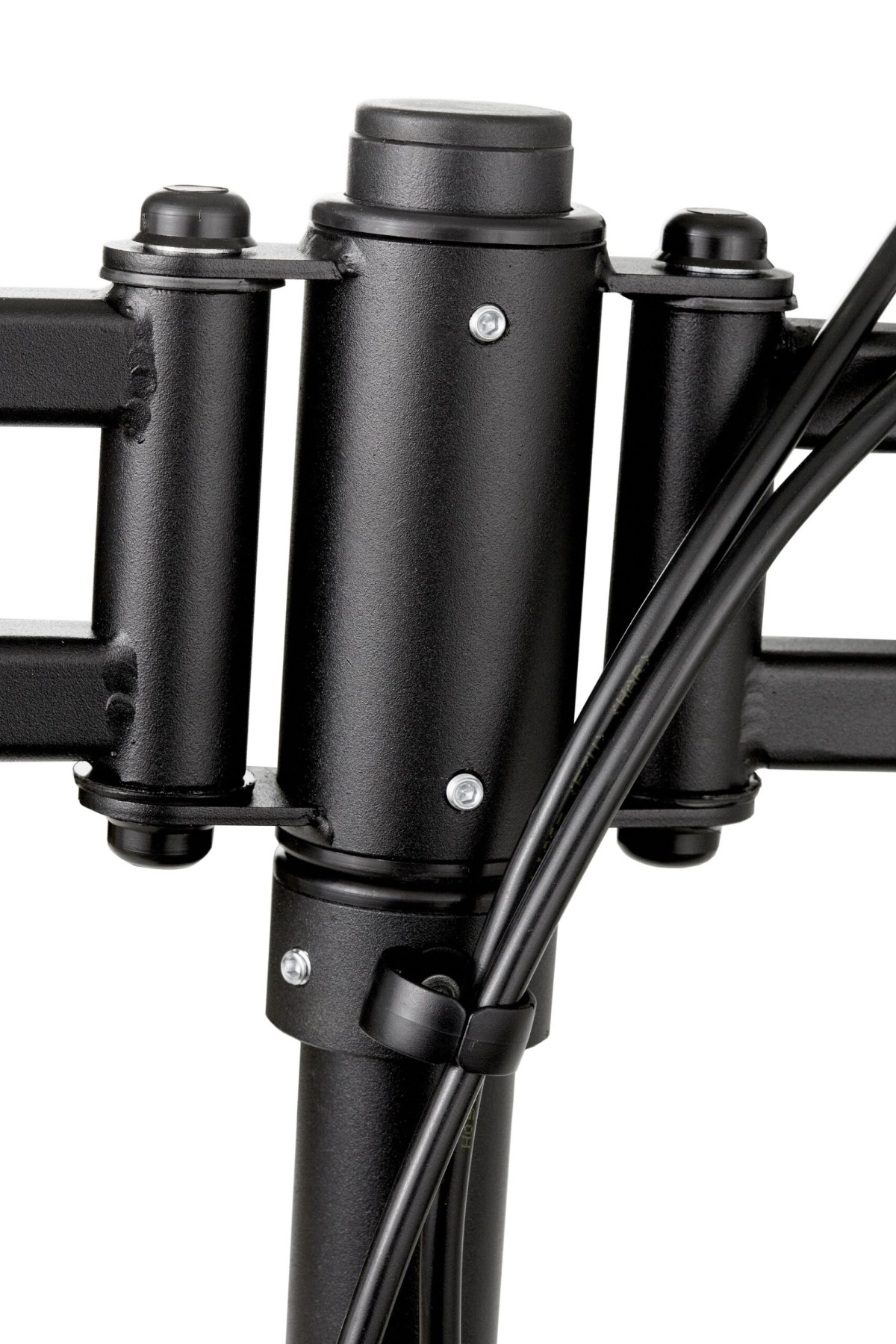

- Cable management system
- Modern design
- Simple and quick installation
Additional information
Product Specifications
| Index: | SV07 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 4 |
| Minimum screen size: | 19″ |
| Maximum screen size: | 27″ |
| Forward tilting: | -50° |
| Forward tilting: | +50° |
| Arm rotation: | 360° |
| Left-right rotation: | 360° |
| Maximum load: | 40 kg |
| VESA Mounting Compatibility: | 75×75 up to 100×100 |
Technical Specifications
| Product dimensions: | W: 750 mm D: 157 mm H: 800 mm
(W: 29,53″ D: 6,18″ H: 31,50″) |
| Product weight: | 7 kg (15 lb) |
| Max. distance from mounting surface: | 400 mm (15,75″) |
| Min. distance from mounting surface: | 100 mm (3,94″) |
| Max. mounting pattern: | 100 mm x 100 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| SAP Index: | WUBI-SV07c-B |
| EAN Code: | 5908252960545 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
