Edbak GDV121 Double Swing Arm Wall Mount for 10″-29″ Screens
Product code:The GDV121 double swing arm wall mount is dedicated to small screens ranging from 10″ to 29″. Its simple design makes it quick and easy to install on walls of various structures. The possibility of adjusting the arm in the range of 180 degrees allows precise positioning of the display, which provides a wide viewing angle. The possibility of tilting the screen by -90°/+45° allows any adjustment of screen position and improves the comfort of use. The GDV121 design, suitable for frequent changes in the position of the display, works perfectly in wall corners.
SEND AN ENQUIRYDescription
- Modern design and high-end aesthetics

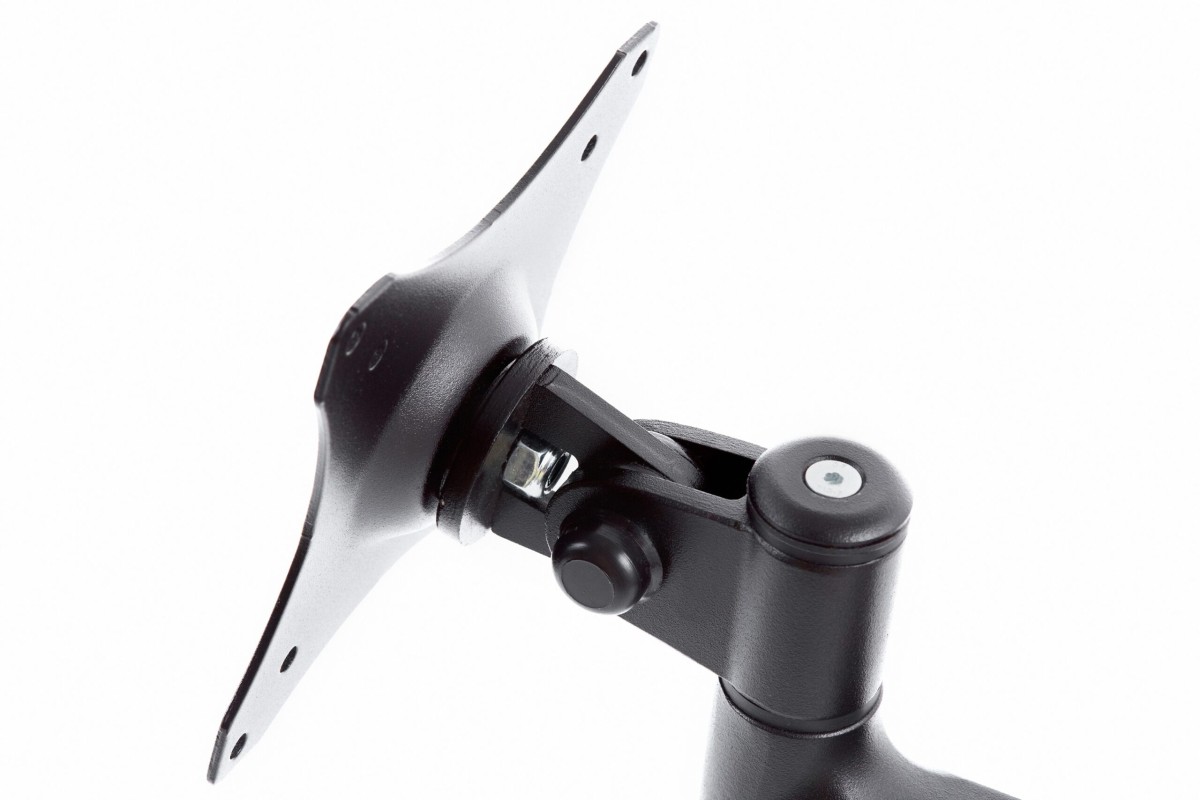

- Option of screen tilting by -90° to +45°
- The possibility of adjusting the arm in the range of 180°
- 90°/90° right-left screen rotation
- VESA universal standard

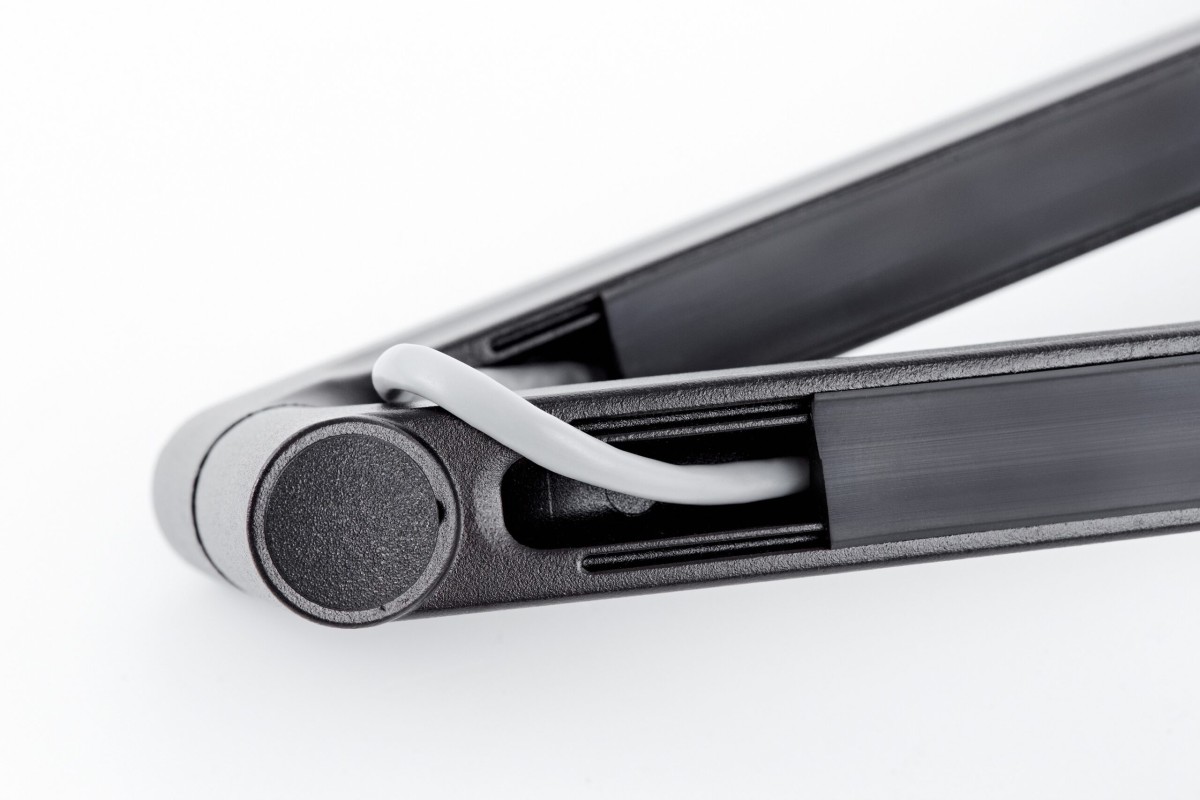

- Integrated cable management system
Additional information
Product Specifications
| Index: | GDV121 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 10″ |
| Maximum screen size: | 29″ |
| Tilt: | -90° /+45° |
| Arm rotation: | 360° |
| Left-right rotation: | 90/90° |
| Maximum load: | 12 kg |
| VESA Mounting Compatibility: | 75×75 up to 100×100 |
Technical Specifications
| Product dimensions: | W: 253 mm D: 643 mm H: 115 mm
(W: 9,96″ D: 25,31″ H: 4,53″) |
| Product weight: | 4,4 kg (10 lb) |
| Max. distance from mounting surface: | 640 mm (25,20″) |
| Min. distance from mounting surface: | 100 mm (3,94″) |
| Max. mounting pattern: | 100 mm x 100 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| SAP Index: | WUSC-GDV121 |
| EAN Code: | 5902841133259 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
