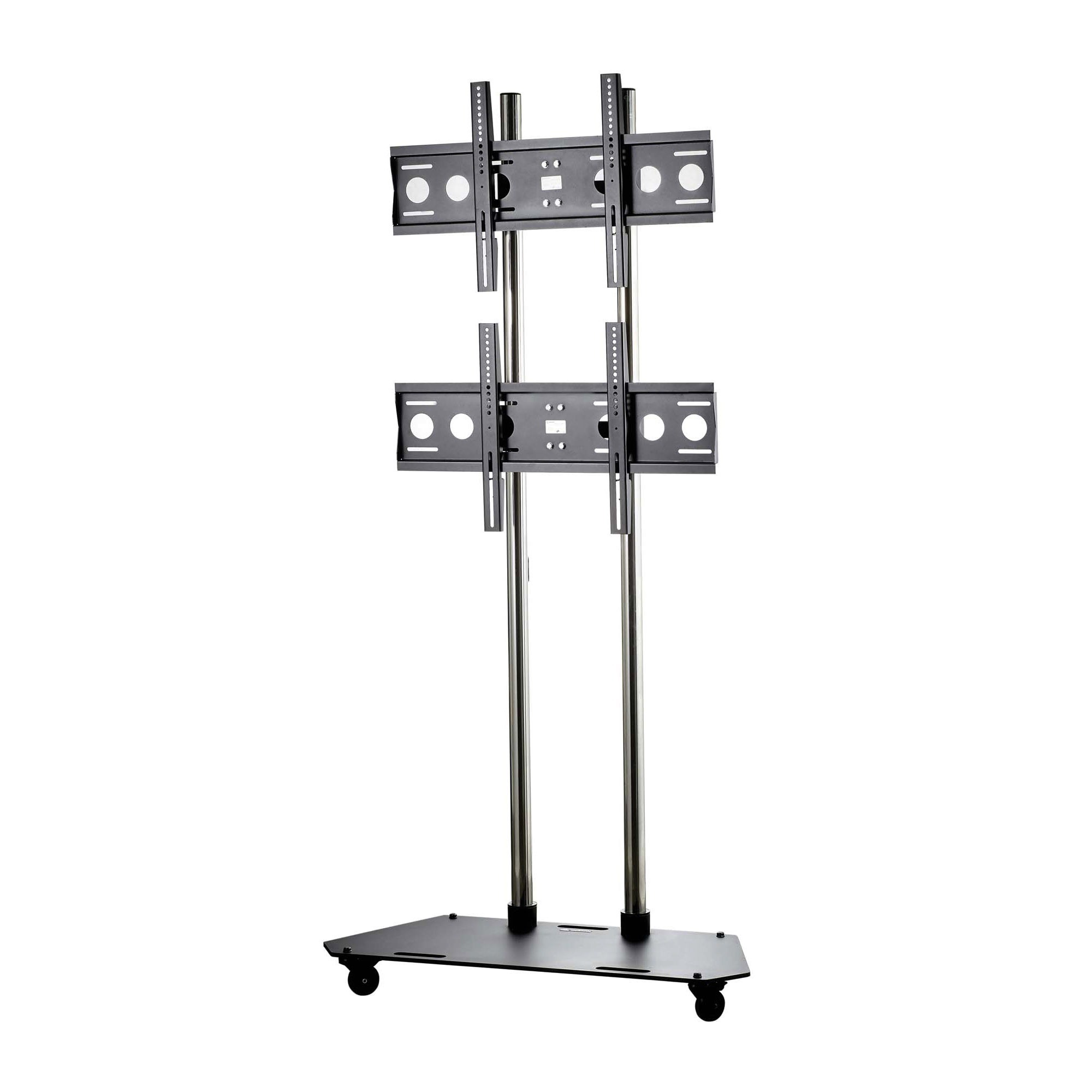

Edbak TR3 Flat Screen Trolley for Two 37″-60” Screens, vertical position
Product code:TR3 is a universal video conference trolley for two screens mounted vertical position. The lightweight and minimalist design of powder-coated steel and polished tubes makes it perfect for any interior such as offices, conference rooms and waiting rooms. Adjustable height and the possibility of tilting the screen make TR3 extremely functional. TR3 features a cable management system to hide cables and keep the aesthetic, smart appearance of the entire installation. Castors with a braking mechanism ensure mobility.
SEND AN ENQUIRYDescription
- Up to 2 screens vertical position
- Simple and fast installation
- Aesthetic design of powder-coated steel and polished tubing
- Adjustable height

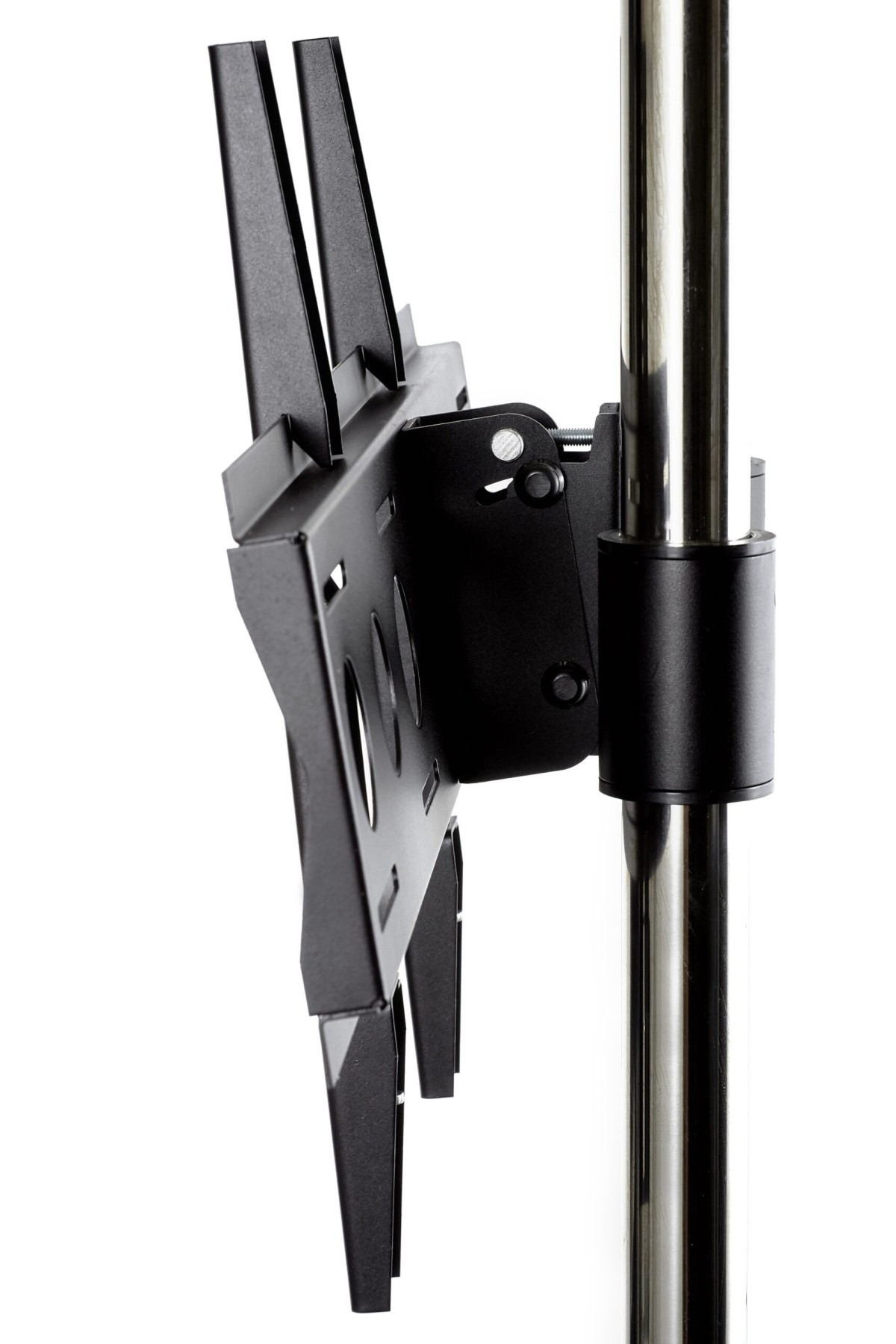

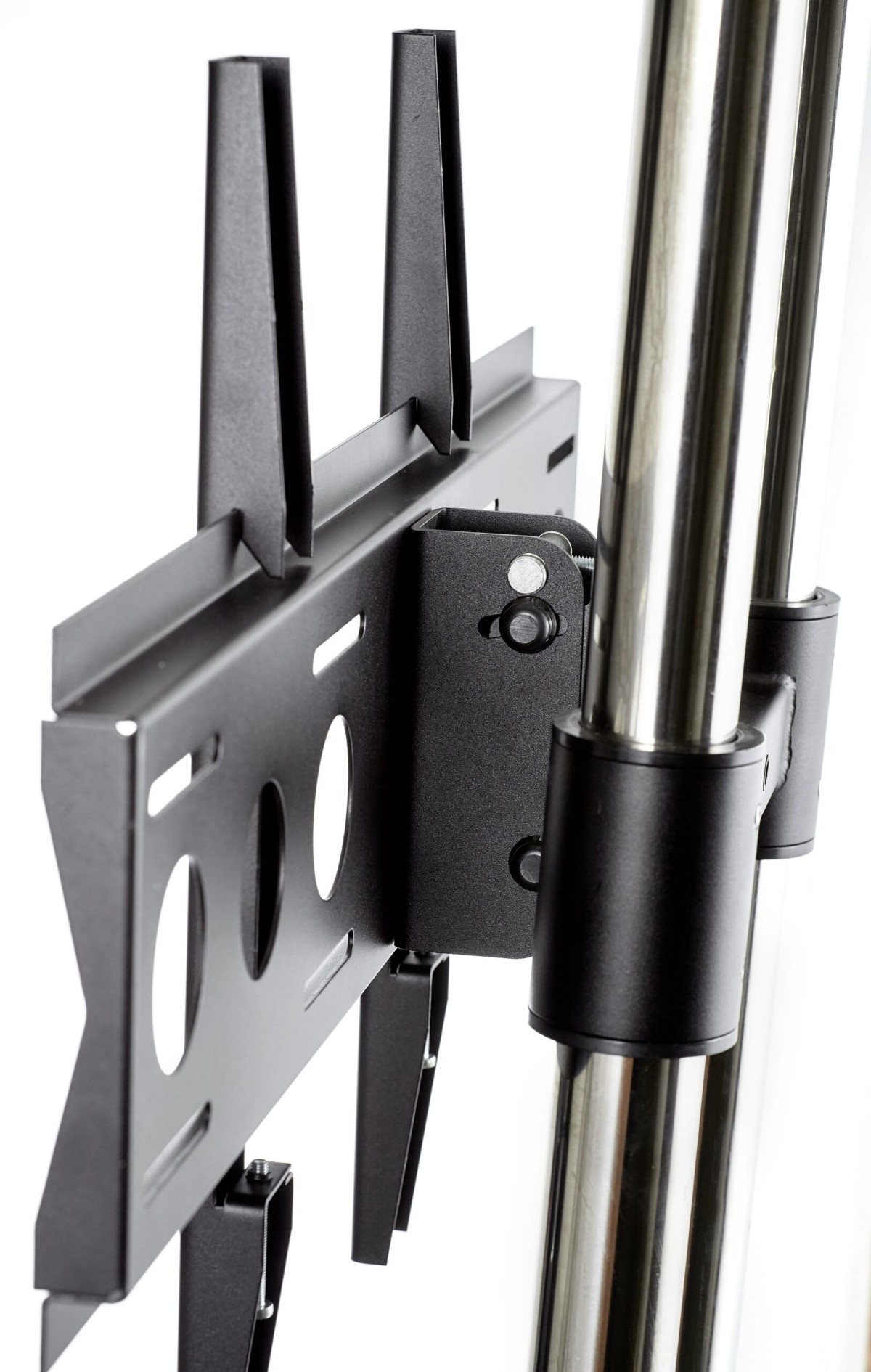

- Possible tilting screens
- Cable management for smart installation
- Includes 4 braked casters
Additional information
Product Specifications
| Index: | TR3 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 2 |
| Minimum screen size: | 42″ |
| Maximum screen size: | 65″ |
| Maximum load: | 80 kg |
| Forward tilting: | +6° |
| Forward tilting: | -9° |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 500 mm D: 1070 mm H: 2116 mm
(W: 19,69″ D: 42,13″ H: 83,31″) |
| Product weight: | 64,2 kg (142 lb) |
| Max. distance from floor to screen centre
Max. distance from the floor to the center of the screen: | 2080 mm (81,89″) |
| Min. distance from floor to screen centre
Min. distance from the floor to the center of the screen: | 353 mm (13,90″) |
| Max. mounting pattern: | 750 mm x 460 mm |
| Min. mounting pattern: | 45 mm x 95 mm |
Logistics Data
| SAP Index: | WWTR-TR3c-B |
| EAN Code: | 5902841104167 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
