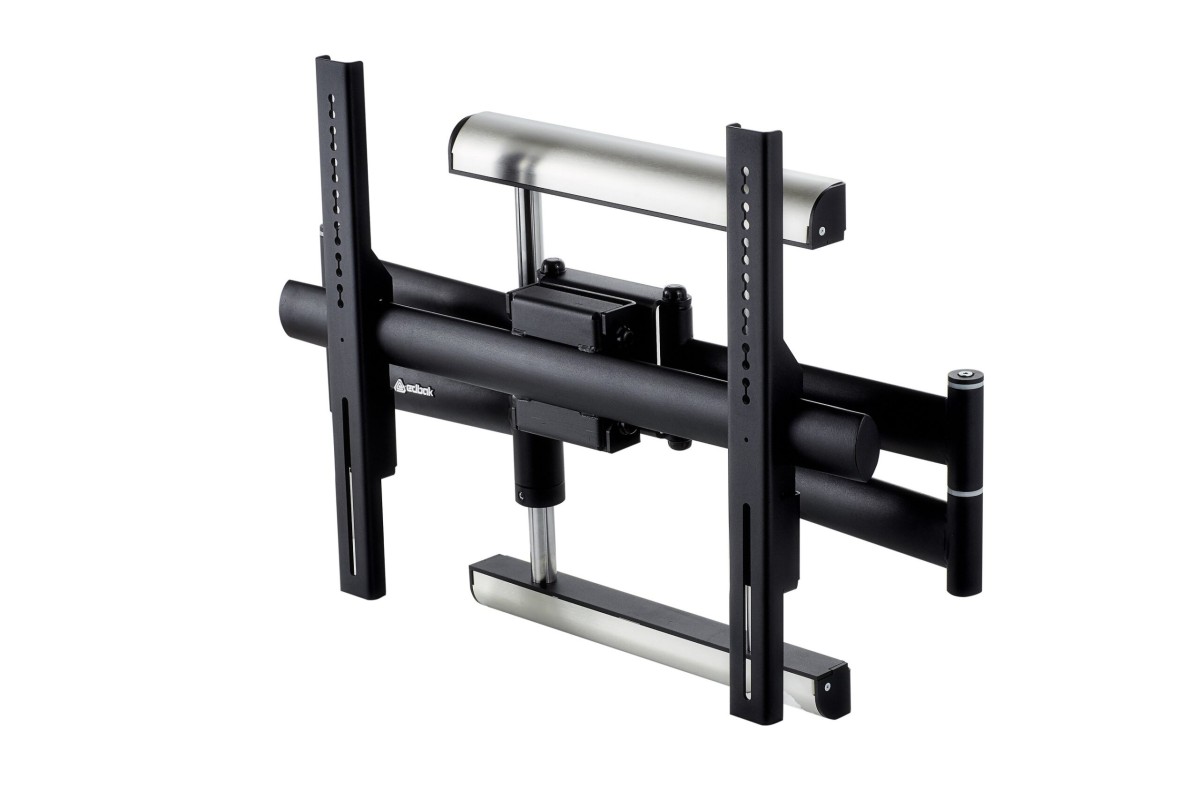

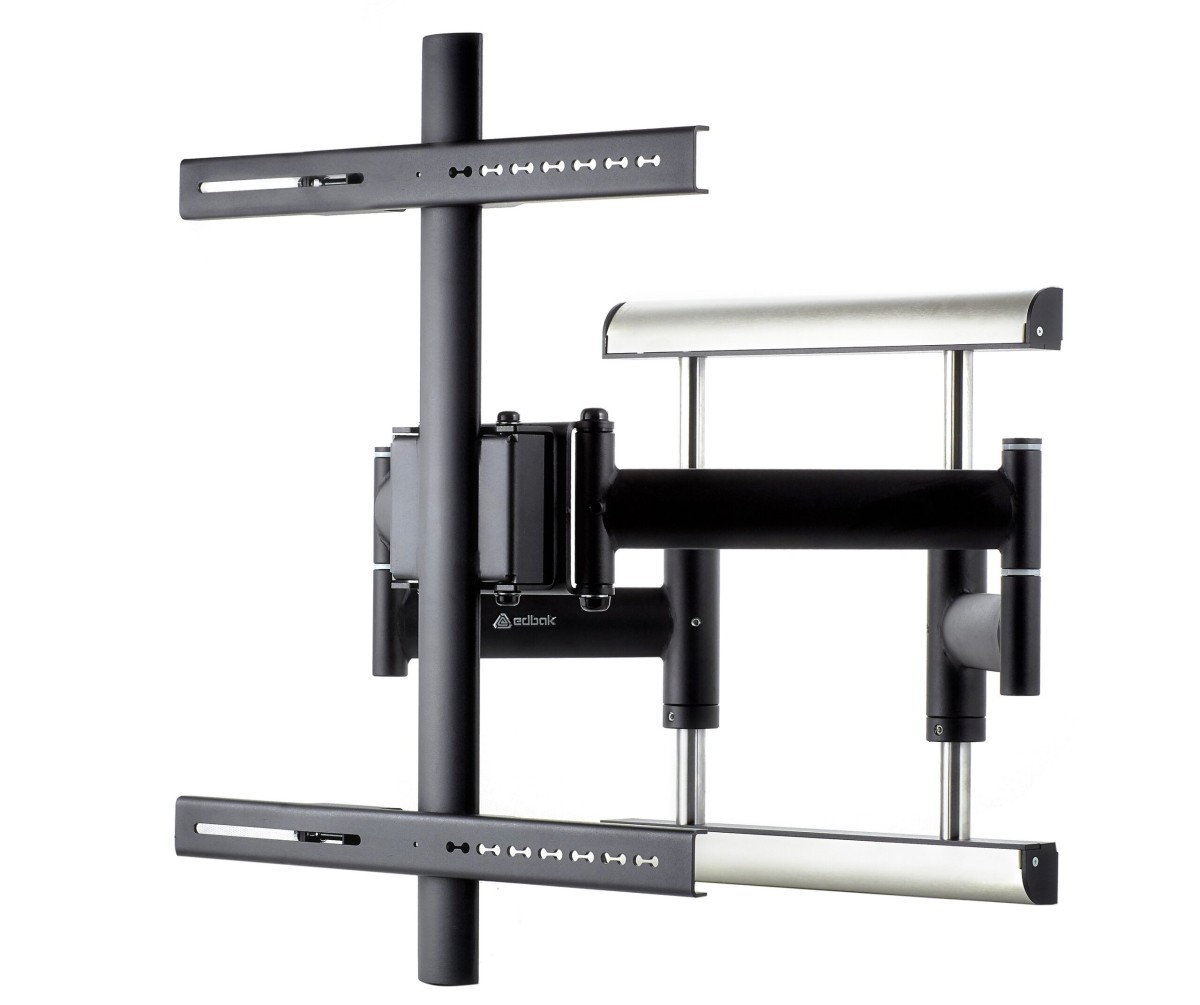

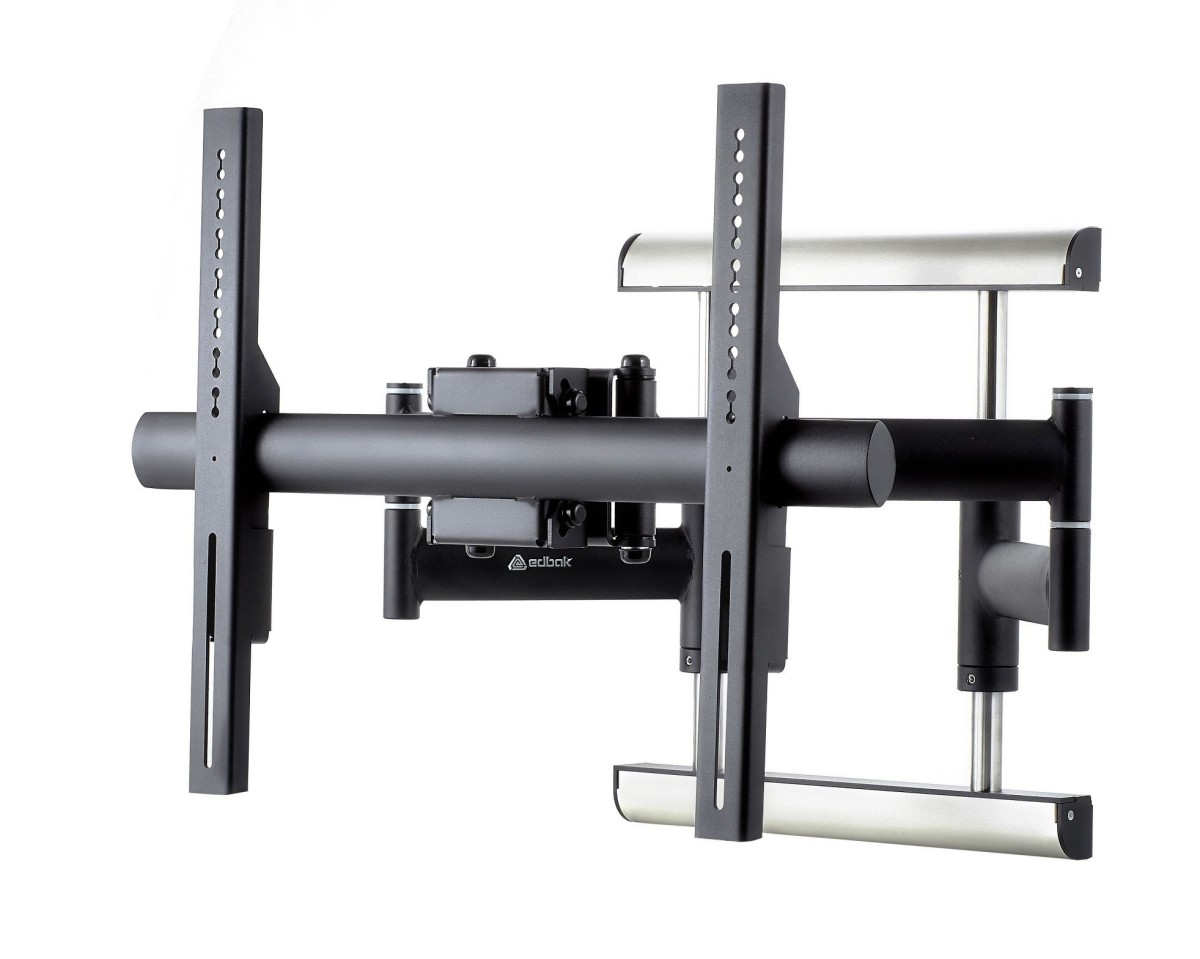

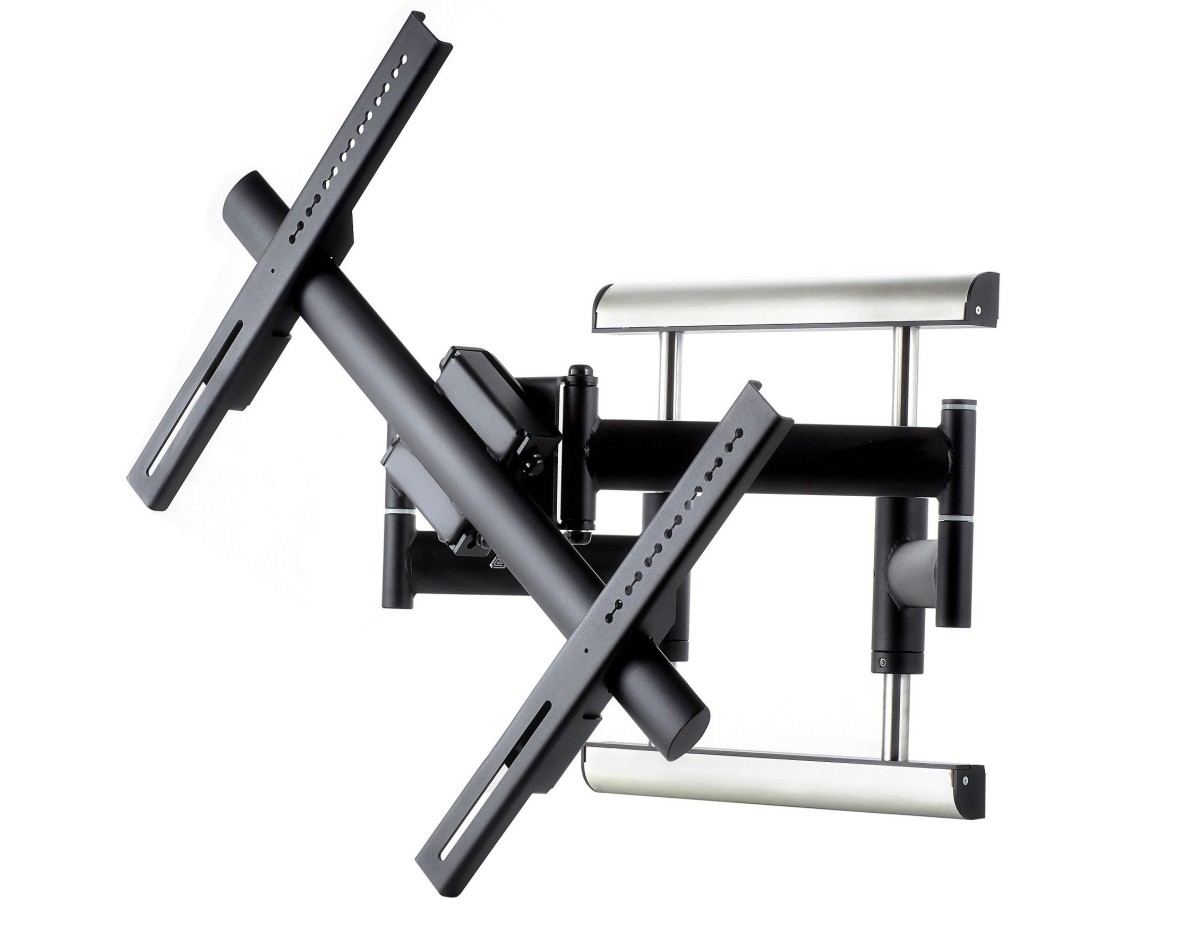

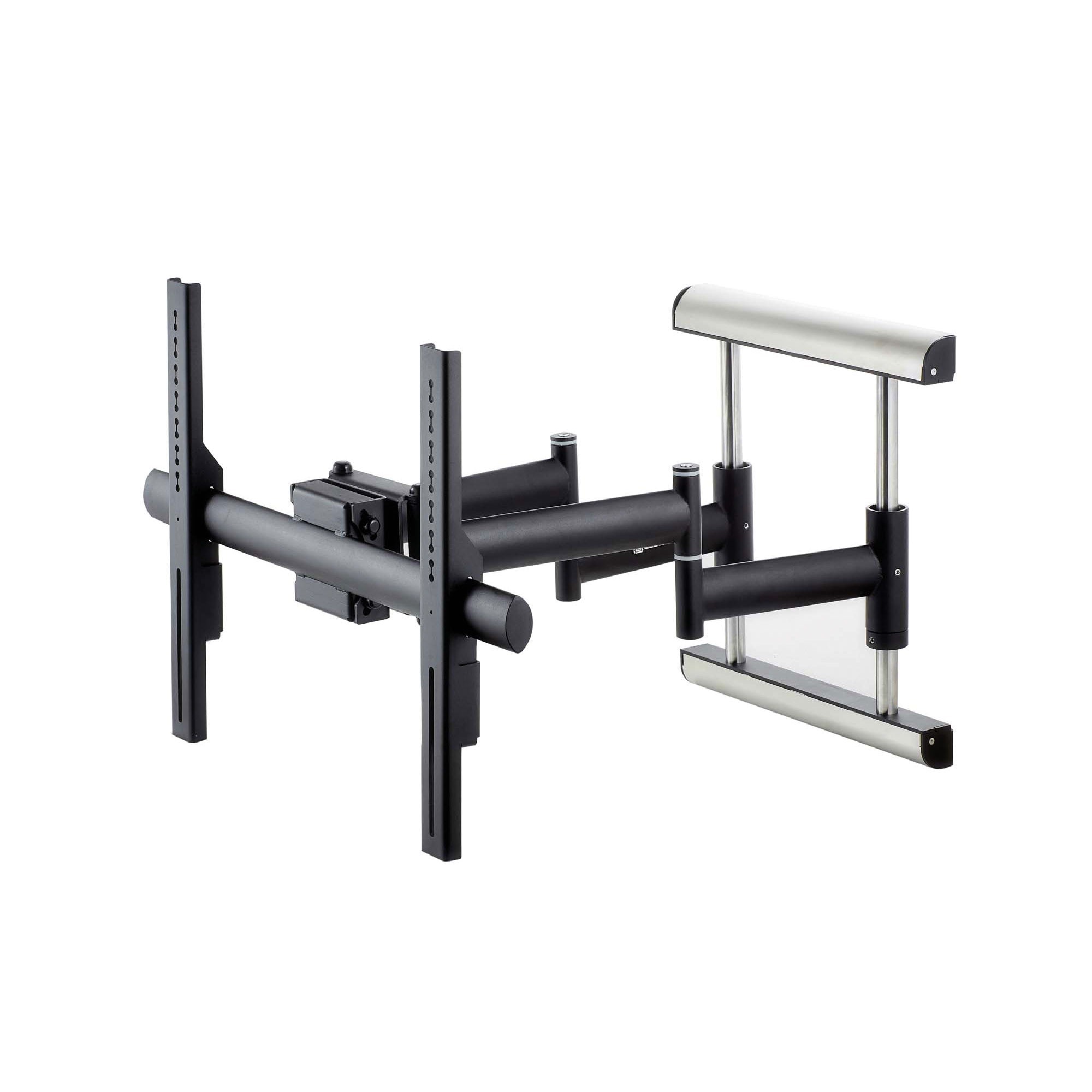

Edbak RMSA1 Heavy Duty Swing Arm Wall Mount for 42″-98″ Screens

Product code: RMSA1

The RMSA1 heavy swing arm wall mount is dedicated to big screens ranging from 42″ to 98″. Three rotation axes allow any adjustment of the screen position landscape. The possibility of tilting the screen by -10°/+10° and 180° right-left screen rotation allow the screen position to be adjusted to suit to the user’s needs and improve the comfort of use.

SEND AN ENQUIRY

Description

  • Option of landscape or portrait
  • Posibility of screen tilting by -10° to +10°
  • Maximum load capacity of 120 kg
  • 180° right-left screen rotation
  • Adjustable distance from the wall from 174 to 707 mm
  • VESA universal standard
  • Simple assembly

Additional information

Product Specifications

Index:RMSA1
Color:Black
Warranty:Limited 5-year’s
Number of screens:1
Minimum screen size:42″
Maximum screen size:98″
Forward tilting:-10°
Forward tilting:+10°
Arm rotation:90°
Left-right rotation:180°
Maximum load:120 kg
VESA Mounting Compatibility:200×200 up to 600×400


Technical Specifications

Product dimensions:W: 819 mm D: 174 mm H: 520 mm

(W: 32,24″ D: 6,85″ H: 20,47″)

Product weight:21,5 kg 47 lb
Max. distance from mounting surface:707 mm (27,83″)
Min. distance from mounting surface:174 mm (6,85″)
Max. mounting pattern:600 mm x 460 mm
Min. mounting pattern:200 mm x 95 mm

Logistics Data

SAP Index:WUSC-RMSA1
EAN Code:5908252968664
HS Code (Harmonized System):732690
HTS Code (Harmonized Tariff Schedule):7326909890
Country of origin:Poland
