Edbak VSM651 Swing Arm Wall Mount for 10″-32″ screens

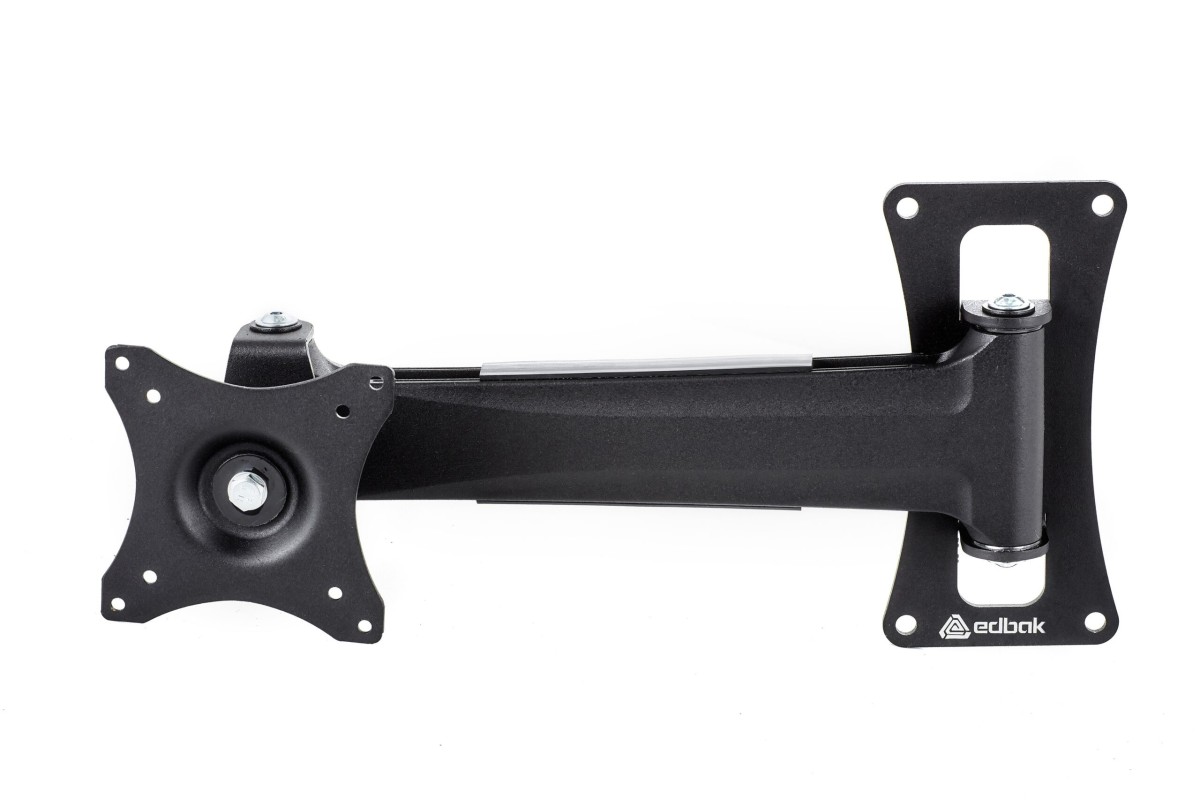

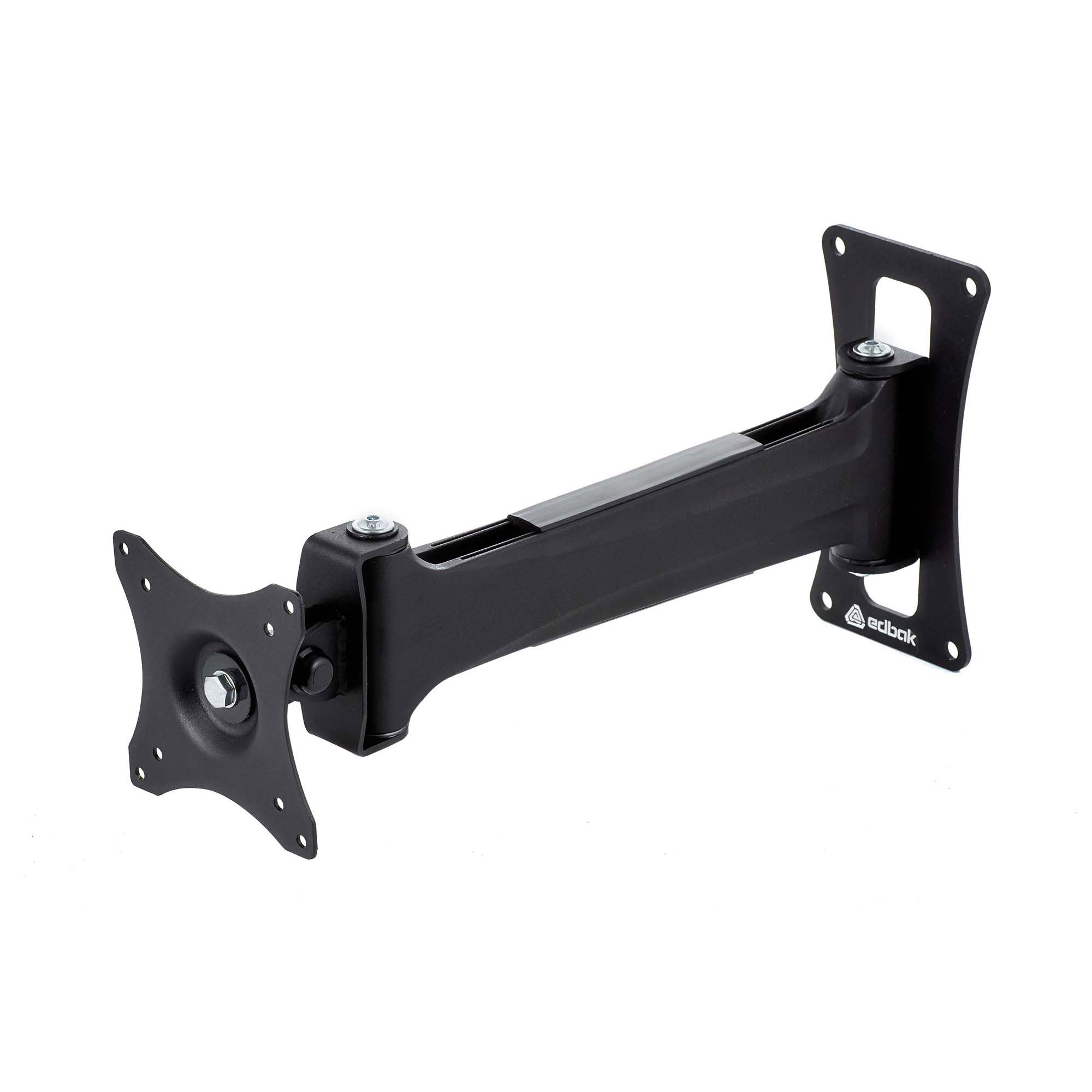

Product code:The VSM651 swing arm wall mount is dedicated to small screens ranging from 10″ to 32″. The design is adapted to frequent changes in the position of the screen, so it is a perfect solution for places where the position of screens is often changed. This mount is made of aluminum arm with cables routed inside to ensure smart installation and aesthetic appearance. VSM651 has the possibility of rotating the screen to the right and to the left by 180° and tilting the screen from -90° to +45°, which allows the position of the screen to be adjusted the user’s expectations and increases the comfort of use.
SEND AN ENQUIRYDescription
- Modern design and aesthetic finish of the wall mount
- Durable aluminum structure
- 180°/180° right-left screen rotation

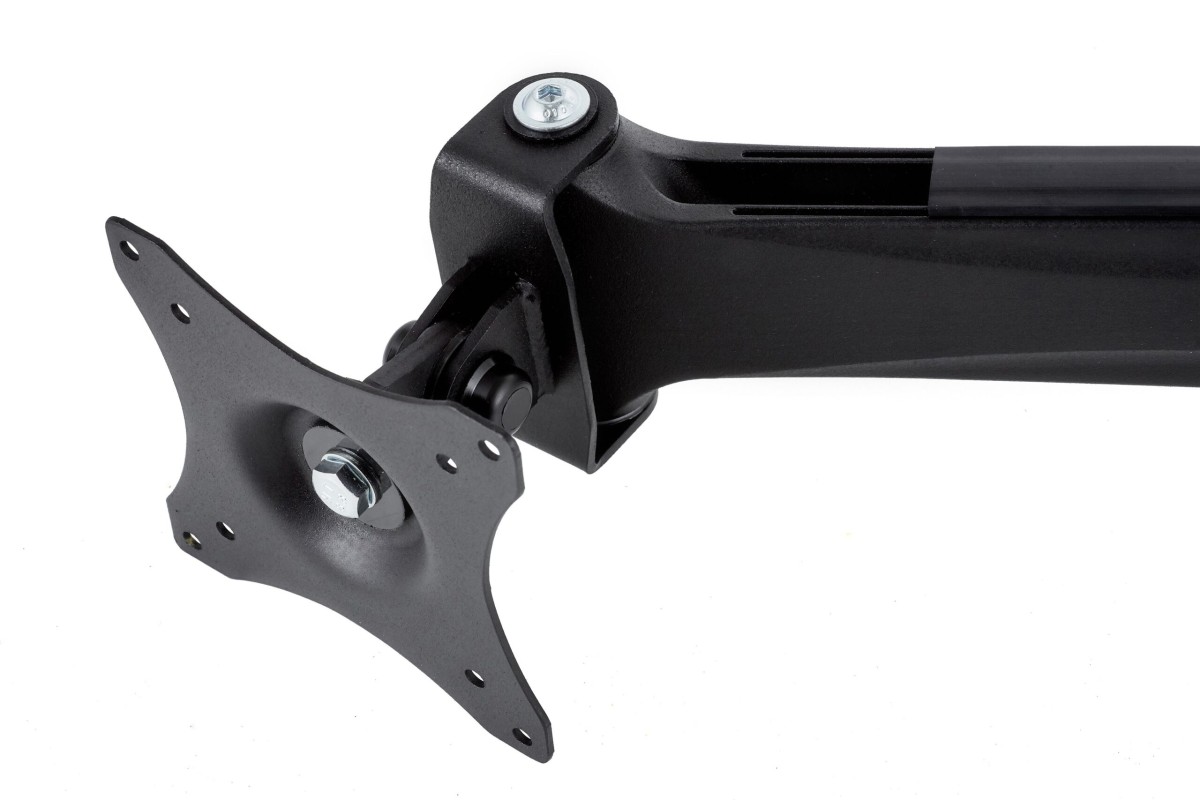

- Possibility of tilting the screen from -90° to +45°
- VESA universal standard

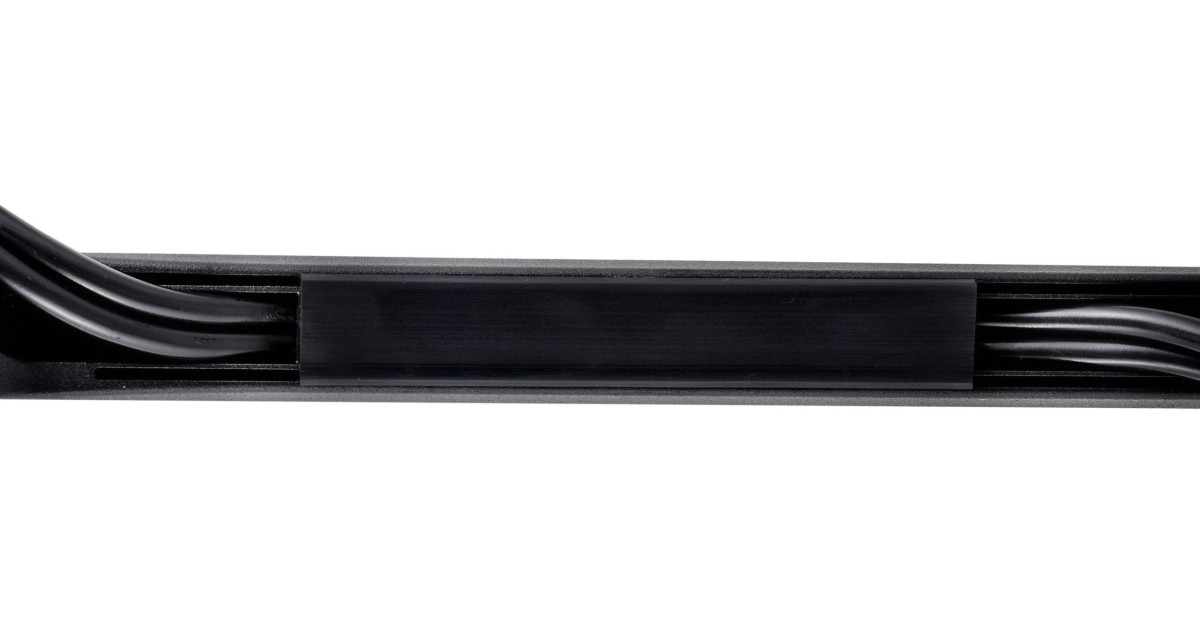

- Cable routed inside the arm
Additional information
Product Specifications
| Index: | VSM651 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 10″ |
| Maximum screen size: | 32″ |
| Forward tilting: | -90° |
| Forward tilting: | +45° |
| Arm rotation: | 360° |
| Left-right rotation: | 180/180° |
| Maximum load: | 12 kg |
| VESA Mounting Compatibility: | 75×75 up to 100×100 |
Technical Specifications
| Product dimensions: | W: 115 mm D: 413 mm H: 159 mm
(W: 4,35″ D: 16,26″ H: 6,26″) |
| Product weight: | 2,2 kg 5 lb |
| Max. distance from mounting surface: | 413 mm (16,26″) |
| Min. distance from mounting surface: | 110 mm (4,33″) |
| Max. mounting pattern: | 100 mm x 100 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| SAP Index: | WUSC-VSM651 |
| EAN Code: | 5902841111868 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
