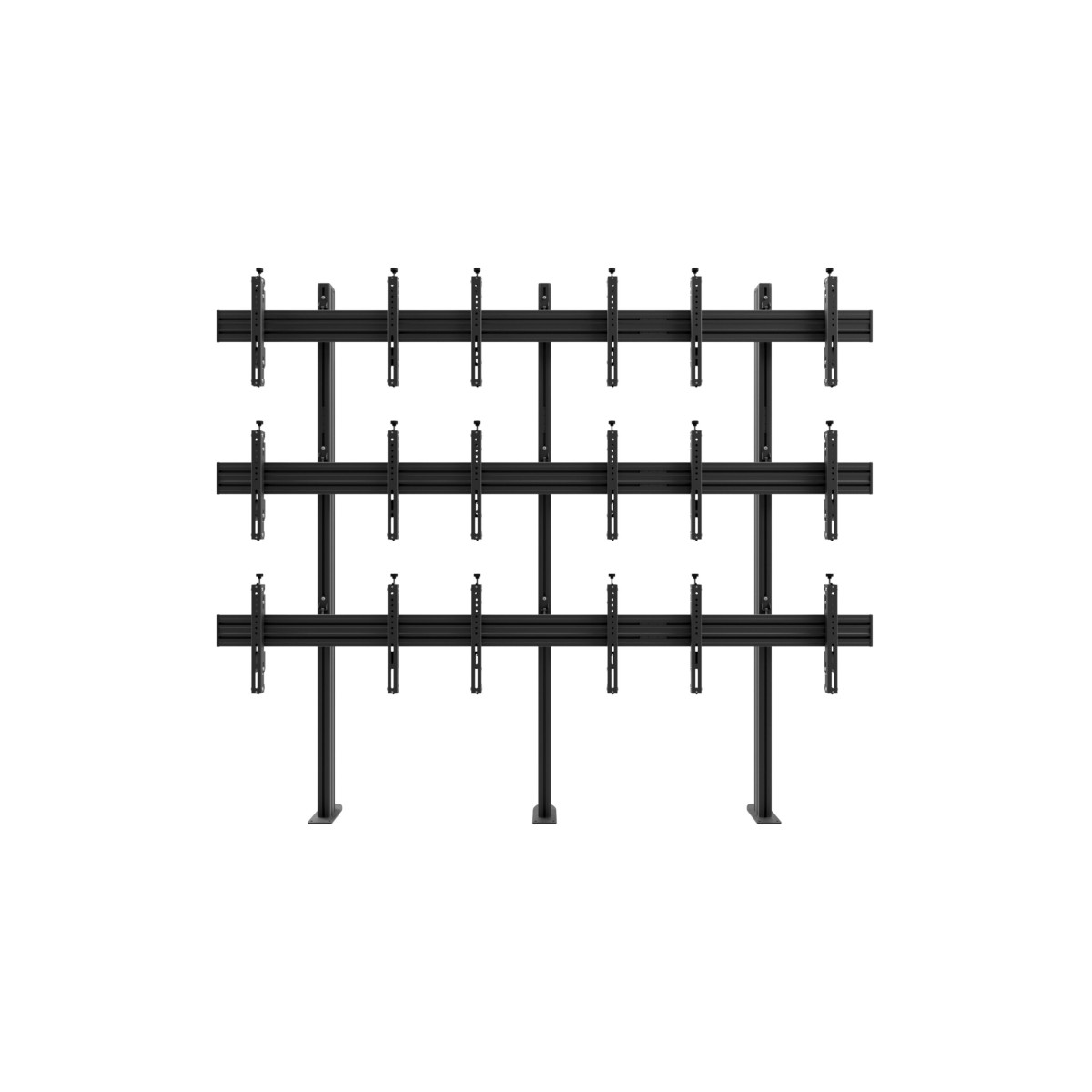

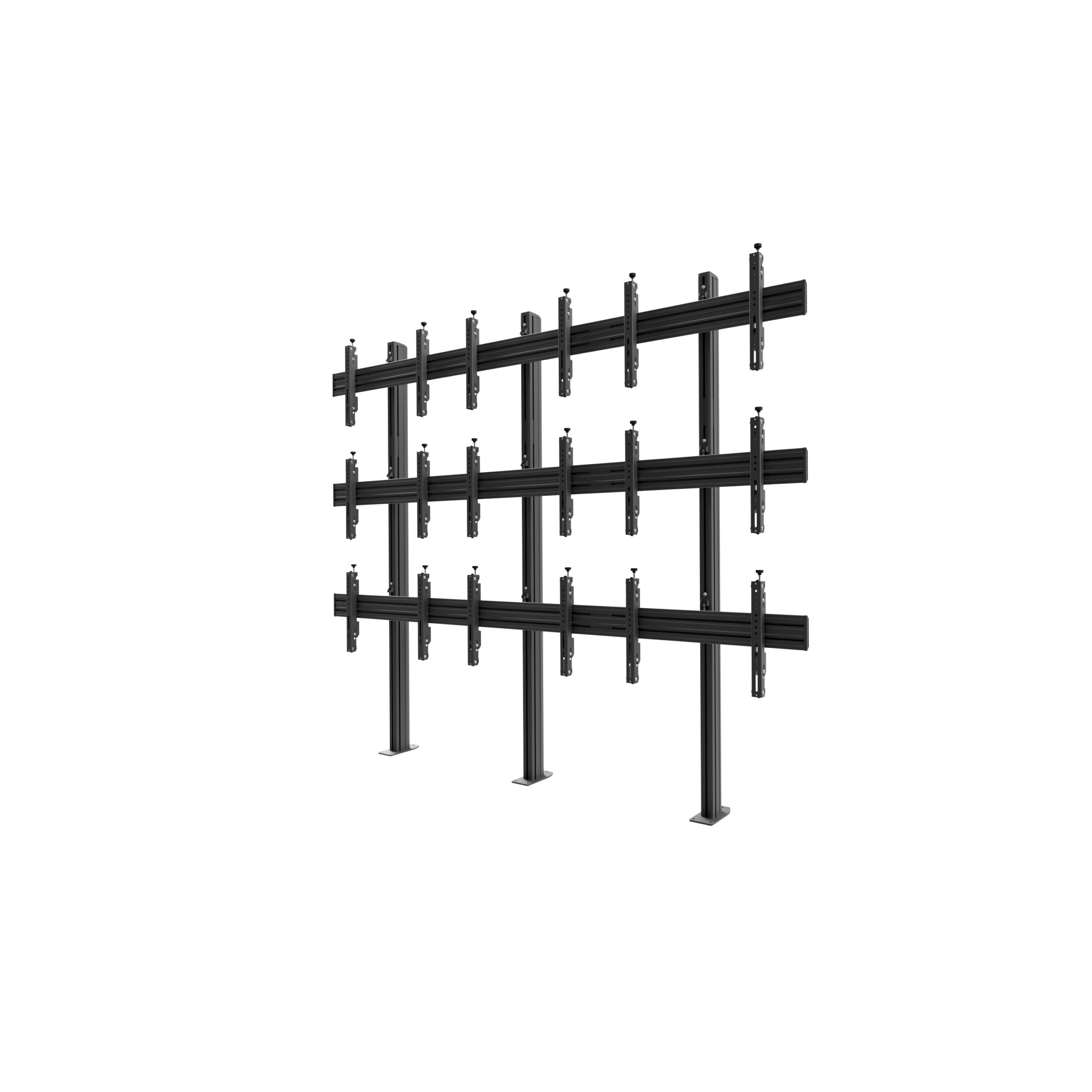

Edbak VWSA3357-L Video Wall Bolt Down Stand, modular 3×3, for 50″-57″ Screens, Landscape

Product code: VWSA3357-L

With its modular design, VWSA3357-L allows the installation of six 50″-57″ screens in 3×3 landscape orientation. The design is characterised by durability, high quality and aesthetics. The video wall attached to the floor allows a safe solution to be built in accordance with the expectations of the most demanding customers. VWSA3357-L is used in places where there is a need for dynamic and effective communication with the audience, while ensuring the maximum safety.

SEND AN ENQUIRY

Description

  • High-end quality and aesthetics
  • Durable design
  • Screen load-carrying beams made of aluminium
  • Up to 9 x 50″-57″ screens
  • Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
  • Screen protected against being slid out accidentally
  • Integrated cable management system for smart installation
  • Screws protecting against accidental or unauthorised removal of the screen

Additional information

Product Specifications

Index:VWSA3357-L
Color:Black
Warranty:Limited 5-year’s
Number of screens:9
Minimum screen size:50″
Maximum screen size:57″
Maximum load:290 kg
VESA Mounting Compatibility:100×100 up to 600×400


Technical Specifications

Product dimensions:W: 3320 mm D: 289 mm H: 2429 mm

(W: 130,71″ D: 11,38″ H: 95,63″)

Product weight:130 kg (287 lb)
Max. distance from mounting surface:2250 mm (88,58″)
Min. distance from mounting surface:330 mm (12,99″)
Max. mounting pattern:600 mm x 410 mm
Min. mounting pattern:50 mm x 50 mm

Logistics Data

SAP Index:WSTD-VWSA3357-L
EAN Code:5902841112599
HS Code (Harmonized System):732690
HTS Code (Harmonized Tariff Schedule):7326909890
Country of origin:Poland
