Edbak VWSA3247-L Video Wall Bolt Down Stand, modular 3×2, for 42″-49″ Screens, Landscape

Product code: VWSA3247-L

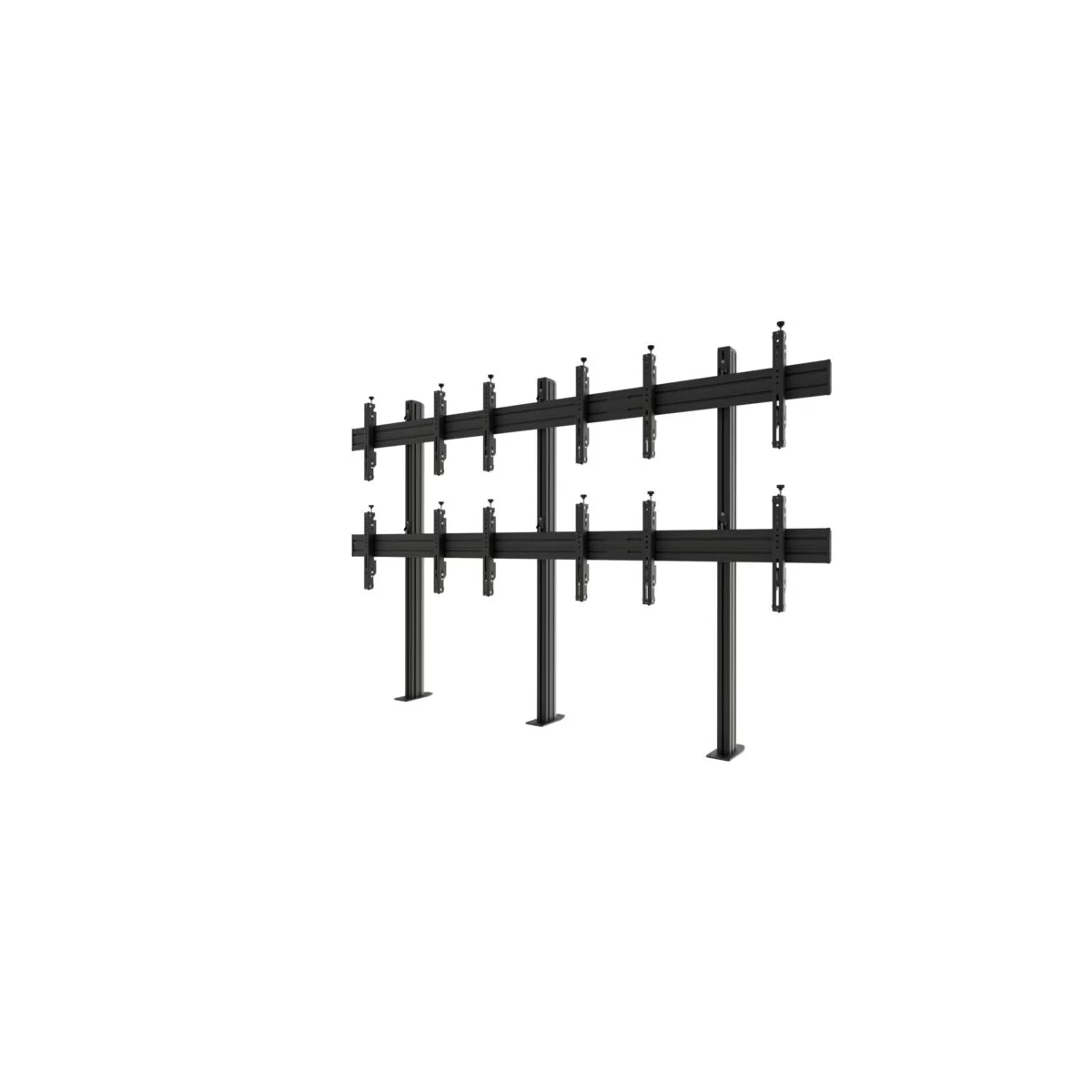

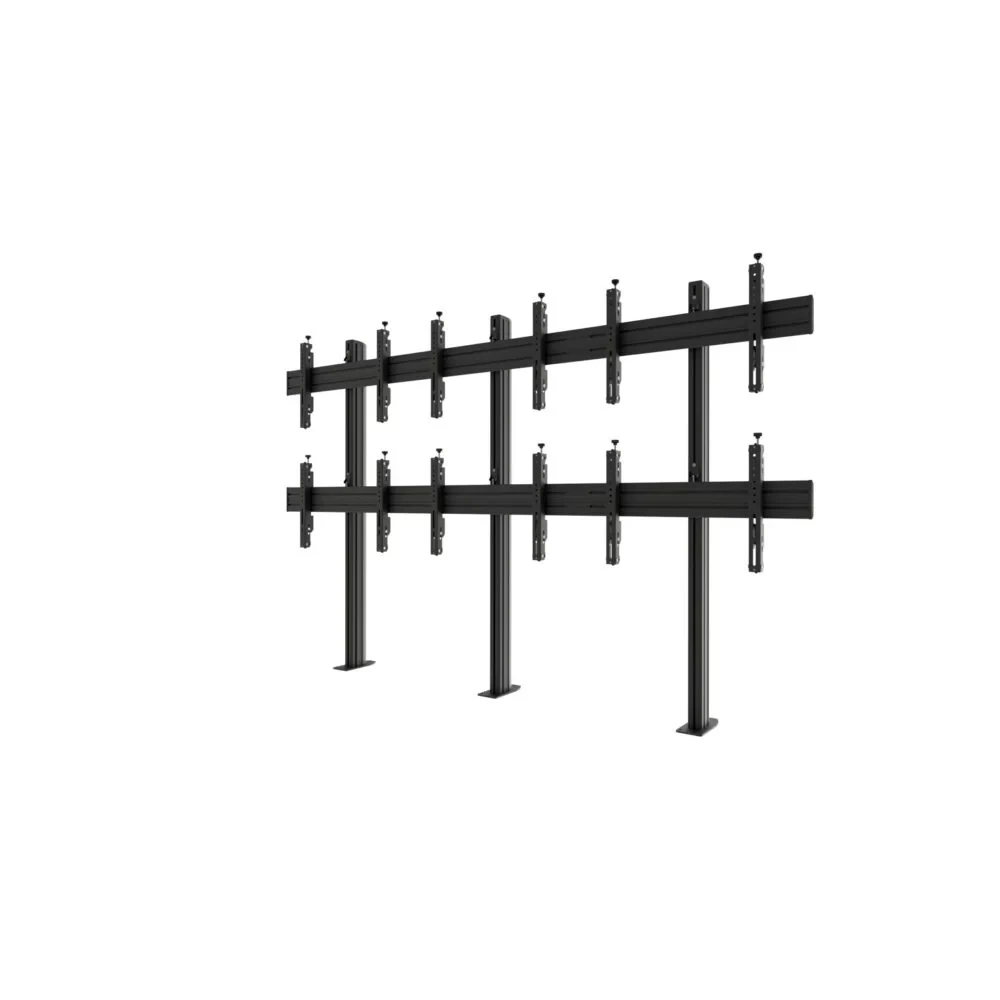

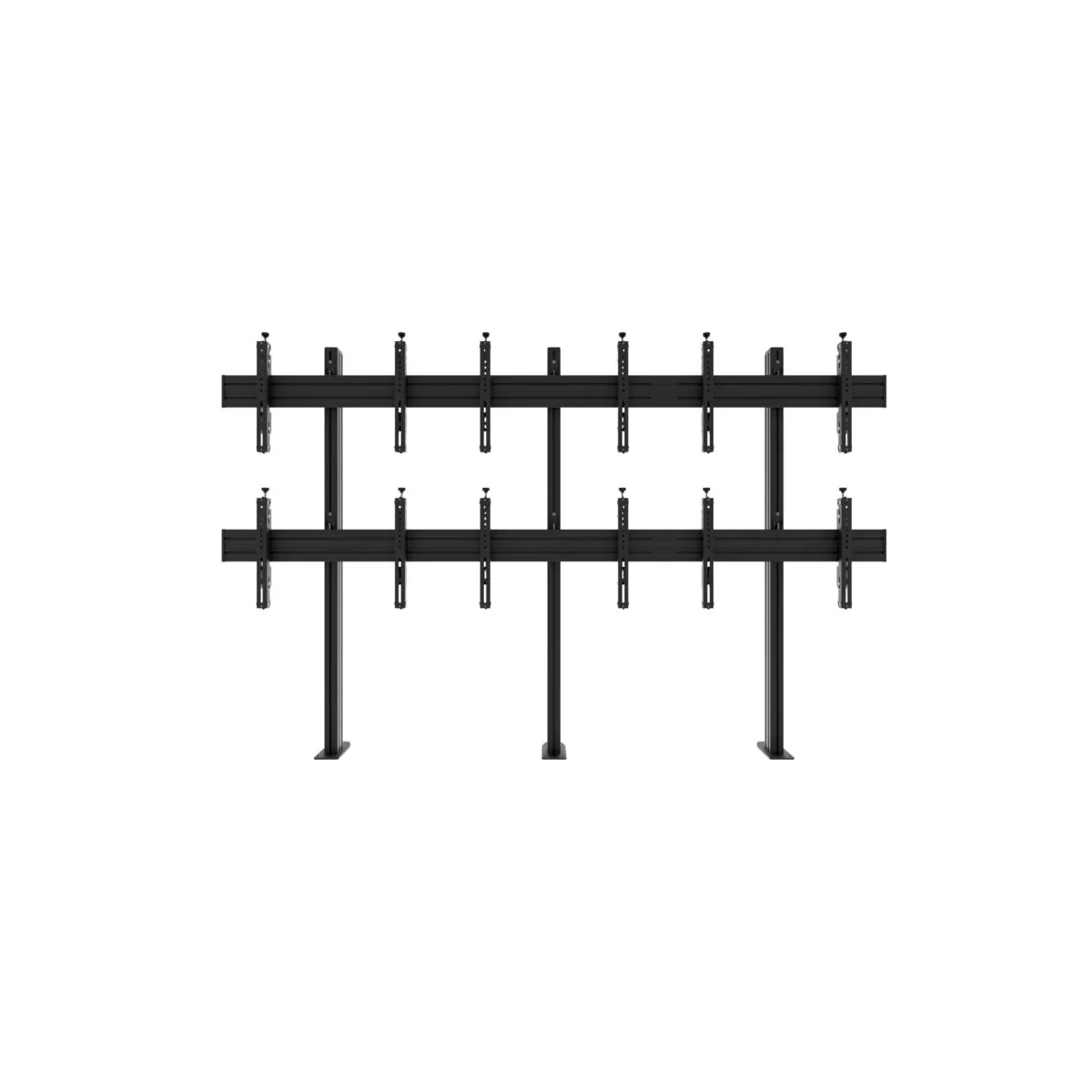

With its modular design, VWSA3247-L allows the installation of six 42″-49″ screens in 3×2 landscape orientation. The design is characterised by durability, high quality and aesthetics.

SEND AN ENQUIRY

Description

  • High-end quality and aesthetics
  • Durable design
  • Screen load-carrying beams made of aluminium
  • Up to 6 x 42″-49″ screens
  • Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
  • Screen protected against being slid out accidentally
  • Integrated cable management system for smart installation
  • Screws protecting against accidental or unauthorised removal of the screen

Additional information

Product Specifications

    Index:VWSA3247-L
    Color:Black
    Warranty:Limited 5-year’s
    Number of screens:6
    Minimum screen size:42″
    Maximum screen size:49″
    Maximum load:305 kg
    VESA Mounting Compatibility:100×100 up to 600×400


    Technical Specifications

    Product dimensions:W: 2930 mm D: 289 mm H: 1829 mm

    (W: 115,35″ D: 11,38″ H: 72,01″)

    Product weight:90 kg (198 lb)
    Max. distance from mounting surface:1650 mm (64,96″)
    Min. distance from mounting surface:330 mm (12,99″)
    Max. mounting pattern:600 mm x 410 mm
    Min. mounting pattern:50 mm x 50 mm


    Logistics Data

    SAP Index:WSTD-VWSA3247-L
    EAN Code:5902841112629
    HS Code (Harmonized System):732690
    HTS Code (Harmonized Tariff Schedule):7326909890
    Country of origin:Poland
