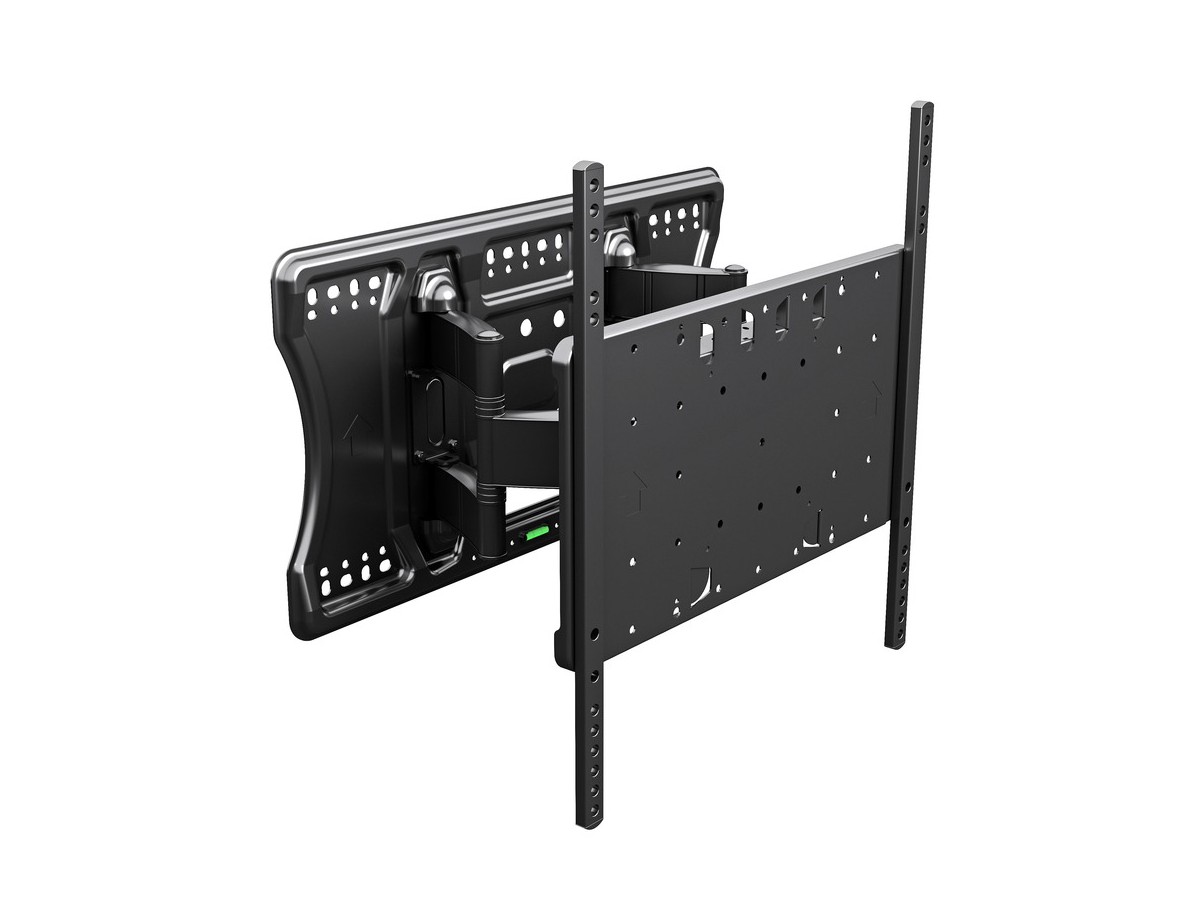

Multibrackets 7350022735101 M VESA Super Slim Tilt & Turn HD

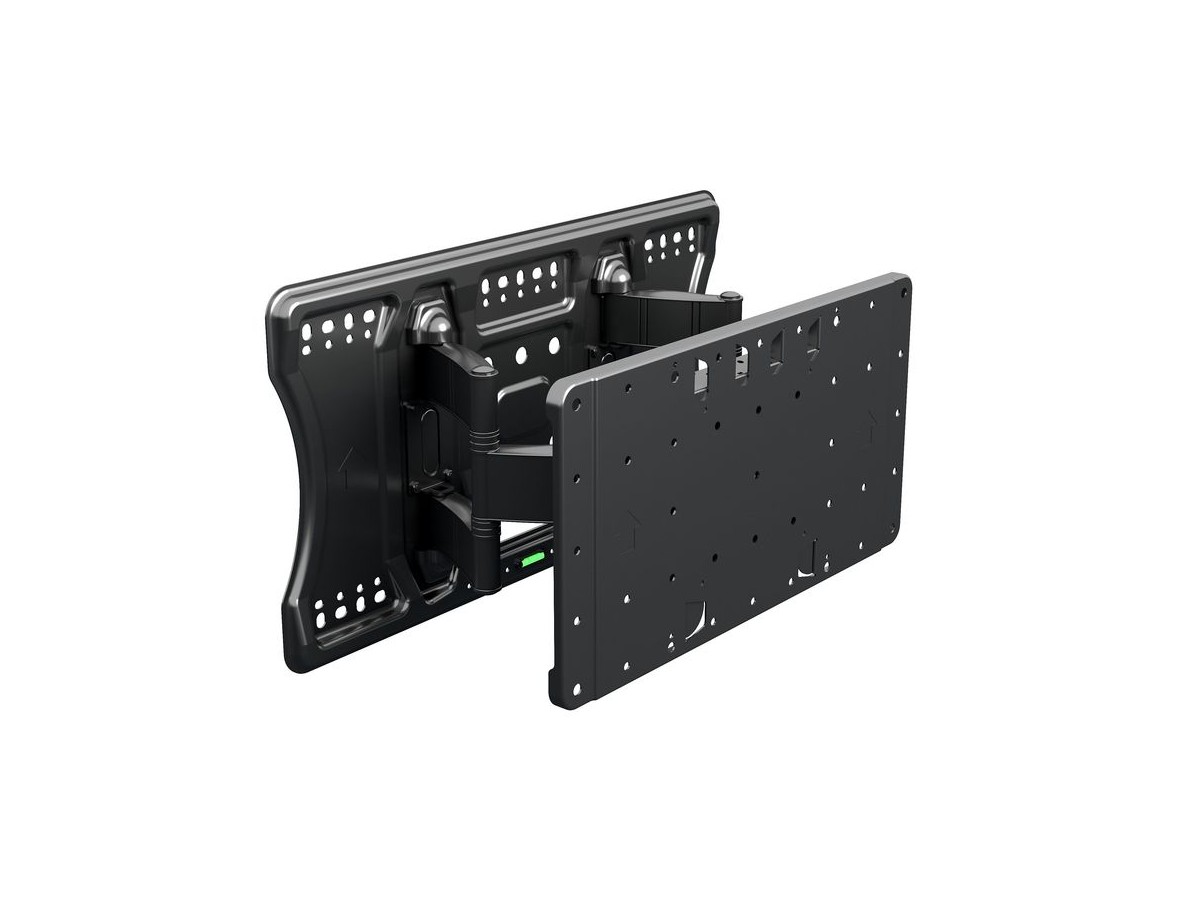

Product code:Multibrackets M VESA Super Slim Tilt & Turn HD - Wall mount for LED / OLED panel - black - screen size: 40" - 85"
Description

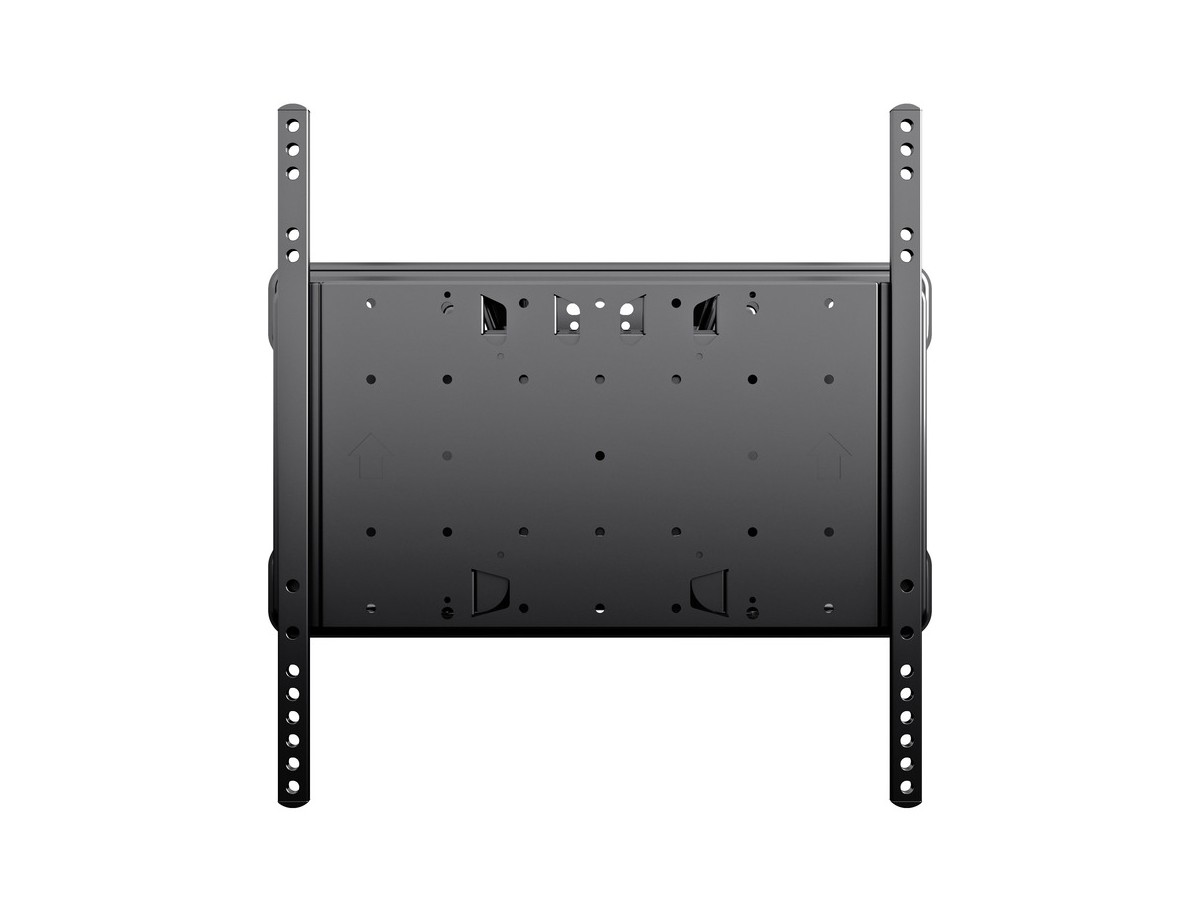

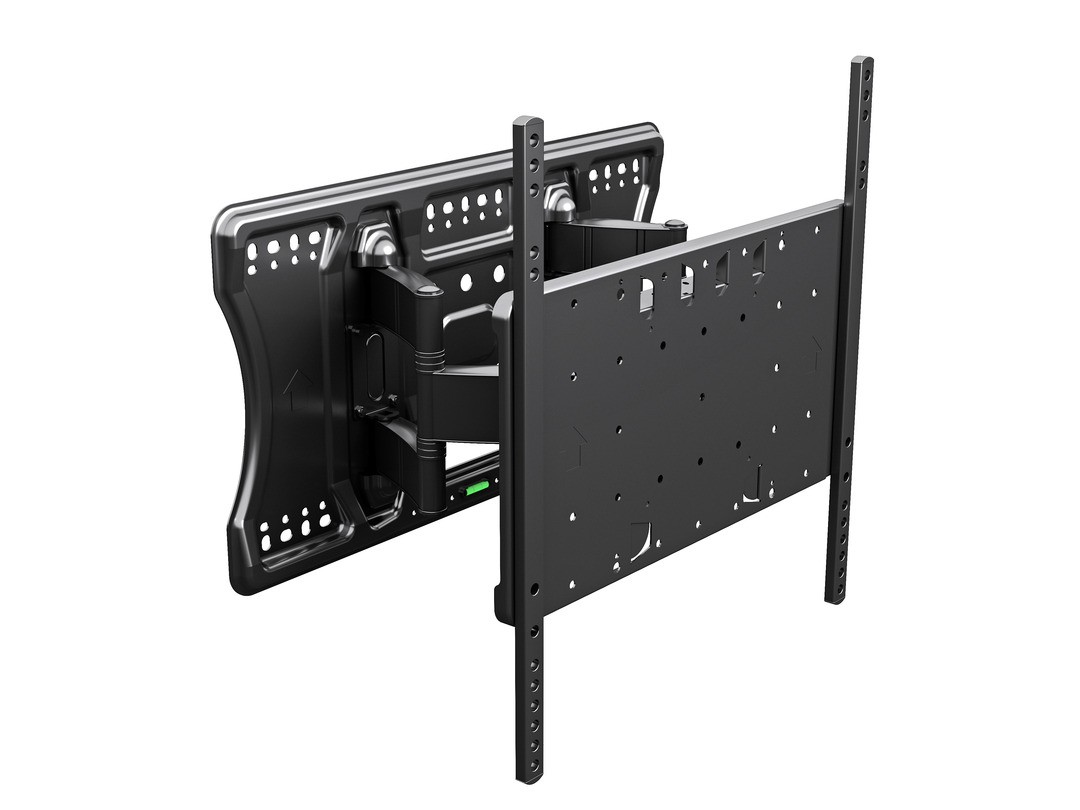

M VESA Super Slim Tilt & Turn HD is suitable for a wide range of screens sized 40" and up to 85". The VESA standards that are supported by this mount is 100 / 200 / 300 and up to 400 mm. If needed, the wall mount can be combined with an optional VESA extender kit which enables the 600x400 mm VESA standard. This means that M VESA Super Slim Tilt & Turn HD is suitable for most of the VESA standards including the rare ones.

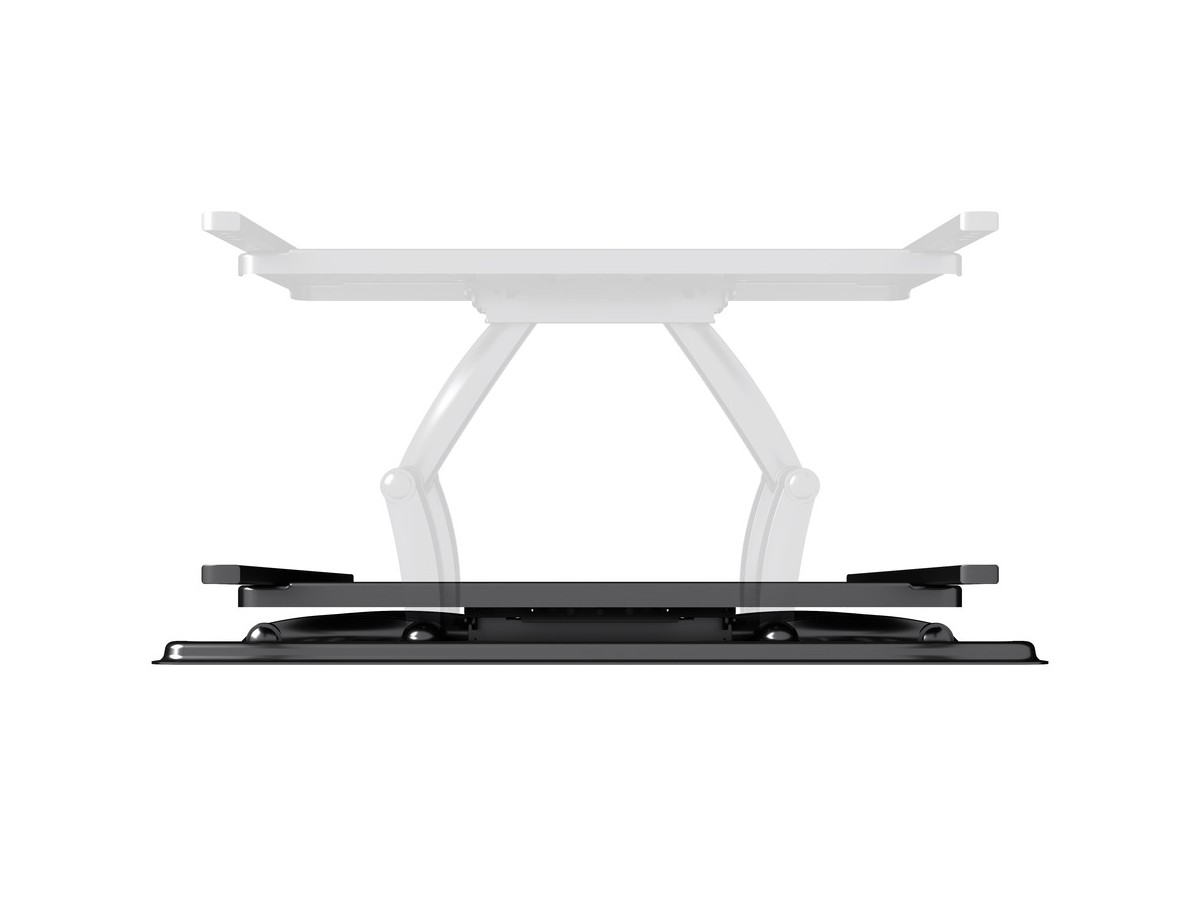

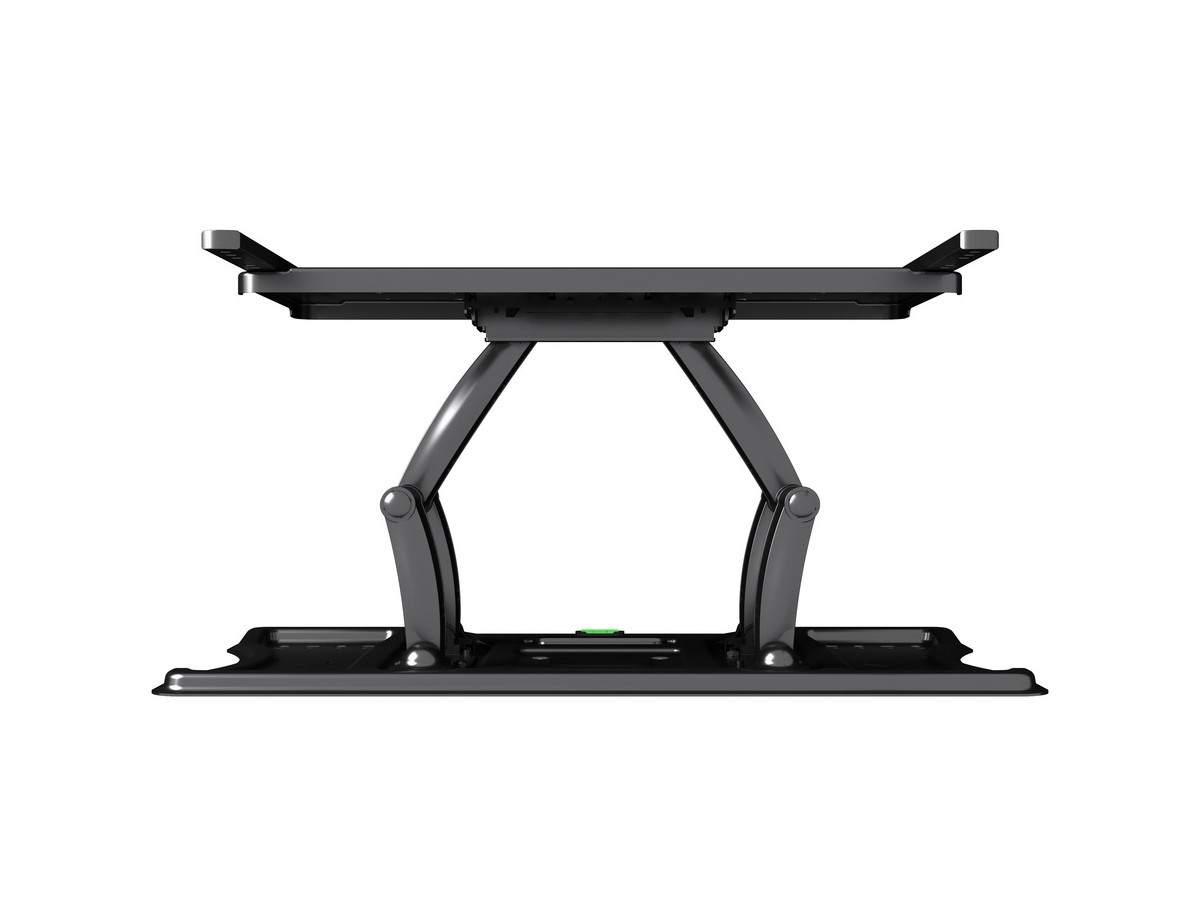

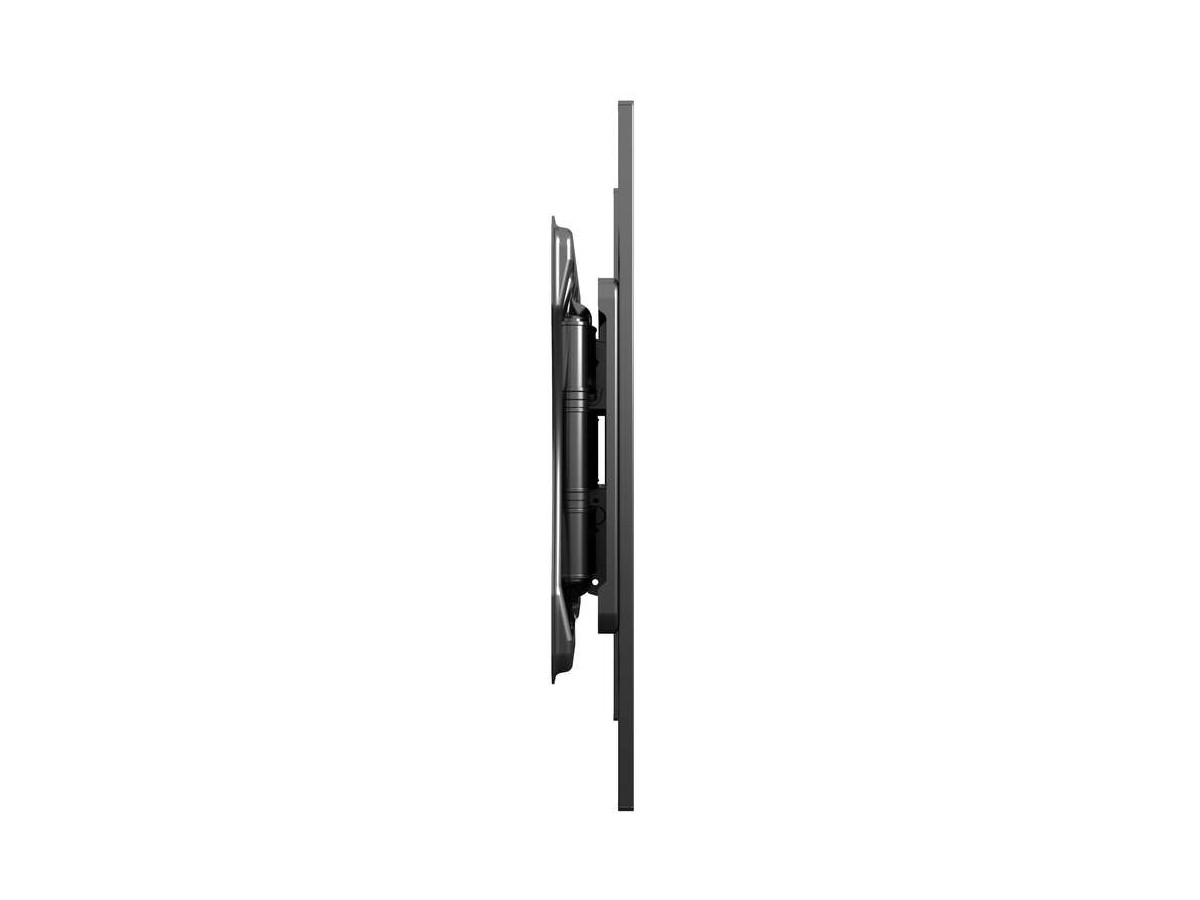

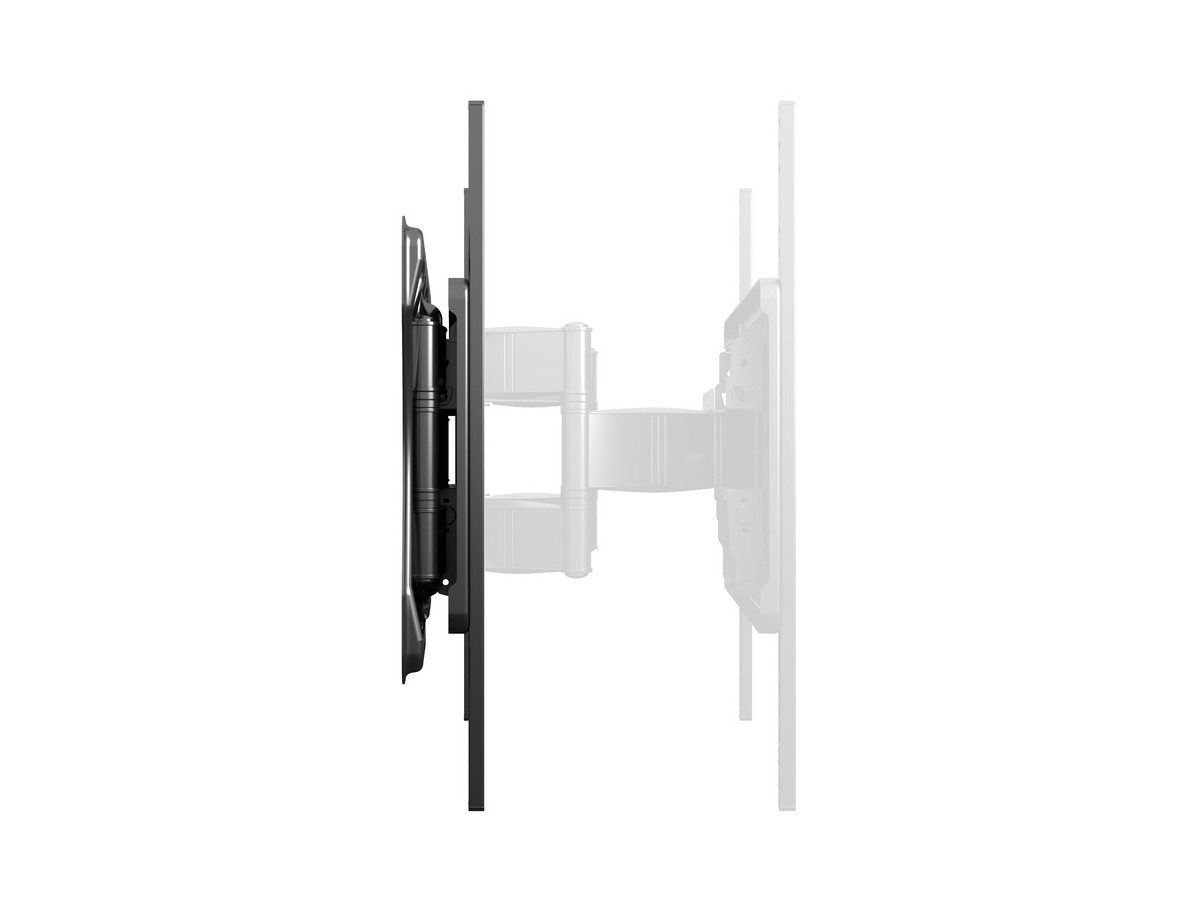

- The flexarms nest for a super slim 50 mm mounting profile

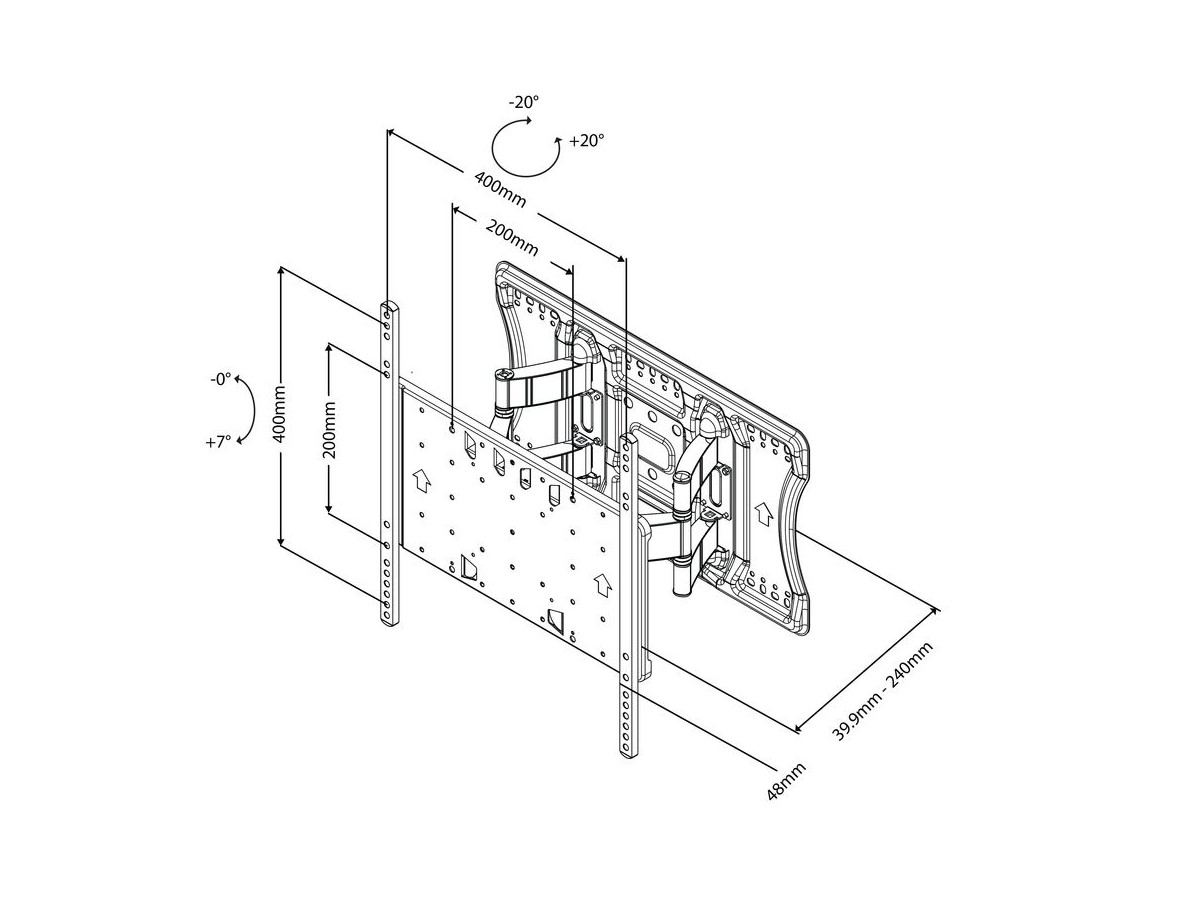

- Flex, tilt and turn for an optimal viewing angle at any time
- Tilt easily to -0~+7º to reduce glare

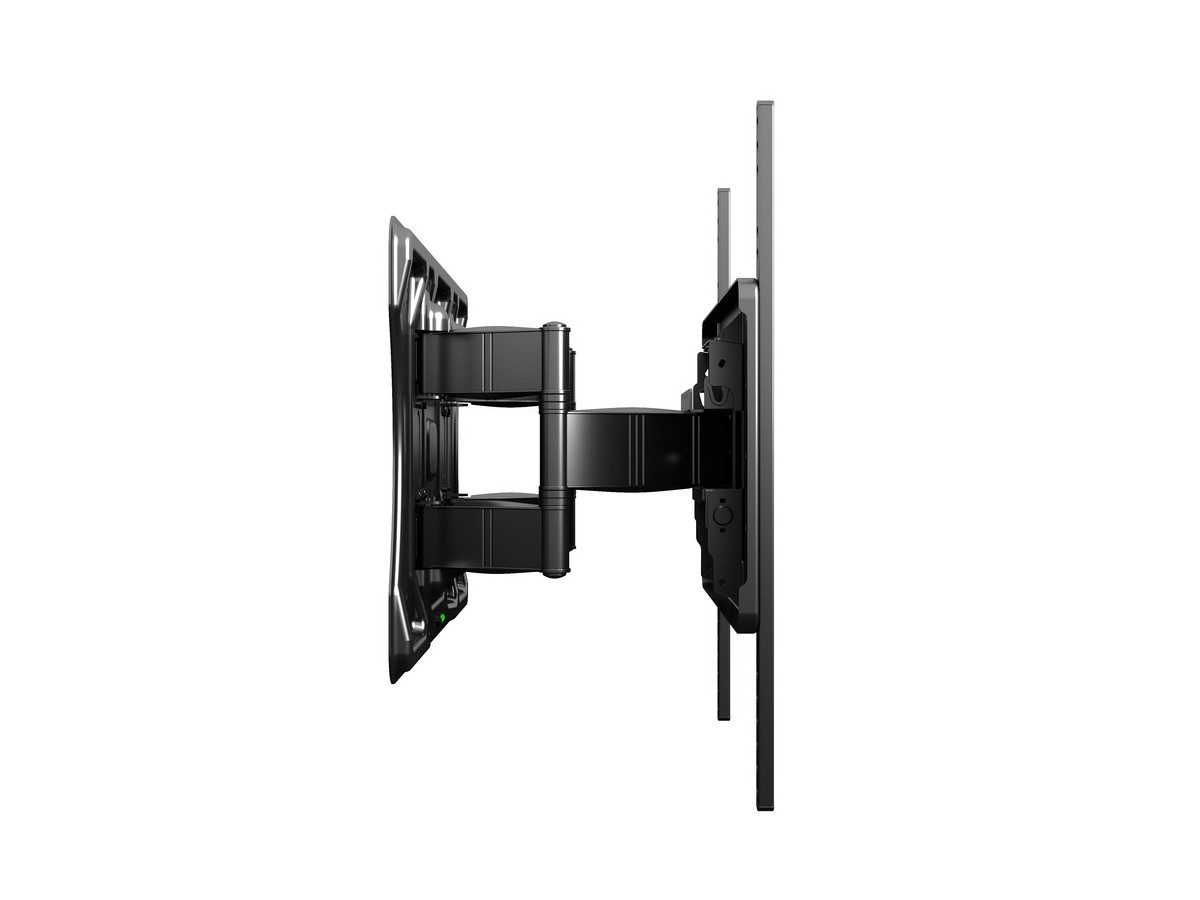

- Turn effortlessly to -20~+20 depending on screen size to view from the right angle
- Installation template and tool kit included for simple mounting
- Built in bubble level for accurate mounting
- One person tilt adjustment
Additional information
| For screen size: | 40-85" |

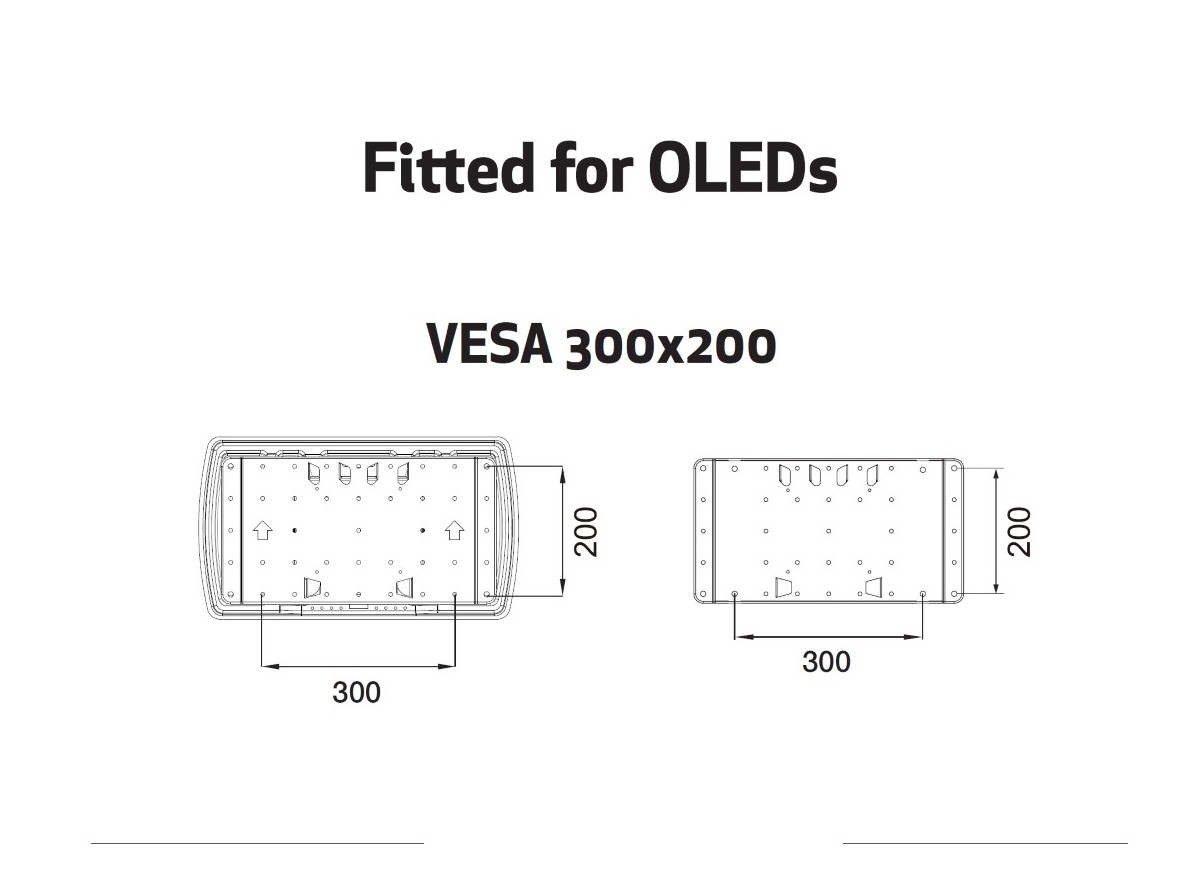

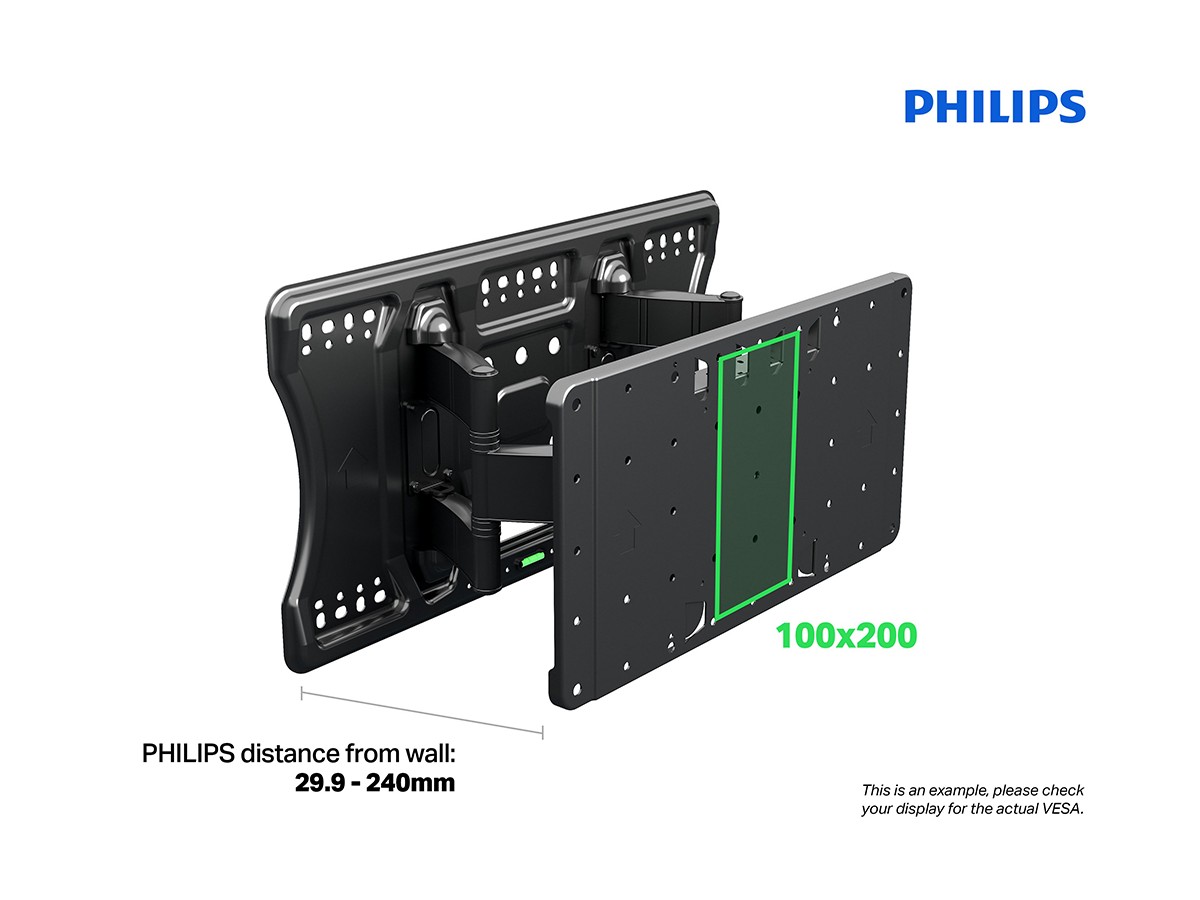

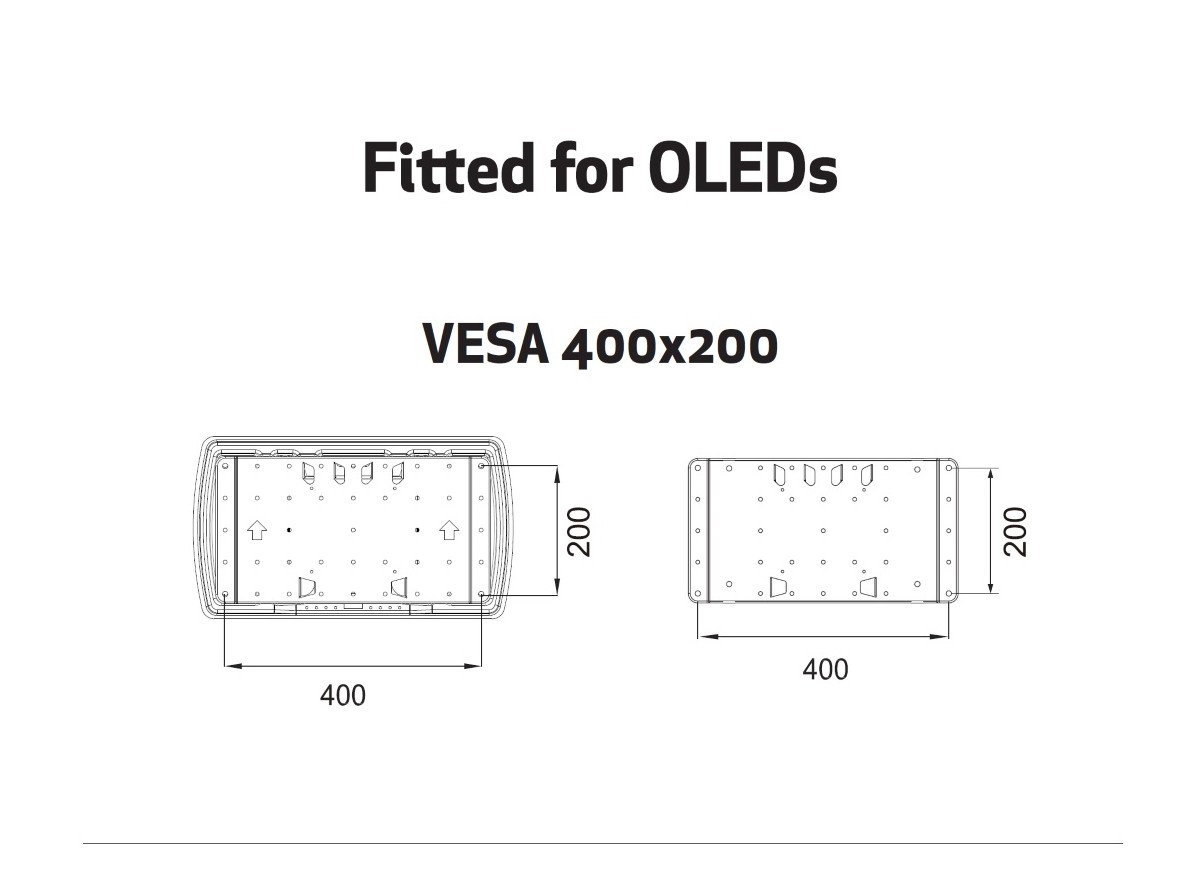

| Universal & VESA standard: | 100x100 200x100 200x200 300x300 300x200 400x200 400x400 |
| Article No: | 7 350 022 735 101 |

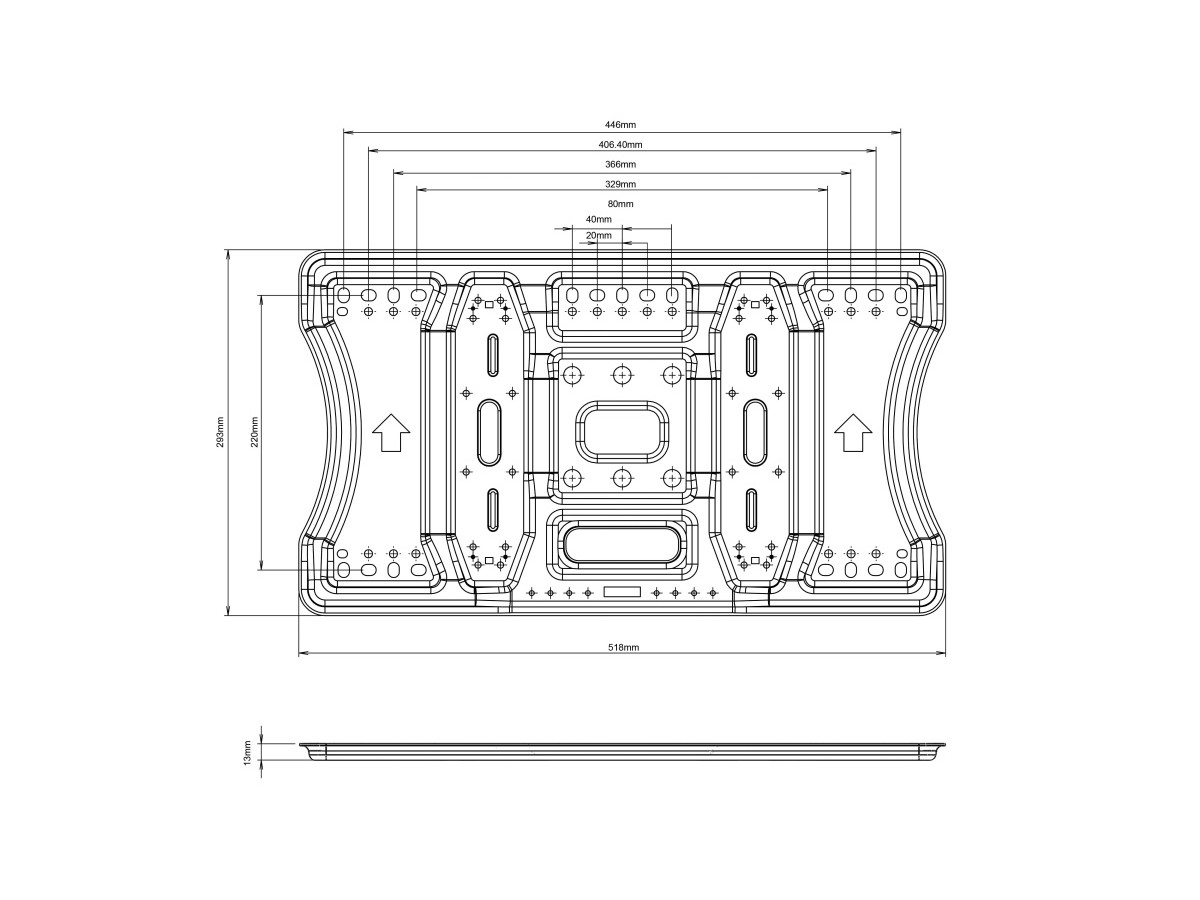

| Size in mm: | 595*294*50 (W*H*D) |
| Distance to wall: | VESA 100 / 200 / 300: 40mm |
| Distance to wall with extender arms: | VESA 400: 50mm |
| Weight: | 7,7 kg |
| Colour: | Black |
| Max load: | 52 kg |
| Warranty: | 5 years |

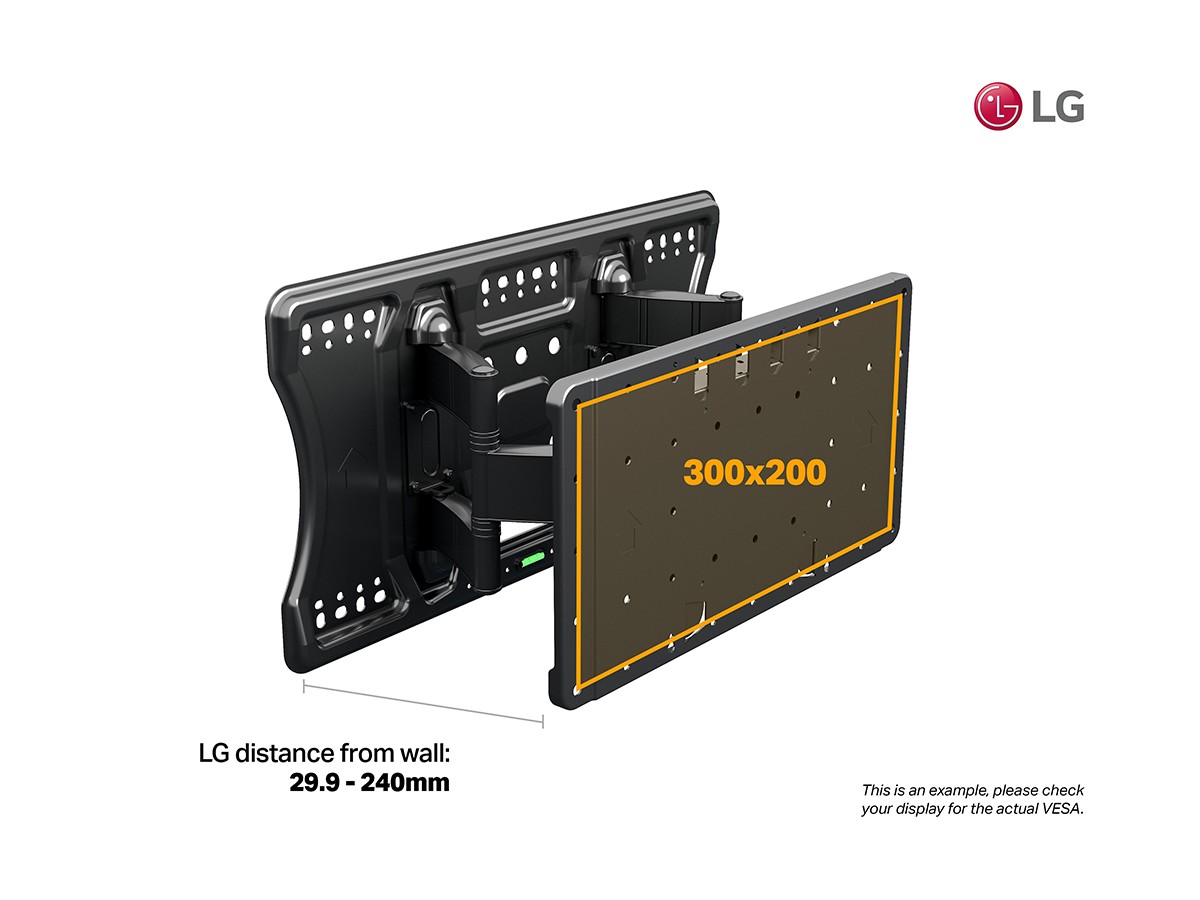

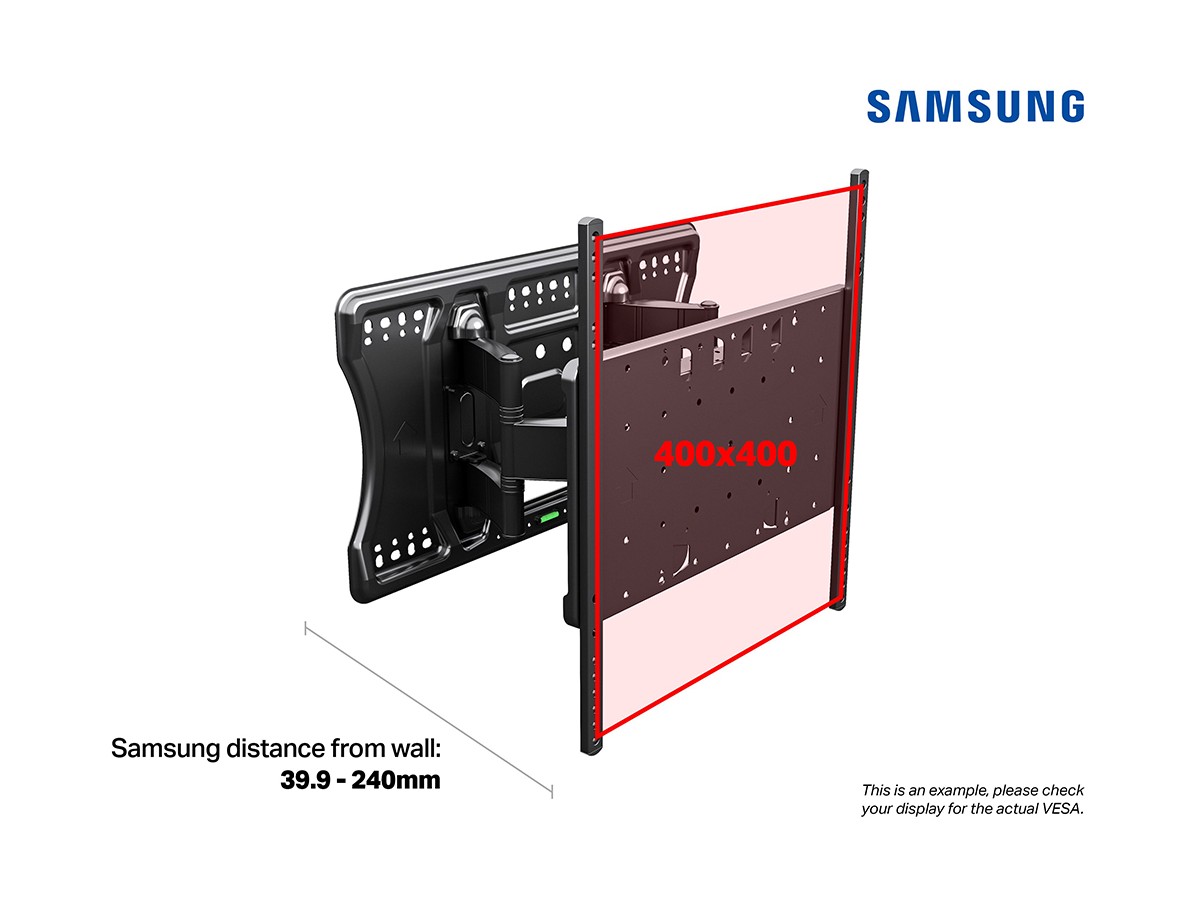

| Distance to wall: | min 48mm - max 260mm |
