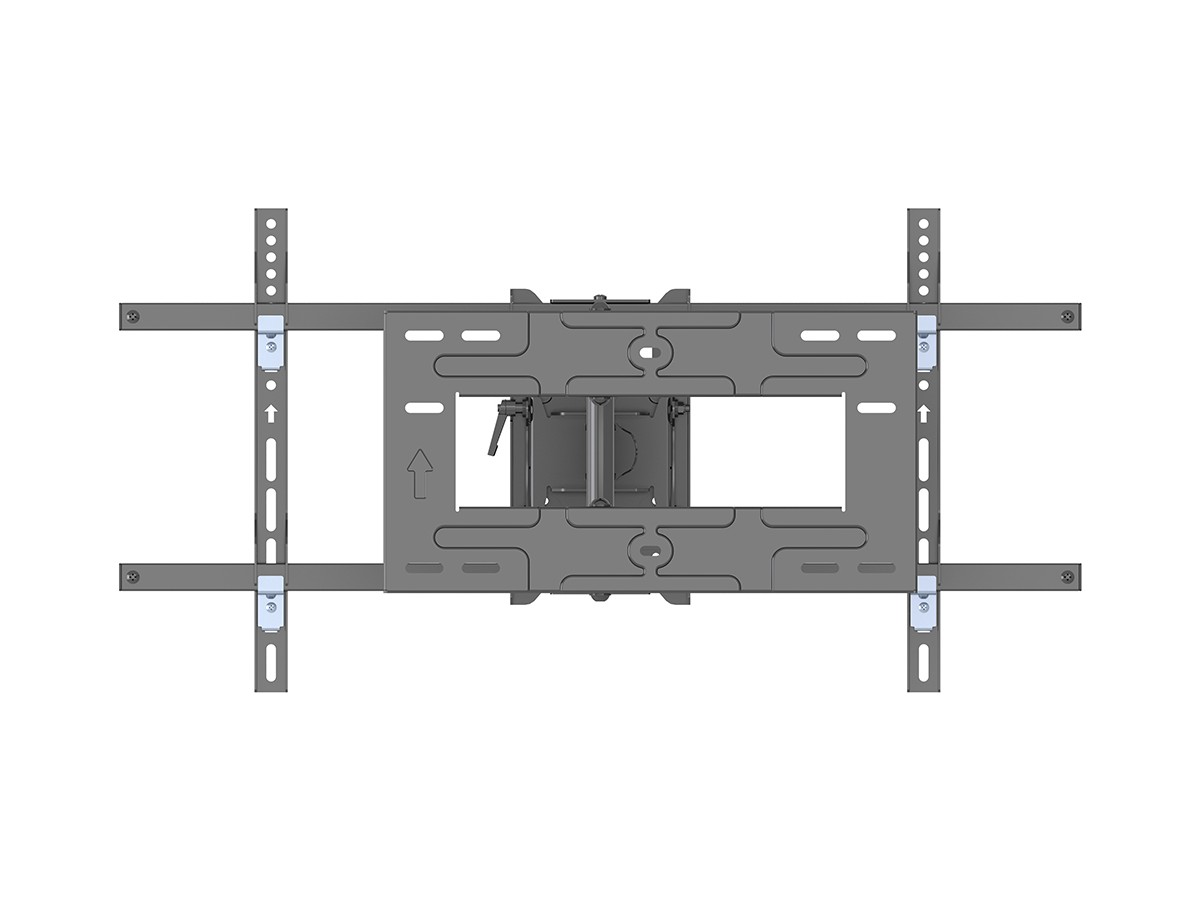

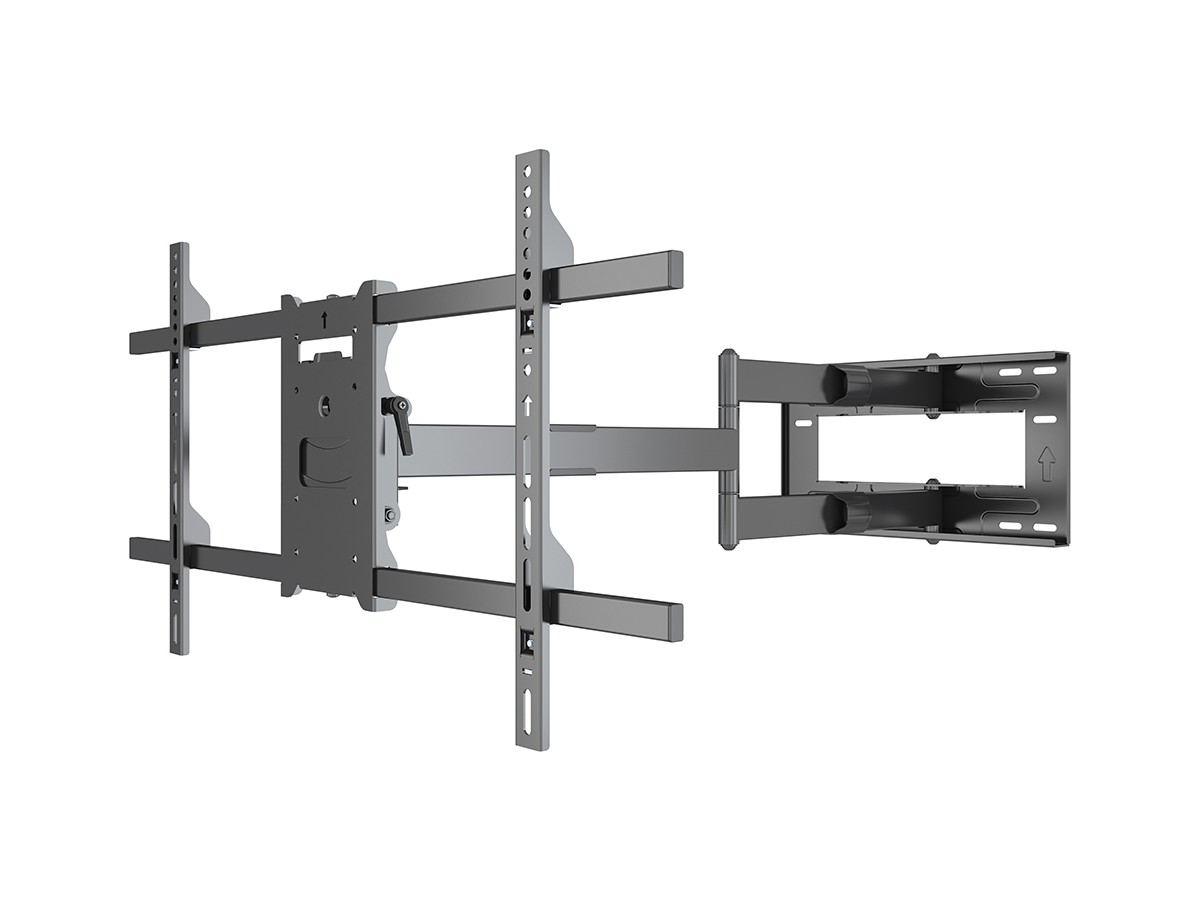

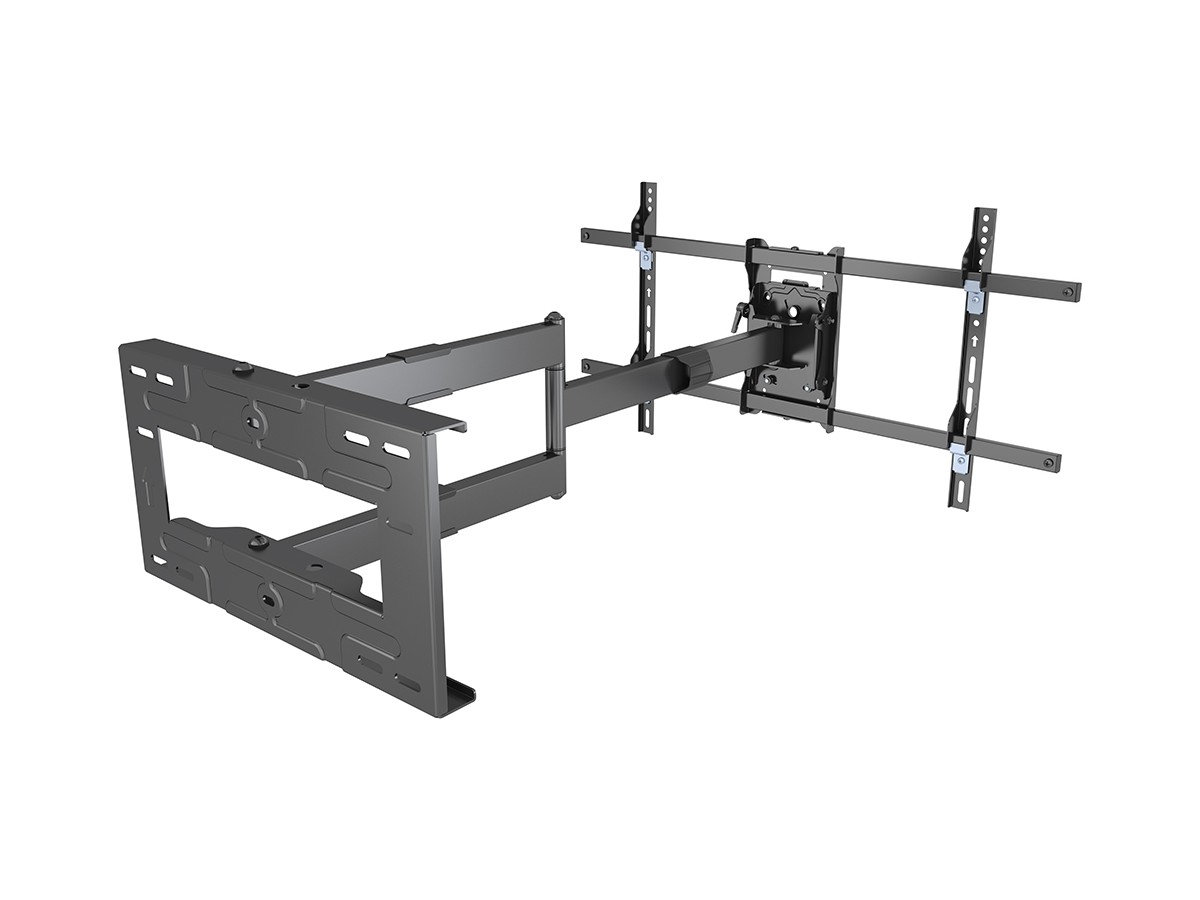

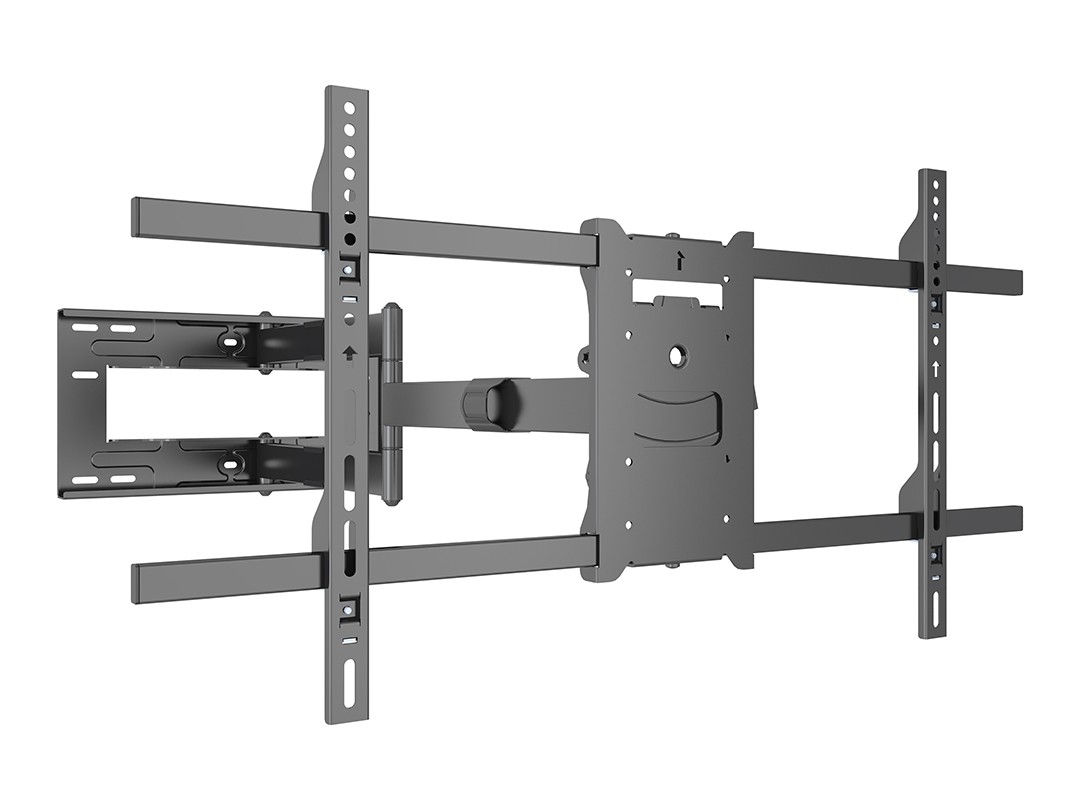

Multibrackets 7350073736539 M Universal Long Reach Arm 1010mm HD, Single

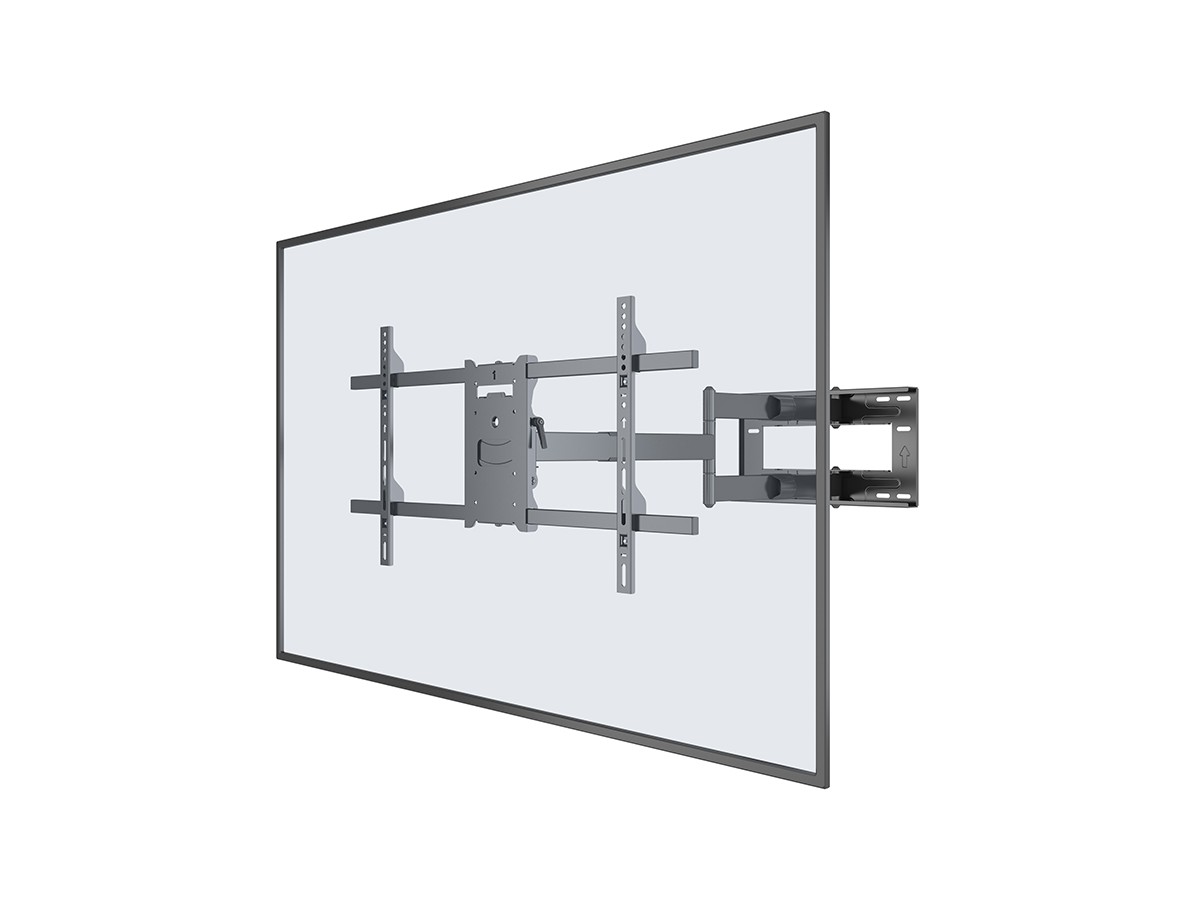

Product code:M Universal Long Reach Arm 1010mm HD, Single - Wall mount for LCD / LED panel - screen size: 42" - 75" - VESA: 100x100 - 800x400mm - max load: 40kg - black
SEND AN ENQUIRYDescription
Highlights

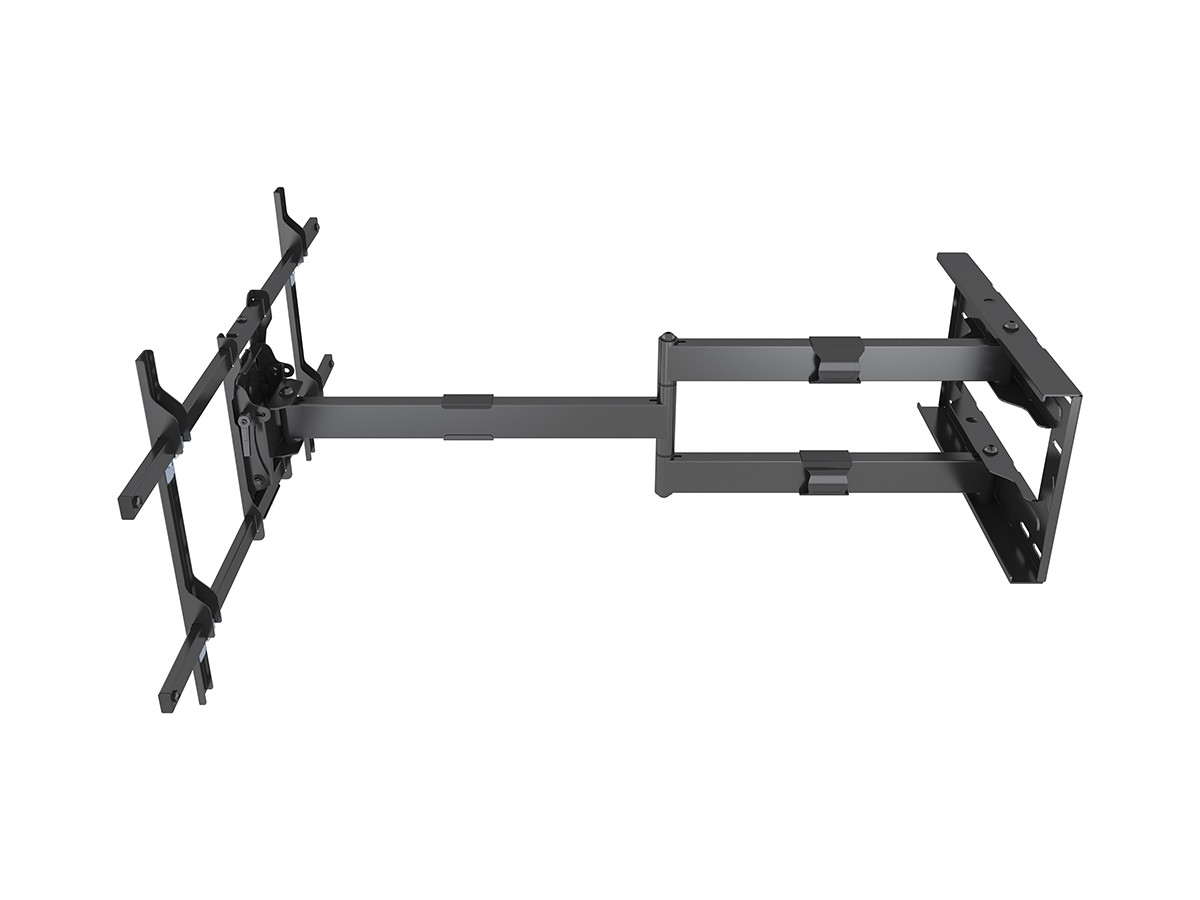

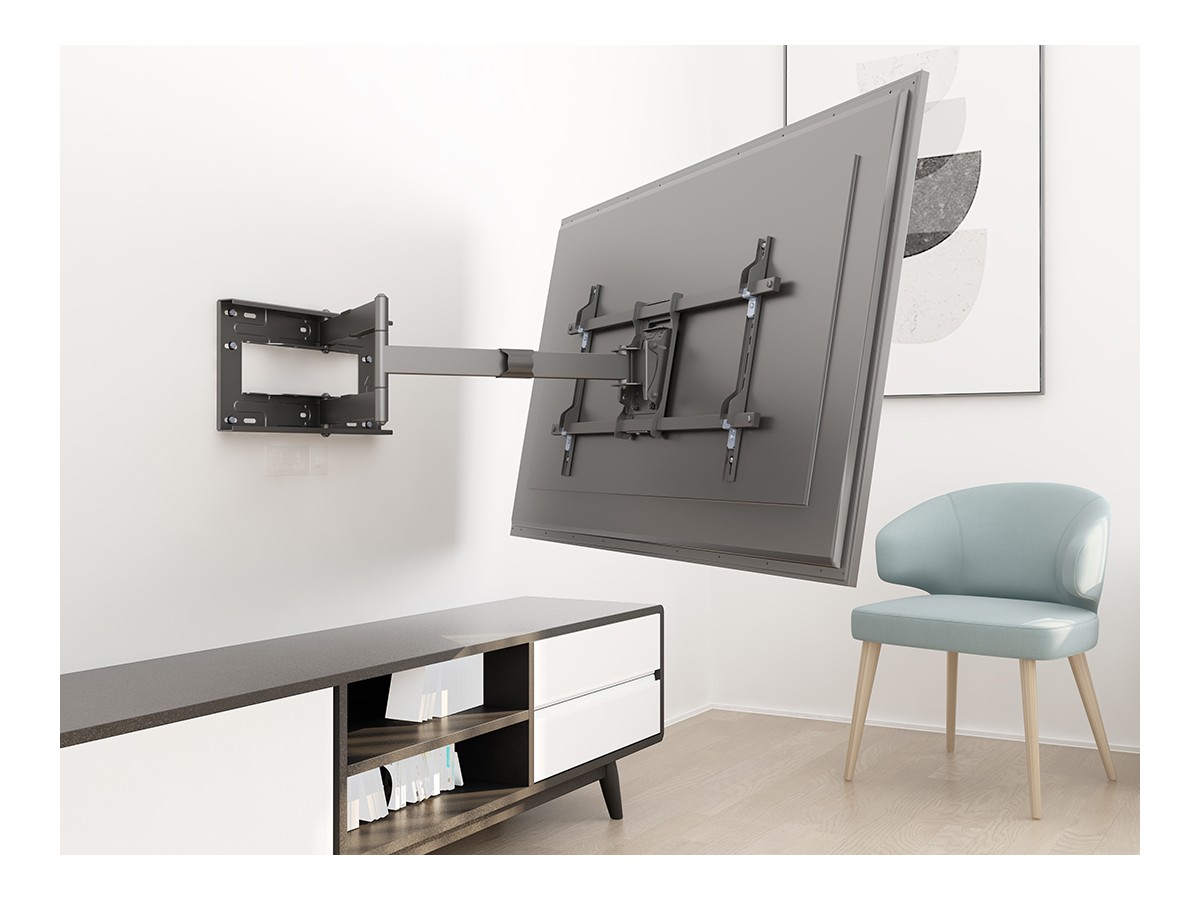

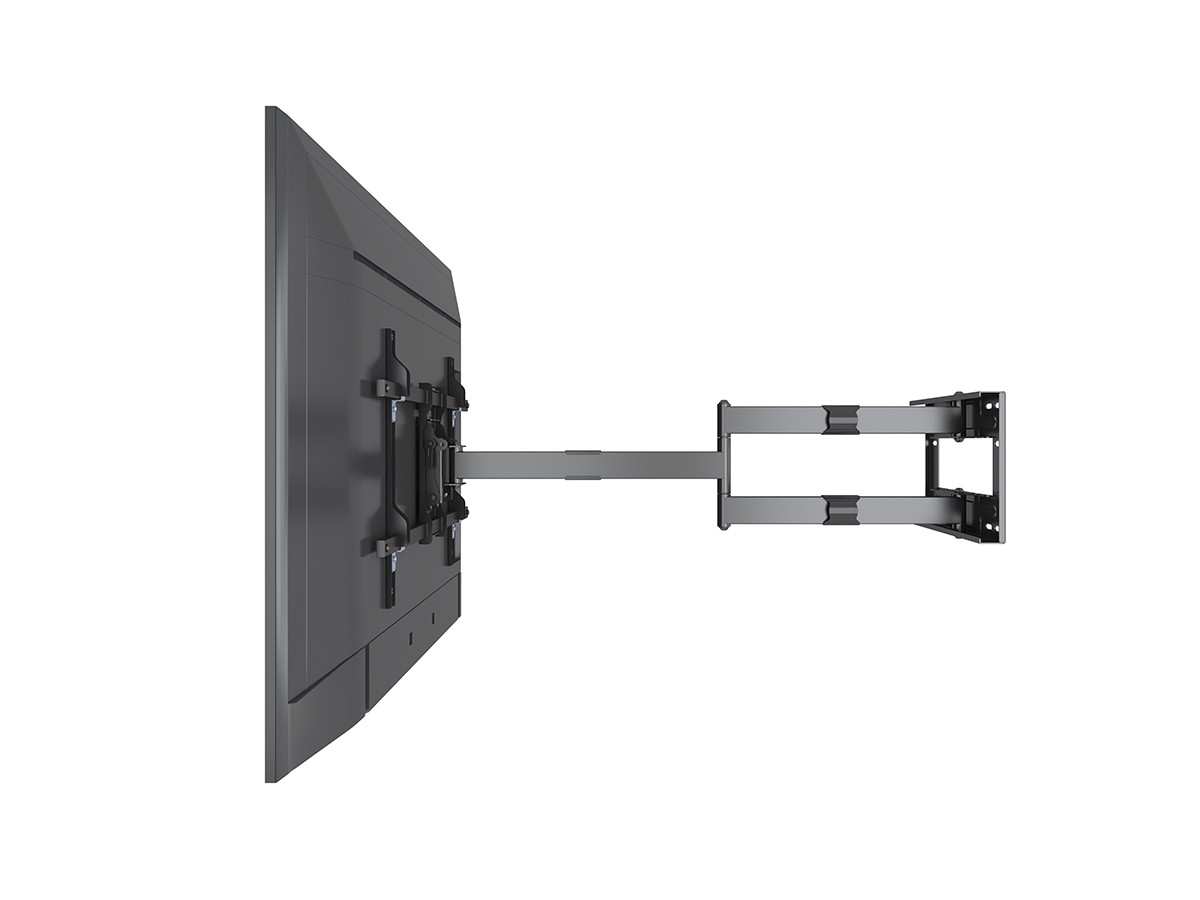

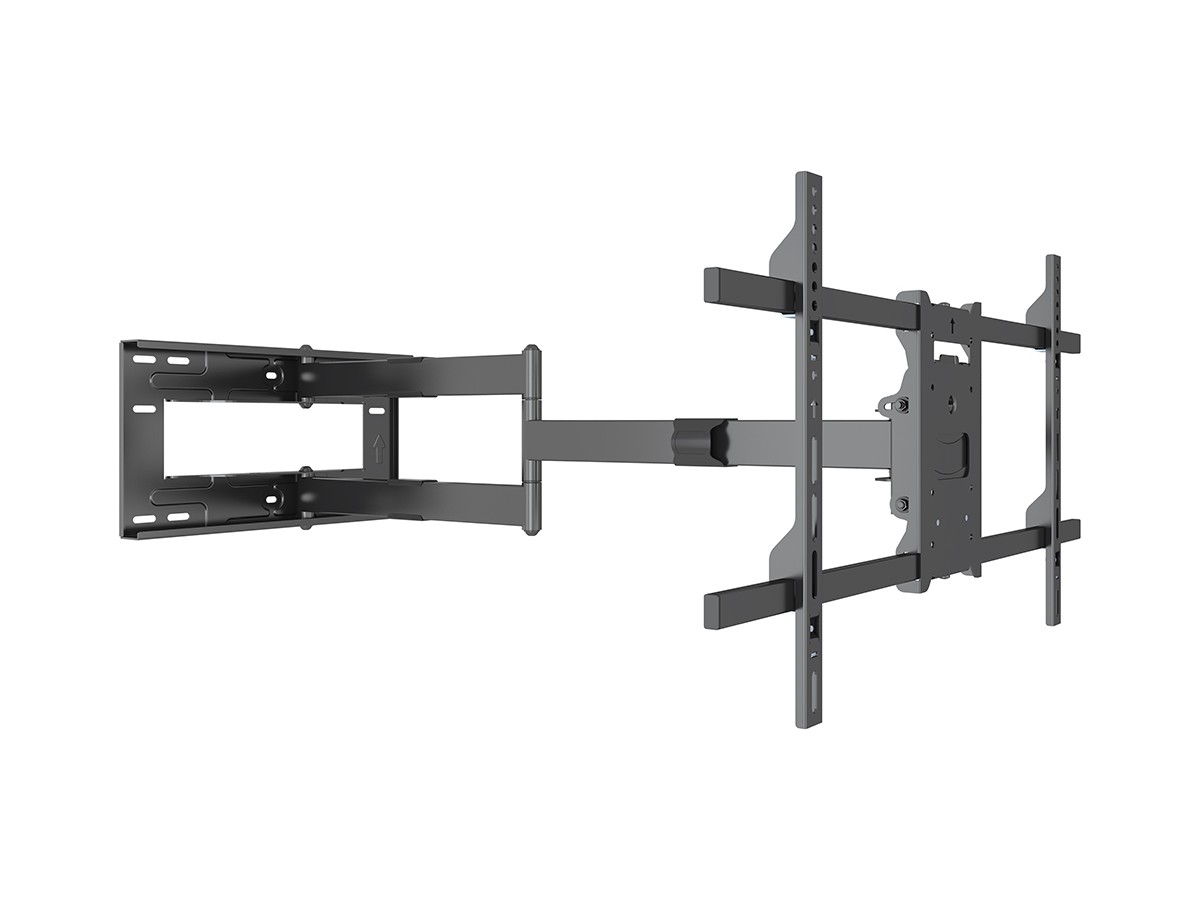

- Single arm long reach 1010mm

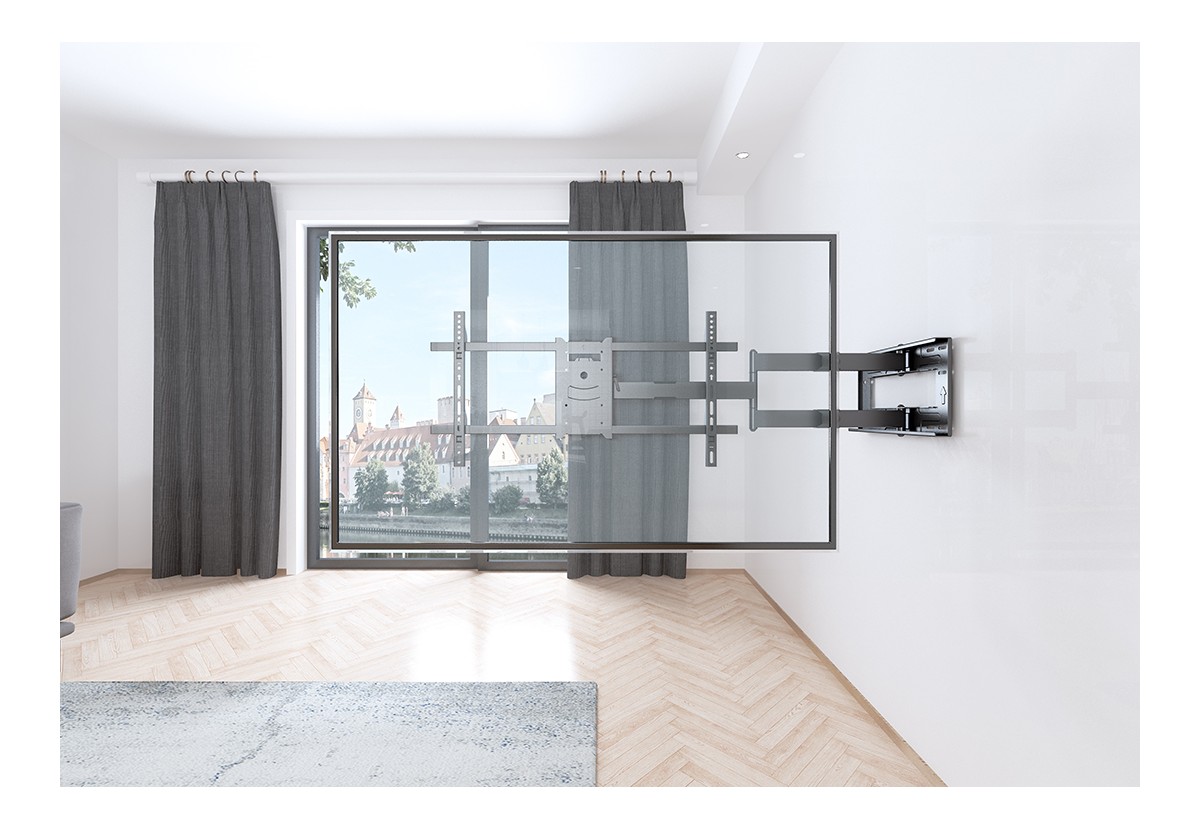

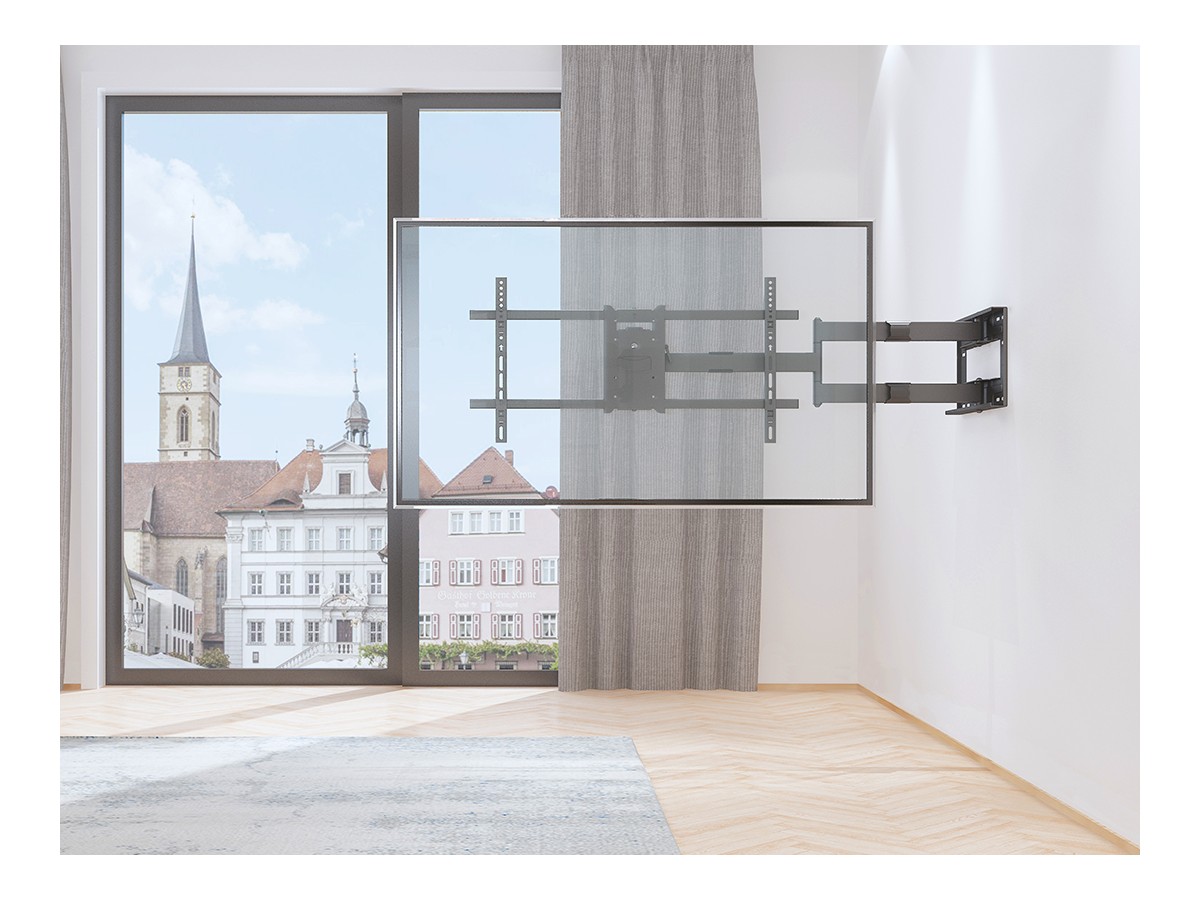

- Maximum swivel left and right, even for larger screens
- Holds screens up to 40 kg
- Manually adjust your screen position without tools

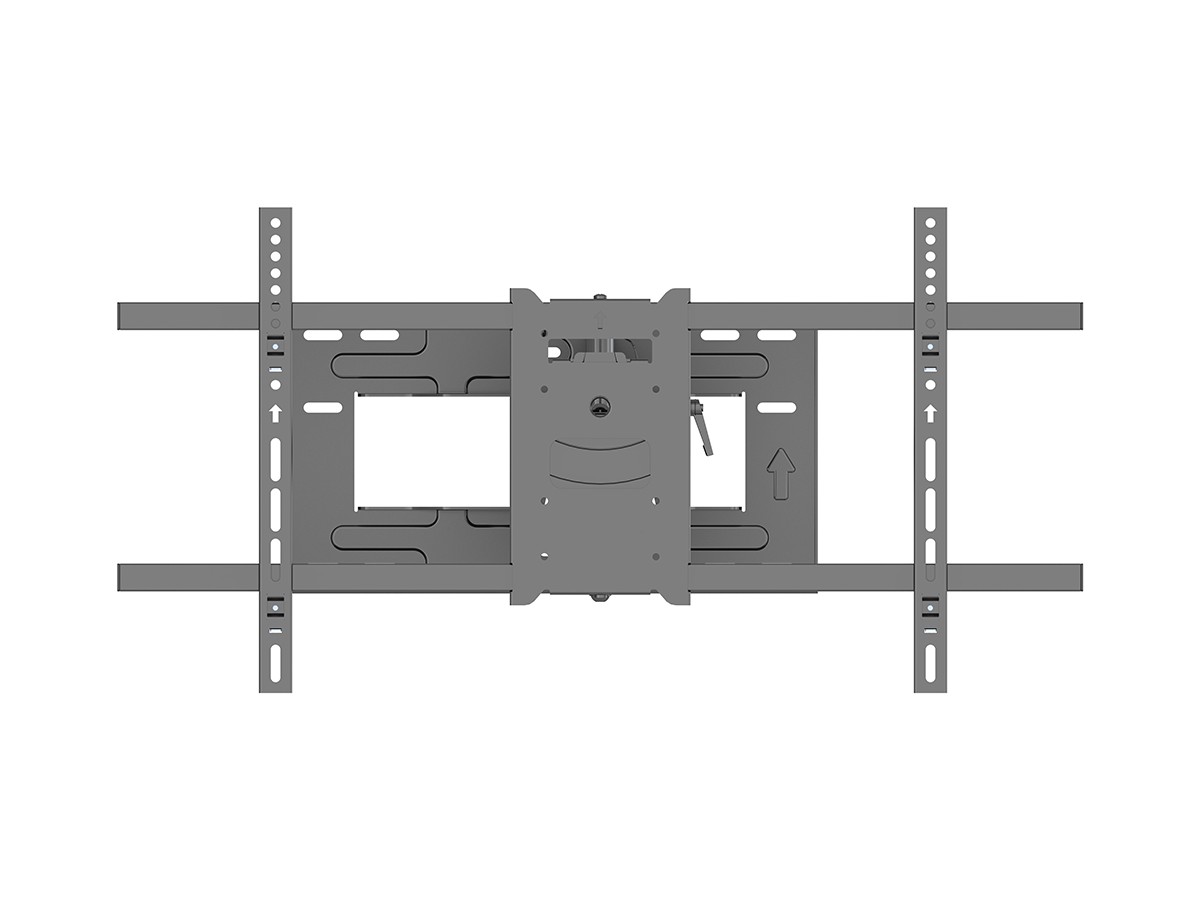

- Universal design supports VESA 100x100,200x100,100x200,200x200,300x200,300x300,400x200,400x400,600x400,800x400

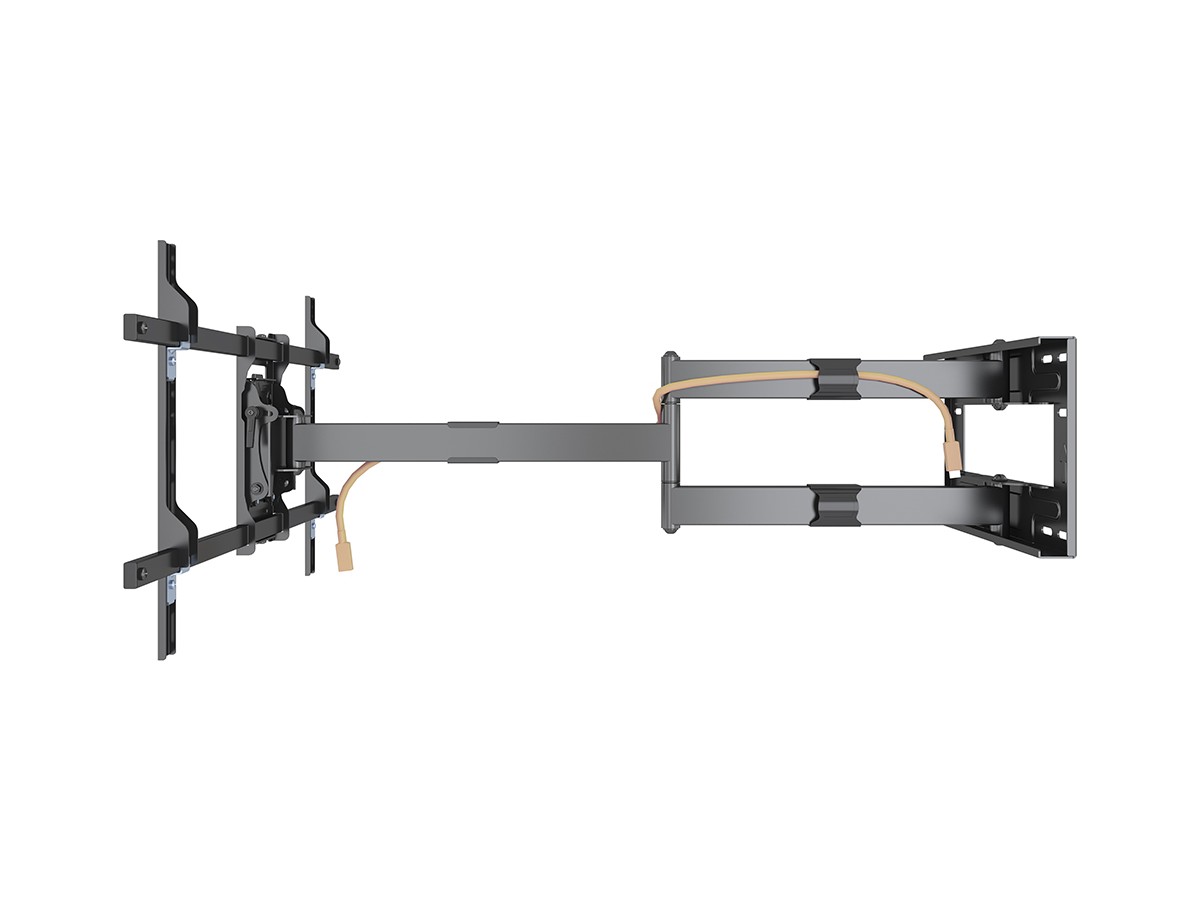

- Smart cable management
- Comes partially pre assembled

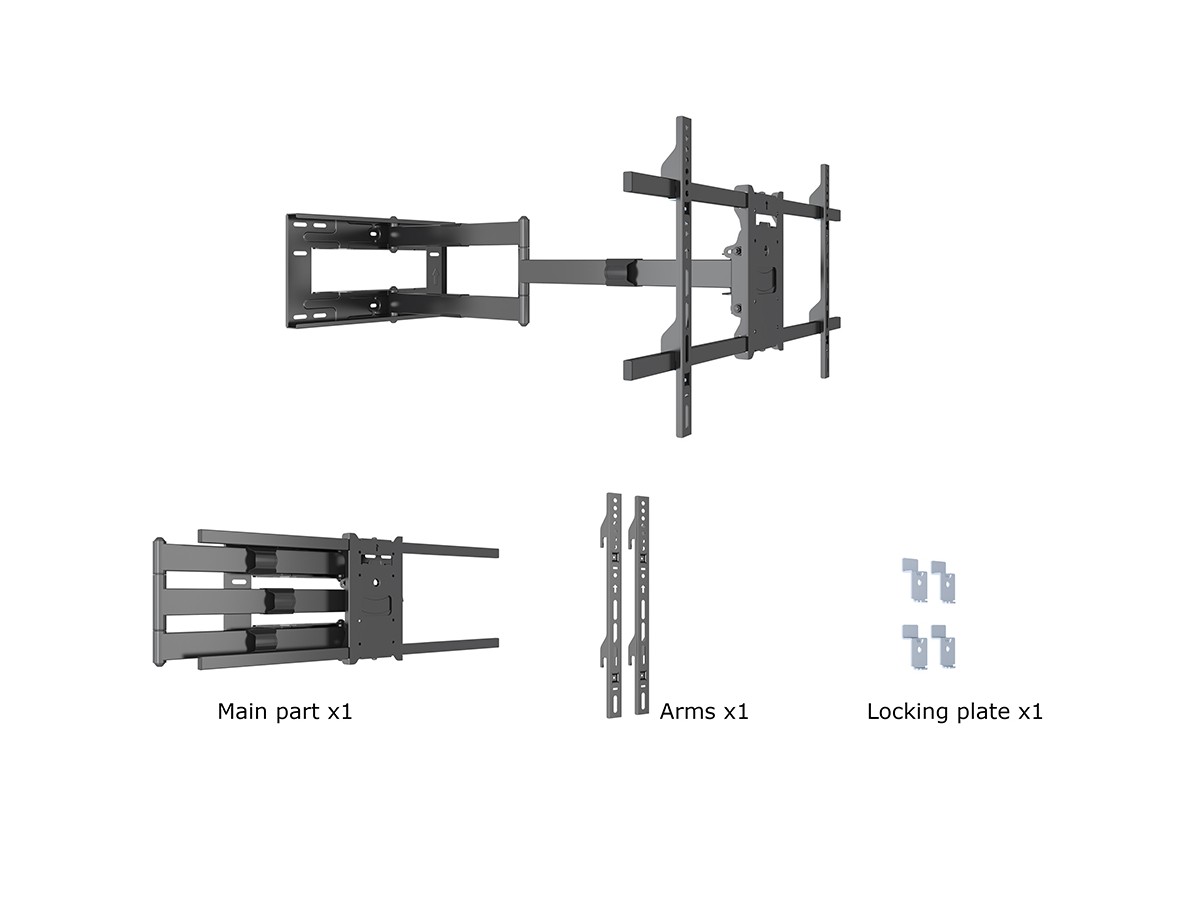

- Full hardware kit include
Additional information
| Article No: | 7 350 073 736 539 |
| For screen size: | 42-75" |
| VESA standard: | 100x100, 200x100, 100x200, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x400, 600x400, 800x400mm |

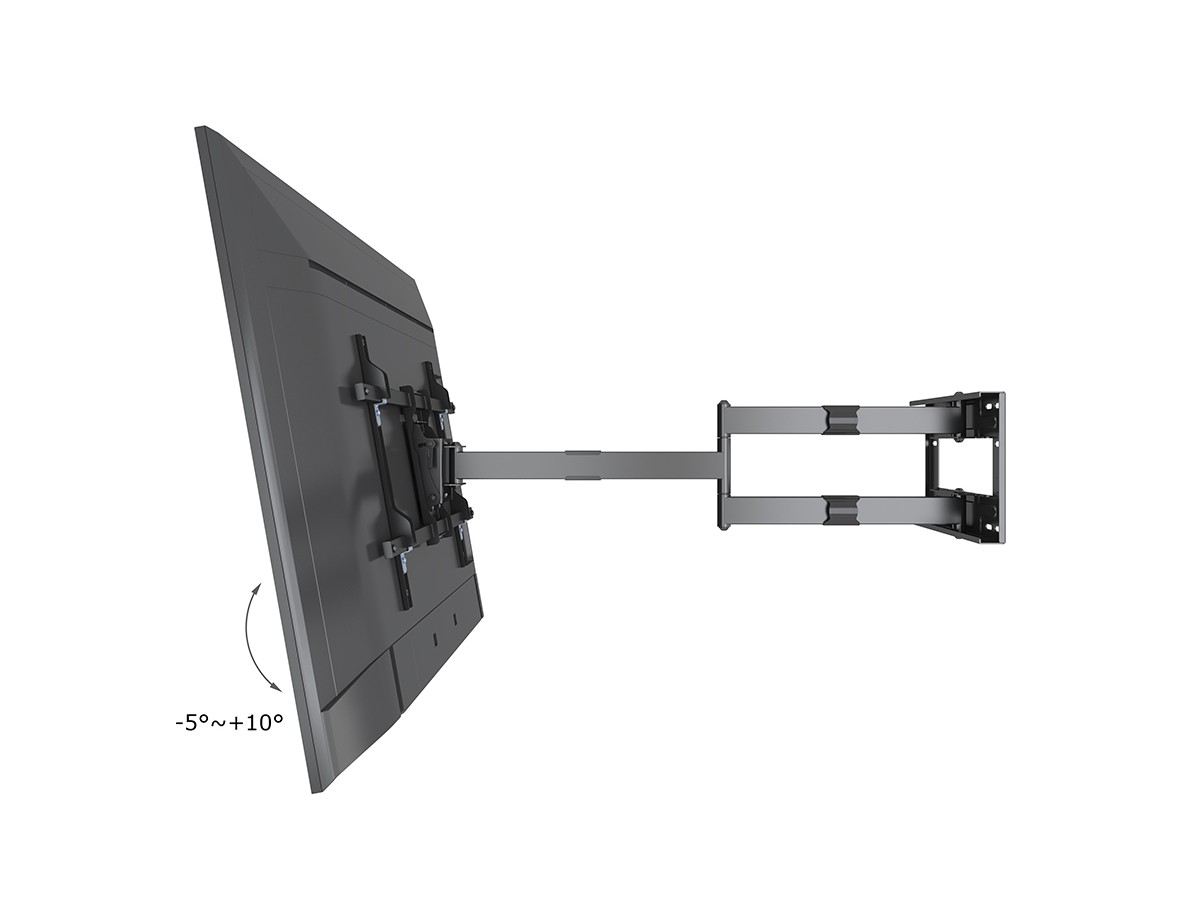

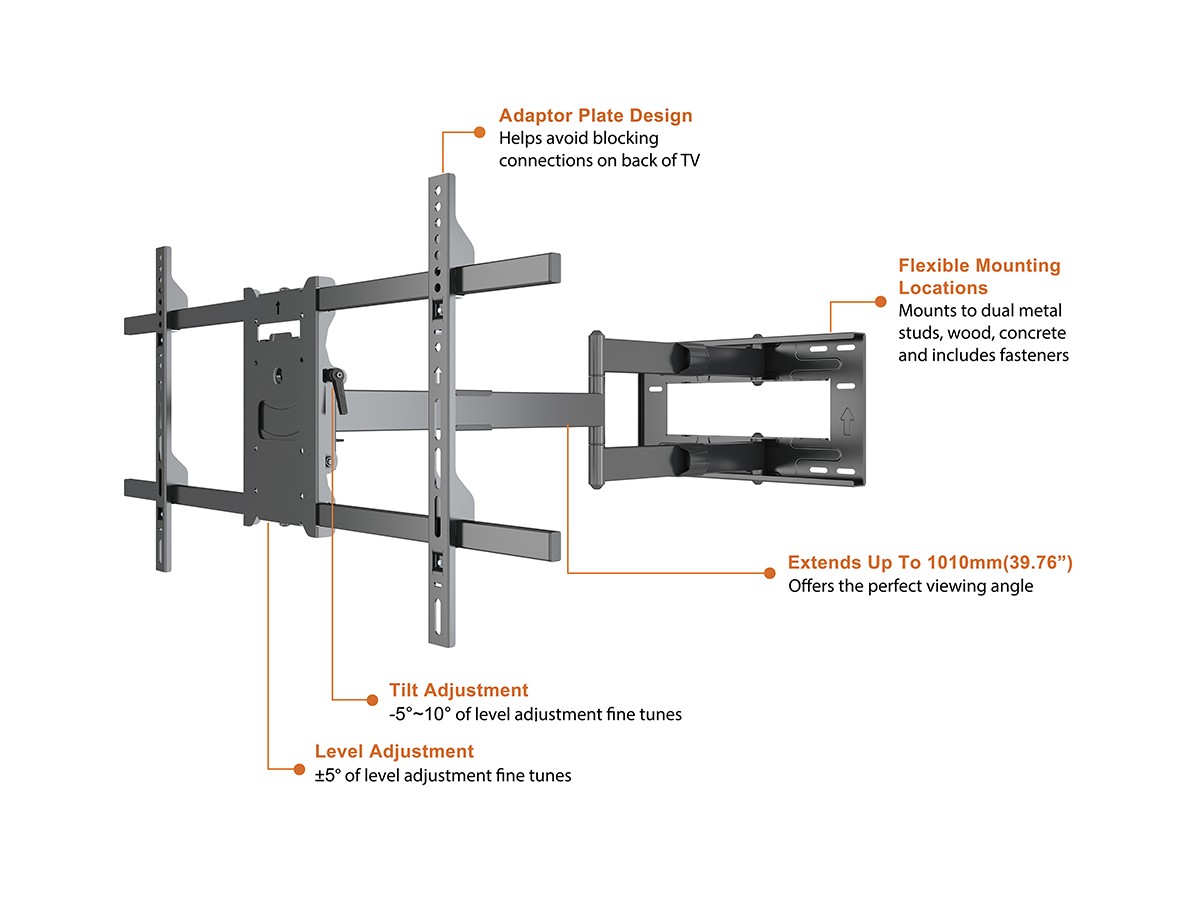

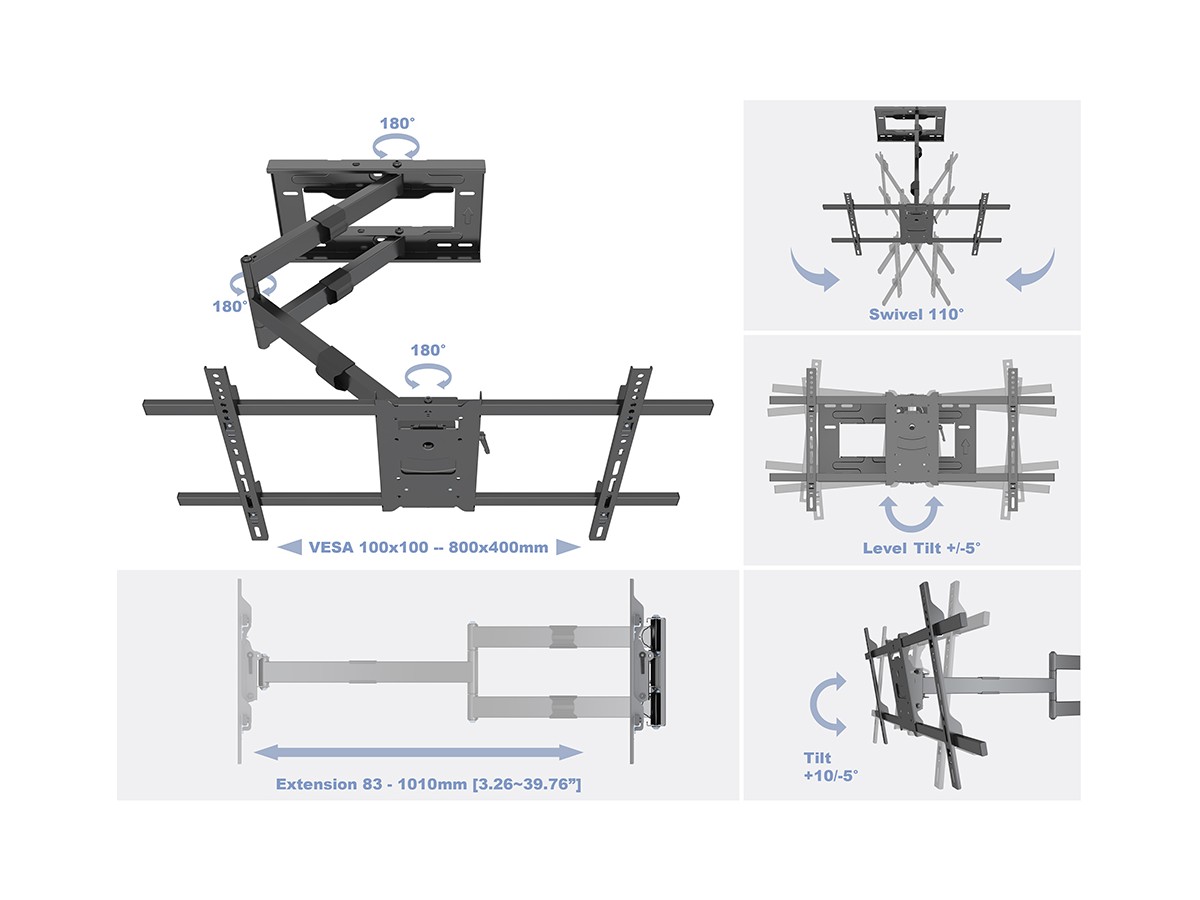

| Tilt: | -5° ~ +10° |

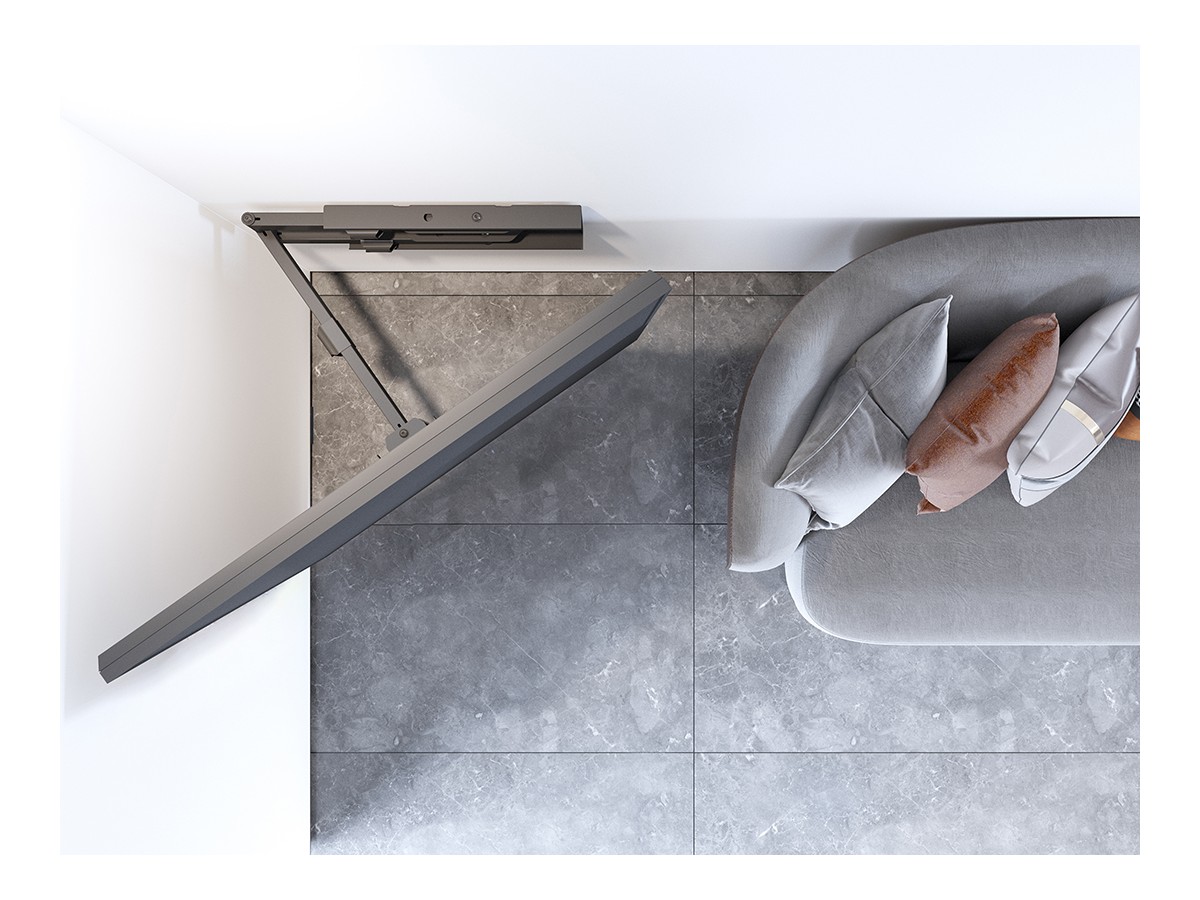

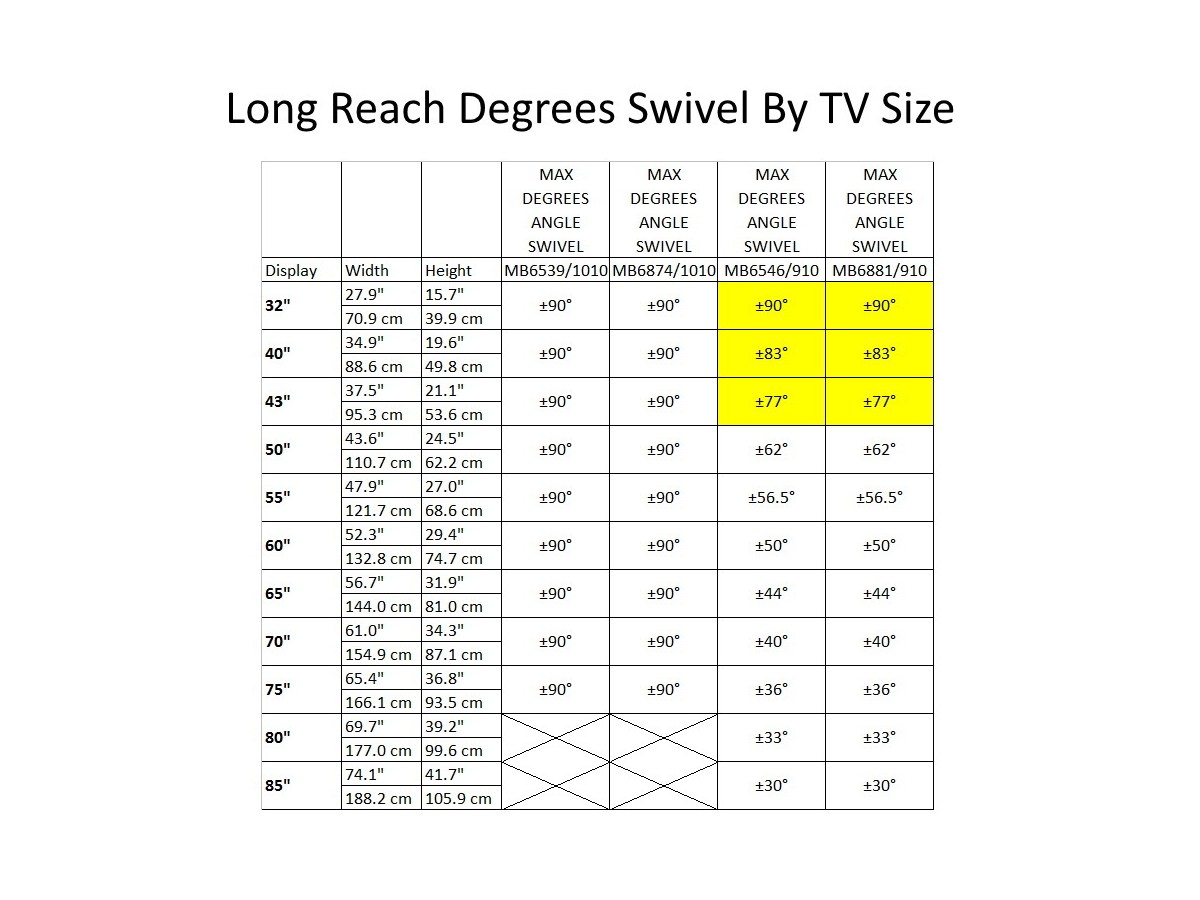

| Swivel: | +60° ~ -80° (depending on screen size) |

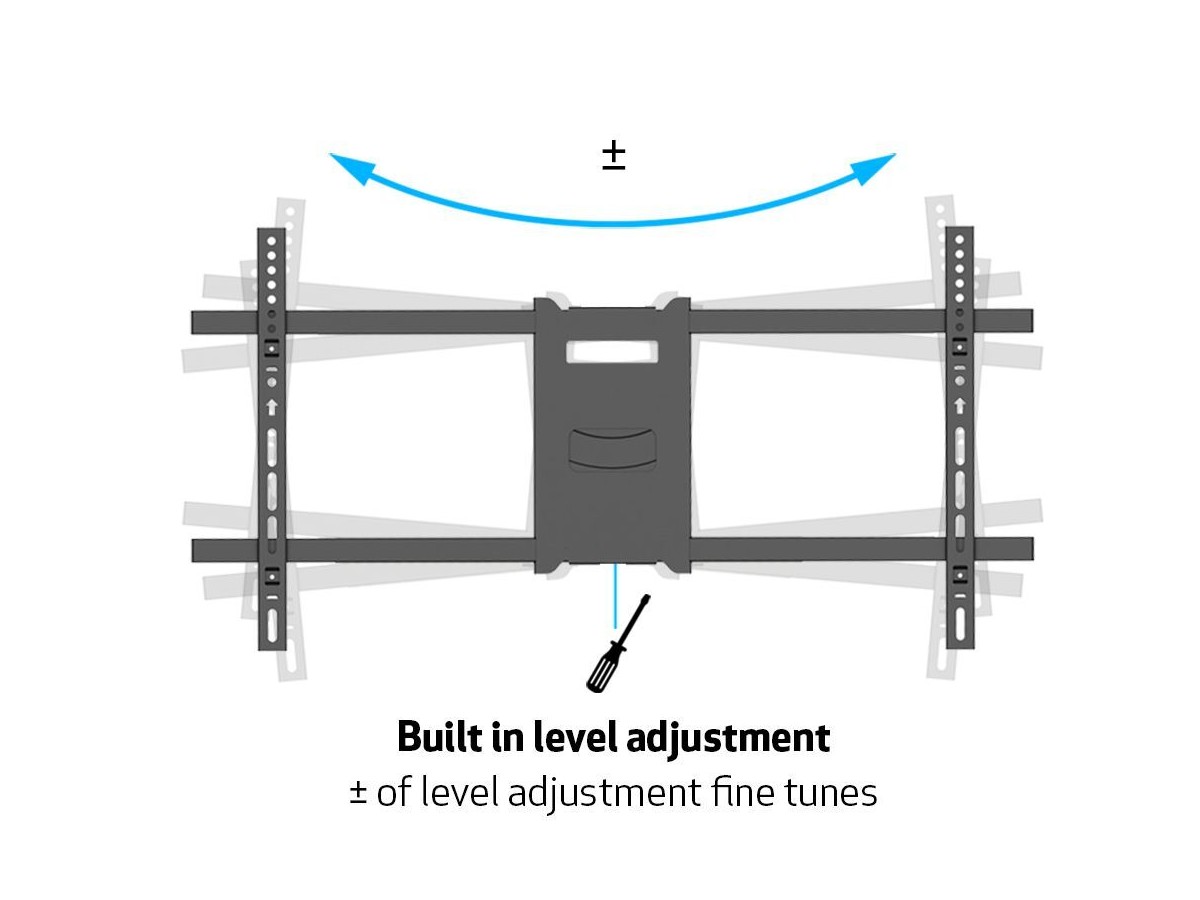

| Screen Level: | +5° ~ -5° |
| Level adjustment: | Yes, may be required when display is pulled out and pushed in |

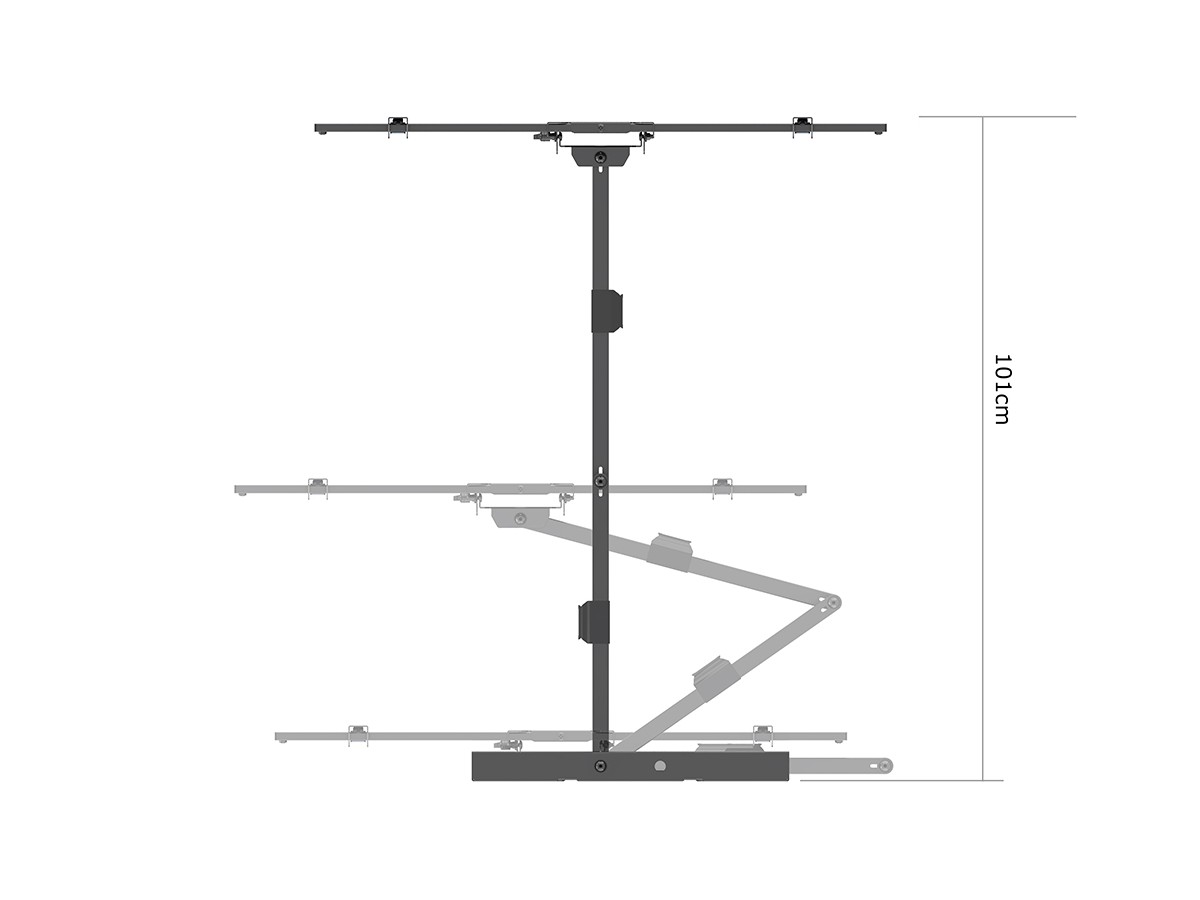

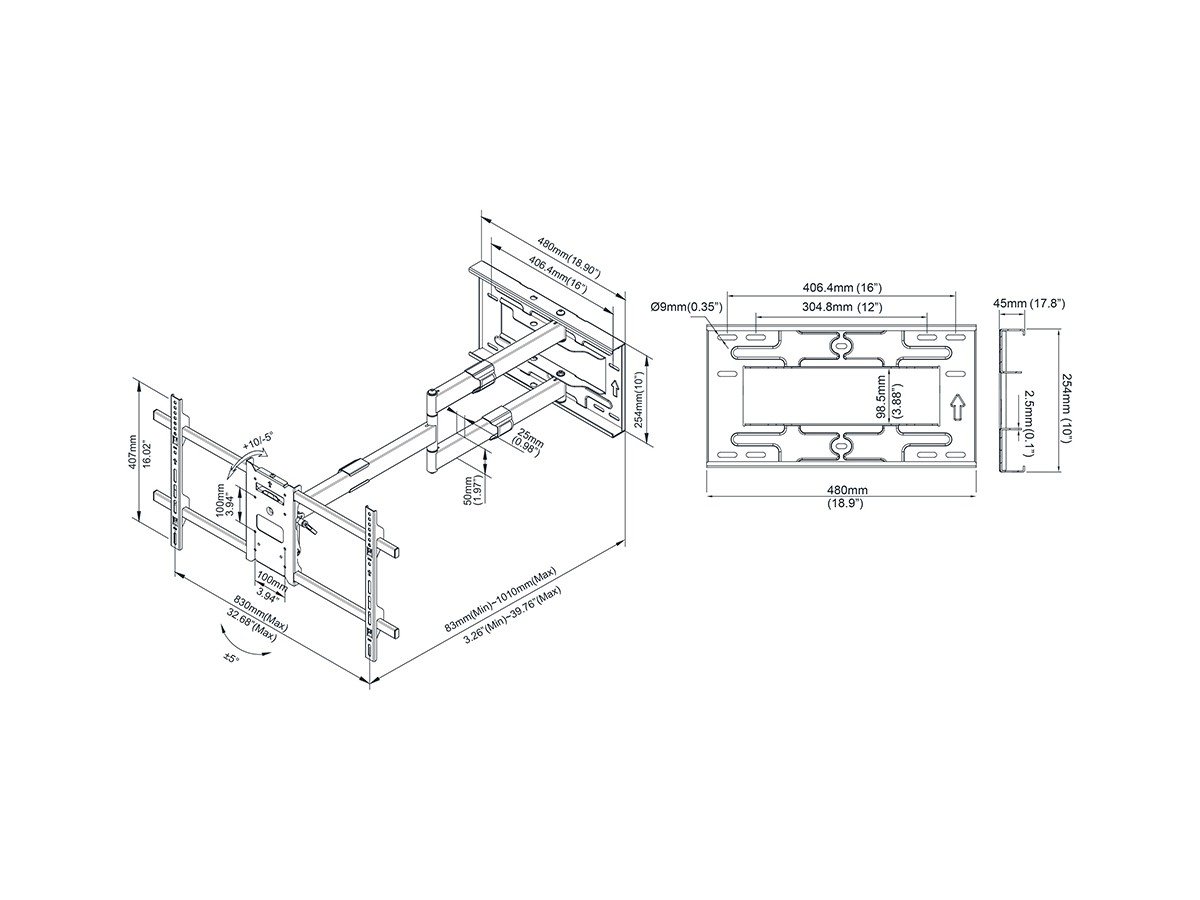

| Distance to wall: | 83 -1010 mm |
| Max load: | 40 kg |
| Net weight: | 12.7 kg |
| Size in mm: | 1010x830x407 mm (W*H*D) |
| Colour: | Black |
| Warranty: | 5 years |
Manual
