| Connectivity |
|
| Audio output |
Audio Left/Right (3.5 mm jack) |
| Video input |
USB |
| Other connections |
micro USB |
|
|
| Convenience |
|
| Placement |
Landscape (24/7) |
|

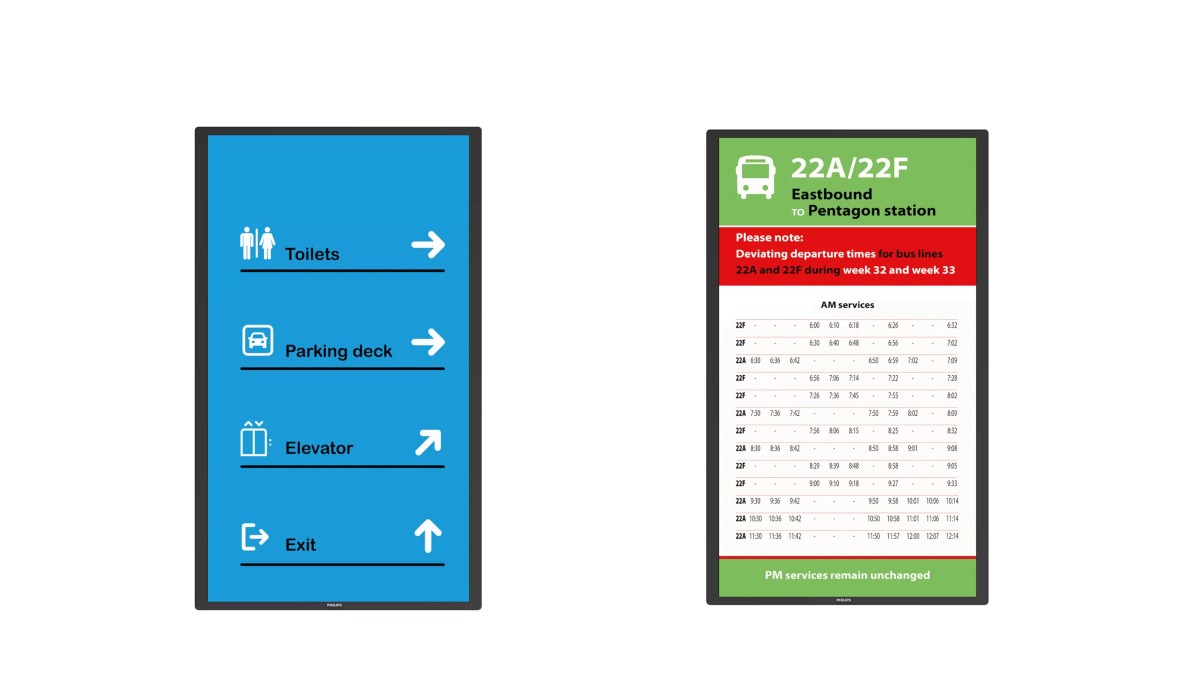

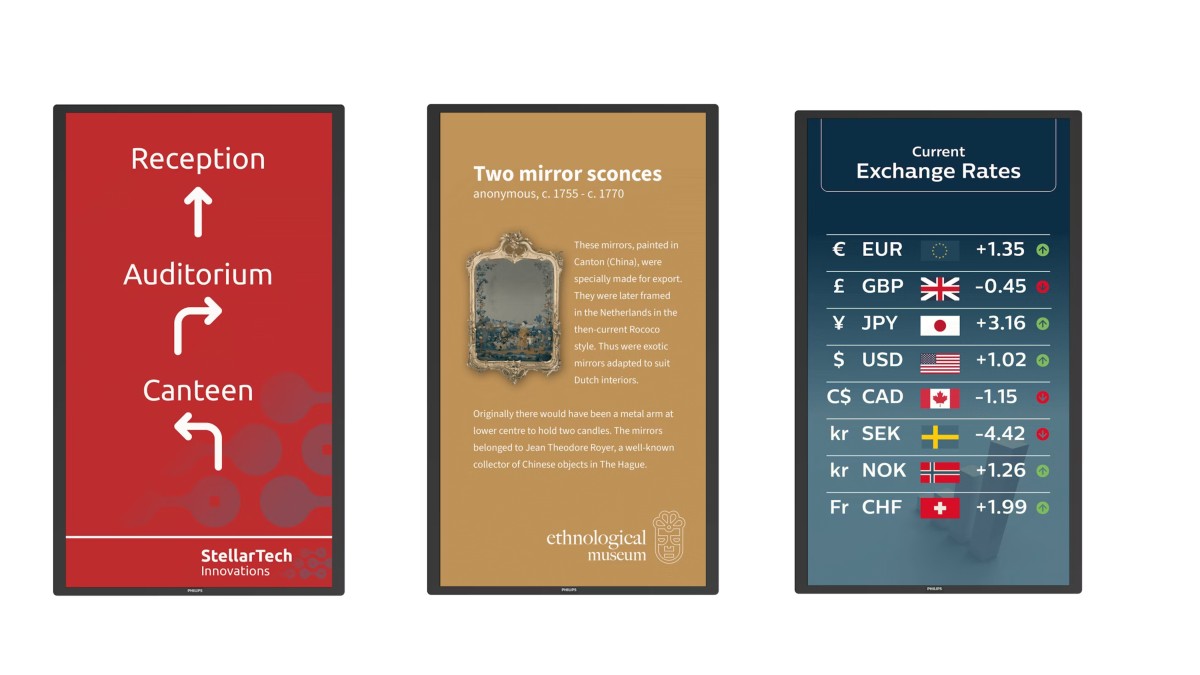

Portrait (24/7) |
| Battery bay |
4 pcs 18650 batteries (>2600 mAh) not included |
| Network controllable |
LAN (RJ45) |
|
|
| Accessories |
|
| Included Accessories |
AC power adapter |
|
Quick start guide (x 1) |
| Internal Player |
|
| Storage |
16 GB EMMC |
| Memory |
2 GB DDR4 |
| CPU |
Rockchip RK3566 |
|
|
| Dimensions |
|
| Set Height |
426.9 mm |
| Wall Mount |
100 x 100 mm, 200 x 200 mm VESA mount |
| Set Width |
718.7 mm |
| Set Depth |
37.5 mm |
| Product weight |
3.5 kg |
| Bezel width |
18.6/18.6/12.2/12.2 mm |
|
|
| Power |
|
| Mains power |
20 V/2.25 A adapter, PoE++, IEEE 802.3bt (Type 3) |
| Communication |
|
| Wi-Fi/ WLAN |
2Tx/2Rx 802.11 ac/a/b/g/n Wi-Fi + BT 5.1 Module |
| Ethernet |
10 M/100 M |
|
|
| Miscellaneous |
|
| On-Screen Display Languages |
English |
|
Simplified Chinese |
| Regulatory approvals |
CE |
|
CB |
|
UL |
|
FCC |
| Warranty |
3 year warranty |
|
|
| Operating conditions |
|
| Temperature range (storage) |
-20 ~ 60 °C |
| Relative humidity |
20% ~ 80 % |
| Altitude |
0 ~ 3000 m |
| Temperature range (operation) |
0~ 50 °C |
