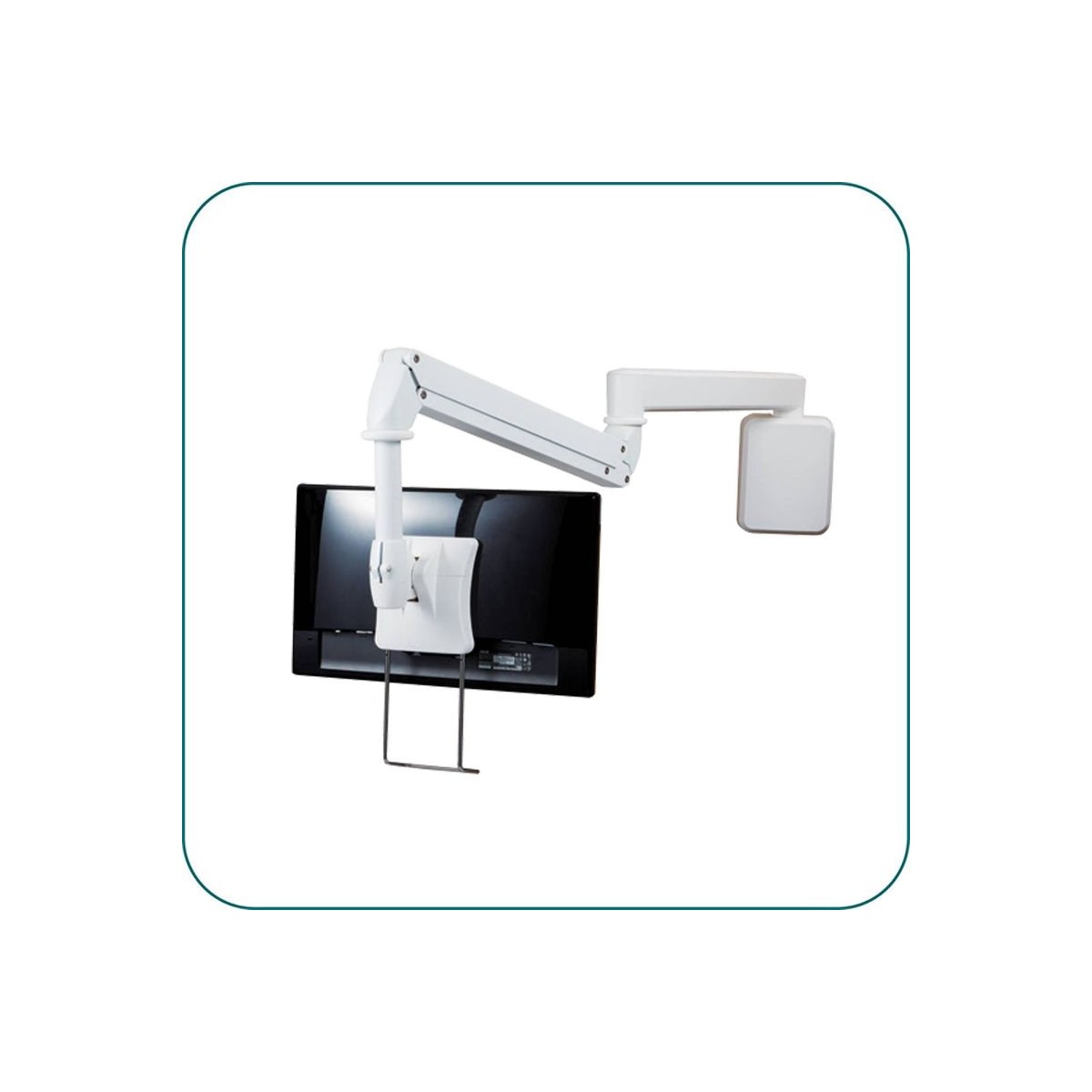

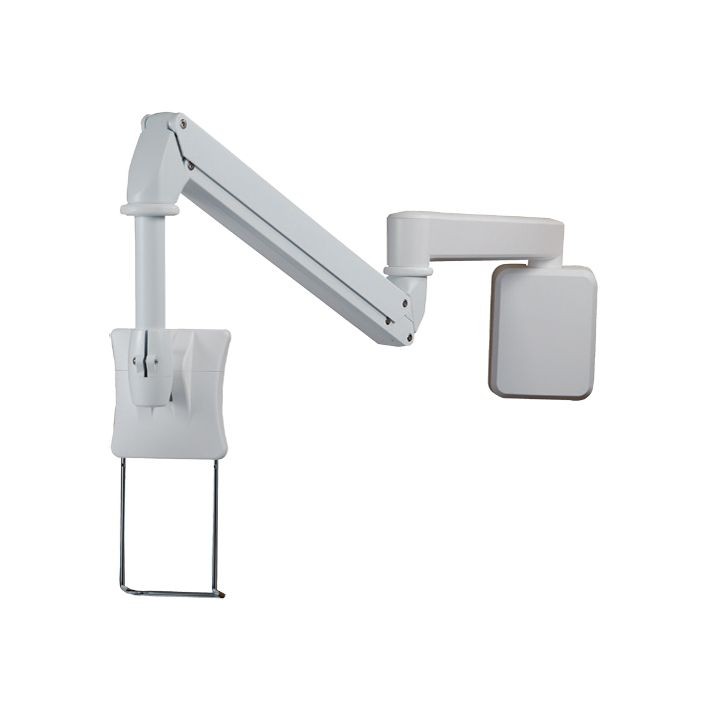

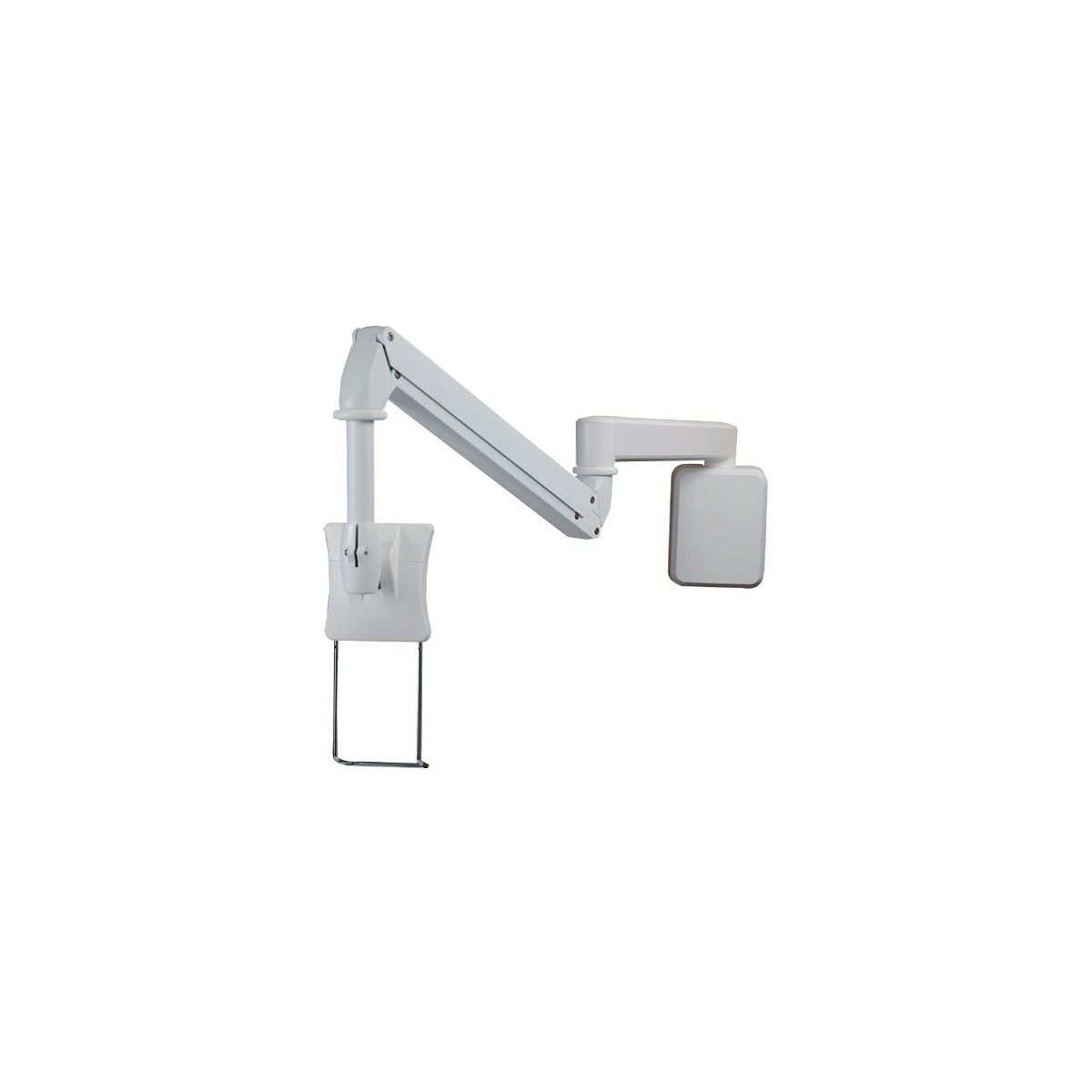

Aavara AMW20L Cantilever Medical ARM (Capacity 6-12kg) - Wall Mount Type

Product code: AMW20L

Aavara is pround to present the Cantilever Medical ARM. It's a professional design with Ergonomic Expertorque™ Technology for the well-being of Healthcare Industry. It equipped two swivel and tilt display mount up to 24 inch with VESA Mounting 100x100mm and Max. Loading capacity up to 12kgs.

Optimized for ergonomic cantilever medical arm and features height adjustment range up to 671mm/ 26.42 inch. Market application in Healthcare, Medical Center, Institute as well as wherever needs a long adjustable arms for best viewing angle.

SEND AN ENQUIRY

Description

FEATURES

• Professional design with Ergonomic Expertorque™ Technology for the well-being of Healthcare Industry
• Adjustable Cantilever Medical ARM

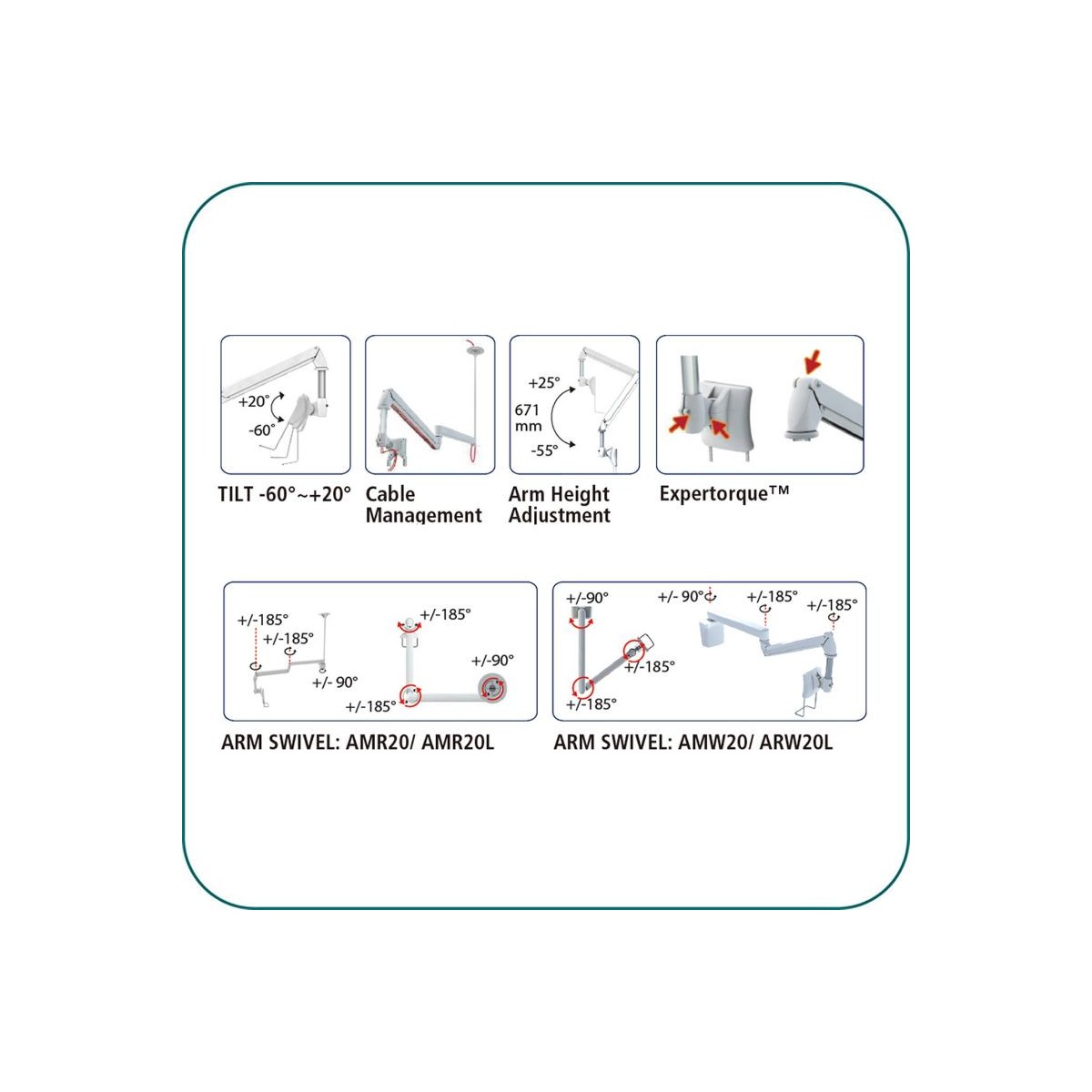

• Display features Tilt -60° ~ +20° and Swivel +/-185°
• Arm Tilt range -55°(down) ~ +25°(up) for best viewing angle
• Arm full extension up to 1,407 mm/ 55.39”
• ExperTorque™ design for easy adjustment hinged by display weight
• Smart Cable Management System to align messy cables in order

Additional information

SPECS.

Flat Panel Size: 15"-24"/ 38-61cm
Loading Capacity: 6~12kgs
VESA: 100x100/75x75mm
Display TILT: -60° ~ +20°
Swivel: +/-185°
Pivot: 360°
Extended Arm: 2

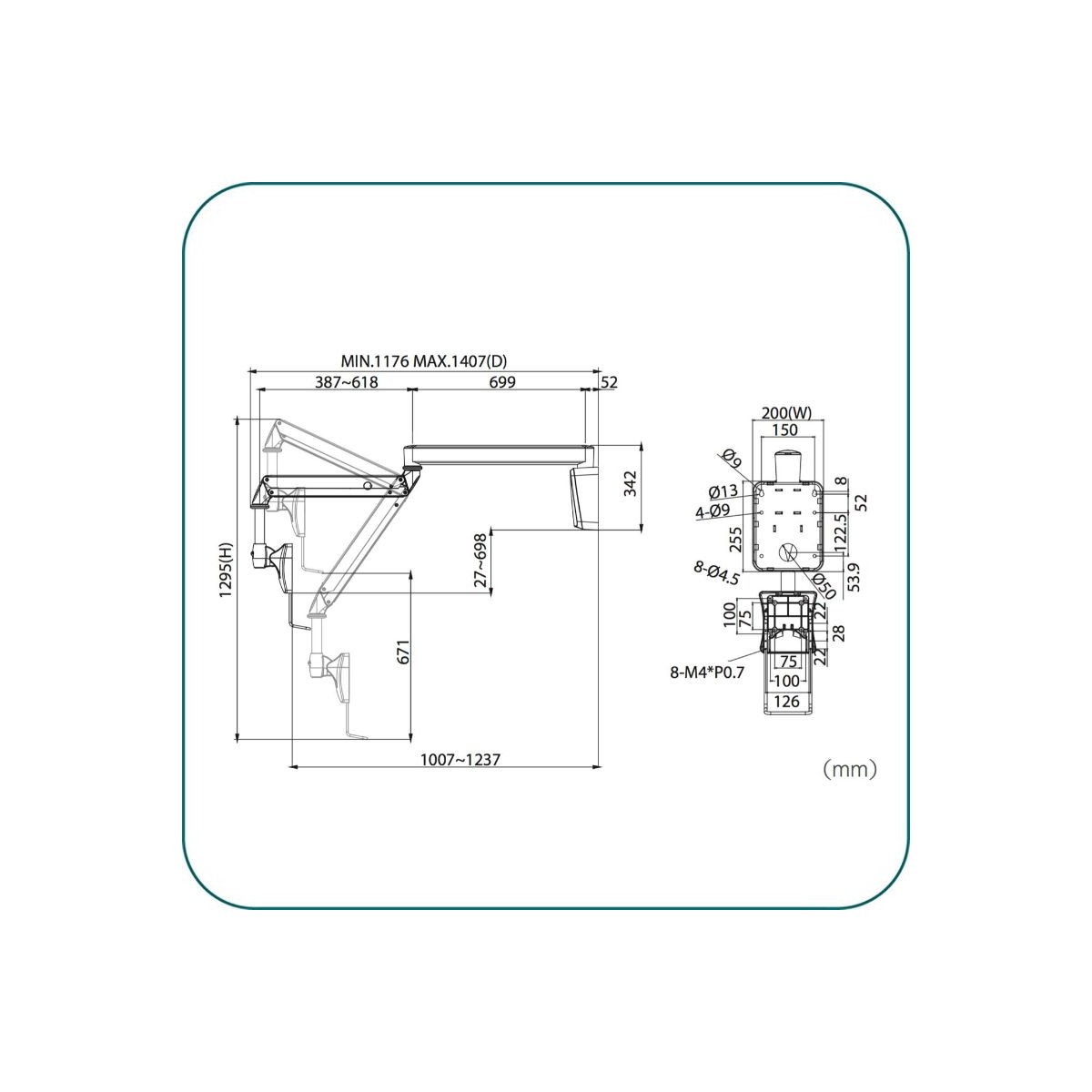

Arm full extension: 1,407 mm/ 55.39”
Arm Height Adjustment Range: 671mm/ 26.42"
Arm TILT: -55°(down) ~ +25°(up)
ExperTorque™ Technology: Yes
Smart Cable Management: Yes
Material: Steel/ Aluminum Alloy/ Plastic
