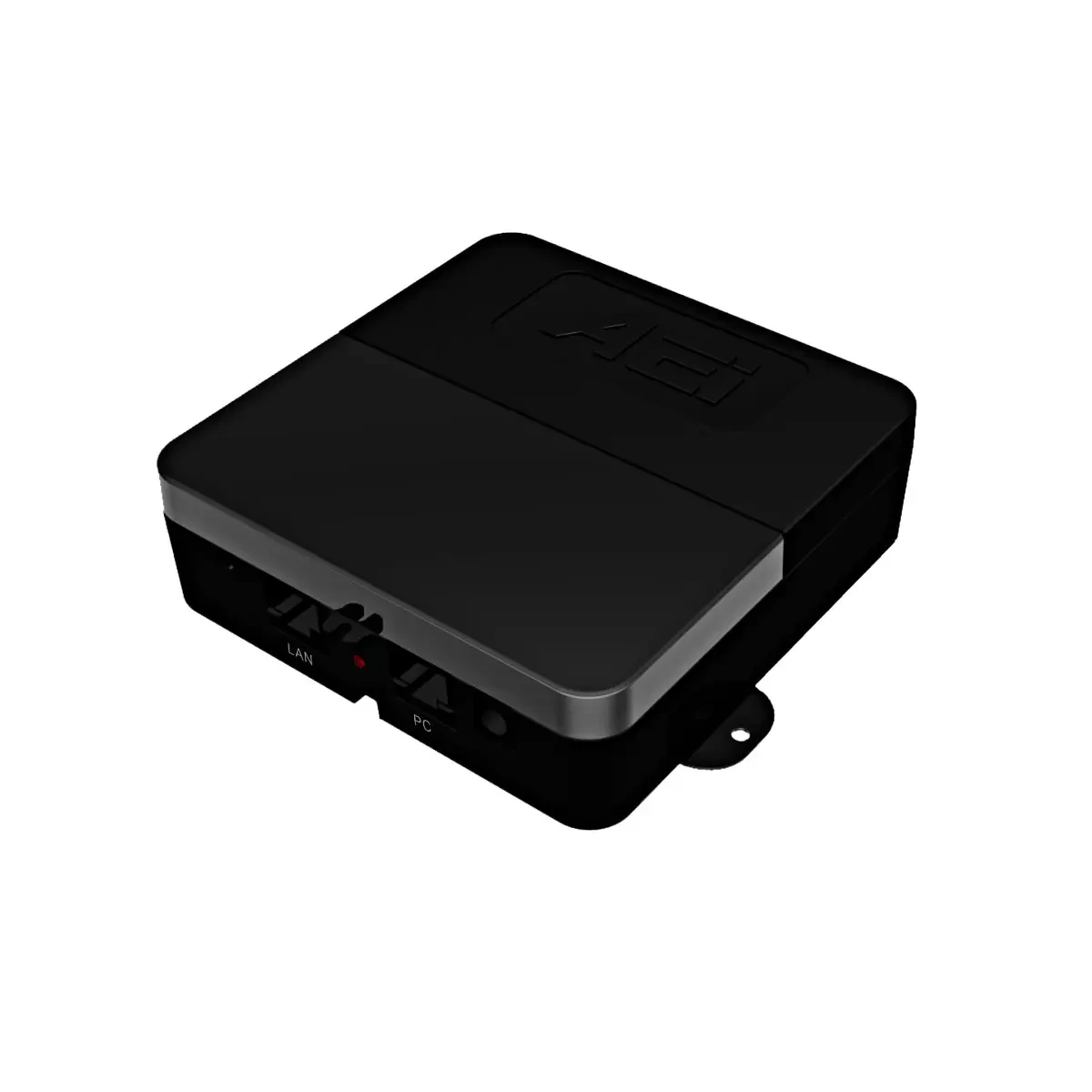

AEI SDB-8000 SIP DECT Base Station

Product code: SDB-8000

One Line or Two Line, IP Station

Our IPS series is the hidden IP – DECT Base Station.

This device can be installed in a hidden space in the room, it is small and provides access to up to 4 DECT cordless extensions.

SEND AN ENQUIRY

Description

• Cordless SIP base station
• Pair up to 4 cordless remotes
• Compact size – mounted under table or cabinet

Additional information

Power
PoE:IEEE 802.3af compliant
AC adaptor: Input: 100 ~ 240 VAC, Output: 5.9V/1A (optional)Jacks
RJ45 LAN port x 1, RJ45 PC port x 1, DC jack x 1Network Protocol
HTTP server
Static IP, DHCP Client
ToS / VLAN IEEE 802.1 p/q
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP
SIP V2 (RFC3261)

Codec
G.711 (a-law, μ-law)

DECT Standard
DECT / CAT iq 2.0 compatible

Dimensions
113mm(L) x113mm(W) x 36mm(H)

Weight
200g

Voice Quality
Echo canceller: LEC / AEC
Jitter buffer/PLC

Security
Web login authentication for web setup
TLS 1.2
MD5 for SIP authentication (RFC2069/ RFC2617)RF
USA: FCC Part 15D
EU: EN 301406EMI
USA: FCC Part 15B
EU: EN 300386SAR
EU: EN 62479

Safety
EU: EN 60950-1

EMC
EU: EN301489-1/-6

RoHS
Comply with directive 2002/95/EC RoHS (as amended by commission decision 2005/613/EC)

Temperature
Storage -10°C to +60°C
Operating +5°C to +35°C
