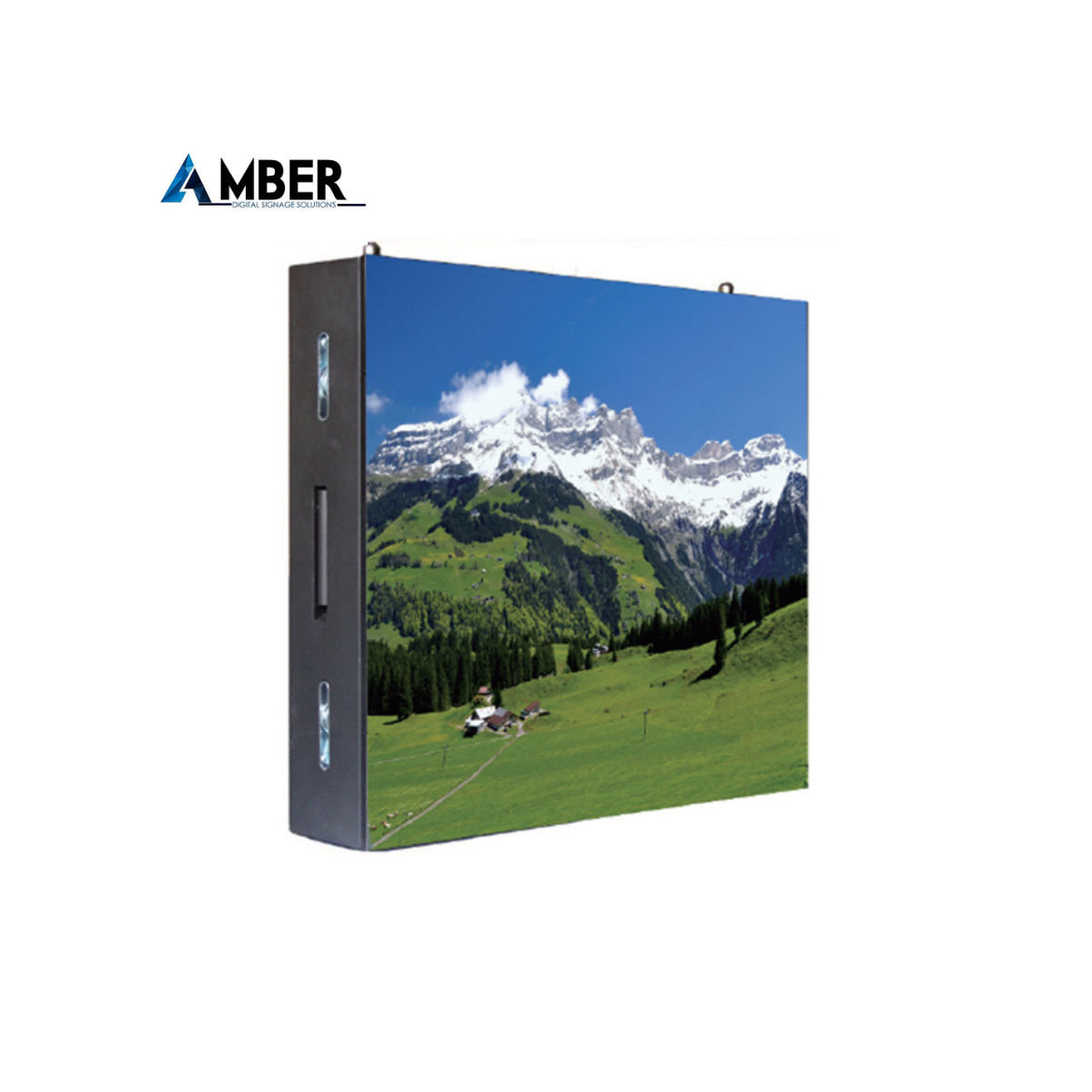

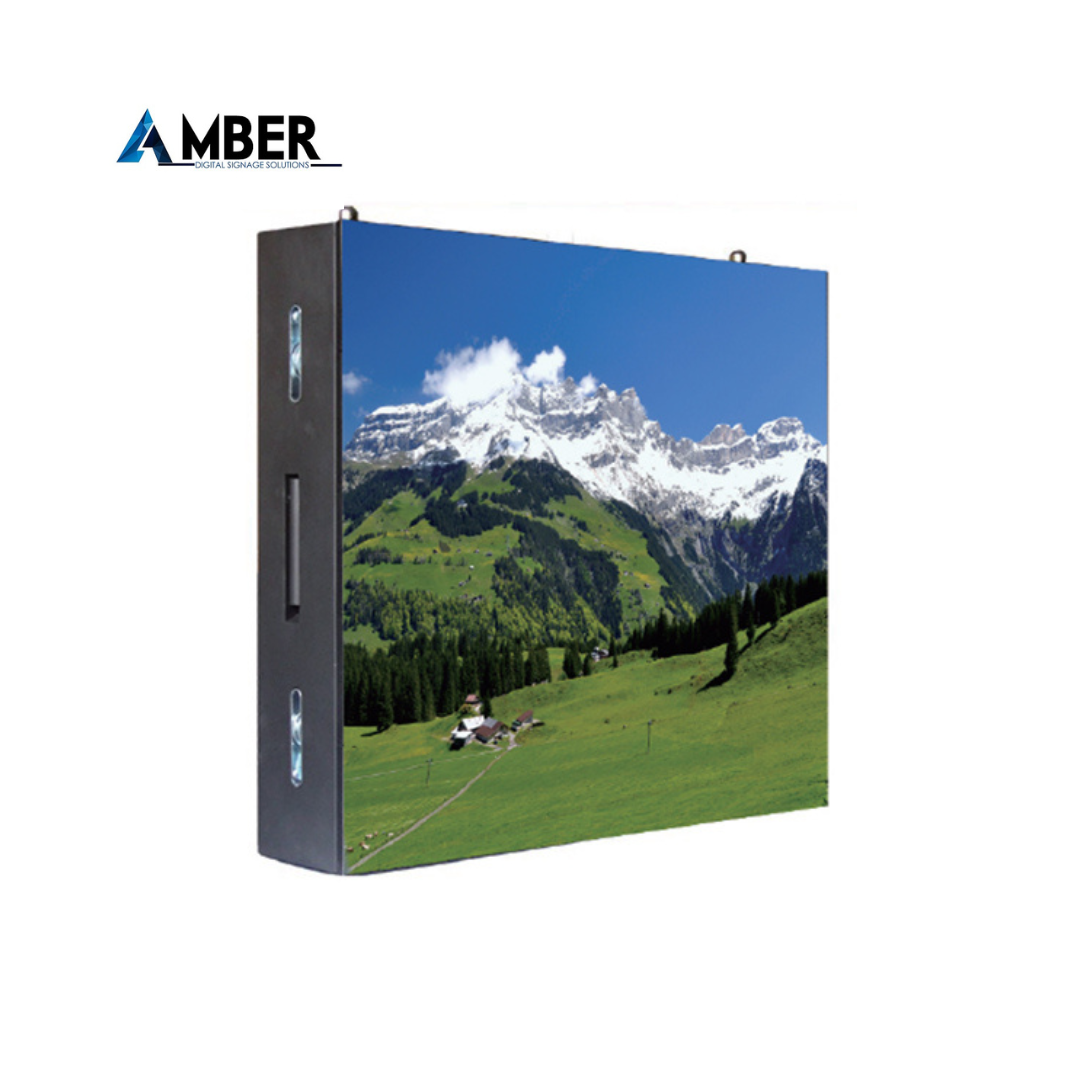

Amber BV-IF Indoor LED Wall Fixed Install Series

Product code: BV-IF

Indoor Fixed Display,

Conventional and Cost Friendly

● Conventional Pixel Pitch

● High Cost Performance

● Front / Rear Access Options

● High Color Fidelity and High Contrast Ratio

SEND AN ENQUIRY

Description

Conventional and Creative

● Conventional pitches and panel structure

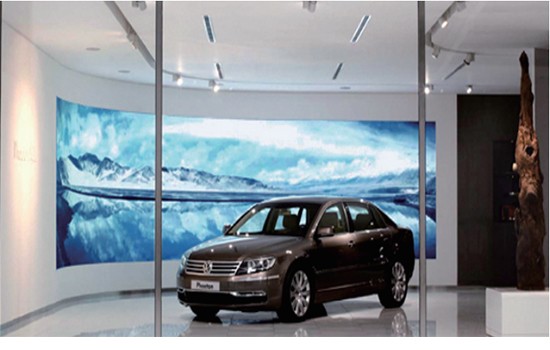

● Concave, convex, cylinder shapes available

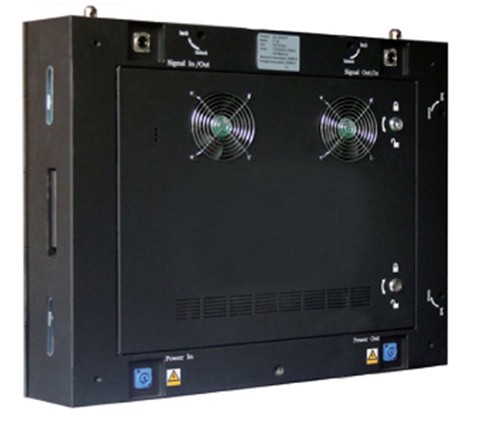

● Steel or aluminum panel, front or rear access


Unsurpassed Color Uniformity

● Unipue color calibration process

● Unipue color calibration process

● Deep black levels, contrast ratio 4000:1



Various Mountings

● Front installation for most of wall mounting

● Simple connection, easy operation

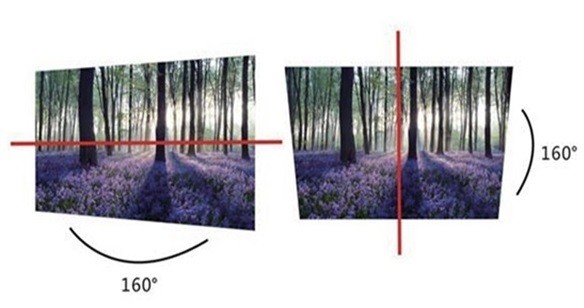

Wide Viewing Angle

● Selected LED and mask to broaden viewing angle

● 160° horizontal and vertical wide viewing angle


Additional information

BV-IF-3

BV-IF-4

BV-IF-5

BV-IF-6

Physical Pitch

3mm

4mm

5mm

6mm

Pixel Configuration

SMD 2121

SMD 2121

SMD 2121

SMD 2121

Pixel Density

111,111 pixels/m²

62,500 pixels/m²

40,000 pixels/m²

127,777 pixels/m²

Module Dimensions (W × H) (mm)

192 × 192

256 × 128

320 × 160

192 × 192

Panel Dimensions (mm)

960 × 960

1024 × 768

1280 × 960

1152 × 960

NO.of Modules Per Panel (W × H)

5 × 5

4 × 6

4 × 6

6 × 5

Physical Resolution of Module (W × H)

64 × 64

64 × 32

64 × 32

32 × 32

Physical Resolution of Panel (W × H)

320 × 320

256 × 192

256 × 192

192 × 160

Panel Material

Steel / Aluminum

Steel / Aluminum

Steel / Aluminum

Steel / Aluminum

Scan Method

1 / 32 Scan

1 / 16 Scan

1 / 16 Scan

1 / 16 Scan

Gray Scale

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000 : 1

4,000 : 1

4,000 : 1

4,000 : 1

Average Power Consumption

120 W / m²

120 W / m²

120 W / m²

120 W / m²

Max Power Consumption

400 W / m²

400 W / m²

400 W / m²

400 W / m²

Operating Temp/Humidity

-10℃-60℃

10%-60%

-10℃-60℃

10%-60%

-10℃-60℃

10%-60%

-10℃-60℃

10%-60%

Storage Temp/Humidity

-30℃-60℃

10%-60%

-30℃-60℃

10%-60%

-30℃-60℃

10%-60%

-30℃-60℃

10%-60%

Refresh Rate

>1,920 Hz

>1,920 Hz

>1,920 Hz

>1,920 Hz

Brightness

900 - 1,200 nits

900 - 1,200 nits

900 - 1,200 nits

900 - 1,200 nits

Horizontal Viewing Angle

160°

160°

160°

160°

Vertical Viewing Angle

140°

140°

140°

140°

Expected Lifetime

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs

Servicing

Front /Rear

Front /Rear

Front /Rear

Front /Rear

IP Rating

IP 21

IP 21

IP 21

IP 21
