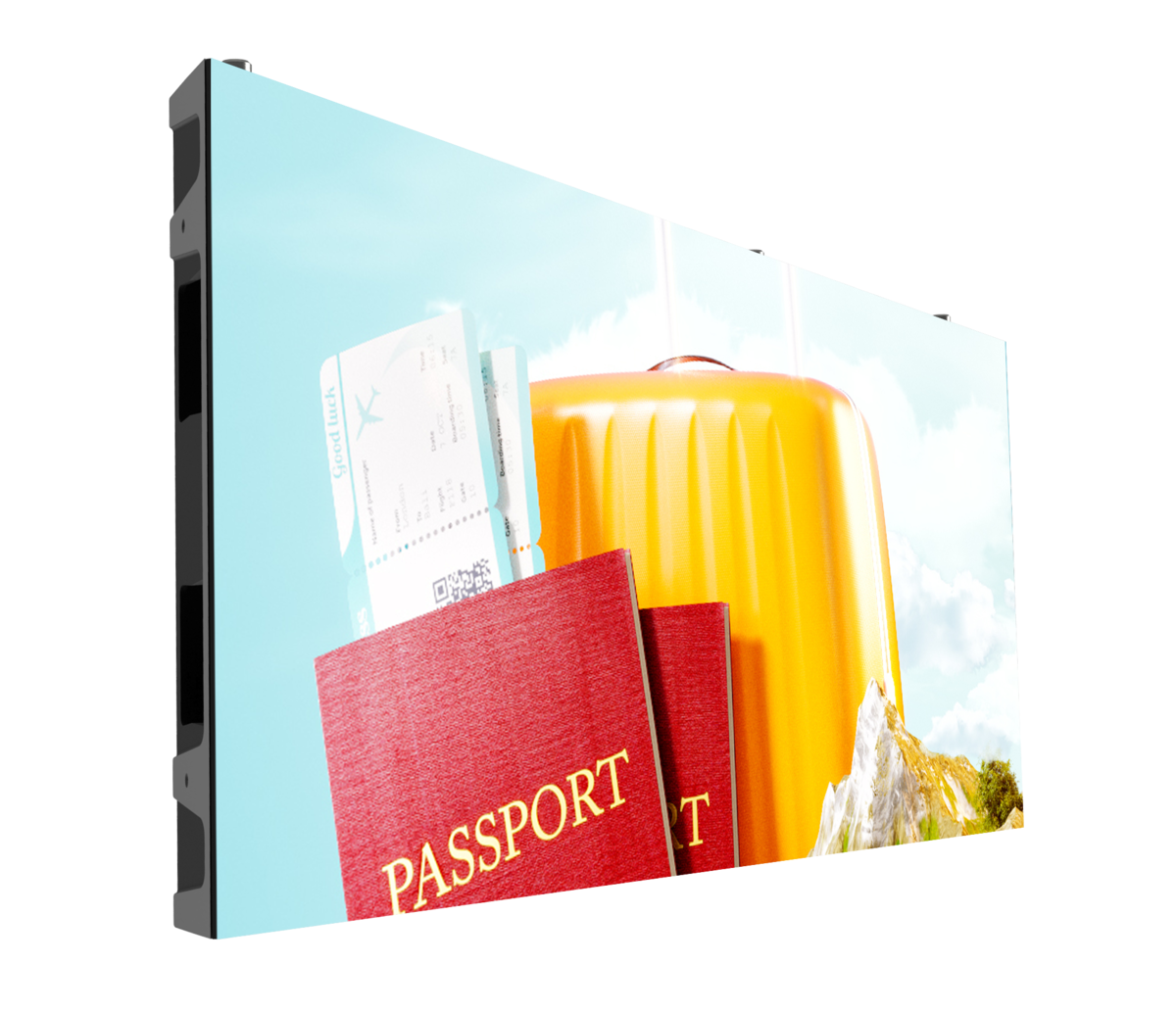

Philips L-Line 7000 Series 31BDL7531L/00 High Brightness

Product code: 31BDL7531L/00

No limits. No boundaries. The Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

SEND AN ENQUIRY

Description

Picture/Display

Colour temperature default6500±500 K
Colour temperature adjust range4000~9500 K (by software)
Viewing angle (horizontal)155
Viewing angle (vertical)150
Calibration (brightness/colour)Supported
Refresh rate (Hz)2100~3900 (14 bits:3900 Hz)
Frame frequency (Hz)50 & 60
Aspect ratio3:1
Picture enhancementWide colour gamut display
PlacementLandscape
UsageIndoor
Brightness uniformity>=97%
Contrast ratio (typical)10000:1
Brightness before calibration3500 nits
Brightness after calibration2750 nits

Additional information

Convenience

Signal control loop through RJ45
Ease of installation Guide pins, Light weight
Power loop through For 230 V environments: 12 cabinets or less, for 110 V environments: 6 cabinets or less, 10 A max


Operating conditions

Temperature range (operation) -20~45
Temperature range (storage) -20~50
Humidity range (operation)[RH] 10~80%
Humidity range (storage) [RH] 10~85%


Power

Input voltage AC100~240 V (50 and 60 Hz)
Black screen power cons. (W) <10
Max. power cons. BC (W) <143.7
Typical power cons. (W) <36
Max. power cons. AC (W) <108


Miscellaneous

Warranty 2 years
Regulatory approvals EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, RoHS, FCC SDOC (Part 15, Class A), EAC
Fire retardancy certification BS 476 Part7:1997, UL94
Conformal coating hub board, backside LED module


Cabinet

Cabinet size (mm) 750 x 250 x 40
Side angle (degree) 45
Cabinet diagonal (inch) 31.1"
Cabinet resolution (W x H) 240 x 80
Weight (kg) 4.69
Cabinet pixels (Dot) 19,200
Cabinet area (m2) 0.1875
Power connector 3 core socket (C14 in, C13 out)
Data connector RJ45
Cabinet construction Die-Casting Aluminium
Receiving card quantity 1 pcs
Receiving card spec. A5S Plus
Receiving card brand NovaStar


Module

LED type SMD 1921 Copper wire
Pixel constitution 1R1G1B
LED lifetime(Hrs) 100,000 at half brightness
Pixel pitch (mm) 3.1
Module resolution (WxH pixels) 80x80
Module size (W x H in mm) 249.9*249.9


Accessories

Power cable 2 pcs
LAN cable (RJ45, CAT-5) 1 pcs
QSG 1 pcs


Packaging Data

Dimension of packaging (mm) 950x421x224
Gross weight (KG) 9.36
