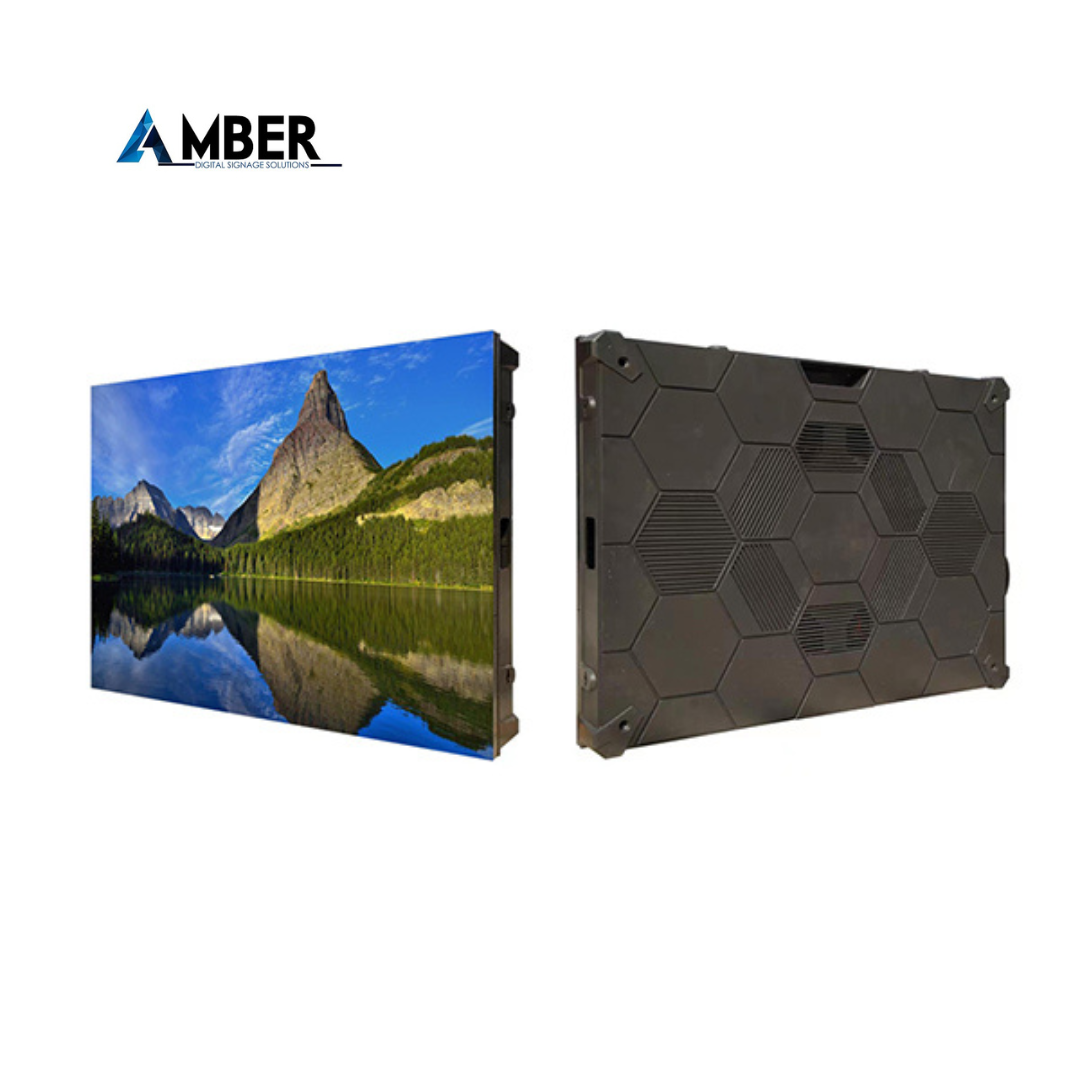

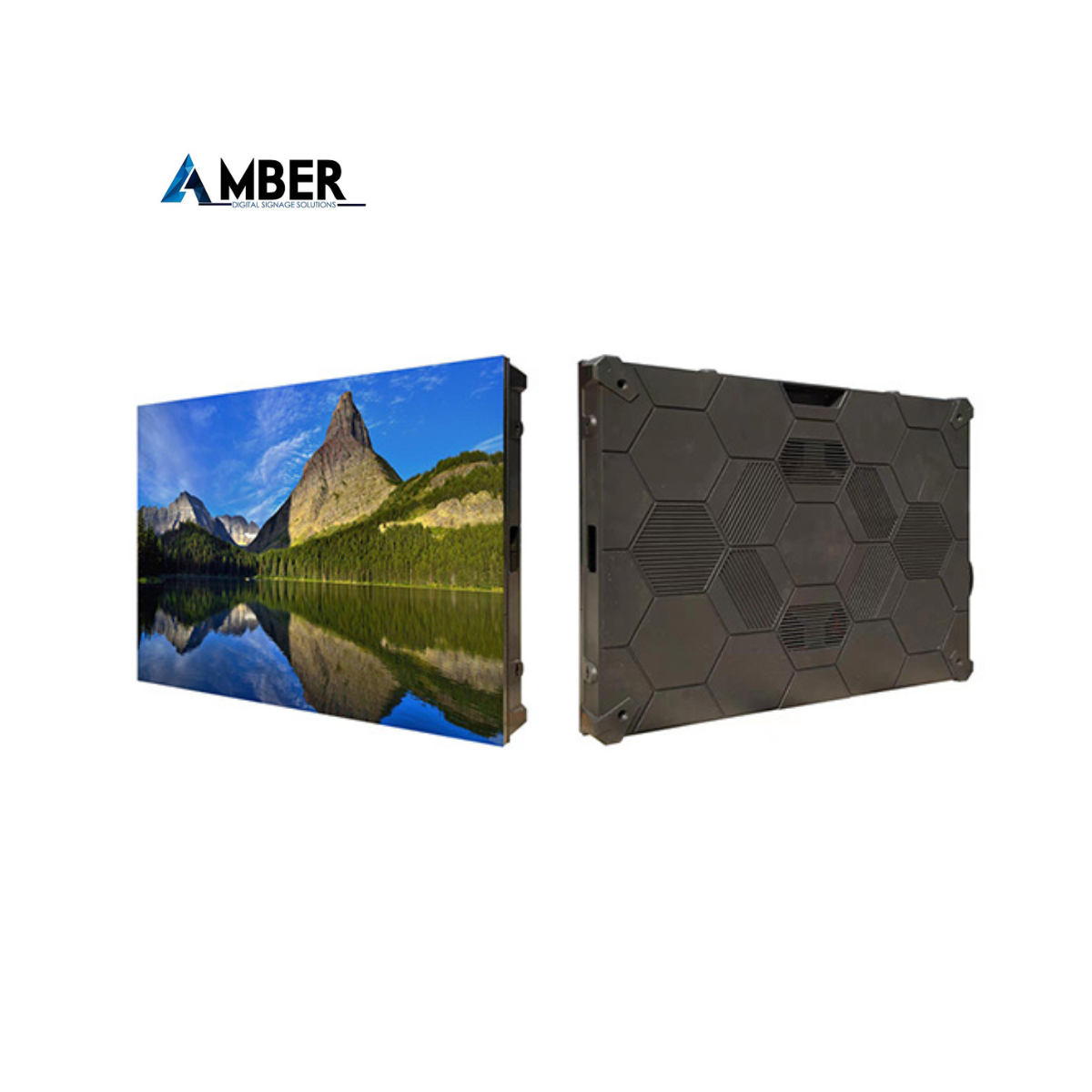

Amber BV-UHD-G Indoor LED Wall Fixed Install Series
Product code:Grand Series, Small Pitch, Large Cabinet
● Available from 1.25mm to 2.5mm
● 640mm X 480mm Large Cabinet
● High Grey and High Refresh Rate
● Fully Front Access for Wall Mounting
● Stock Ready, Fast Delivery
SEND AN ENQUIRYDescription

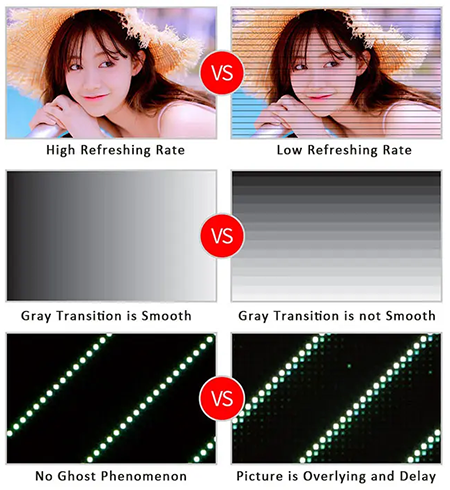

Unsurpassed Color and Grey Performance
● Unique color calibration process
● Ultra wide viewing angle 160°/160°
● Contrast ratio 4000:1, Refresh rate 3840Hz
Fast Installation and Easy Maintenance
● Fully front installation, fully front access

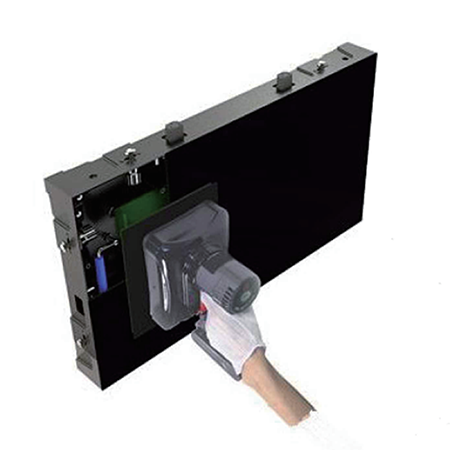

● Vacuum suction, easy for maintenance
● Cable-less between cabinets
● Wall mounting available
Energy-Saving and Environmental Friendly
● Low power consumption
● The average power ≤ 85W/M2
● Anti Blue-Light, Avoid Visual Fatigue
Additional information
BV-UHD-G-1.25 | BV-UHD-G-1.5 | BV-UHD-G-1.86 | BV-UHD-G-2 | BV-UHD-G-2.5 |
Physical Pitch | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm |
Pixel Configuration | SMD 1010 | SMD 1010 | SMD 1515 | SMD 1010 | SMD 1010 |
Pixel Density | 640,000pixels/m² | 422,500 pixels/m² | 288,906 pixels/m² | 250,000 pixels/m² | 160,000 pixels/m² |
Module Dimensions (W × H) (mm) | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
Panel Dimensions (mm) | 640 × 480 x 85 | 640 × 480 x 85 | 640 × 480 x 85 | 640 × 480 x 85 | 640 × 480 x 85 |
NO.of Modules Per Panel (W × H) | 2 × 3 | 2 × 3 | 2 × 3 | 2 × 3 | 2 × 3 |
Physical Resolution of Module (W × H) | 256 × 128 | 208 × 104 | 172 × 86 | 160 × 80 | 128 × 64 |
Physical Resolution of Panel (W × H) | 512 × 384 | 416 × 312 | 344 × 258 | 320 × 240 | 256 × 160 |
Panel Material | Die-casting | Die-casting | Die-casting | Die-casting | Die-casting |
Single Cabinet Weight | 7.2 kg/panel | 7.2 kg/panel | 7.2 kg/panel | 7.2 kg/panel | 7.2 kg/panel |
Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000 ：1 | 4,000 ：1 | 4,000 ：1 | 4,000 ：1 | 4,000 ：1 |
Average Power Consumption | 118 W/m² | 118 W/m² | 118 W/m² | 25~30 W/m² | 85 W/m² |
Max Power Consumption | 350 W/m² | 350 W/m² | 240 W/m² | 120 W/m² | 240 W/m² |
Brightness | 500~800 nits | 500~800 nits | 500~800 nits | 500~800 nits | 500~800 nits |
Refresh Rate | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
Vertical Viewing Angle | 160° | 160° | 160° | 160° | 160° |
Expected Lifetime | ≥100,000 Hrs | ≥100,000 Hrs | ≥100,000 Hrs | ≥100,000 Hrs | ≥100,000 Hrs |
Operating Temp/Humidity | -20°C-50 °C 10%-90% | -20°C-50 °C 10%-90% | -20°C-50 °C 10%-90% | -20°C-50 °C 10%-90% | -20°C-50 °C 10%-90% |
Storage Temp/Humidity | -40°C-60°C 10%-85% | -40°C-60°C 10%-85% | -40°C-60°C 10%-85% | -40°C-60°C 10%-85% | -40°C-60°C 10%-85% |
IP Rating (Front/Rear) | IP 40/ IP 21 | IP 40/ IP 21 | IP 40/ IP 21 | IP 40/ IP 21 | IP 40/ IP 21 |
Scan Method | 1/64 Scan | 1/52 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan |
