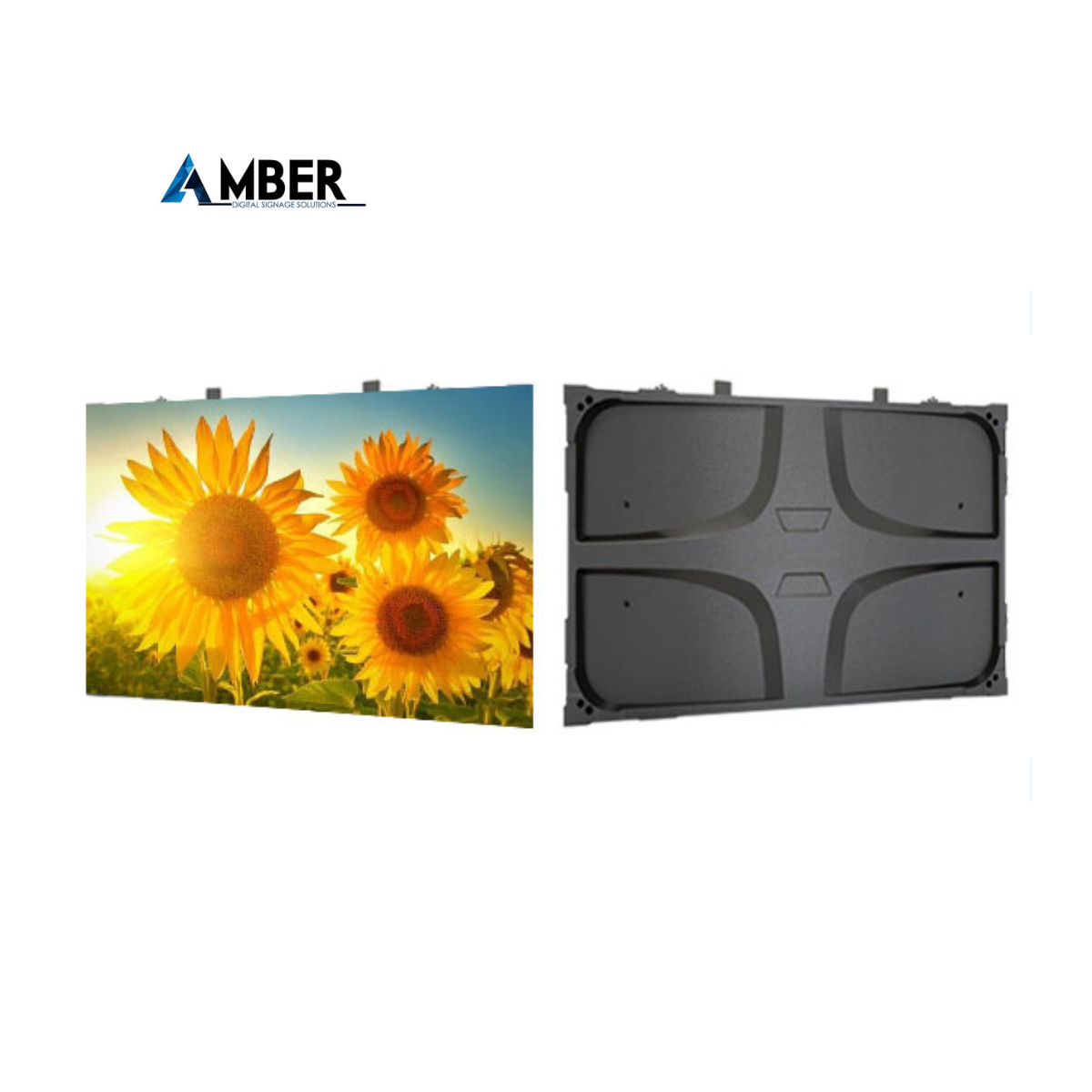

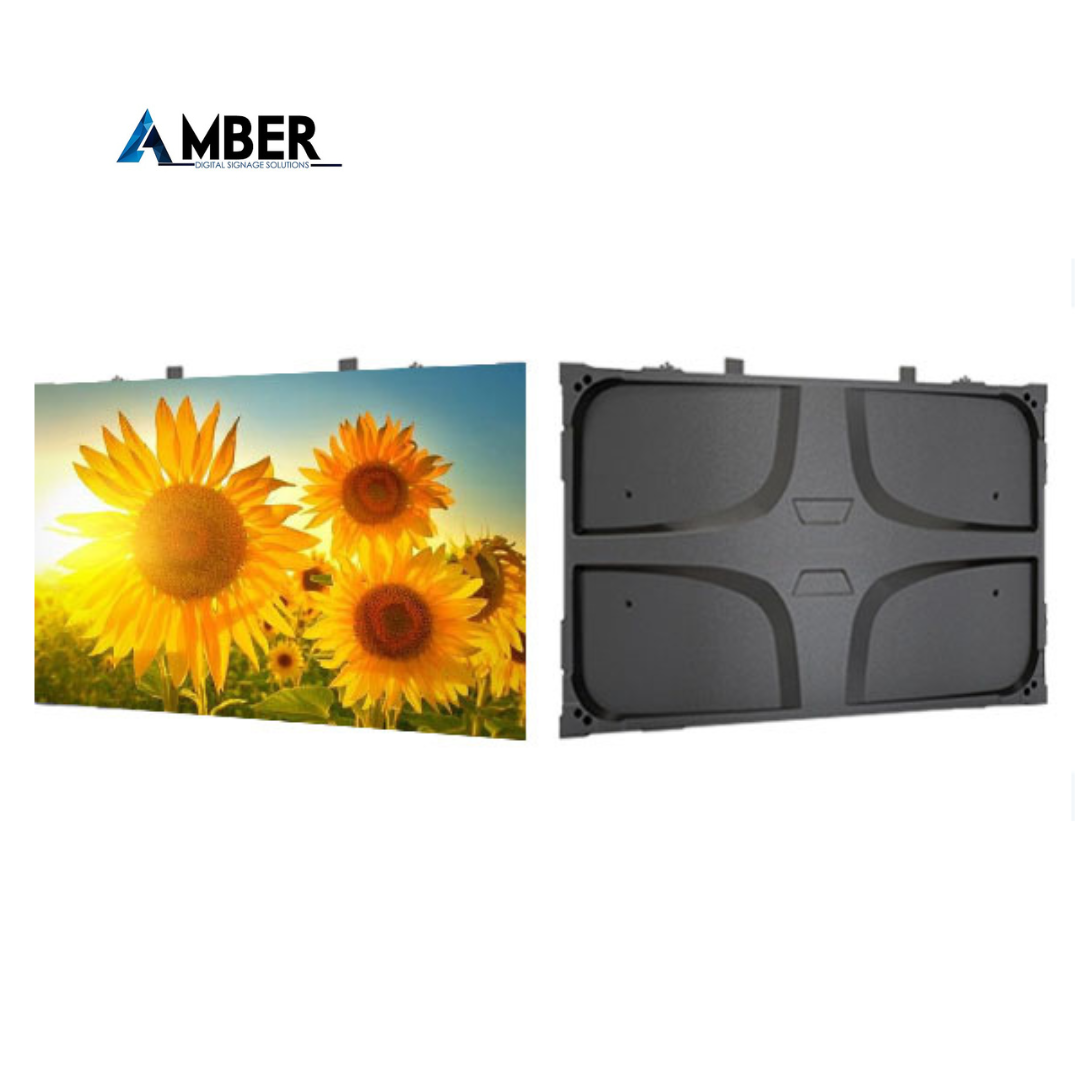

Amber BV-UHD Indoor LED Wall Fixed Install Series

Product code: BV-UHD

Ultra Fine Pitch, Big Screen

● For 16:9 and 4:3 Aspect Ratio

● Fully Front Access for Wall Mounting

● High Color Fidelity and High Contrast Ratio

● Cable-less Connection

● Slim and Lightweight

SEND AN ENQUIRY

Description

16:9 and 4:3 Format Options

● Each cabinet is 600mmx337.5mm

● 16:9 or 4:3 free options

● Available for any video formats

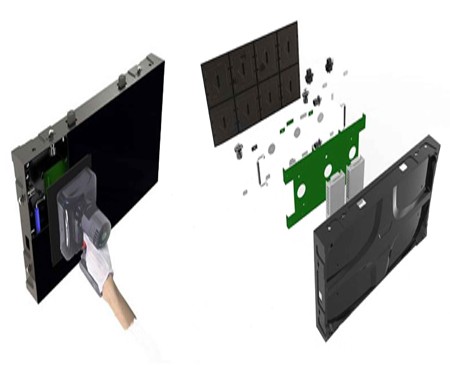

Fast Installation and Easy Maintenance

● Slim and lightweight, easy to install

● Cable-less between modules

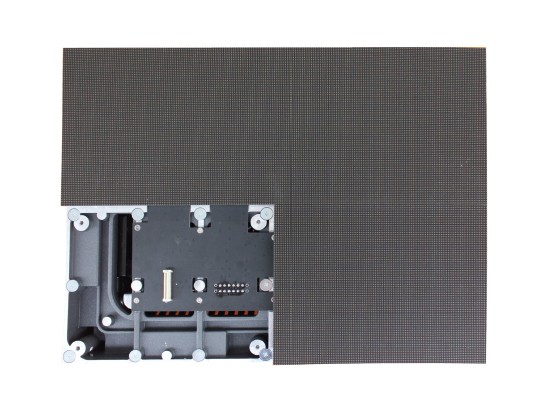

● Fully front access

● Wall mounting available


Unsurpassed Color Uniformity

● Unique color calibration process

● Tight bin selection for LED wavelength

● Deep black levels, contrast ratio 4000:1



Superior Electrical Features


● NR20 noise free

● Flat cable free between module and cabinet to avoid

signal missing


Additional information

BV-UHD-0.937

BV-UHD-1.2

BV-UHD-1.5

BV-UHD-1.8

BV-UHD-2.3

Physical Pitch

0.937mm

1.25mm

1.56mm

1.87mm

2.34mm

Pixel Configuration

SMD 0606

SMD 1010

SMD 1010

SMD 1010

SMD2121

Pixel Density

11,138,489pixels/m²

648,000 pixels/m²

410,881 pixels/m²

286,225 pixels/m²

182,329 pixels/m²

Module Dimensions (W × H) (mm)

150 × 168.75

150 × 168.75

150 × 168.75

150 × 168.75

150 × 168.75

Panel Dimensions (mm)

600 × 337.5

600 × 337.5

600 × 337.5

600 × 337.5

600 × 337.5

NO.of Modules Per Panel (W × H)

4 × 2

4 × 2

4 × 2

4 × 2

4 × 2

Physical Resolution of Module (W × H)

160 × 180

120 × 135

96 × 108

80 × 90

64 × 72

Physical Resolution of Panel (W × H)

640 × 360

480 × 270

384 × 216

320 × 180

256 × 144

Panel Material

Die-casting

Die-casting

Die-casting

Die-casting

Die-casting

Single Cabinet Weight

6 kg/panel

6 kg/panel

6 kg/panel

6 kg/panel

6 kg/panel

Gray Scale

16 bit

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000 :1

4,000 :1

4,000 :1

4,000 :1

4,000 :1

Average Power Consumption

≤300 W/m²

≤300 W/m²

≤300 W/m²

≤300 W/m²

≤300 W/m²

Max Power Consumption

≤600 W/m²

≤600 W/m²

≤600 W/m²

≤600 W/m²

≤600 W/m²

Brightness

600~800 nits

600~800 nits

600~800 nits

600~800 nits

600~800 nits

Refresh Rate

>2,880Hz

>2,880Hz

>2,880Hz

>2,880Hz

>2,880Hz

Horizontal Viewing Angle

160°

160°

160°

160°

160°

Vertical Viewing Angle

140°

140°

140°

140°

140°

Expected Lifetime

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

≥100,000 Hrs

Operating Temp/Humidity

-20°C-50 °C

10%-90%

-20°C-50 °C

10%-90%

-20°C-50 °C

10%-90%

-20°C-50 °C

10%-90%

-20°C-50 °C

10%-90%

Storage Temp/Humidity

-40°C-60°C

10%-85%

-40°C-60°C

10%-85%

-40°C-60°C

10%-85%

-40°C-60°C

10%-85%

-40°C-60°C

10%-85%

IP Rating (Front/Rear)

IP 40/ IP 21

IP 40/ IP 21

IP 40/ IP 21

IP 40/ IP 21

IP 40/ IP 21

Scan Method

1/60 Scan

1/45 1/27 Scan

1/27 Scan

1/30 Scan

1/24 Scan
