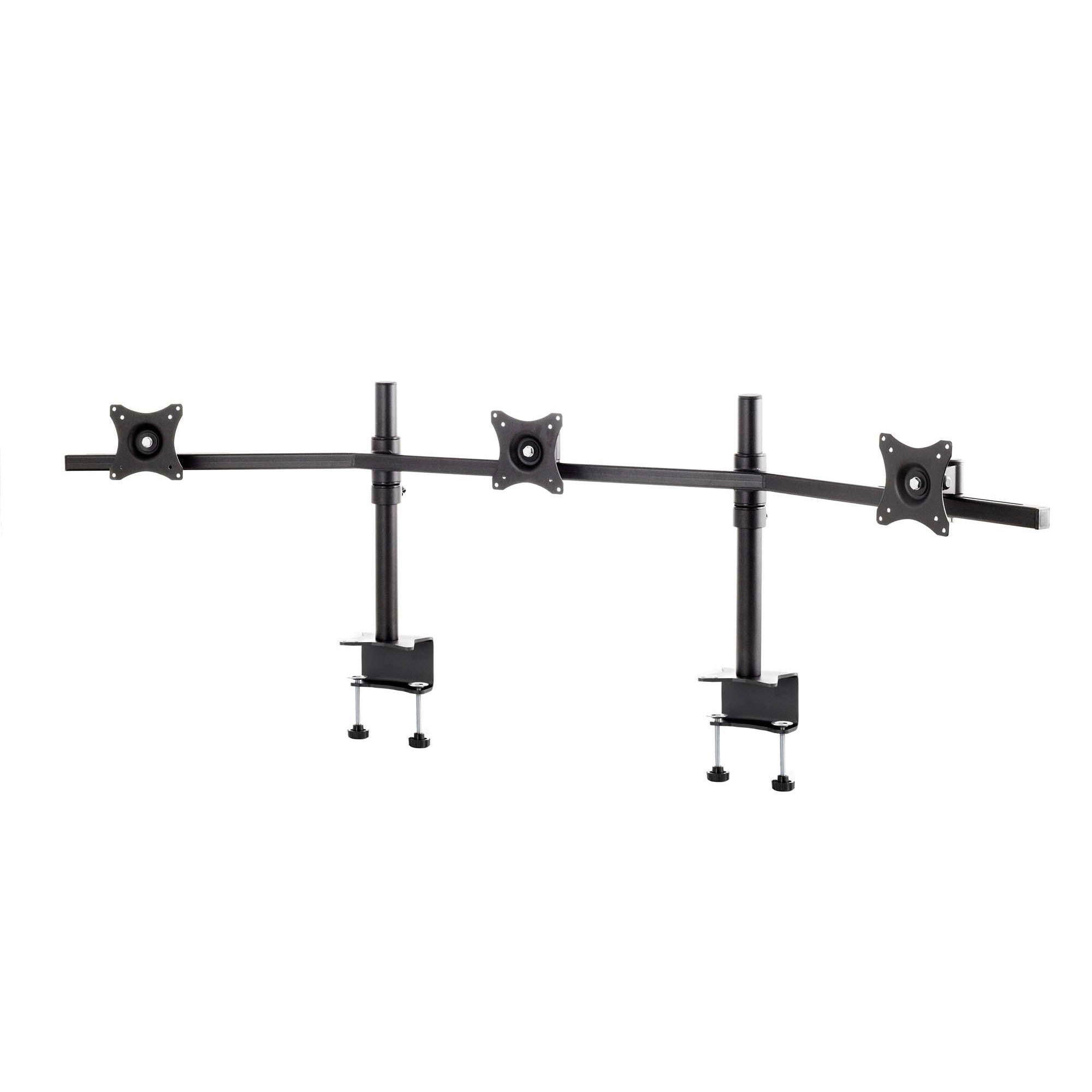

Edbak SV11 Desktop Mount for Three 19-27″ Screens, curved

Product code: SV11

The SV11 curved desk mount for three 19″-27″ screens is designed for users who perform work related to all-day screen operation. Screen tilting adjustment by -50°/+50° and 90° right-left screen rotation allow you to position the screens to suit the user’s individual needs and ensure excellent comfort during office work. Two types of desk fastenings of the mount are suitable for any installation, increasing its functionality. SV11 is a perfect choice for those who value ergonomics when working with a computer and spending many hours at the desk, including the industry, transport and monitoring centres.

SEND AN ENQUIRY

Description

  • Height adjustment of monitors

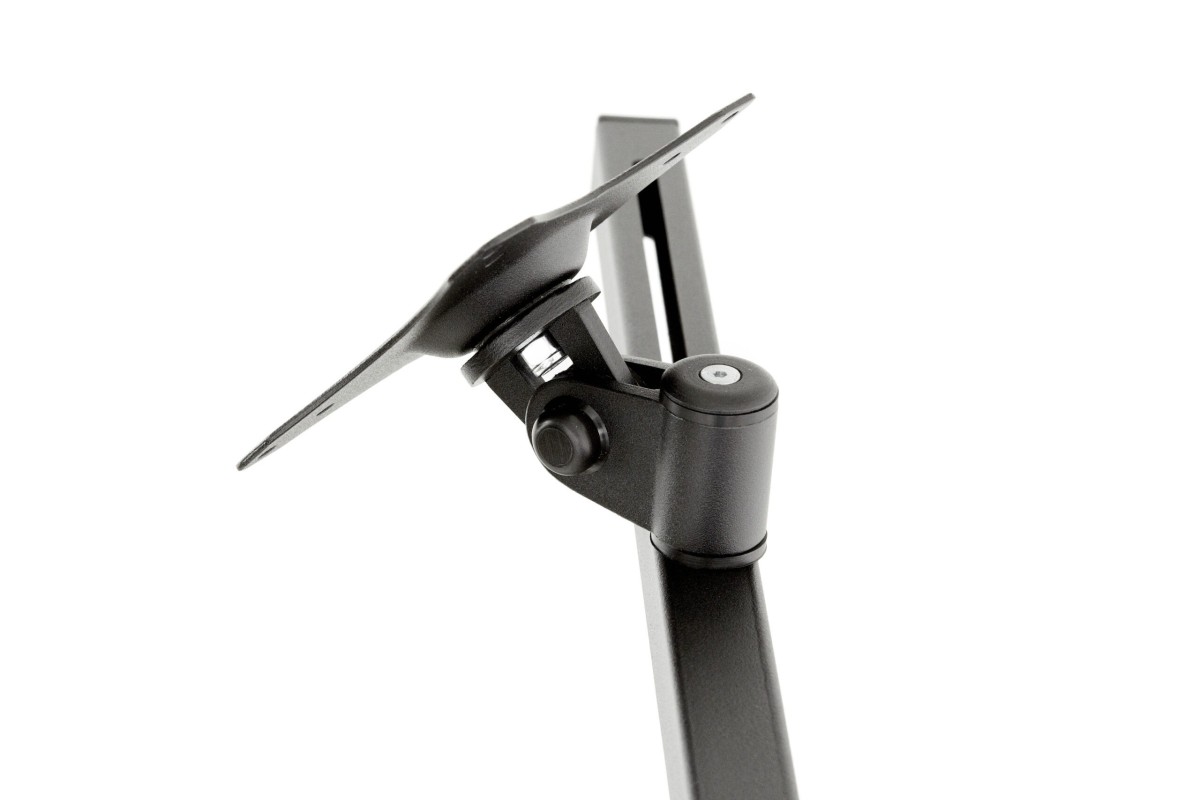

  • Screen tilting adjustment by -50° to +50°
  • 90° right-left screen position adjustment
  • 2 types of desk fastenings included

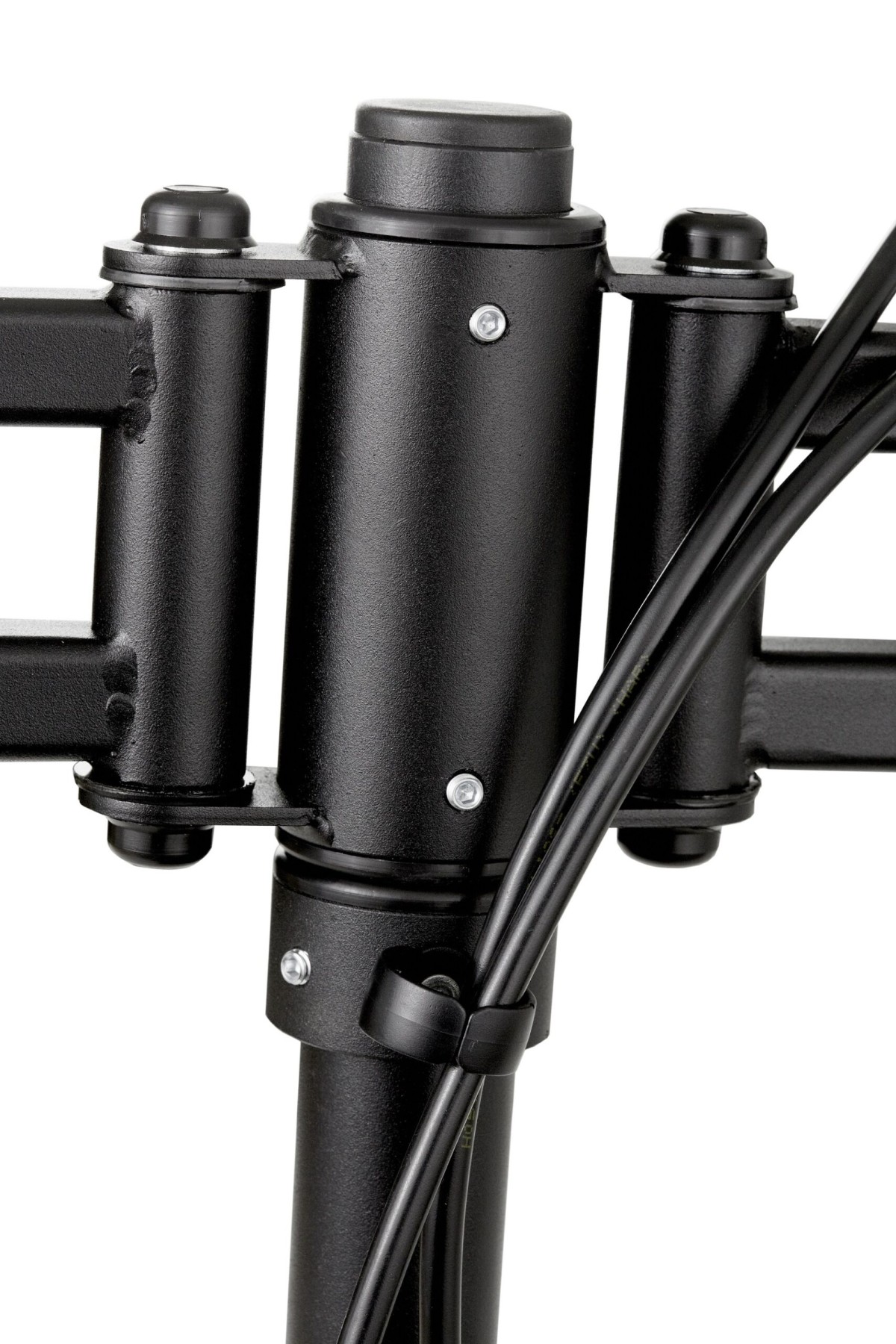

  • Cable management system
  • Modern design
  • Simple and quick installation

Additional information

Product Specifications

Index:SV11
Color:Black
Warranty:Limited 5-year’s
Number of screens:3
Minimum screen size:19″
Maximum screen size:27″
Forward tilting:-50°
Forward tilting:+50°
Arm rotation:360°
Left-right rotation:90°
Maximum load:30 kg
VESA Mounting Compatibility:75×75 up to 100×100


Technical Specifications

Product dimensions:W: 1537 mm D: 275 mm H: 500 mm

(W: 60,51″ D: 10,83″ H: 19,69″)

Product weight:8 kg (18 lb)
Max. distance from mounting surface:400 mm (15,75″)
Min. distance from mounting surface:100 mm (3,94″)
Max. mounting pattern:100 mm x 100 mm
Min. mounting pattern:75 mm x 75 mm


Logistics Data

SAP Index:WUBI-SV11c-B
EAN Code:5908252960620
HS Code (Harmonized System):732690
HTS Code (Harmonized Tariff Schedule):7326909890
Country of origin:Poland
