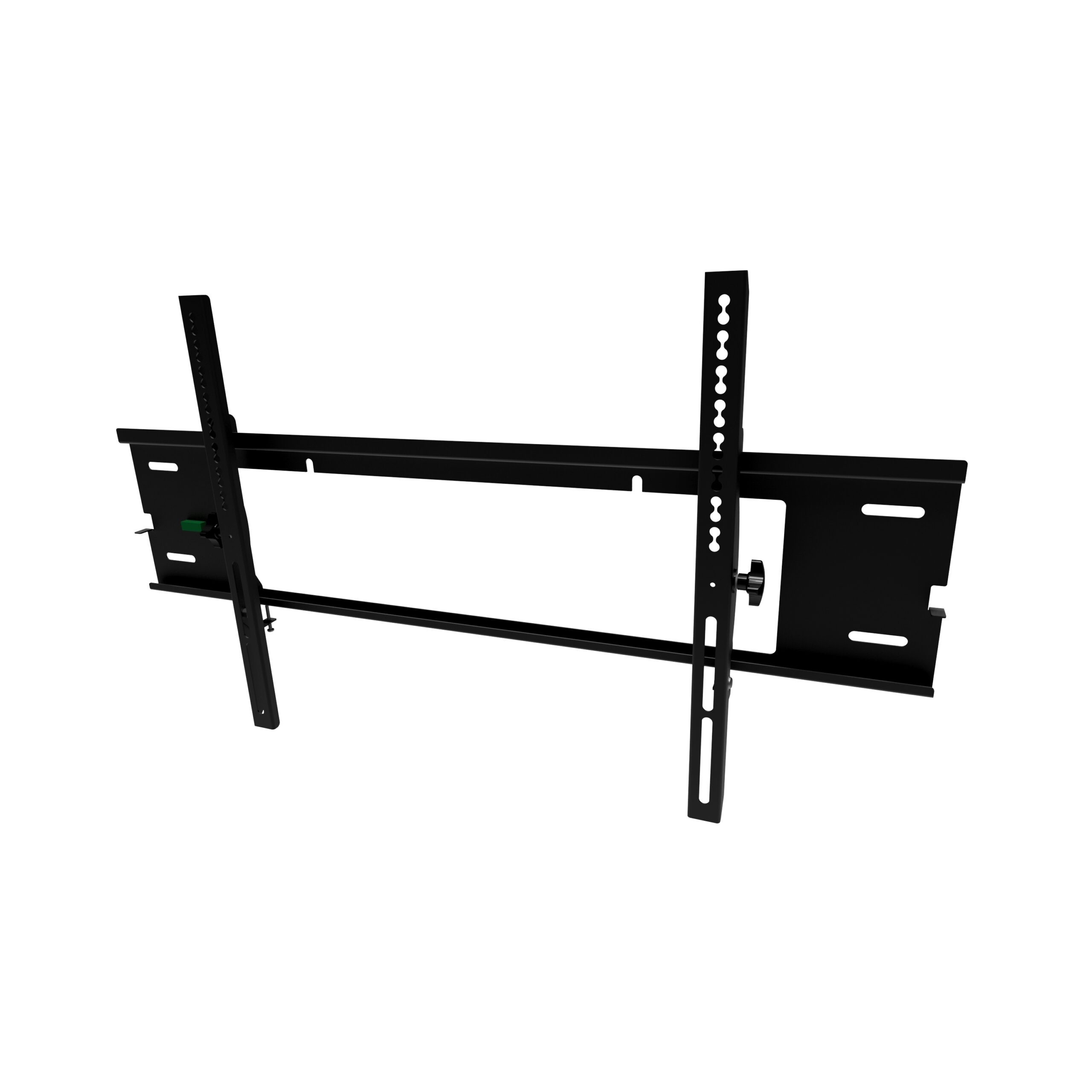

Edbak EWB250 Universal Tilt Wall Mount for 40″-65” Screens

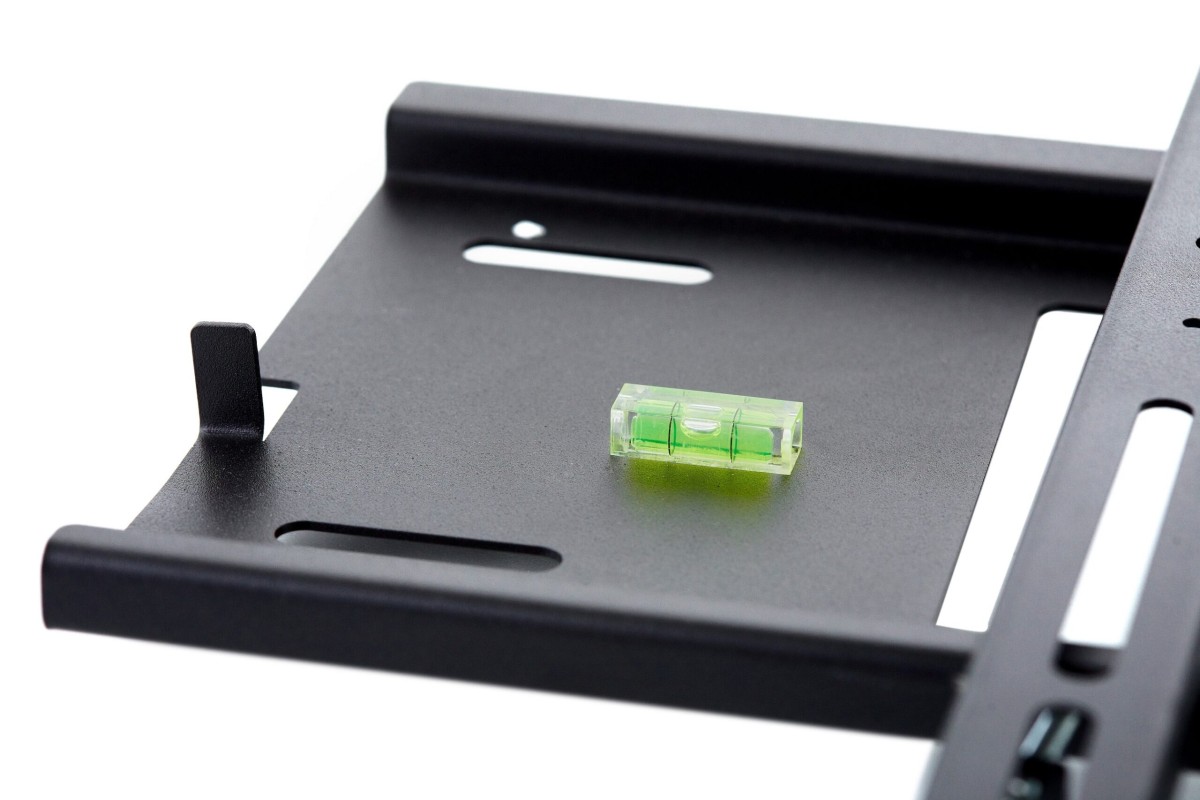

Product code:Designed for practical wall mounting of the screen. With its slim design, EWB250 ensures a very short distance between the screen and the wall, only 26 mm. The ease of mount installation and the built-in spirit level make it extremely simple to install the mount on various types of wall surfaces. With the protection against unauthorised screen removal, EWB250 can be used in public areas or waiting rooms. Robust finish, modern and functional design will meet demanding users’ expectations.
SEND AN ENQUIRYDescription
- Screen protection against falling
- Robust design to ensure load capacity up to 40 kg
- Screen mounting screws included

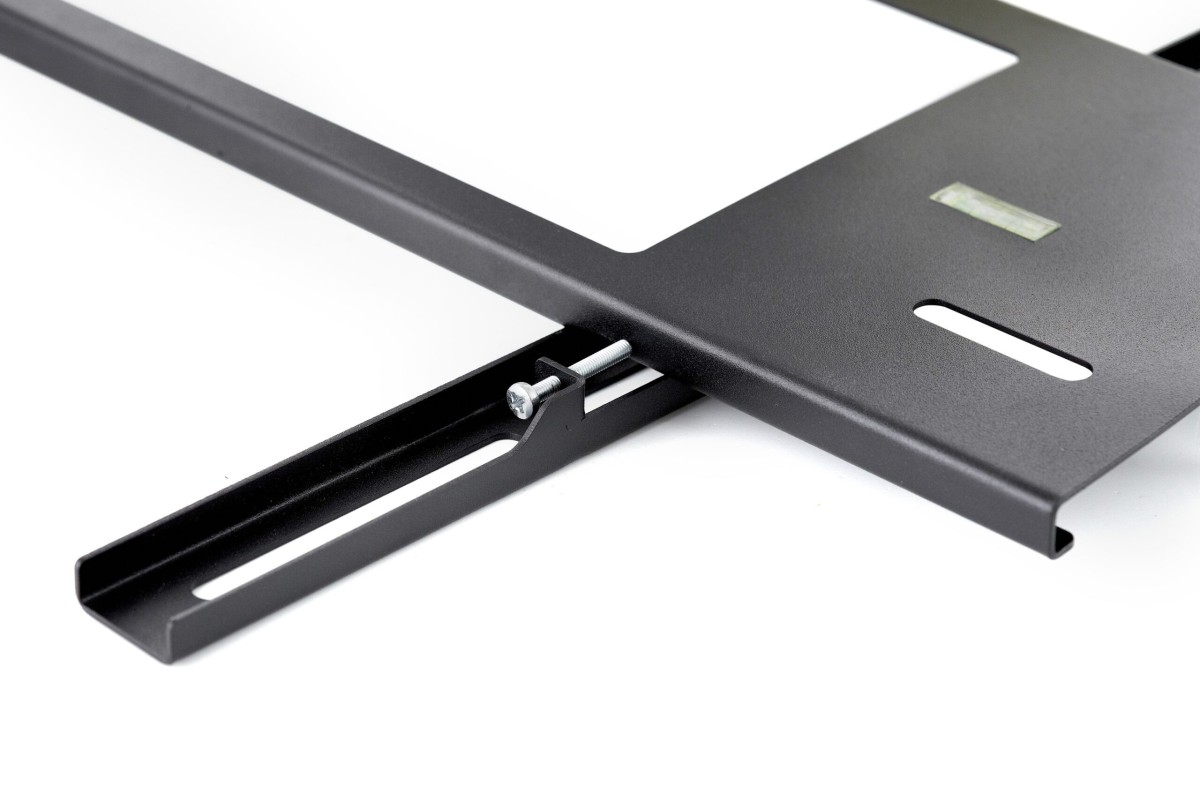

- Lateral adjustment of the screen once mounted on the wall plate
- Suitable for installation on concrete, plaster and wooden walls
- Minimalist design and functionality
- Simple and quick installation
- Modern design
Additional information
Product Specifications
| Index: | EWB250 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 40″ |
| Maximum screen size: | 65″ |
| Maximum load: | 40 kg |
| VESA Mounting Compatibility: | 100×100 up to 800×400 |
Technical Specifications
| Product dimensions: | W: 850 mm, D: 49 mm, H: 470 mm (W: 33,46″ x D: 1,92″ x H: 18,05″) |
| Product weight: | 2,2 kg (4,85 lb) |
| Max. distance from mounting surface: | 49 mm (1,92″) |
| Min. distance from mounting surface: | 49 mm (1,92″) |
| Max. mounting pattern: | 800 mm x 428 mm |
| Min. mounting pattern: | 30 mm x 65 mm |
Logistics Data
| Index: | WUSC-EWB200c-B |
| EAN Code: | 5908252963546 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
