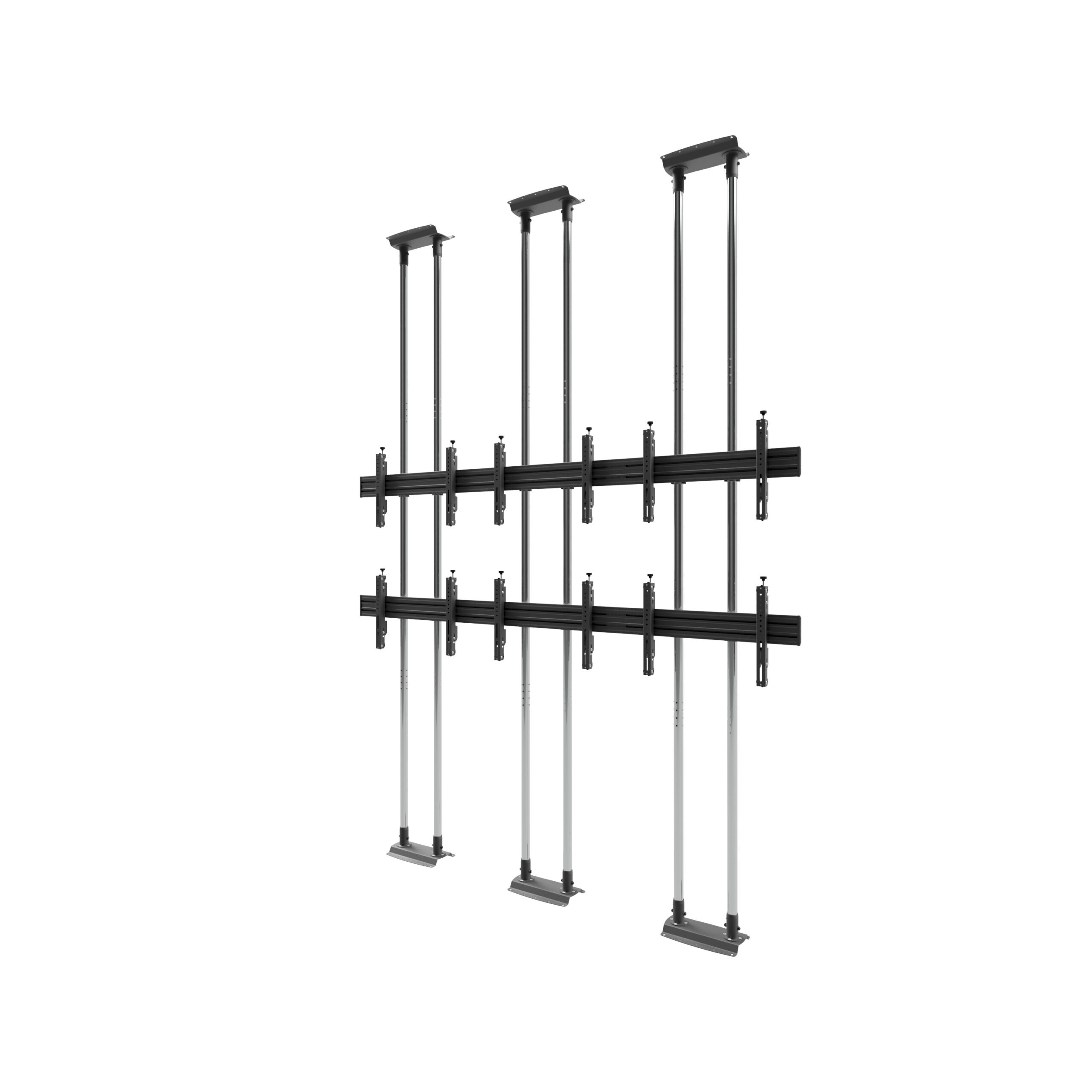

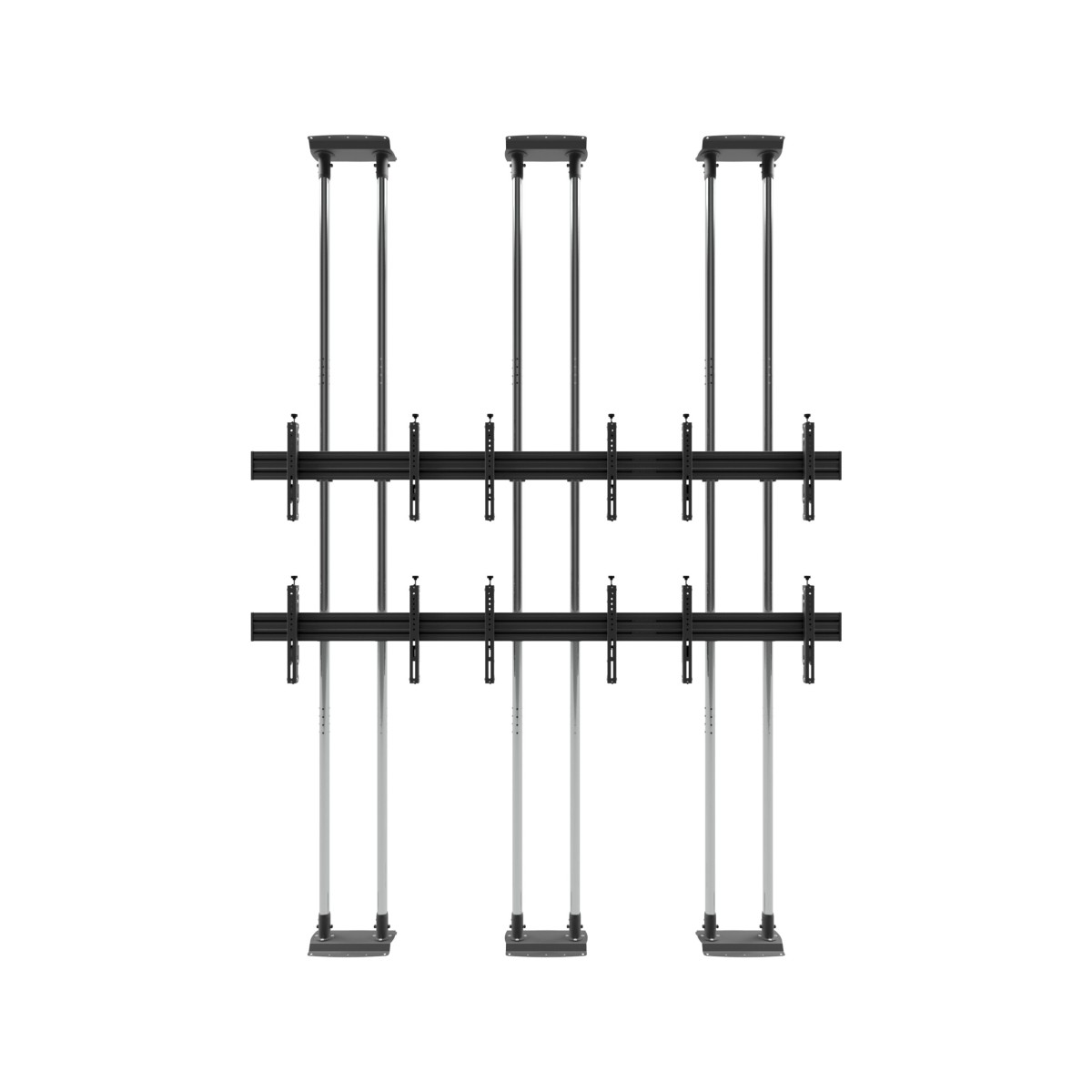

Edbak VWFCA3257-L Video Wall Bolt Down Floor-to-Ceiling Mount, modular 3×2, for 50″-57″ Screens, landscape

Product code: VWFCA3257-L

With its modular design, VWFCA3257-L allows the installation of six 50″-57″ screens in 3×2 landscape orientation. The design is characterised by durability, high quality and aesthetics. The video wall attached to the ceiling and floor allows a safe solution to be built in accordance with the expectations of the most demanding customers. VWFCA3257-L is used in places where there is a need for dynamic and effective communication with the audience, while ensuring the maximum safety.

SEND AN ENQUIRY

Description

  • High-end quality and aesthetics
  • Durable design
  • Screen load-carrying beams made of aluminium
  • Up to 6 x 50″-57″ screens
  • Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
  • Screen protected against being slid out accidentally
  • Integrated cable management system for smart installation
  • Screws protecting against accidental or unauthorised removal of the screen

Additional information

Product Specifications

Index:VWFCA3257-L
Color:Black
Warranty:Limited 5-year’s
Number of screens:6
Minimum screen size:50″
Maximum screen size:57″
Maximum load:310 kg
VESA Mounting Compatibility:100×100 up to 600×400


Technical Specifications

    Product dimensions:W: 264 mm D: 3320 mm H: 4000 mm

    (W: 10,39″ D: 130,71″ H: 157,48″)

    Product weight:130 kg (287 lb)
    Max. distance from mounting surface:3700 mm (145,67″)
    Min. distance from mounting surface:300 mm (11,81″)
    Max. mounting pattern:600 mm x 410,5 mm
    Min. mounting pattern:55 mm x 50 mm


    Logistics Data

    SAP Index:WUSU-VWFCA3257-L
    EAN Code:5902841112759
    HS Code (Harmonized System):732690
    HTS Code (Harmonized Tariff Schedule):7326909890
    Country of origin:Poland
