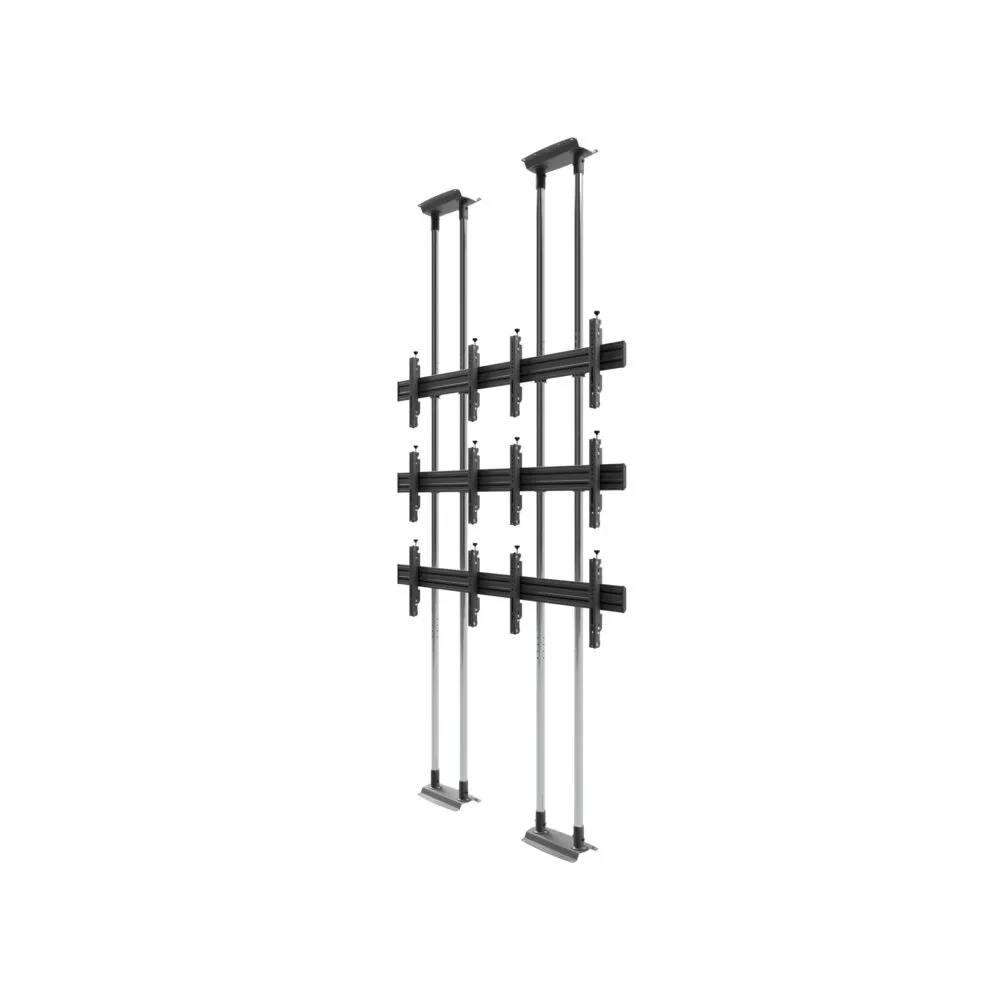

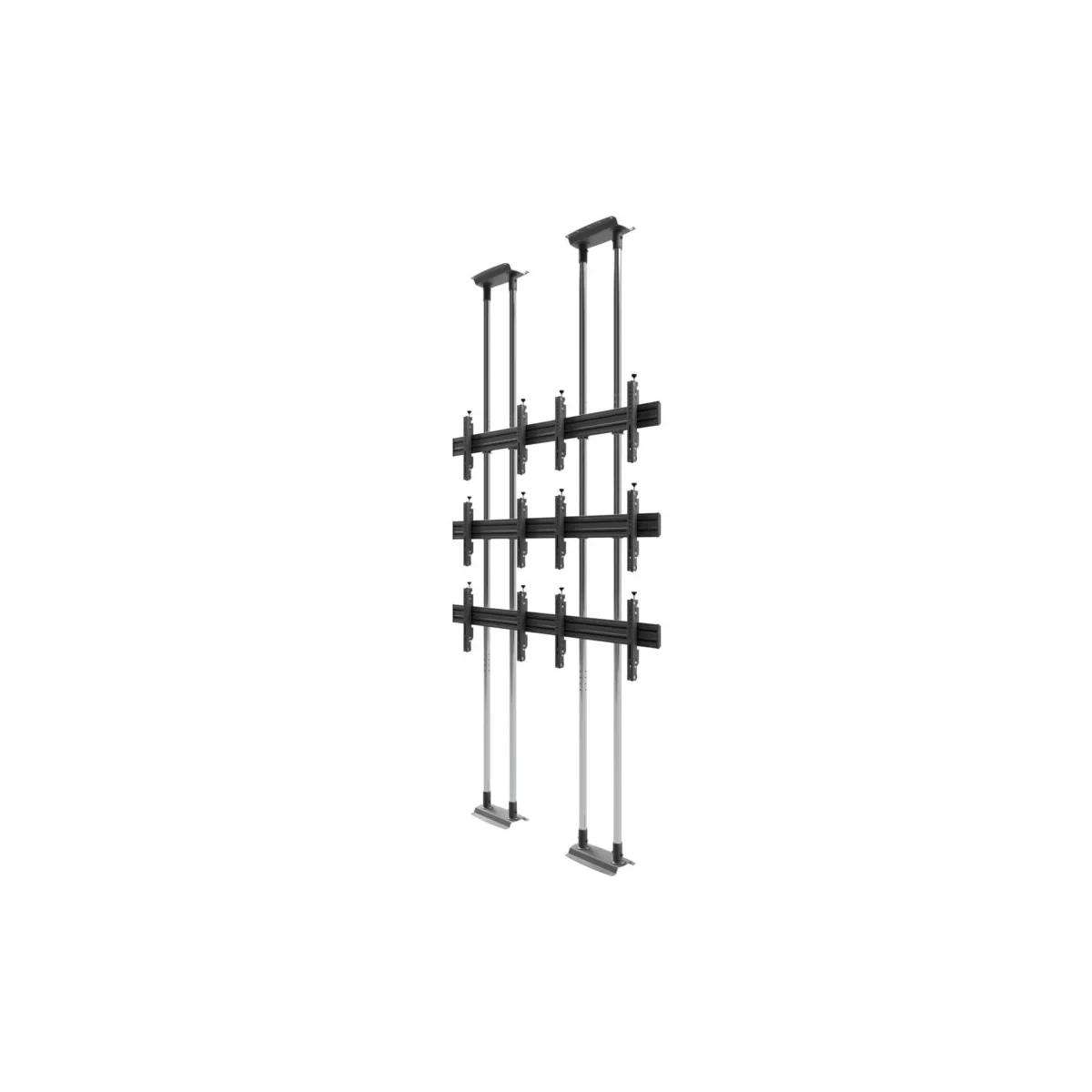

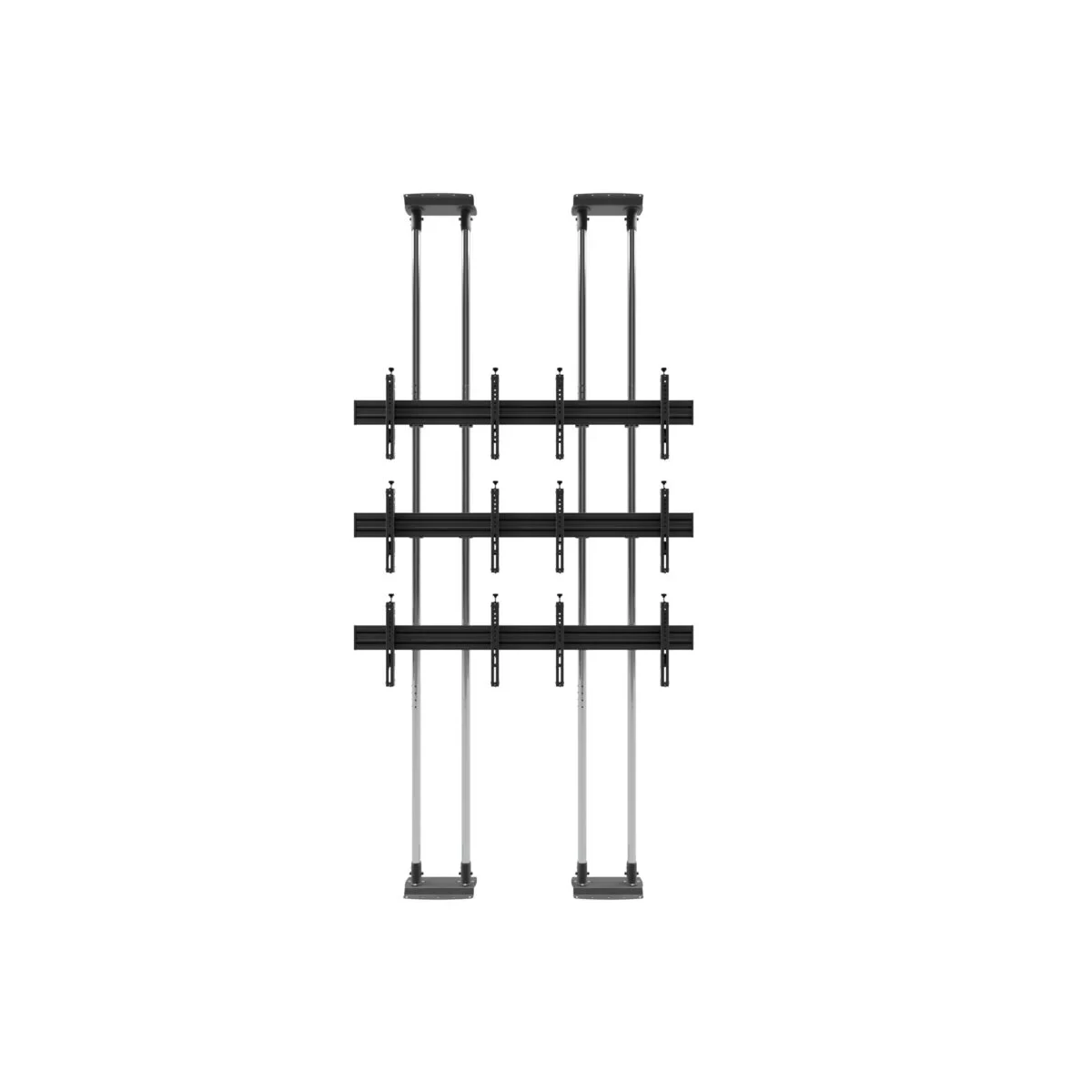

Edbak VWFCA2347-L Video Wall Bolt Down Floor-to-Ceiling Mount,, modular 2×3, for 42″-49″ Screens, landscape

Product code: VWFCA2347-L

With its modular design, VWFCA2347-L allows the installation of six 42″-49″ screens in 2×3 landscape orientation. The design is characterised by durability, high quality and aesthetics.

SEND AN ENQUIRY

Description

  • High-end quality and aesthetics
  • Durable design
  • Screen load-carrying beams made of aluminium
  • Up to 6 x 42″-49″ screens
  • Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
  • Screen protected against being slid out accidentally
  • Integrated cable management system for smart installation
  • Screws protecting against accidental or unauthorised removal of the screen

Additional information

Product Specifications

Index:VWFCA2347-L
Color:Black
Warranty:Limited 5-year’s
Number of screens:6
Minimum screen size:42″
Maximum screen size:49″
Maximum load:220 kg
VESA Mounting Compatibility:100×100 up to 600×400


Technical Specifications

Product dimensions:W: 264 mm D: 1960 mm H: 4000 mm

(W: 10,39″ D: 77,17″ H: 157,48″)

Product weight:100 kg (220 lb)
Max. distance from mounting surface:3700 mm (145,67″)
Min. distance from mounting surface:300 mm (11,81″)
Max. mounting pattern:600 mm x 410,5 mm
Min. mounting pattern:55 mm x 50 mm

Logistics Data

SAP Index:WUSU-VWFCA2347-L
EAN Code:5902841112728
HS Code (Harmonized System):732690
HTS Code (Harmonized Tariff Schedule):7326909890
Country of origin:Poland
