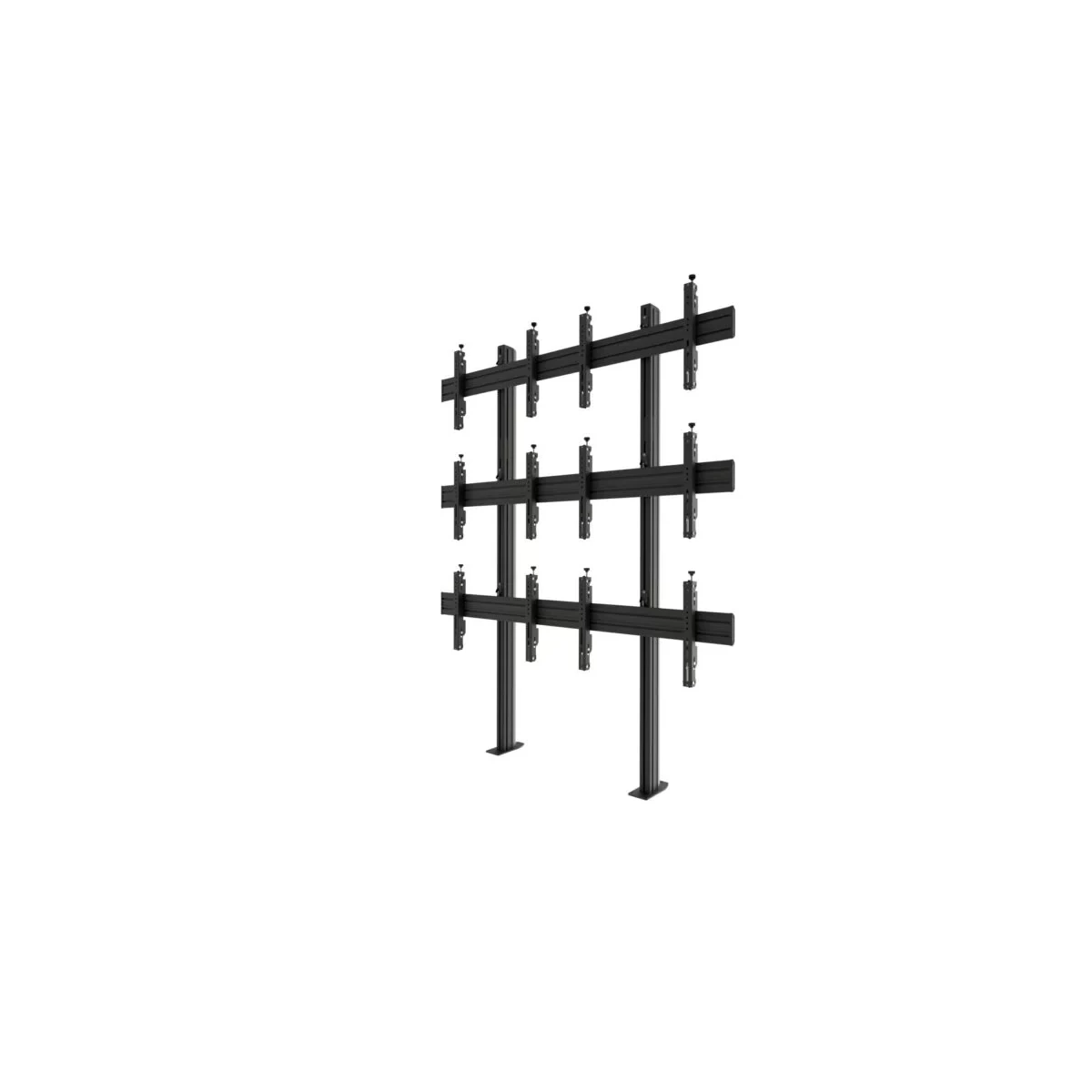

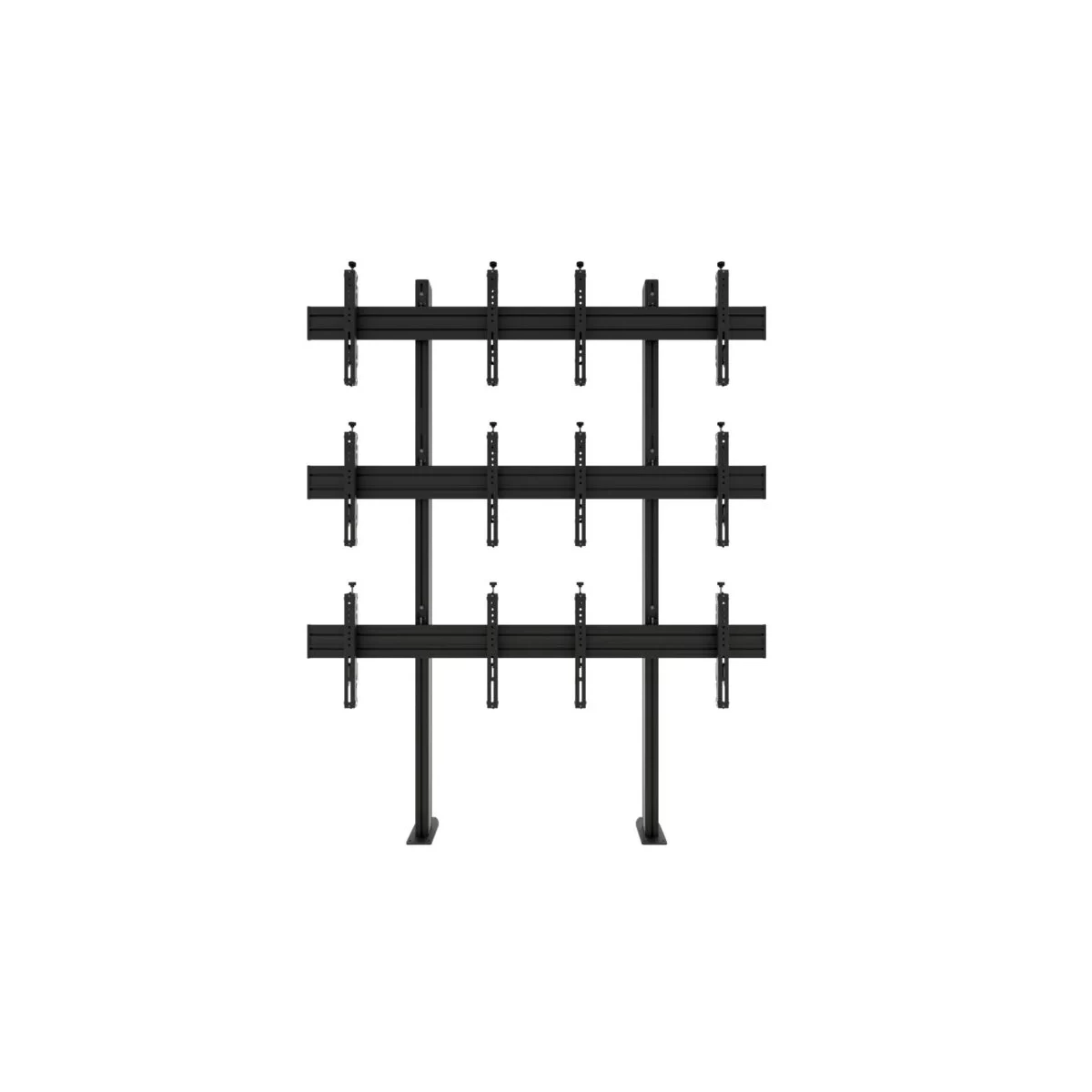

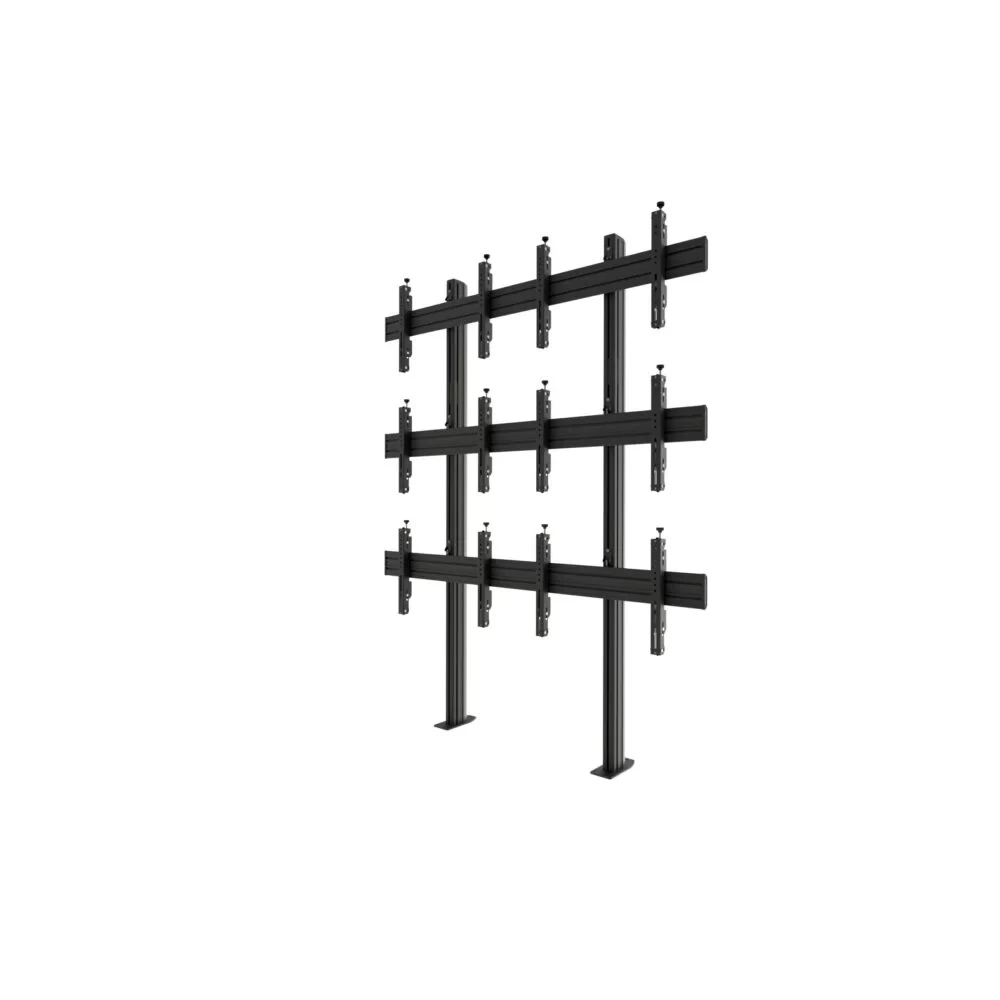

Edbak VWSA2347-L Video Wall Bolt Down Stand, modular 2×3, for 42″-49″ Screens, Landscape
Product code:With its modular design, VWSA2347-L allows the installation of four 42″-47″ screens in 2×3 landscape orientation. The design is characterised by durability, high quality and aesthetics.
SEND AN ENQUIRYDescription
- High-end quality and aesthetics
- Durable design
- Screen load-carrying beams made of aluminium
- Up to 6 x 42″-49″ screens
- Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
- Screen protected against being slid out accidentally
- Integrated cable management system for smart installation
- Screws protecting against accidental or unauthorised removal of the screen
Additional information
Product Specifications
| Index: | VWSA2347-L |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 4 |
| Minimum screen size: | 42″ |
| Maximum screen size: | 49″ |
| Maximum load: | 205 kg |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 1960 mm D: 289 mm H: 2429 mm
(W: 77,17″ D: 11,38″ H: 95,63″) |
| Product weight: | 80 kg (176 lb) |
| Max. distance from mounting surface: | 2250 mm (88,58″) |
| Min. distance from mounting surface: | 330 mm (12,99″) |
| Max. mounting pattern: | 600 mm x 410 mm |
| Min. mounting pattern: | 50 mm x 50 mm |
Logistics Data
| SAP Index: | WSTD-VWSA2347-L |
| EAN Code: | 5902841112605 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
