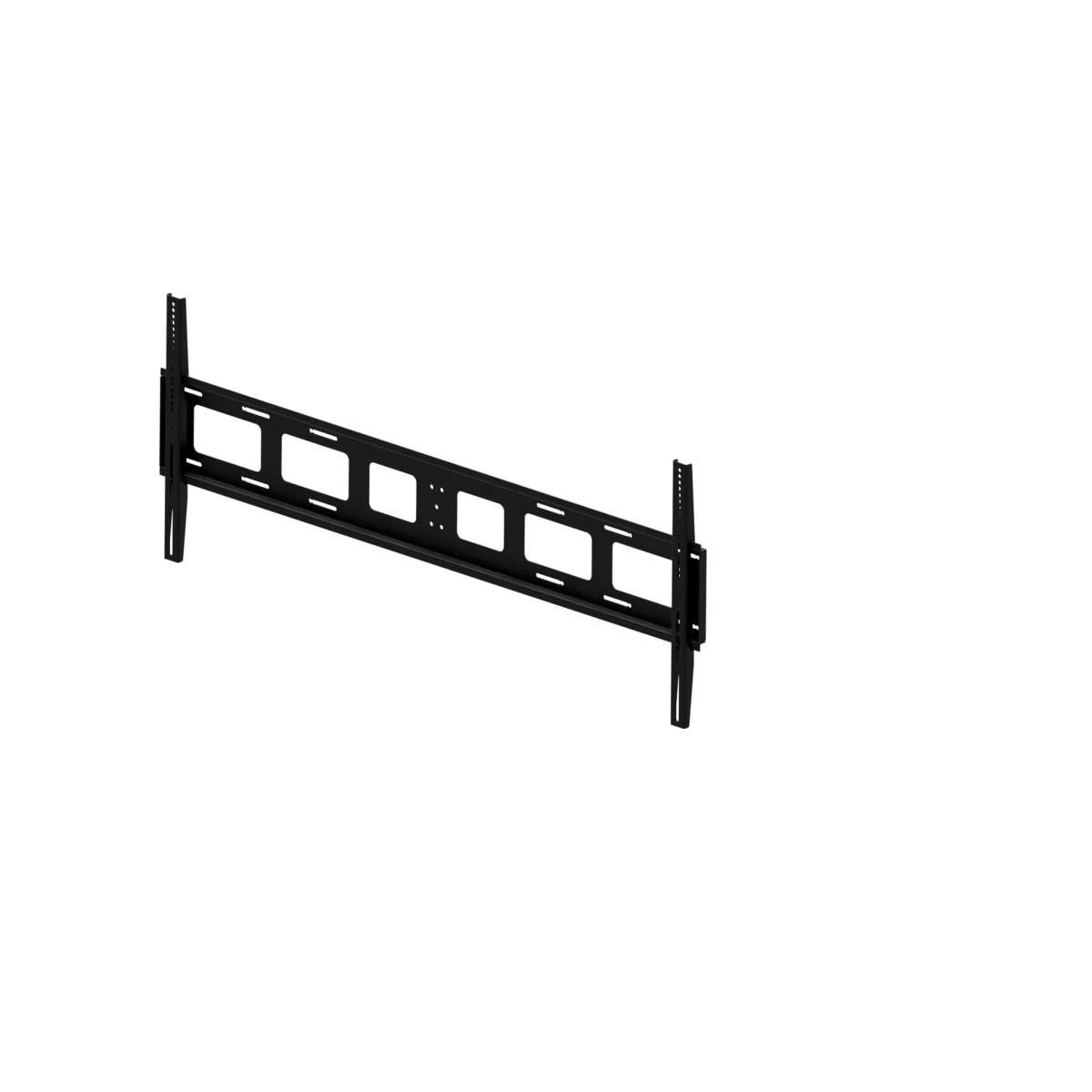

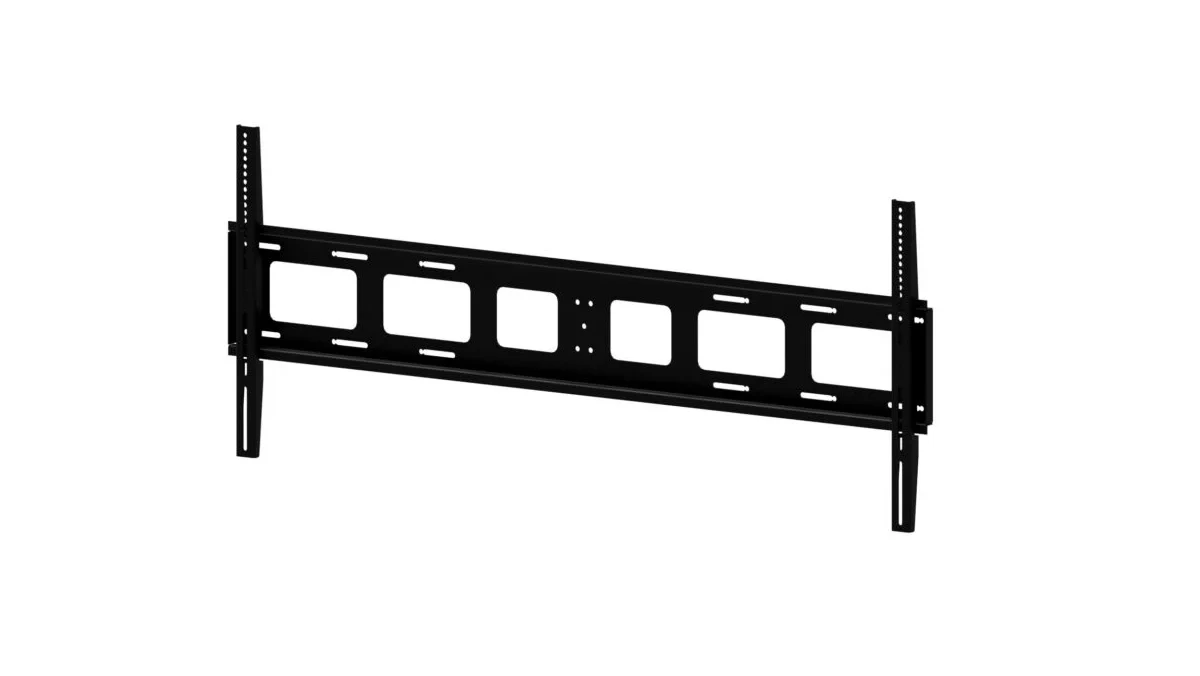

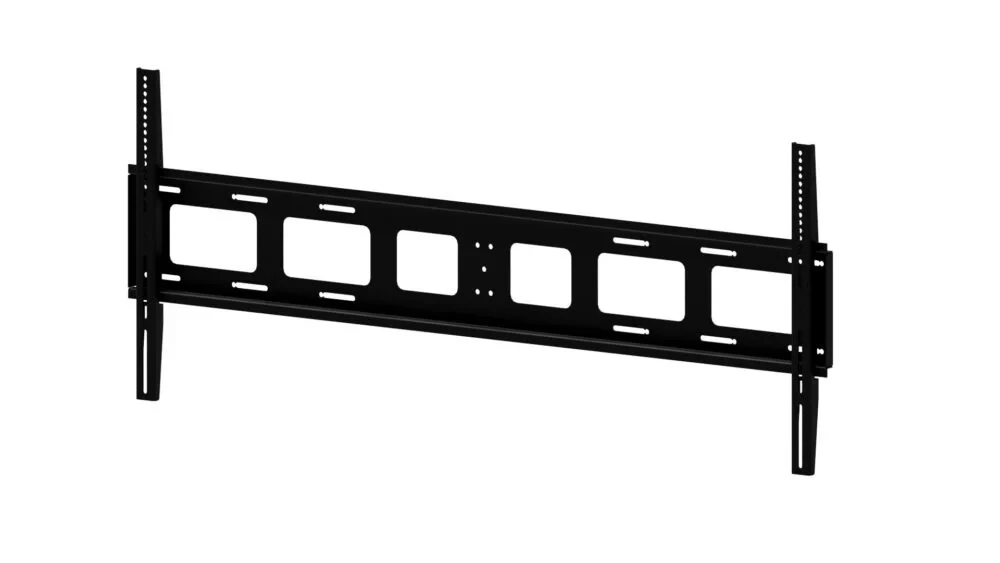

Edbak XWM110 Flat Wall Mount for LG 110

Product code: XWM110

It is designed for practical installation of large 110″-136″ screens.
XWM110 is a universal fixed wall mount for larger and heavier screens, providing a maximum lifting capacity of up to 135 kg.
Its simple installation makes it very easy to use on all types of surfaces.
The XWM110 is equipped with locking screws that prevent, among other things unauthorized disassembly of the screen.
The distance from the wall, which is only 42 mm, ensures an aesthetically pleasing installation.
The XWM110 is perfect for large conference rooms, lobbies and waiting rooms.



  • Screen protection against drops
  • Robust design for a load capacity of up to 135 kg
  • Screen mounting screws included
  • Side adjustment of the screen after mounting on the wall plate
  • Can be installed on concrete, gypsum and wooden walls
  • Minimalist design and functionality
  • Simple and fast installation
  • Modern design

Additional information

Product Specifications

Warranty:Limited 5-years
Number of screens:1
Minimum screen size:110″
Maximum screen size:136″
Maximum load:135 kg
VESA Mounting Compatibility:100×100 to 1500×600

Technical Specifications

Product dimensions:W: 16000 mm D: 42 mm H: 640 mm (W:62.99″ D:1.65″ H:25.19″)
Product weight:10.8 kg (2 3.80 lb)
Max. distance from mounting surface:42 mm (1,65″)
Min. distance from mounting surface:42 mm (1,65″)
spacing of fixing screws of the device:
1500 mm x 600 mm
spacing of the device fixing screws:
100 mm x 100 mm

Logistics Data

EAN Code:5902841139831
HS Code (Harmonized System):732690
HTS Code (Harmonized Tariff Schedule):7326909890
Country of origin:Poland
