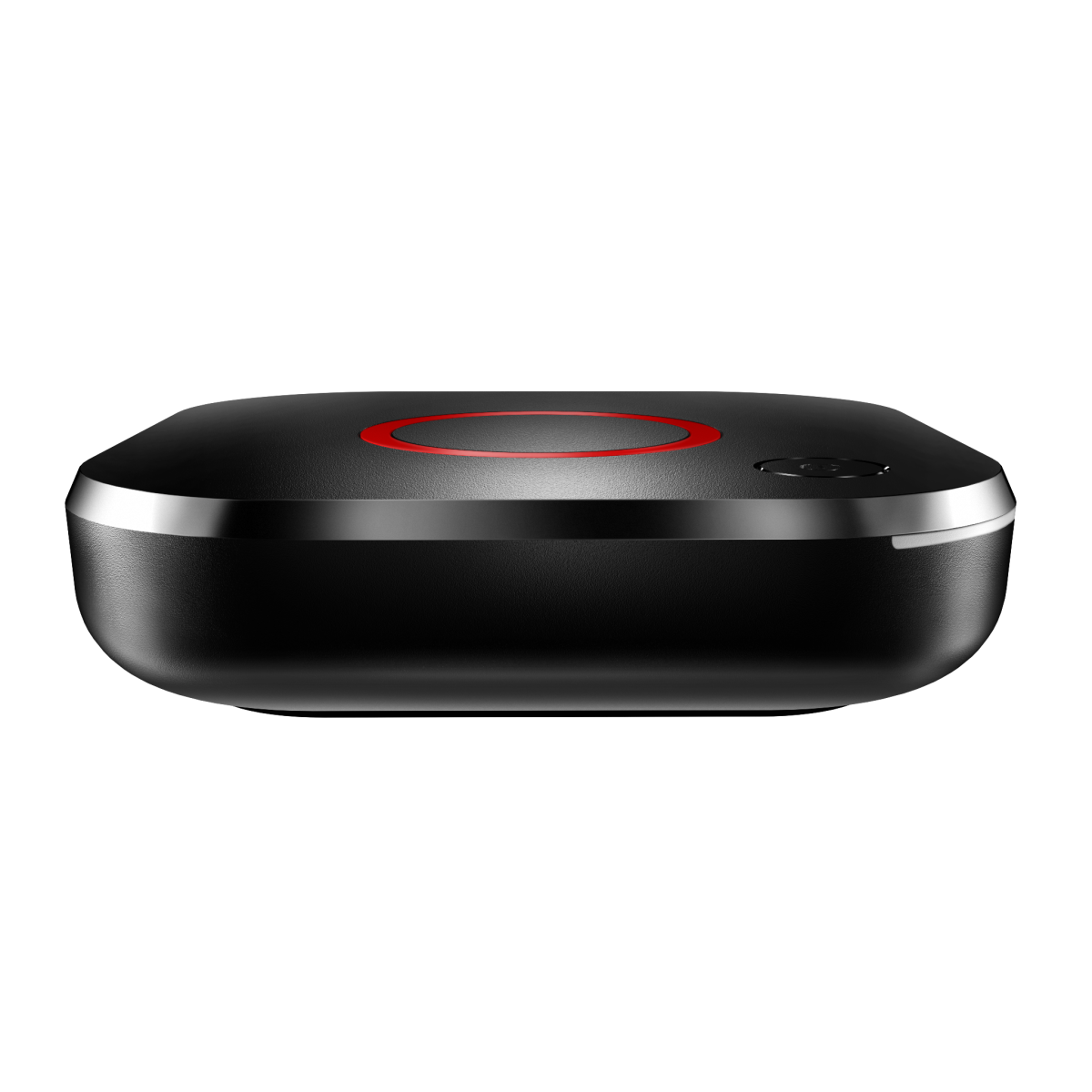

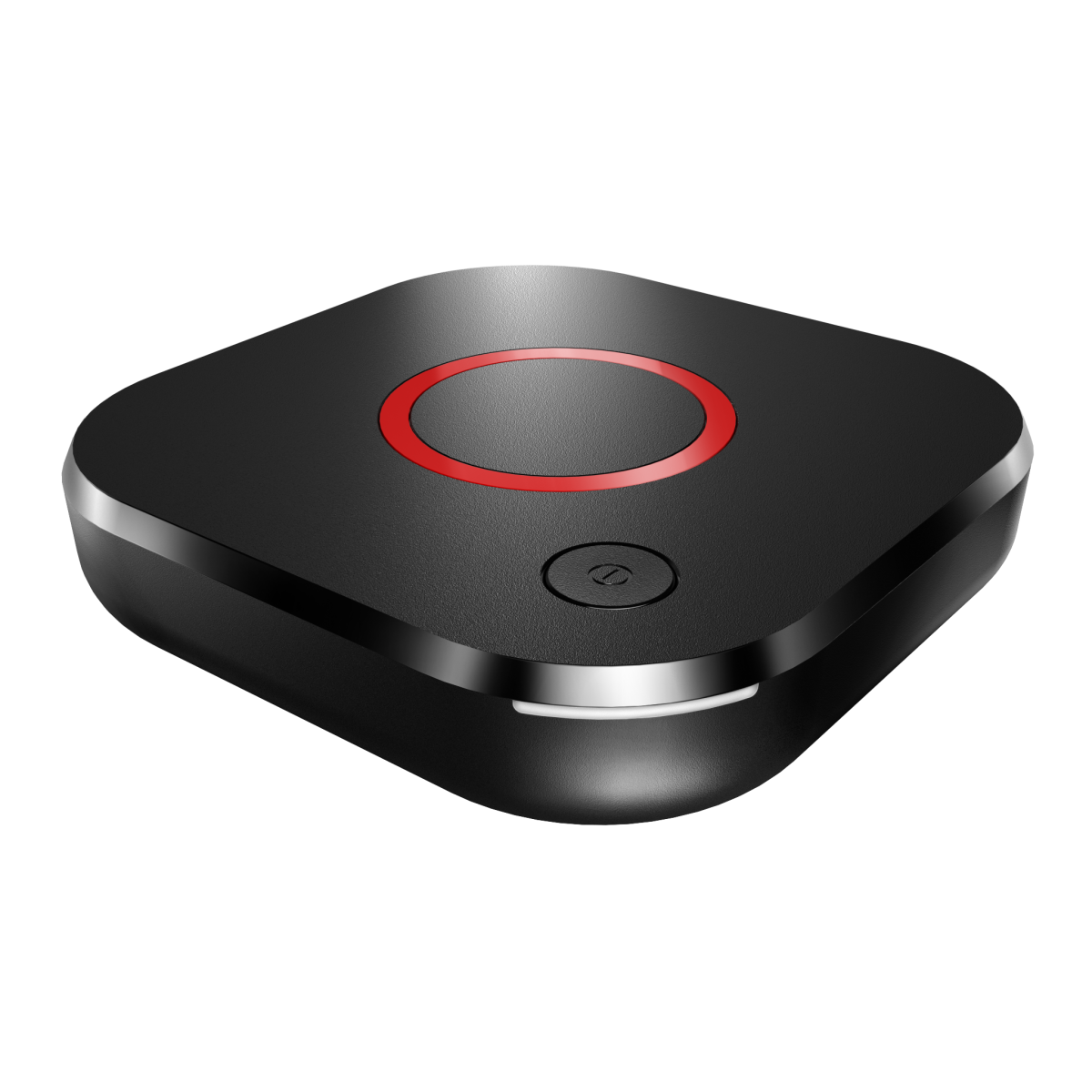

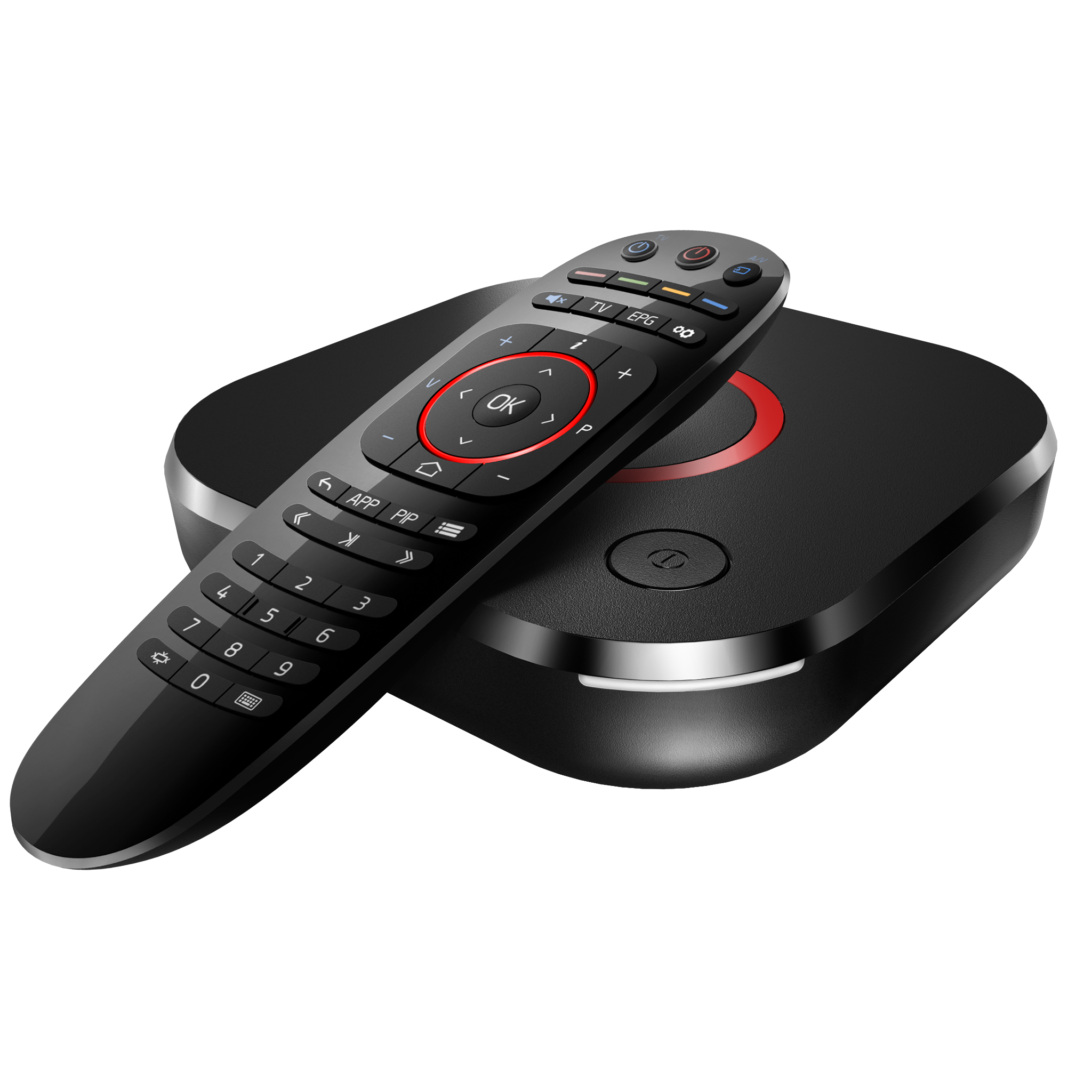

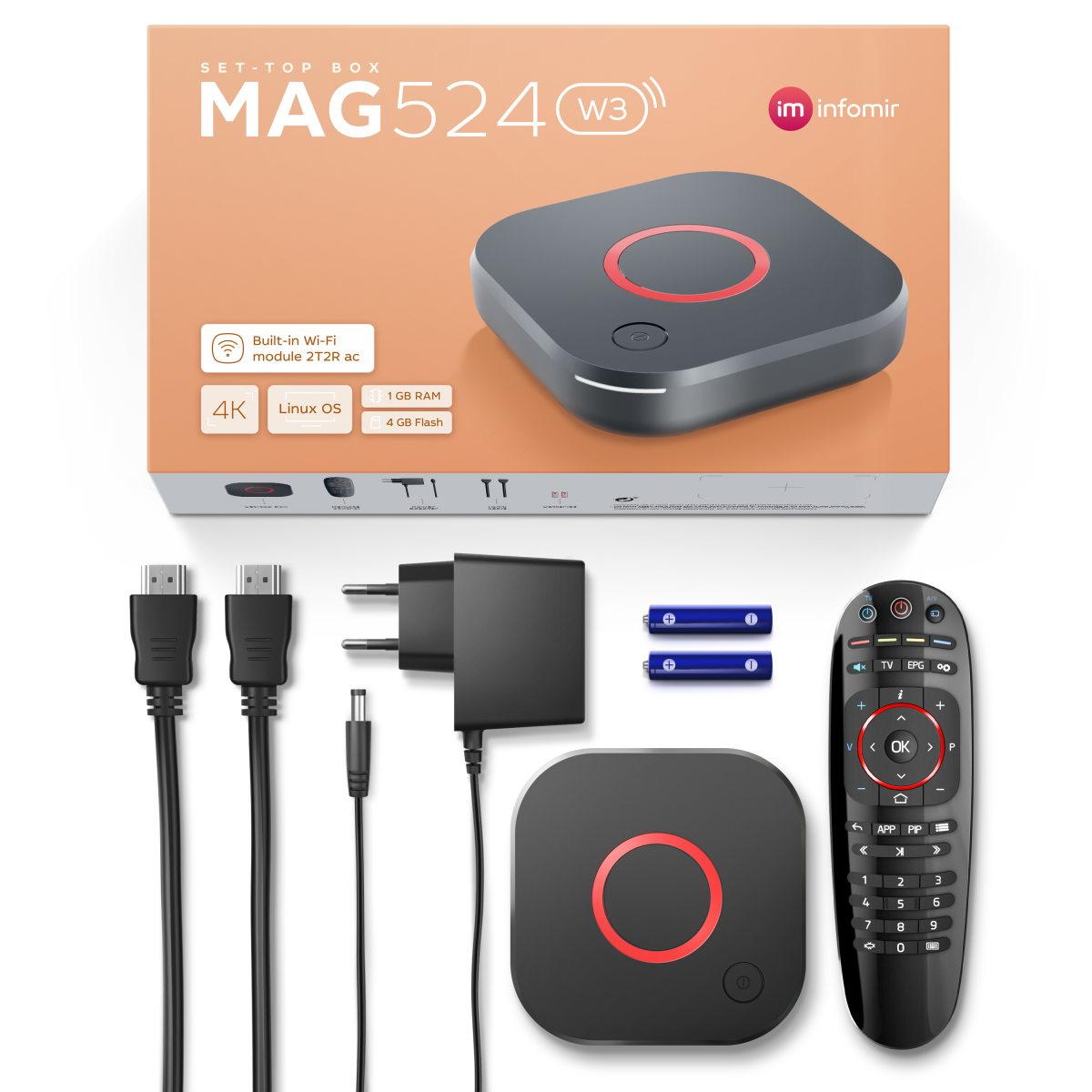

Infomir MAG524w3 Multimedia Player Set-Top Box
Product code:With MAG524w3, operators enable their audience to watch linear TV, video on demand, and other content. The set-top box plays files over the local network and from external media. Operators launch projects with high-quality services, fast technical support, and branded UI/UX.
SEND AN ENQUIRYDescription
Audio & video
| Video modes | PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K) |
| Audio codecs | MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™ |
| Video codecs | MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support |
| Video containers | TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVTT, closed captions |
| Playlist formats | M3U, M3U8, PLS, CUE |
Additional information
Hardware
| Chipset | Amlogic S905X2 |
| Performance | 18,400 DMIPS |
| Processor | Quad-core ARM Cortex-A53, 1,900 MHz |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Firmware and CAS/DRM
| Operating system | Linux 4.9 |
| CAS/DRM | Upon request |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancements with operator’s apps, customization, or full replacement are available. |

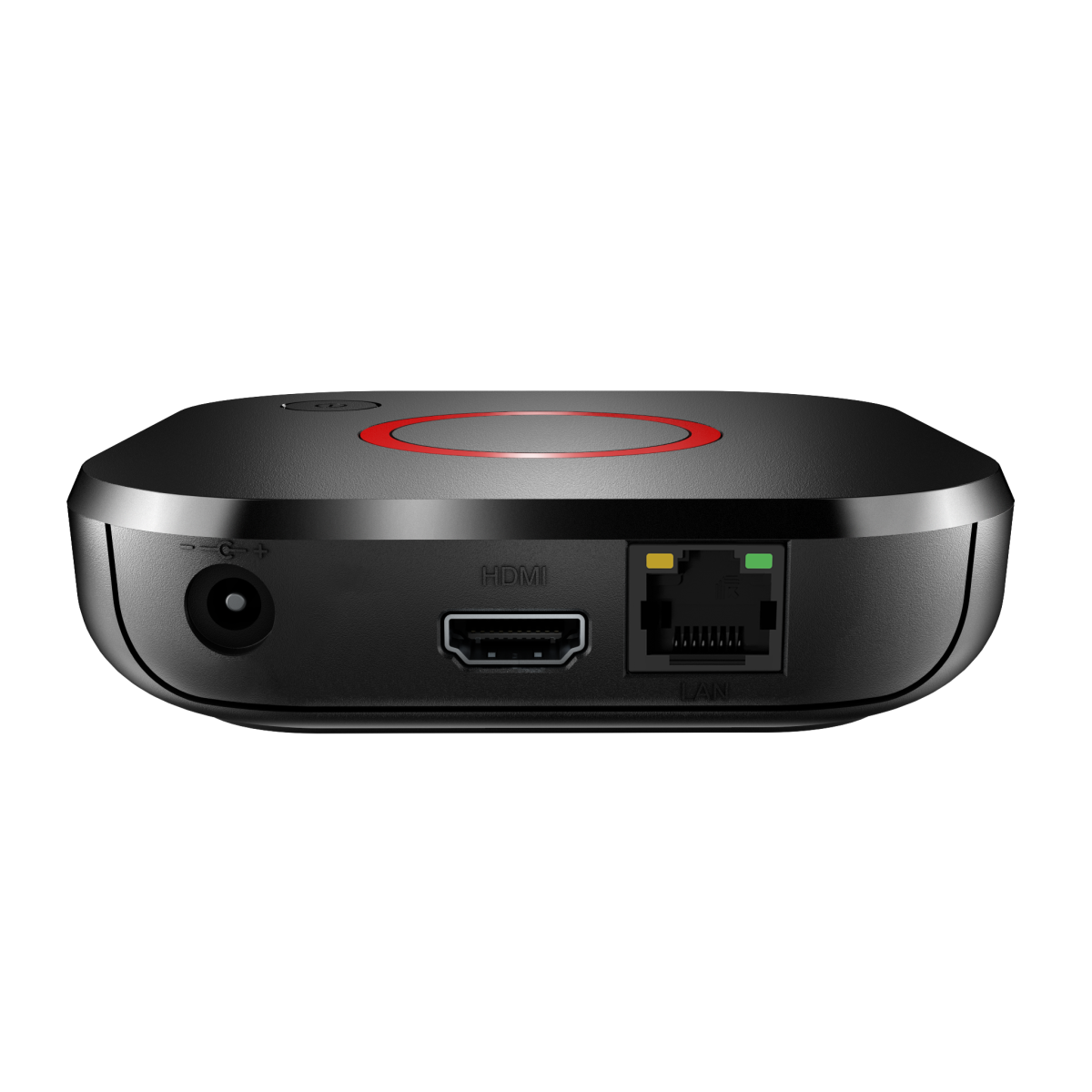

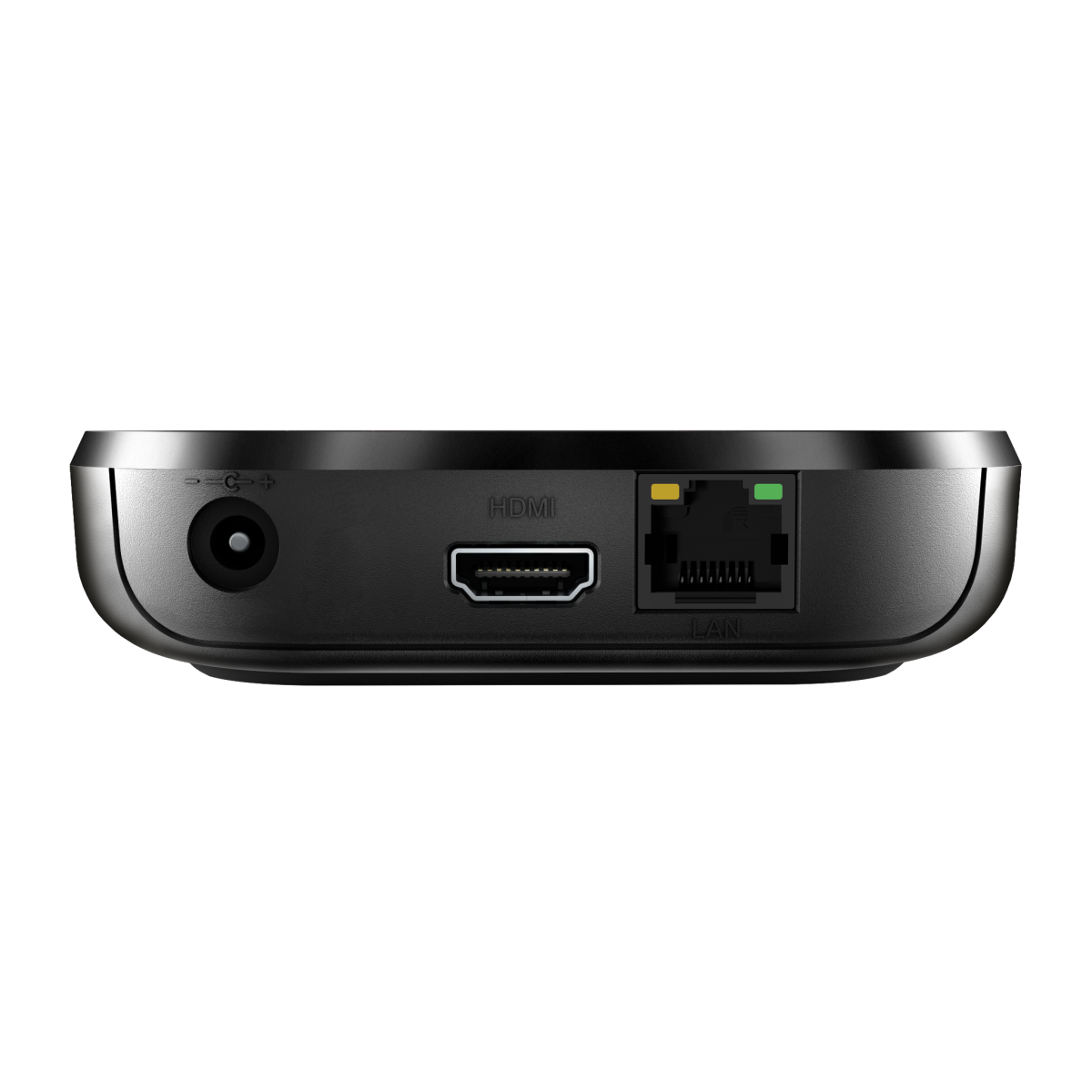

Interfaces
| Digital ports | HDMI 2.1 |
| Ethernet | 100 Mbps |

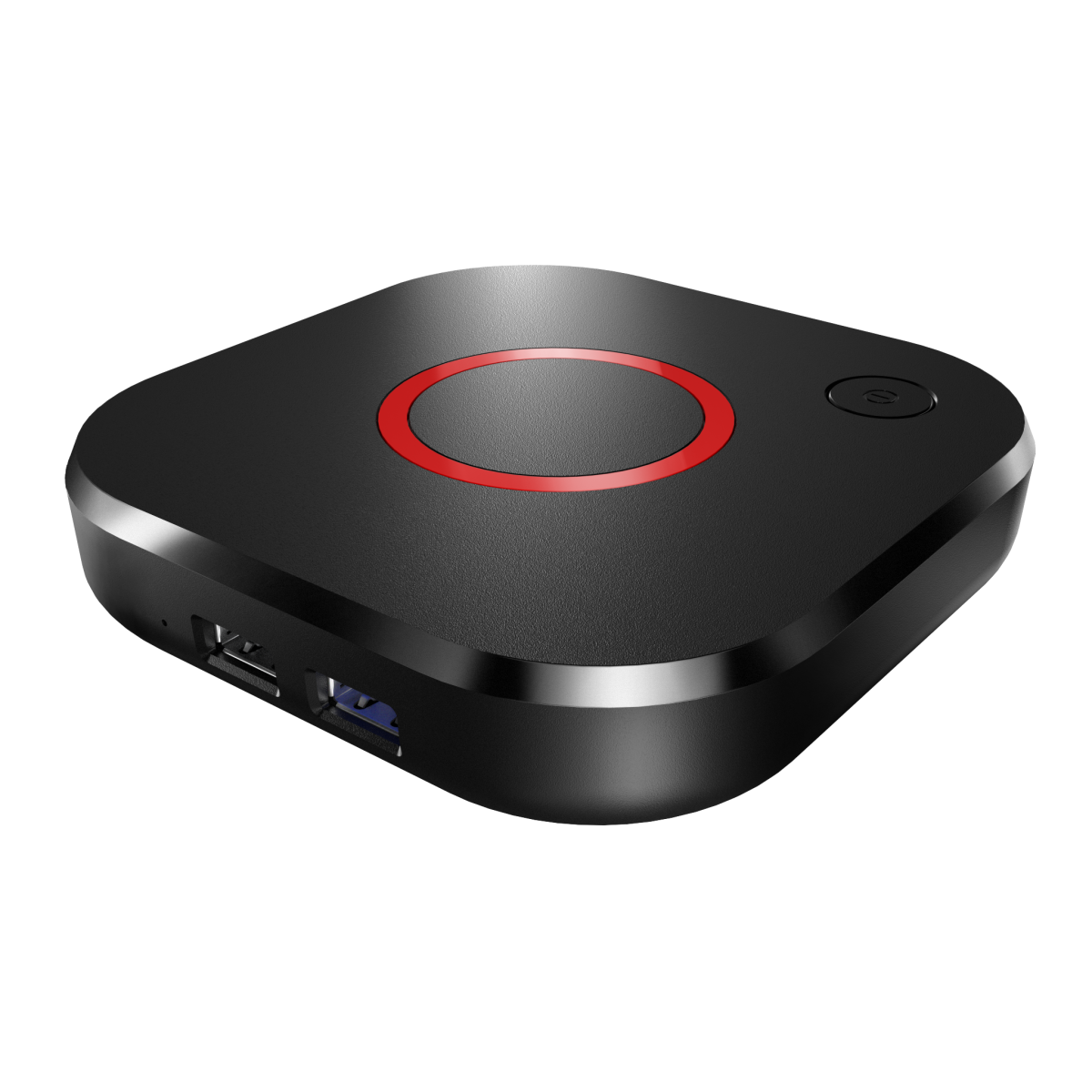

| USB | USB 2.0 × 1, USB 3.0 × 1 |
| Wi-Fi | Built-in 2T2R ac |
Power input
| Power adapter | DC 5 V, 2 A (DC 12 V, 1 А optional) |
Dimensions
| W/D/H | 115 × 115 × 28 mm |
| Weight | 170 g |
