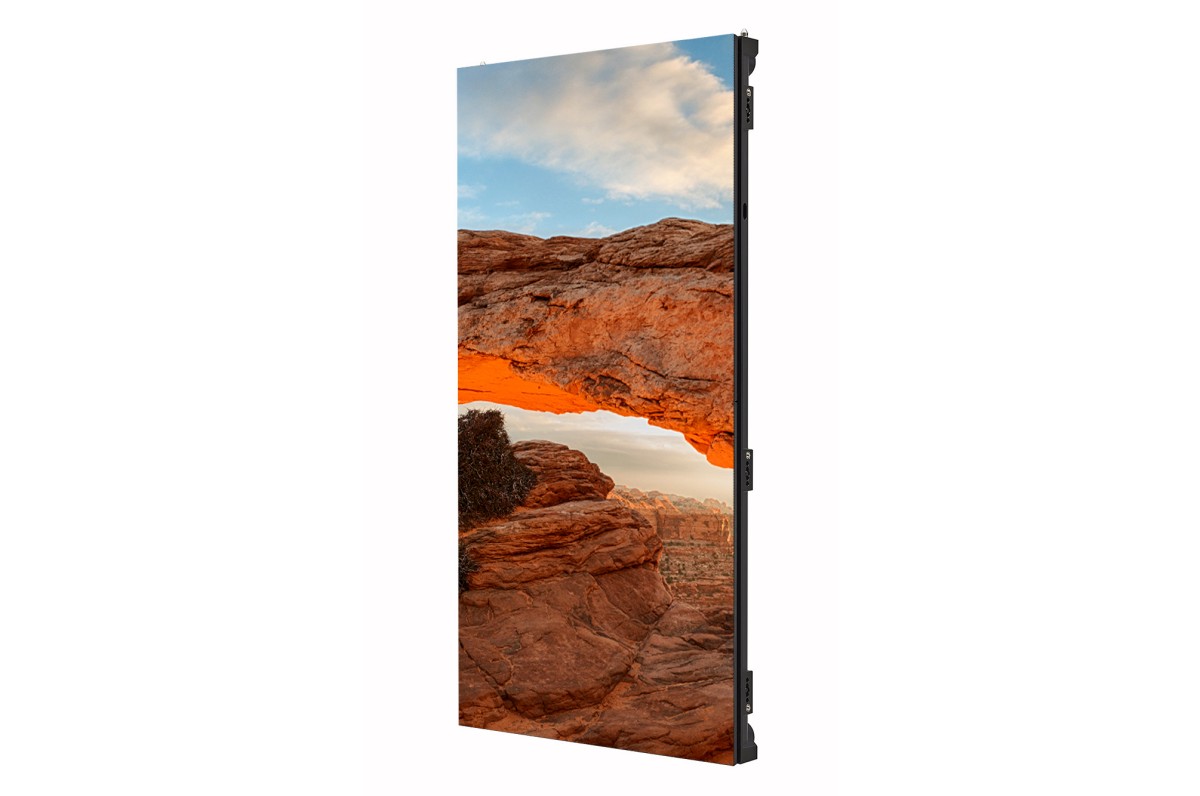

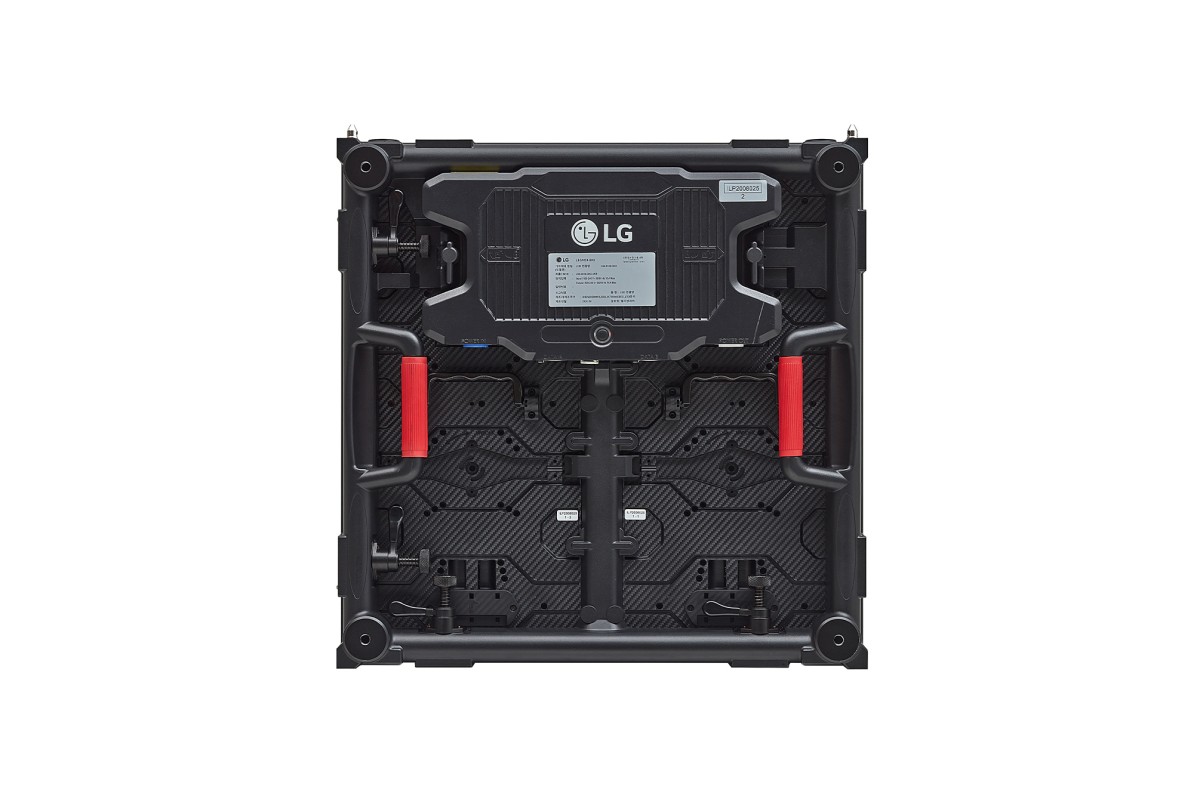

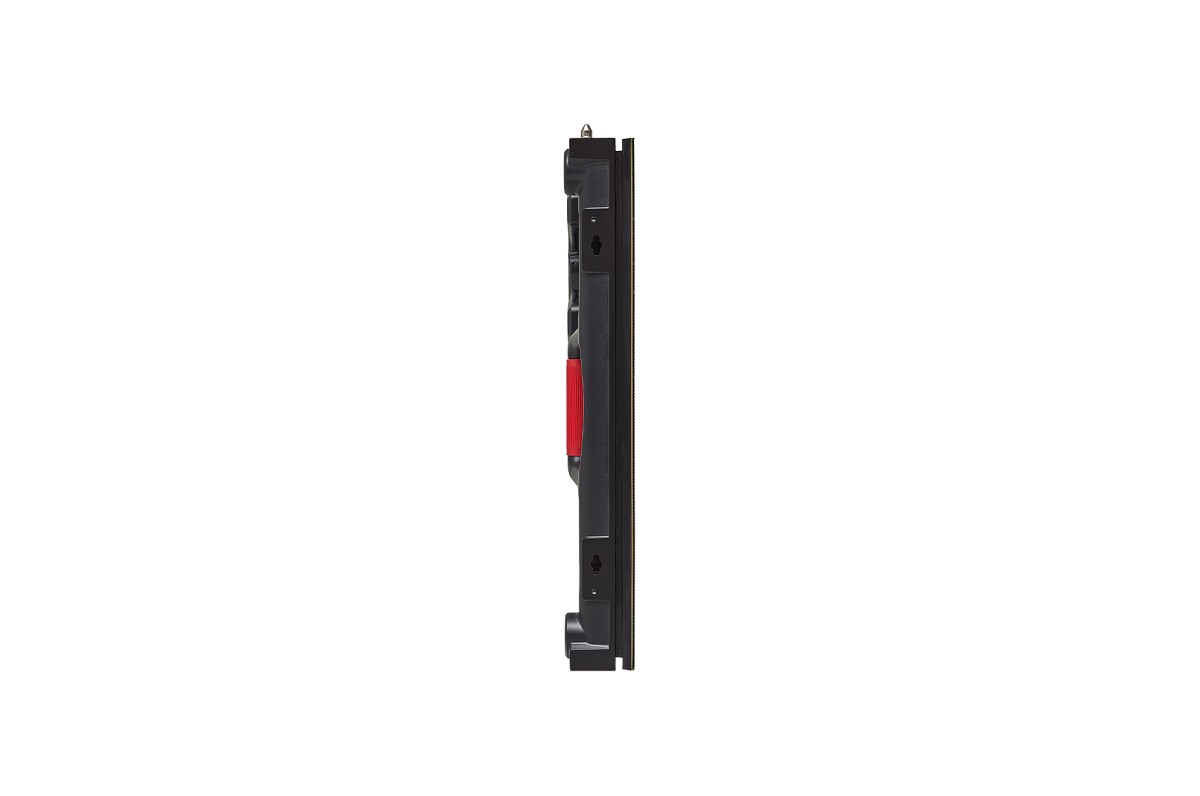

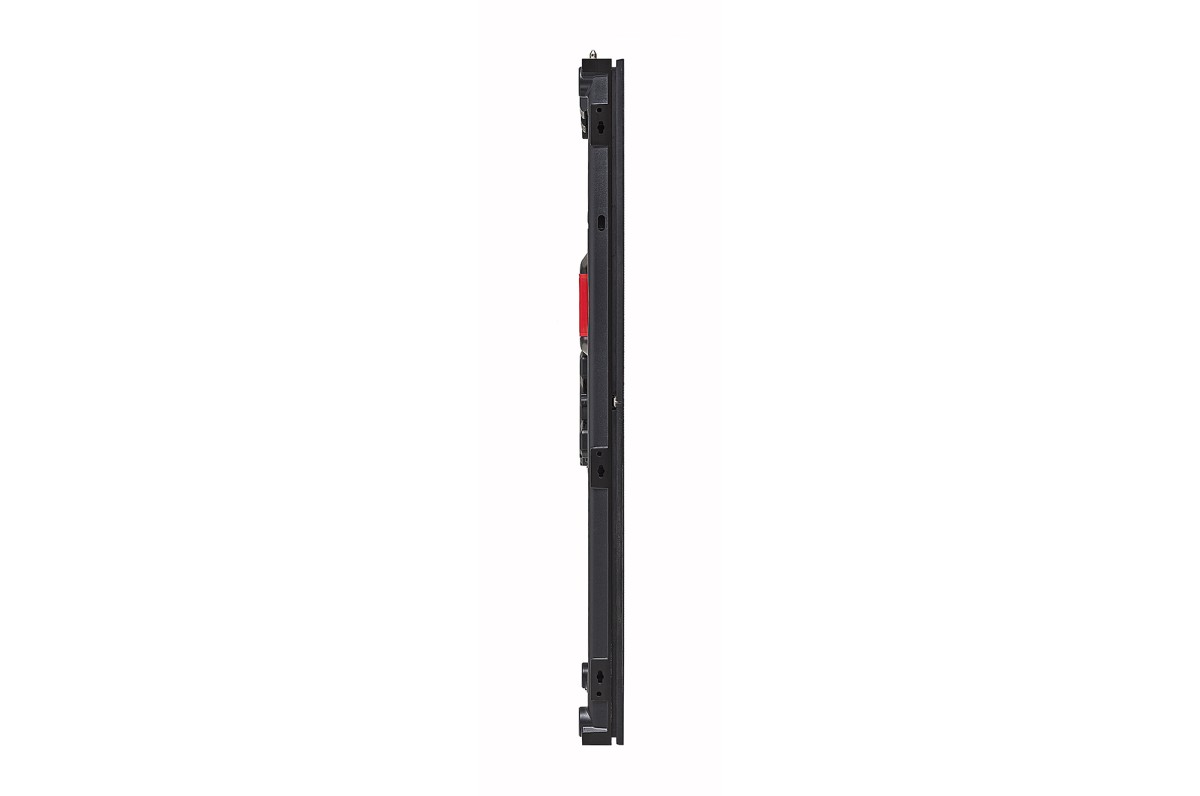

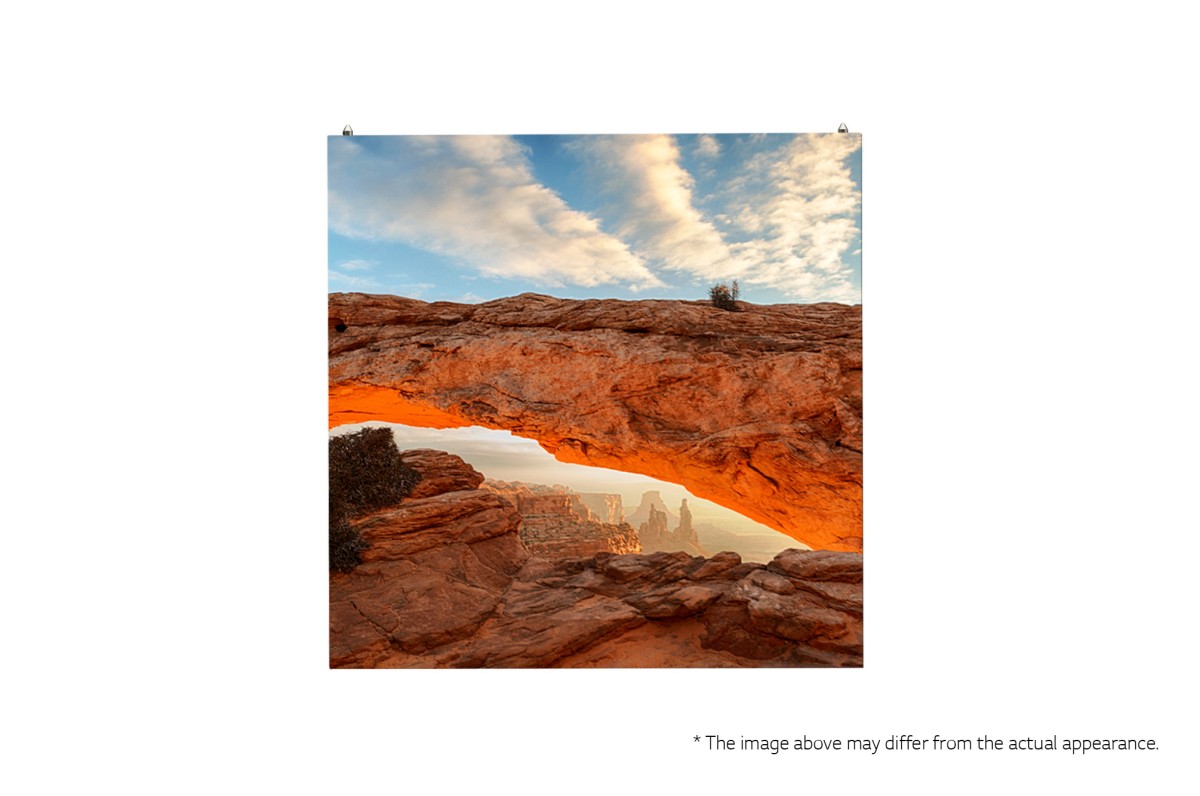

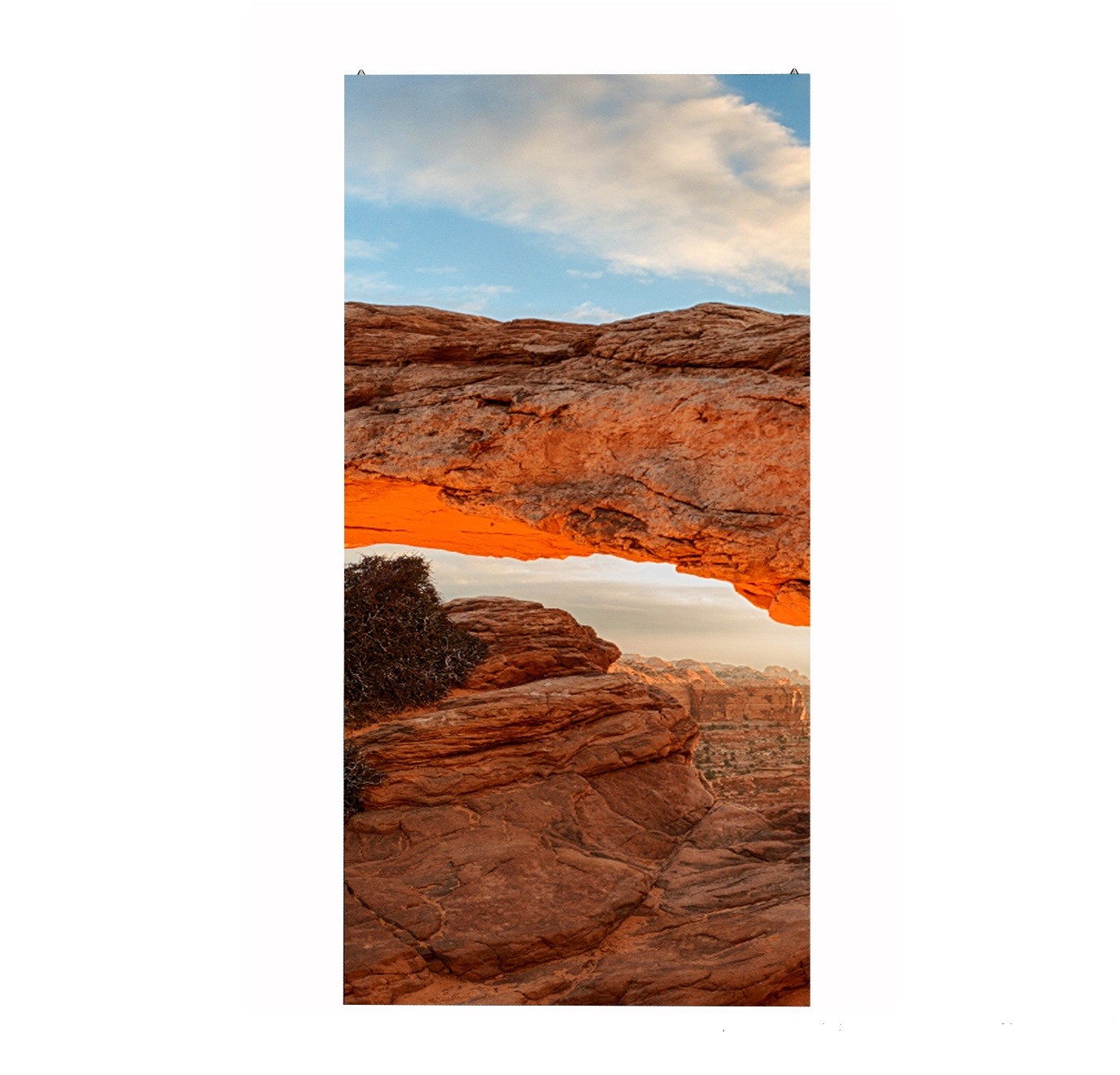

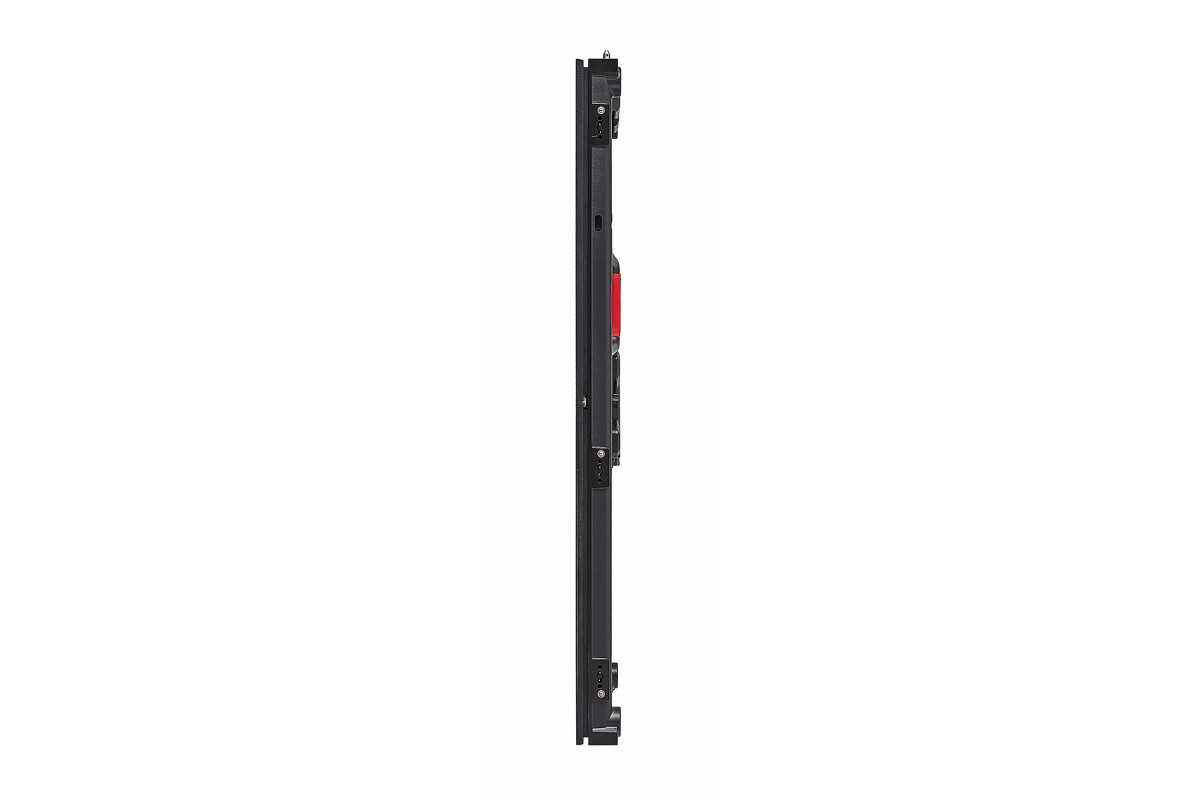

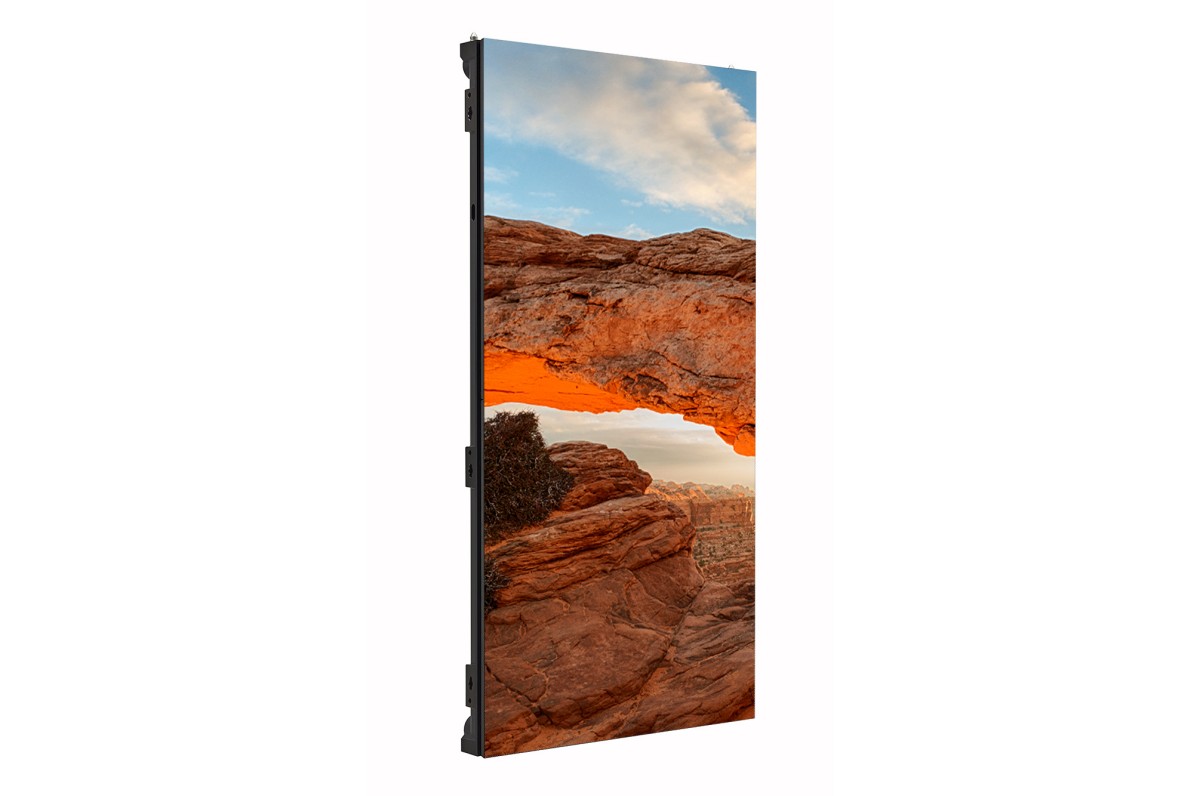

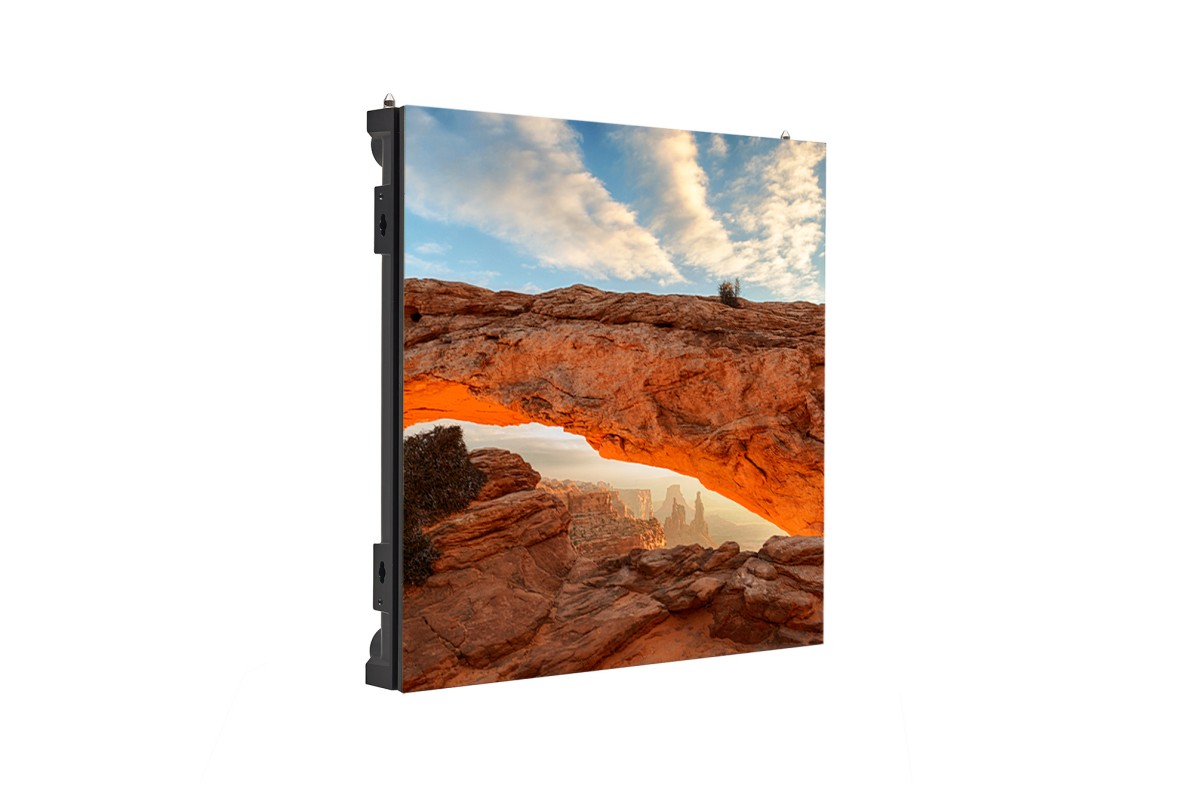

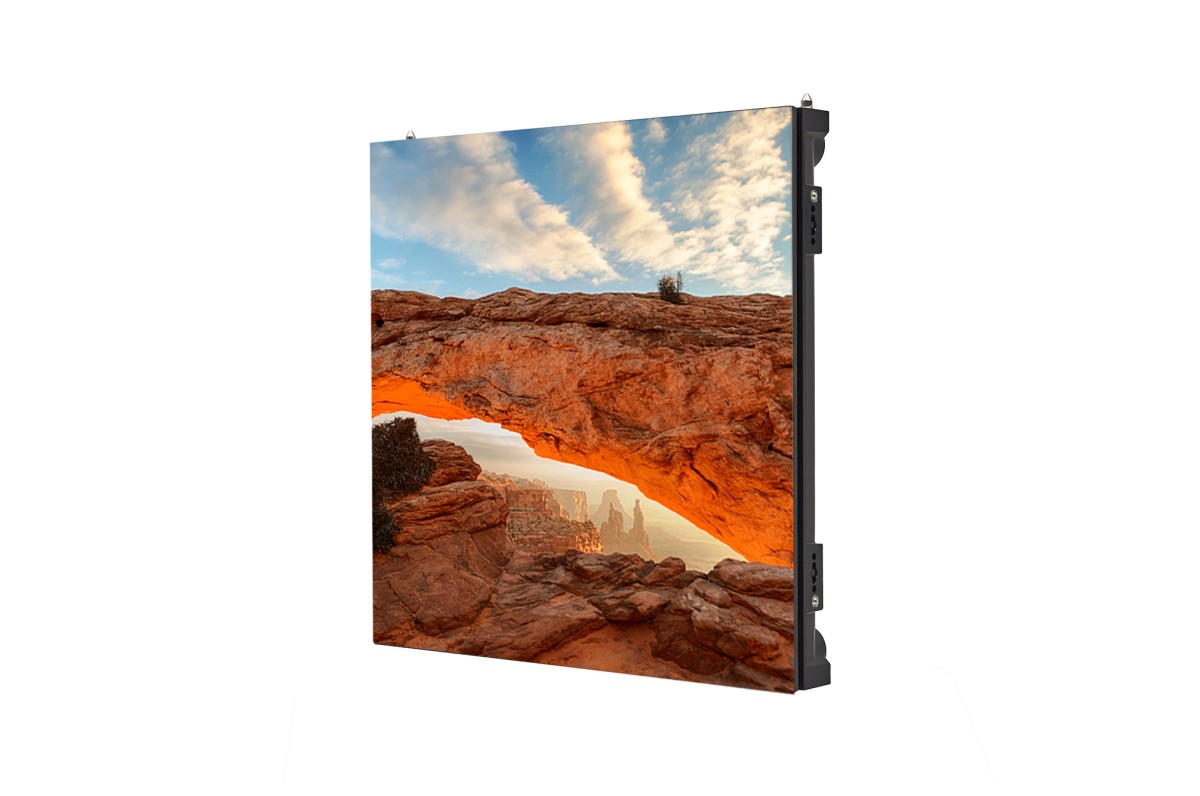

LG GSCA046 LED 4.63 Pixel Pitch Outdoor Versatile Series
Product code:- Pixel Pitch: 4.63mm
- Brightness: 5,000 cd/m²
- Fast Assembly and Easy Maintenance
- Two Cabinet Options
- IP65 Weatherproof Design
- 90º Corner Option Available
Description
Physical Parameter
| Pixel Configuration | 3 in 1 SMD |
|---|---|
| Pixel Pitch (mm) | 4.63 |
| Module Resolution (W x H) | 54 × 108 |
| Module Dimensions (W x H, mm) | 250 × 500 |
| Weight per Module (kg) | 1.40 |

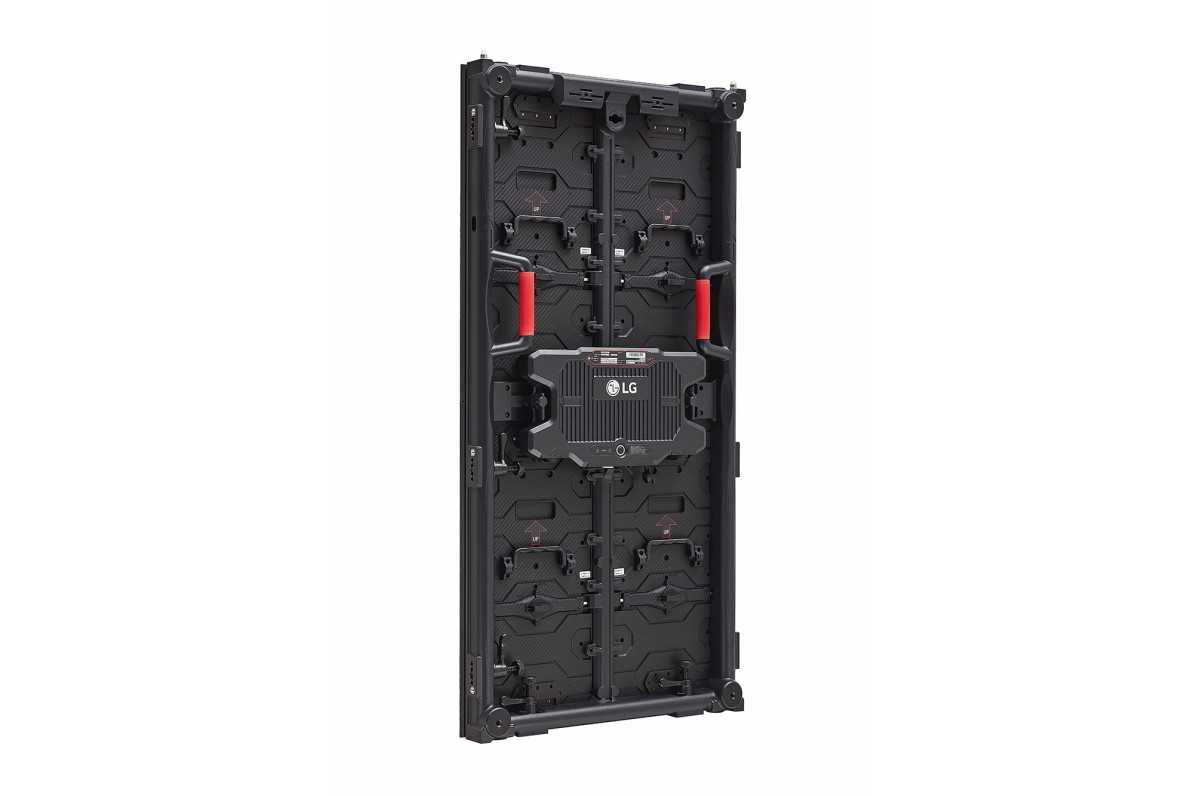

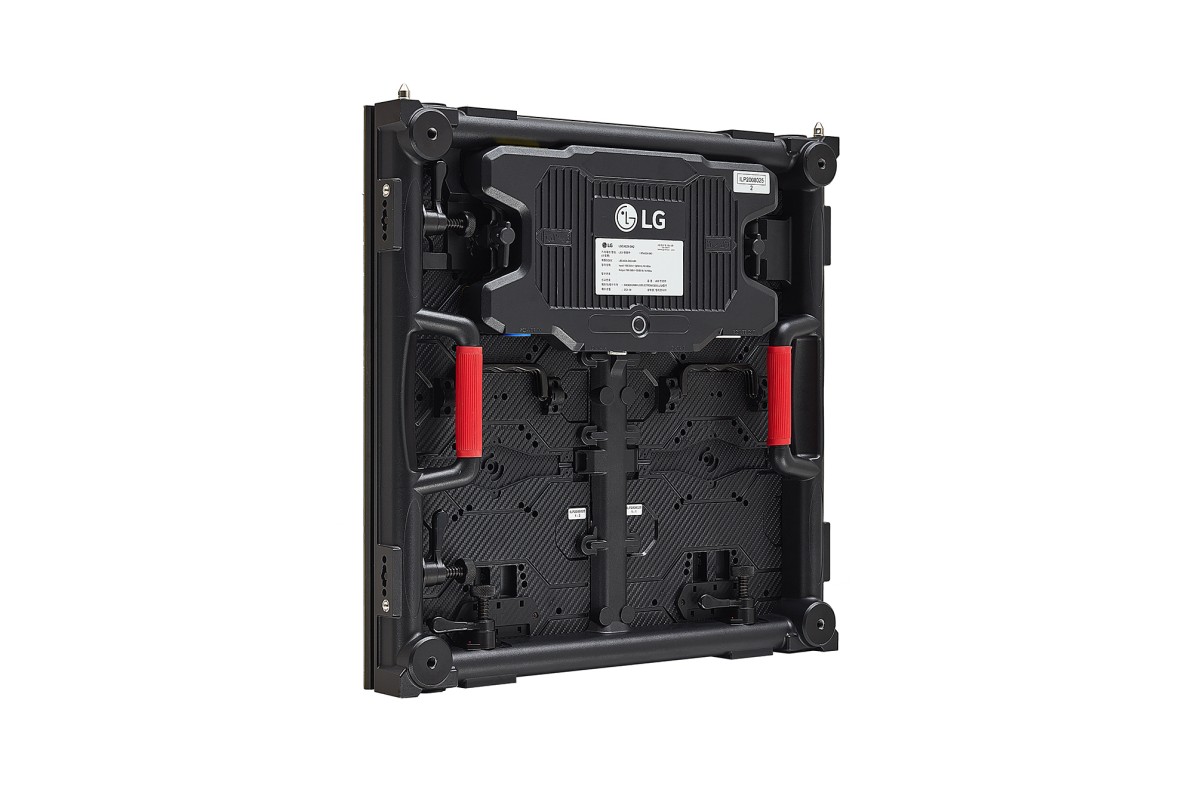

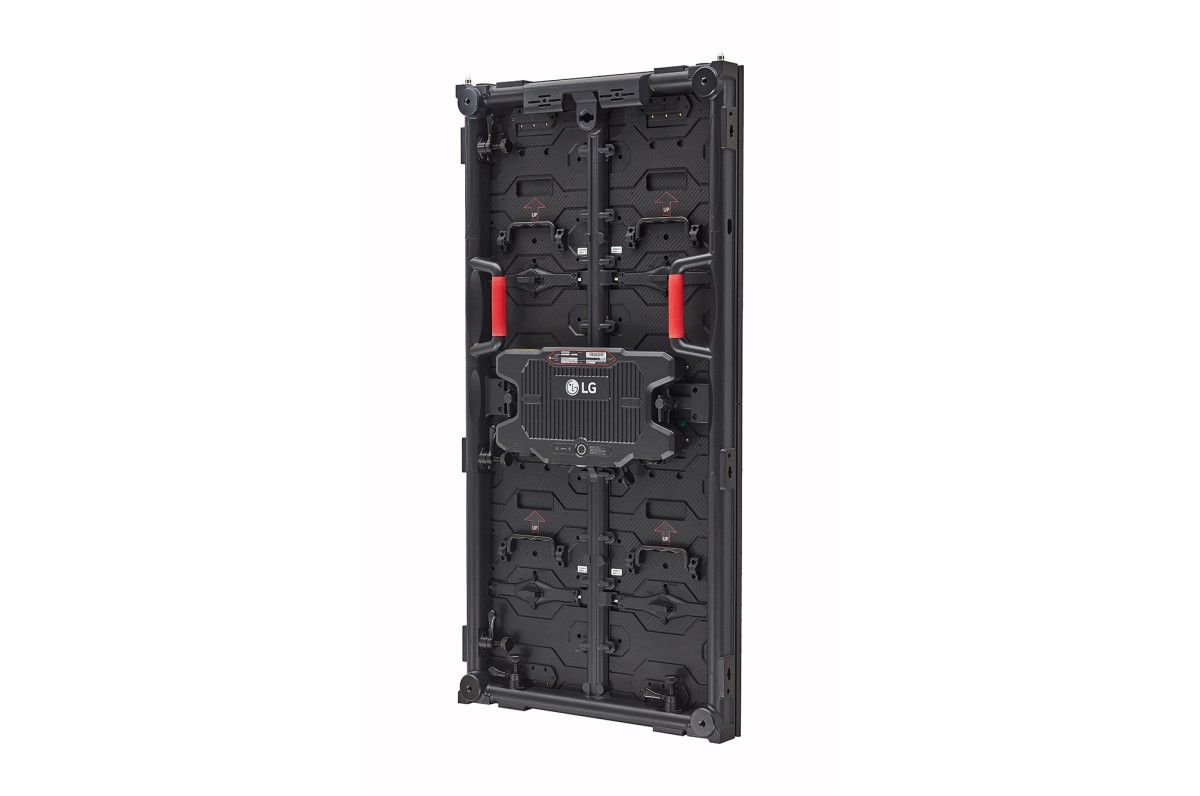

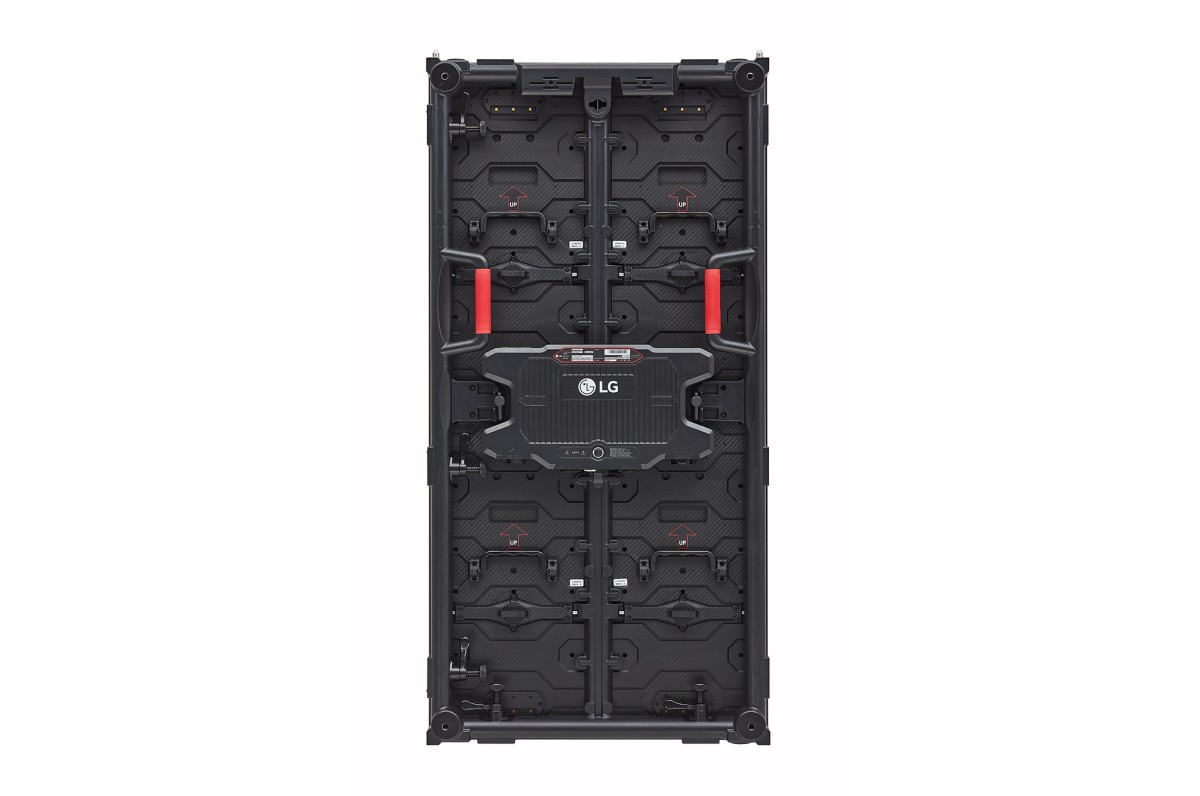

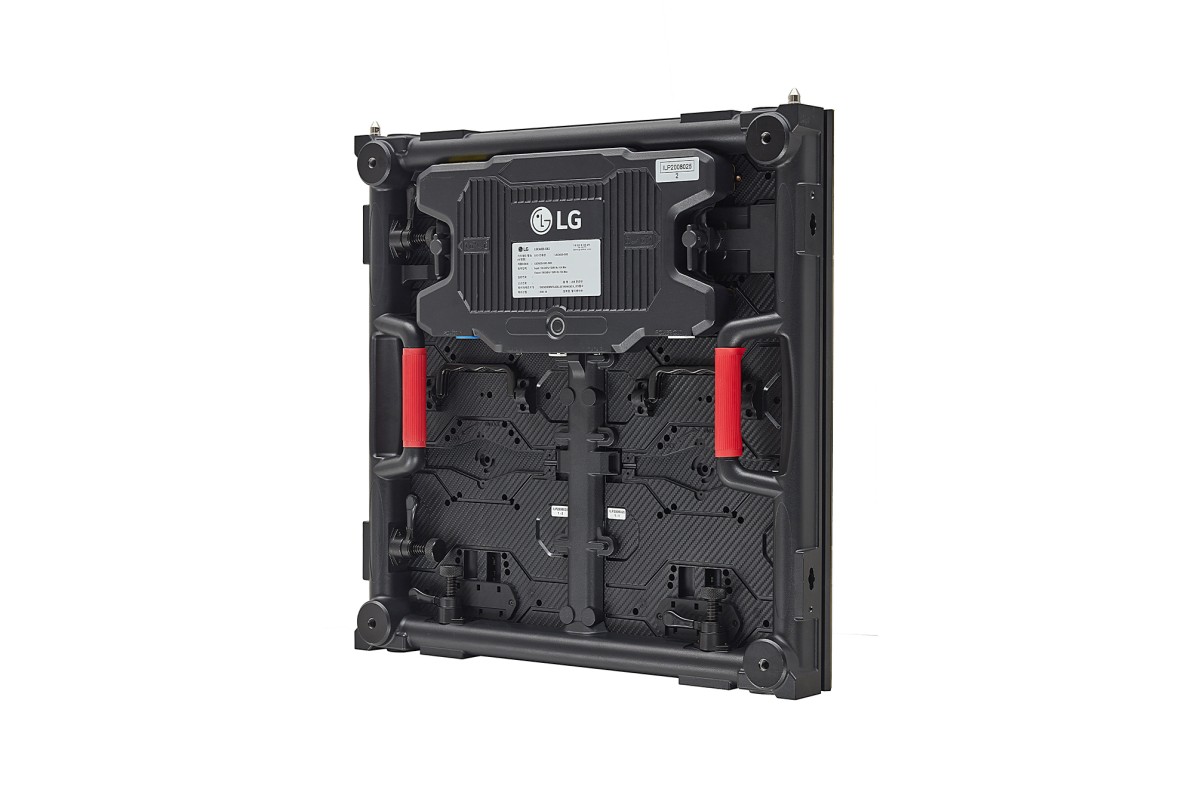

| No. of Modules per Cabinet (W × H) | 2 × 2 / 2 × 1 (Half-sized) |
| Cabinet Resolution (W × H) | 108 × 216 / 108 × 108 (Half-sized) |

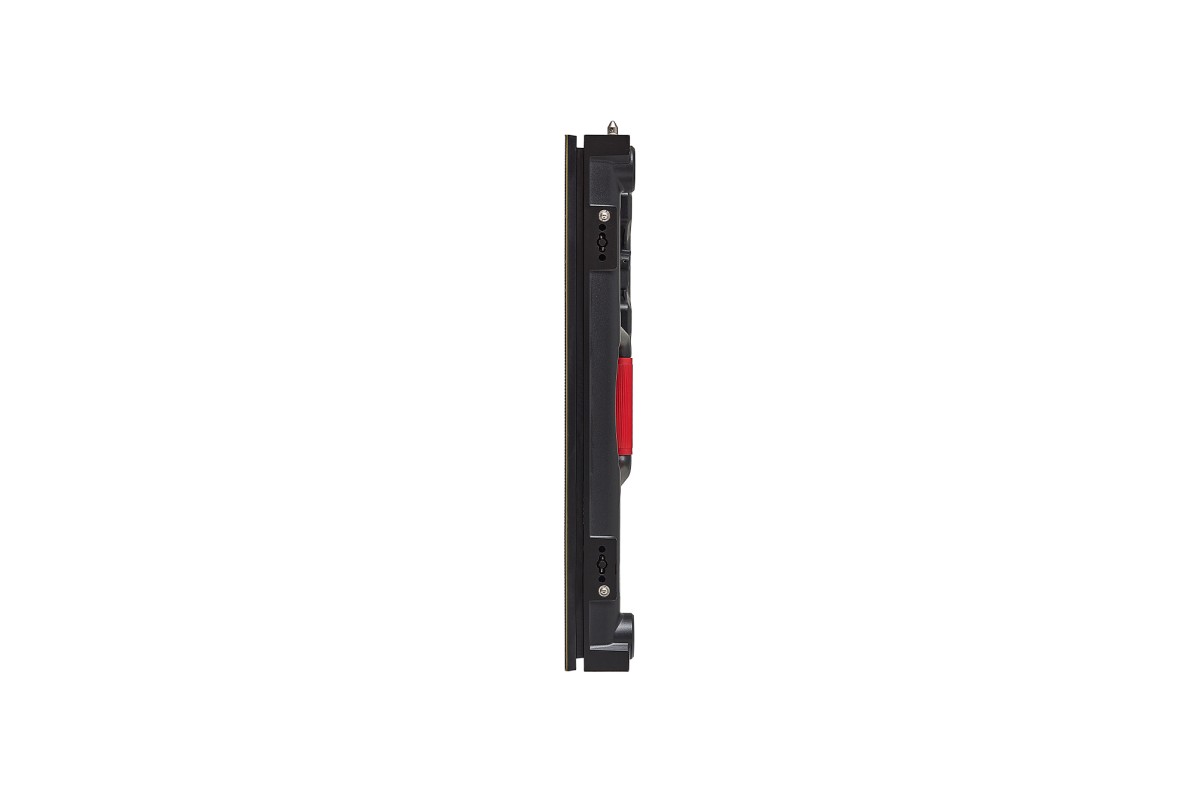

| Cabinet Dimensions (W × H × D, mm) | 500 × 1,000 × 67.2 500 × 500 × 67.2 (Half-sized) |
| Cabinet Surface Area (m²) | 0.500 / 0.250 (Half-sized) |
| Weight per Square Meter (kg/m²) | 25.4 / 32.2 (Half-sized) |
| Weight per Cabinet (kg/cabinet) | 12.7 / 8.1 (Half-sized) |
| Physical Pixel Density (pixels/m²) | 46,656 |
| Flatness of Cabinet | ±0.3 mm |
| Cabinet Material | Die-casting Magnesium |
| Service Access | Front or Rear (One Option Only) |
Additional information
Optical Parameter
| Min. Brightness (After Calibration) | 5,000 |
|---|---|
| Color Temperature | 3,500 ~ 9,000 |
| Visual Viewing Angle (Horizontal/Vertical) | 160 / 135 |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003CxCy |
| Contrast Ratio | 11,000 |
| Processing Depth (bit) | 14 |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 300 / 150 (Half-sized) |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 100 / 50 (Half-sized) |
| Power Consumption (W/m², Max.) | 600 |
| Heat Dissipation (BTU/h/Cabinet, Max.) | 1024 / 512 |
| Heat Dissipation (BTU/h/Cabinet, Avg.) | 341 / 171 |
| Heat Dissipation (BTU/h/㎡, Max.) | 2047 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | -20℃ to +45℃ |
| Operating Humidity | 10-99%RH |
| IP rating Front / Rear | IP65 / IP65 |
Certification
| Certification | CE,FCC,ETL |
|---|
Environment
| Environment | RoHS |
|---|
Controller
| Controller | LCIN006 |
|---|
