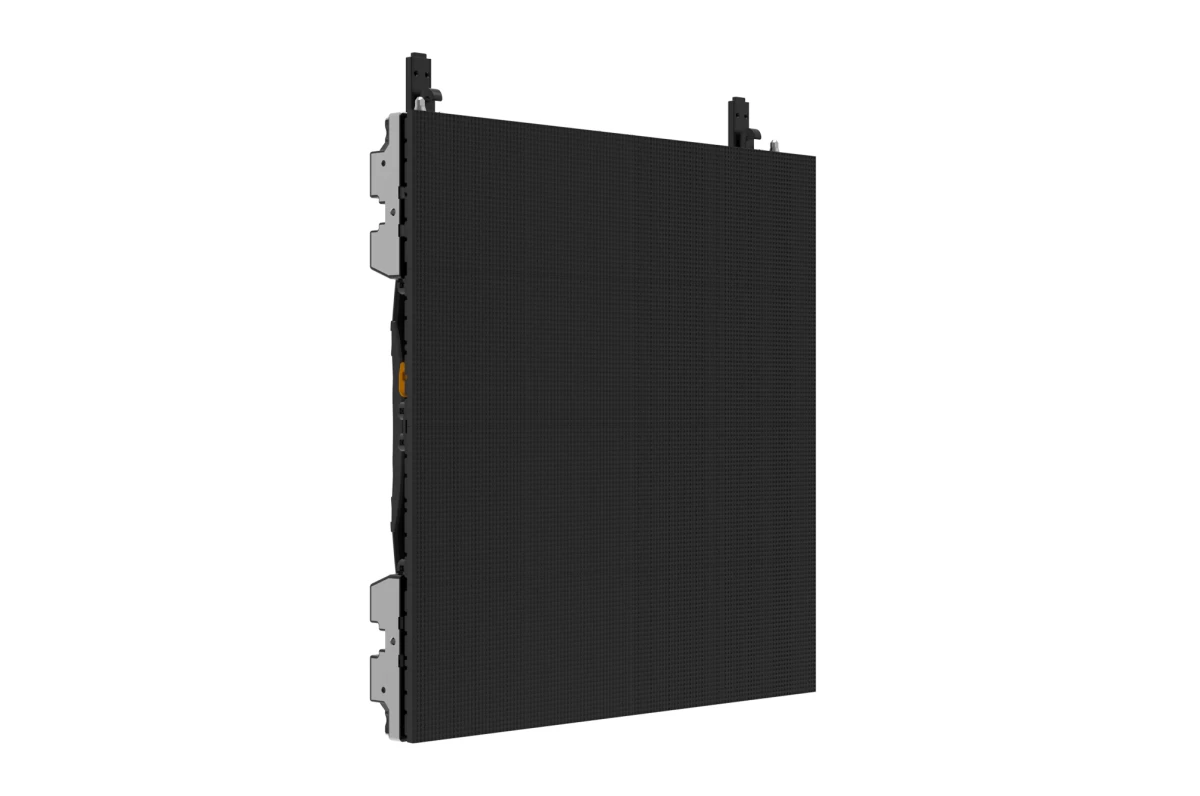

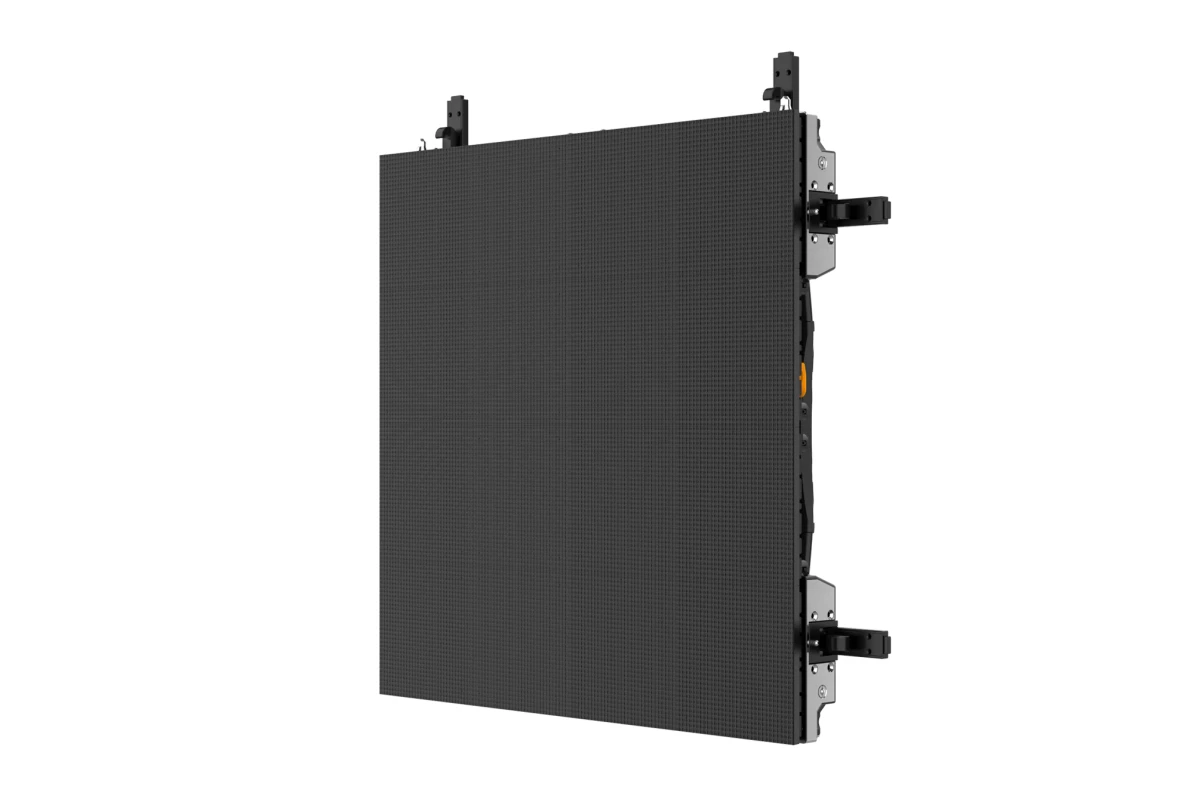

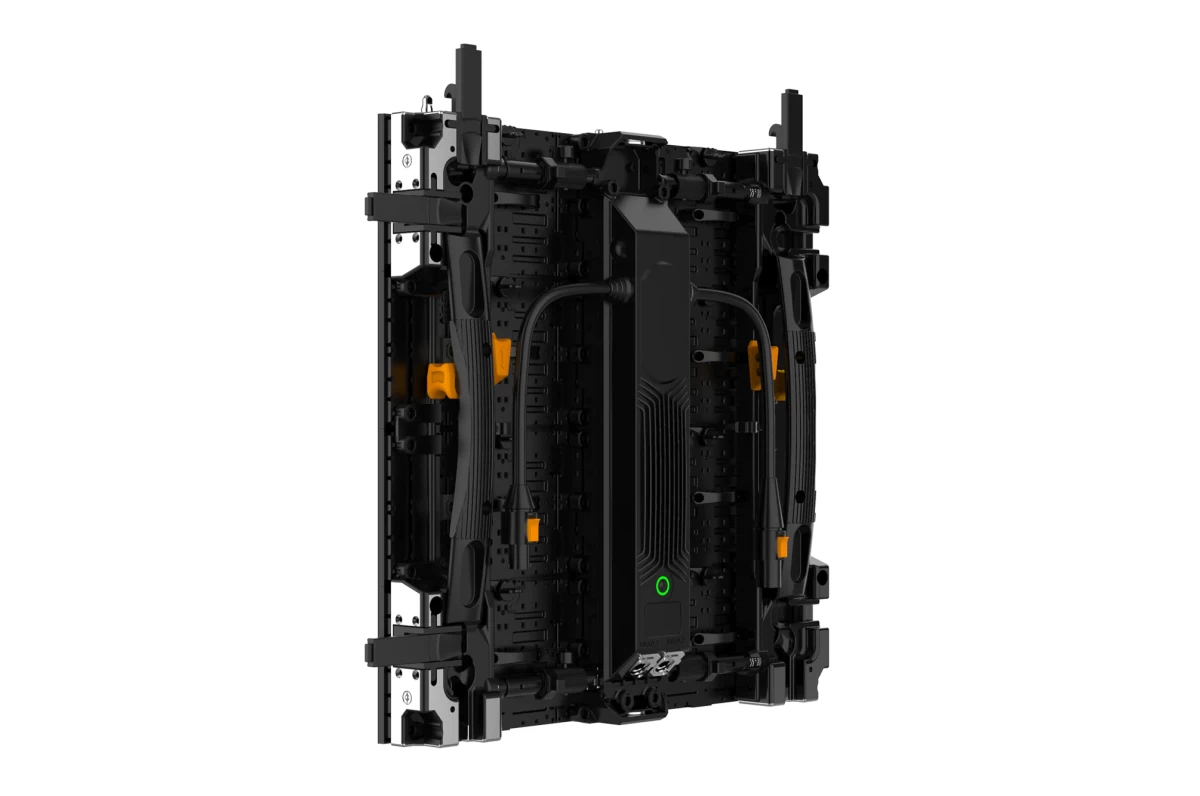

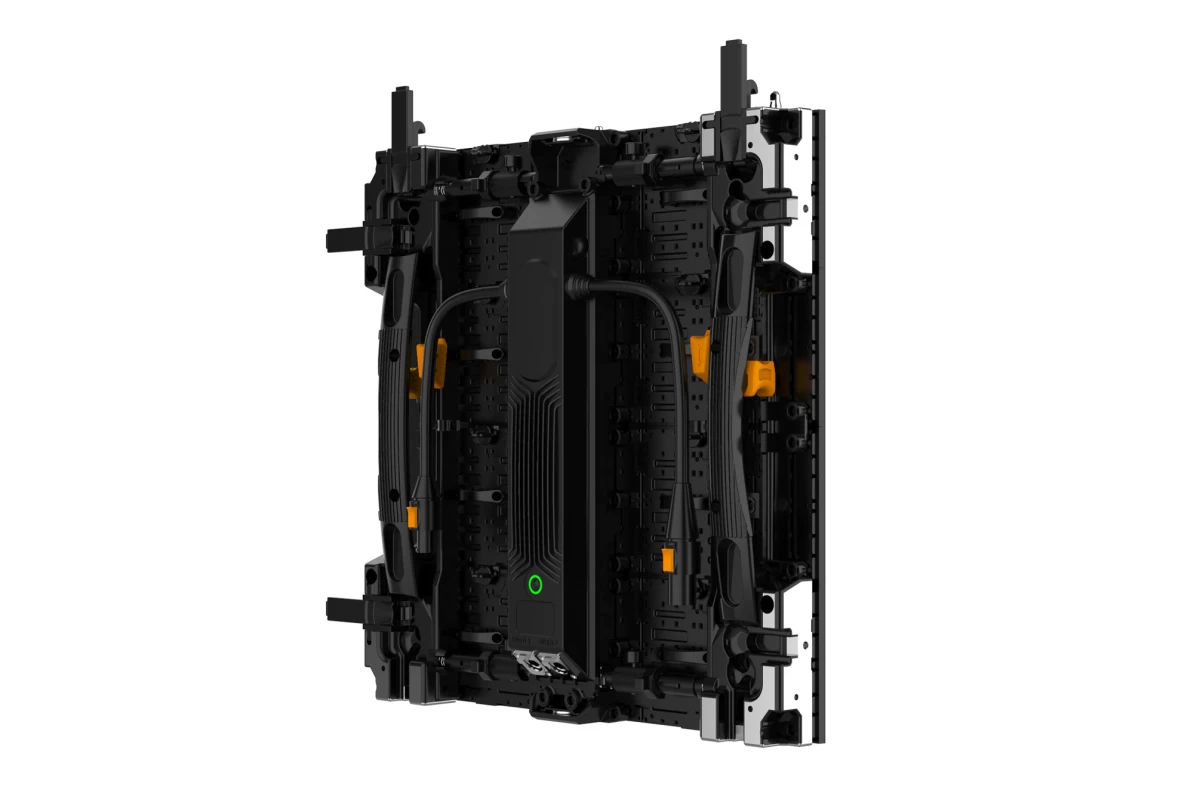

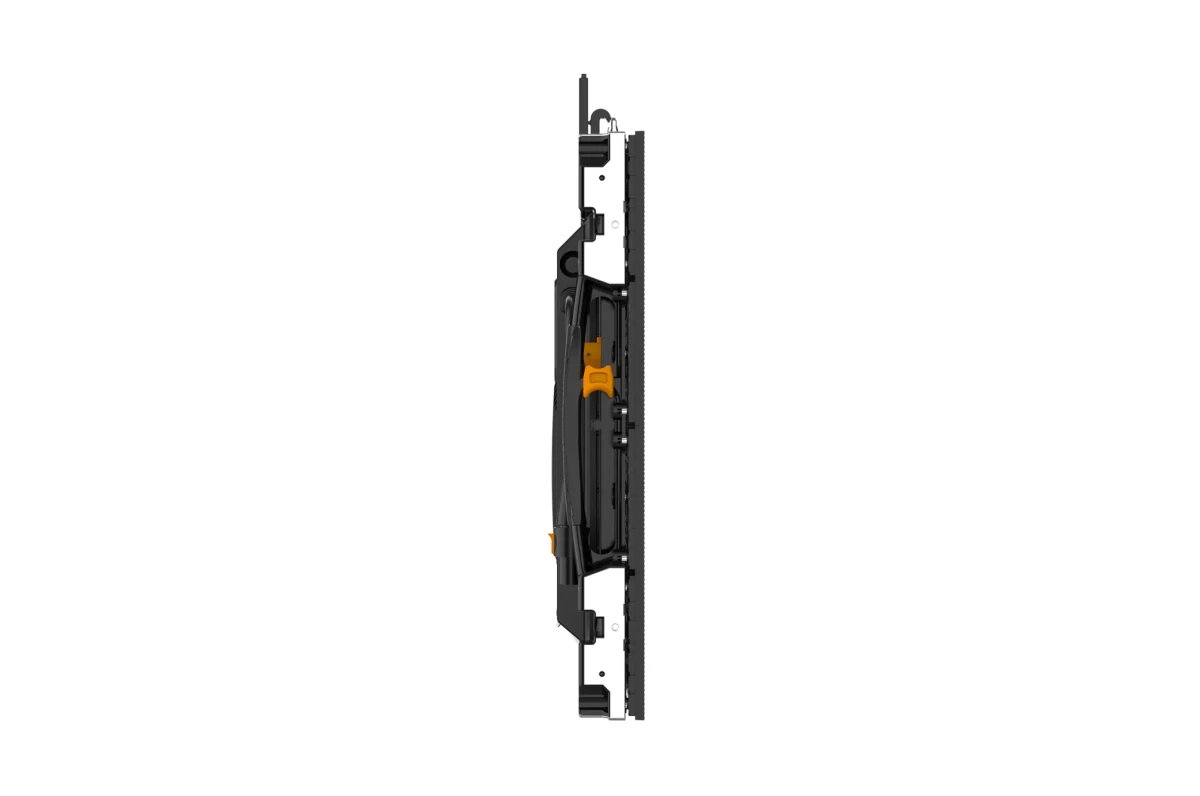

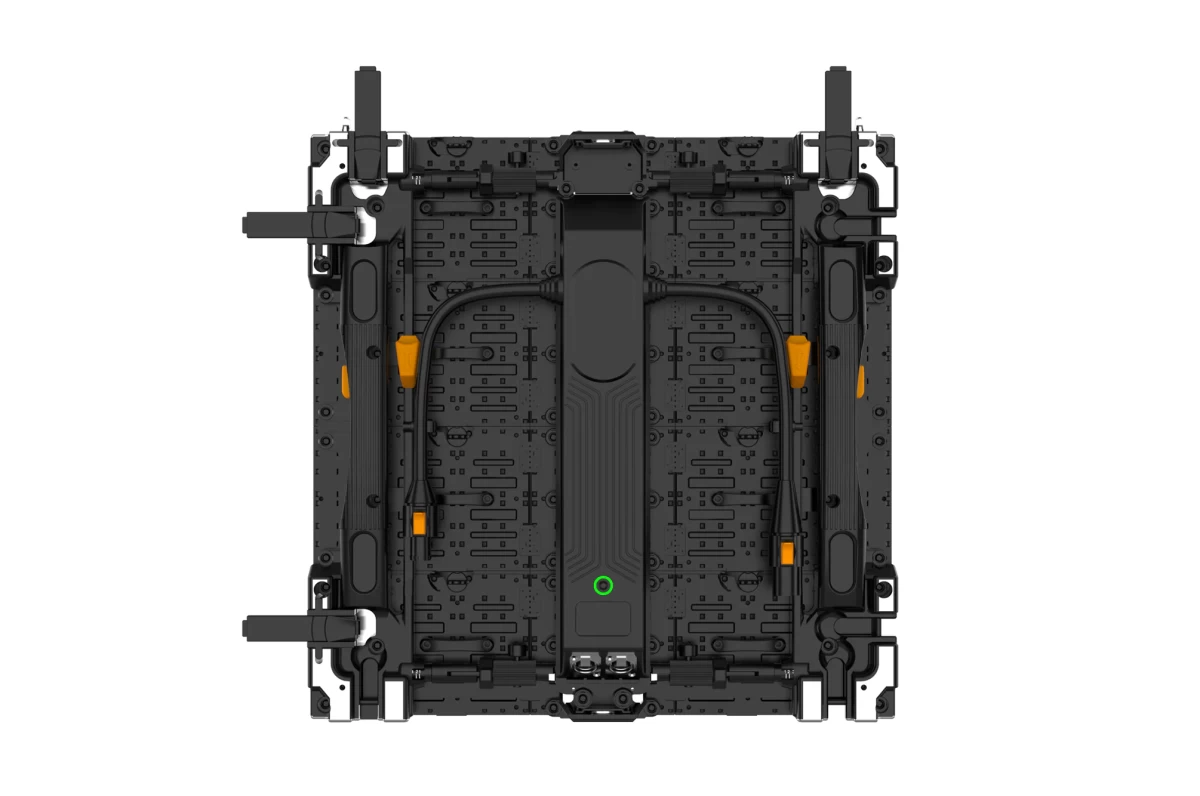

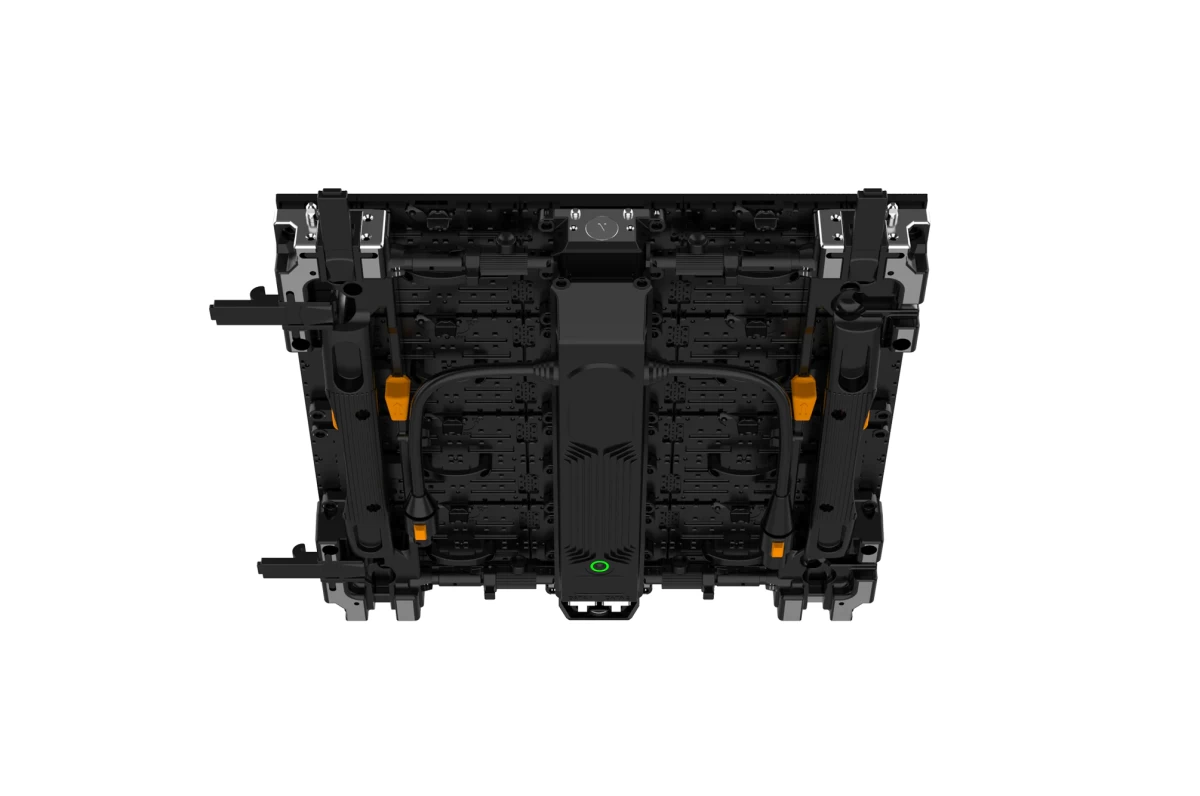

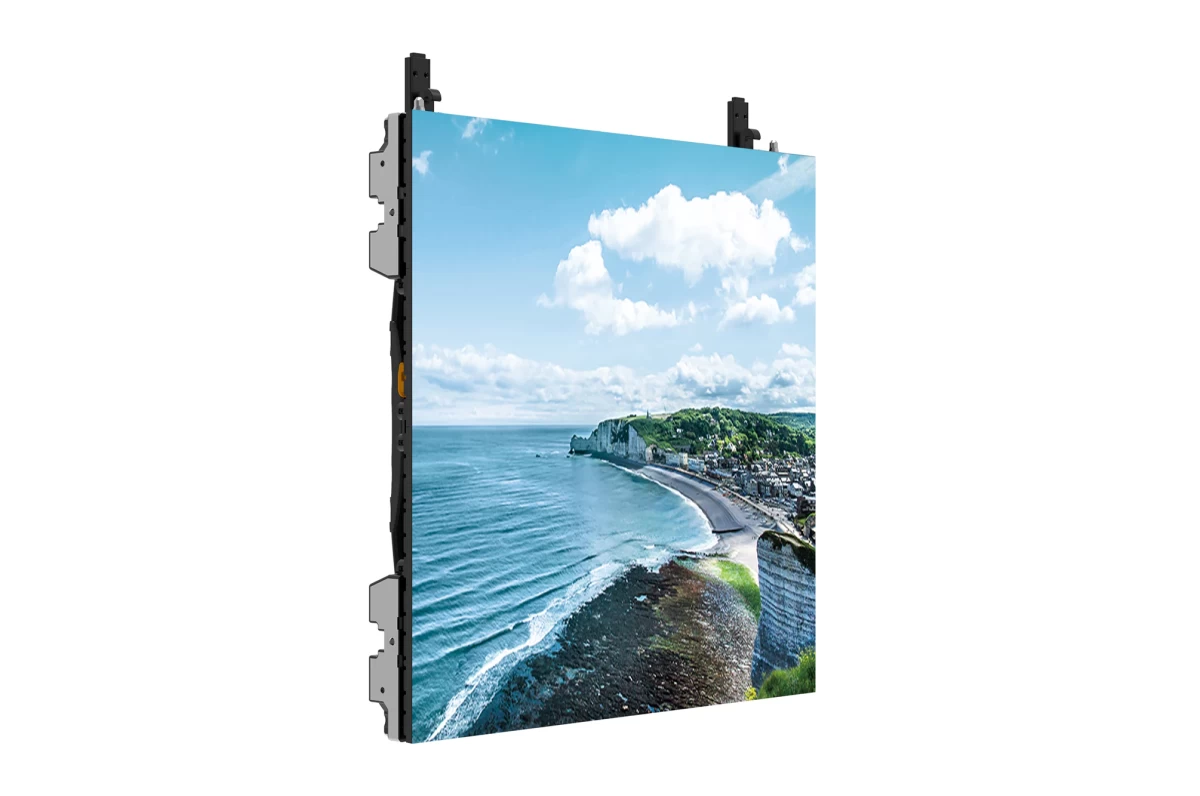

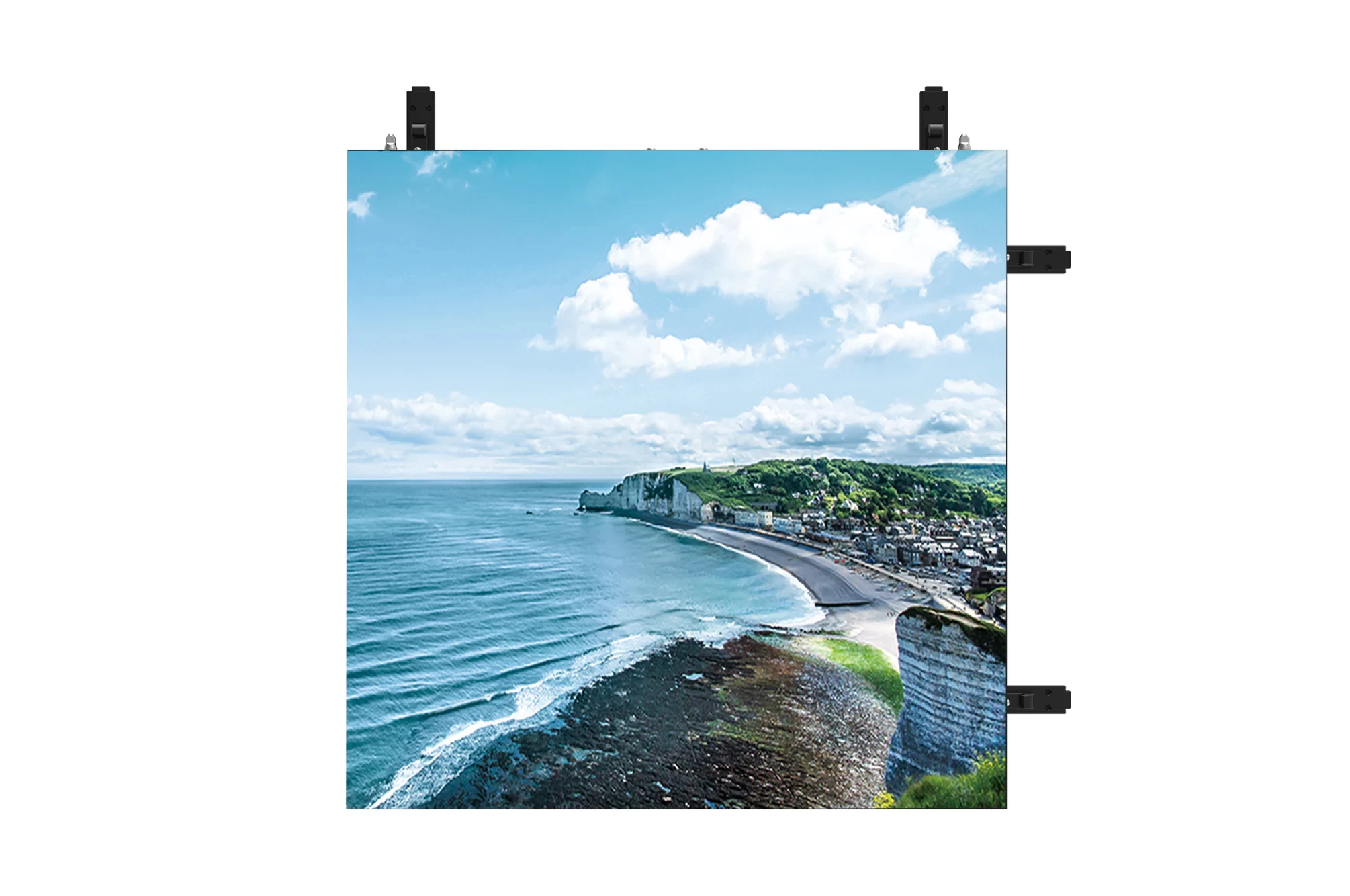

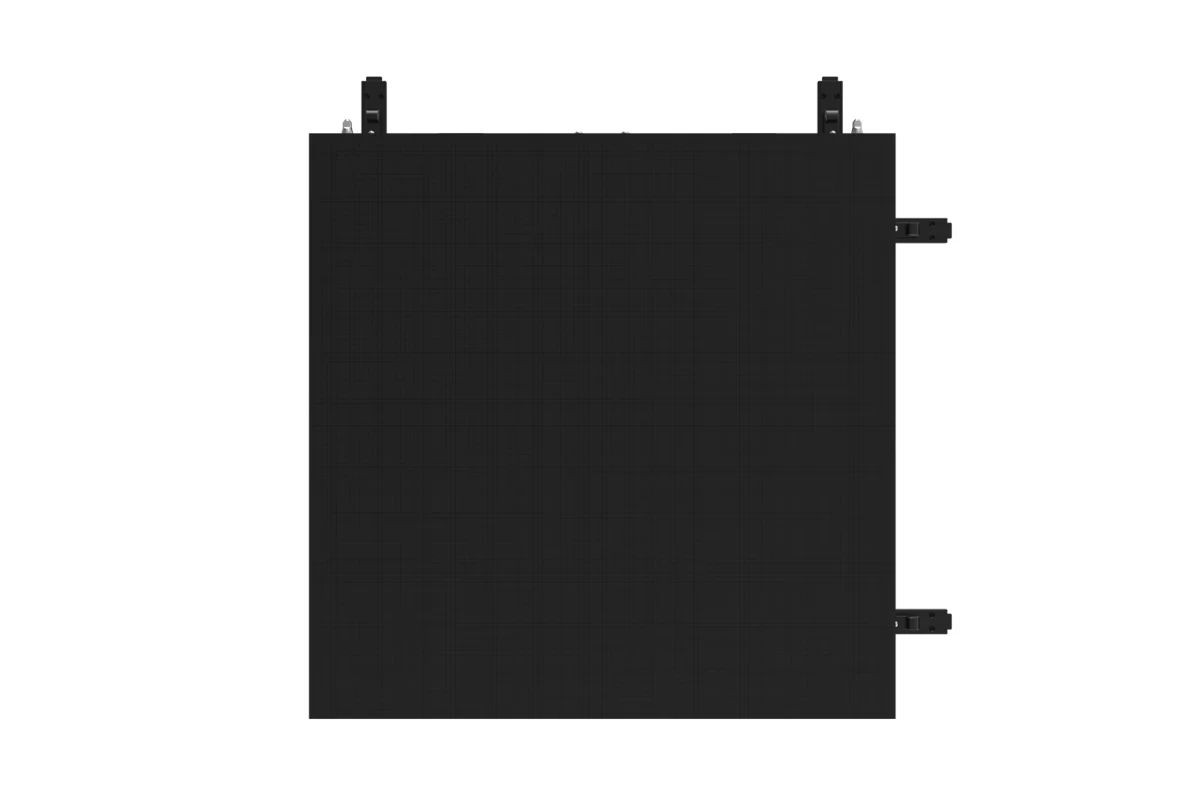

LG LAC039 LED 3.91 Pixel Pitch Curved Series (LAC039DD3 / LAC039DD4)
Product code:LG's LAC Curved series supports both concave and convex curved formats. It is ultra-thin, super-light and features full black LED. LG will revolutionize the way you conduct business.
SEND AN ENQUIRYDescription
OPTICAL PARAMETER
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch(mm) | 3.91 |
| Unit Case Resolution (WxH) | 128x128 |
| Unit Case Dimensions (WxHxD, mm) | 500x500x84 |
| Weight per Unit Case / Square Meter (kg) | 8.9/35.6 |
| Service access | Front* or Rear (One Option Only) |
| Min. Brightness (After Calibration, cd/m²) | 1,200 |
| Color Temperature | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160/160 |
| Brightness Uniformity | 97％ |
| Color Uniformity | ±0.003CxCy |
| Contrast Ratio | 5,000 |
| Processing Depth (bit) | 14 |
Additional information
| Power Consumption (W/Unit, Avg./Max.) | 50/150 |
| Power Consumption (W/m², Max.) | 600 |
| Power Supply (V) | 100 to 240 |
| Refresh Rate (Hz) | 3,840 |
| Lifetime (Duration of Half Brightness in Hours) | 100,000 |
| Operating Temperature(°C) / Humidity | -10° to 45°/0~80％RH |
