LG LAD033F LED Cinema 3.3 Pixel Pitch
Product code:- Pixel Pitch: 3.3 mm
- Screen Size: 14.1 m × 7.2 m (101 sqm)
- Screen Resolution: 4,096 × 2,160 px
- Brightness: 48 cd/m² (DCI-compliant / Minimum)
- Compatibility with Dolby Media Server (IMS3000) & Dolby Atmos
Description
Pixel
| Pitch | 3.3mm |
|---|---|
| LED Type | SMD |
| Lifetime (Typical) | 100,000 Hours |
Additional information
Set
| Pixels (W × H, Native) | 4,224 × 2,160 |
|---|---|
| Resolution (W × H, Active Area) | 4,096 × 2,160 |
| Pixel Density (px/SQM) | 90,000 |
| Cabinets (W × H, ea) | 176 (22 × 8) |
| Dimension (W × H, mm) | 14,080 × 7,200 (101 sqm) |
| Weight (kg) | 2,650 |
| Power Supply | AC100-240 V ~, 50/60 Hz |
| Power Type | Built-in Power |
| Power Consumption Typical (watts, 48 nit) | 9,260 |
| Power Consumption (watts, 300 nit) | N/A |
| Operation Temperature | 0°C to 40°C |
| Operation Humidity 10% to | 10% to 80% |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Humidity | 5% to 85% |
General
| Frame (Video) Rate (Hz) | 24, 25, 30, 48, 50, 60 |
|---|---|
| Refresh Rate (@ 24 Hz) | 3,072 |
| Brightness (nit, w/Calibration) | 48 (DCI) |
| Contrast Ratio | ≥4,000:1 |
| Color Space (Gamut) | DCI P3 |
| Viewing Angle (H × V) | 160 × 160 |
| Bit Rate (Greyscale Depth) | 16 bit |
| Bit Rate (Color Processing / Color) | 15 (45 / total) |
| Chromaticity Uniformity | White Uniformity : within ±0.015 x, ±0.015 y |
| Color Temperature (White) | (x, y) = (0.314, 0.351) / DCI-P3 theater |
| Certification | DCI, CB, CE-LVD/EMC, FCC, ETL/UL, RoHS, REACH |
| Cinema Server Compatibility | Dolby IMS3-L |
| Interface | RJ45, HDMI (on IMS server) |

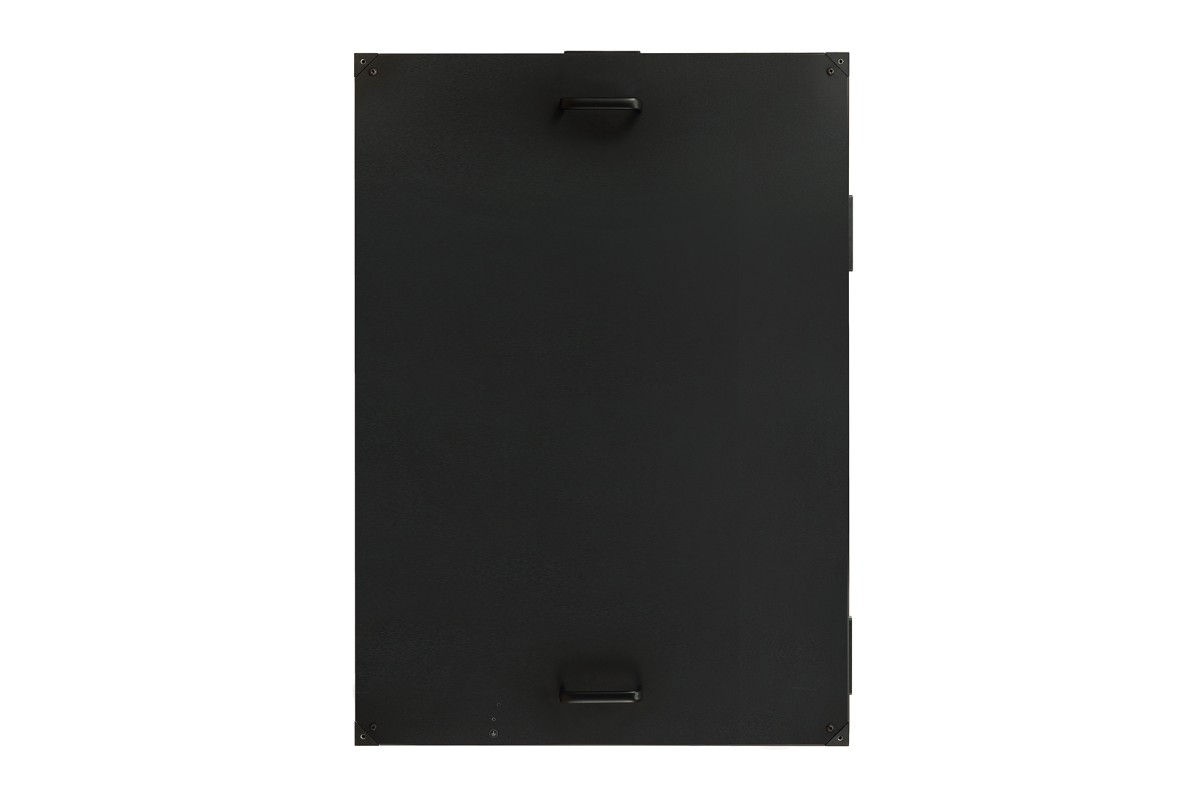

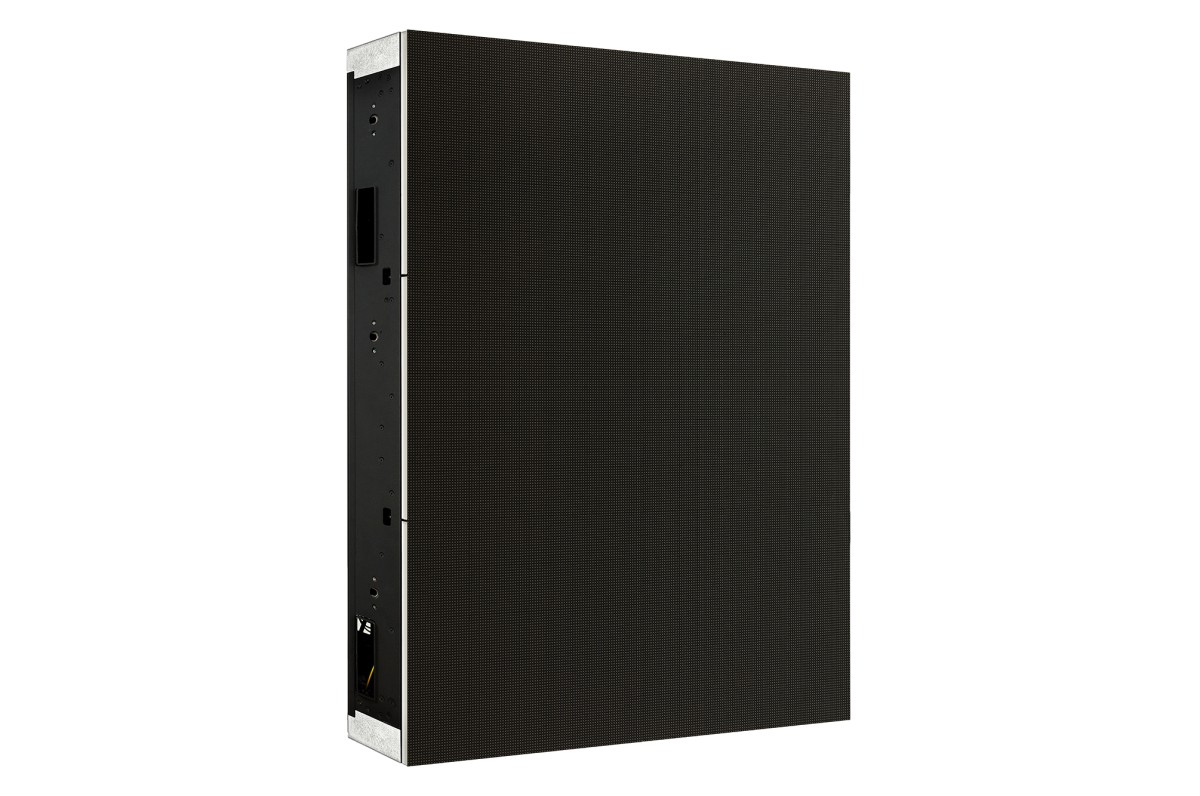

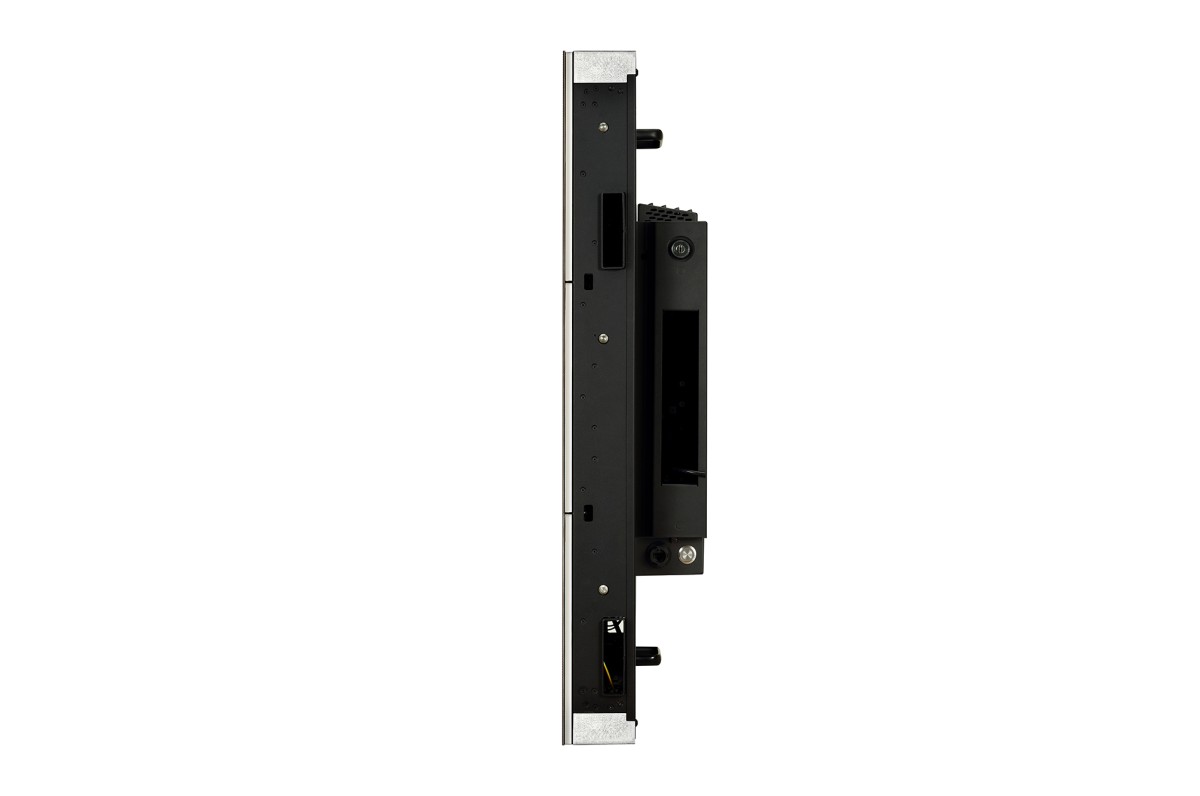

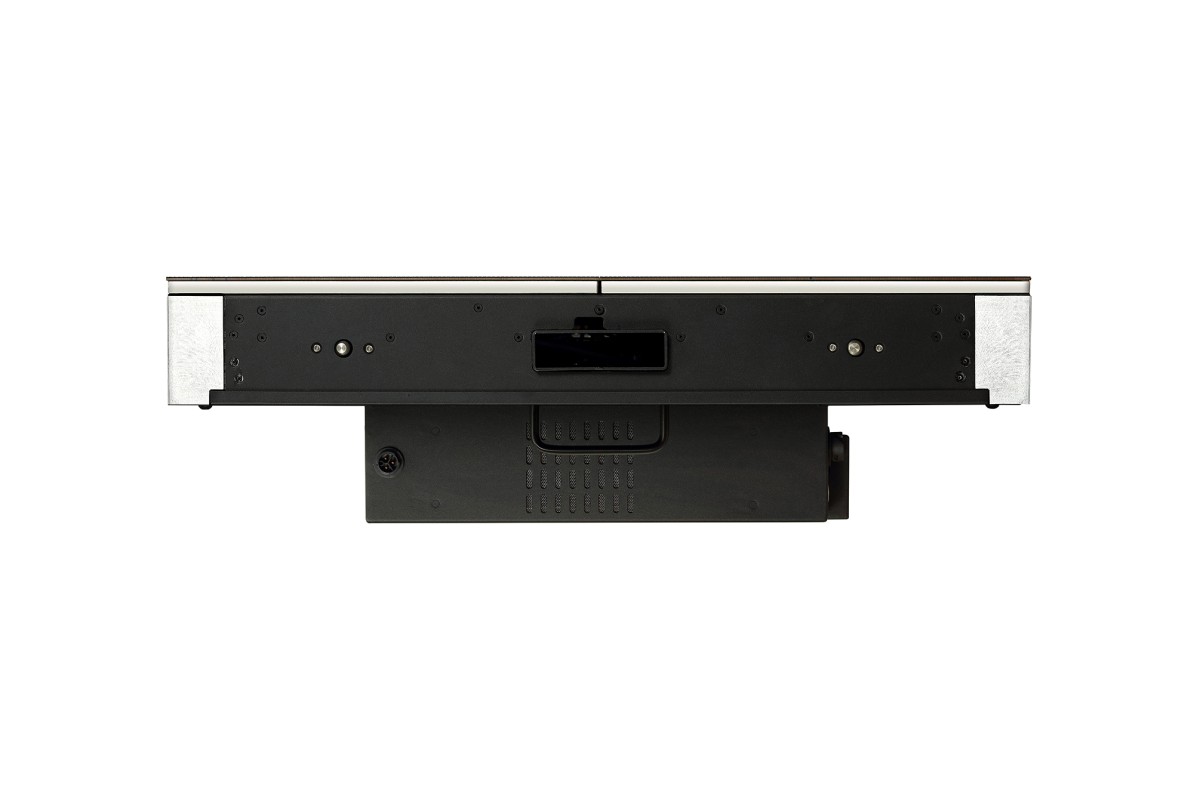

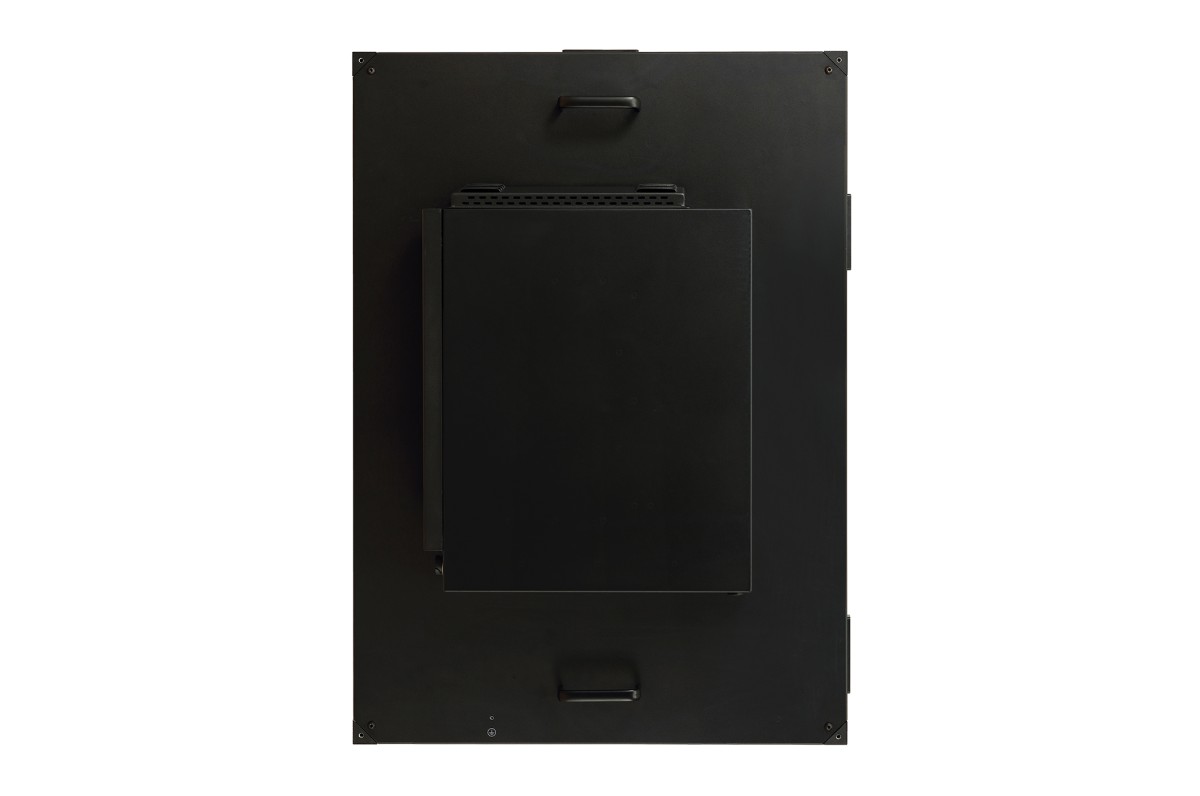

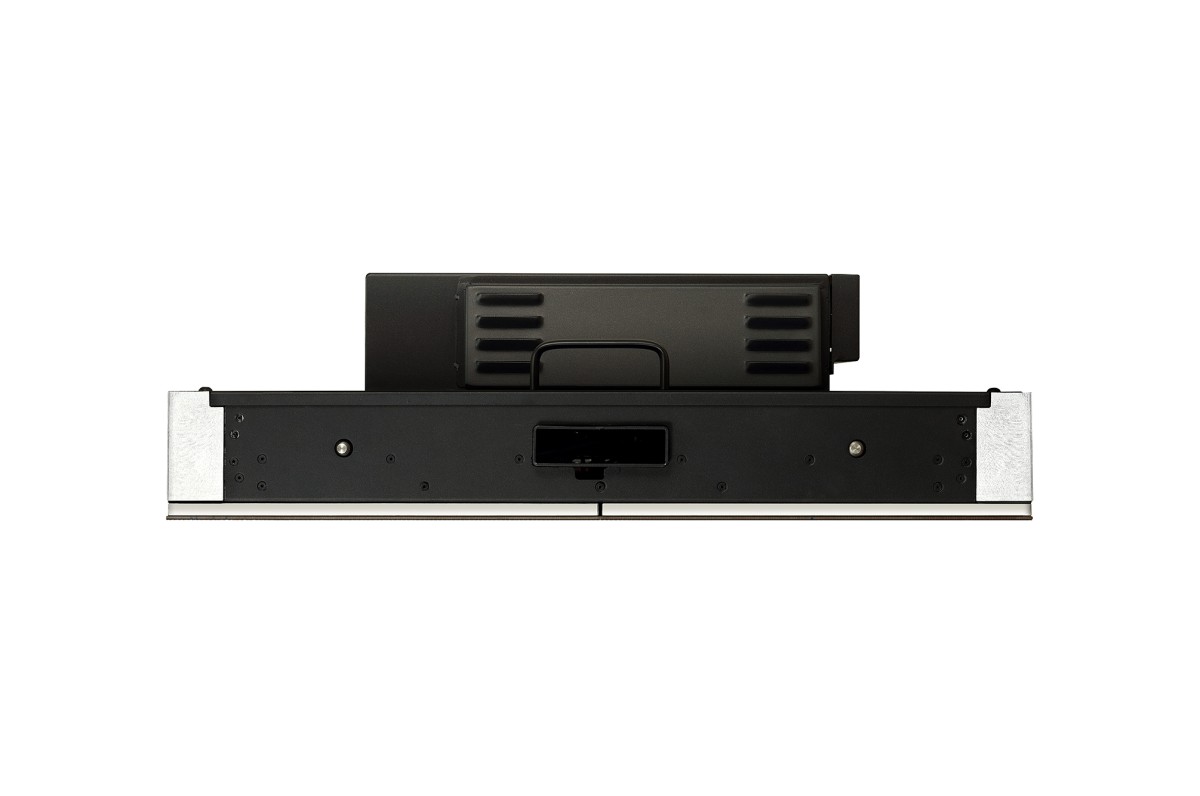

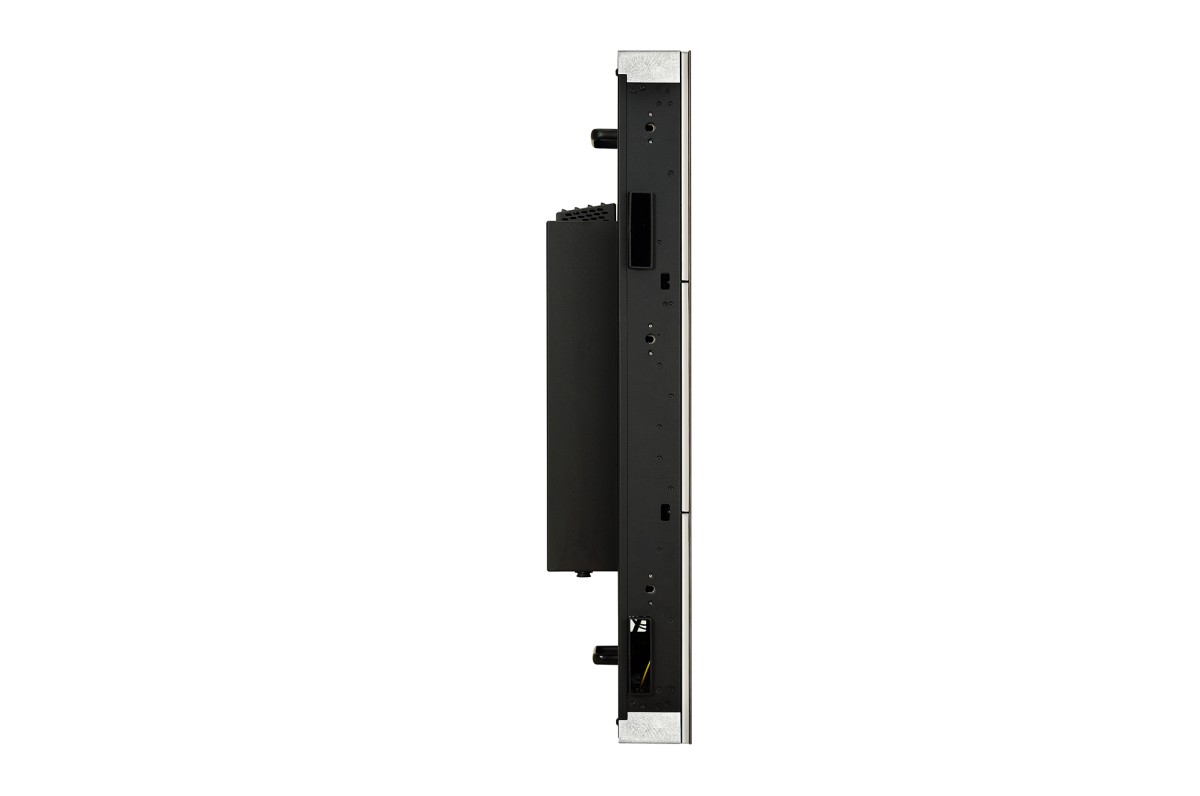

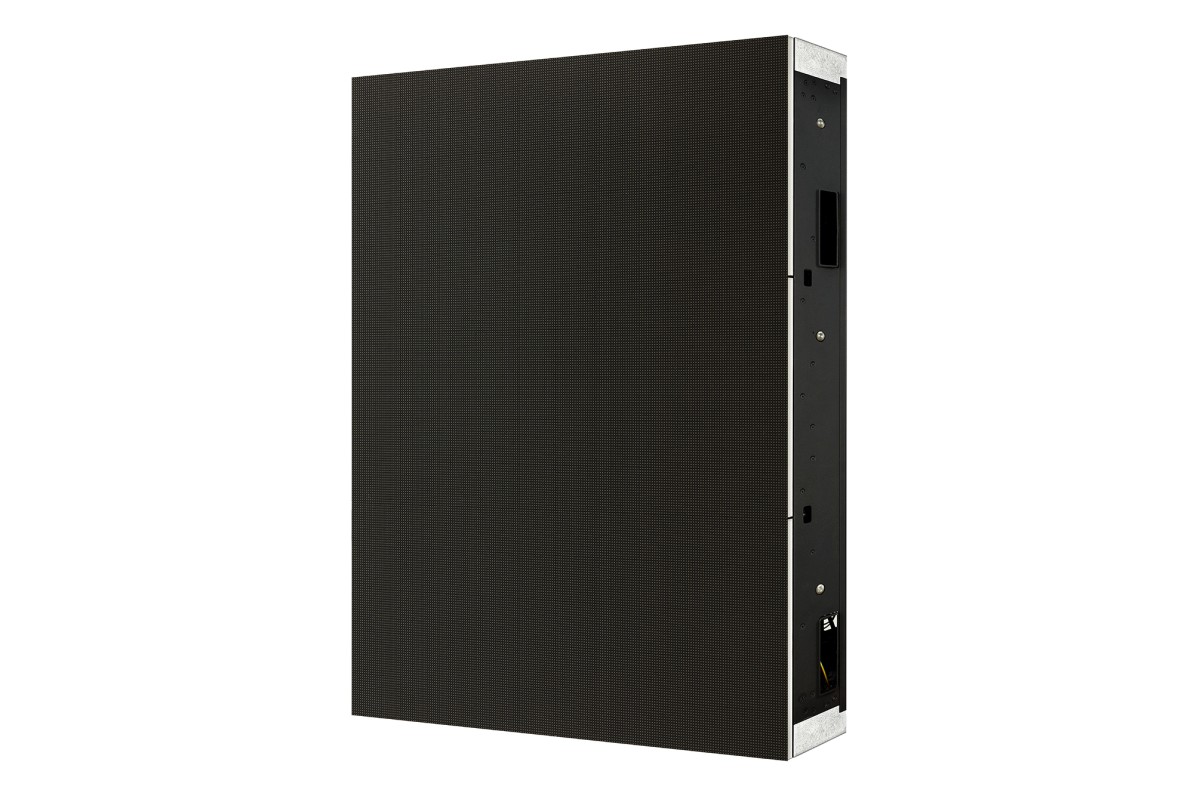

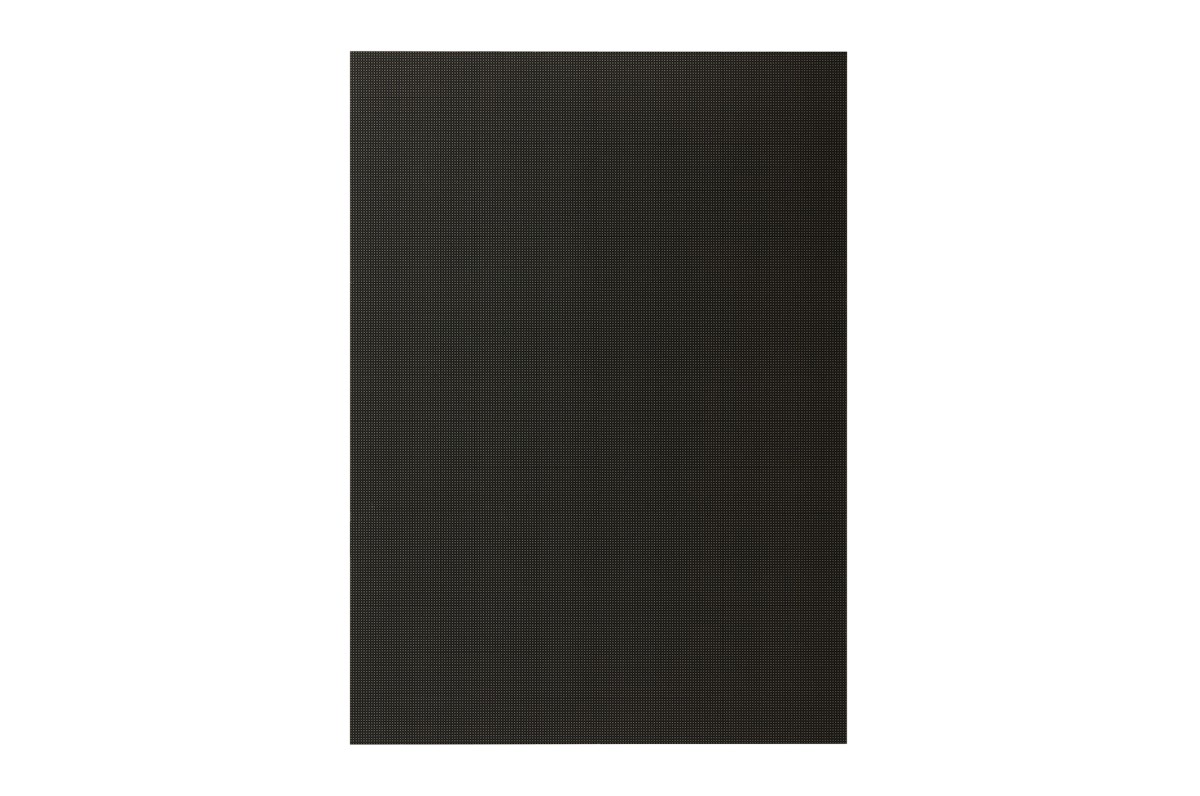

Cabinet
| Modules (W × H, ea) | 6 (2×3) |
|---|---|
| Resolution (W × H, px) | 192 × 270 |
| Material | Iron & Aluminum |
| Dimension (W × H × D, mm) | Main : 640 × 900 × 94 (191 w/Back Cover) Secondary : 640 × 900 × 94 (124 w/Handle) |
| Weight (kg) | Main : 25 Secondary : 15 |
| Power Consumption Typical (watts, 48 nit) | Main : 90 Secondary : 52 |
| Power Consumption (watts, 300 nit) | N/A |
| Service Access | Rear Only |
