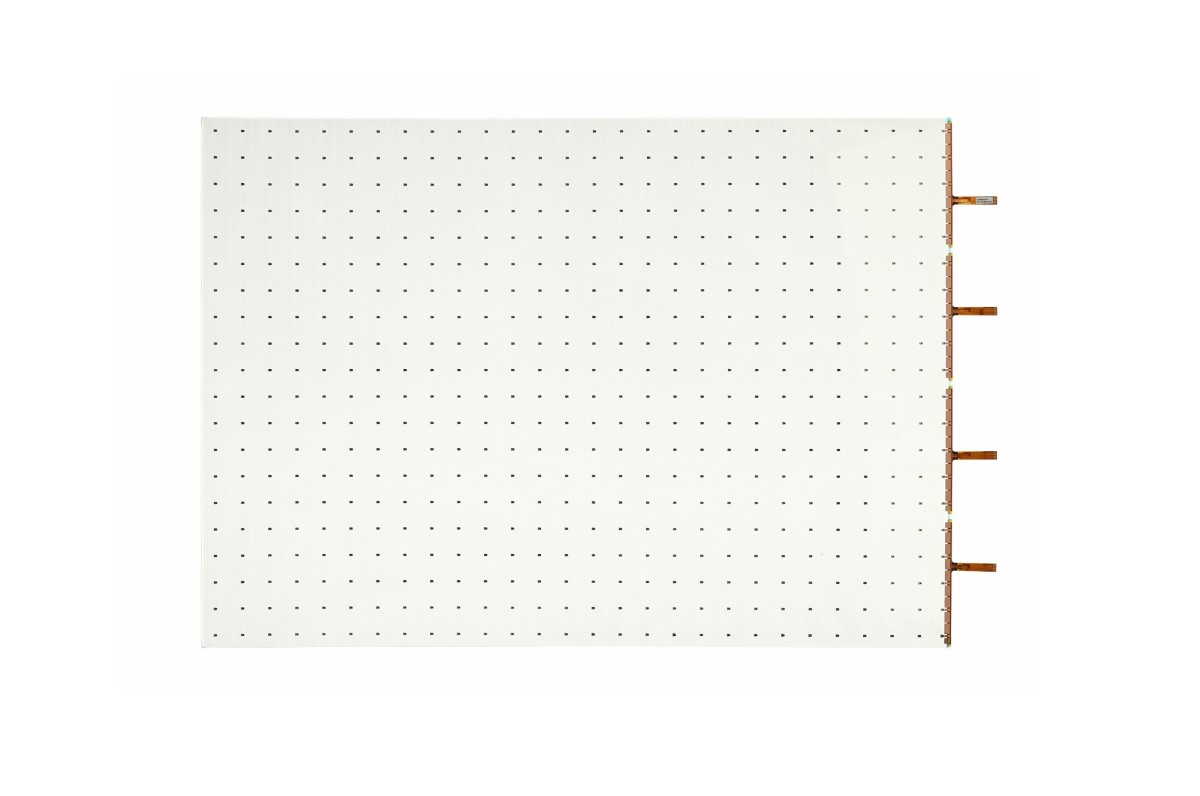

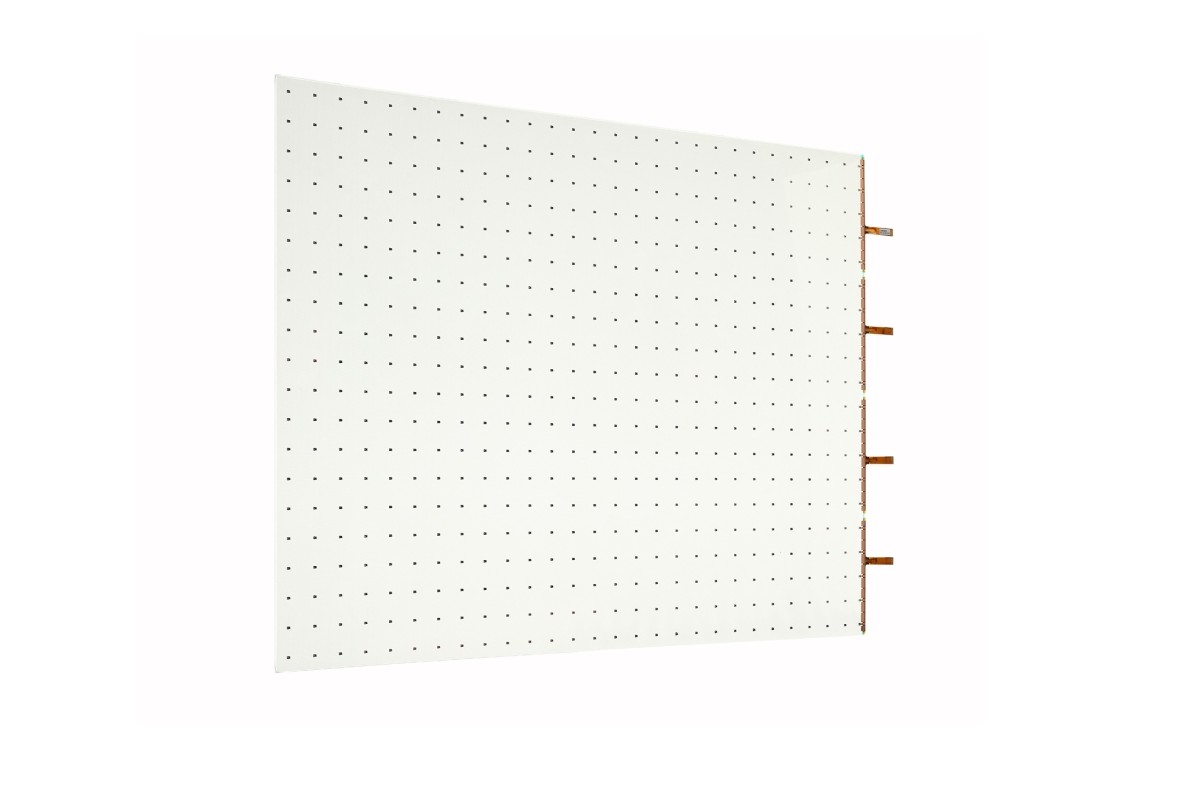

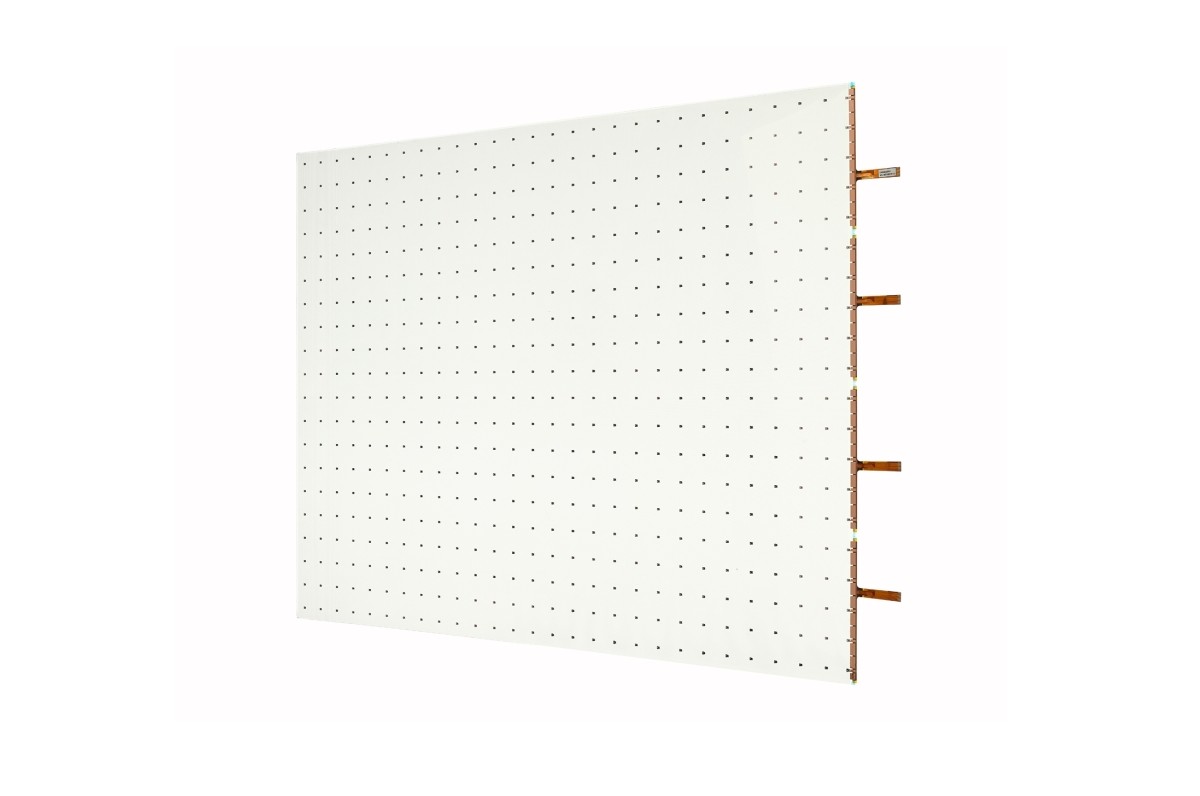

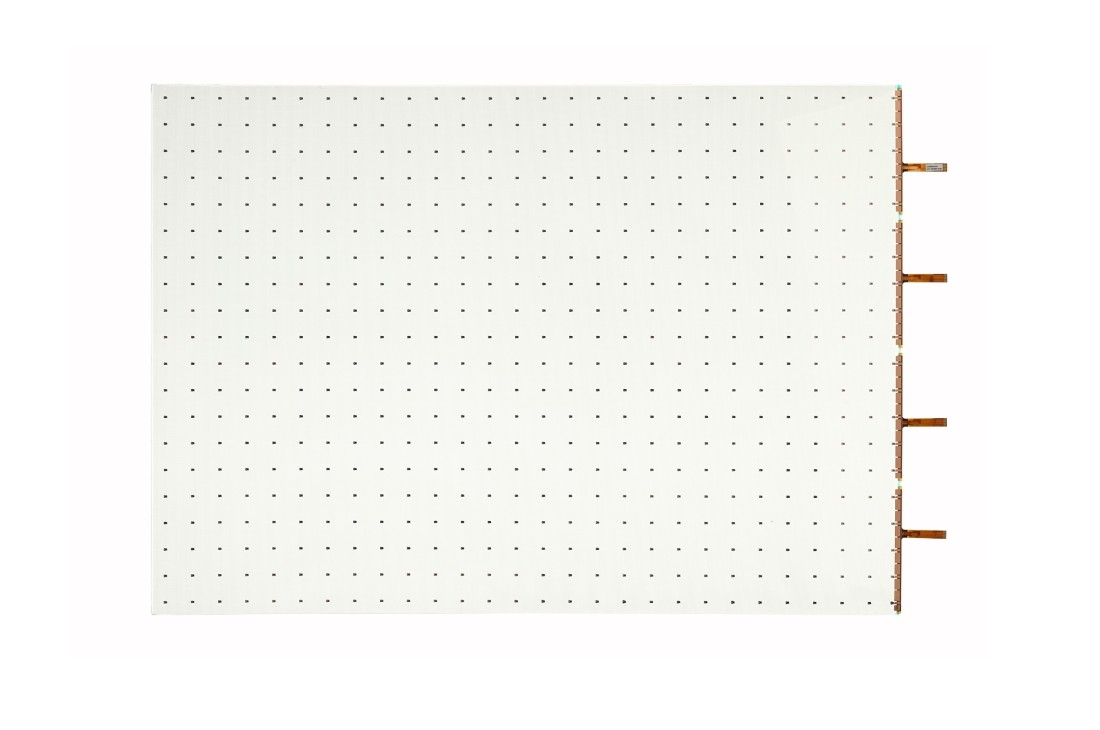

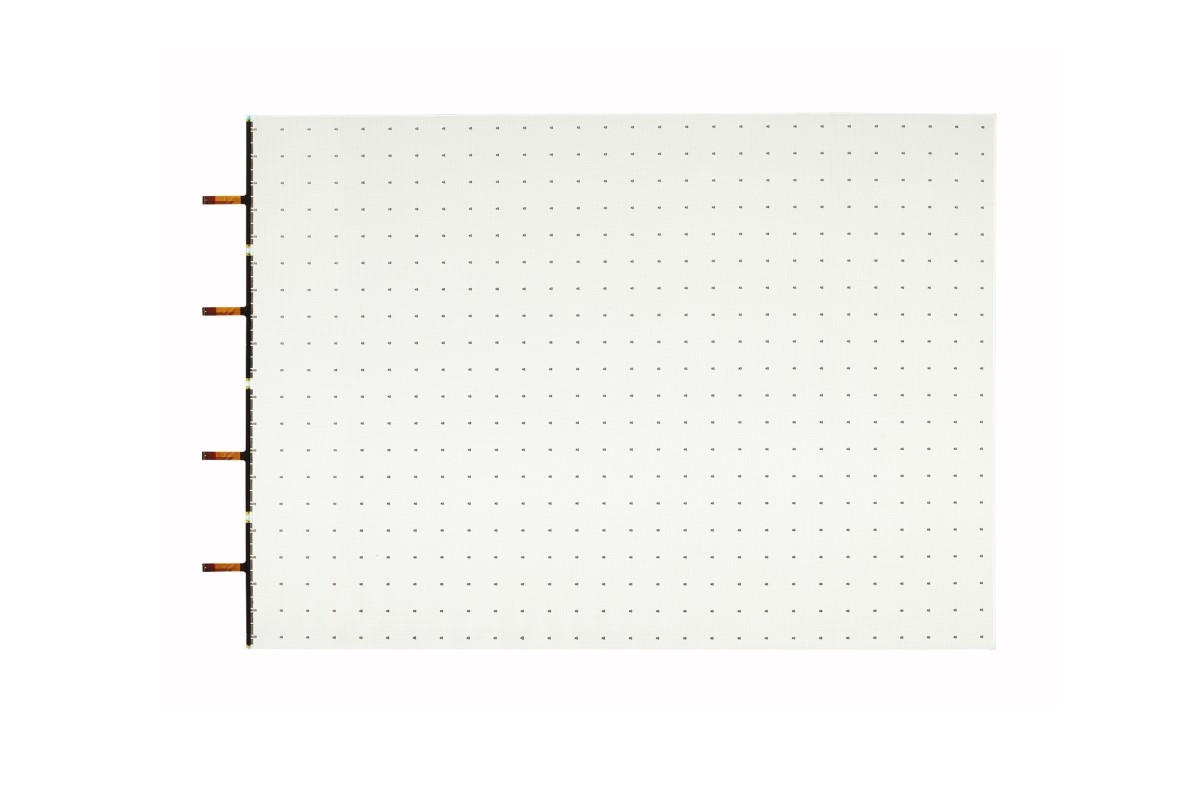

LG LAT240 Transparent LED Film 24 Pixel Pitch
Product code:- Pitch: 24mm
- LED Type: R,G,B 3in1 Color Package
- Transmittance: 73%
- Curvature(concave and convex): 1,100R
- Self-adhesive Film
Description
LAT240DT1
| Pitch | 24±0.2mm |
|---|---|
| LED Type | R, G, B 3in1 Color Package (SMD1818) |
| Resolution | 28 x 20 |
| Pixels per Panel | 560 |
| Pixel Density [point/m²] | 1,736 |
| Brightness | >1,000nit |
| Contrast Ratio | ≥ 100,000:1 |
| Luminance Uniformity | ≥ 70% |
| Viewing Angle (H x V) | 120 x 120 |
| Lifetime (Duration of Half Brightness in Hours) | 50,000 |
| Daily Usage | 24 Hrs / 7 Days |
| Warranty | 2 Years |
| Transmittance | 73% |
| Operating Temperature | 0℃ ~ 45℃ (Indoor Glass Installation Only) |
| Curved Installation | 1,100R (Convex and Concave) |
| Film Trimming | Yes (Parallel to the Bezel Side Only) |
| Color Processing | 130/120/110 Level (R, G, B) |
| Colors | 1,716,000 Colors |
| Color Chromaticity | Cx: 0.28±0.03, Cy: 0.28±0.03 |
| Dimension (W x H x D) | 668 x 480 x 2.0 mm (with Front & Back Protection Film) |
| Weight | 0.73 kg |
| Power Consumption | 37W (Transparent panel 1EA + Bezel kit 1EA) |
Additional information

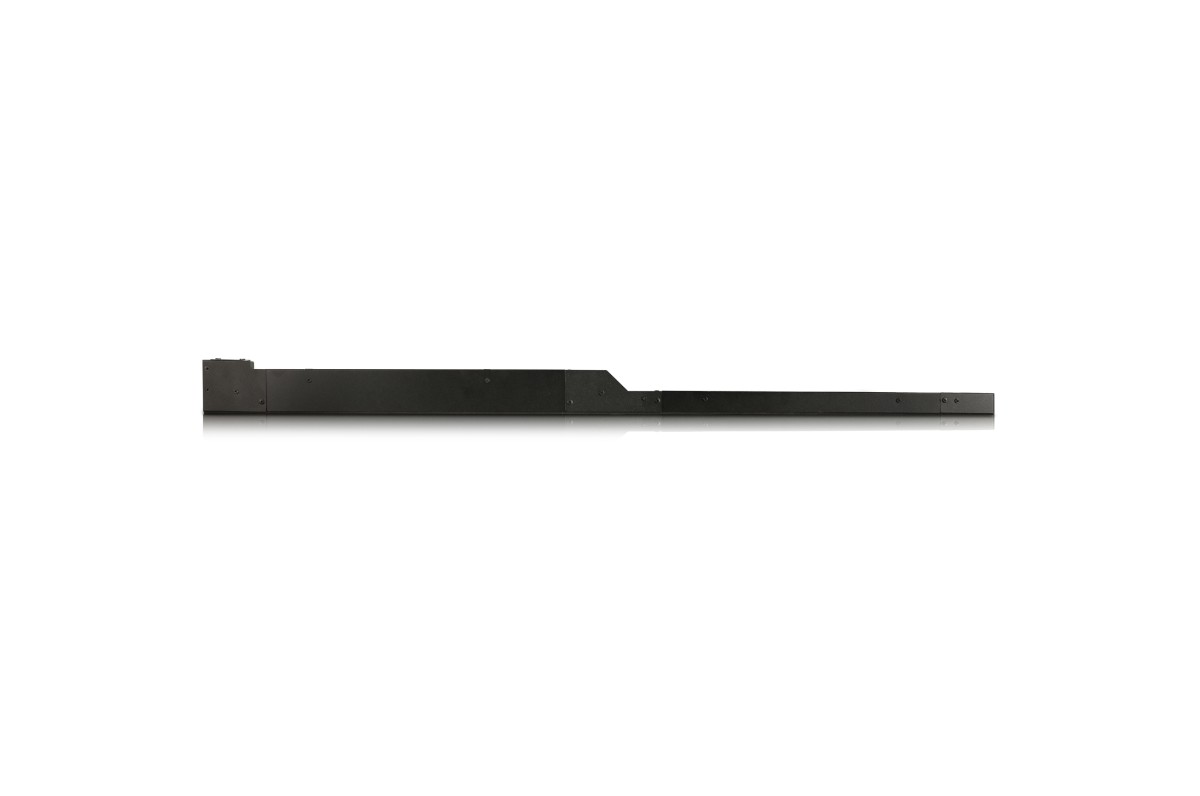

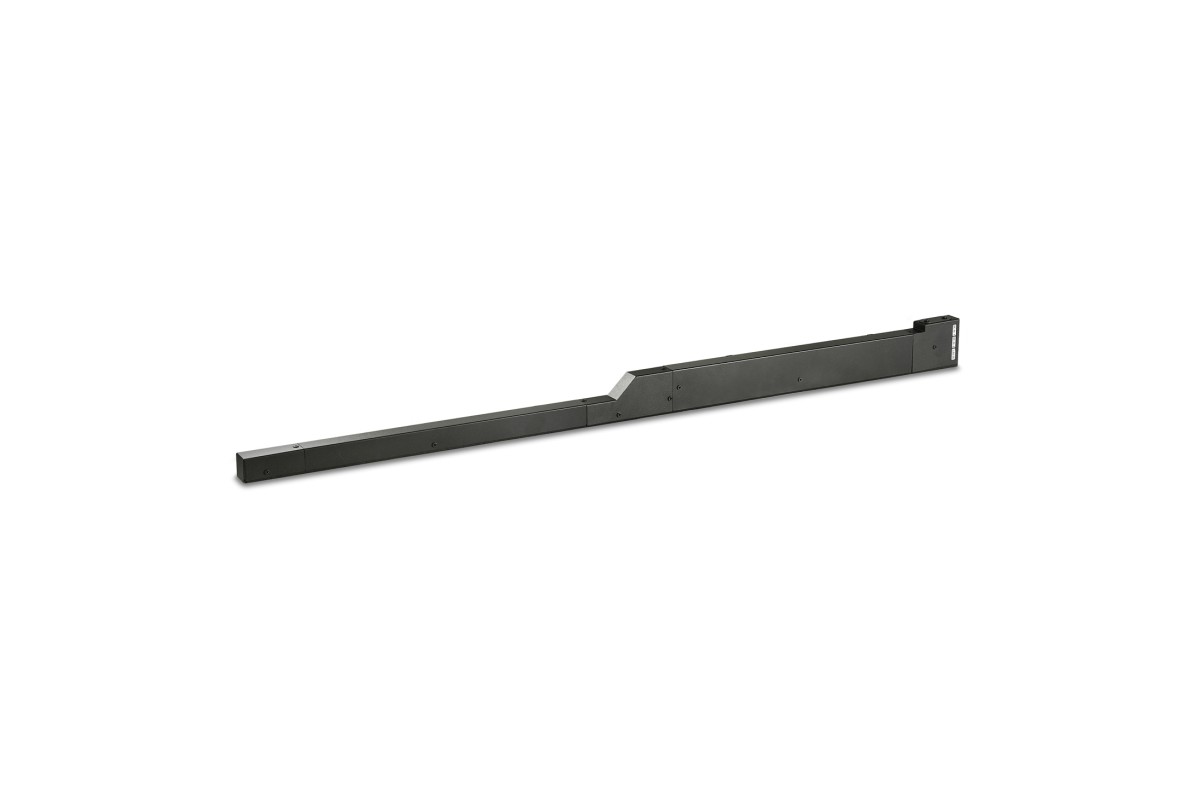

1st Bezel Kit
| Dimension (W x H x D) | 547.3 x 63 x 24 mm |
|---|---|
| Weight | 0.45 kg |

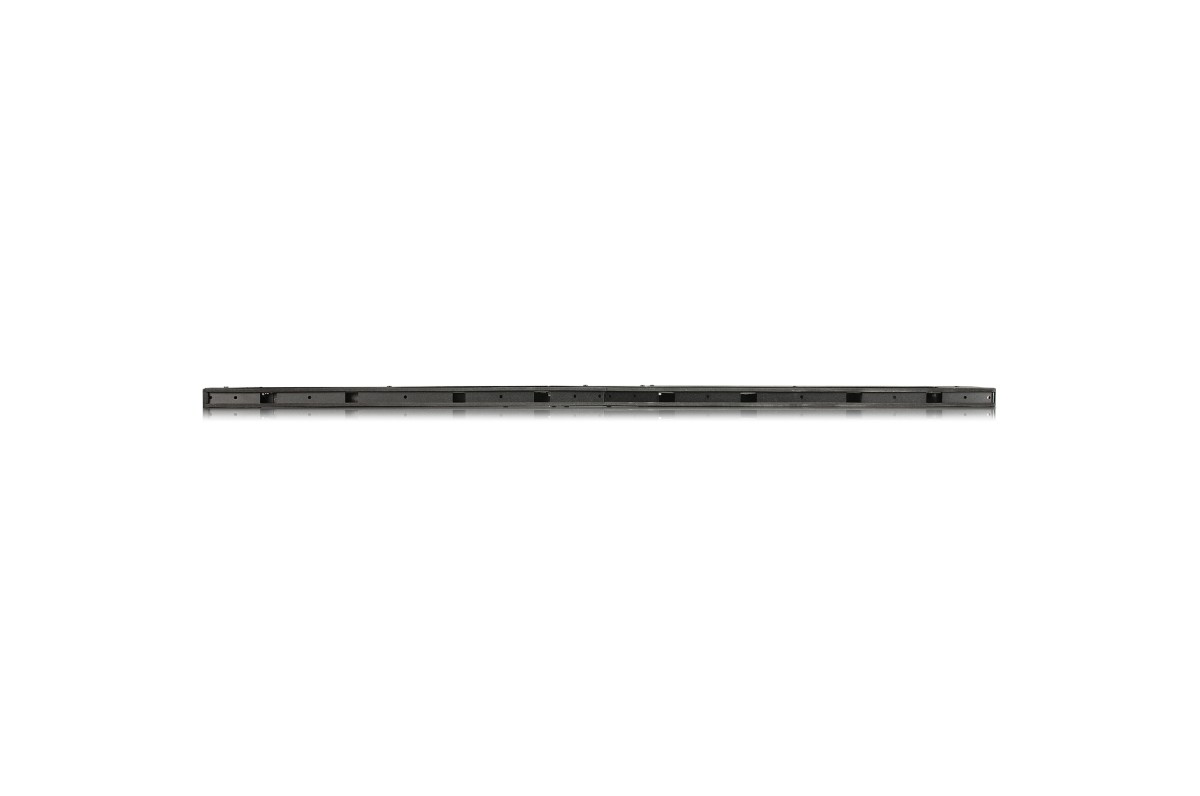

Common Bezel Kit
| Dimension (W x H x D) | 479.5 x 28.1 x 24 mm |
|---|---|
| Weight | 0.26 kg |
Unit Controller
| Resolution | 960 x 540 (4 Unit Controllers Needed for FHD) |
|---|---|
| Interface | Input : LVDS Output : RJ45 x4EA |
| Maximum Transmission Length | 100 m |
| Dimension (W x H x D) | 293 x 37 x 188.7mm |
| Weight | 1.5 kg |
| Temperature Sensor | Yes |
| Power Consumption | 20 W |
System Controller
| Video | DP: 3,840 x 2,160 @30Hz HDMI: 3,840 x 2,160 @30Hz DVI-D: 1,920 x 1,080 @60Hz |
|---|---|
| Input | HDMI, DP, DVI-D, RS232C, RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0 |
| Output | LVDS, DP, RS232C, RJ45 (w/o LED Indicator) |
| Dimension (W x H x D) | 293 x 40.1 x 193.3 mm |
| Weight (Head) | 1.6 kg |
| Temperature Sensor | O |
| Light Sensor | O |
| Source Selection | HDMI, DVI-D, DP |
| TPC | Yes |
| Power Consumption | 17W |
| CMS S/W | Yes |
| Accessories | Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card |
Power
| Dimension (W x H x D) | 183 × 86 × 28 mm |
|---|---|
| Weight | 0.769 kg |
| Input | 100~240V, 50~60Hz |
| Output | 19.5V/10.8A (210W) |
| Color | White |
| DC Output Cable | 14AWG, 1.5m |
| Type | L Type |
