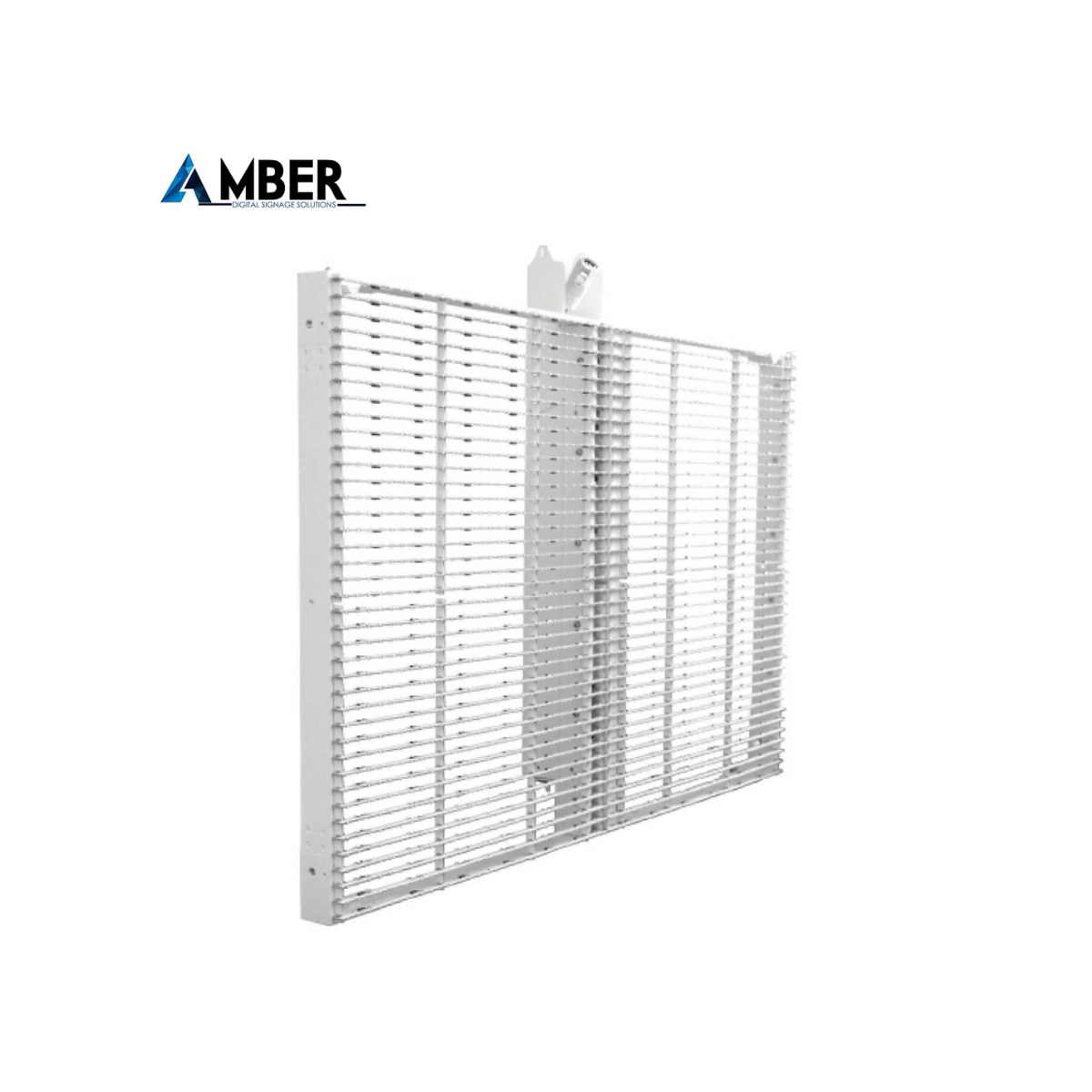

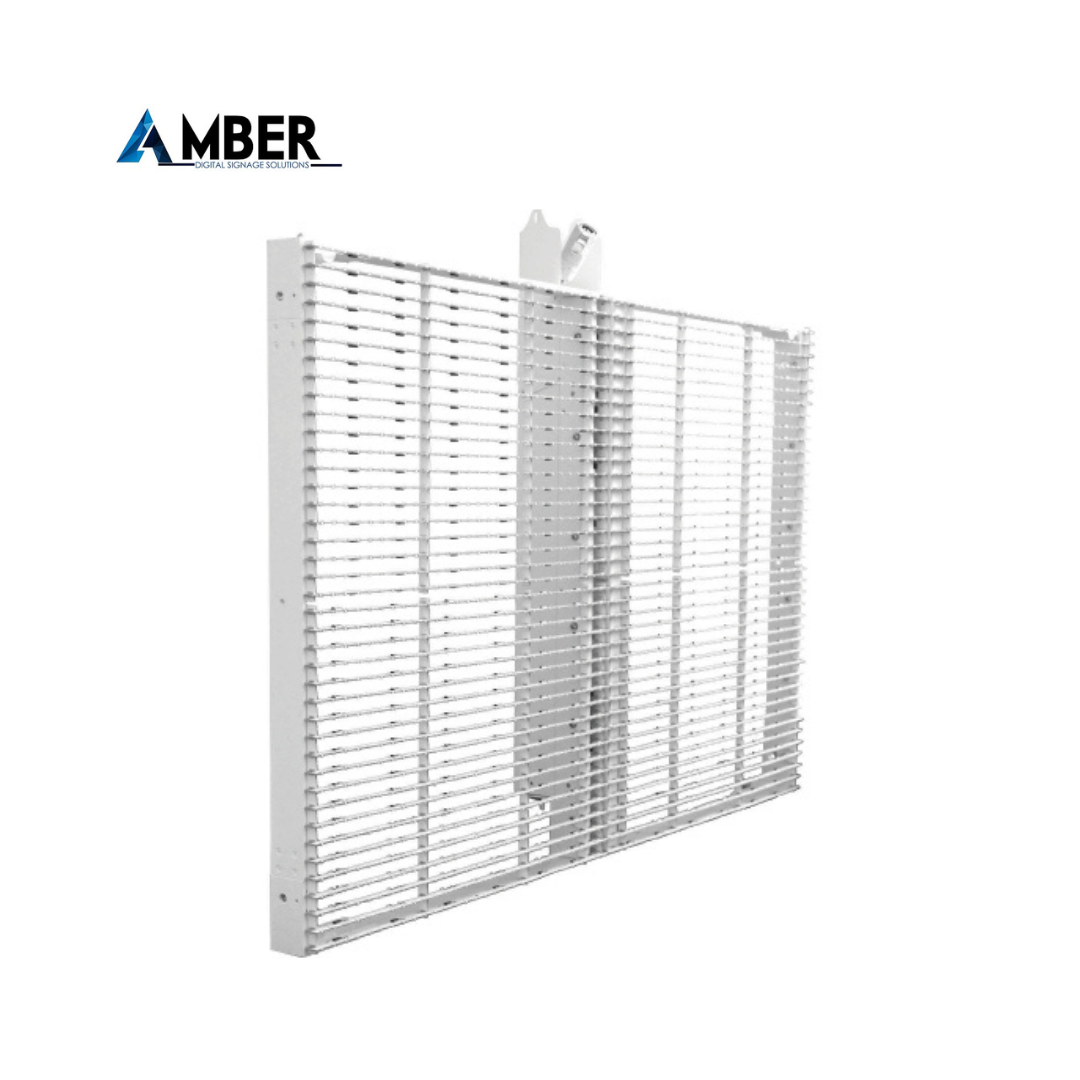

Amber BV-G Transparent LED Fixed Install Series
Product code:Clean and See Through Displaying,
Innovative Transparent Technology
● Excellent Viewing Angle
● Hidden Cable Appearance
● Easy to Install and Dismantle
● Extremely versatile and highly customizable
SEND AN ENQUIRYDescription
Slim, Light Weight and Quiet
● 35mm-45mm thickness
● 14kg per square meter

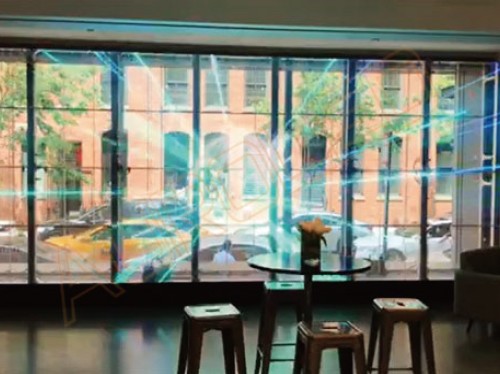

● Available to attach onto glass wall directly
High Transparency and Concise
● 60-80% transparency rate among different pitches
● Variable brightness options for day and night environment

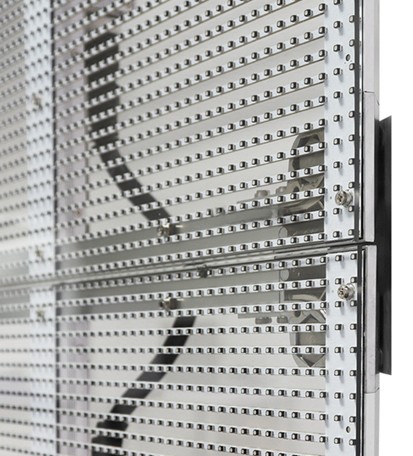

● Hidden cable design looks clean and concise
Customizable and Versatile
● Unlimited orientation,highly customizable
● Suitable for any size and shape

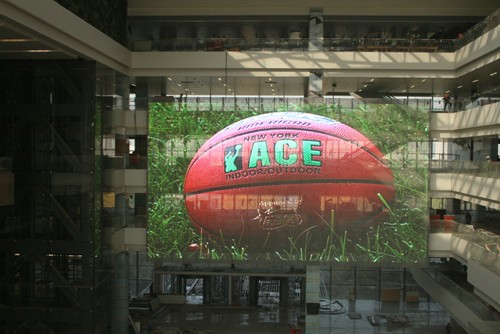

● Convex, concave, wave,cylindrical, fit any indoor architectural structures
Additional information
BV-G-2.5-7.8 | BV-G-3.9-7.8 | BV-G-5-8 | BV-G-10 | BV-G-16 |
Physical Pitch | 2.5x7.8mm | 3.9x7.8mm | 5x8mm | 10.4x10.4mm | 16mm |
Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
Pixel Density | 50688pixels/m² | 32256pixels/m² | 25000pixels/m² | 9216pixels/m² | 3906pixels/m² |
Module Dimensions (WxH)(mm) | 500x125 | 500x125 | 480x320 | 500x125 | 480x320 |
Panel Dimensions (WxH)(mm) | 1000x500 | 1000x500 | 960x640 | 1000x500 | 960x640 |
NO. of Modules Per Panel(WxH) | 2x4 | 2x4 | 2x2 | 2x4 | 2x2 |
Physical Resolution of Module(WxH) | 200x16 | 128x16 | 96x40 | 48x12 | 30x20 |
Physical Resolution of Panel(WxH) | 400x64 | 256x64 | 192x80 | 96x48 | 60x40 |
Panel Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
Single Cabinet Weight | <14kg/m² | <14kg/m² | <14kg/m² | <14kg/m² | <14kg/m² |
Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
Average Power Consumption | 240W/m² | 180W/m² | 203W/m² | 140W/m² | 218W/m² |
Max. Power Consumption | 700W/m² | 560W/m² | 670W/m² | 400W/m² | 650W/m² |
Operating Temp/Humidity | -10ºC-60ºC 10%-60% | -10ºC-60ºC 10%-60% | -10ºC-60ºC 10%-60% | -10ºC-60ºC 10%-60% | -10ºC-60ºC 10%-60% |
Storage Temp/Humidity | -30ºC-60ºC 10%-60% | -30ºC-60ºC 10%-60% | -30ºC-60ºC 10%-60% | -30ºC-60ºC 10%-60% | -30ºC-60ºC 10%-60% |
Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
Brightness | 1000~4200 nits | 1000~4200 nits | >5500 nits | 1000~4200 nits | >5500 nits |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
Vertical Viewing Angle | 140° | 140° | 140° | 140° | 140° |
Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
IP Rating(Front/Rear) | IP30 | IP30 | IP30 | IP30 | IP30 |
Servicing | Rear | Rear | Rear | Rear | Rear |
Scan Method | 1/11 Scan | 1/7 Scan | 1/6 Scan | 1/2 or 1/4 Scan | Static Scan |
