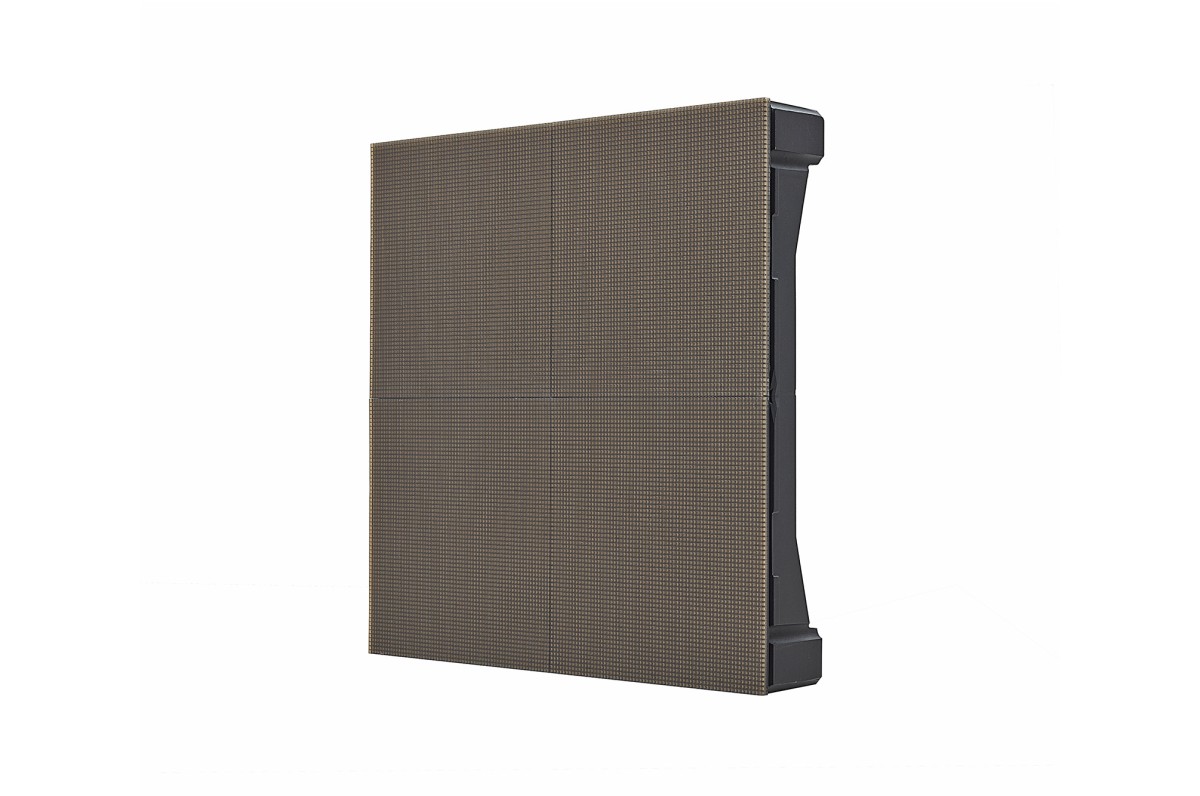

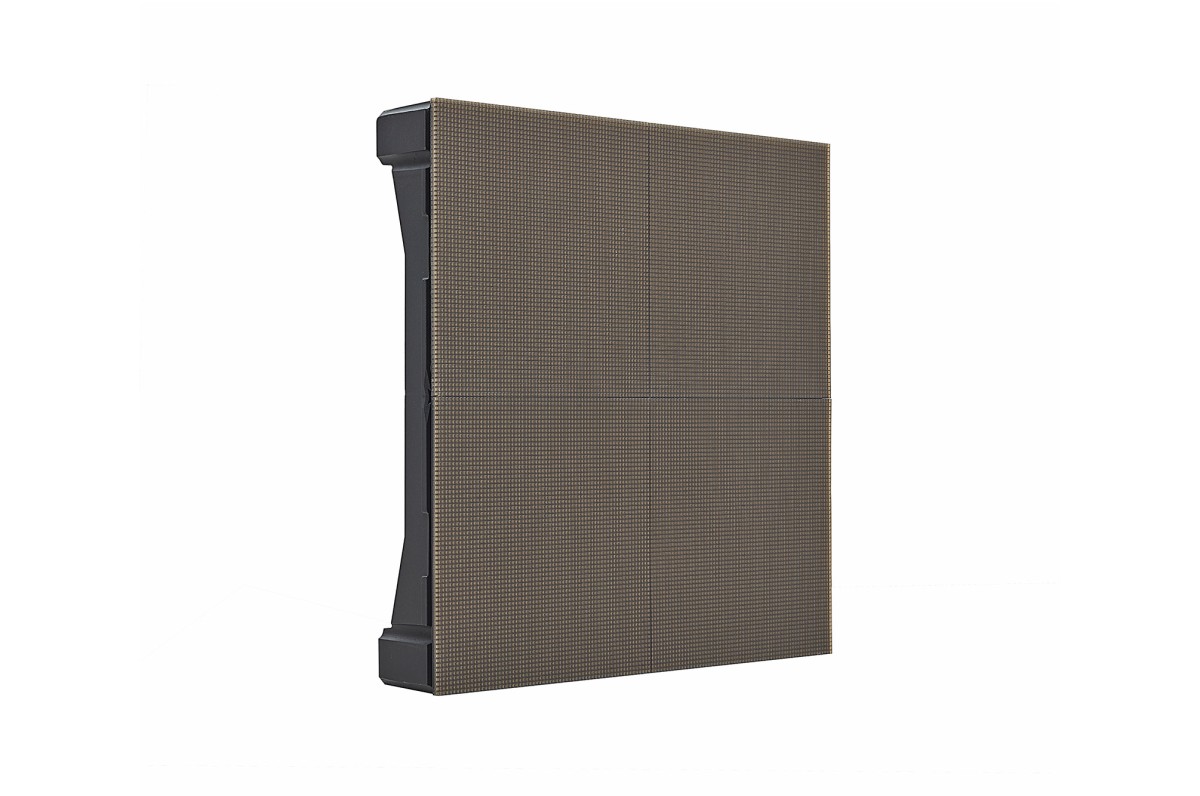

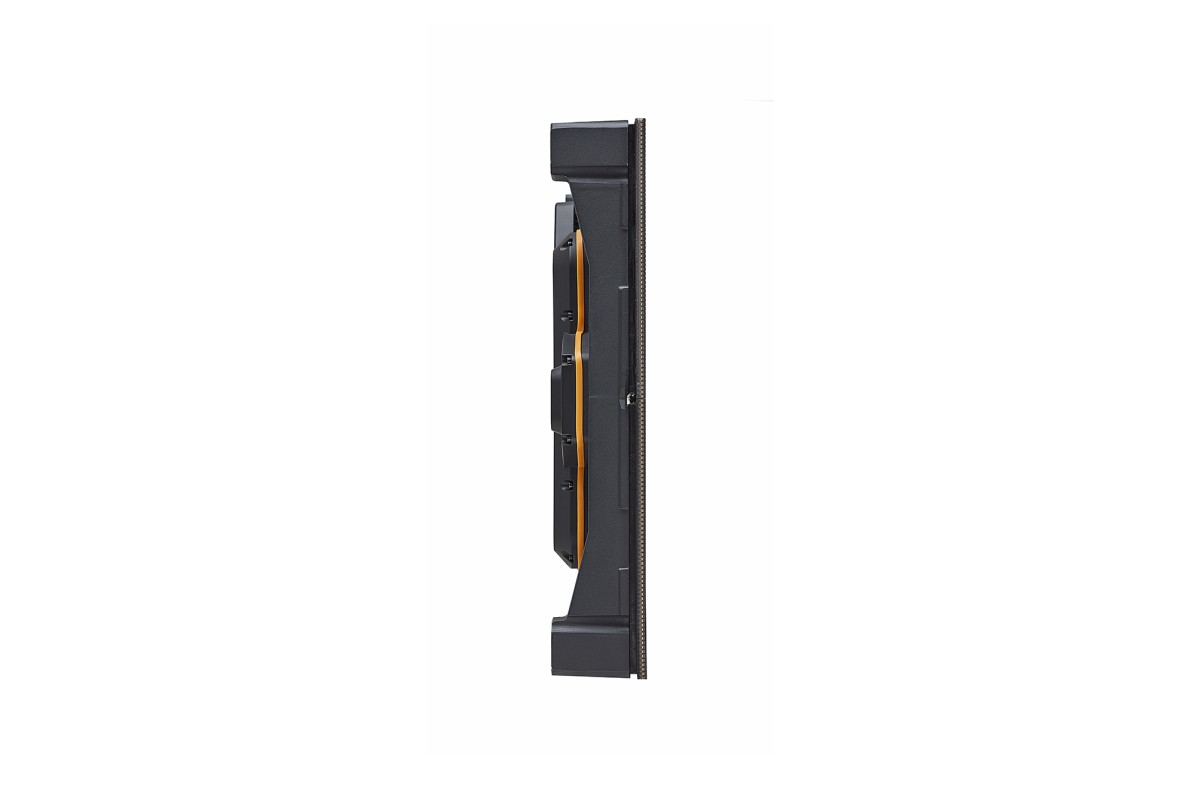

LG LFCG039 LED Interactive Touch Screen 3.91 Pixel Pitch Digital Floor Series
Product code:- Pixel Pitch: 3.91 mm
- Brightness: 3,000 nit
- High Durability
- Excellent Usability
- Easy Installation and Maintenance
- Interactive Touch Screen
Description
Physical Parameter
| Pixel Configuration | 3 in 1 SMD |
|---|---|
| Pixel Pitch (mm) | 3.906 |
| Module Resolution (W x H) | 64 × 64 |
| Module Dimensions (W x H, mm) | 250 × 250 |
| Weight per Module (kg) | 0.90 |
| No. of Modules per Cabinet (W × H) | 2 × 2 |
| Cabinet Resolution (W × H) | 128 × 128 |
| Cabinet Dimensions (W × H × D, mm) | 500 × 500 × 84.5 |
| Cabinet Surface Area (m²) | 0.250 |
| Weight per Square Meter (kg/m²) | 64.0 |
| Weight per Cabinet (kg/cabinet) | 15.1 |
| Physical Pixel Density (pixels/m²) | 65,536 |
| Flatness of Cabinet | ±0.5 |
| Cabinet Material | Die Casting Aluminum |
| Service Access | Front |
Additional information
Optical Parameter
| Max. Brightness (After Calibration) | 3,000 |
|---|---|
| Color Temperature | 3,500-9,000 |
| Visual Viewing Angle (Horizontal/Vertical) | 160 × 160 |
| Brightness Uniformity | ≥97% |
| Color Uniformity | ±0.003 Cx,Cy |
| Contrast Ratio | 5,000 |
| Processing Depth (bit) | 14 |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 240 |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 80 |
| Power Consumption (W/m², Max.) | 960 |
| Heat Dissipation (BTU/h/Cabinet, Max.) | 819 |
| Heat Dissipation (BTU/h/Cabinet, Avg.) | 273 |
| Heat Dissipation (BTU/h/㎡, Max.) | 3,276 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Half Brightness) | 100,000 hrs |
|---|---|
| Operating Temperature (°C) | -10 to +45 |
| Operating Humidity | 0-80% RH Non-condensing |
| IP rating Front / Rear | IP65 / IP65 |
Certification
| Safety | CE, FCC, ETL |
|---|
Controller
| Controller | LCIN010 |
|---|
