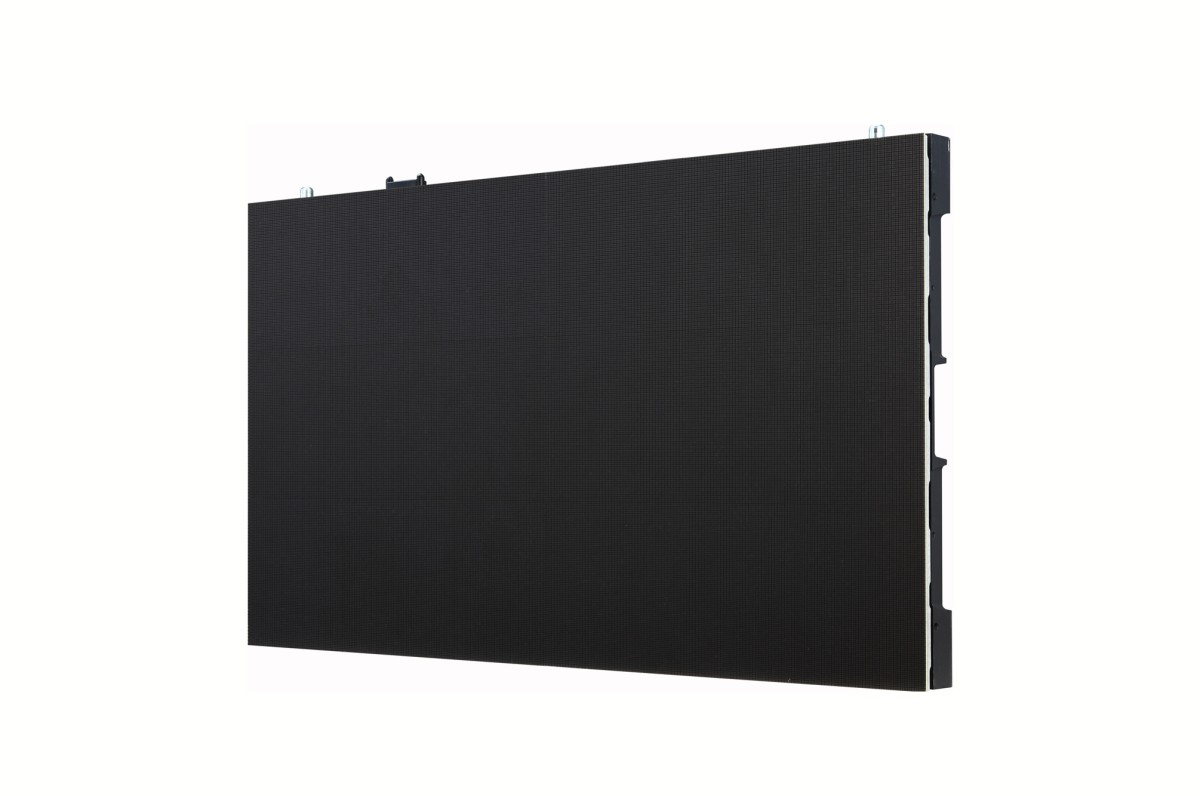

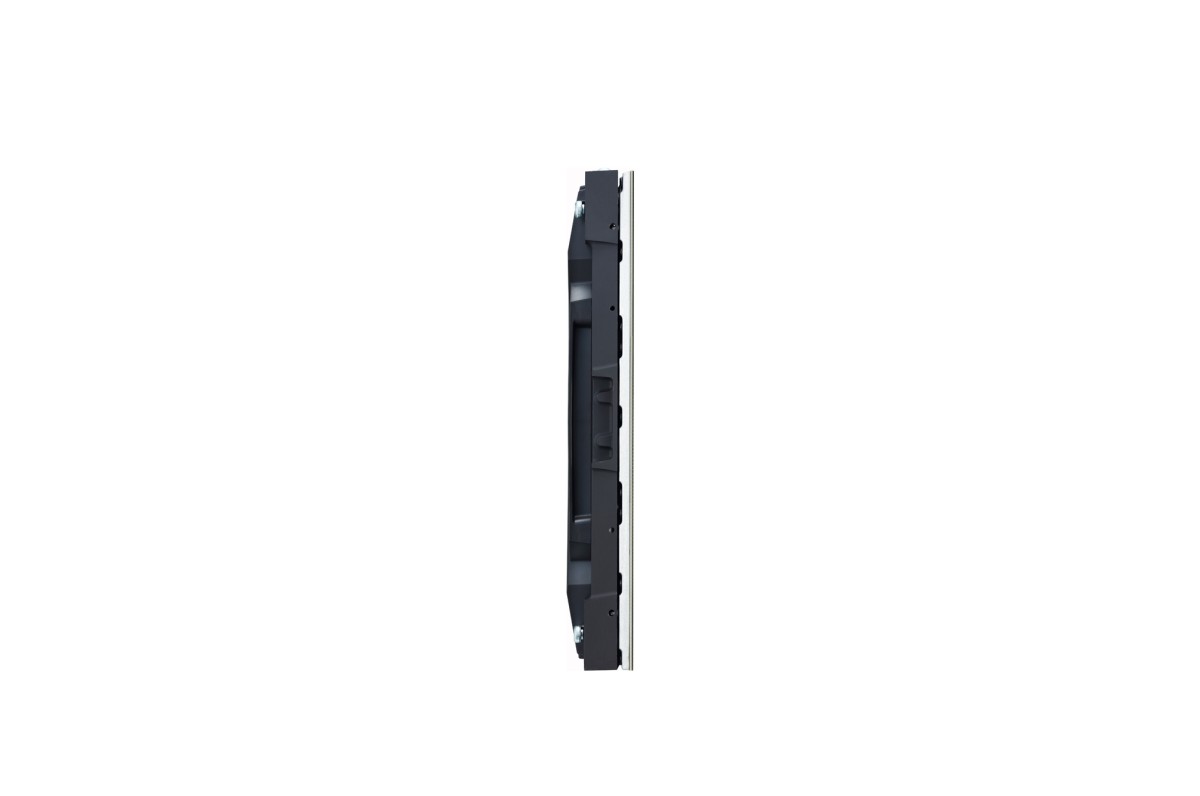

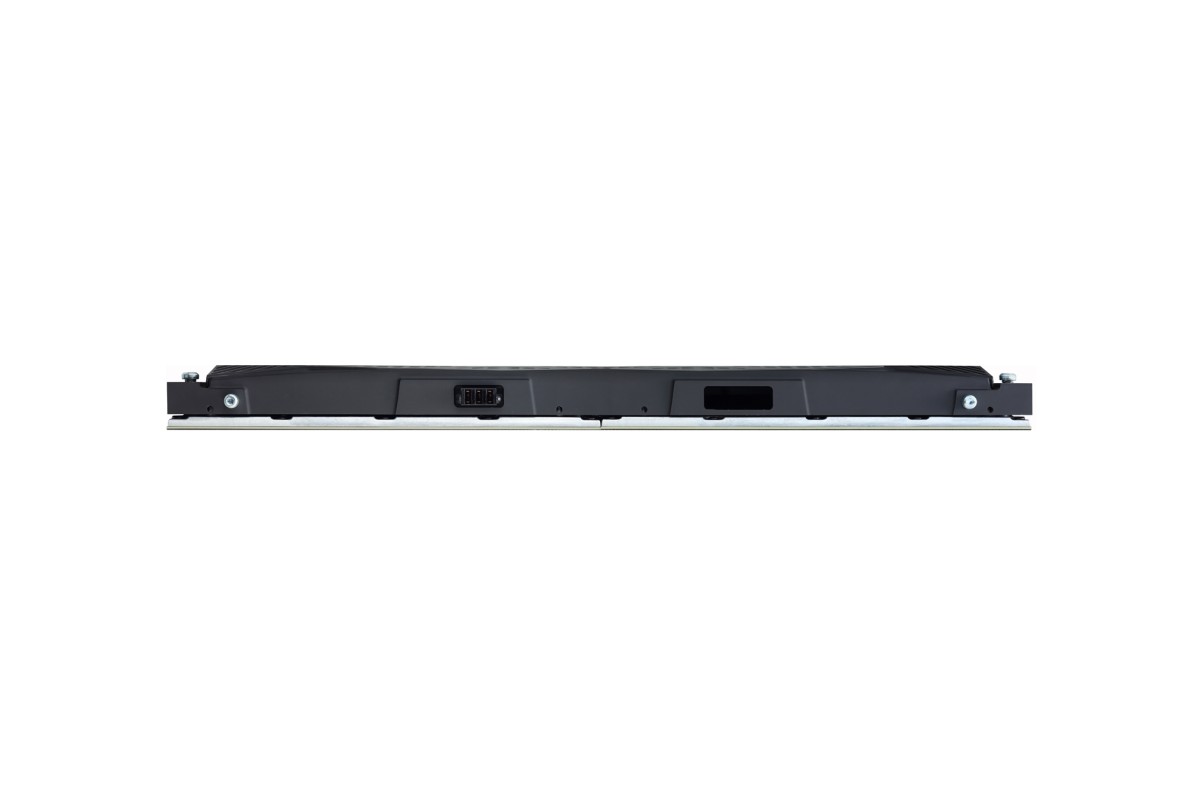

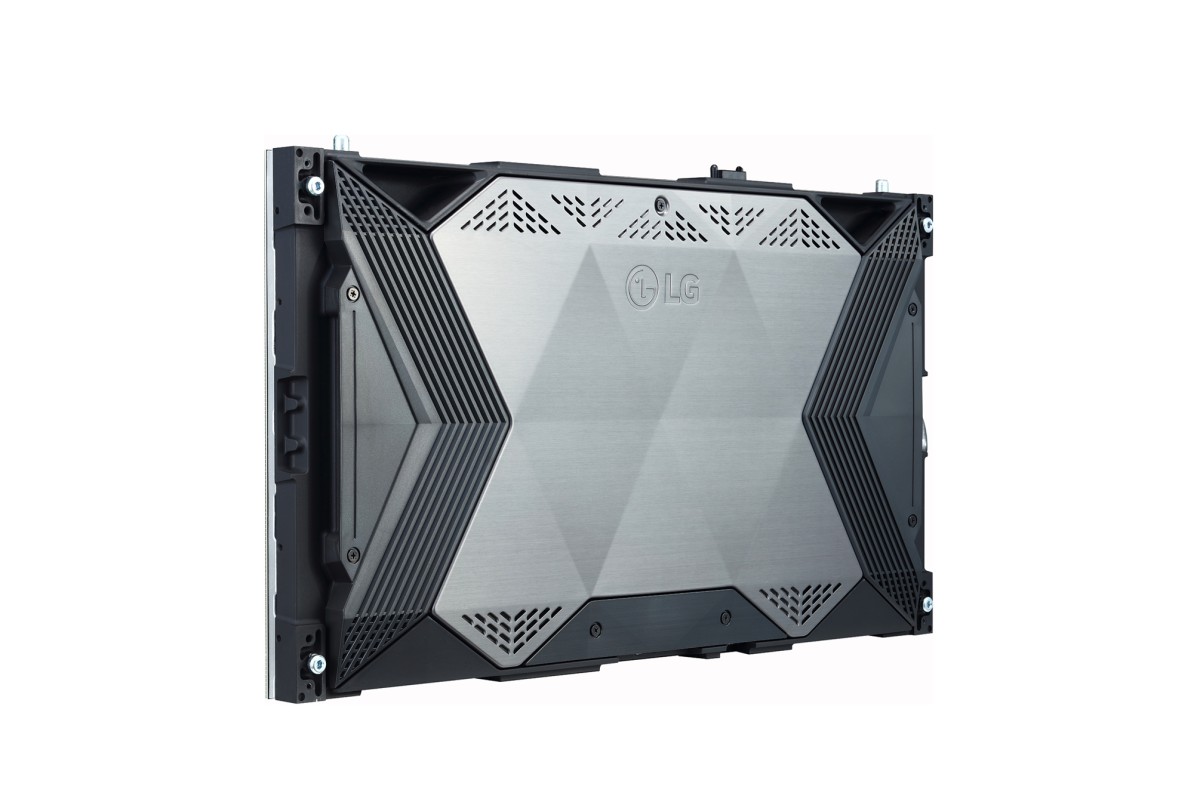

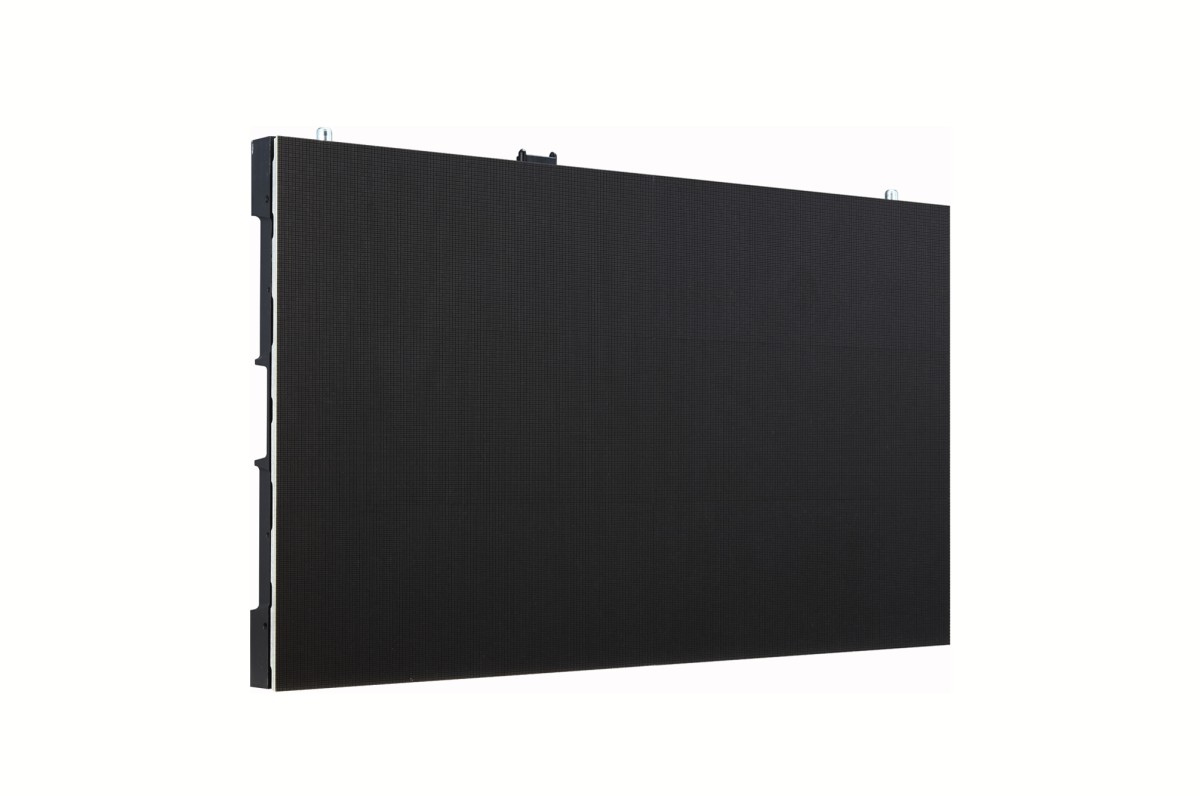

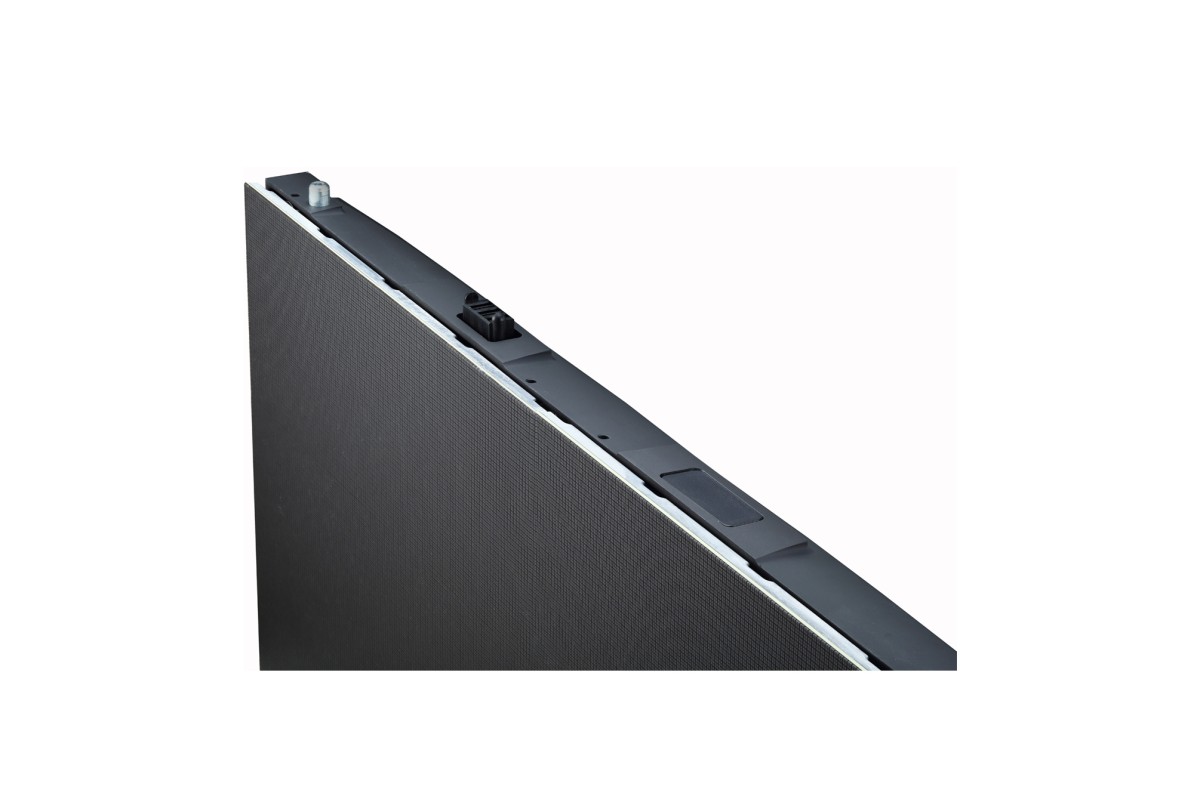

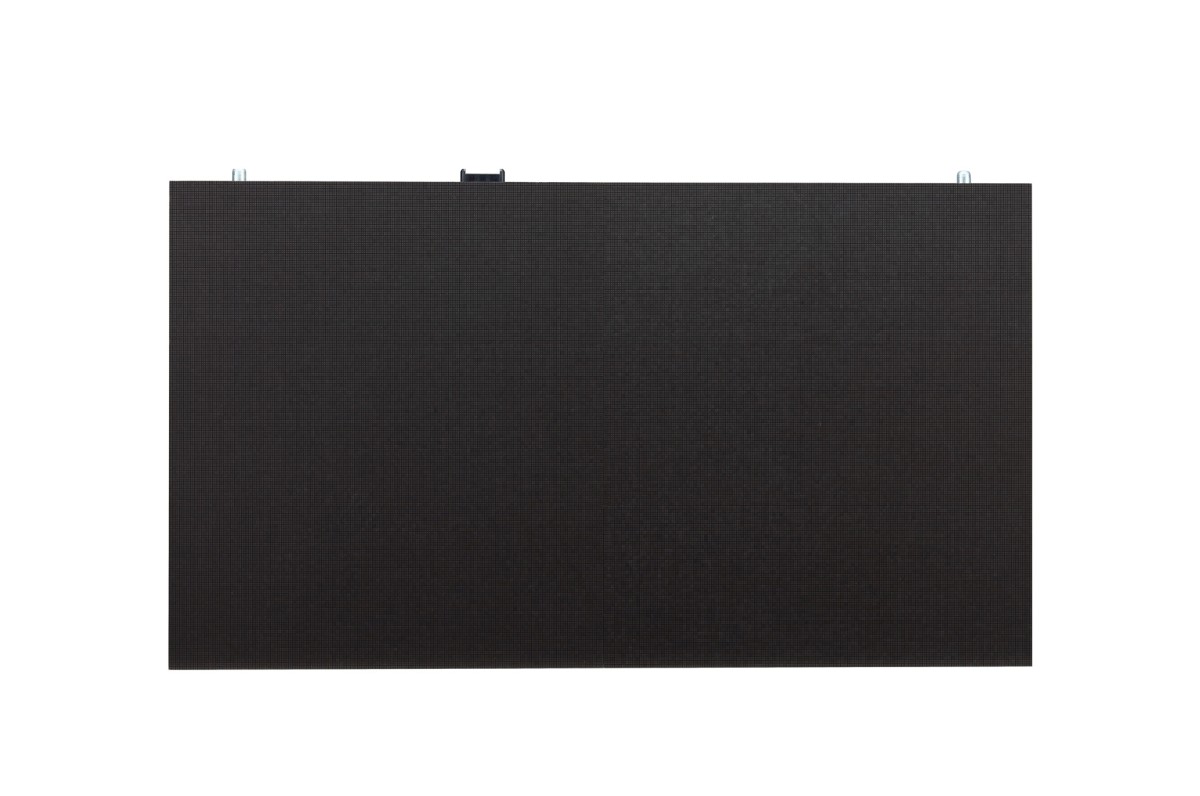

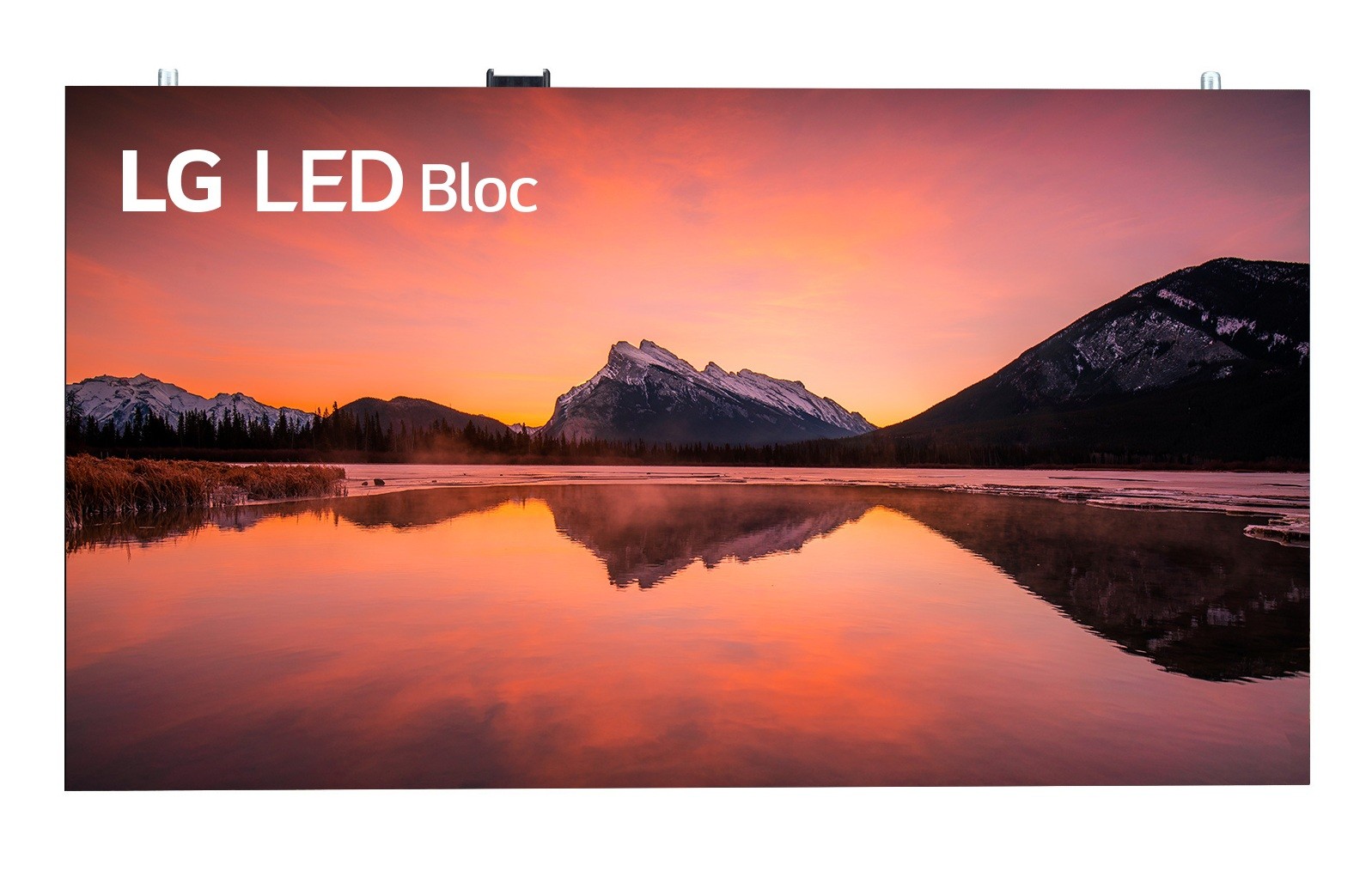

LG LSAA012 LED Bloc 1.25 Pixel Pitch
Product code:- Pixel Pitch: 1.25mm
- Brightness: 600 cd/m²

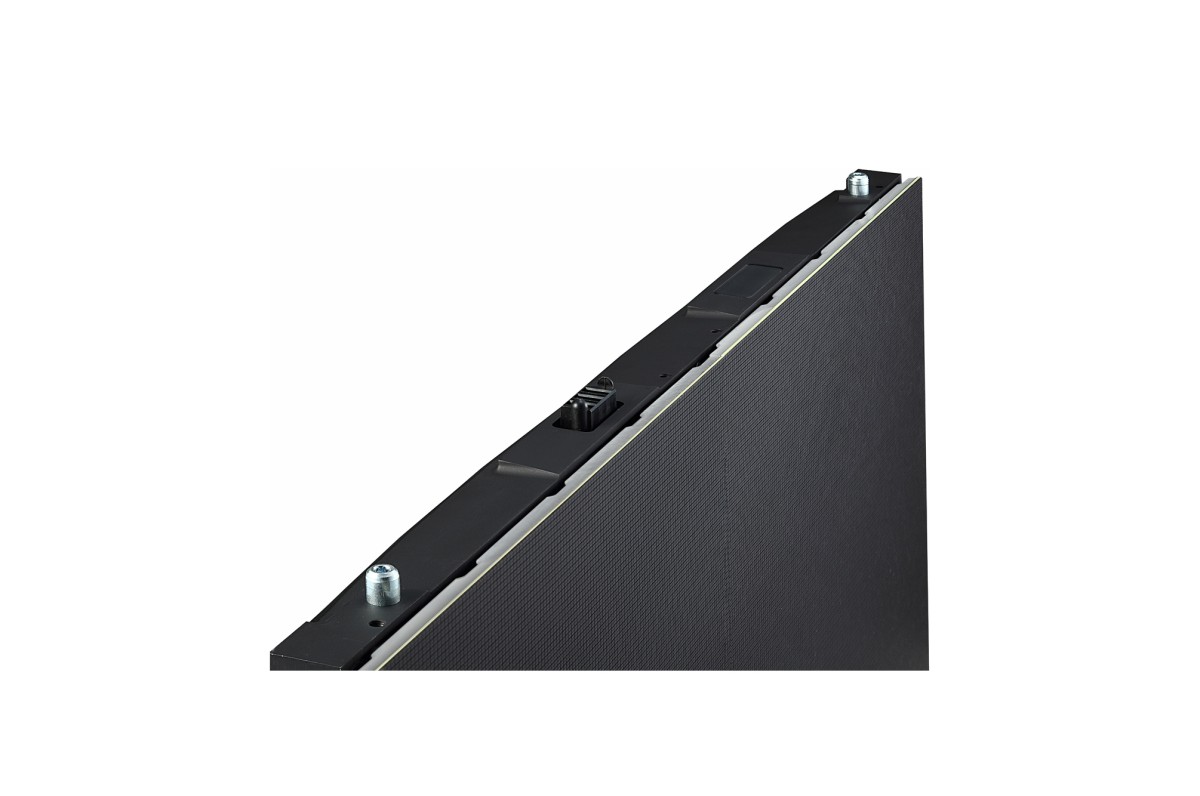

- Cable-less Signal Transmission & Power Docking
- AI-powered Image Processor
- Real-time ConnectedCare Service
Description
Physical Parameter
| Pixel Configuration | 4 in 1 |
|---|---|
| Pixel Pitch (mm) | 1.25 |
| Module Resolution (W x H) | 240 × 90 |
| Module Dimensions (W x H, mm) | 300 ×112.5 |
| Weight per Module (kg) | 0.20 |
| No. of Modules per Cabinet (W × H) | 2 × 3 |
| Cabinet Resolution (W × H) | 480 × 270 |

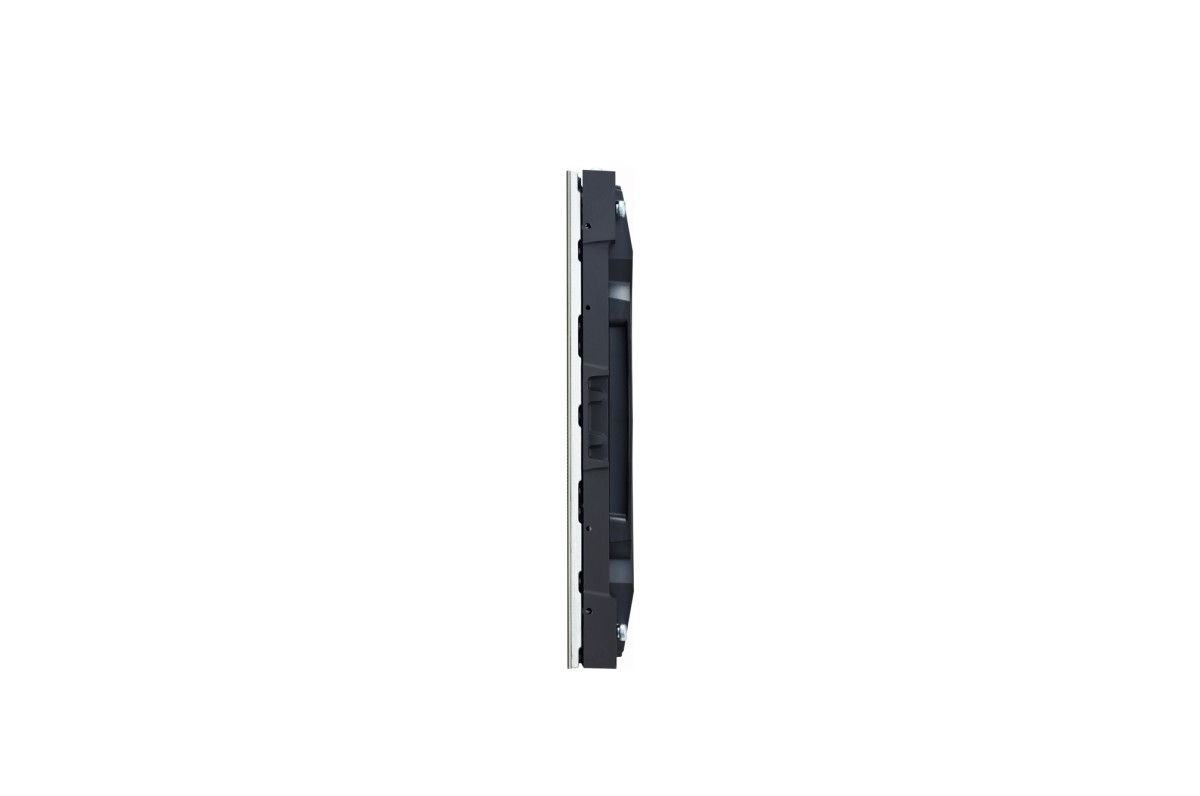

| Cabinet Dimensions (W × H × D, mm) | 600 × 337.5 × 44.9 |
| Cabinet Surface Area (m²) | 0.203 |
| Weight per Square Meter (kg/m²) | 36.1 |
| Weight per Cabinet (kg/cabinet) | 7.3 |
| Physical Pixel Density (pixels/m²) | 640,000 |
| Flatness of Cabinet | ±0.5 mm |

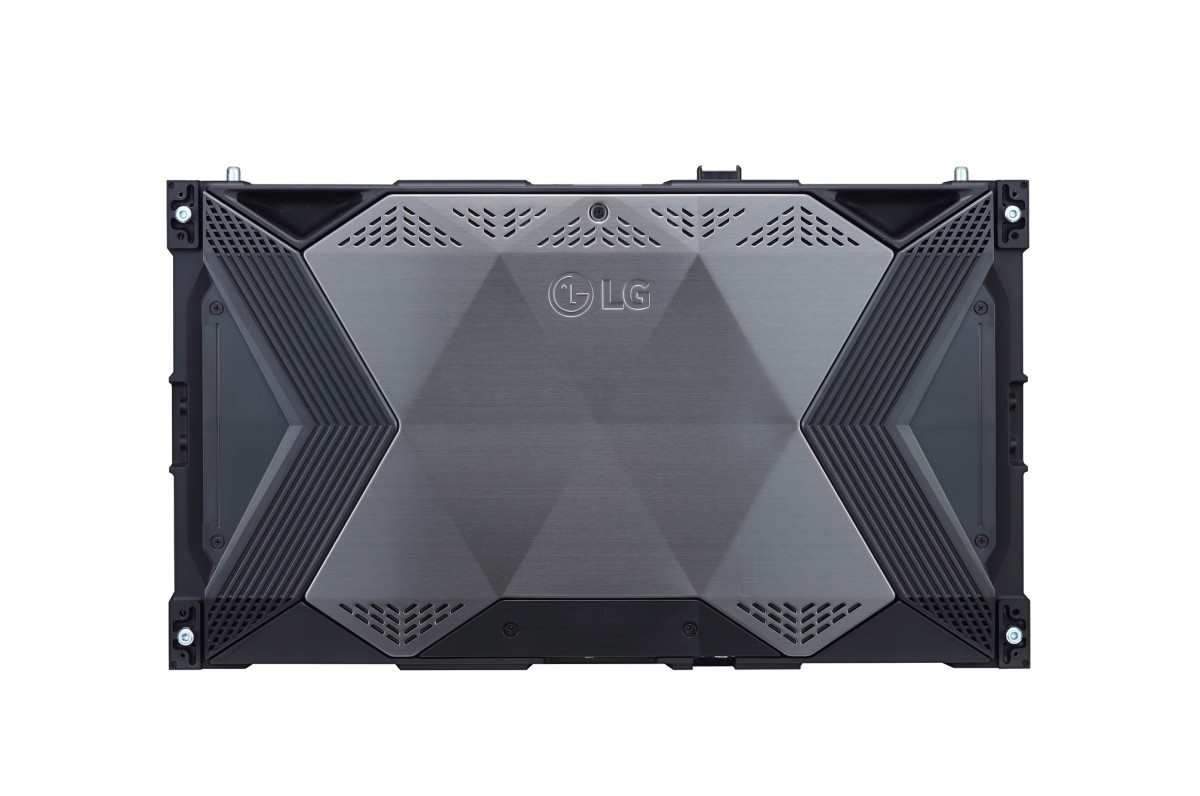

| Cabinet Material | Die-casting Aluminum |
Additional information
Optical Parameter
| Max. Brightness (After Calibration) | 600 nit (Max.) 1,200 nit (Peak) |
|---|---|
| Color Temperature (Default/Adjustable) | 6,500 K / 3,200 ~ 9,300 K * Adjustable via LED Assistant on PC |
| Visual Viewing Angle (Horizontal/Vertical) | 170 × 170 |
| Brightness Uniformity | 98% |
| Color Uniformity | ±0.015 Cx, Cy |
| Contrast Ratio | 4,000 : 1 (Max.), 8,000 : 1 (Peak) |
| Processing Depth (bit) | 20 (HDR10, HDR10 Pro) * LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping. |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 99, 110 |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 76 |
| Power Consumption (W/m², Max.) | 489, 543 |
| Heat Dissipation (BTU/h/Cabinet, Max.) | 338, 375 |
| Heat Dissipation (BTU/h/Cabinet, Avg.) | 259 |
| Heat Dissipation (BTU/h/㎡, Max.) | 1,667, 1,852 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | 0°C to +40°C |
| Operating Humidity | 10-80%RH |
| IP rating Front / Rear | IP20 / IP20 |
Certification
| Certification | Safety 60950-1, EMC Class B, BS476 Part7 Class1 |
|---|
Environment
| Environment | RoHS |
|---|

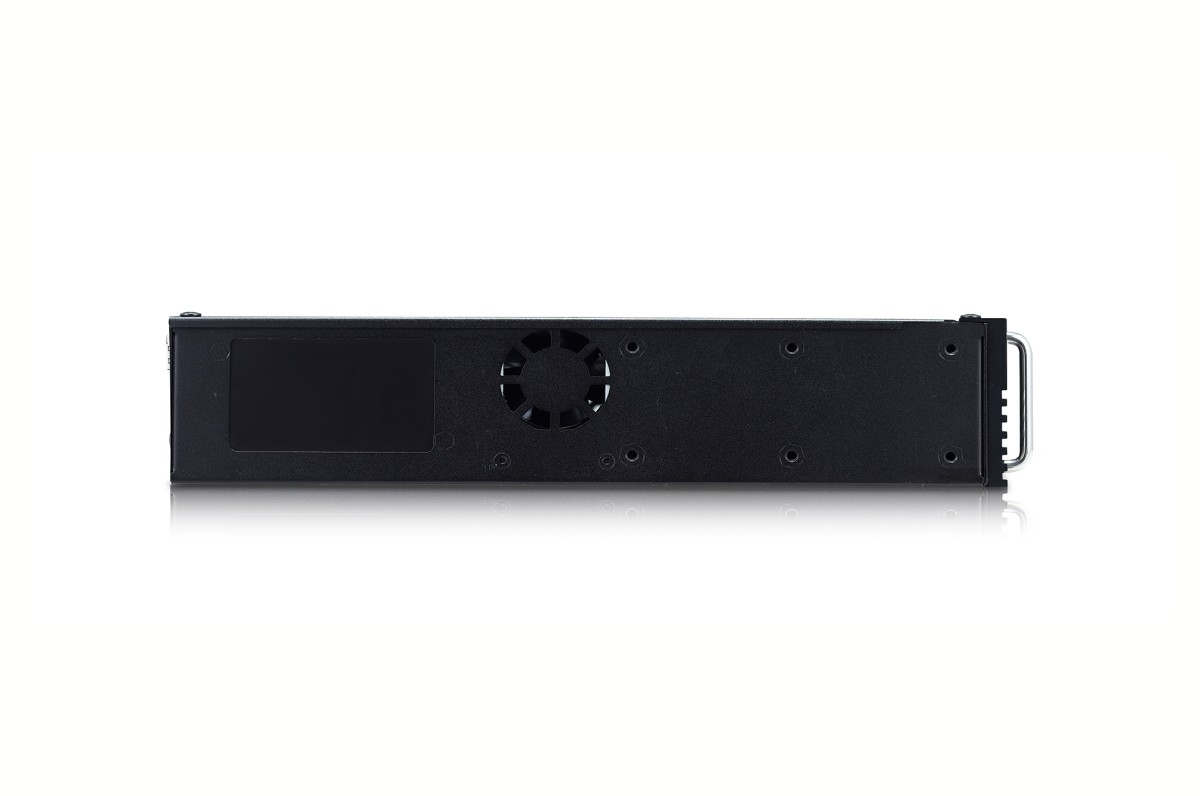

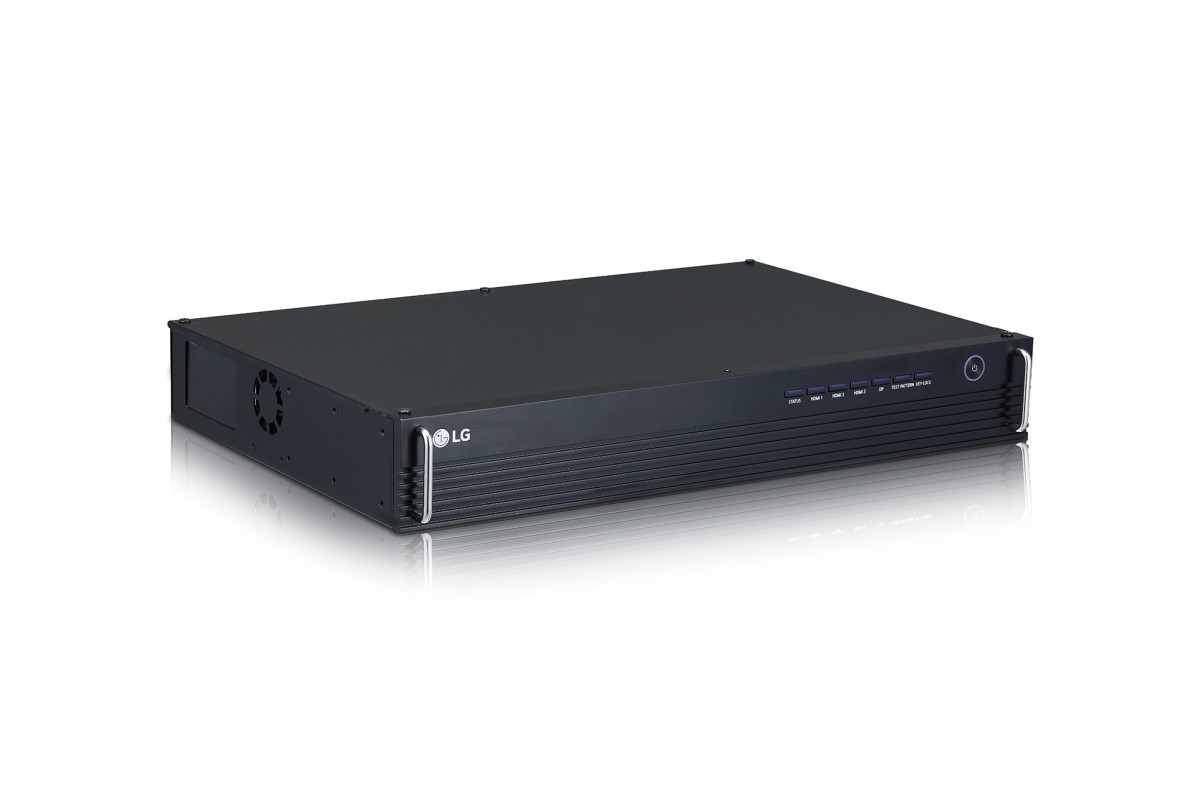

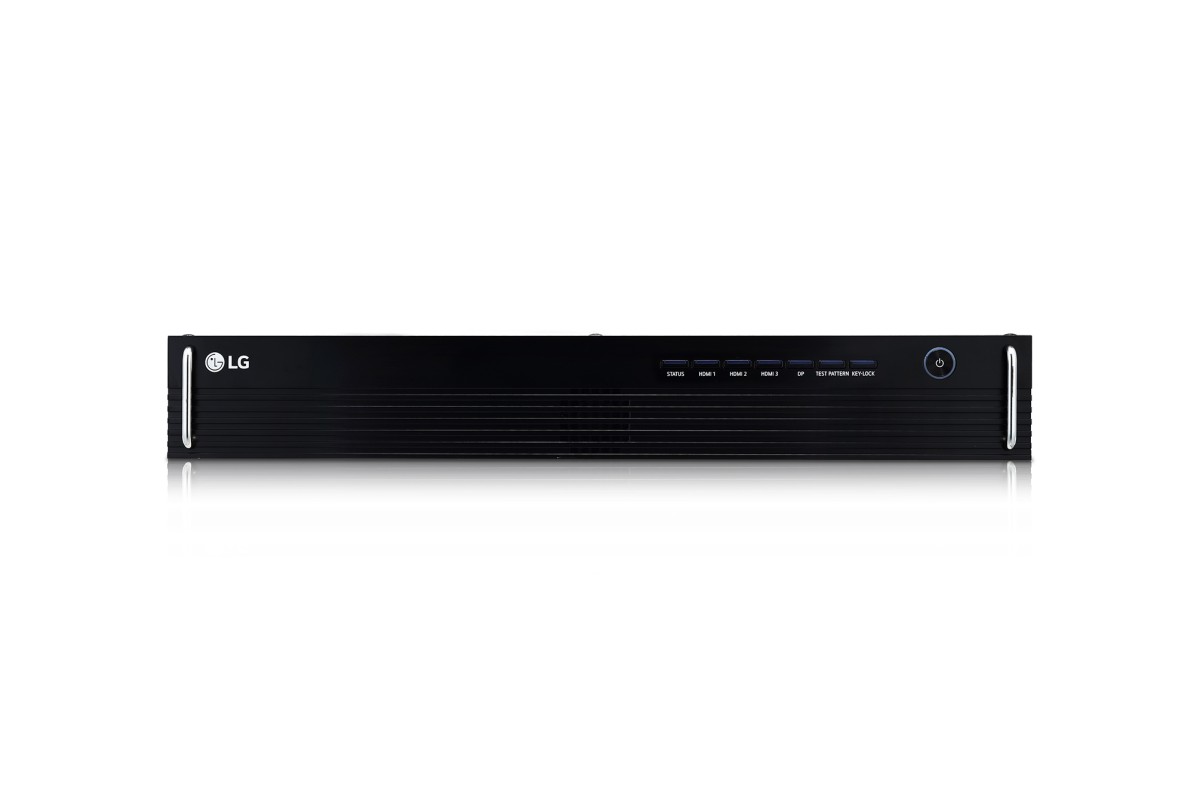

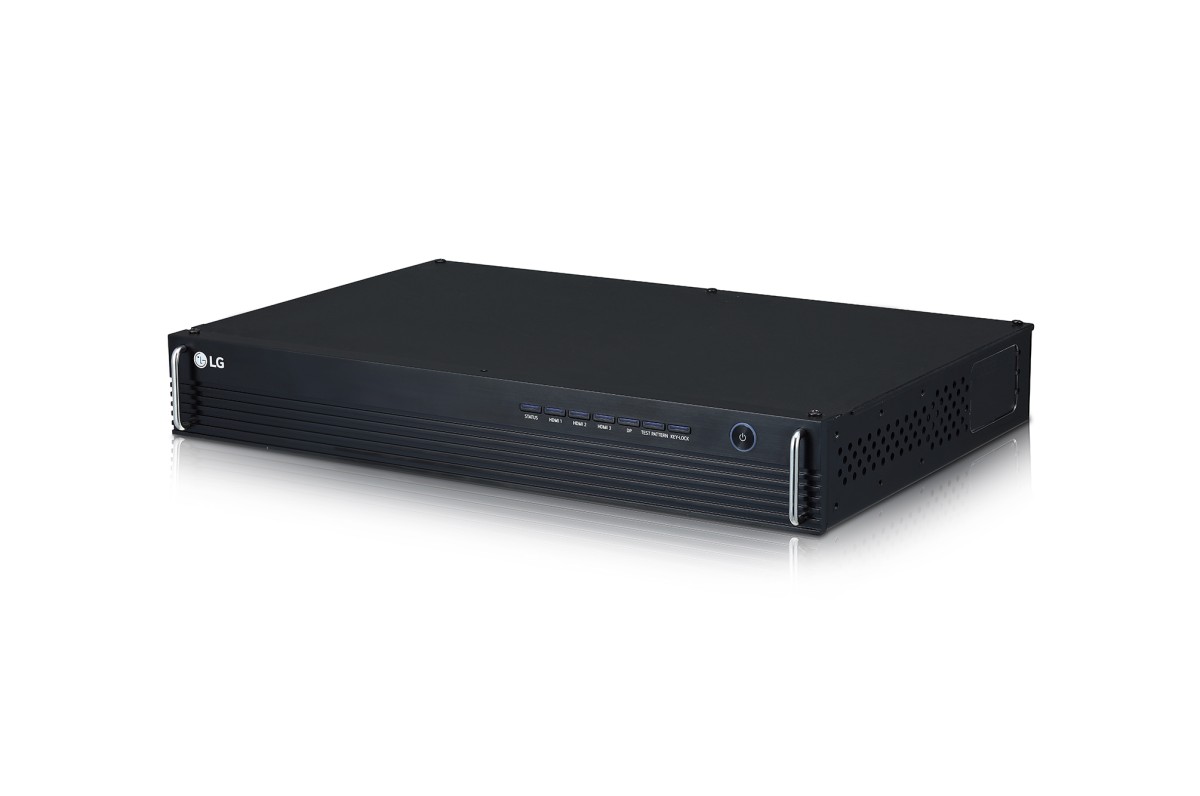

Controller
| Controller | CSAA-012X |
|---|---|
| Unit Case | LSAA012-MX/SX |
| Max Output Range - Loading Capacity | 3,840 × 2,160 @60Hz |
| Max Output Range - Output Resolution | 8.2944 Millon Pixels |
| Input - HDMI | HDMI 2.0 |
| Input - HDCP | HDCP 2.2 |
| Input - DP | DP 1.2 / HDCP 2.2 |
| Output | Ethernet (To LED Screen, 8-channel) |
| Control | LAN, RS-232C (LOOP) |
| Sensor | Ambient Light, Temperature |
| Video Processing | Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR (HDR10 Pro) |
| Application | SuperSign CMS, webOS API, LG ConnectedCare, Configuration SW (LED Assistant) |

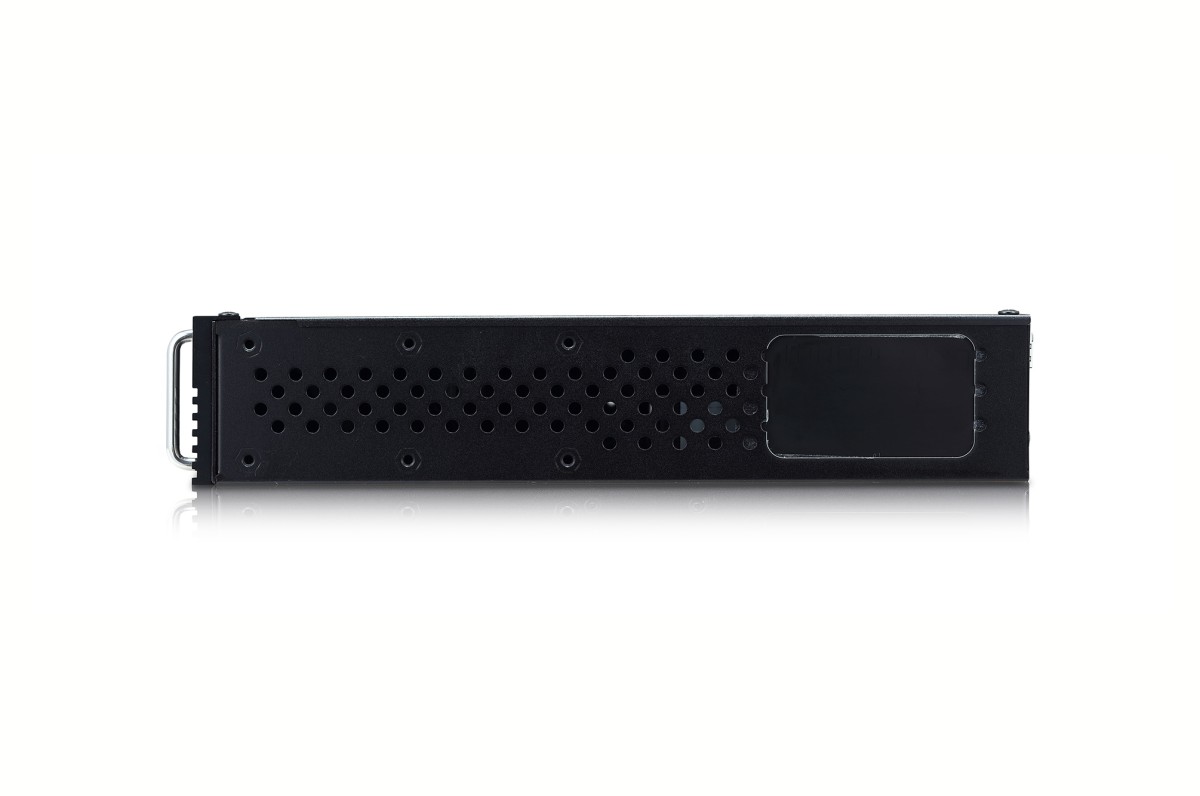

| Mechanical - Size (W × H × D, mm) | 446 × 63 × 301 |
| Mechanical - Weight (Kg) | 4.5 |
