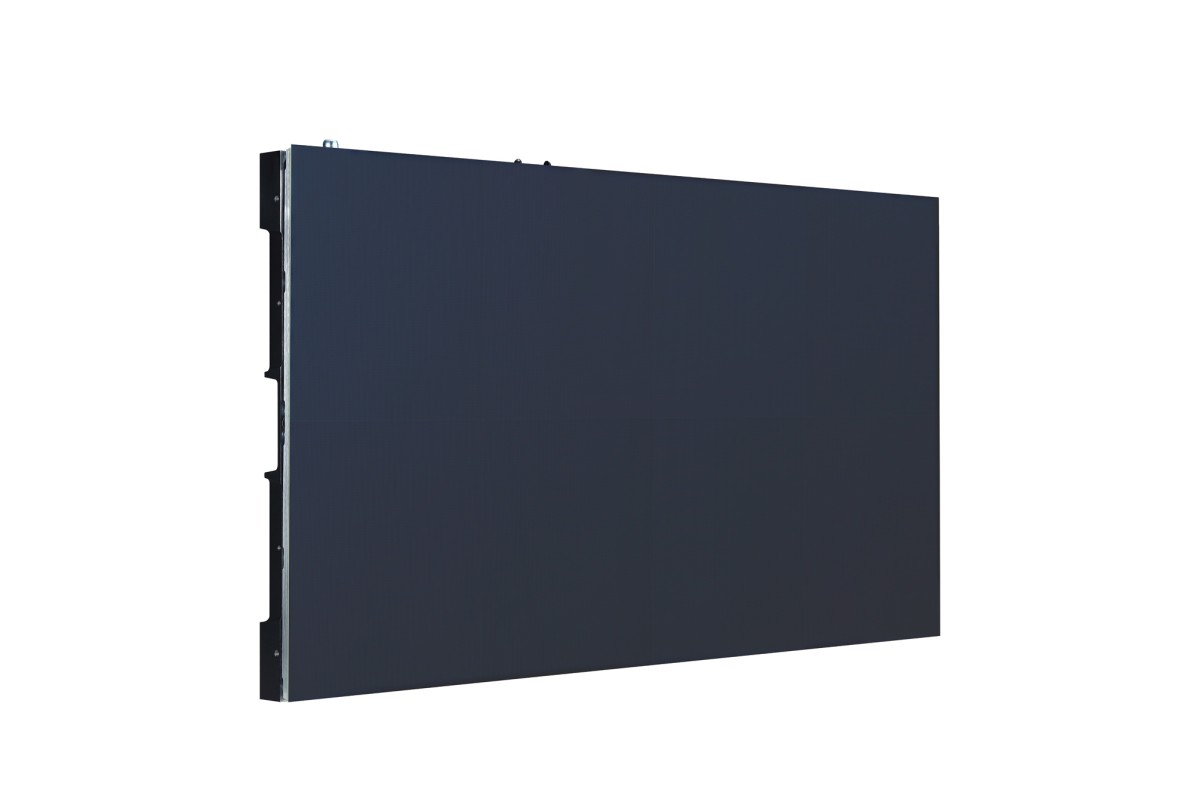

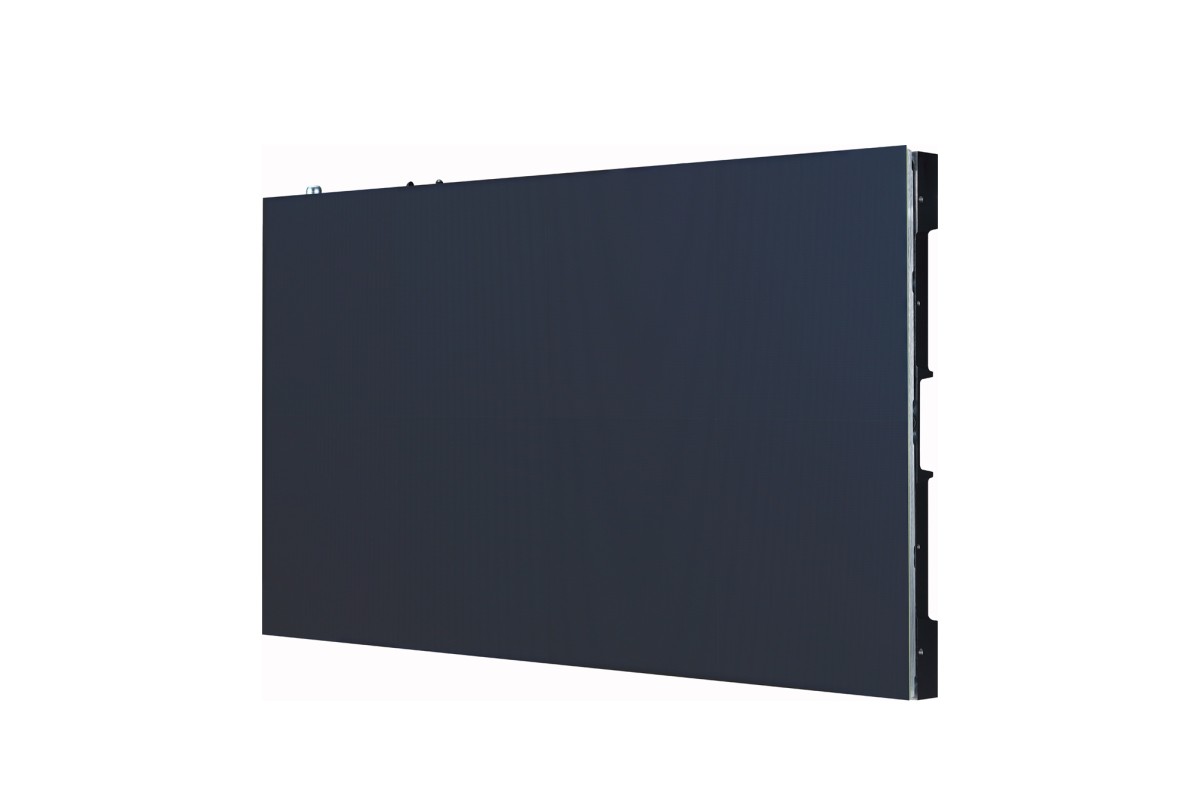

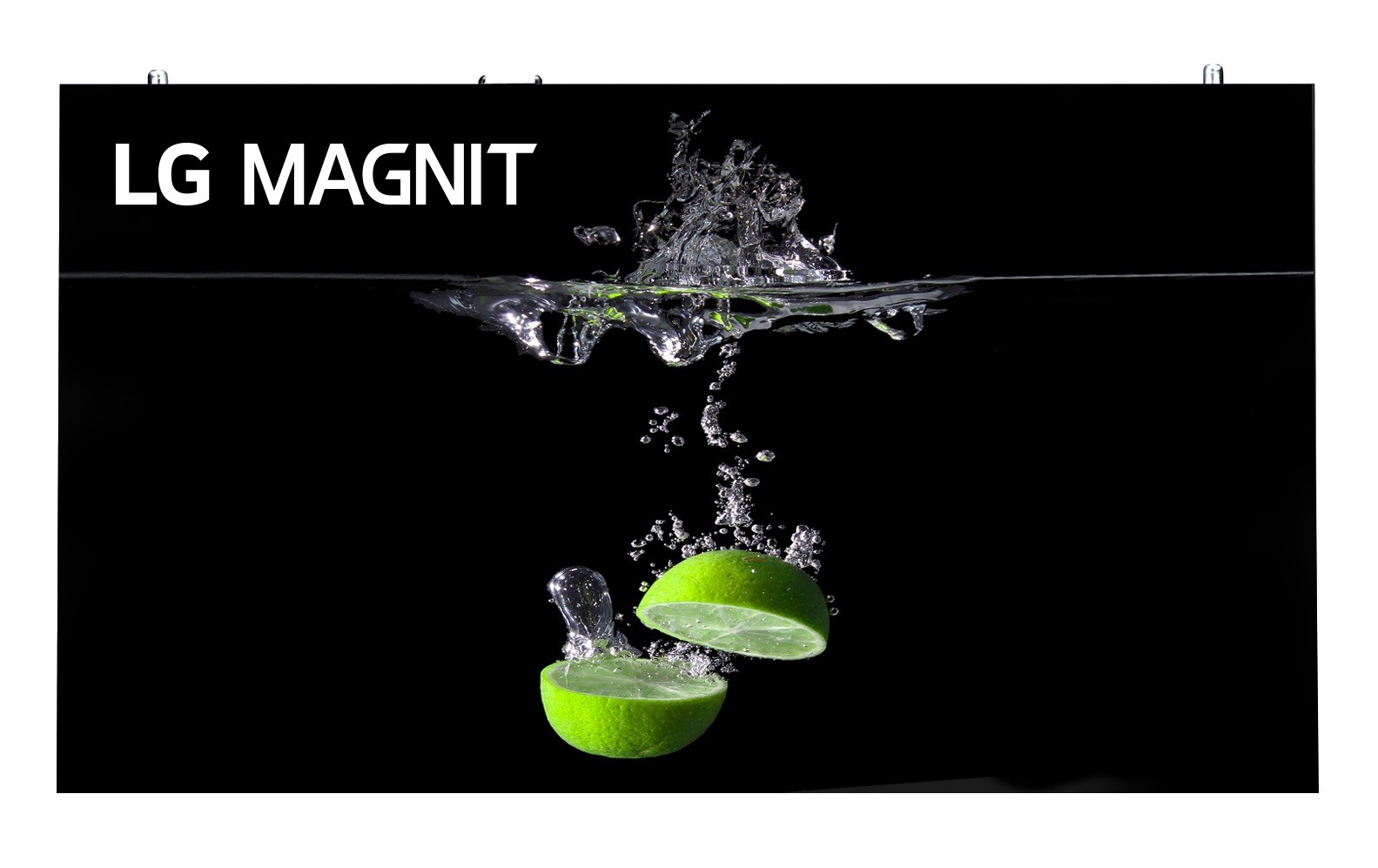

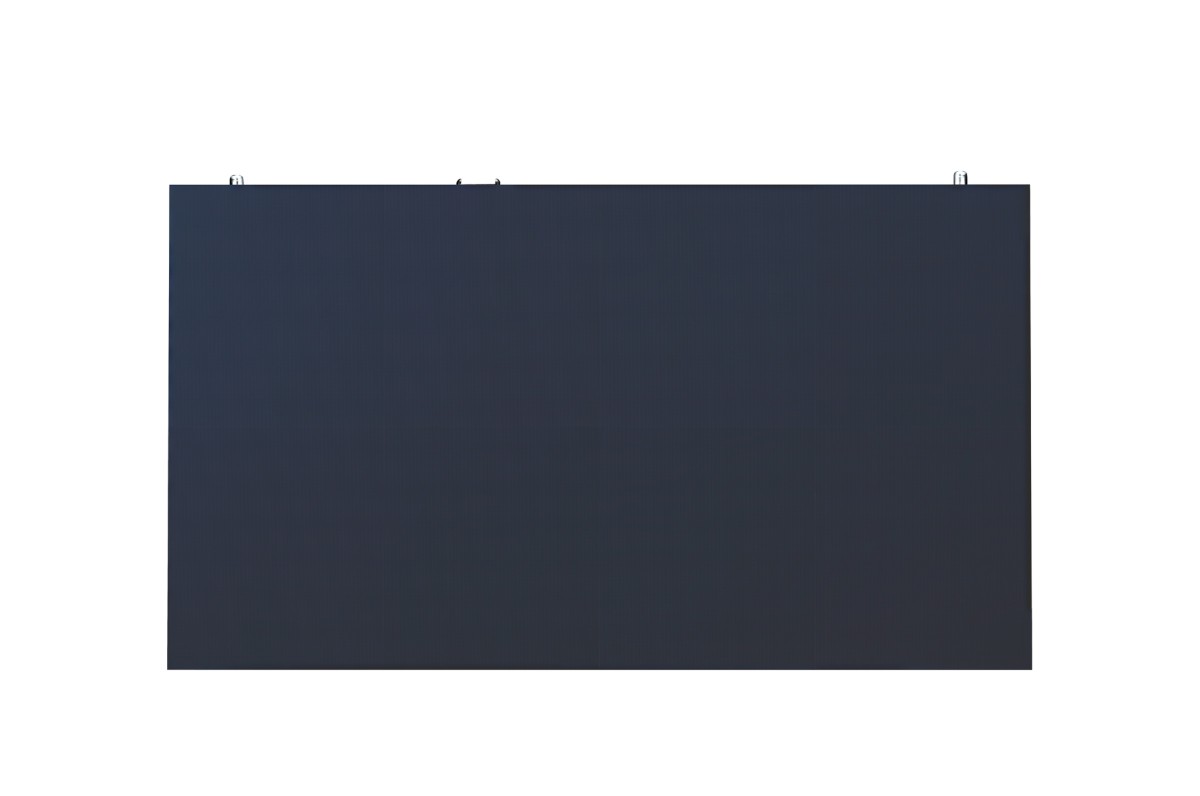

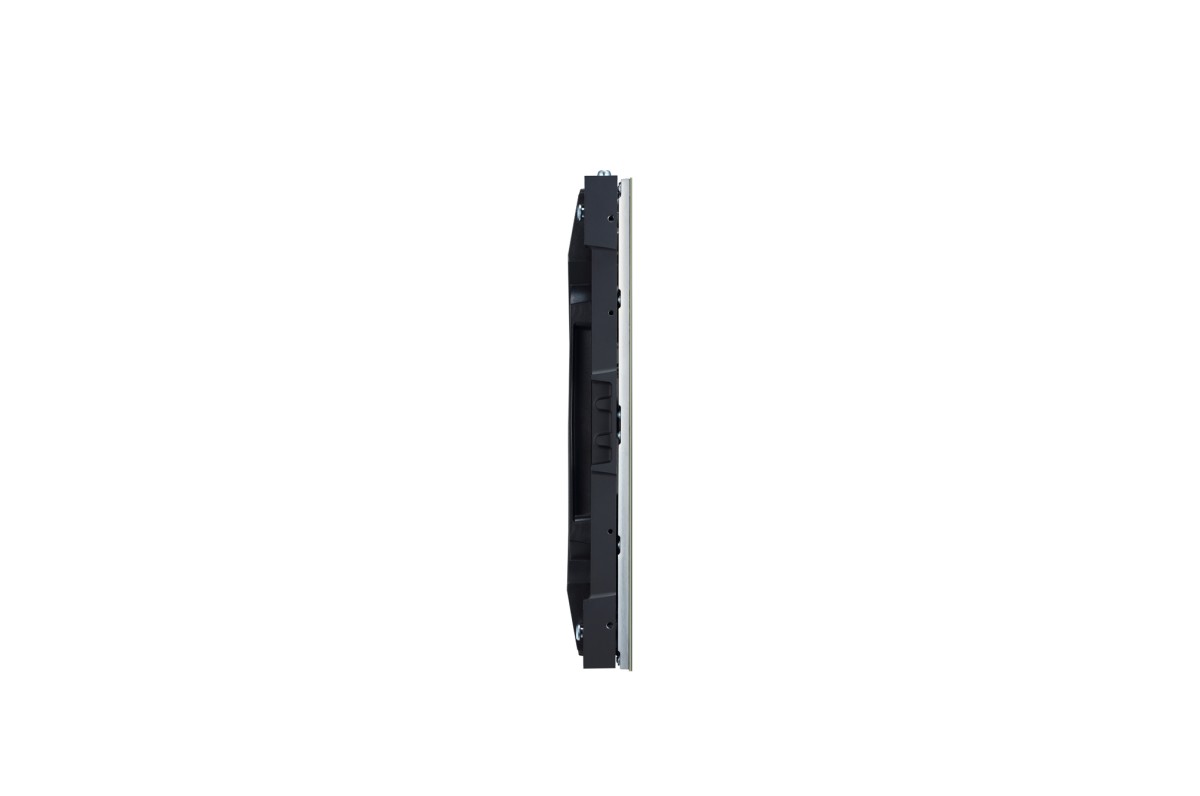

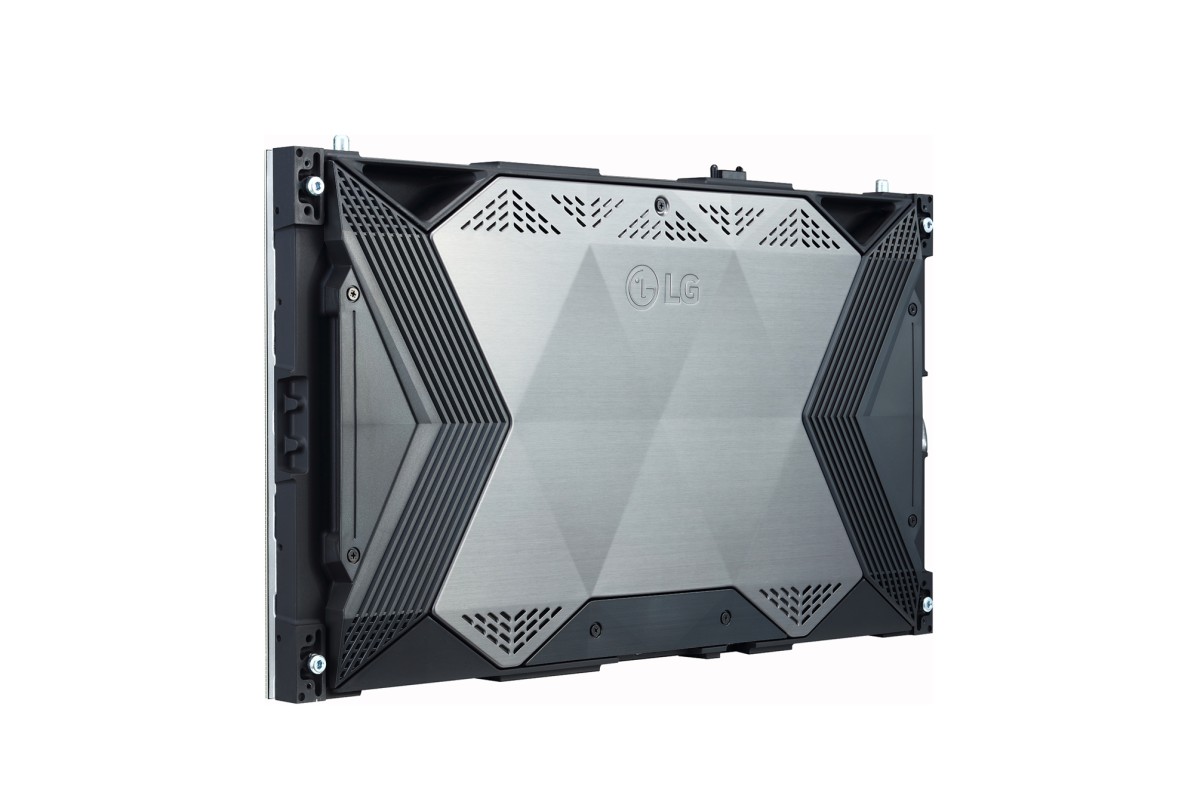

LG LSAB009 Micro LED Display 0.9 Pixel Pitch
Product code:- Micro LED Display
- Chip on Board Technology
- Pixel Pitch : 0.9 mm
- Brightness : 1,200 nit (Peak,), 600 nit (Max.)
- Contrast Ratio (10 lux) : 100,000 : 1

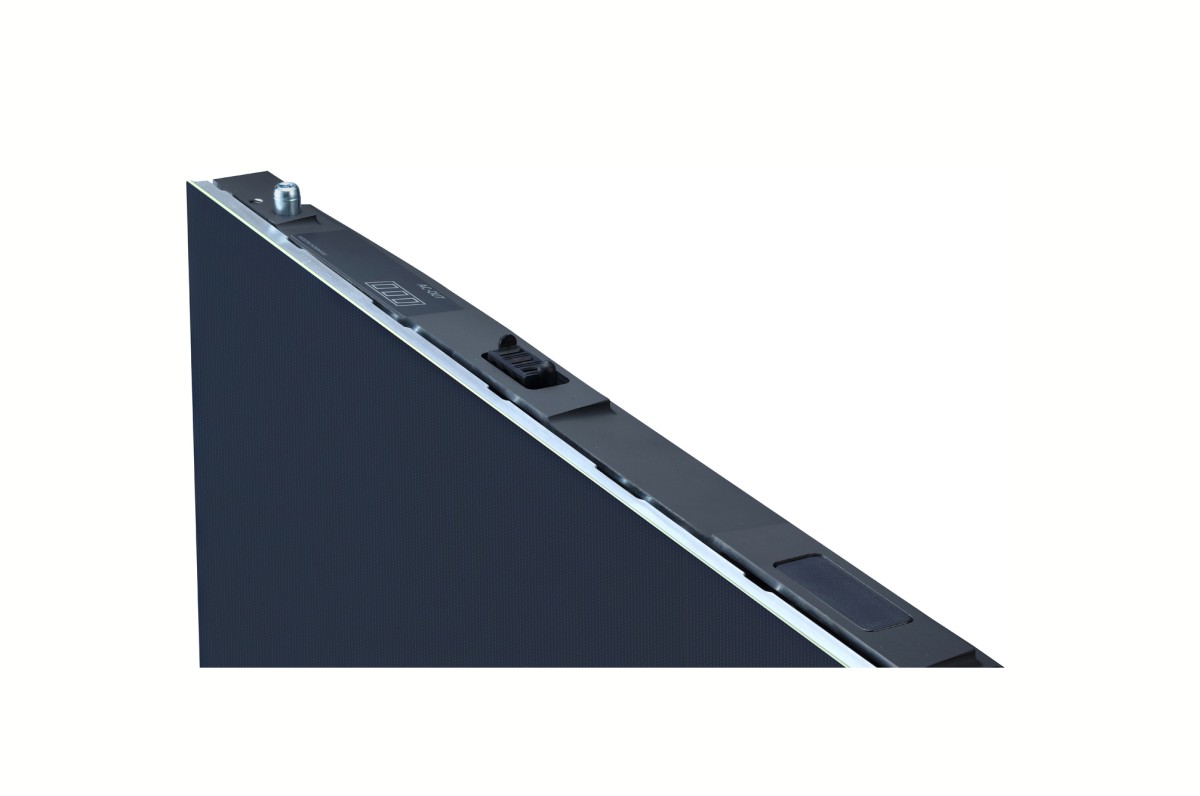

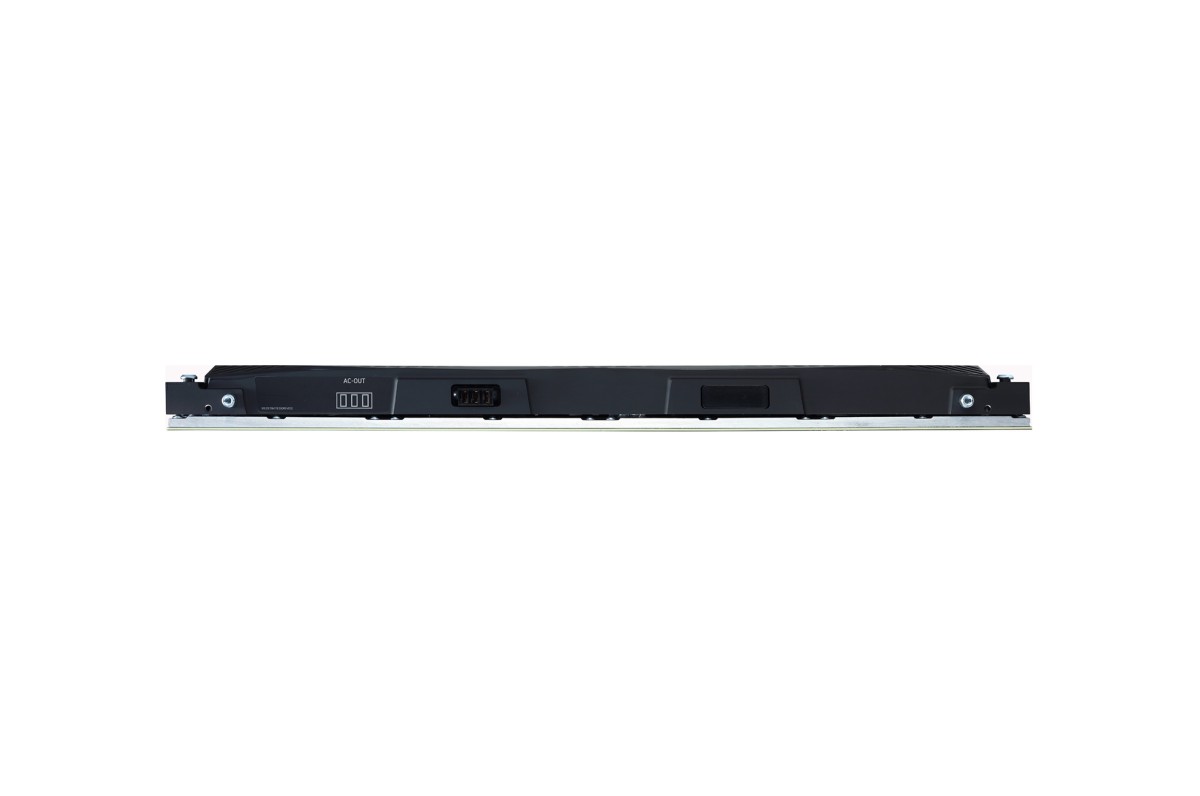

- Cable-less Signal Transmission & Power Docking
Description
Physical Parameter
| Pixel Configuration | 1R, 1G, 1B (Chip on Board) |
|---|---|
| Pixel Pitch (mm) | 0.93 |
| Module Resolution (W x H) | 160 × 180 |
| Module Dimensions (W x H, mm) | 150 × 168.8 |
| Weight per Module (g) | 150 |
| No. of Modules per Cabinet (W × H) | 8 (4 × 2) |
| Cabinet Resolution (W × H) | 640 × 360 |

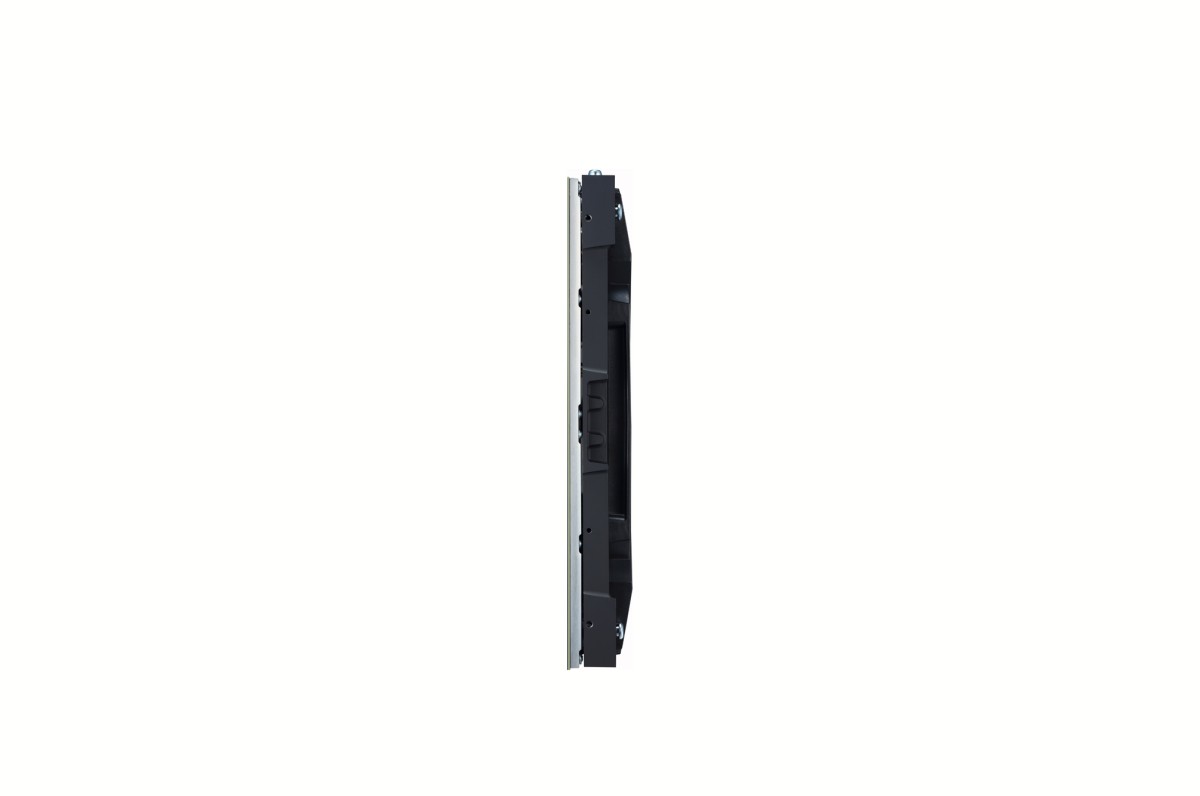

| Cabinet Dimensions (W × H × D, mm) | 600 × 337.5 × 44.9 |
| Cabinet Surface Area (m²) | 0.203 |
| Weight per Square Meter (kg/m²) | 34.6 |
| Weight per Cabinet (kg/cabinet) | 7.0 |
| Physical Pixel Density (pixels/m²) | 1,137,778 |
| Flatness of Cabinet | ±0.5 mm |

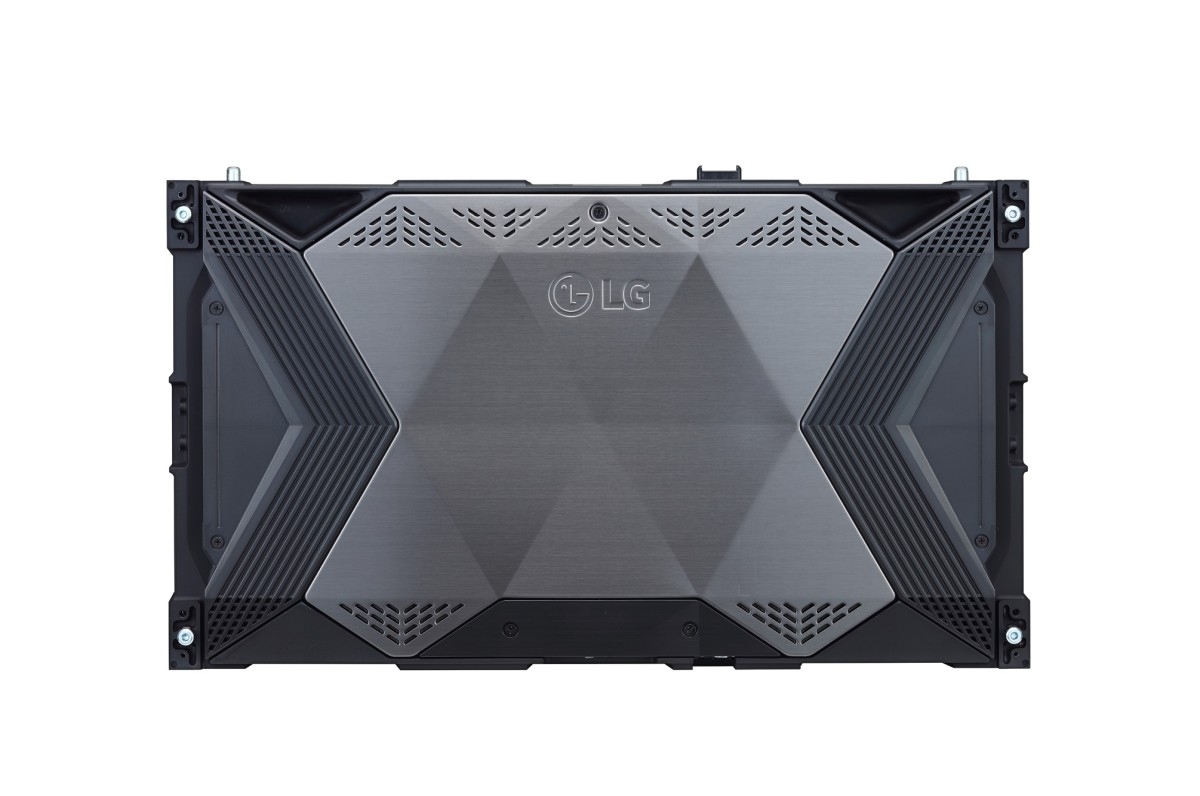

| Cabinet Material | Die-casting Aluminum |
| Service Access | Front and Rear (Module : Front Only) |
Additional information
Optical Parameter
| Min. Brightness (After Calibration) | 1,200 nit (Peak.) / 600 nit (Max.) |
|---|---|
| Color Temperature | 7,300 K / 3,200~9,300 K (Adjustable by LED Assistant on PC) |
| Visual Viewing Angle (Horizontal/Vertical) | 160° × 160° |
| Brightness Uniformity | ≥95% |
| Color Uniformity | ±0.02Cx, Cy |
| Processing Depth (bit) | 20 |
| Contrast Ratio (10 lux) | 100,000 : 1 |
Electrical Parameter
| Driver-IC Type | Common Cathode |
|---|---|
| Power Consumption (W/Cabinet, Max.) | 125 |
| Power Consumption (W/Cabinet, Avg.) | 85 |
| Power Consumption (W/m², Max.) | 617 |
| Heat Dissipation (BTU/h/Cabinet, Max.) | 426 |
| Heat Dissipation (BTU/h/Cabinet, Avg.) | 290 |
| Heat Dissipation (BTU/h/㎡, Max.) | 2,104 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | 0°C to +40°C |
| Operating Humidity | 10-80% RH |
| IP rating Front / Rear | IP50 / IP20 |
Certification
| Certification | Safety 60950-1, EMC Class A, BS476 Part 7 Class 1 |
|---|
Environment
| Environment | RoHS |
|---|
Controller
| Controller | CSAB-009X |
|---|
Accessory
| Optional | Wall Mount Kit, Frame Kit |
|---|
