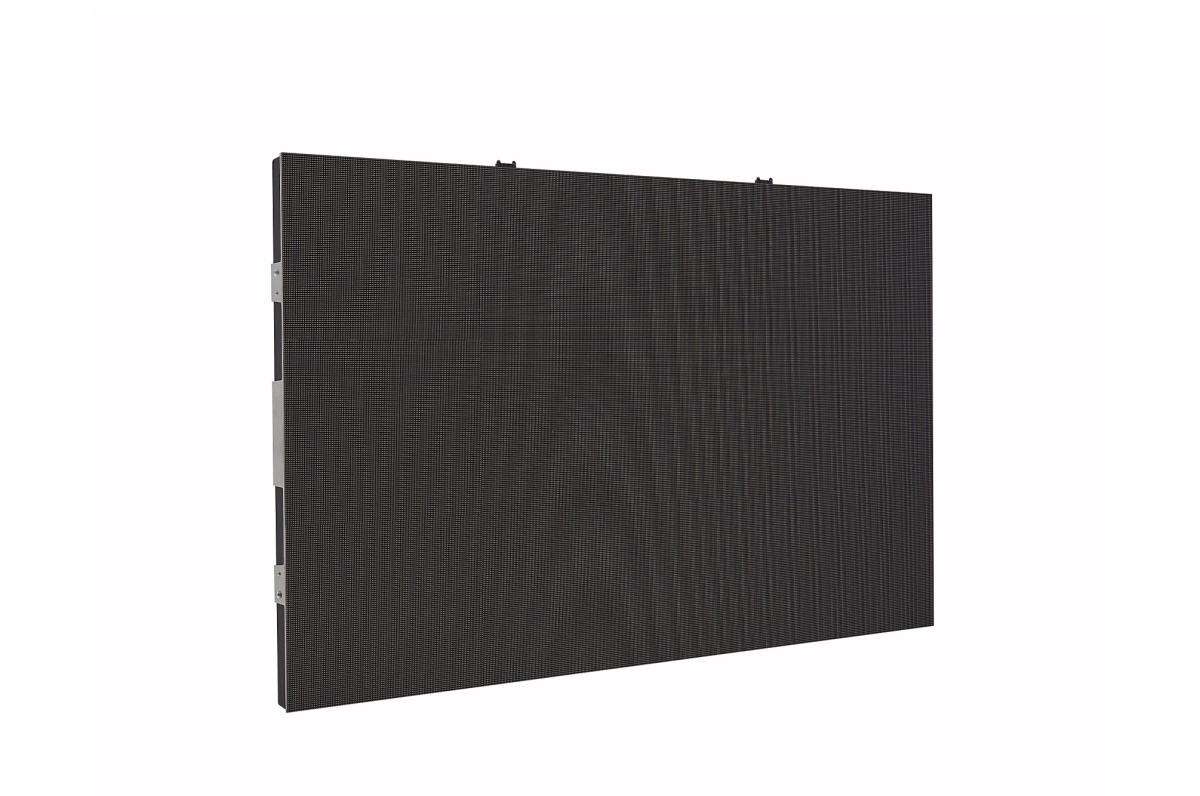

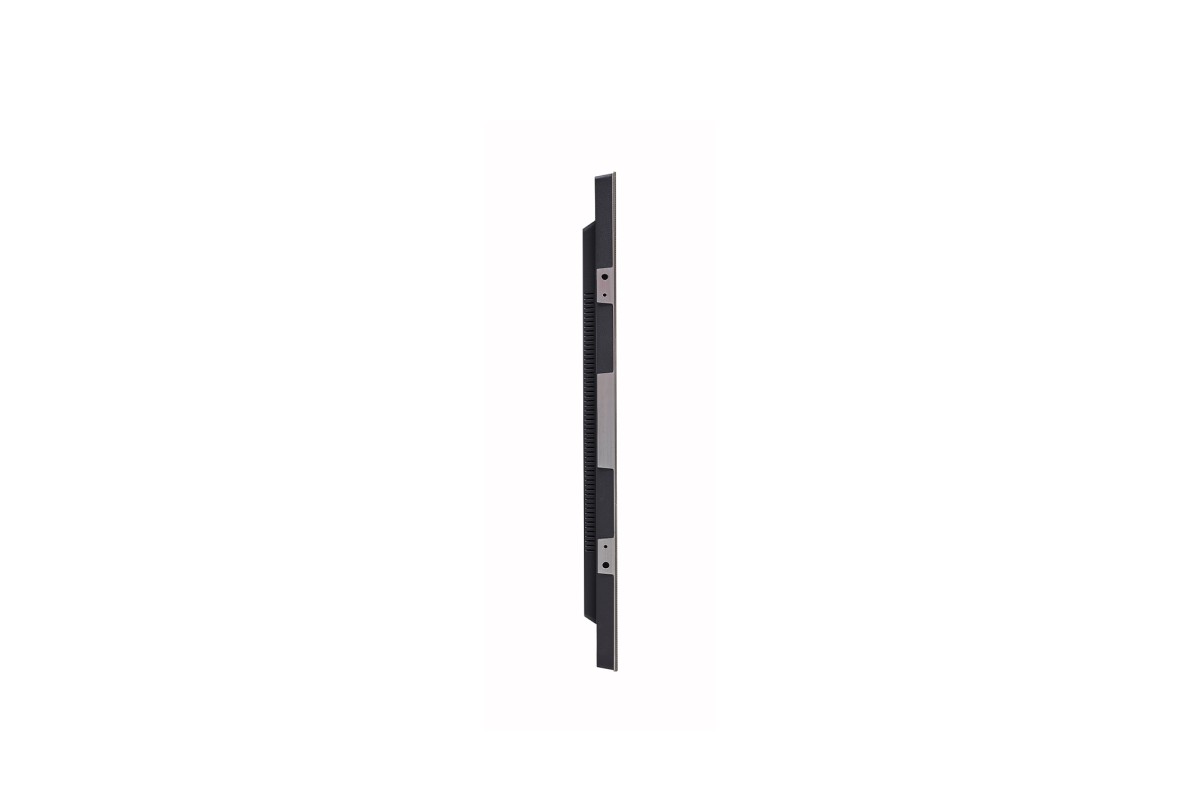

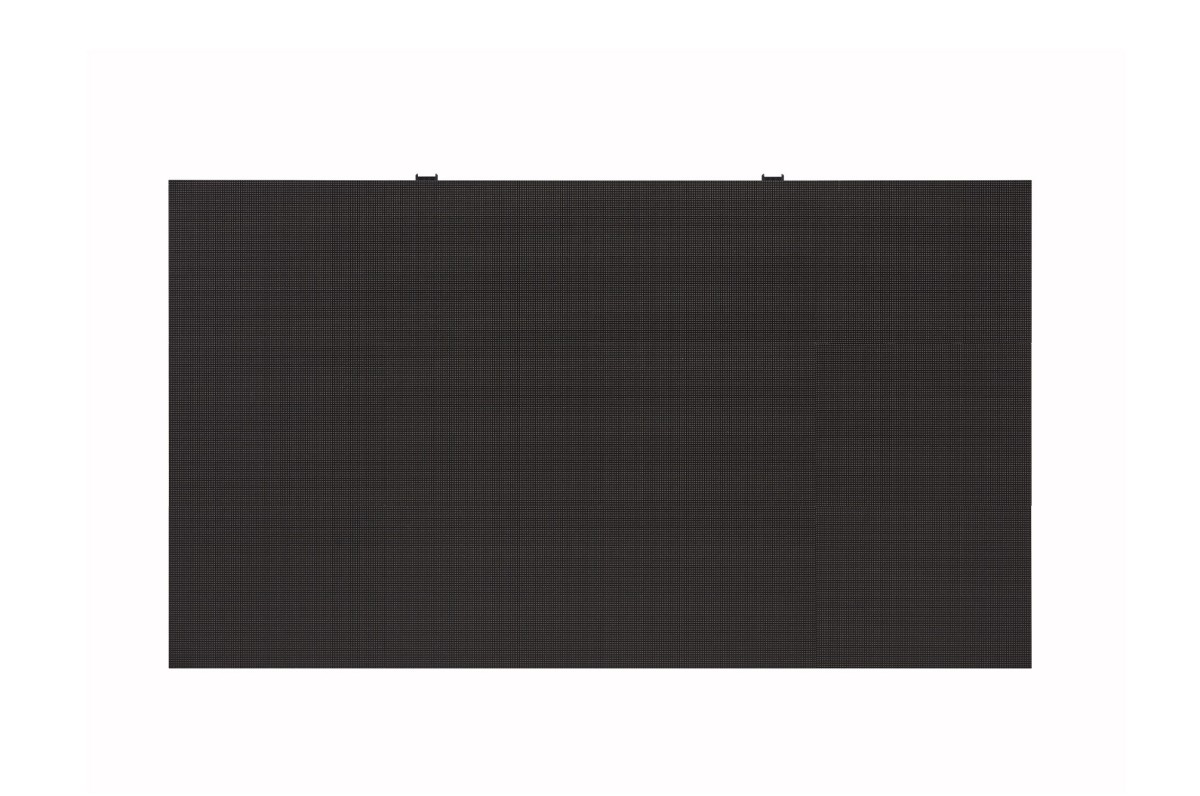

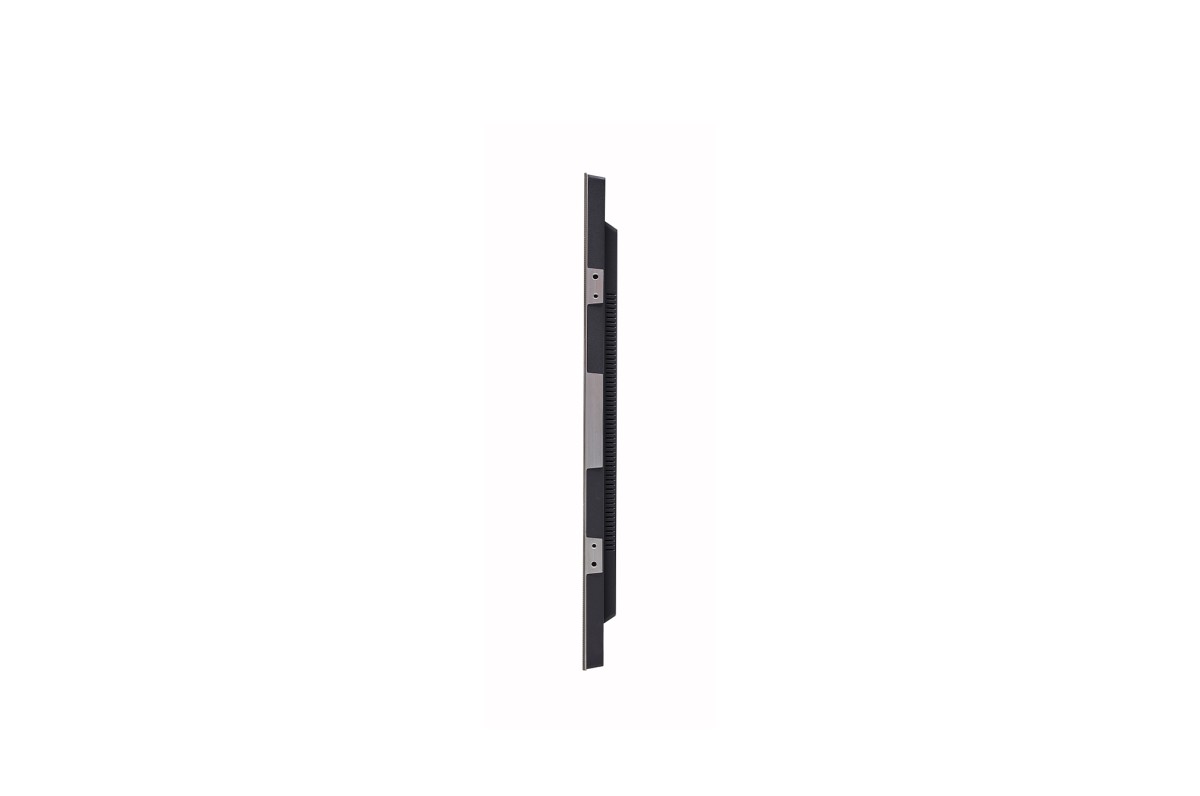

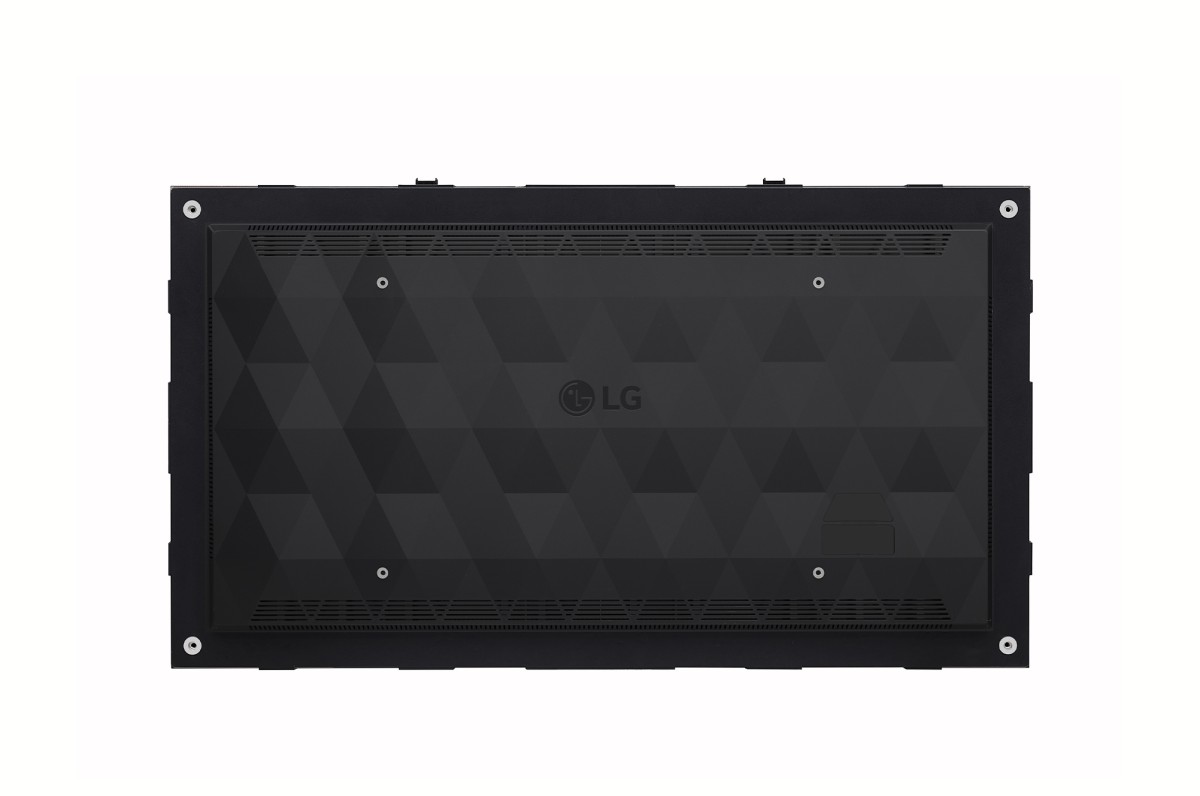

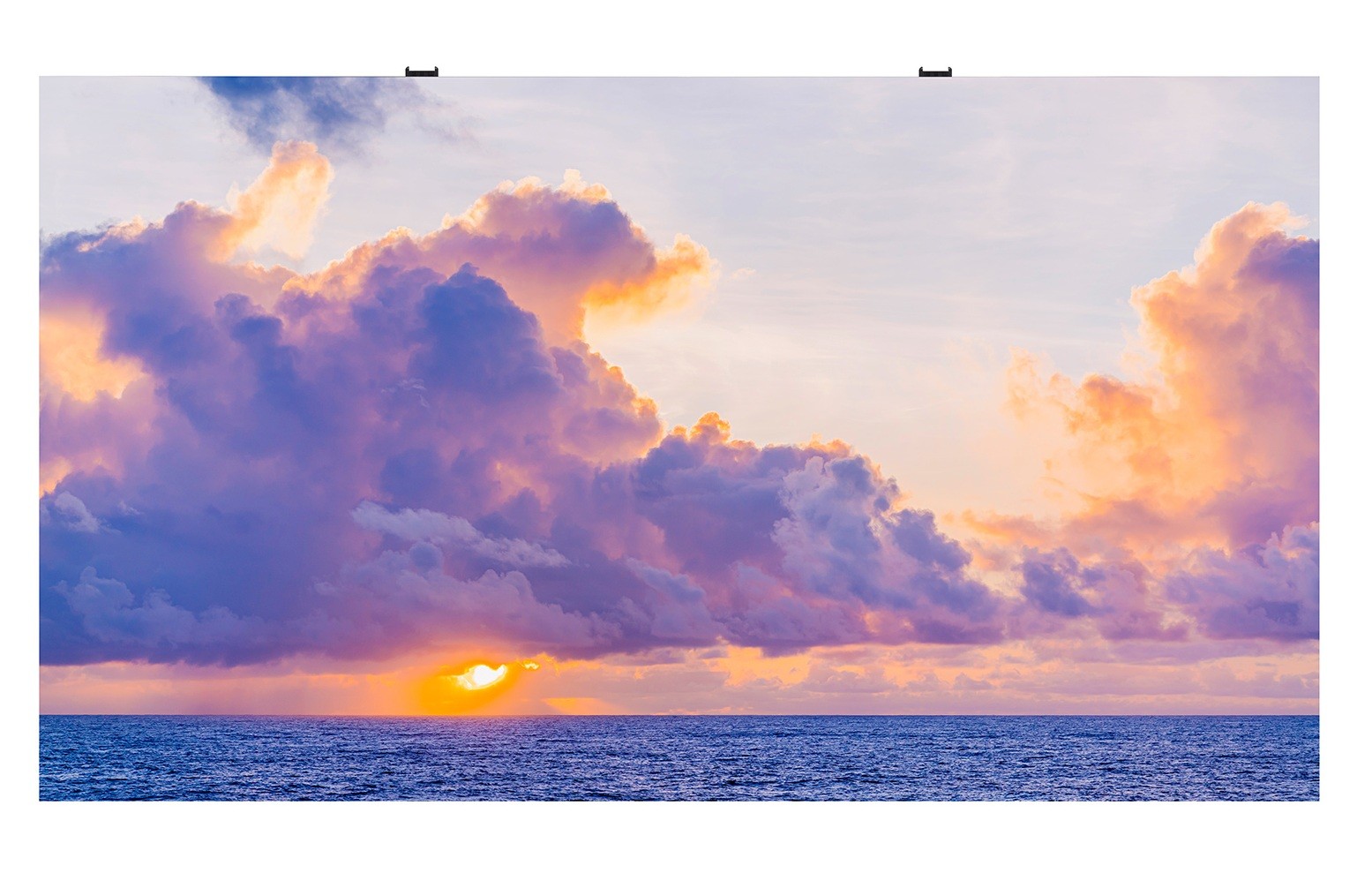

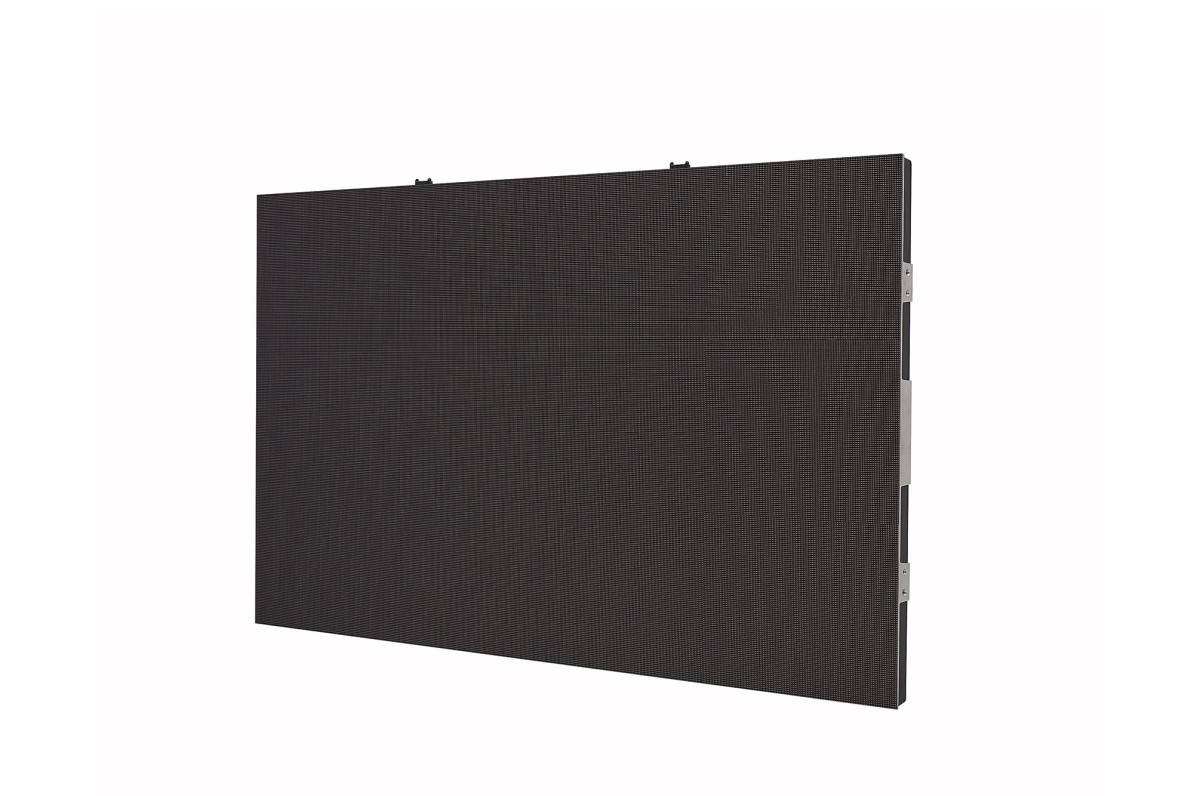

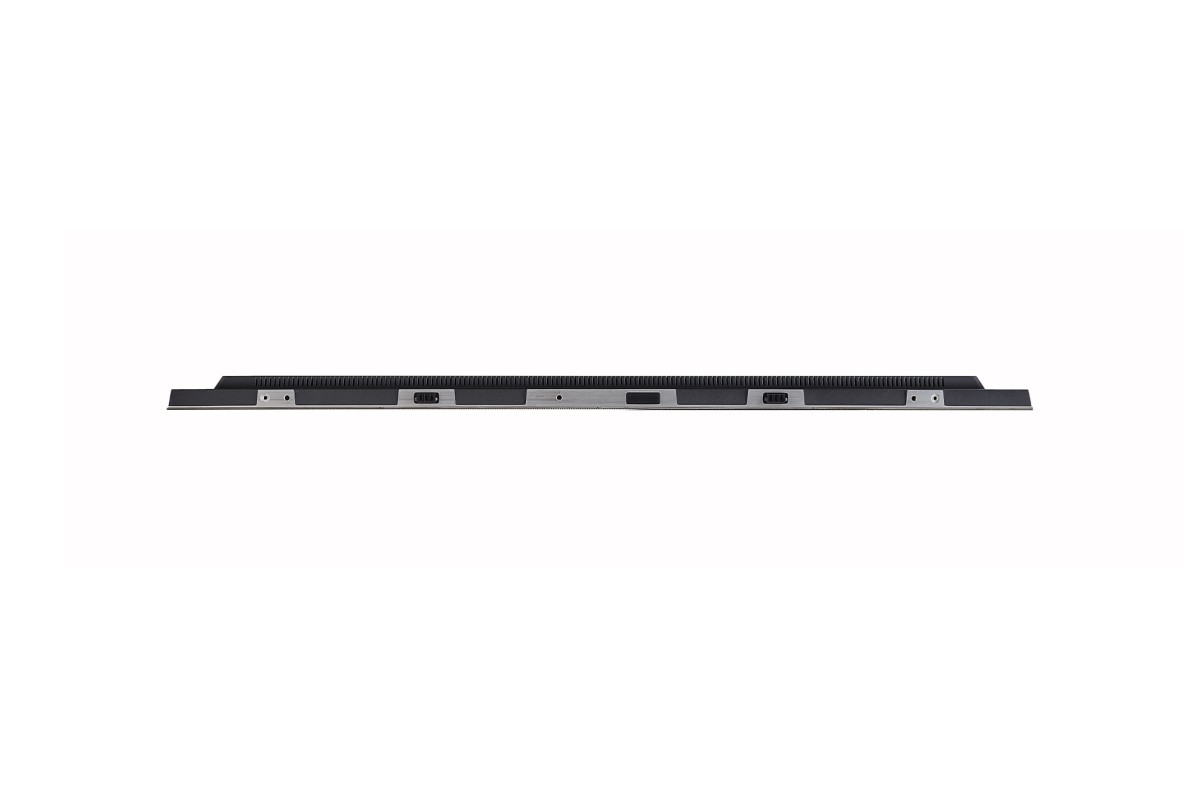

LG LSAC025 LED 2.50 Pixel Pitch LED Bloc
Product code:- Pixel Pitch: 2.5mm
- Brightness: 600 cd/m²
- Cable-less Signal Transmission & Power Docking
- Alpha 7 Intelligent Processor
- Real-time ConnectedCare Service
Description
Physical Parameter
| Pixel Configuration | 3 in 1 SMD |
|---|---|
| Pixel Pitch (mm) | 2.5 |
| Module Resolution (W x H) | 120 × 90 |
| Module Dimensions (W x H, mm) | 300 × 225 |
| Weight per Module (g) | 430 |
| No. of Modules per Cabinet (W × H) | 4 × 3 |
| Cabinet Resolution (W × H) | 480 × 270 |
| Cabinet Dimensions (W × H × D, mm) | 1,200 × 675 × 51 |
| Cabinet Surface Area (m²) | 0.81 |
| Weight per Square Meter (kg/m²) | 27.8 |
| Weight per Cabinet (kg/cabinet) | 22.5 |
| Physical Pixel Density (pixels/m²) | 160,000 |
| Flatness of Cabinet | ±0.5 |
| Cabinet Material | Die-cast Aluminum |
| Service Access | Front |
Additional information
Optical Parameter
| Brightness | 600 nit |
|---|---|
| Color Temperature (K) | 3,200-9,300 |
| Visual Viewing Angle (Horizontal/Vertical) | 160 × 160 |
| Brightness Uniformity | 95% |
| Color Uniformity | ±0.015 Cx,Cy |
| Contrast Ratio | Typ. 5,000 : 1 / Peak. 9,000 : 1 |
| Processing Depth (bit) | 20 (HDR10, HDR10 Pro) |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 290 |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 190 |
| Power Consumption (W/m², Max.) | 358 |
| Heat Dissipation (BTU/h/Cabinet, Max.) | 990 |
| Heat Dissipation (BTU/h/Cabinet, Avg.) | 648 |
| Heat Dissipation (BTU/h/㎡, Max.) | 1,222 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | 0℃ to +40℃ |
| Operating Humidity | 10-80% RH |
| IP rating Front / Rear | IP20 / IP20 |
Controller
| Controller | CSAC-025K |
|---|
