Multibrackets 7350105217104 M Motorized Touch Tilt & Table 100kg Max
Product code:Multibrackets M Motorized Touch Tilt & Table 100 kg Max – Motorized Floorstand for Displays & Touchscreens - black - screen size: 32" - 86"
SEND AN ENQUIRY DOWNLOAD FILES
Description
Introducing M Motorized Tilt & Table 100 kg. Position your screen by a click. Up, down or horizontal table position. This innovative floorstand tailored for large size screens and touch displays seamlessly integrate your display offering a high level of flexibility. The M Motorized Tilt & Table is useful for screens up to 86”.

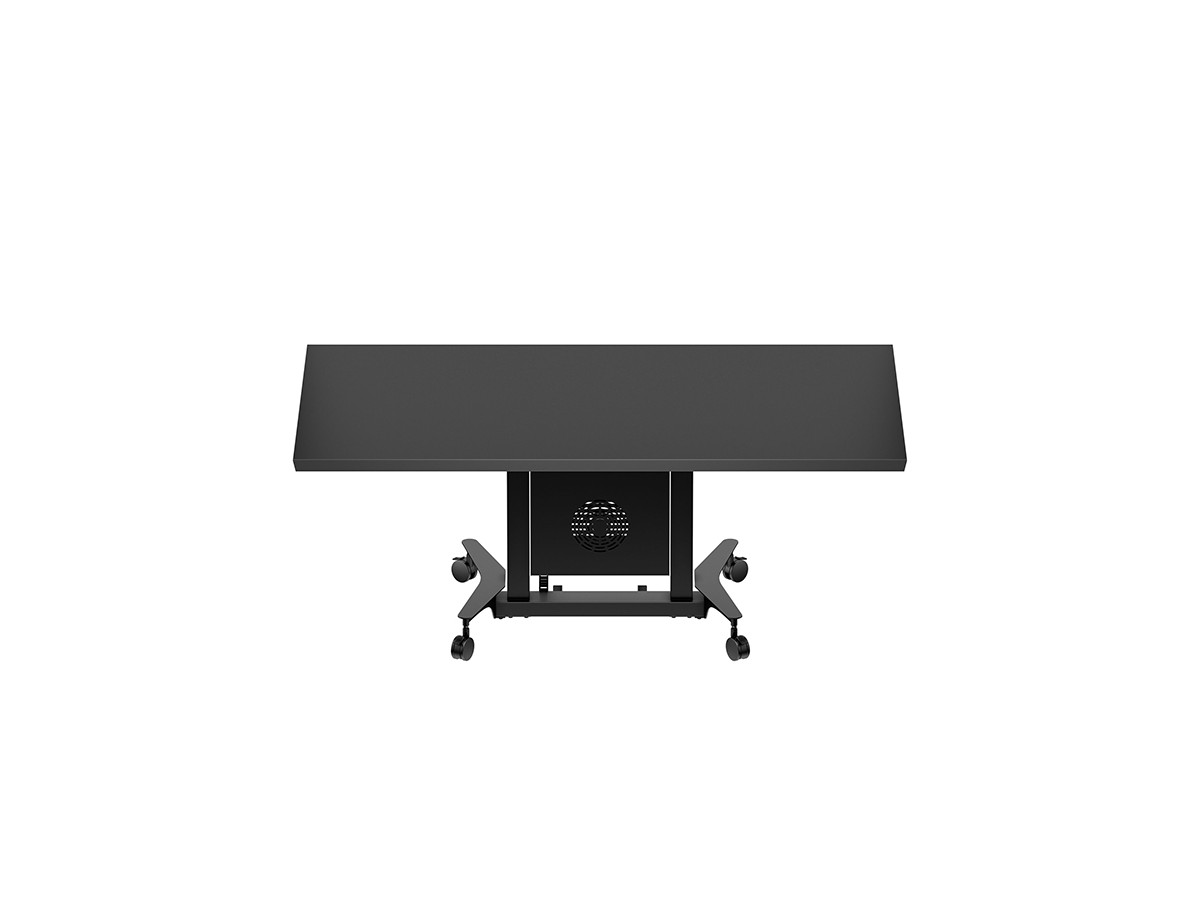

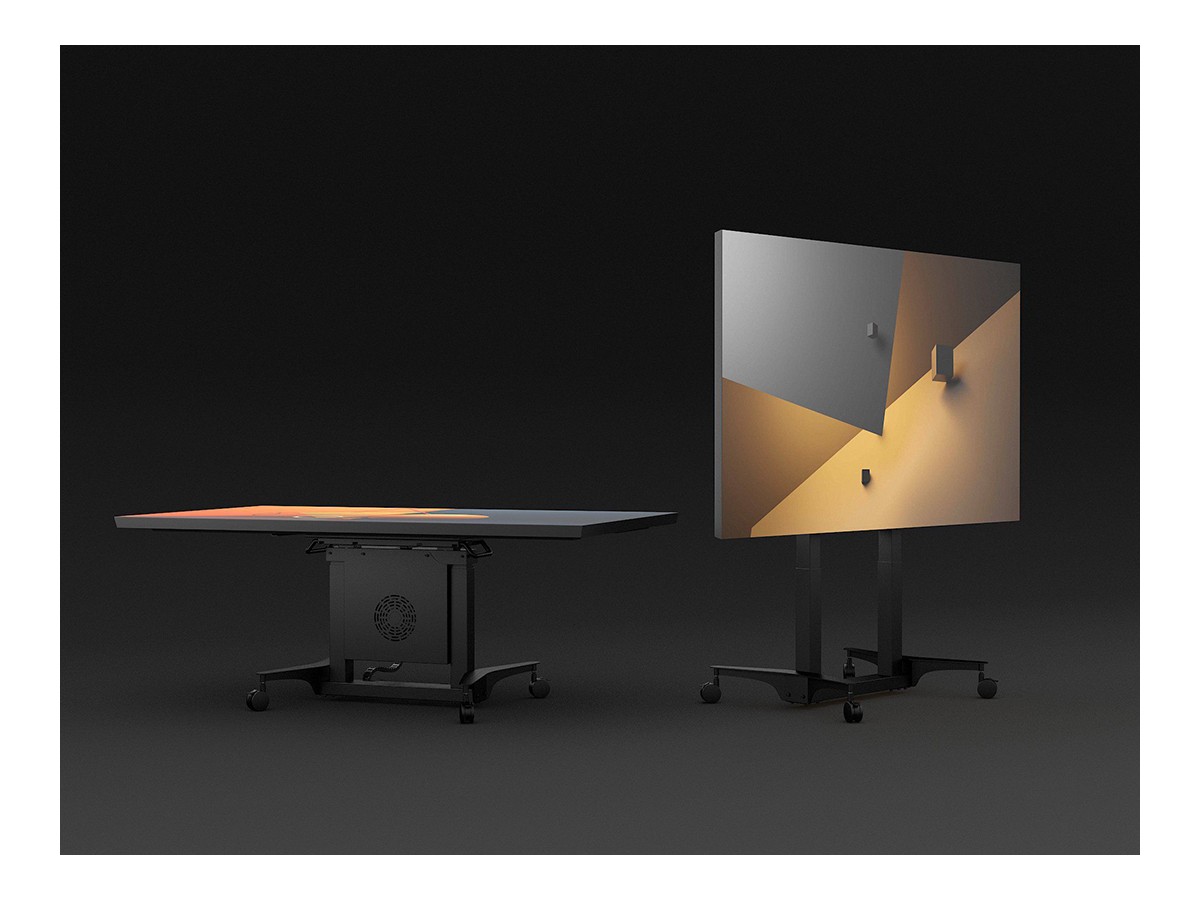

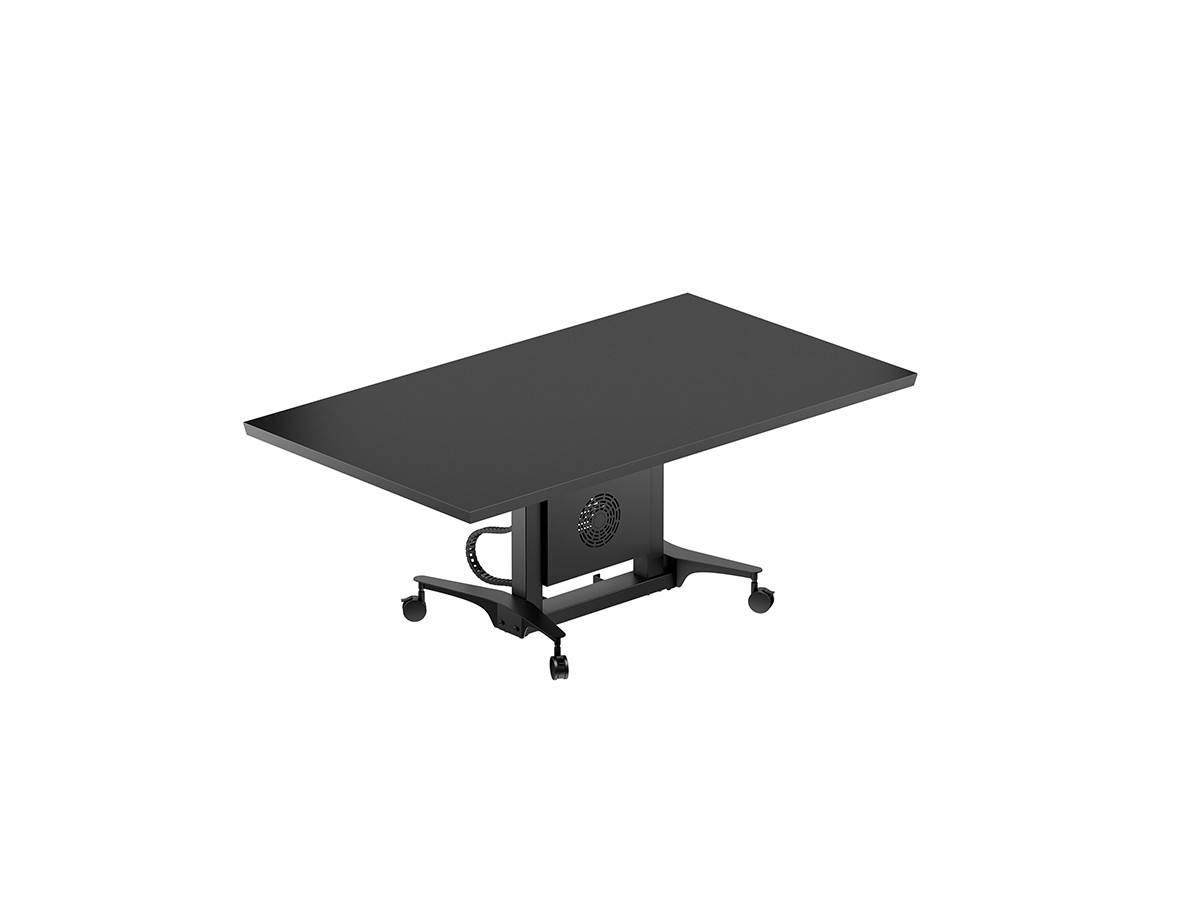

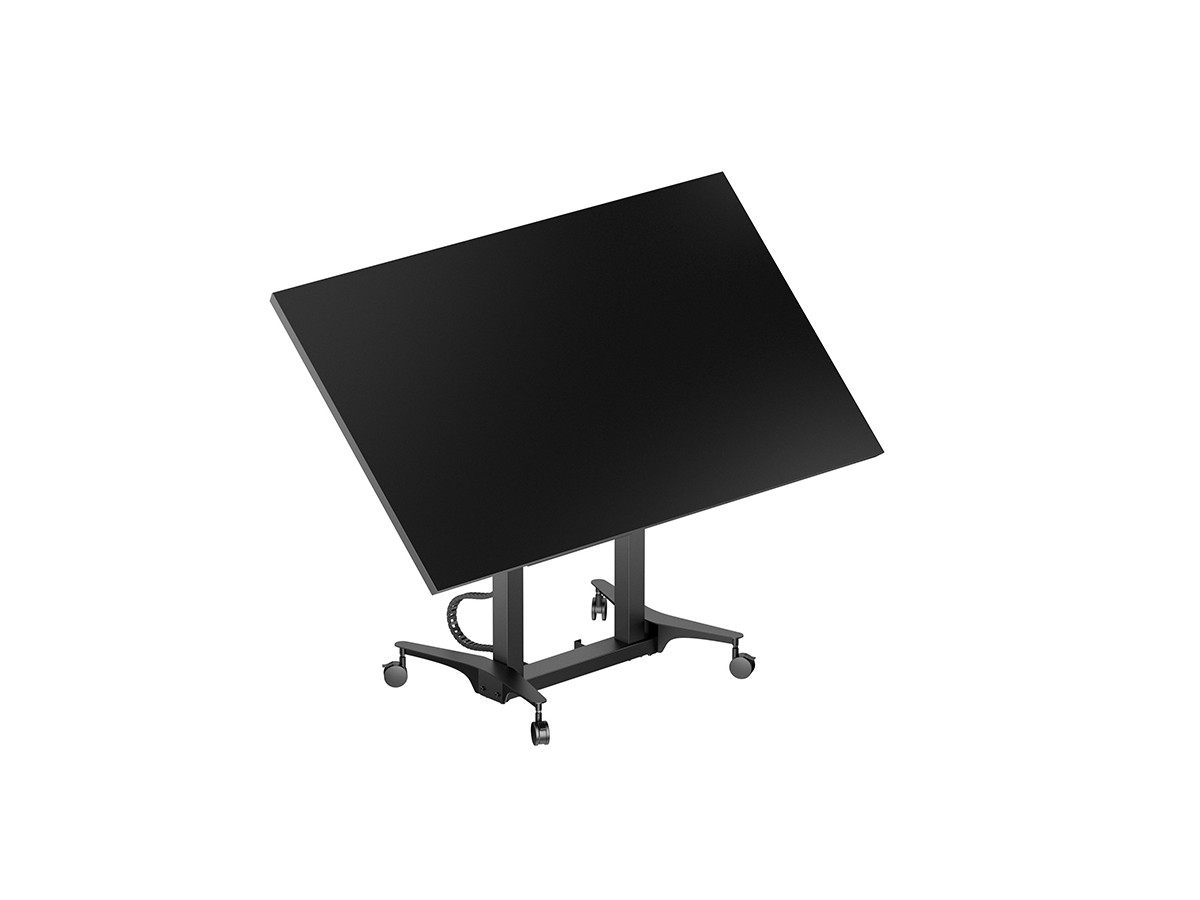

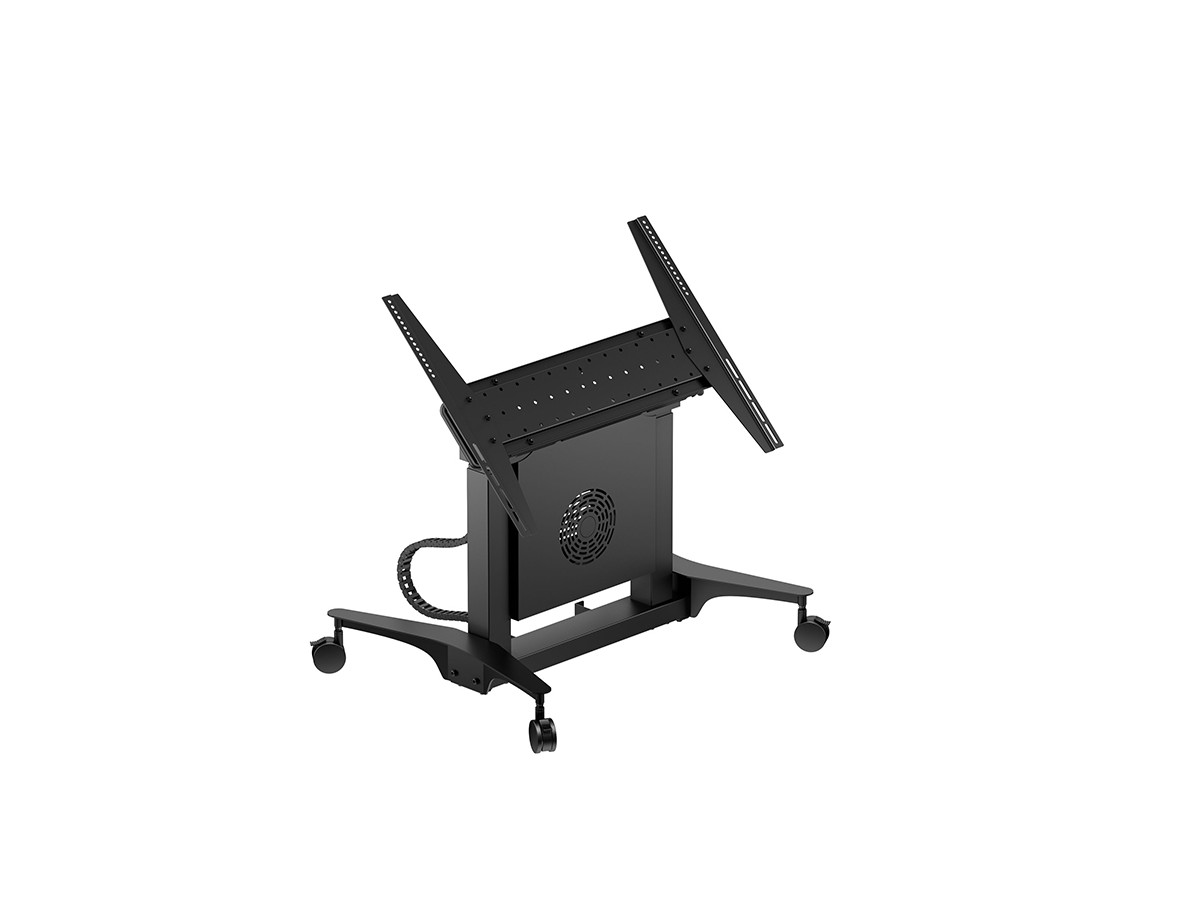

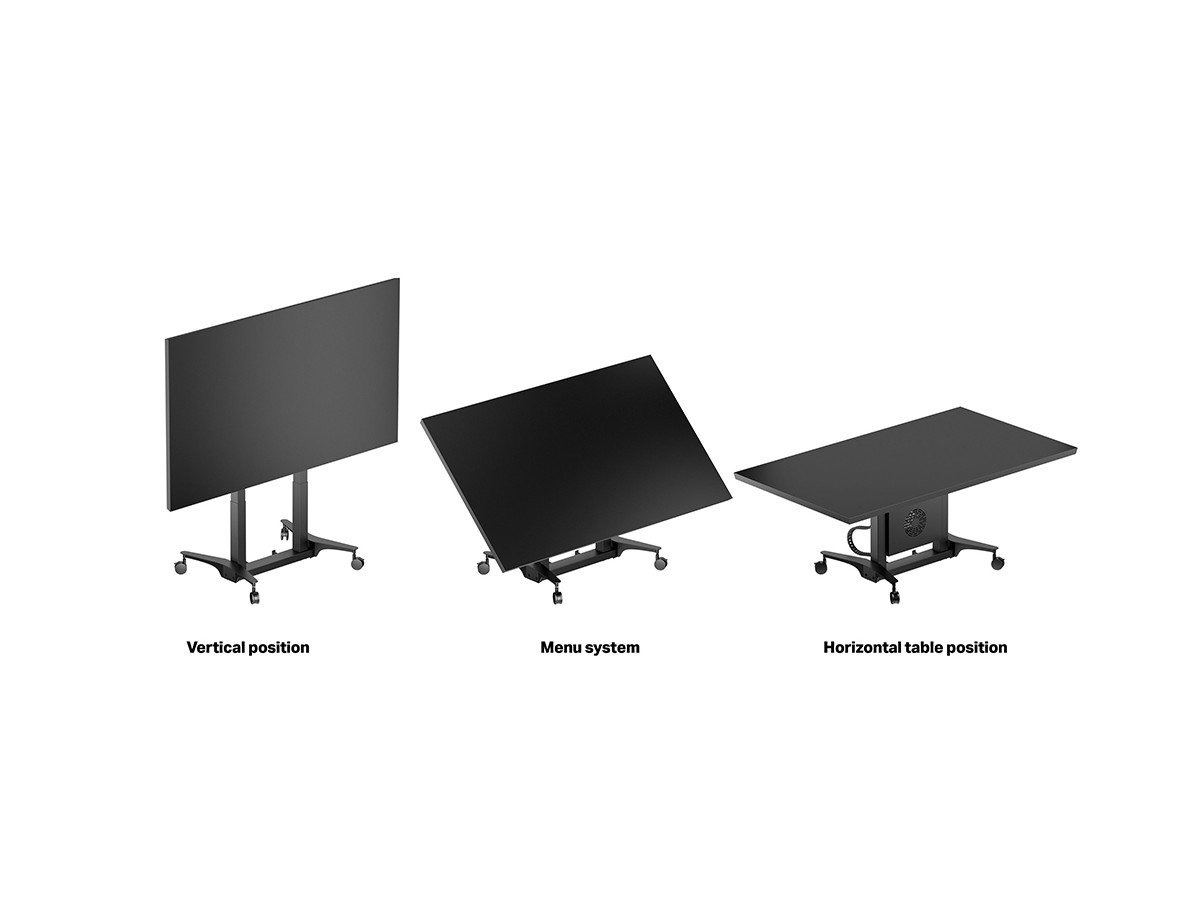

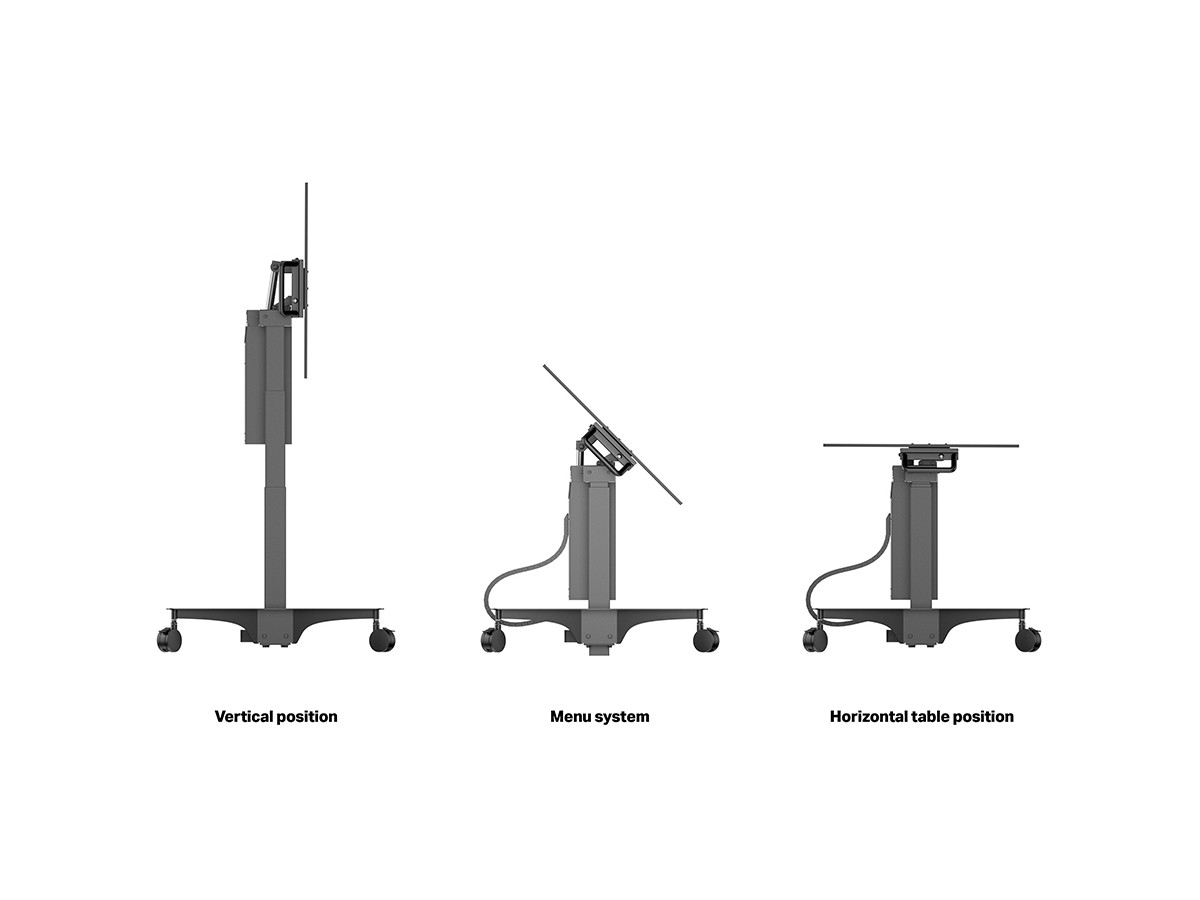

3 positions: Standard, Table or Tilted Menu position
These advanced solutions will provide accessible, comfortable and ergonomically correct touchscreen positioning that improves productivity and enhances the overall user experience.
When screens get big mobile counts. Often high on cost the screens needs to be moved between rooms, and sometimes stored in a safe place. Clean designed yet robust and stabile mobile floorstand prevents the touch screen from shaking when being used. The usage of heavy duty high performance wheels makes it easy to move. The motors electrical height adjustment is easy to adjust to be on par with its audience. Screen height adjusted to a standing or sitting audience is just a click away as well as the sought after horizontal table position for touch screens.

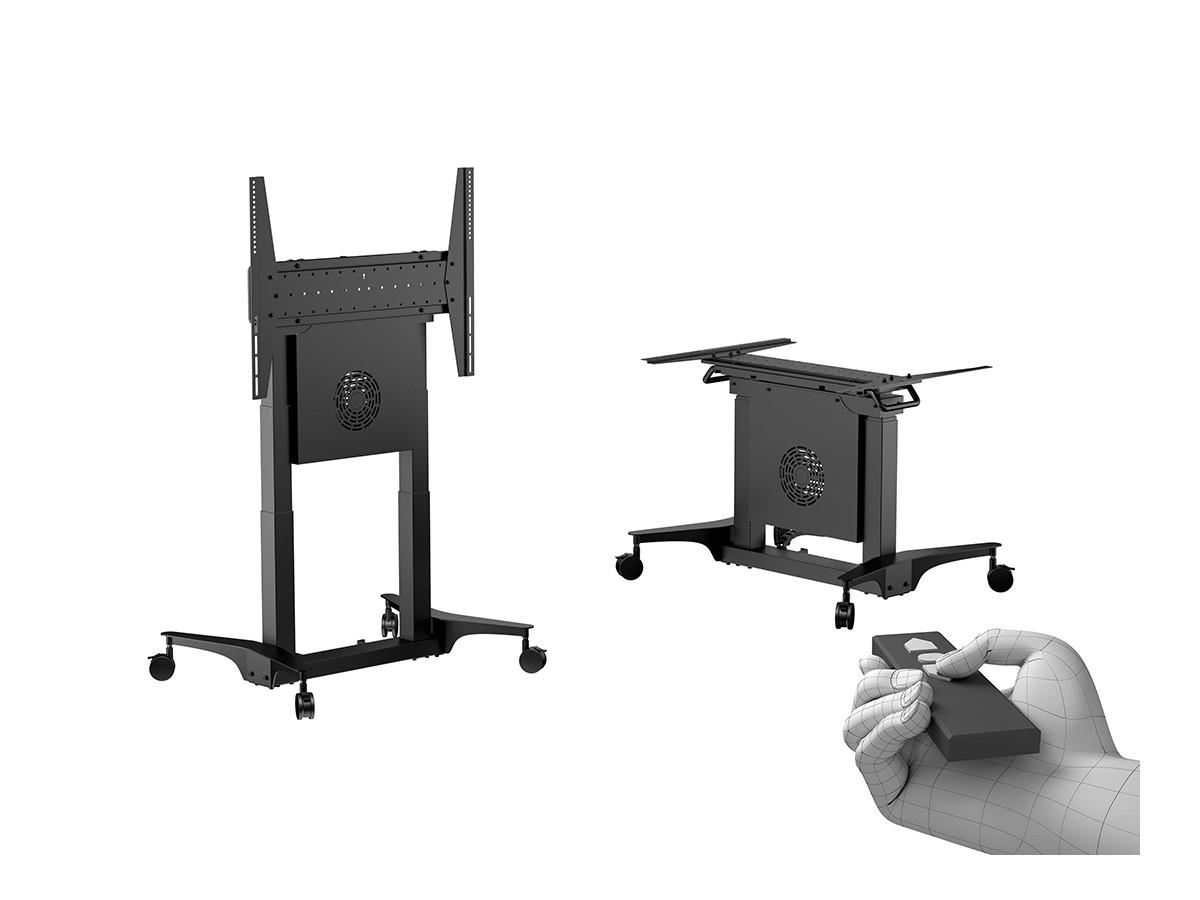

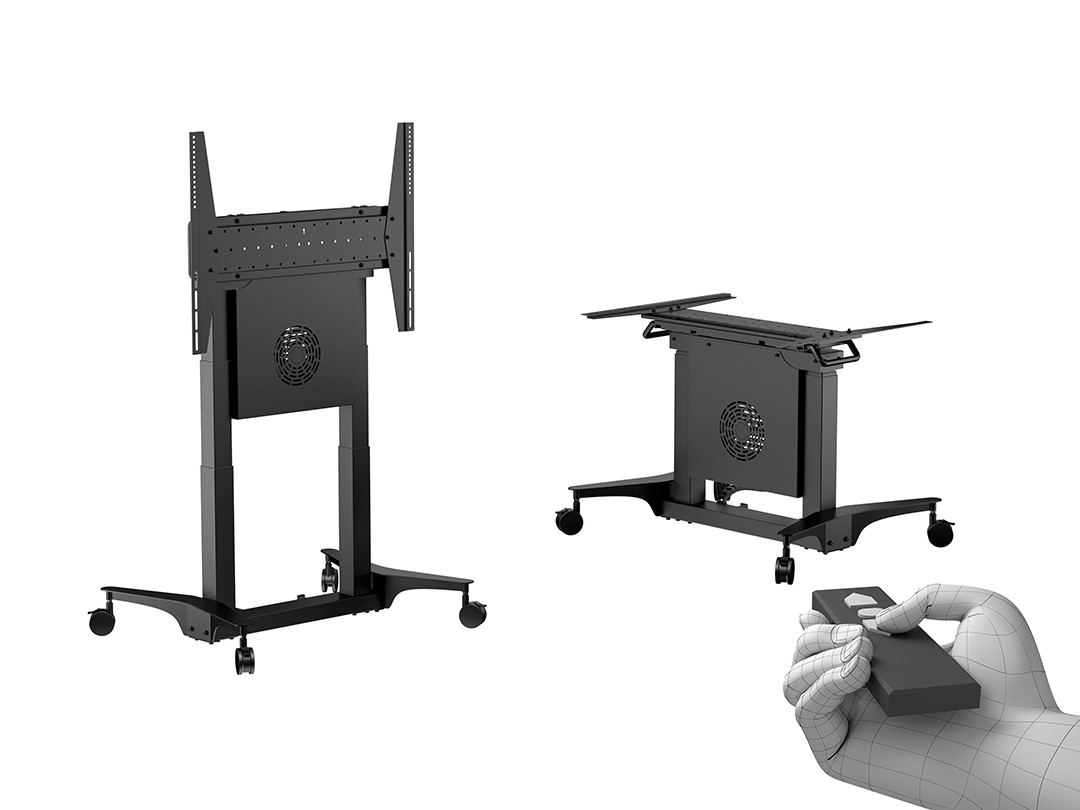

The mechanical and housing is design to give simple and smart usage and an overall professional feel that fits well in both corporate and classroom environments. Never has a large size screen been so easy to adjust via the remote control. No technical know-how or previous usage is needed to control the M Motorized Floorstand.

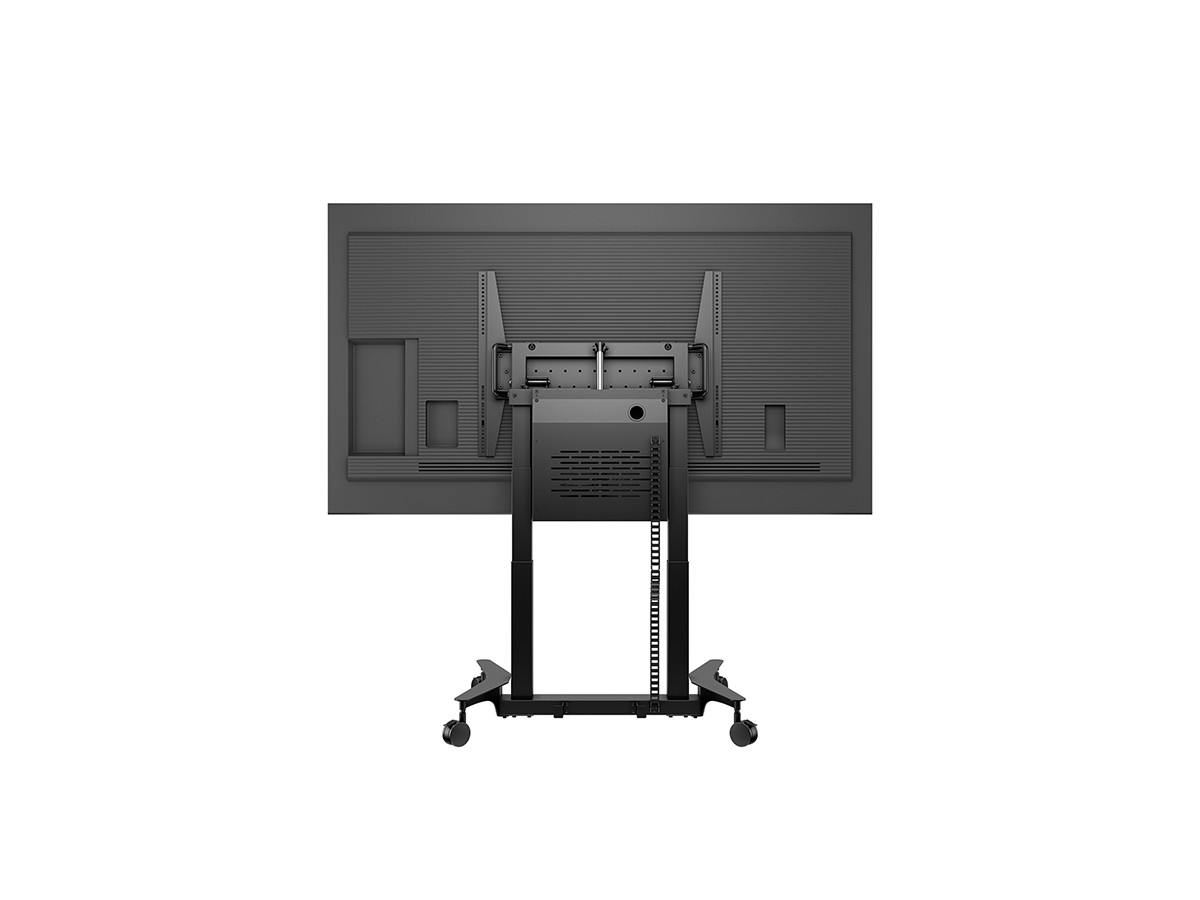

Holding a wide range of up to VESA specification up to 800x600 and up to 100 kg it can hold most large screens the e-box market has to offer, also the more powerful touch screens such as Microsoft Surface Hub 487A03 and other similar solutions.
As extra safety, the lift is equipped with an anti collision system that stops movement in the event of resistance, preventing possible damage to the screen or surrounding area.
A variety of accessories available (optional) makes this ebox product ideal for use anywhere where a screen need to alternate heights or moved around. Also ideal in public or classroom applications where the display or touch screen needs to be locked away after usage.
Highlights
- Large screen capacity 86" or 100 kg max
- VESA 800x600 max
- Motorized movement 695mm to 1345mm for a perfect position

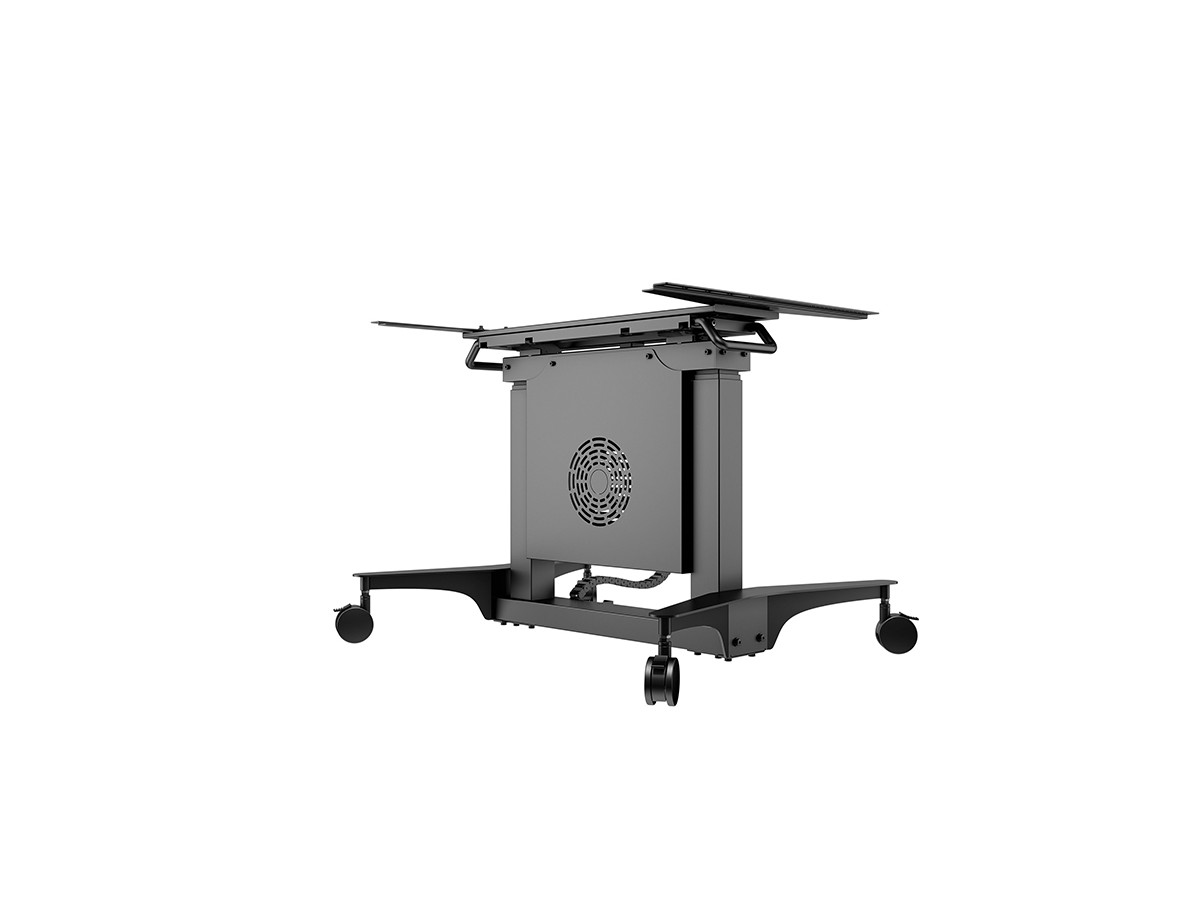

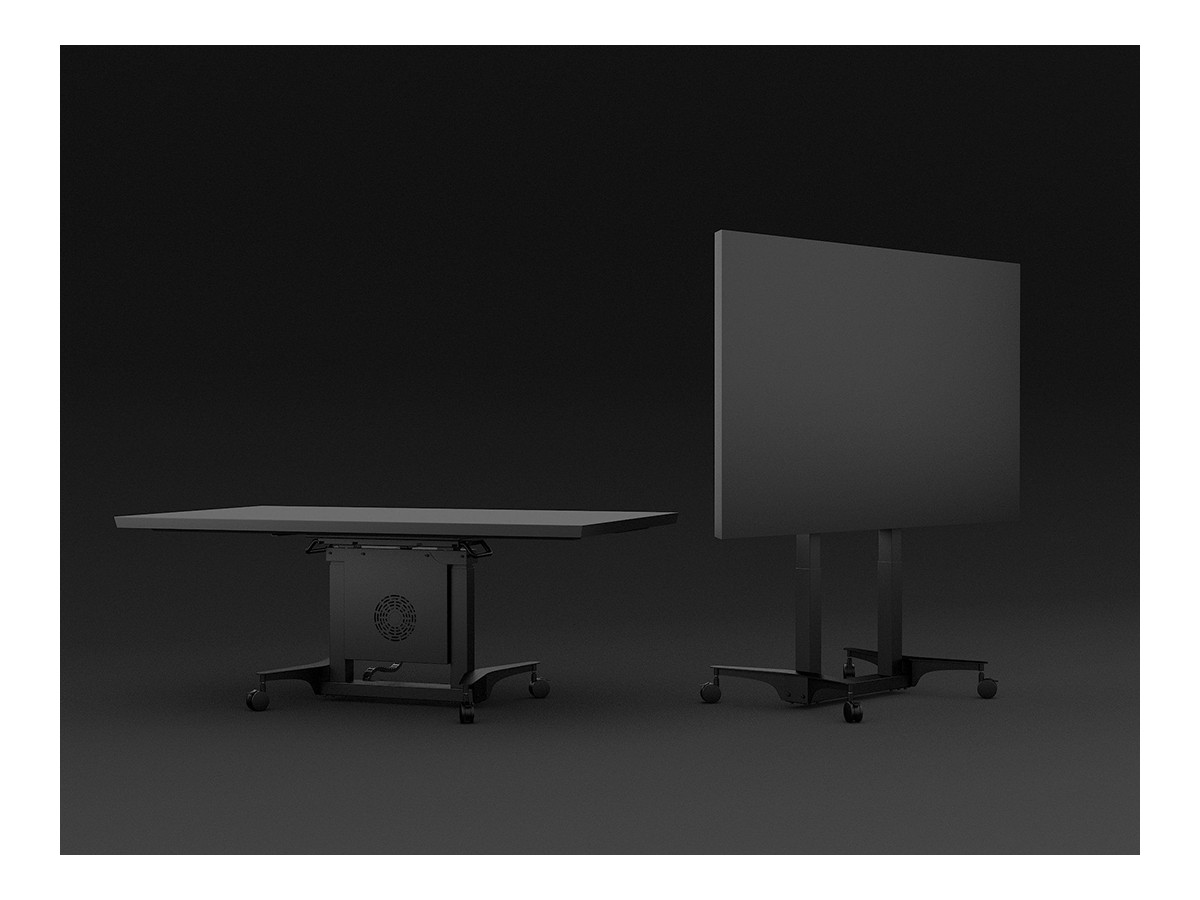

- Move the screen up, down or to a table position
- The quiet electrical motor discreetly but distinct moves the screen in position
- Built in Anti collision safety features
- Optimized for your audience, sitting, standing or leaning over the screen
- Made to pass through doorways and over thresholds
- A variety of accessories available
- Unit comes partially pre-mounted and reduces installation time significantly
Additional information
| Article No: | 7 350 105 217 104 |

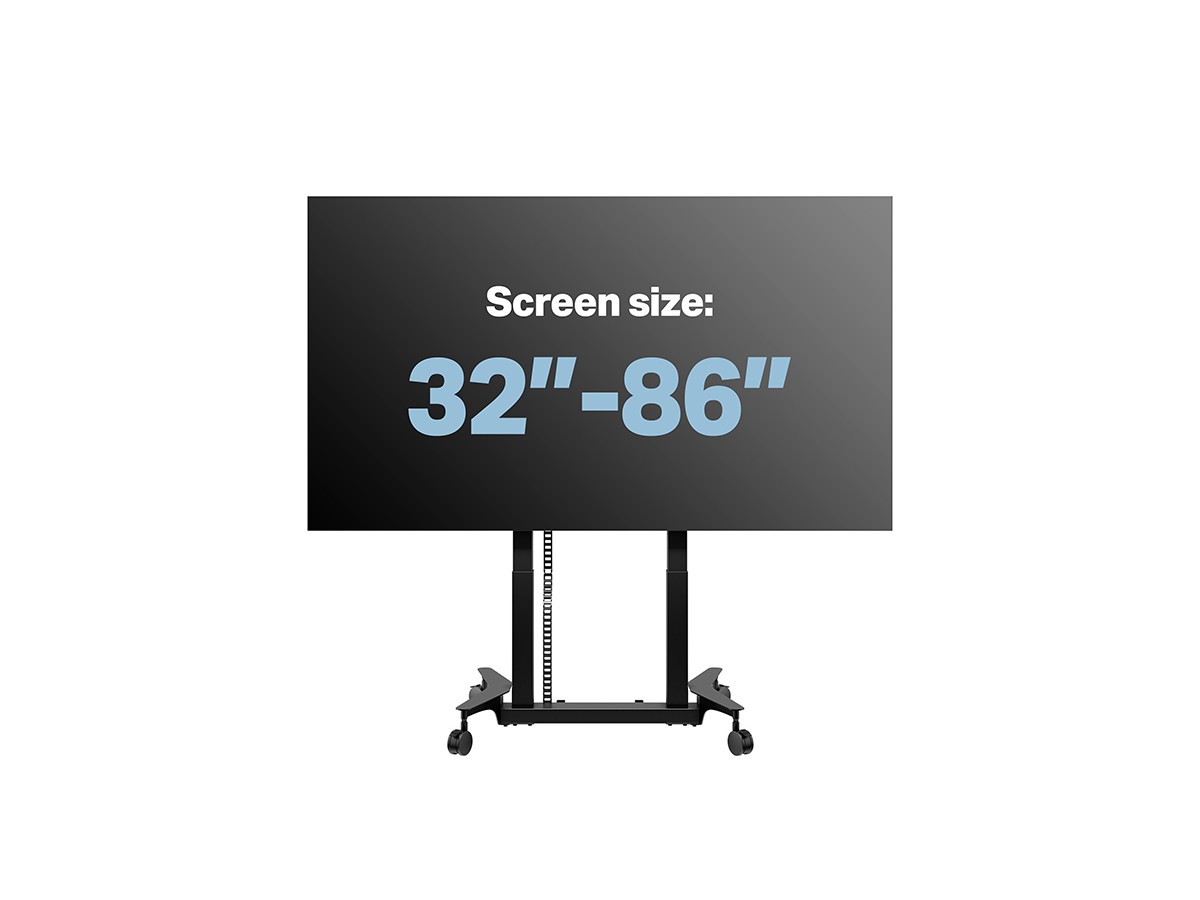

| For screen size: | 32”-86" |
| Type/ Travelheight: | Single Display / 695mm to 1345mm |
| Universal & VESA standard: | Adjustable from 75x75 to 800x600 max |
| Material: | Alumimum Alloy, Plastic, Steel |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 45.4 kg |

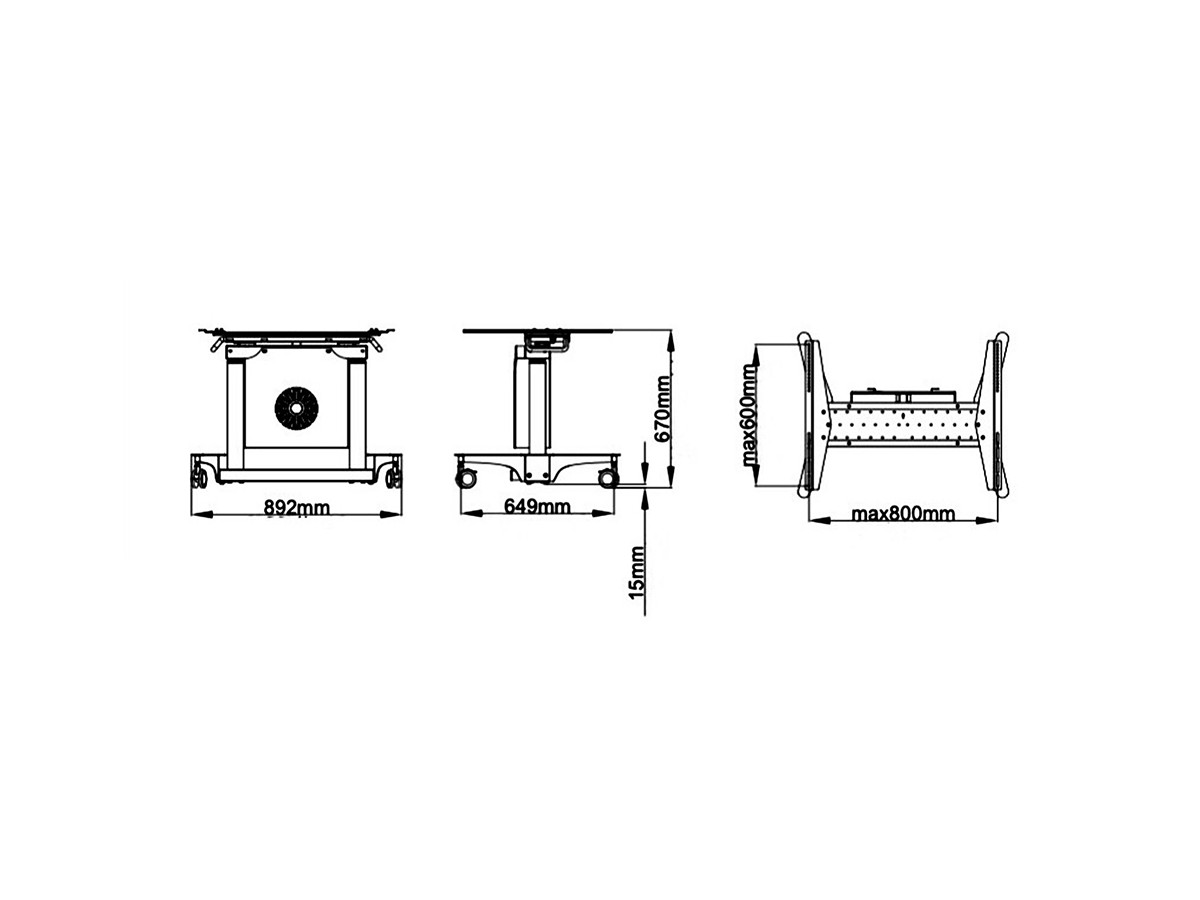

| Measurements | W1275 x D957 x H1672 mm |
| Max Load: | 100 kg |
| Pillar length: | Min: 722 mm to Max: 1488 mm |
| Tilt: | Yes, 0° ~ 90° |
| Swivel: | No |
| Rotate: | No |
| Motor: | Yes |
| Power: | AC-in 100~240V 50/60 Hz |
| Remote control: | Yes |
| Installation: | Screws M4, M5, M6, M8 |
| Cable Management: | Yes |
| Certification: | CE |
| Warranty: | 1 year |
