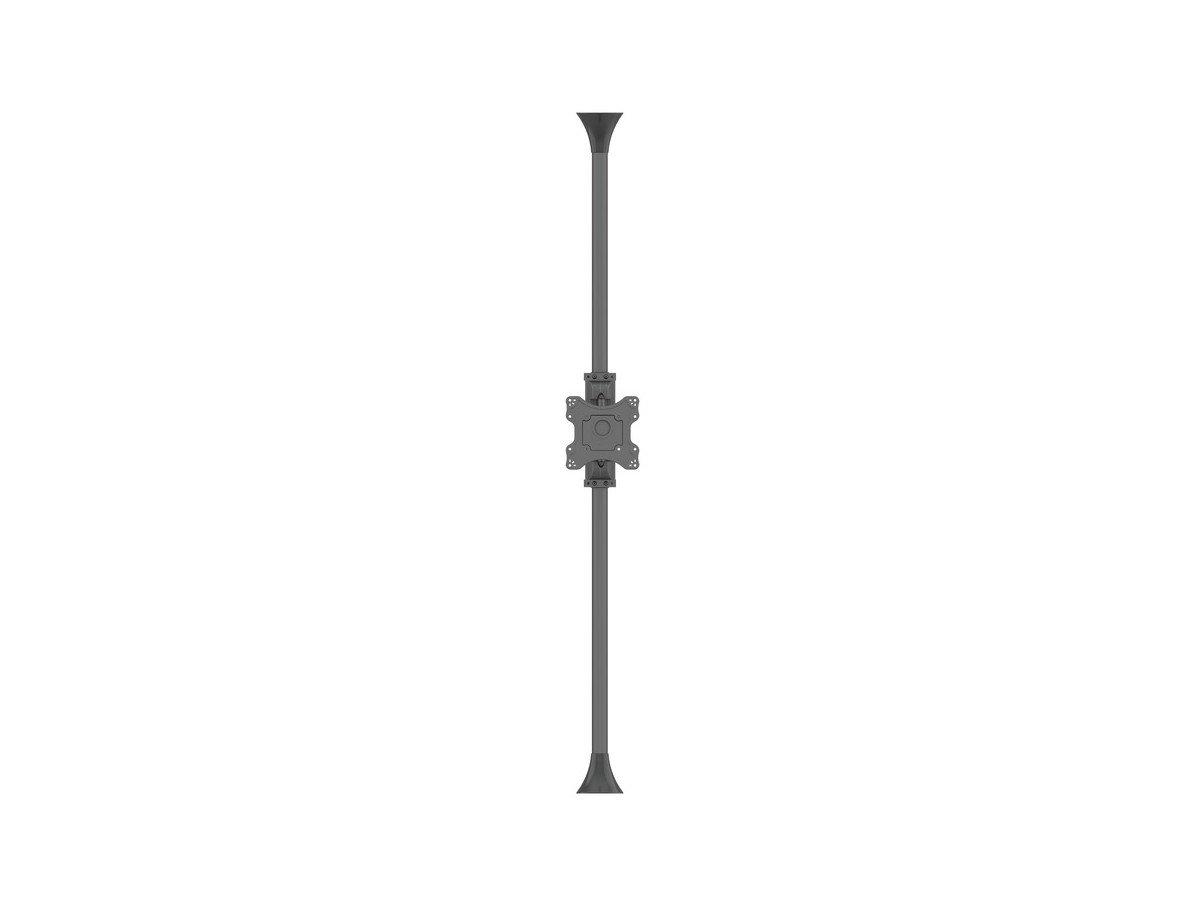

Multibrackets 7350073736393 M Floor to Ceiling Mount Pro MBFC1F, VESA200

Product code: 7350073736393

M Floor to Ceiling Mount Pro MBFC1F, VESA200 - Ceiling mount for LCD display, steel, 3m length, 1 screen, single side, tilt arms, VESA 100x100,200x100, 200x200 - screen size: 17"-46" - black



Multibrackets Pro Series M Floor to Ceiling Mount Pro MBFC1F, VESA200 is a signage solution - ready to be installed.

The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

With its modular construction installers can tailor the M Floor to Ceiling Mount Pro MBFC1F, VESA200 with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.

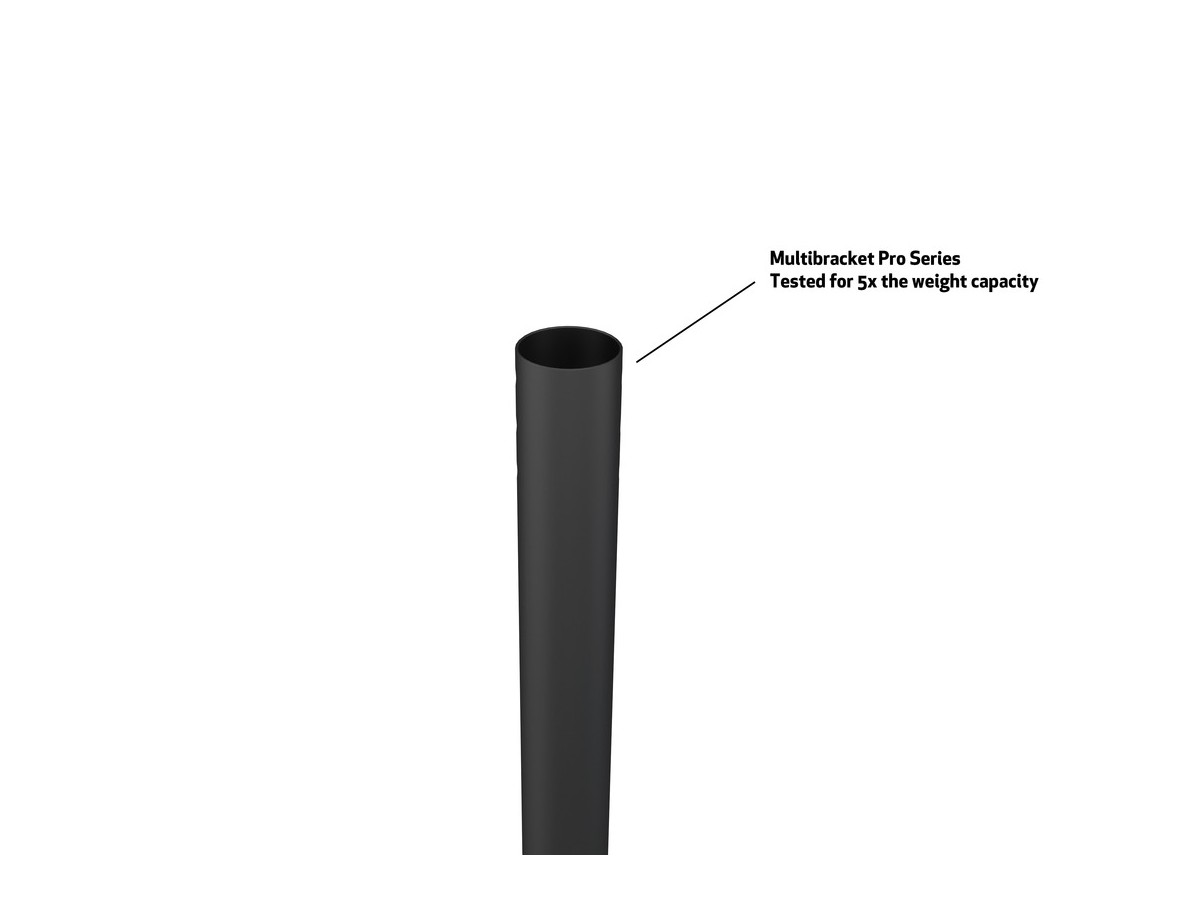

The M Floor to Ceiling Mount Pro MBFC1F, VESA200 creates a rock steady screen display solution aimed for the retail store, mall or any other public area. 50mm black, brass or chrome tubes can be tailored to fit the environment the unit is positioned in. Mount screens with tilt or fixed displays. Place them side by side and/or above each other.

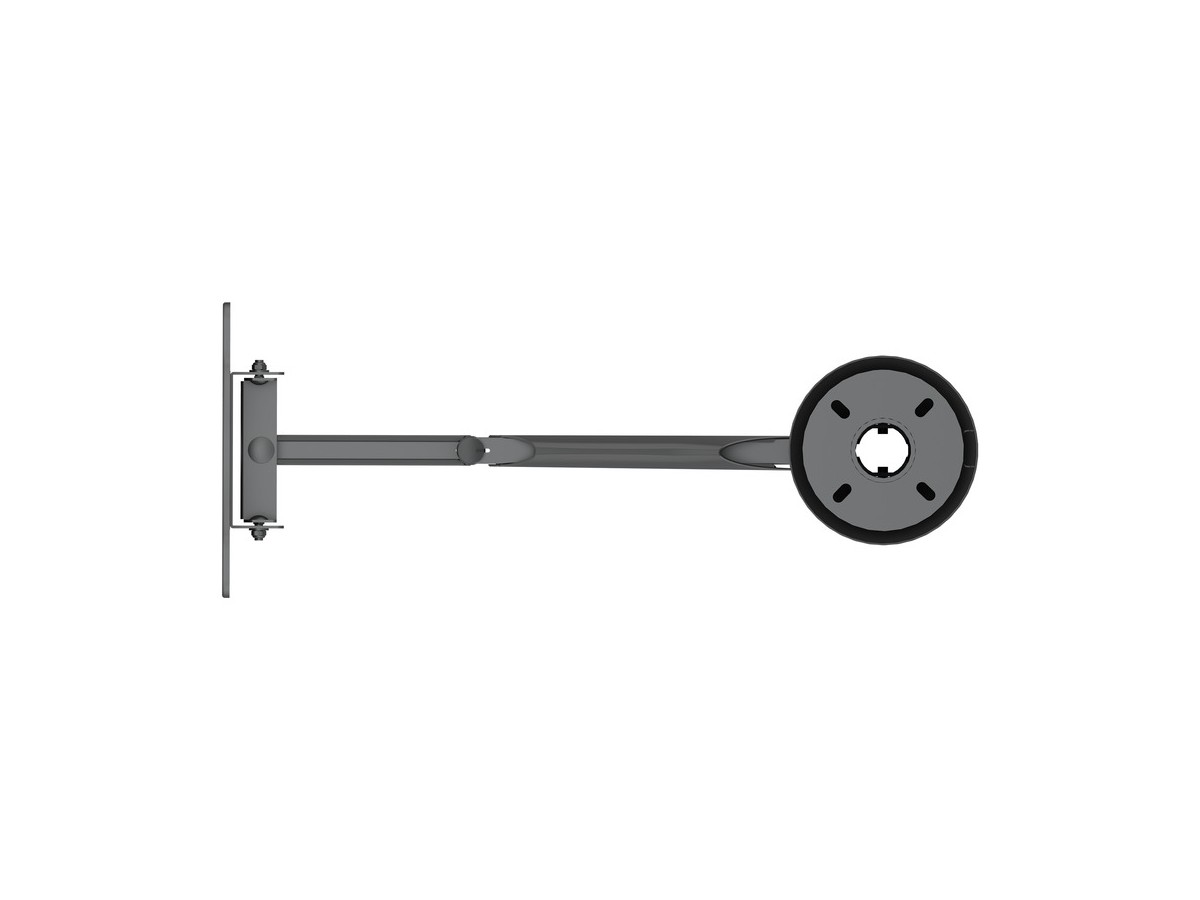

This M Floor to Ceiling Mount series was designed with our Scandinavian heritage in mind and provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. The result a sleek Nordic solution emphasizing quality and function by design and its material choices throughout the entire solution. Widely used in a variety of environments the unit can also be mounted floor to wall via a wall bracket accessory uniquely constructed to hold the pipe connected to the wall.

Our Pro Series includes hardware so that a basic installation should not be a hassle. The Pro Series possibilities to extend tubes and add details by choice is so vast that one can tailor each solution to its location and needed function.

Multibrackets Pro Series Public Floor to Ceiling Mount ideal for any large screen digital signage application


  • A professional, flexible and modular product
  • Includes VESA adapters for compatibility up to VESA 600x400
  • Integrated cable management throughout the entire solution
  • Power click install for an easy, fast and safe installation

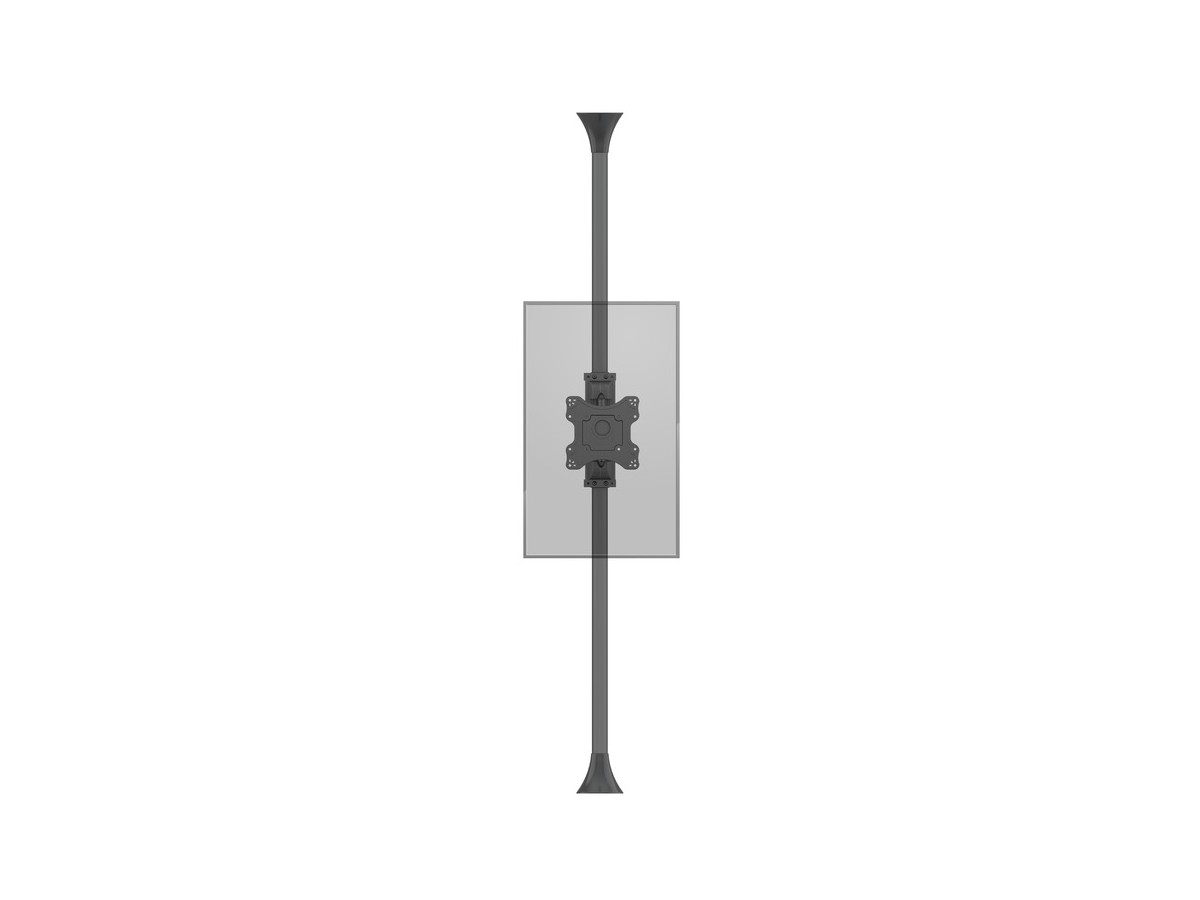

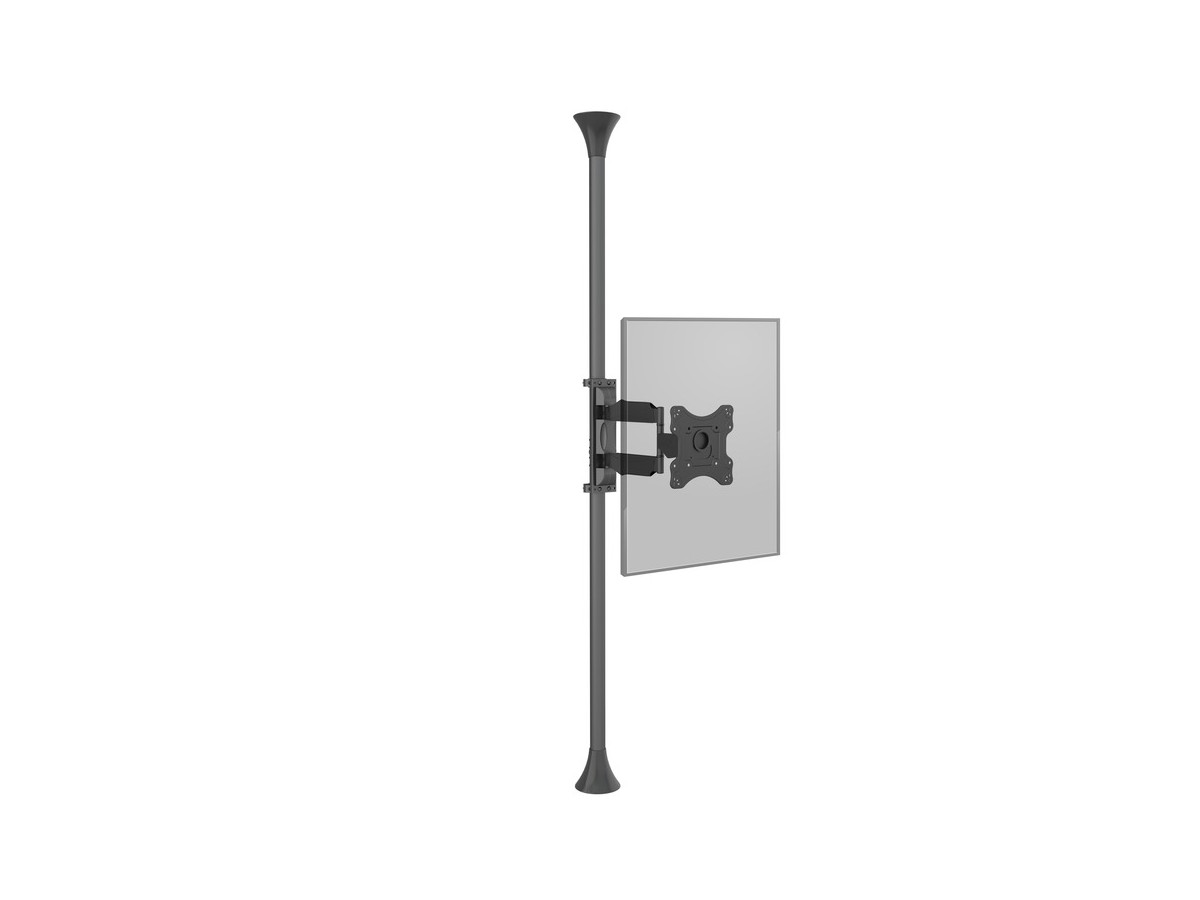

  • Portrait or landscape position of screen possible
  • Hardware kit included

Additional information

For screen size:17"-46"
Type:Single Side MBFC1U
Universal & VESA standard:100x100,200x100, 200x200
Material:Steel, Aluminium, Plasic
Surface Finish:Powder coating/Anodic Oxidation
Weight:13 kg

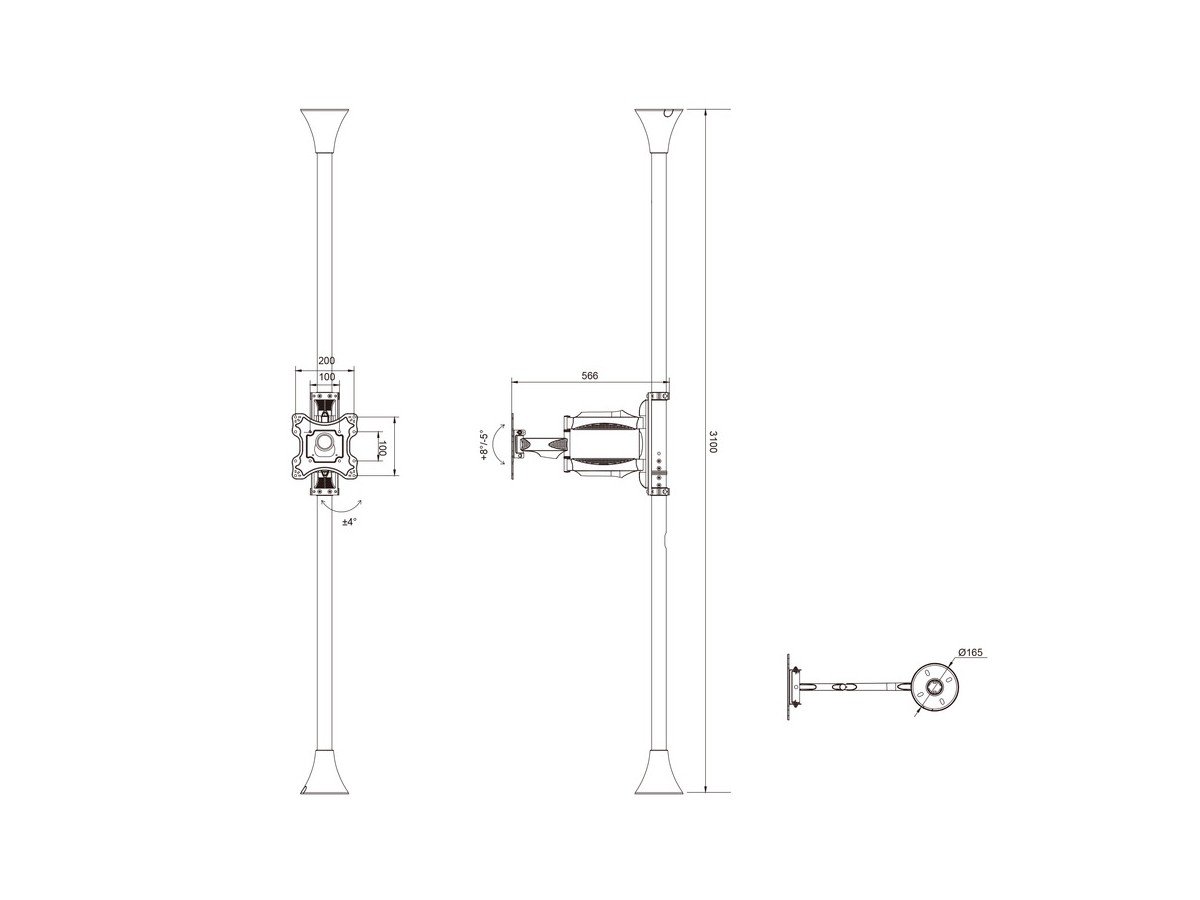

Measurements:69x328x17 cm
Max Load:30 kg per screen
Pillar length:Min: 580mm to Max: 1550 mm
from ceiling to VESA plate center

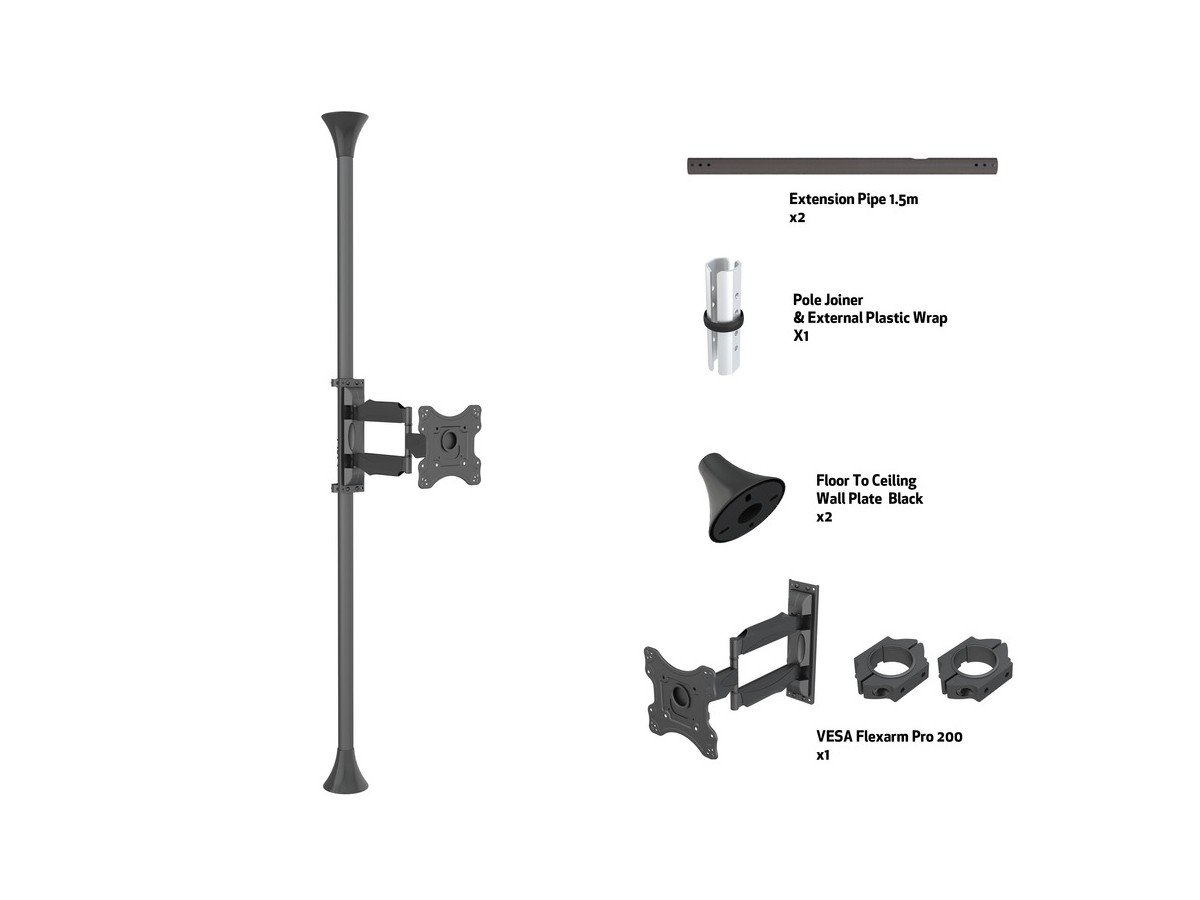

Extension pipes: 3m (1500mm*2pcs) included

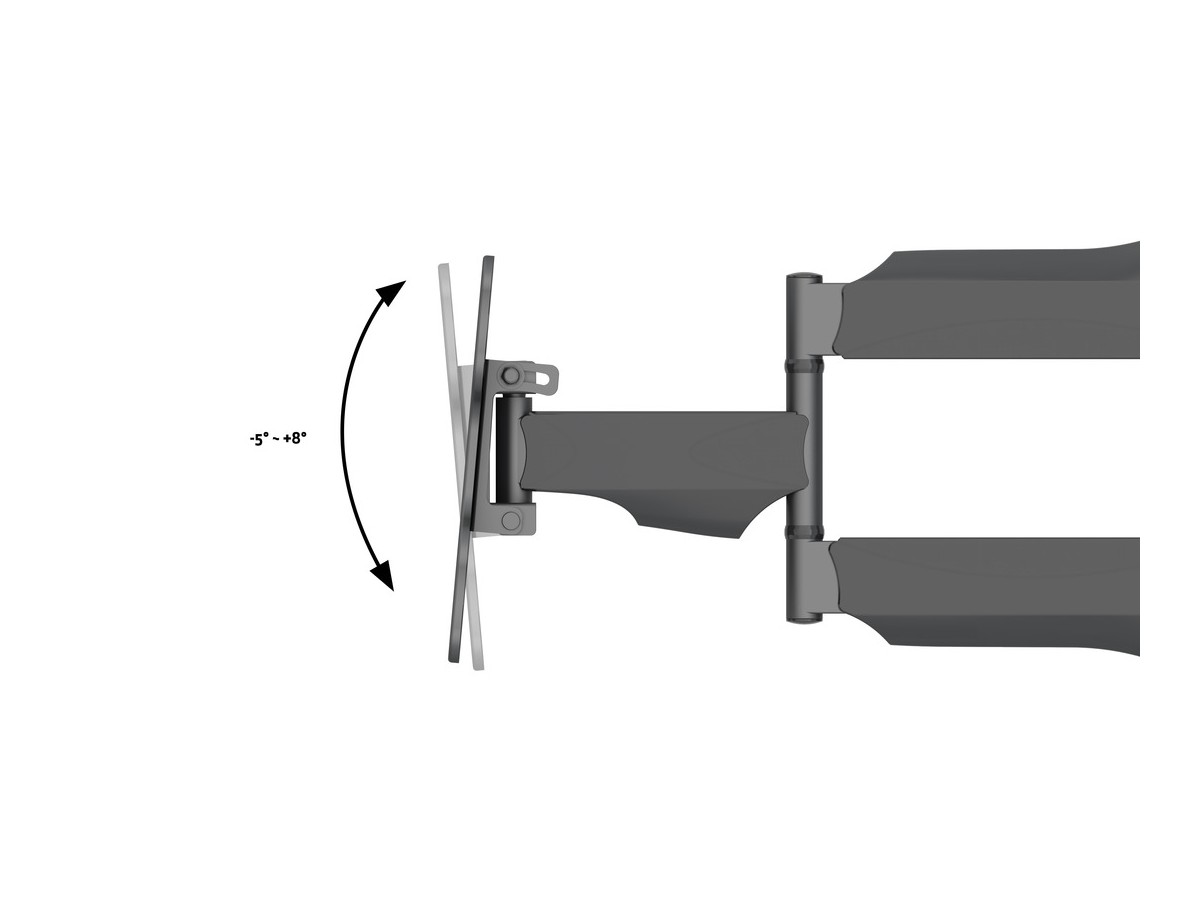

Tilt:Yes, -5°~+8°

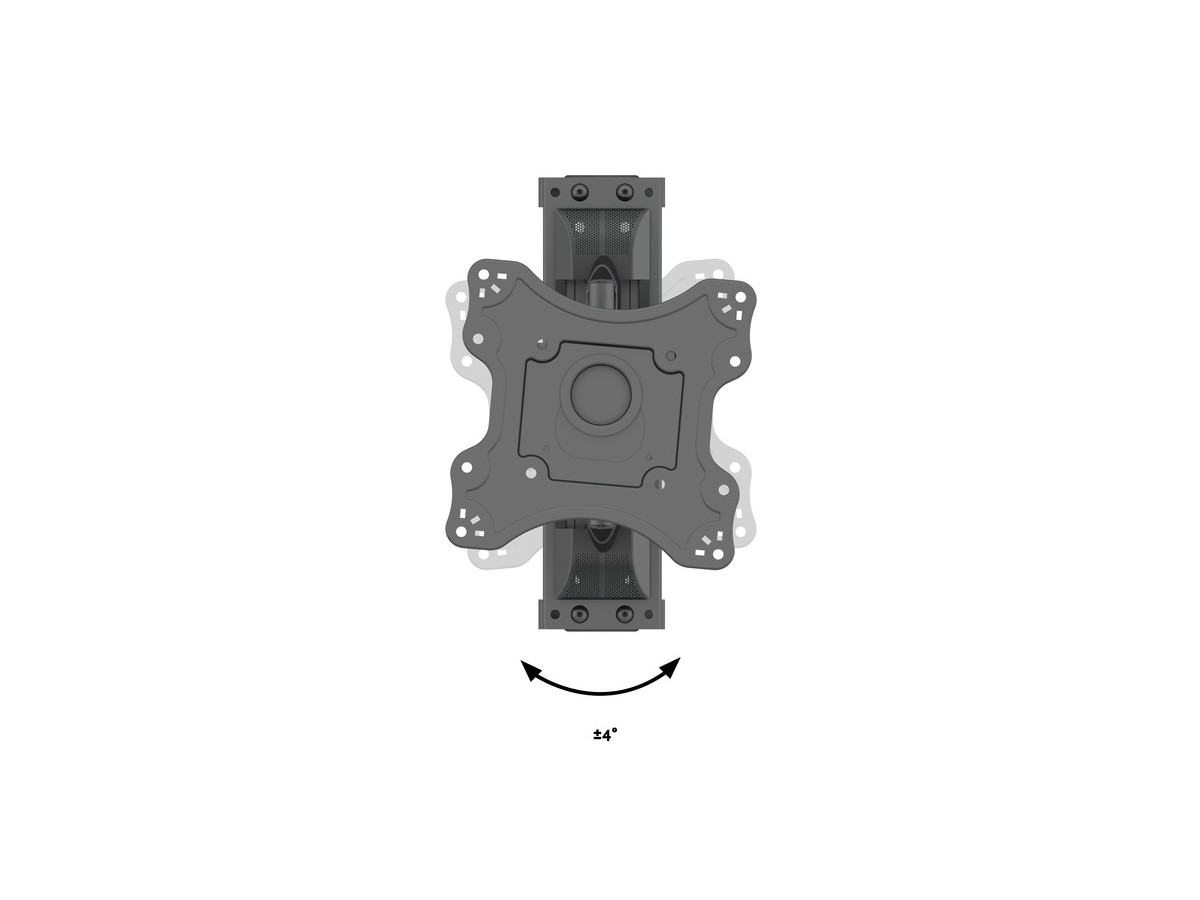

Swivel:Yes, ±4°

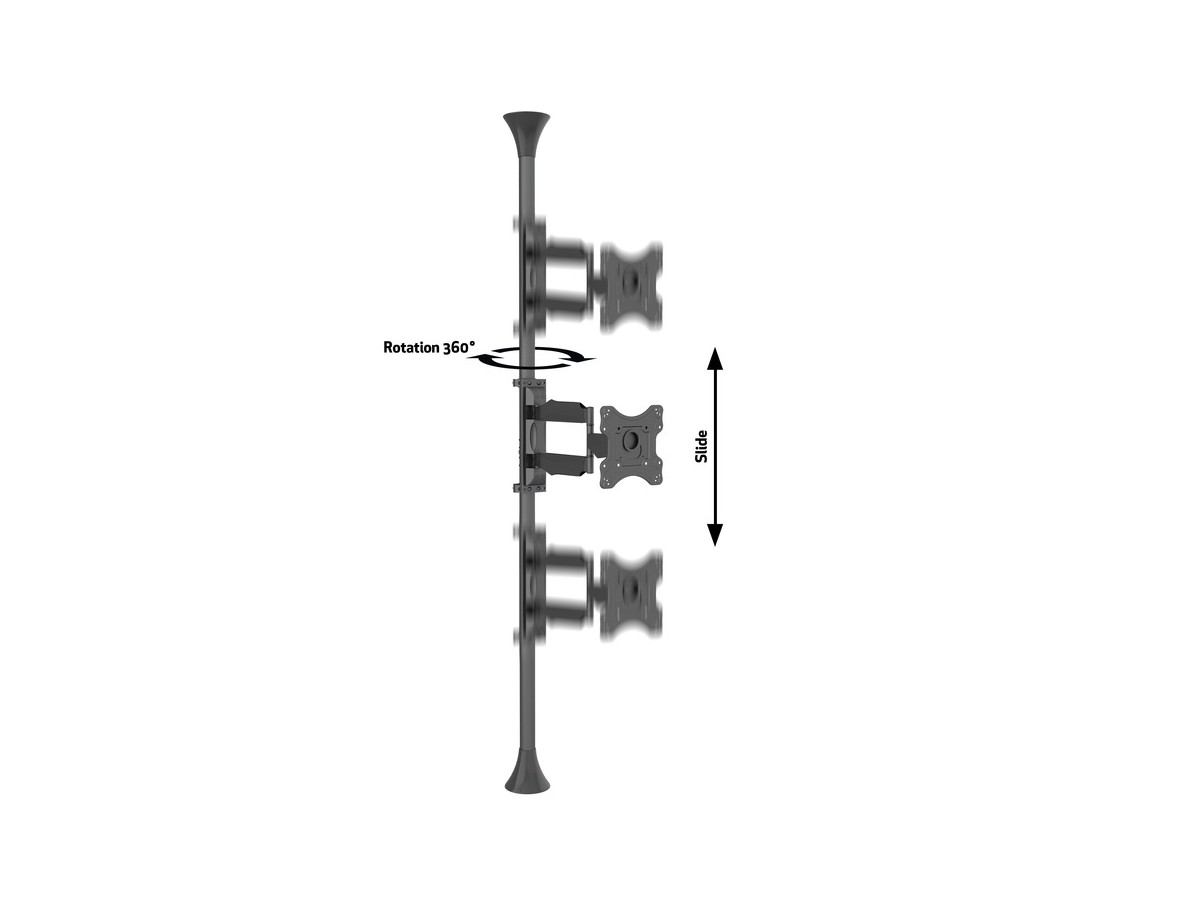

Rotate:Yes, 360°
Cable Management:Yes
Options:Extension pipes : 0.8m, 1.5m, 3.0m
Warranty:5 years
