| Supported Display Resolution |
|
| Computer formats |
640 x 480, 60, 67, 72, 75 Hz, 720 x 400, 70 Hz, 800 x 600, 60, 72, 75 Hz, 1024 x 768, 60 Hz, 1280 x 768, 60 Hz, 1280 x 800, 60 Hz, 1280 x 1024, 60 Hz, 1360 x 768, 60 Hz, 1600 x 1200, 60 Hz, 1920 x 1080, 60 Hz, 1920 x 1200, 60 Hz, 3840 x 2160, 30Hz, 3840 x 2160, 60 Hz
|
| Video formats |
480i, 30, 60 Hz, 480p, 60 Hz, 576p, 50 Hz, 576i, 25, 50 Hz, 1080i, 25, 30 Hz, 1080p, 50, 60 Hz, 3840 x 2160, 30Hz, 3840 x 2160, 60 Hz |
|
|
| Connectivity |
|
| Video input |
DVI-I (digital + analogue) 1x, DisplayPort 1.2 (x 1), HDMI 2.0 (x 3) |
| Video output |
DisplayPort 1.2 (x 1), HDMI 2.0 (x 1) |
| Audio input |
3.5 mm jack |
| Audio output |
3.5 mm jack |
| External control |
RJ45 |
|
RS232C (in/out) 2.5 mm jack |
|
IR (in/out) 3.5 mm jack |
| Other connections |
USB 2.0 (x 2), OPS |
|
|
| Convenience |
|
| Placement |

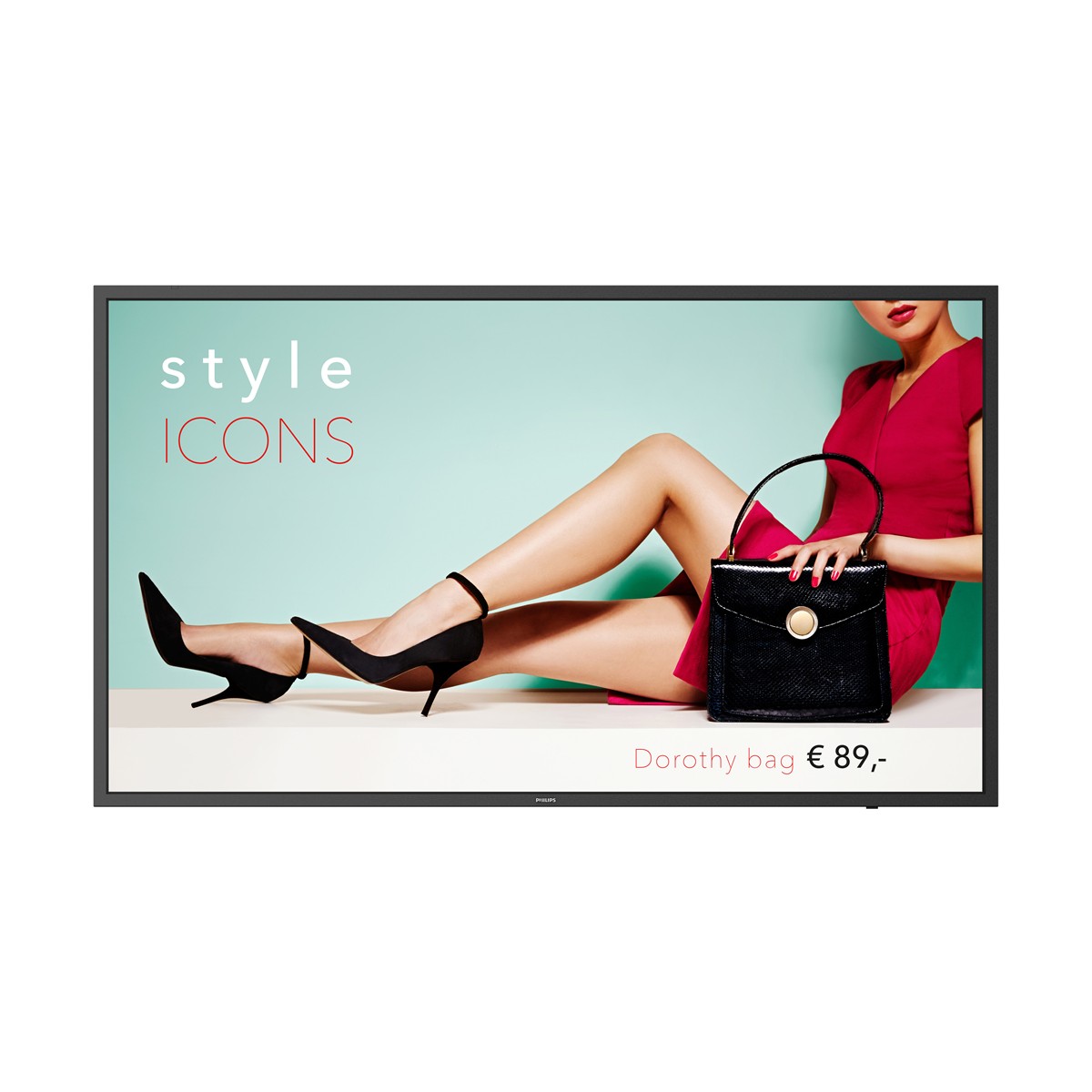

Landscape (24/7) |
|

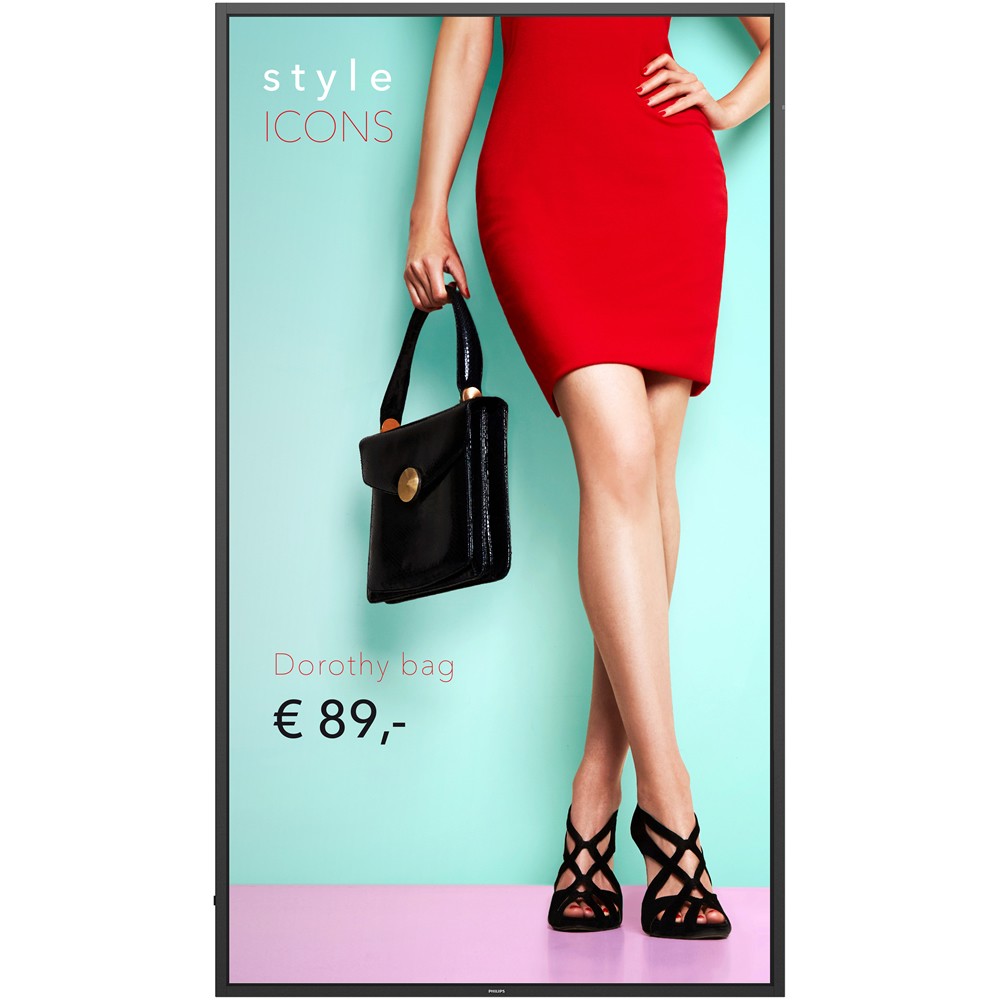

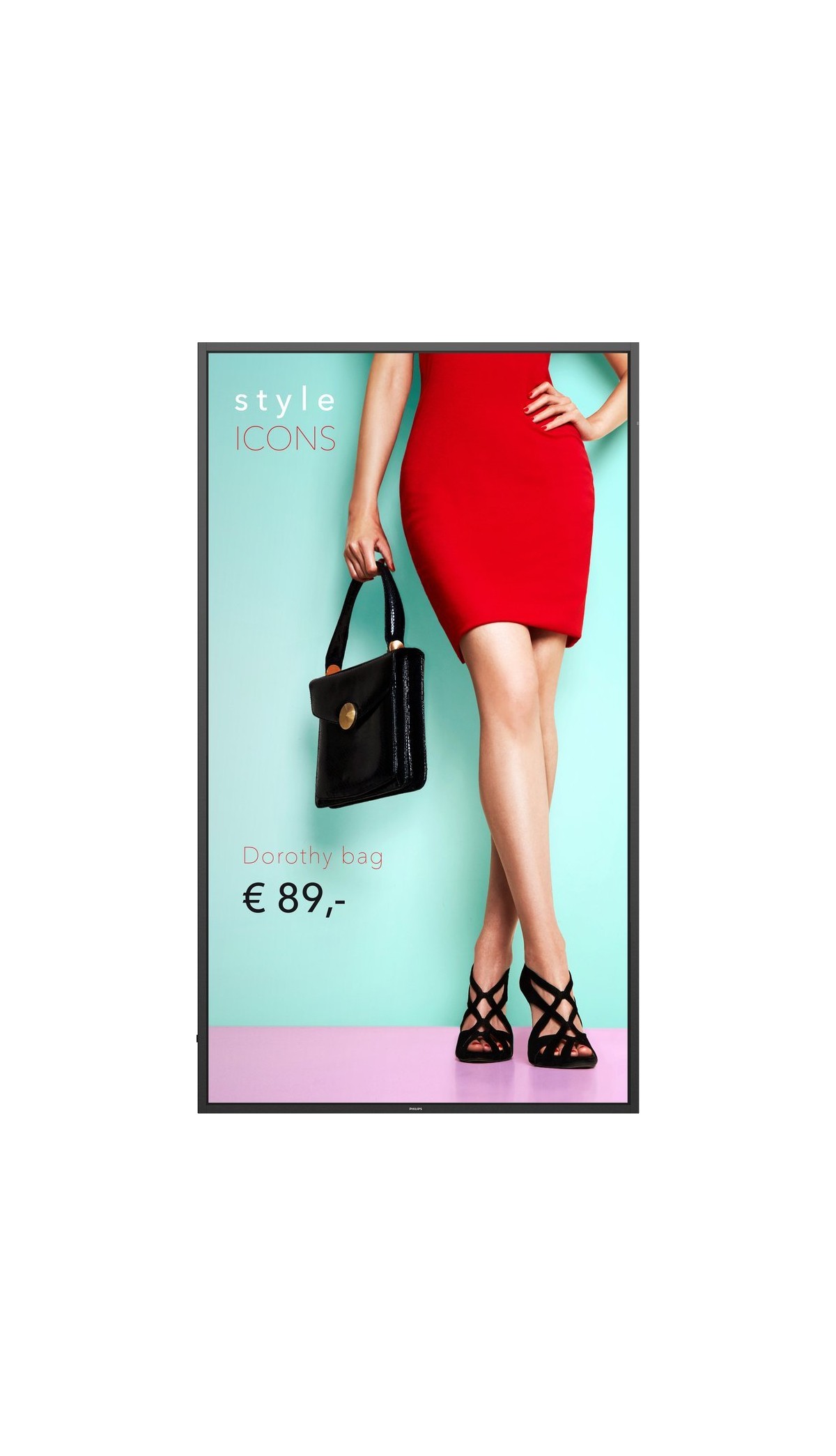

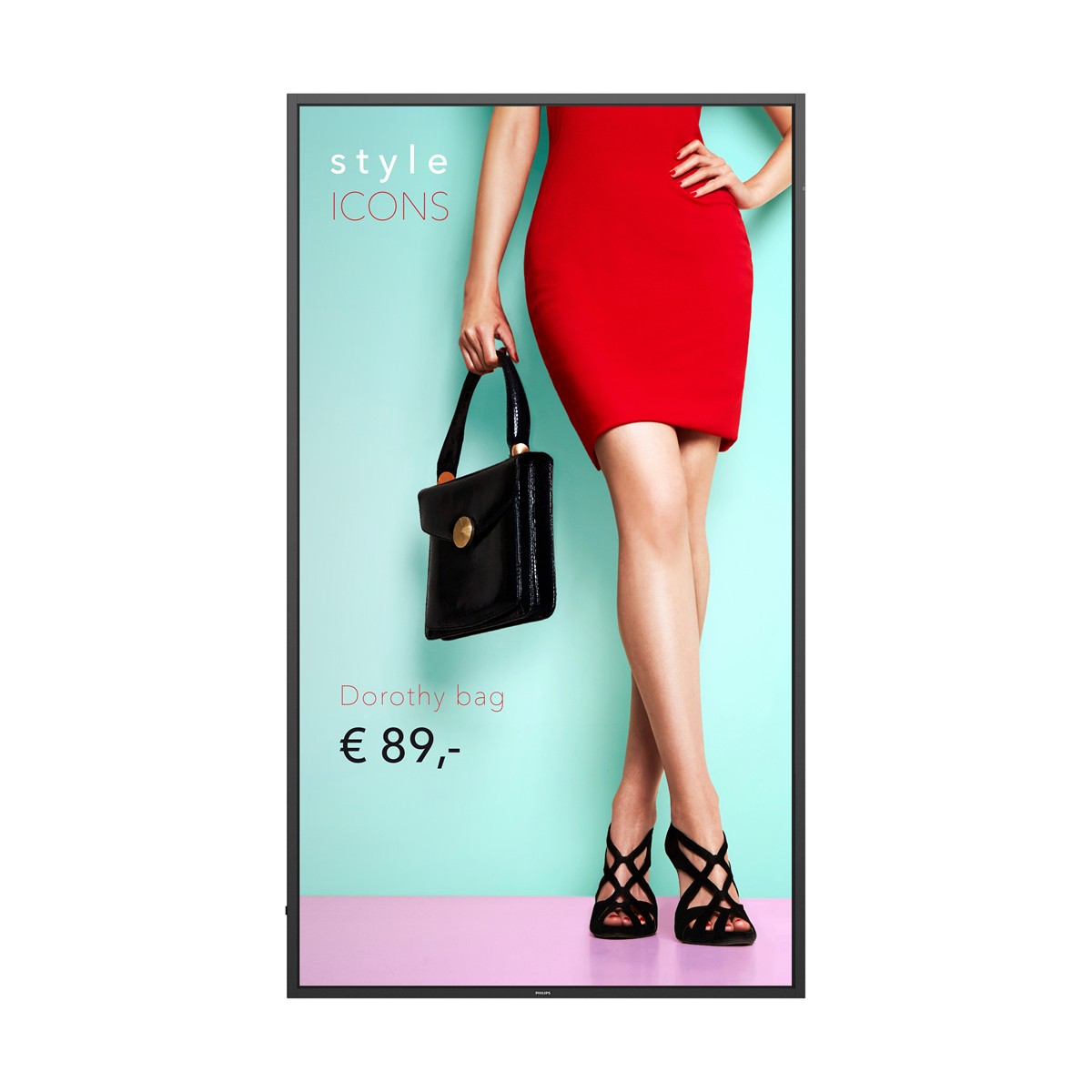

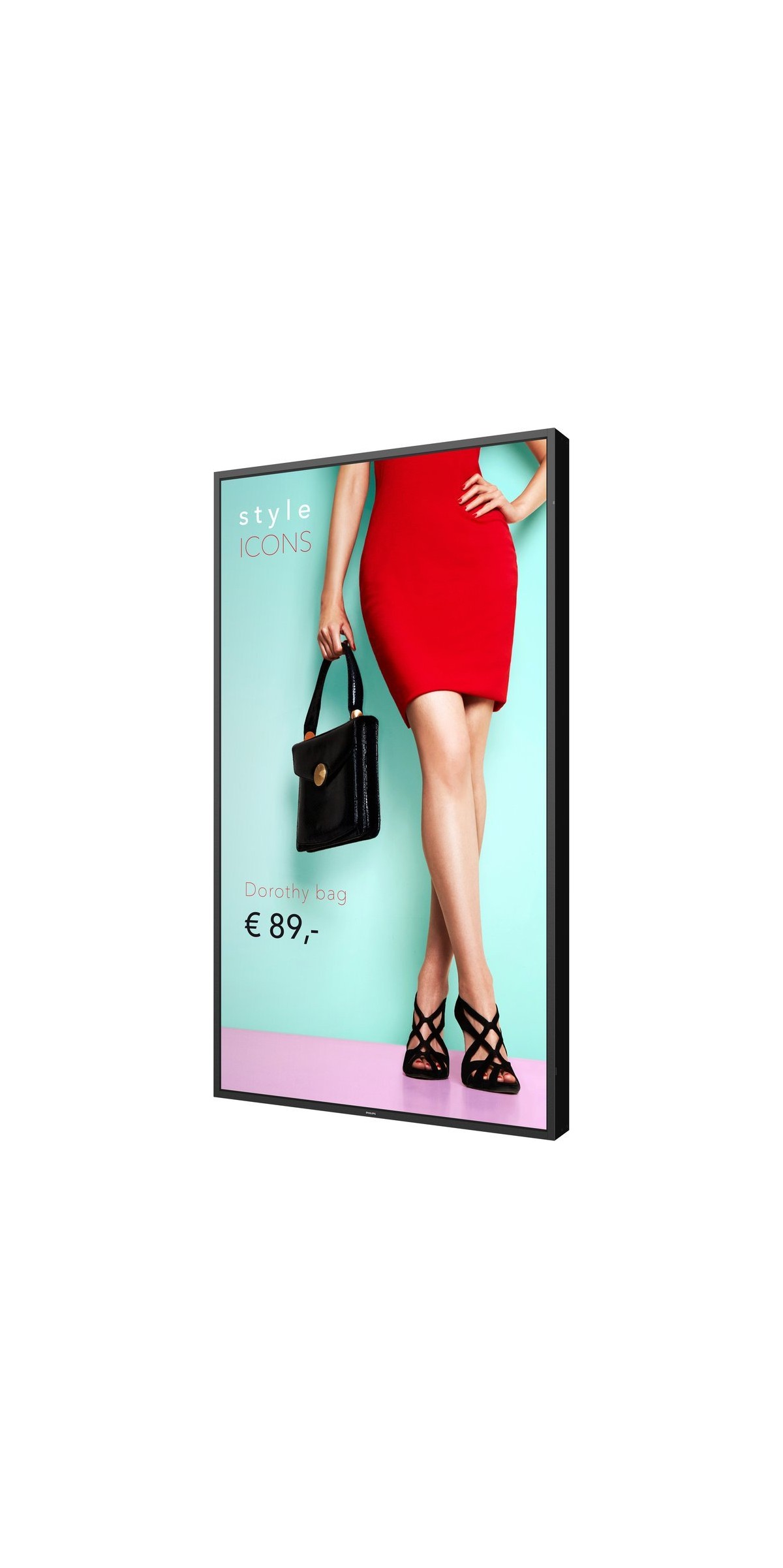

Portrait (24/7) |
| Screen-saving functions |
Pixel Shift, Low Brightness |
| Signal loop through |
DisplayPort, RS232, HDMI, IR Loop through |
| Ease of installation |

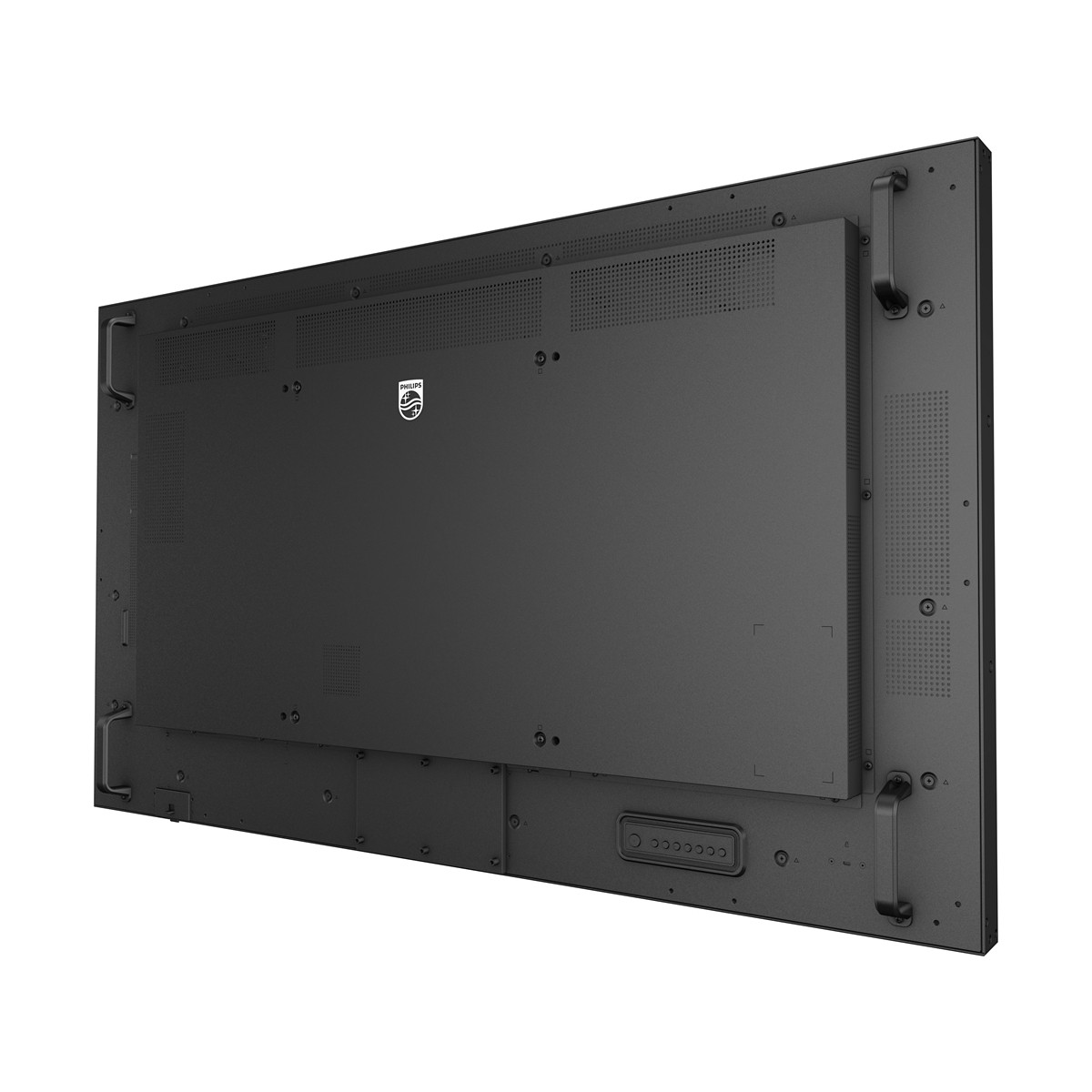

Carrying Handles |
|
Smart Insert |
| Energy-saving functions |
Smart Power |
| Network controllable |
RS232, LAN (RJ45) |
| Keyboard control |
Hidden, Lockable |
| Remote control signal |
Lockable |
|
|
| Dimensions |
|
| Set Width |
1688.2 |
| Set Height |
966.6 |
| Set Depth |
111.1 |
| Set Width (inch) |
66.46 |
| Set Height (inch) |
38.06 |
| Set Depth (inch) |
4.37 |
| Bezel width |
18.8 (even bezel) |
| Wall Mount |
600 x 400 mm, M8 |
| Smart insert width |
180 |
| Smart insert height |
300 |
| Product weight |
54.1 |
| Product weight (lb) |
119.27 |
|
|
| Operating conditions |
|
| Temperature range (operation) |
0 ~ 40 |
| Temperature range (storage) |
-20 ~ 60 |
| Relative humidity |
20 ~ 80 |
| Altitude |
0 ~ 3000 m |
| MTBF |
50 |
|
|
| Power |
|
| Consumption (Typical) |
510 |
| Consumption (Max) |
790 |
| Standby power consumption |
<0.5 W |
| Mains power |
100 ~ 240 VAC, 50 ~ 60 Hz |
|
|
| Sound |
|
| Built-in speakers |
2 x 10 W RMS |
|
|
| Multimedia Applications |
|
| USB Playback Video |
AVI, MP4, MPEG, MPG, TTS, VOB, |
| USB Playback Picture |
BMP, JPEG, PNG, JPG |
|
|
| Accessories |
|
| Included Accessories |
IR sensor cable (1.8 m) (x 1), RS232 daisy-chain cable, Philips logo (x 1), AC Power Cord, AC switch cover and Screw x 1, Quick start guide, Remote control and AAA batteries, RS232 cable, USB cover and screws, Wire Clamper (x 3), HDMI cable, Edge Alignment Kit, Open-frame kit |
|
|
| Miscellaneous |
|
| Warranty |
3 year warranty |
| On-Screen Display Languages |
English, French, German, Italian, Polish, Turkish, Russian, Simplified Chinese, Spanish, Traditional Chinese, Arabic, Japanese, Dutch, Portuguese |
| Regulatory approvals |
CE, CB, EAC, UL |
