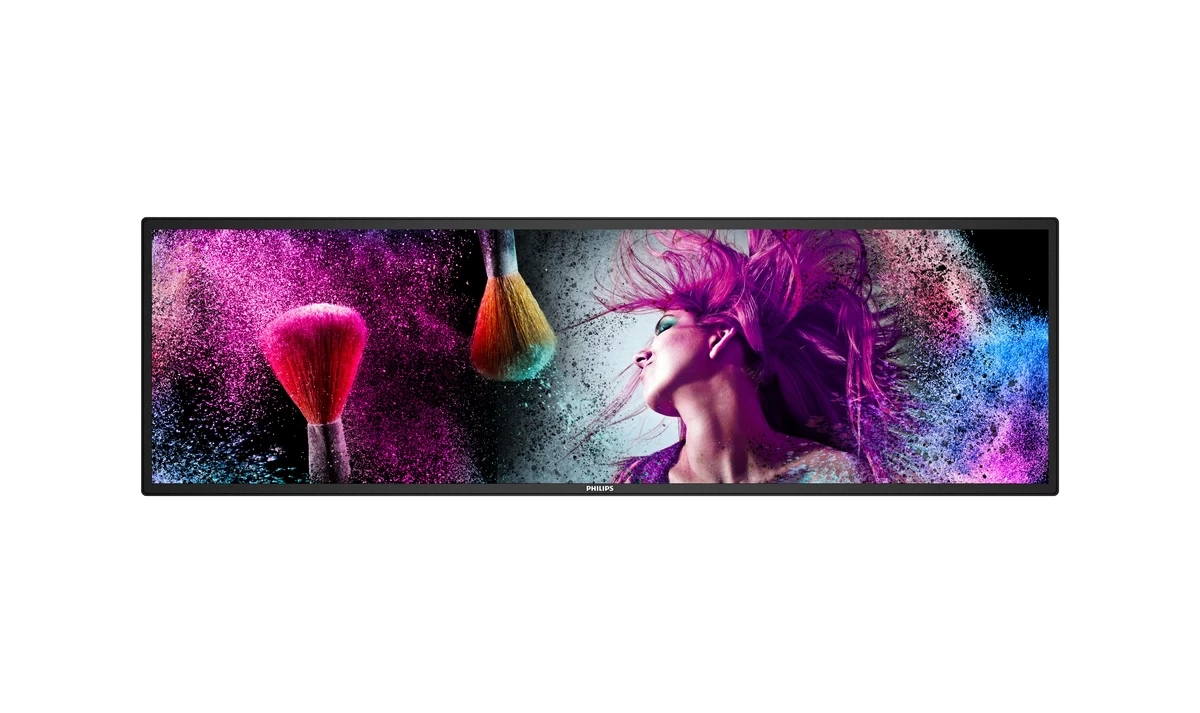

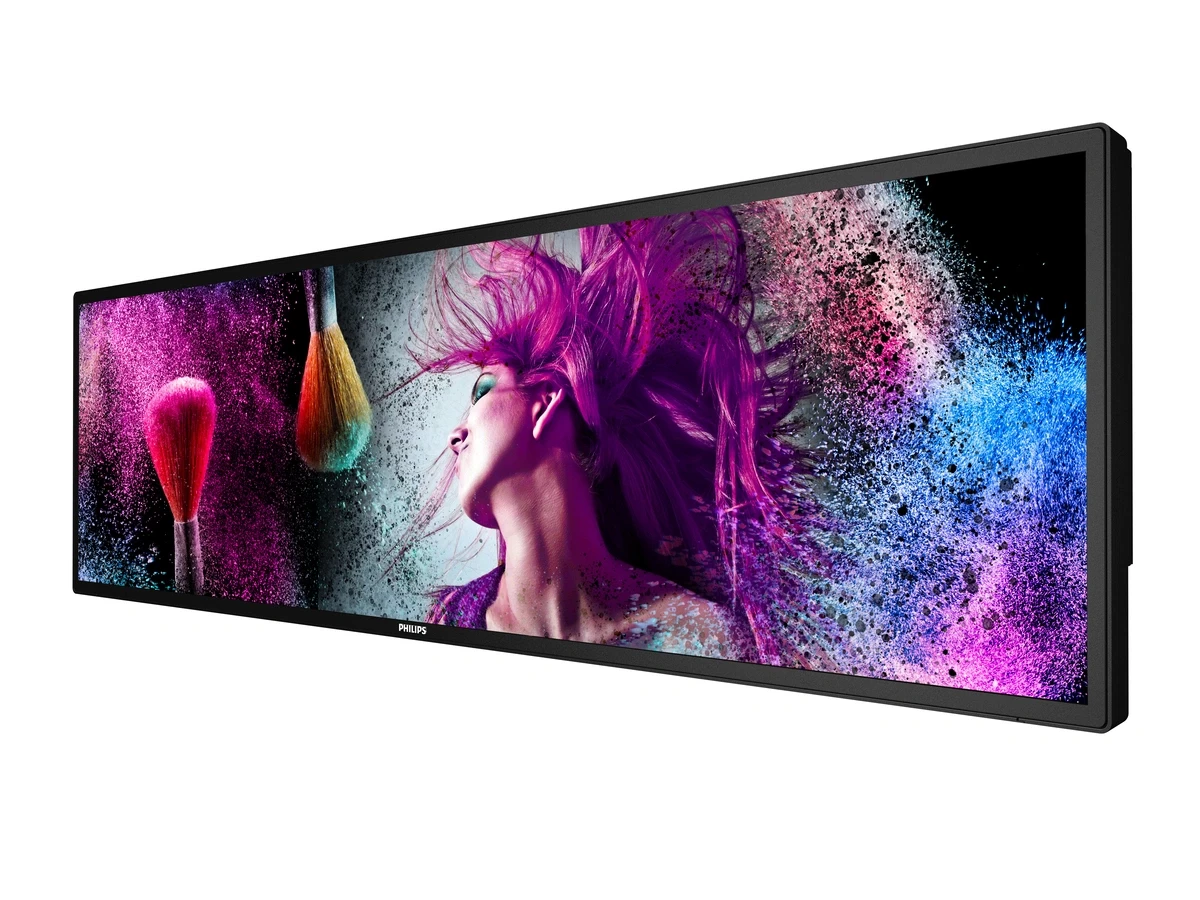

Philips S-Line 37BDL3050S/00 Stretch Signage Display
Product code:Widen the view. Widen your opportunities with the Philips S-Line. With its unique 32:9 design and 1920 x 540 resolution, high-brightness output and versatile linking, the new stretched digital signage display shows more in less space.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (inch) | 37 inch |
| Panel resolution | 1920 x 540 |
| Optimum resolution | 1920 x 540 @ 60 Hz |
| Brightness | 700 cd/m² |
| Response time (typical) | 8 ms |
| Aspect ratio | 32:9 |
| Viewing angle (horizontal/vertical) | 178 degree |
| Pixel pitch | 0.47 x 0.47 mm |
| Display colours | Normally Black |
| Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, De-interlacer, Progressive scan, 3D MA deinterlacing, Smart Picture, Colour Temperature Adjustment, Colour Enhancement, Noise Reduction |
| Panel technology | AG |
| Contrast ratio (typical) | 4000:1 |
| Operating system | Android 8.0 |
| Placement | Landscape (24/7), Portrait (24/7) |
Additional information
Supported Display Resolution
| Computer formats | 640 x 480, 60, 67, 75 Hz / 720 x 400, 70 Hz / 800 x 600, 60 Hz / 832 x 624, 75 Hz / 1024 x 768, 60 Hz / 1152 x 870, 75 Hz / 1280 x 720, 60 Hz / 1280 x 1024, 60 Hz / 1440 x 900, 60 Hz / 1680 x 1050, 60 Hz / 1920 x 1080, 60 Hz |
| Video formats | 480i, 60 Hz / 480p, 60 Hz / 576p, 50 Hz / 576i, 50 Hz / 720p, 50, 60 Hz / 1080i, 50, 60 Hz / 1080p, 50, 60 Hz |
Connectivity
| Video input | HDMI 2.0 (x 1), USB 2.0 (x 1), VGA (Analogue D-Sub) (x 1) |
| Audio input | 3.5 mm jack |
| Video output | HDMI 2.0 (x 1) |
| Audio output | 3.5 mm jack |
| External control | IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack |
Convenience
| Signal loop through | RS232, HDMI, IR Loop through |
| Network controllable | LAN (RJ45) |
Power
| Consumption (Typ./Max.) | 70 W / 85 W |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
Accessories
Included Accessories | AC Switch Cover, IR sensor cable (1.8 m) (x 1), Philips logo (x 1), Quick start guide (x 1), Remote control and AAA batteries, RS232 daisy chain cable, AC power cord, RS232 cable, HDMI cable, Wall mount bolt x2 |
Miscellaneous
| On-Screen Display Languages | Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese, Czech |
| Regulatory approvals | CE / FCC, Class A / CB |
| Warranty | 3 year warranty |
Internal Player
| Memory | 2 GB DDR3 |
| Storage | 8 GB eMMC |
Dimensions
| Set Width | 928.5 mm |
| Set Height | 282.3 mm |
| Set Depth | 48.7 mm |
| Bezel width | 12.4 mm(T/B); 10.5 mm(R/L) |
| Wall Mount | 400 mm x 200 mm , M6 |
| Product weight | 7.76 kg |
