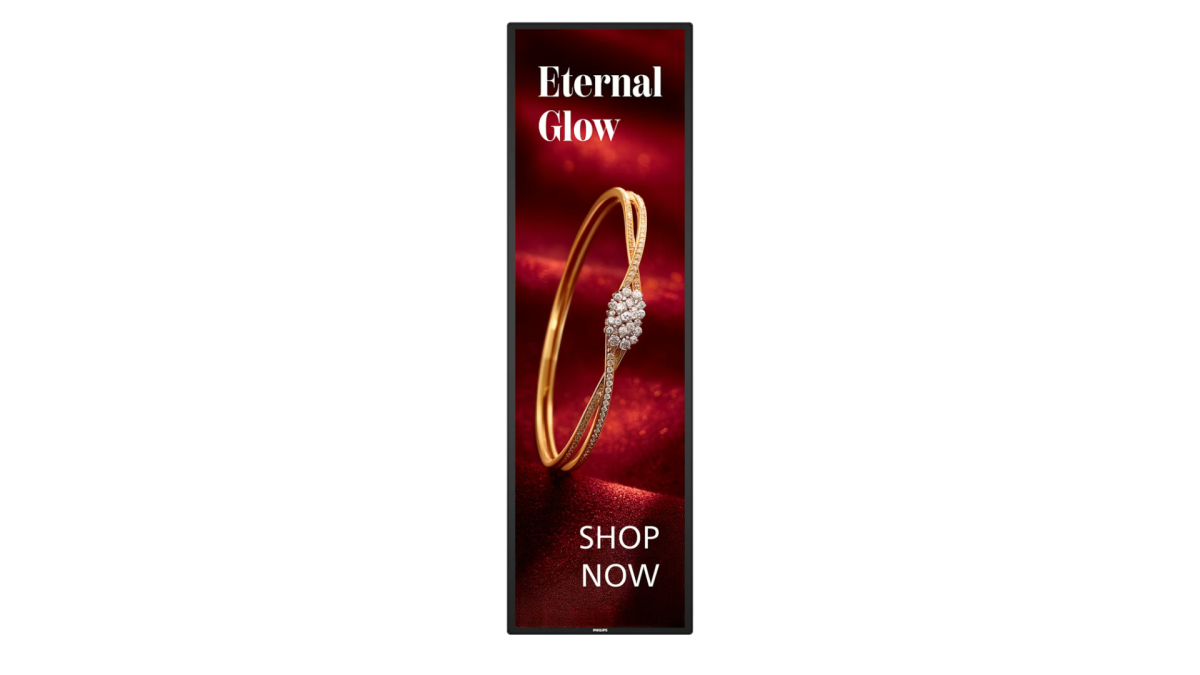

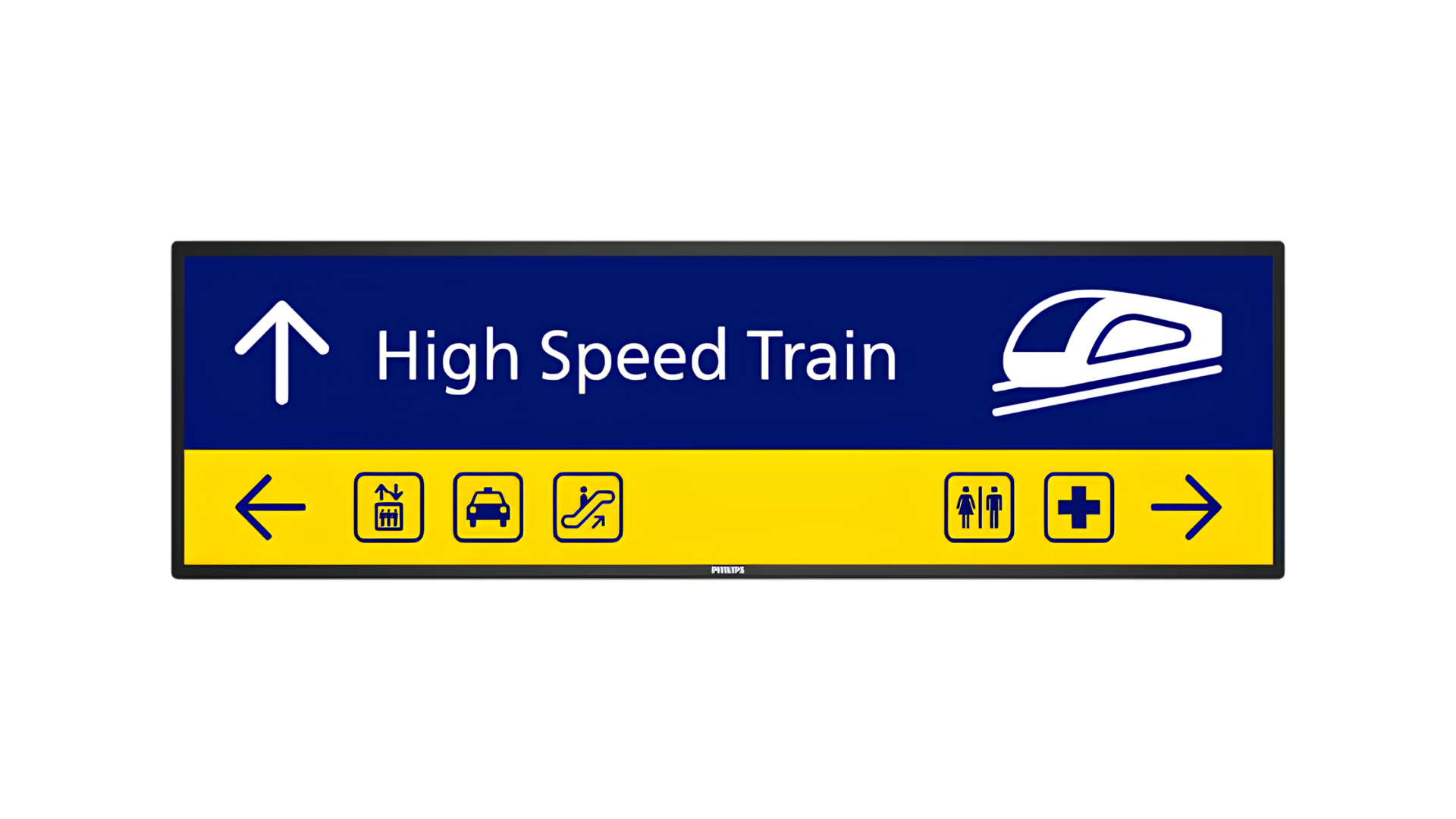

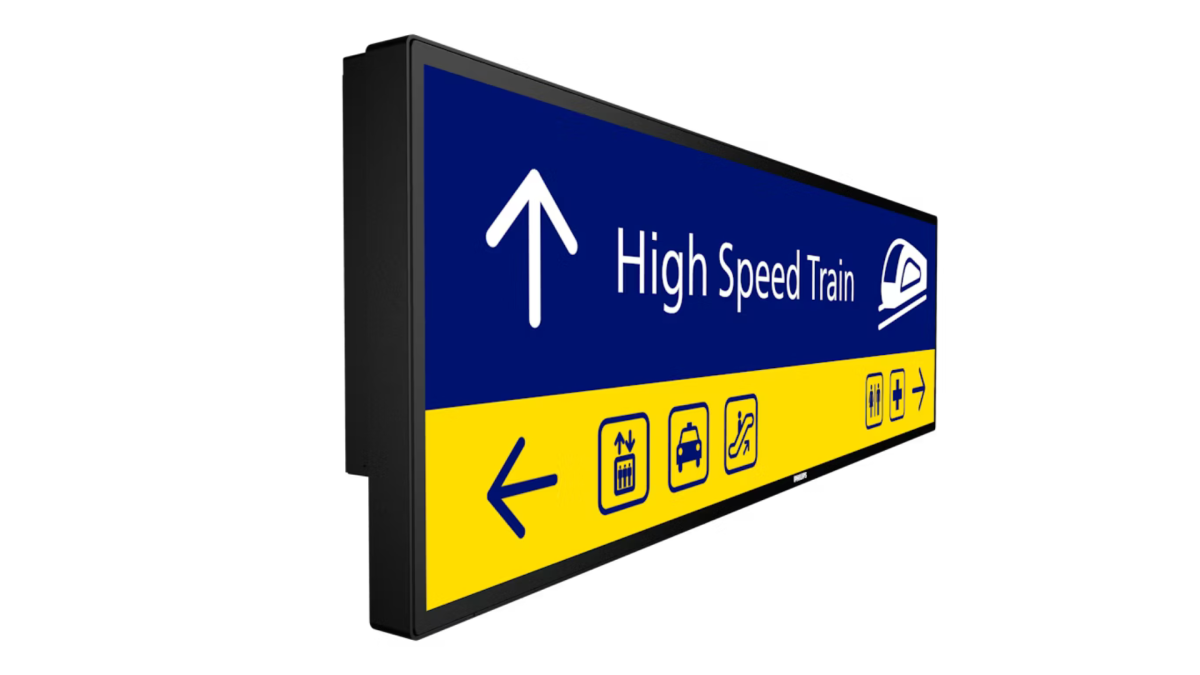

Philips S-Line 37BDL3150S/00 Stretch Signage Display
Product code:Broaden the view and show more content in less space with the Philips Stretch 3150. High bright and with Android SoC, a unique 32:9 aspect ratio and 1920 x 540 resolution, it is designed to flex beyond the ordinary with easy daisy chaining.
SEND AN ENQUIRYDescription
Picture/Display
| Optimum resolution | 1920 x 540 @ 60 Hz |
|---|---|
| Response time (typical) | 8 ms |
| Operating system | Android 13 |
| Panel technology | IPS |
| Brightness | 700 cd/m² |
| Viewing angle (vertical) | 178 degree |
| Contrast ratio (typical) | 1000:1 |
| Diagonal screen size (inch) | 37 inch |
| Placement | Landscape, Portrait, |
| Display colours | 16.7 M |
| Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, De-interlacer, Progressive scan, 3D MA deinterlacing, Smart Picture, Colour Temperature Adjustment, Colour Enhancement, Noise Reduction, |
| Panel resolution | 1920 x 540 |
| Pixel pitch | 0.47 x 0.47 mm |
| Viewing angle (horizontal) | 178 degree |
| Aspect ratio | 32:9 |
Additional information
Supported Display Resolution
| Computer formats | 640 x 480, 60, 67, 75 Hz, 720 x 400, 70 Hz, 800 x 600, 60 Hz, 832 x 624, 75 Hz, 1024 x 768, 60 Hz, 1152 x 870, 75 Hz, 1280 x 720, 60 Hz, 1280 x 1024, 60 Hz, 1440 x 900, 60 Hz, 1680 x 1050, 60 Hz, 1920 x 1080, 60 Hz, |
|---|---|
| Video formats | 480i, 60 Hz, 480p, 60 Hz, 576p, 50 Hz, 576i, 50 Hz, 720p, 50, 60 Hz, 1080i, 50, 60 Hz, 1080p, 50, 60 Hz, |
Connectivity
| Video input | HDMI 2.0, VGA, |
|---|---|
| External control | IR 3.5 mm jack, RJ45, RS232C 2.5 mm jack, |
| Audio input | 3.5 mm jack |
| Audio output | 3.5 mm jack |
| Other connections | USB 2.0, USB 3.0, micro USB, Micro SD, |
| Video output | HDMI 2.0 |
Convenience
| Signal loop through | RS232, HDMI, IR Loop through, |
|---|---|
| Network controllable | LAN |
Power
| Consumption | EEI Lot5 26 W |
|---|---|
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Standby power consumption | <0.5 W |
| Energy Label Class | F |
Accessories
| Optional accessories | CRD32 Wi-Fi 6, Bluetooth 5.2 module, |
|---|---|
| Included Accessories | AC Switch Cover, IR sensor cable, Philips logo, Quick start guide, Remote control and AAA batteries, RS232 daisy chain cable, AC power cord, RS232 cable, Wall mount bolt x2, Alignment plates, |
Miscellaneous
| Regulatory approvals | CE, FCC, Class A, CB, Energy Star 8.0, |
|---|---|
| On-Screen Display Languages | Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese, Czech, |
| Warranty | 3 year warranty |
Internal Player
| GPU | Multi-Core Mali-G52 |
|---|---|
| CPU | Quad-Core Cortex A55 |
| Memory | 4 GB DDR4 |
| Storage | 32 GB eMMc |
Dimensions
| Product weight | 7.57 kg |
|---|---|
| Product weight (lb) | 16.69 lb |
| Bezel width | 14.5 mm; 8.2 mm |
| Set Depth (inch) | 1.87 inch |
| Wall Mount | 400 mm x 200 mm, M6 |
| Set Height | 285.1 mm |
| Set Height (inch) | 11.22 inch |
| Set Width | 919.1 mm |
| Set Width (inch) | 36.19 inch |
| Set Depth | 47.4 mm |
